BODY FRONT END  9R-7

SSANGYONG  MY2002

11.8 - 16.96

5.78 - 8.68

9.40 - 18.8

6.63 - 8.11

16 - 23

7.84 - 11.76

12.74 - 25.48

9 - 11

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Ball Stud Bolt

Hood Hinges Bolts

Hood to Bolts of the Hinges Bolts

Spring Fix Bolt

Application

N•m

Lb-Ft

Lb-In

-

-

-

-

SECTION 9S

BODY REAR END

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................... 9S-2

Fuel Filler Door ..................................................... 9S-2

Components Locator ............................................ 9S-3

Lighting System .................................................. 9S-3

Repair Instructions ................................................ 9S-4

On-Vehicle Service Unit Repair ................................ 9S-4

Fuel Filler Door ..................................................... 9S-4

Fuel Filler Door Remote Handle and Cable ............ 9S-4

Specifications ....................................................... 9S-5

Fastener Tightening Specifications ....................... 9S-5

SSANGYONG  MY2002

9S-2  BODY REAR END

DESCRIPTION AND OPERATION

FUEL FILLER DOOR

The fuel filler door attaches to the fuel tank pocket of
the left side of the vehicle. The door is opened by
pulling on the fuel filler door remote handle located on
the floor in front of the driver’s seat.

BODY REAR END  9S-3

SSANGYONG  MY2002

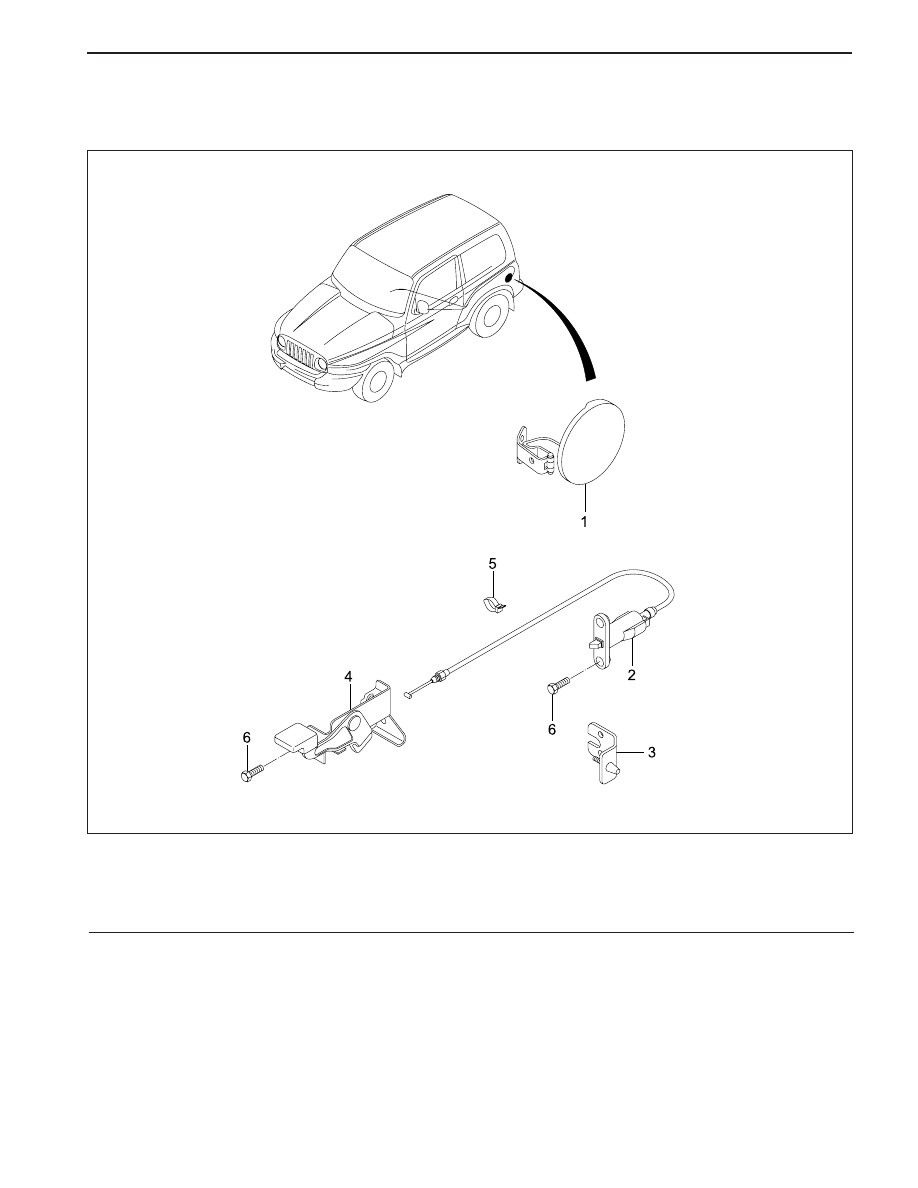

COMPONENTS LOCATOR

LIGHTING SYSTEM

KAA9S010

1 PNL & HE A-F/Filler DR
2 Catch & Cable-F/Filler DR
3 BRKT-F/Filler DR O/Slam

4 HDL A-F/Filler DR Release
5 Band
6 Screw-Hex SEMS
