EXTERIOR TRIM  9M-3

SSANGYONG  MY2002

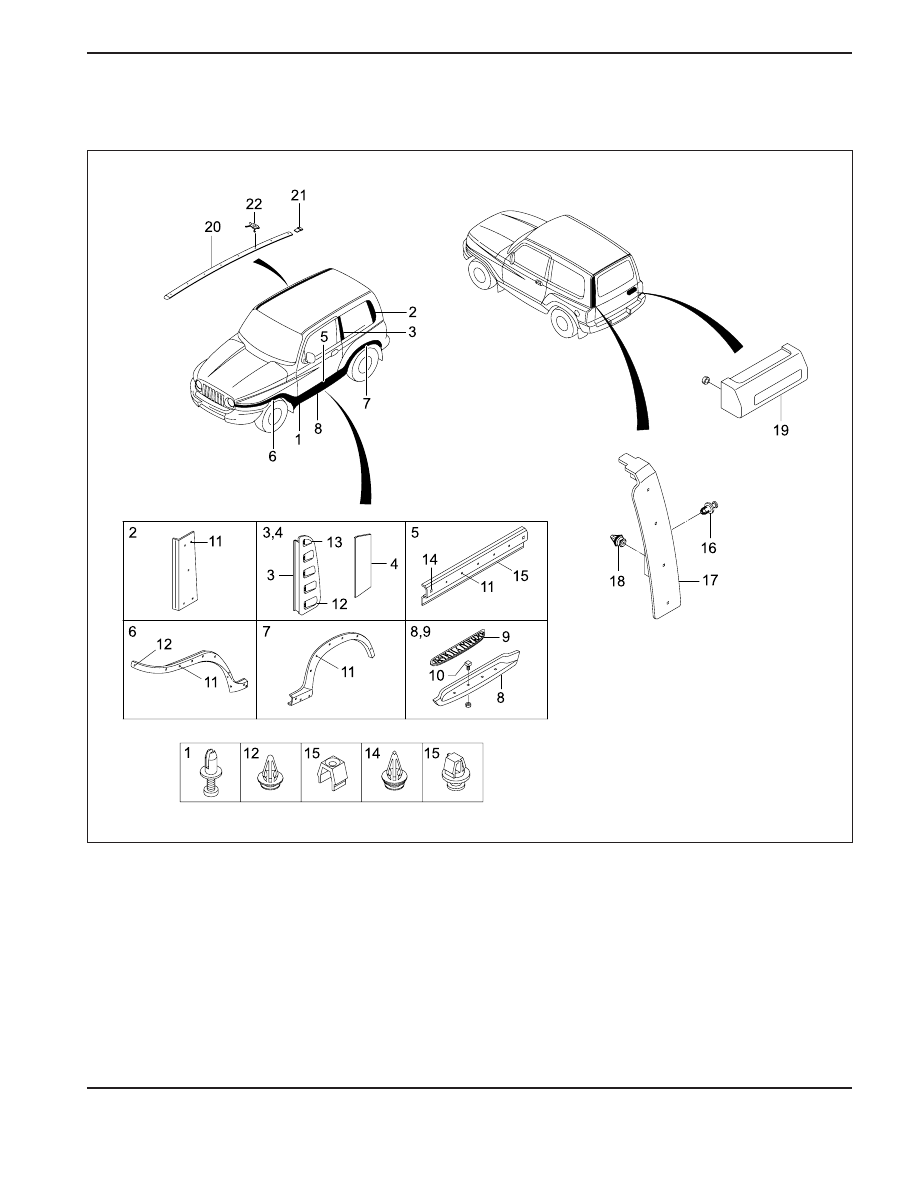

COMPONENTS LOCATOR

EXTERIOR TRIM

1 Rivet
2 B Pillar Cover
3 Air Extractor Grill
4 Air Extractor Grill Tape
5 Door Molding
6 Front Wheel Arch Molding
7 Rear Wheel Arch Molding
8 Side Step
9 Side Step Upper Cover

10 Bolt
11 Wheel Arch Clip

12 Garnish Clip
13 Garnish Clip
14 Door Molding Clip
15 Door Molding Clip
16 Clip
17 “C” Pillar Cover
18 Clip
19 Tailgate Garnish
20 Roof Molding
21 Roof Molding Endcap
22 Clip

KAA9M010

SSANGYONG  MY2002

9M-4  EXTERIOR TRIM

KAA9M030

KAA9M040

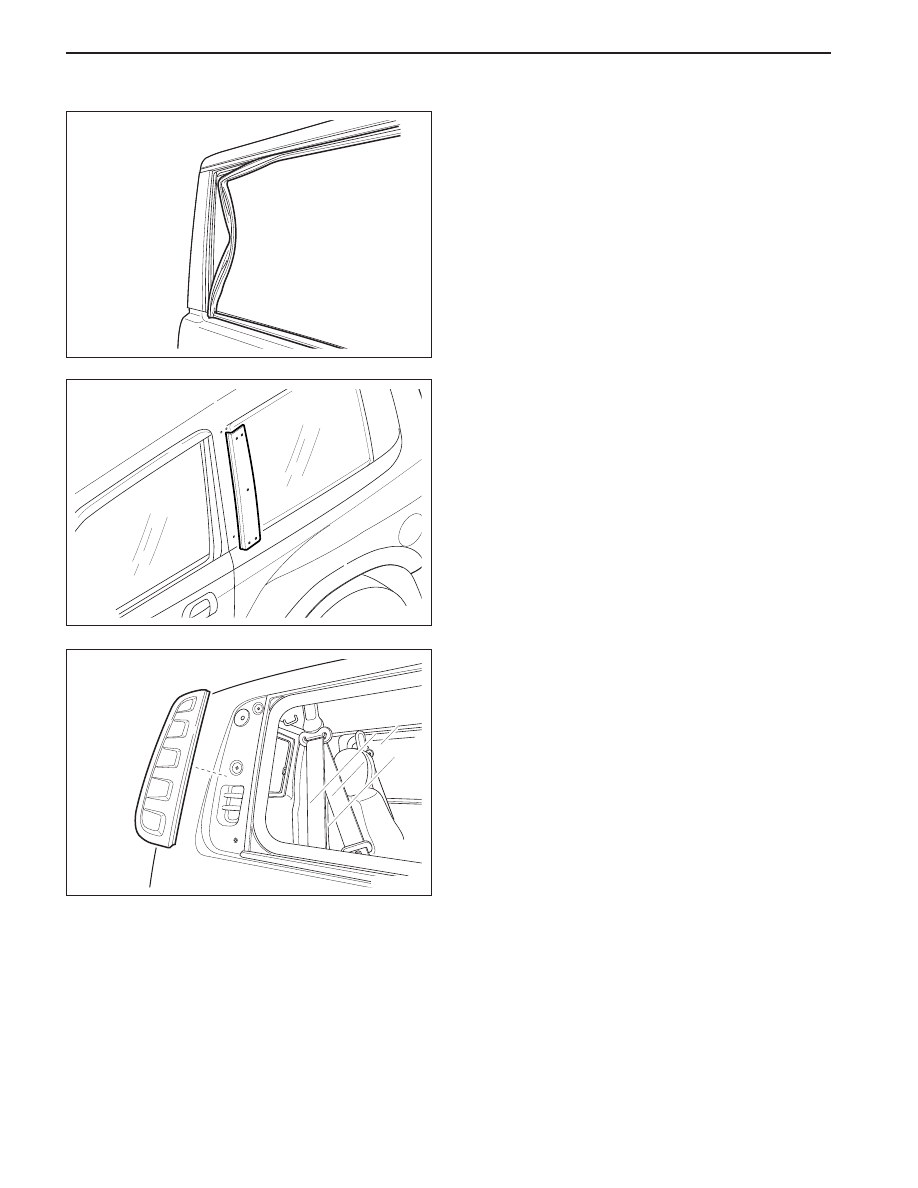

B-PILLAR COVER

Removal and Installation Procedure

1. Remove the B-pillar cover.

2. Installation should follow the removal procedure

in the reverse order.

AIR EXTRACTOR GRILLE

Removal and Installation Procedure

1. Remove the air extractor grille.

2. Installation should follow the removal procedure

in the reverse order.

KAA9M020

ON-VEHICLE SERVICE

UNIT REPAIR

B-PILLAR MOLDING

Removal and Installation Procedure

1. Remove the door guide rail from the door. Refer

to Section 9P, Doors.

2. Remove the screws from the door.

3. Remove the B-pillar molding.

4. Installation should follow the removal procedure

in the reverse order.

REPAIR INSTRUCTIONS

EXTERIOR TRIM  9M-5

SSANGYONG  MY2002

KAA9M050

KAA9M060

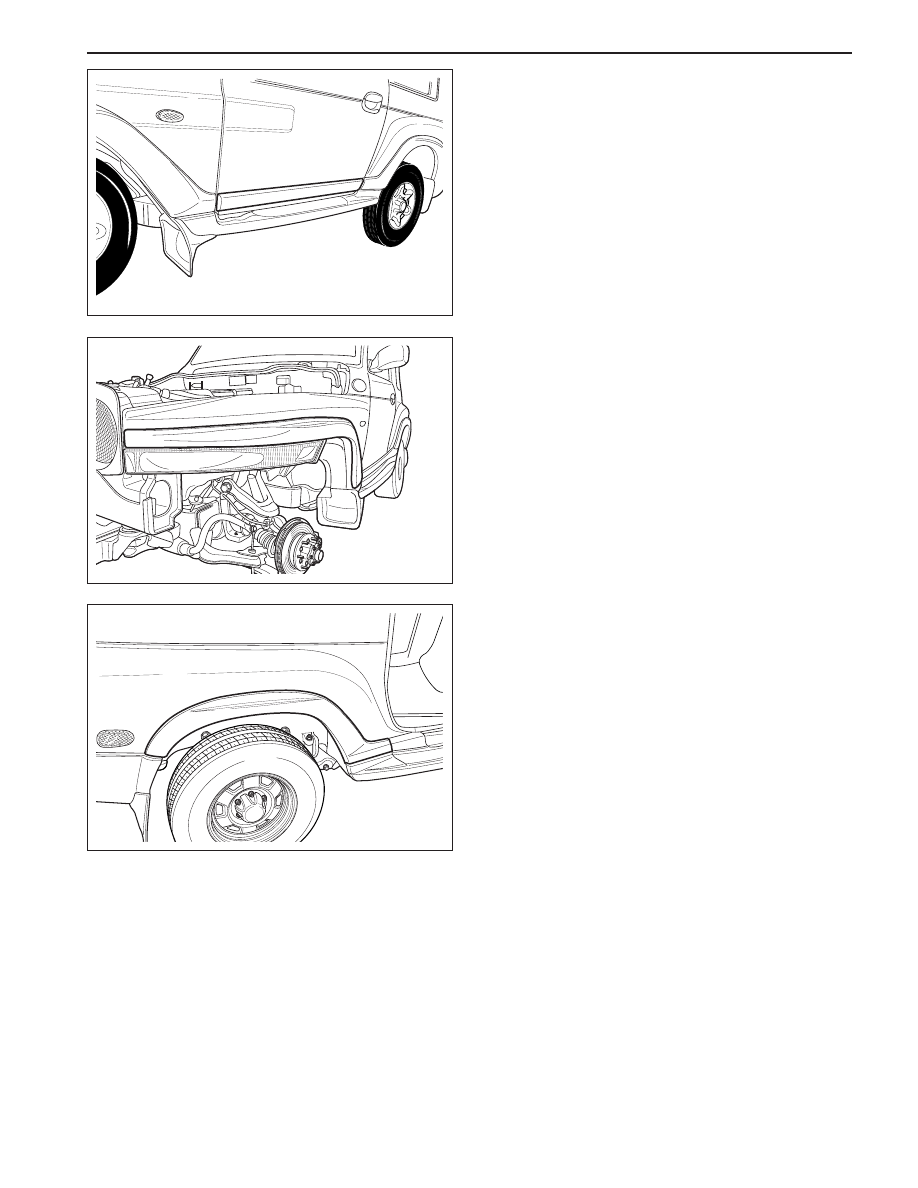

FRONT WHEEL MOLDING

Removal and Installation Procedure

1. Remove the front combination lamp. Refer to

Section 9B, Lighting System.

2. Remove the front wheel molding screws.

3. Remove the front wheel molding from the body.

4. Installation should follow the removal procedure

in the reverse order.

DOOR MOLDING

Removal and Installation Procedure

1. Remove the door protective molding.

2. Installation should follow the removal procedure

in the reverse order.

REAR WHEEL MOLDING

Removal and Installation Procedure

1. Remove the rear wheel molding screws.

2. Remove the rear wheel molding from the body.

3. Installation should follow the removal procedure

in the reverse order.

KAA9M070

SSANGYONG  MY2002

9M-6  EXTERIOR TRIM

KAA9M090

KAA9M100

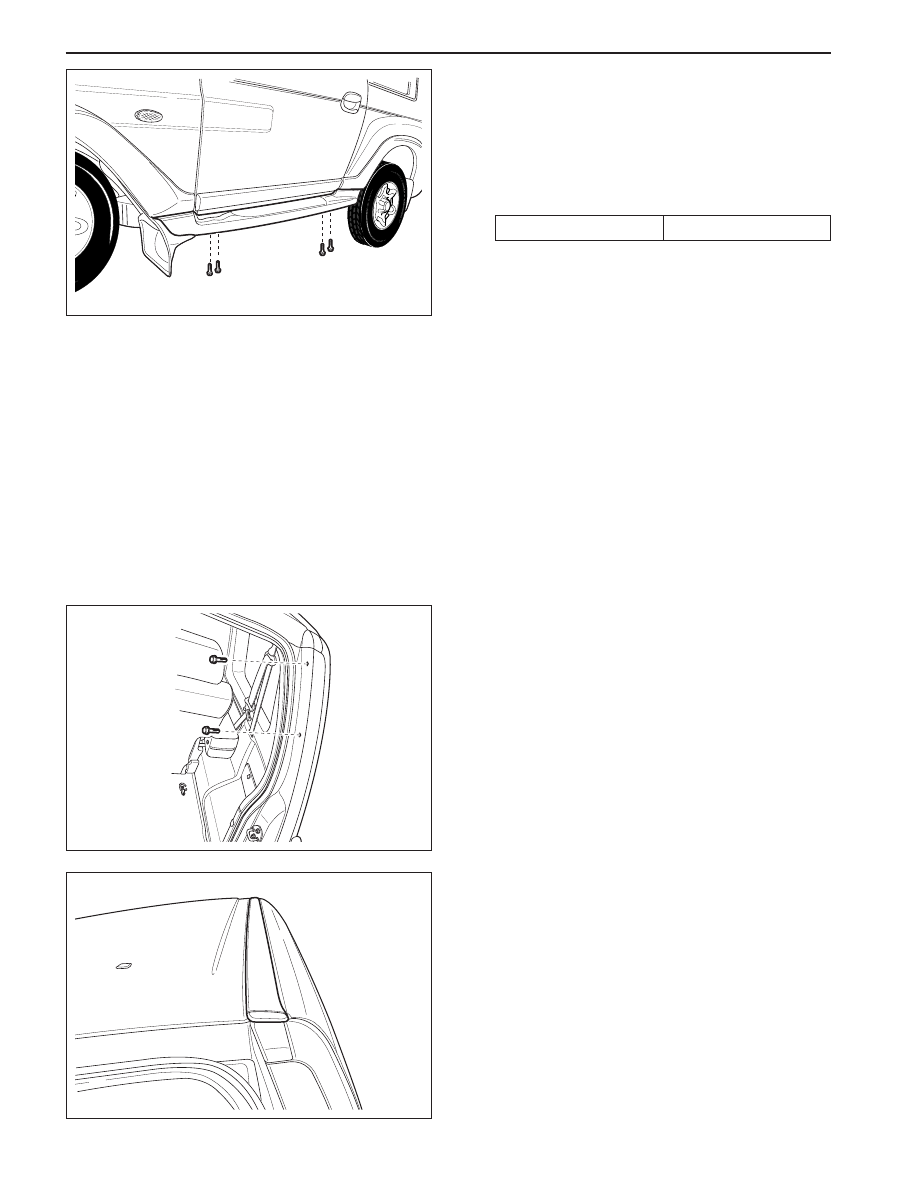

C-PILLAR COVER

Removal and Installation Procedure

1. Open the tailgate.

2. Remove the C- pillar cover with the screws.

3. Installation should follow the removal procedure

in the reverse order.

3. Remove the side step from the body.

4. Installation should follow the removal procedure

in the reverse order.

ROOF MOLDING

Removal and Installation Procedure

1. Remove the C-pillar cover. Refer to “C-pillar

Cover” in this section.

2. Remove the roof molding.

3. Installation should follow the removal procedure

in the reverse order.

SIDE STEP

Removal and Installation Procedure

1. Remove the Mud guard. Refer to “Mud Guard” in

this section.

2. Remove the side step mounting bolts.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

KAA9M080

Tightening Torque

15 N•m(11 lb-ft)
