BODY WIRING SYSTEM  9A-15

SSANGYONG  MY2002

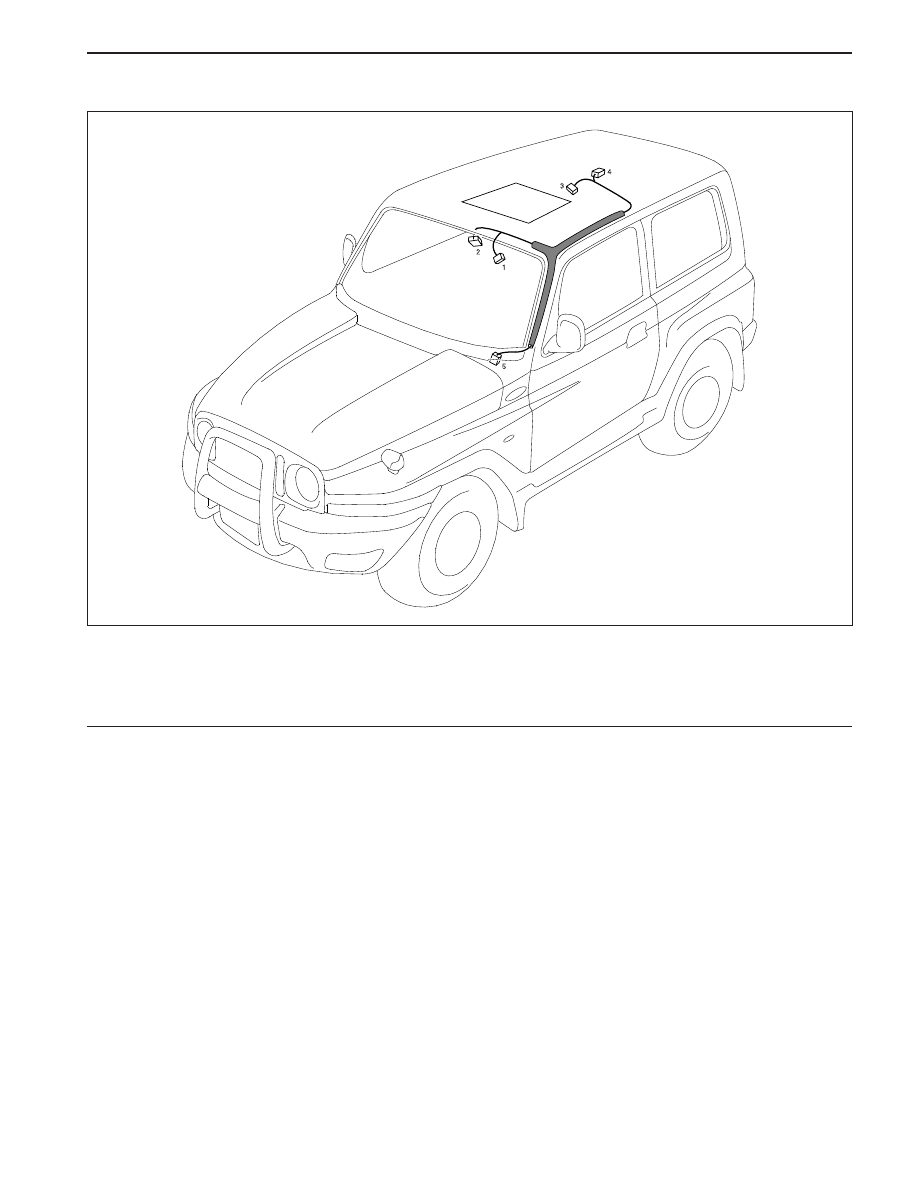

W/H ROOF

1 Inside rear view mirror
2 Room lamp
3 Not used

4 Map lamp
5 C201

KAA9A100

SSANGYONG MY2002

9A-16  BODY WIRING SYSTEM

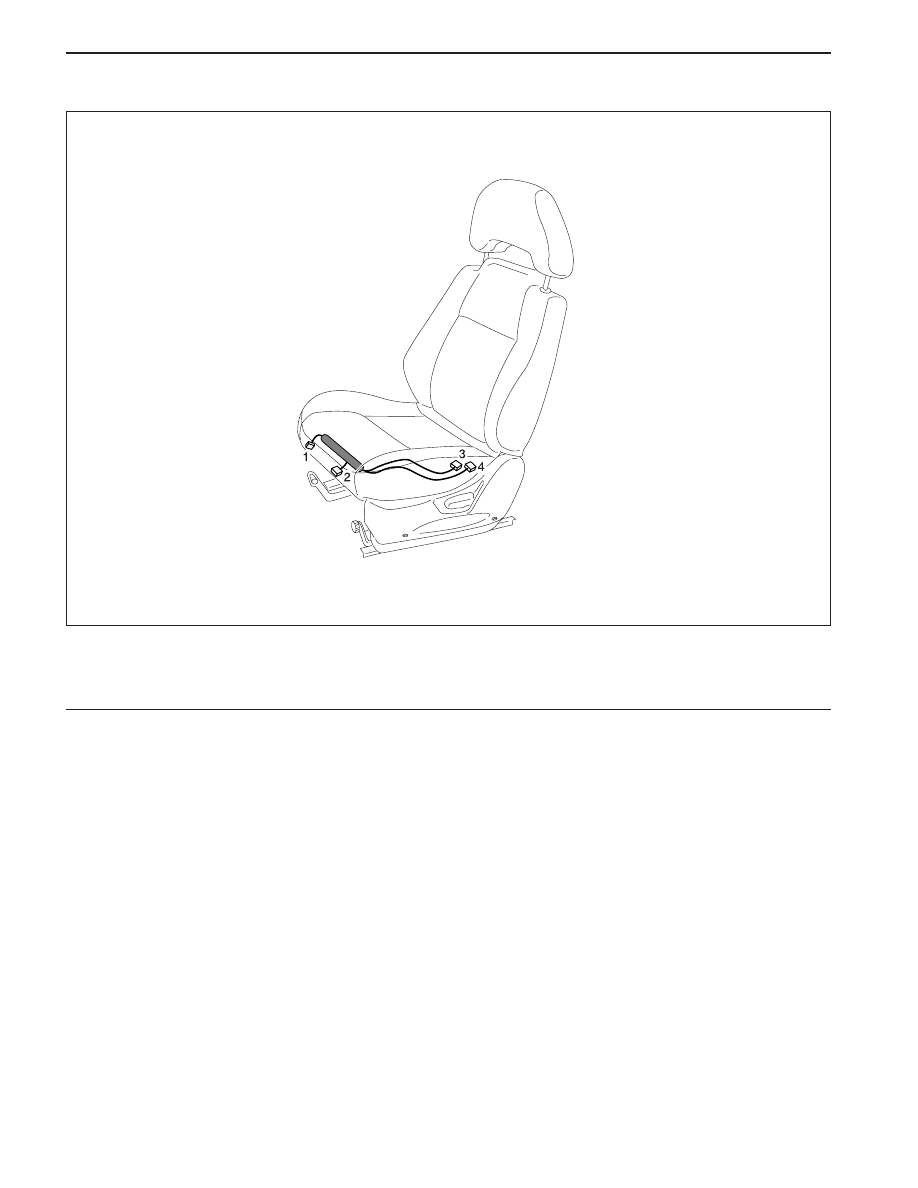

W/H SEAT HEATER

1 C304
2 Seat heater control unit

3 Seat heater
4 Back seat heater

KAA9A110

BODY WIRING SYSTEM  9A-17

SSANGYONG  MY2002

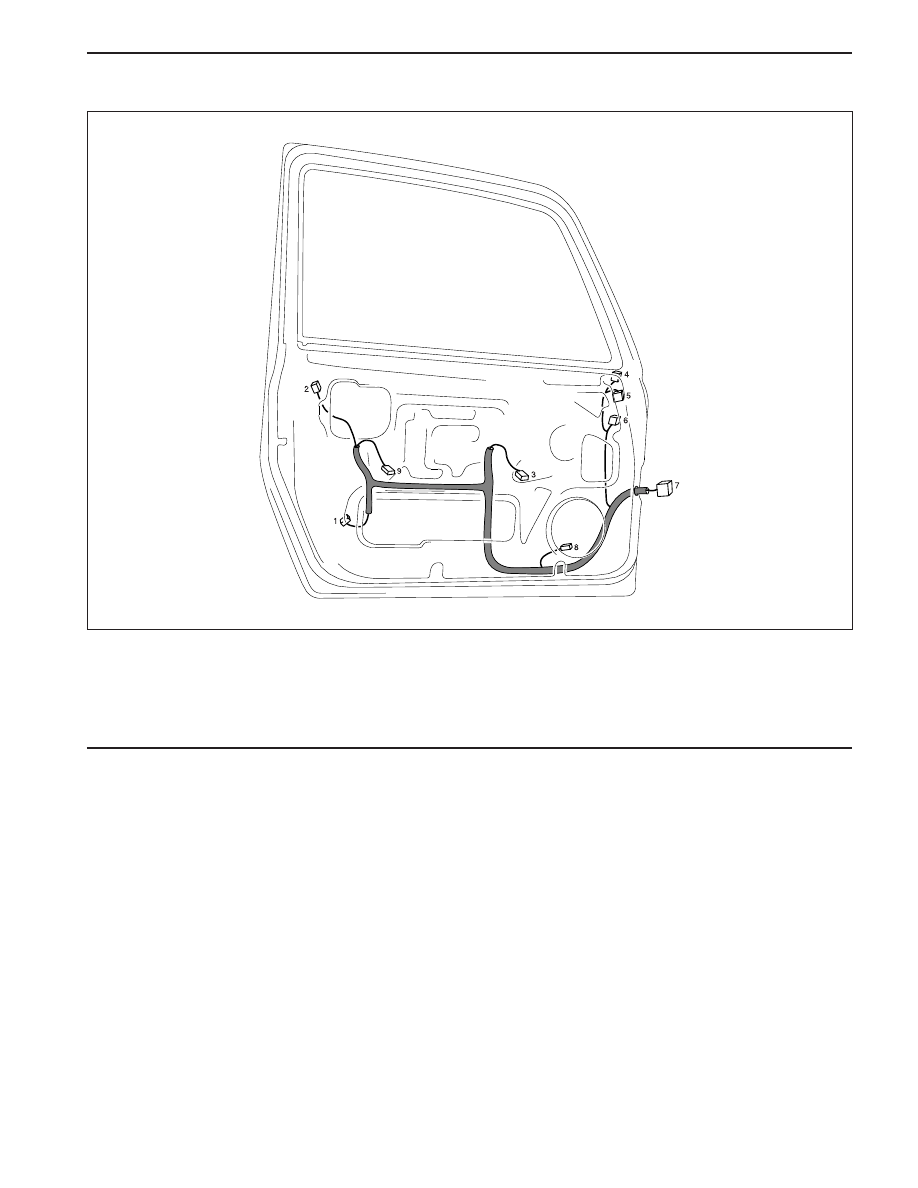

W/H DOOR

1 Door actuator
2 Door key cylinder switch
3 Power window switch
4 OSRV mirror motor

5 Power window motor
8 Speaker
9 Courtesy lamp

KAA9A120

SSANGYONG MY2002

9A-18  BODY WIRING SYSTEM

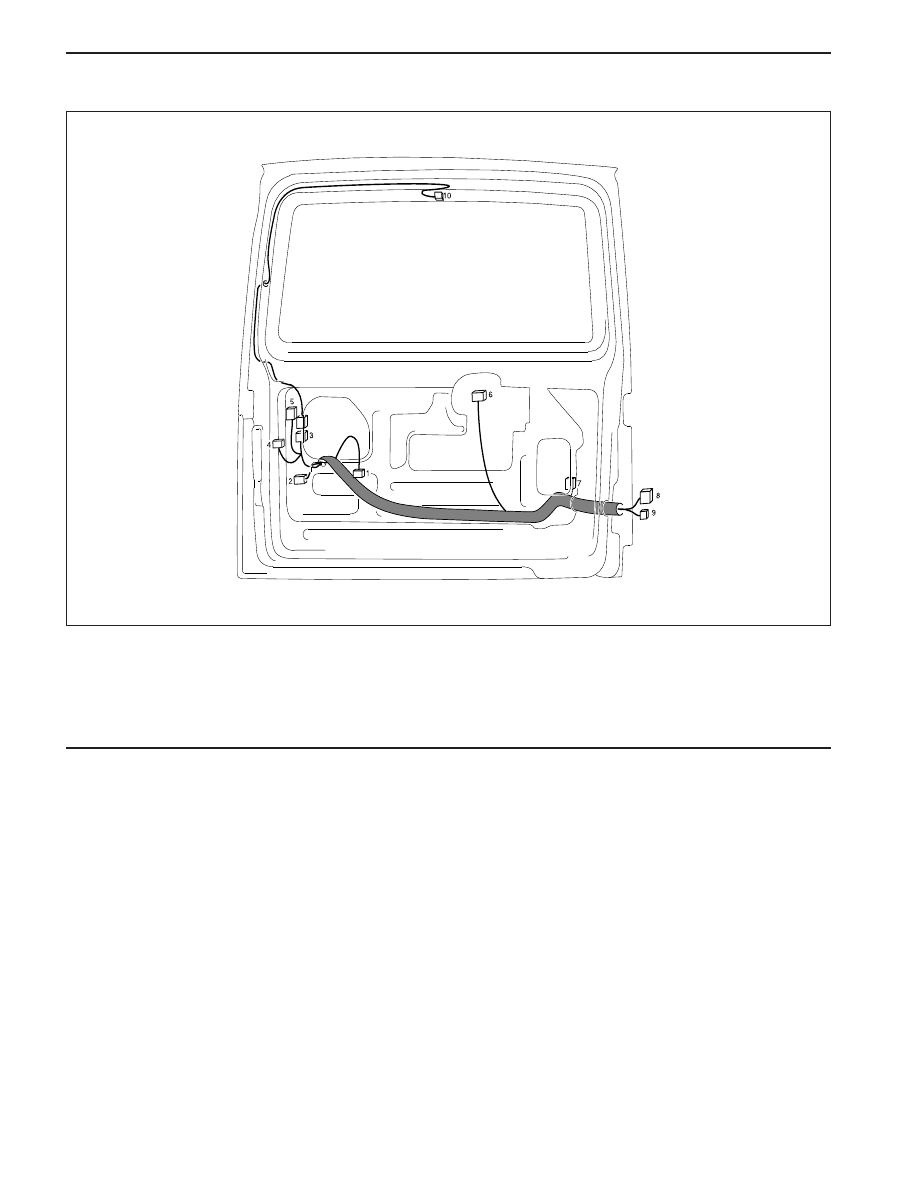

W/H TAIL GATE

1 Rear washer motor
2 Tail gate door lock actuator
3 C403 (soft top)
4 Tail gate key cylinder sw

5 Rear heated glass
6 Rear wiper motor
7 Rear heated glass

KAA9A130
