8B-68  SUPPLEMENTAL RESTRAINTS SYSTEM

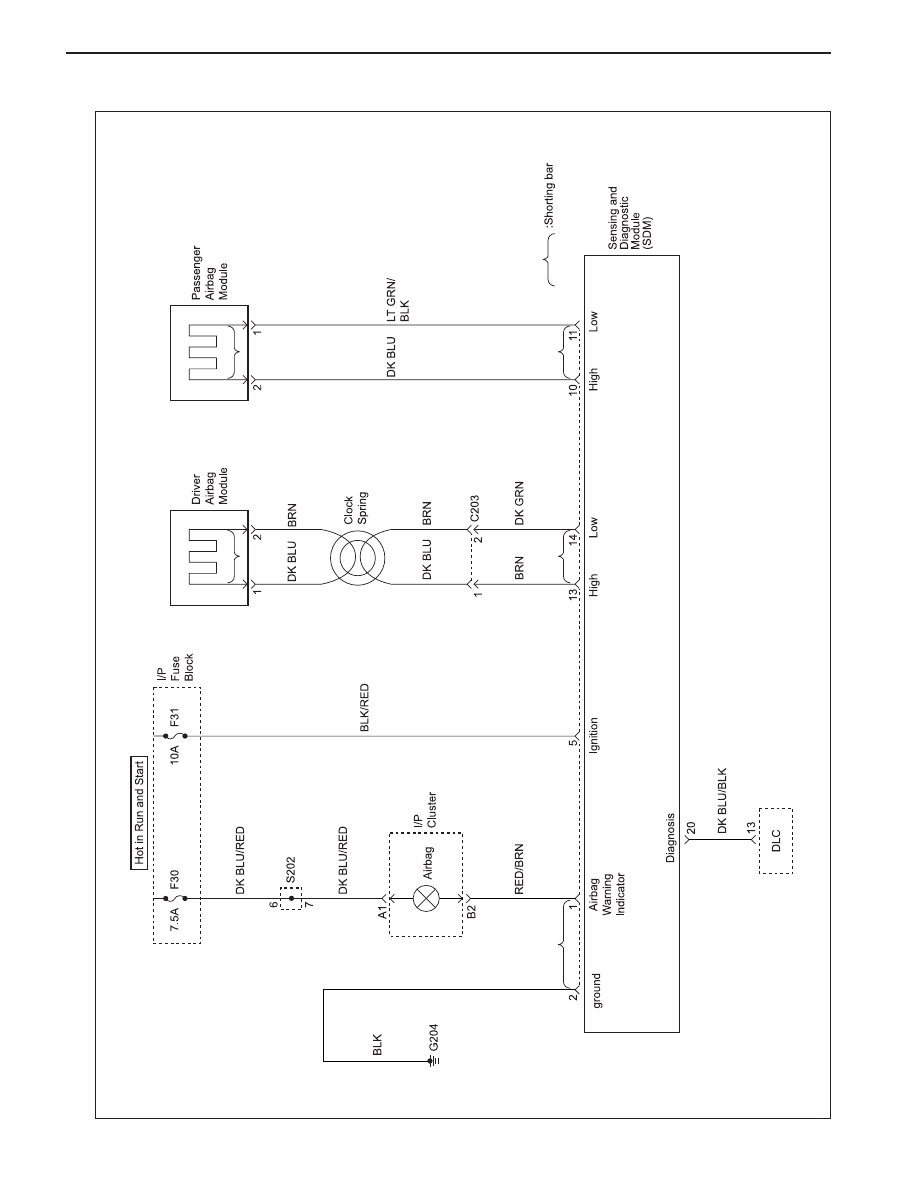

SCHEMATIC AND WIRING DIAGRAMS

SUPPLEMENTAL RESTRAINT SYSTEM

KAA8B190

SUPPLEMENTAL RESTRAINTS SYSTEM  8B-69

SSANGYONG  MY2002

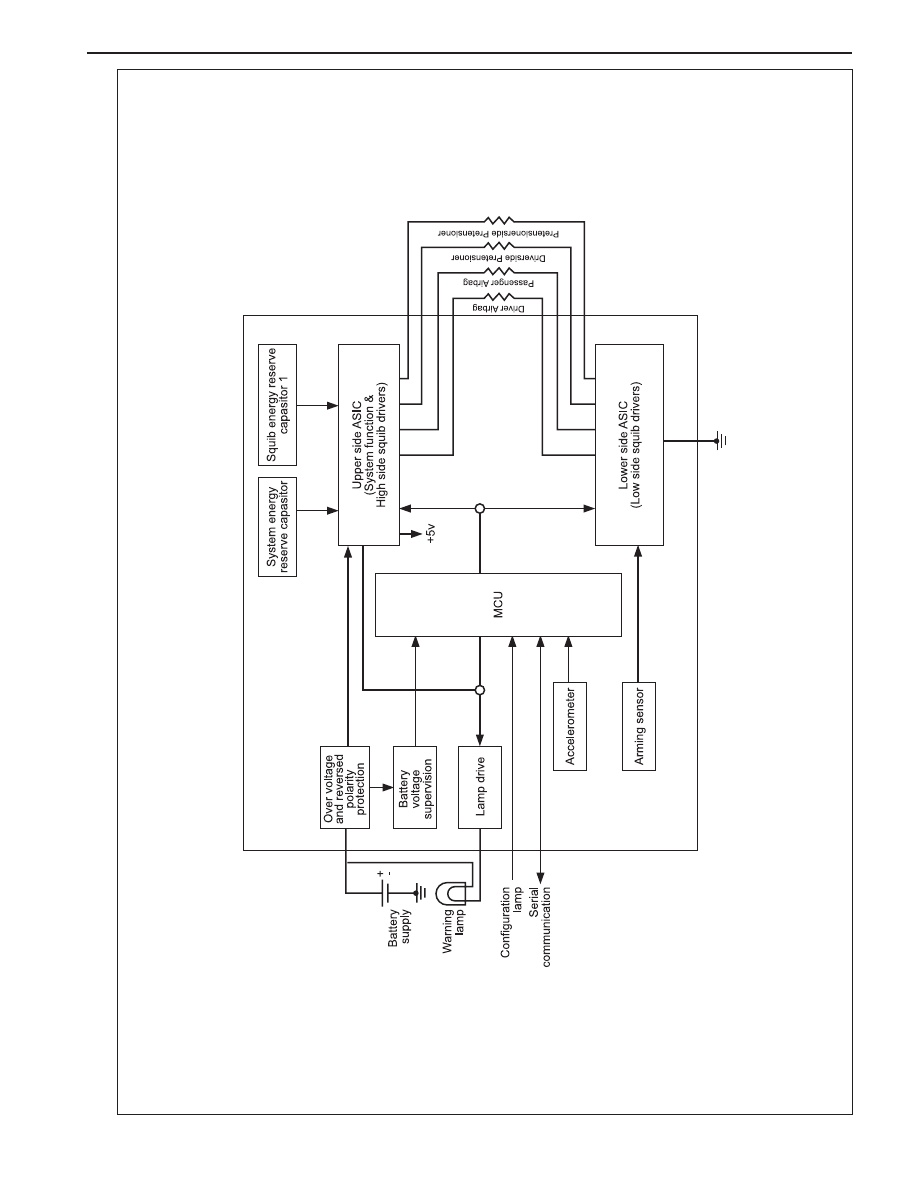

SUPPLEMENTAL RESTRAINT SYSTEM SCHEMATIC DIAGRAM

KAA8B200

SECTION 9A

BODY WIRING SYSTEM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

General Description ............................................. 9A-2

Wire Color Chart .................................................. 9A-2

Engine Room Fuse & Relay Box .........................  9A-3

Usage of Fuse in Engine Room Fuse Box ............. 9A-5

Passenger Room Fuse Box .................................. 9A-6

Usage of Fuse in Engine Room Fuse Box ............. 9A-7

Schematic and Routing Diagrams ....................... 9A-8

Engine Room Fuse & Relay Circuit ....................... 9A-8

Wiring Harness & Connector &
Ground Location ................................................. 9A-11

W/H Engine Room ............................................. 9A-11

W/H Main .......................................................... 9A-12

W/H Main (Floor) ...............................................  9A-14

W/H Roof .......................................................... 9A-15

W/H Seat Heater ................................................ 9A-16

W/H Door .......................................................... 9A-17

W/H Tail Gate .................................................... 9A-18

W/H Air-Conditioner ........................................... 9A-19

W/H Engine Control (Gasoline) ........................... 9A-20

W/H Pre-Heating (Diesel) ................................... 9A-21

W/H Transmission .............................................. 9A-22

SSANGYONG MY2002

9A-2  BODY WIRING SYSTEM

GENERAL DESCRIPTION

WIRE COLOR CHART

Green

Light Green

Blue

Brown

Orange

Yellow

Grey

Sky Blue

Red

Black

Pink

White

Purple

Wire Color

Abbreviation On Schematic

DK GRN

LT GRN

DK BLU

BRN

ORN

YEL

GRY

LT BLU

RED

BLK

PNK

WHT

PPL
