SUPPLEMENTAL RESTRAINTS SYSTEM  8B-5

SSANGYONG  MY2002

KAA8B060

AIRBAG WARNING LAMP

The instrument cluster contains an airbag warning indi-
cator bulb to verify the operation of the airbag indicator
and sensing and diagnostic module (SDM). The SDM
performs a start-up test when the ignition is turned ON
and turns the airbag indicator on for 4.5 seconds by
supplying an internal ground to the indicator lamp
circuit. After 4.5 seconds, the airbag indicator will turn
off if no more malfunctions have been detected.

If the SDM has detected malfunctions, which could
potentially affect the operation of the supplemental
restraint system (SRS) it turns on or blinks the airbag
warning indicator. The airbag indicator stays on for
the malfunction of internal system and blinks for
external circuit problem such as short to battery or

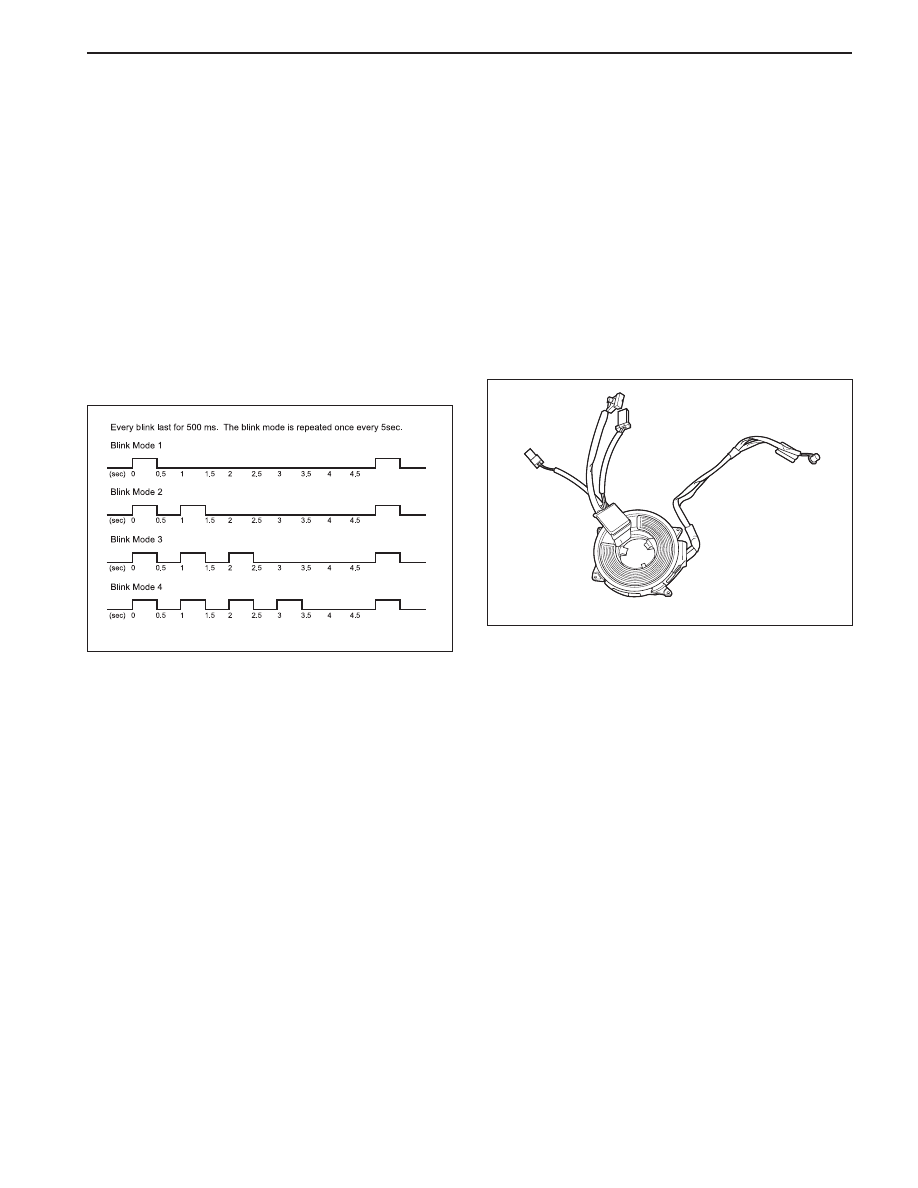

ground. The airbag indicator blinks four different modes
according to the fault.

Some malfunctions could result in non-deployment
when necessary or deployment under conditions which
would no normally result in deployment.

When the SDM is not properly attached to its connector
the airbag circuit is shorted to ground because there
is a shorting bar within the SDM electronic connector.
The shorting bar is disengaged when proper connection
is made, but if a poor connection exists the SDM
connector supplies a ground to the airbag indicator in
dependently of the SDM, and the airbag indicator turns
on.

CLOCK SPRING

Caution: Disassembling the clock spring can cause
injury or cause the clock spring to malfunction.

Caution: Over-rotating the clock spring without the
steering wheel in position could damage the clock
spring and result in an inoperative driver airbag.

There is a coil assembly in the steering which is referred
to as a clock spring because of its internal resemblance
to the type of spring used in a mechanical clock. The
clock spring should never be disassembled, and there
is no timekeeping function. The clock spring contains
current- carrying coils. One of the current-carrying coils
maintains continuous contact within the driver deploy-
ment loop while the steering wheel is rotated. The clock
spring also contains coils that maintain continuous con-
tact for horn and remote audio control switch.

Turning the steering wheel in one direction tightens
the coil, and turning the steering wheel in the opposite
direction loosens the coil. Do not turn the clock spring
when the steering wheel is not attached.

A yellow two-way connector on the lower steering col-
umn is attached to the clock spring wiring.

WIRING HARNESS CONNECTORS

If the sensing and diagnostic module (SDM) electrical
connector is not attached properly, a built in shorting
bar will connect the wire from airbag warning lamp with
the SDM ground wire. This turns on the airbag indicator.

To prevent deployment during servicing, additional
shorting bars are located in following locations:

The clock spring electrical connector at the lower
steering column.

The passenger airbag module.

The driver airbag module.

The seat belt pretensioners.

The SDM connector.

The shorting bar is only a backup safety device. Always
disable the supplemental restraints system (SRS) be-
fore beginning any service procedure.

KAA8B070

SSANGYONG  MY2002

8B-6  SUPPLEMENTAL RESTRAINTS SYSTEM

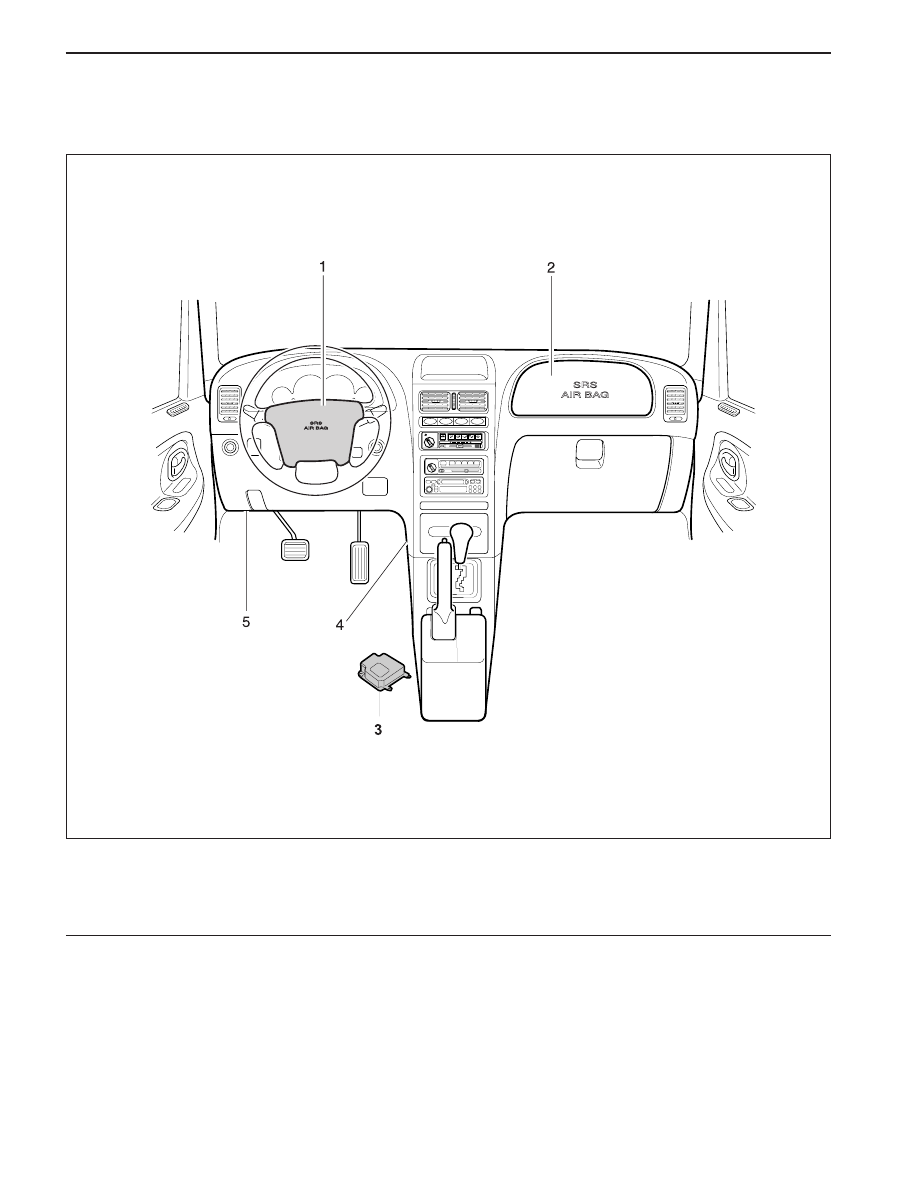

COMPONENTS LOCATOR

SRS COMPONENT AND WIRING LOCATION VIEW

1 Driver Airbag Module & Clock Spring
2 Passenger Airbag Module
3 Sensing And Diagnostic Module (SDM)

KAA8B080

4 Data Link Connector (DLC)
5 Pretensioner (at A Pillar)

SUPPLEMENTAL RESTRAINTS SYSTEM  8B-7

SSANGYONG  MY2002

Driver Deployment Loop Shorted to Voltage

Passenger Deployment Loop Shorted to Voltage

Driver Seat Belt Pretensioner Shorted to Voltage

Passenger Seat Belt Pretensioner Shorted to Voltage

Driver Deployment Loop Shorted to Ground

Passenger Deployment Loop Shorted to Ground

Driver Seat Belt Pretensioner Shorted to Ground

Passenger Seat Belt Pretensioner Shorted to Ground

Driver Energy Shutdown Switch Error

Passenger Energy Shutdown Switch Error

Driver Seat Belt Pretensioner Energy Shutdown Switch Error

Passenger Seat Belt Pretensioner Energy Shutdown

Switch Error

Driver Ignition Switch Fault Internal

Passenger Ignition Switch Fault Internal

Driver Seat Belt Pretensioner Ignition Switch Fault

Passenger Seat Belt Pretensioner Ignition Switch Fault

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC TROUBLE CODES
(DTC)

When the sensing and diagnosticmodule (SDM)
detects any problem it illuminates or blinks the airbag
warning indicator and keeps the diagnostic trouble
codes (DTCs). The supplemental restraint system
(SRS) Diagnostic System Check must always be the
starting point for any SRS diagnosis. The SRS
Diagnostic System Check reveals DTCs through the
use of scan tool. It also checks for proper airbag
warning lamp operation.

The two types of DTCs that may be recorded are as
follows:

1. Current DTCs represent malfunction currently being

detected. Current DTCs are stored in random
access memory (RAM).

2. Historic DTCs represent malfunctions detected since

the last time the historic memory was cleared.
Historic DTCs are stored in the electrically erasable
programmable read-only memory (EEPROM).

The DTC is differentiates internal and external faults
upon the cause of the defects. Internal faults can not
be cured, replace the SDM. Refer to “Diagnostic
Trouble Code Table” in this section.

SCAN TOOL DIAGNOSTICS

A scan tool can read serial data from terminal 9 of the
data link connector (DLC). The scan tool is used to
read diagnostic trouble codes (DTCs), and to clear
some DTCs after a repair is completed. By design,
certain codes cannot be cleared.

To use the scan tool, turn the ignition OFF, connect
the scan tool to the DLC, and turn the ignition switch
to ON. Follow the instructions in the scan tool manual.
The SDM sends serial data from terminal 20 of the
SDM to terminal 9 of the DLC.

USE OF SPECIAL TOOLS

Use a scan tool to read and clear diagnostic trouble
codes (DTCs). A connector adapter kit provides
jumper wires and terminal adapters to make it easier
to test small terminals. In diagnostic testing, use load
tool or dummy resistance to substitute for airbag
modules.

DIAGNOSTIC TROUBLE CODE TABLE

DTC

Description

Airbag Warn-

ing Indicator

Blink Mode

Error Handing

Type of the

Faults

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

3

3

4

4

3

3

4

4

Partial

Shutdown

SSANGYONG  MY2002

8B-8  SUPPLEMENTAL RESTRAINTS SYSTEM

Driver Deployment Loop Resistance High

Passenger Deployment Loop Resistance High

Driver Seat Belt Pretensioner Deployment Loop

Resistance High

Passenger Seat Belt Pretensioner Deployment Loop

Resistance High

Driver Deployment Loop Resistance Low

Passenger Deployment Loop Resistance Low

Driver Seat Belt Pretensioner Deployment Loop

Resistance Low

Passenger Seat Belt Pretensioner Deployment Loop

Resistance Low

Driver Deployment Loop Energy Reserve Voltage

Passenger Deployment Loop Energy Reserve Voltage

Driver Seat Belt Pretensioner Deployment Loop Energy

Reserve Voltage

Passenger Seat Belt Pretensioner Deployment Loop

Energy Reserve Voltage

System Energy Reserve Voltage

Safety Energy Reserve Capacitor Voltage

Driver Deployment Loop Energy Reserve Current off

Capacity

Passenger Deployment Loop Energy Reserve Current

off Capacity

Driver Seat Belt Pretensioner Deployment Loop Energy

Reserve Current off Capacity

Passenger Seat Belt Pretensioner Deployment Loop

Energy Reserve Current off Capacity

5th Energy Reserve Current off Capacity

Condenser Voltage

Collision Times Checksum

Accelerometer Error

Accelerometer Off-Set Error

Arming Sensor Shorted

Major Upper Side Application Specific Integrated Circuit

Application Specific Integrated Circuit Over Heat

Micro Control Unit Error

Standard Band Gap

Temperature Sensor

Warning Lamp circuit open or short to ground/battery

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

Diagnostic Trouble Code Table (Cont’d)

DTC

Description

Airbag Warn-

ing Indicator

Blink Mode

Error Handing

Type of the

Faults

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

Internal

1

2

4

4

1

2

4

4

Partial

Shutdown

Total

Shutdown
