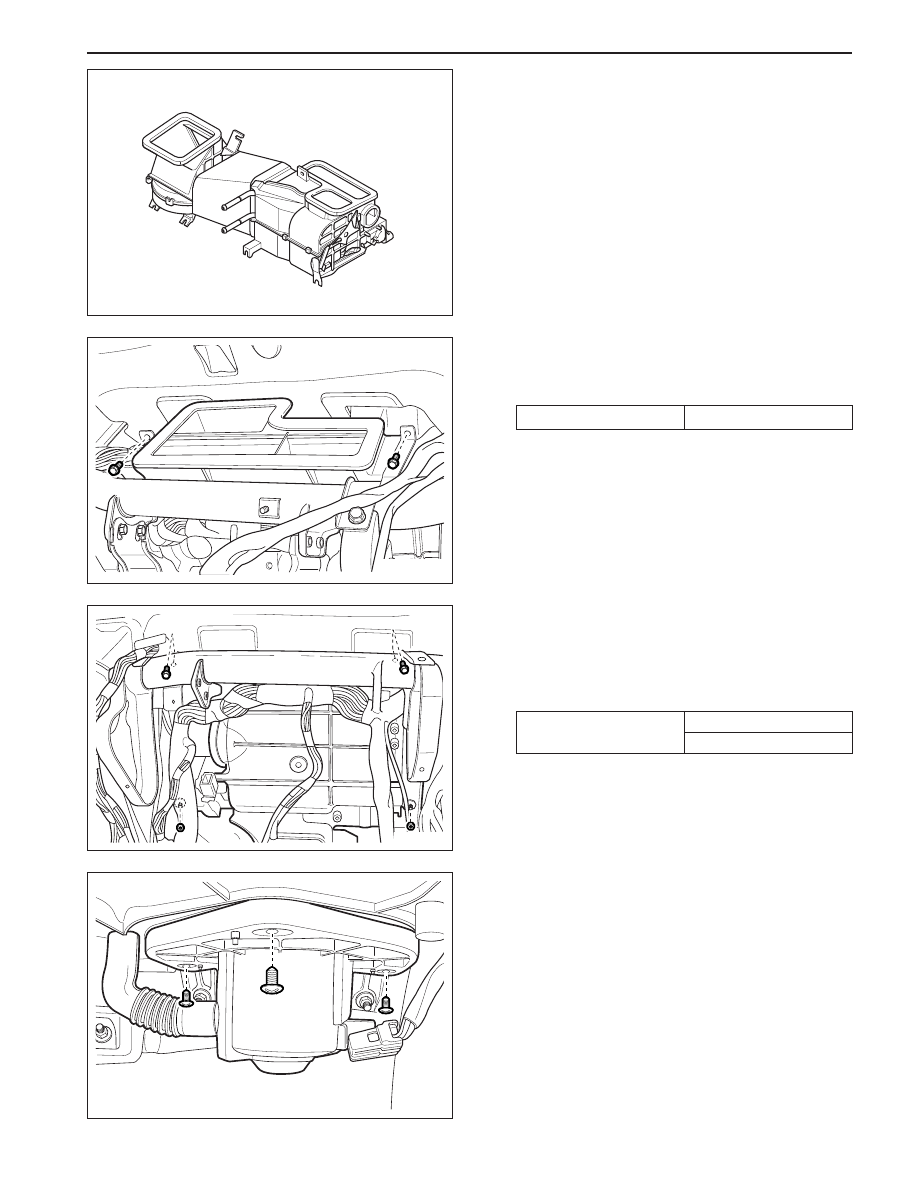

8. Remove one bolt, one nut and two screws that se-

curing the heater/air distributor case-to-blower unit
duct.

9. Remove the heater/air distributor case-to-blower

unit duct.

KAA7A090

KAA7A100

KAA7A110

KAA7A120

10. Remove two bolts and the heater/air distributor

case-to-defroster duct.

Installation Notice

11. Remove electrical connector to the mode control

actuator.

12. Remove one bolt and two nuts that securing heater/

air distributor case.

Installation Notice

13. Remove the heater/air distributor case.

14. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

Bolt 5 N•m (44 lb-it)

Nut 5 N•m (44 lb-it)

BLOWER MOTOR

Removal and Installation Procedures

1. Disconnect the negative battery cable.

2. Remove the glove box. Refer to Section 9E, Instru-

mentation/Driver Information.

3. Disconnect the blower motor electrical connector.

4. Remove the blower motor cooling hose.

5. Remove the screws that secure the motor to the

heater/air distributor case.

6. Remove the blower motor from the blower unit by

gently pulling the motor straight down and out.

Tightening Torque

5 N•m (44 lb-in)

SSANGYONG  MY2002

7A-22  HEATING AND VENTILATION SYSTEM

7. Installation should follow the removal procedure

in the reverse order.

Installation Notice: After install the blower motor
confirm that the blower motor operates properly.

KAA7A130

KAA7A140

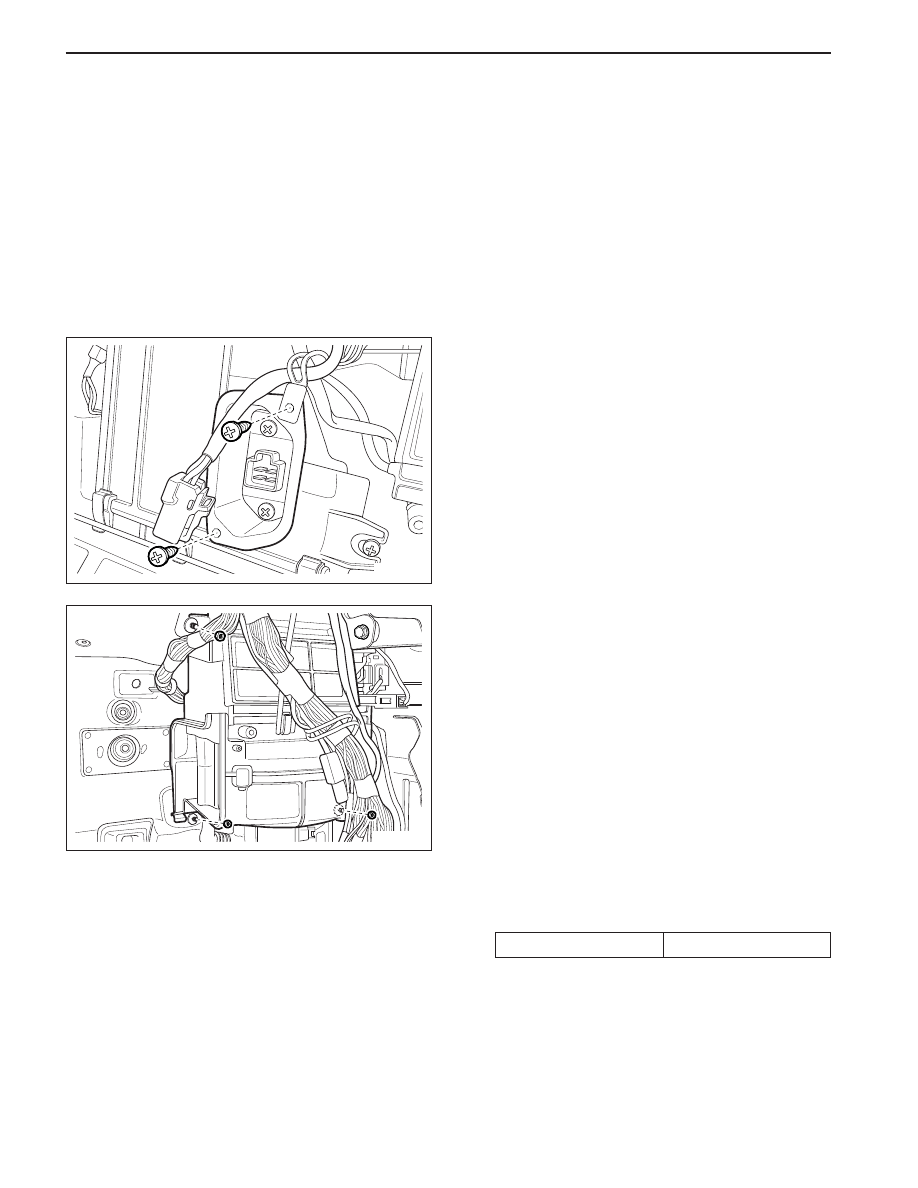

BLOWER RESISTOR

Removal and Installation Procedures

1. Disconnect the negative battery cable.

2. Remove the glove box. Refer to Section 9E, Instru-

mentation/Driver Information.

3. Disconnect the electrical connector at the resistor.

4. Remove two screws from the resistor.

5. Remove the resistor from the heater/air distributor

case by gently pulling the resistor.

6. Installation should follow the removal procedure

in the reverse order.

BLOWER UNIT

Removal and Installation Procedures

1. Disconnect the negative battery cable.

2. Remove the instrument panel carrier assembly.

Refer to Section 9E, Instrumentation/Driver
Information.

3. Remove one nut, one bolt and two screws that

securing the heater/air distributor case-to-blower
unit duct.

4. Remove the heater/air distributor case-to-blower

unit duct.

5. Disconnect the connector for air intake door

actuator and the connector for blower motor.

6. Remove three nuts that securing the blower unit.

Installation Notice

7. Remove the blower unit.

8. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

5  N•m (44 lb-it)

HEATING AND VENTILATION SYSTEM  7A-23

SSANGYONG  MY2002

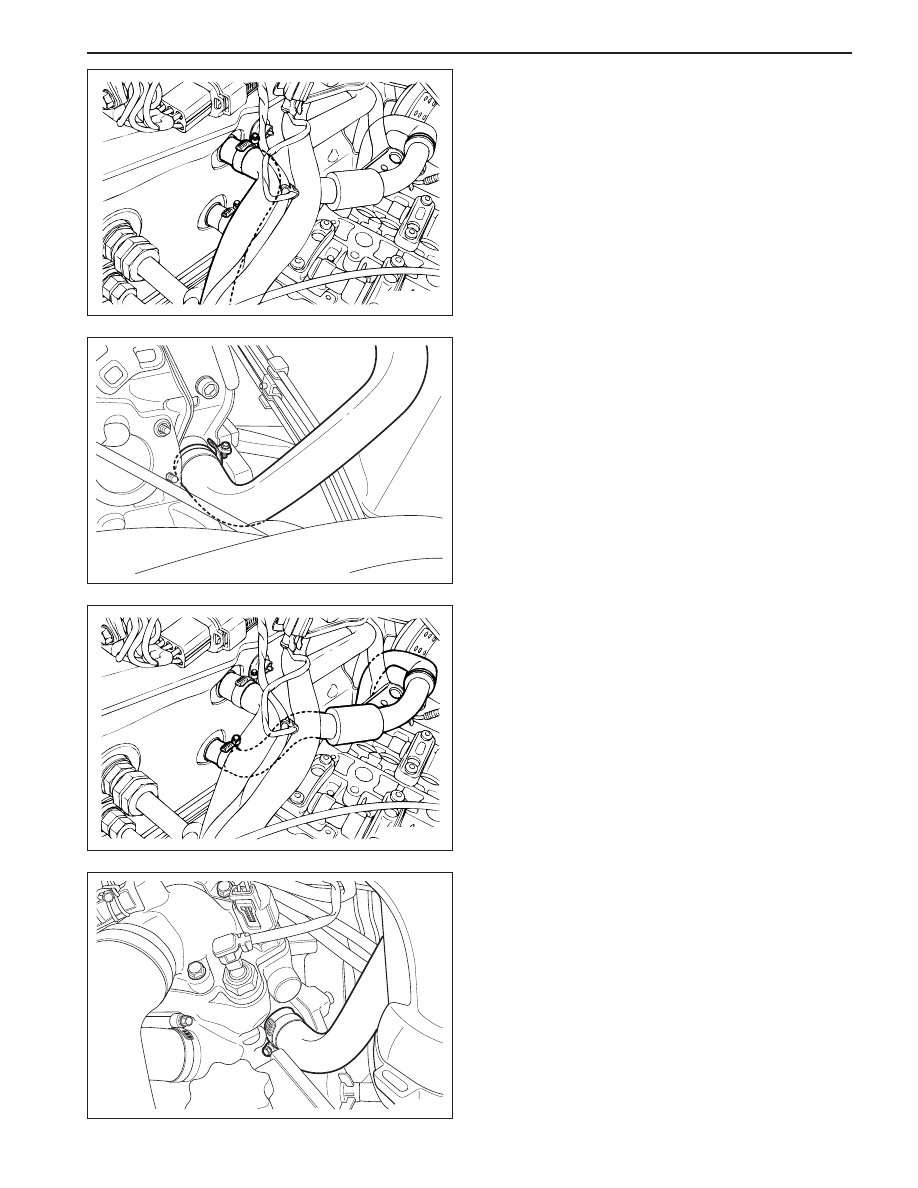

HEATER INLET HOSE

Removal and Installation Procedures

1. Partially drain the cooling system. Refer to Section

1D, Engine Cooling.

2. Remove the clip and slide rearward the inlet heater

hose clamp at the firewall.

3. Gently twist the hose from the left to right and

back again to loosen the bond between the hose
and the tube.

4. Remove the end of the hose from the tube.

KAA7A150

KAA7A160

KAA7A170

KAA7A180

5. Remove the clip and slide rearward the inlet heater

hose at the engine block.

6. Remove the inlet heater hose from the vehicle.

7. Installation should follow the removal procedure

in the reverse order.

HEATER OUTLET HOSE

Removal and Installation Procedures

1. Partially drain the cooling system. Refer to Section

1D, Engine Cooling.

2. Remove the clip and slide rearward the outlet

heater hose clamp at the firewall.

3. Gently twist the hose from the left to right and

back again to loosen the bond between the hose
and the tube.

4. Remove the end of the hose from the tube.

5. Remove the intake manifolds. Refer to Section 1C,

DOHC Engine Mechanical.

6. Remove the clip and slide rearward the outlet

heater hose at the thermostat housing.

7. Remove the outlet heater hose from the vehicle.

8. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  MY2002

7A-24  HEATING AND VENTILATION SYSTEM

HEATER CORE

Removal and Installation Procedures

1. Disconnect the negative battery cable.

2. Remove the heater/air distribution case from the

vehicle. Refer to “Heater/Air Distribution Case
Assembly” in this section.

3. Remove the plastic holder and two screws that

secure the heater core to heater/air distributor case
assembly.

4. Slowly separate the heater/air distributor case as-

sembly and remove the heater core.

5. Installation should follow the removal procedure

in the reverse order.

REAR HEATER DUCT

This vehicle is equipped with rear seat heater ducts.
Should there be no airflow to the rear, look for any ob-
structions, such as items on the floor under the front
seats. Also check for air leaks between the heater/air
distributor assembly and the rear ducts.

KAA7A190

KAA7D130

KAA7D140

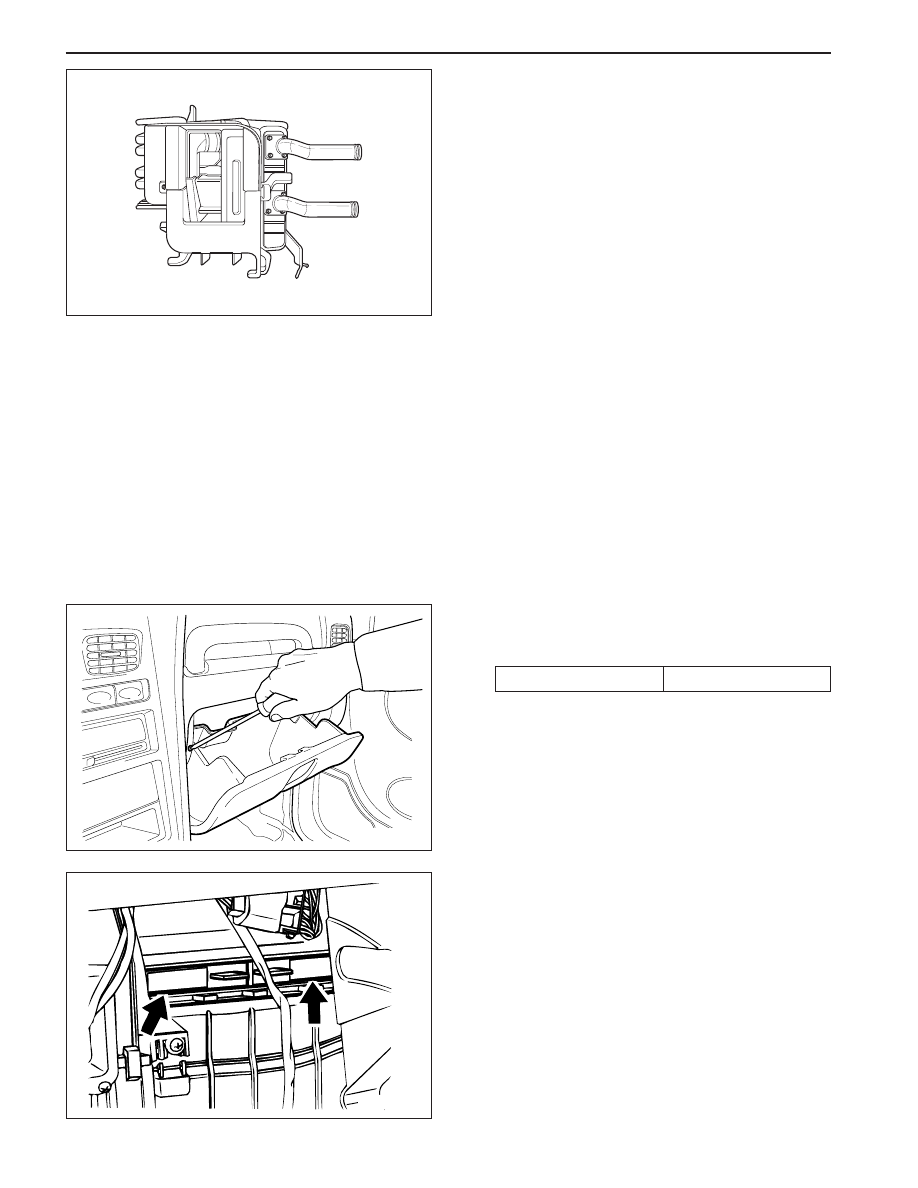

AIR FILTER

Removal and Installation Procedures

Notice: Replace earlier if air pollution is heavy.

1. Open the glove box and pull it inward to release

the upper left and right locking portion.

Notice: Remove the glove box by unscrewing
lower 2 screws, if necessary.

2. Press the 2 filter cover holds and remove the air

filter cover.

3. Remove the 2 air filters.

Notice: For installation, remember the installed
direction of the air filter before removal.

Replacement Interval

Every 10,000 km
