SSANGYONG MY2002

6C-2  POWER STEERING GEAR

POWER RACK AND PINION

The power steering rack and pinion system has a rotary
control valve that directs hydraulic fluid coming from
the hydraulic pump to one side or the other side of the
rack piston. The integral rack piston is attached to the
rack. The rack piston converts hydraulic pressure to a
linear force that moves the rack left or right. That force
is then transmitted through the tie rods to the steering
knuckles, which turn the wheels.

DESCRIPTION AND OPERATION

If power rack and pinion steering is not available, manu-
al rack and pinion control is used; however, with this
system, more steering effort is required. The movement
of the steering wheel is transferred to the pinion. The
rotary movement of the pinion is then transferred
through the pinion threads, which mesh with teeth on
the rack, thereby causing the rack to move in a linear
direction.

A vane-type of hydraulic pump provides hydraulic pres-
sure for both steering systems.

POWER STEERING GEAR  6C-3

SSANGYONG MY2002

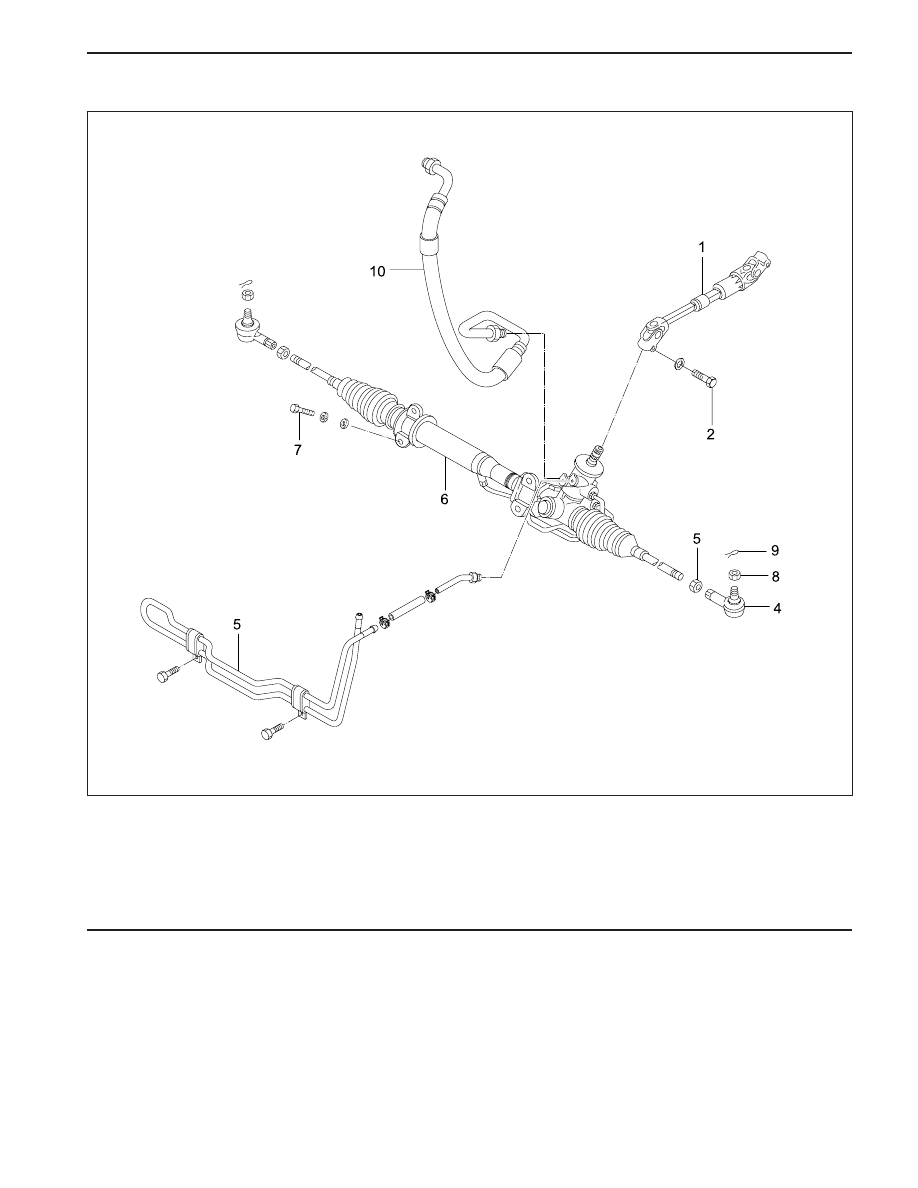

COMPONENT  LOCATOR

KAA6C010

1 Intermediate Shaft
2 Lower Pinch Bolt
3 Boot
4 Outer Tie Rod
5 Return Line Pipe

6 Rack and Pinion Assembly
7 Rack and Pinion Assembly Mounting Bolt
8 Castle Nut
9 Cotter Pin

10 Pressure Line Pipe

SSANGYONG MY2002

6C-4  POWER STEERING GEAR

DIAGNOSTIC INFORMATION AND PROCEDURES

POWER STEERING RACK AND PINION GEAR

Hissing Noise

Check the intermediate shaft joints for looseness.

Check the power steering hose for contact with other

components.

Checks

Action

Tighten the intermediate shaft joints.

Be sure the power steering hose is correctly fitted into

the hose clips.

Loss of Coolant

Check the power steering hose for contact with the

body.

Check the steering gear for insufficient lubrication.

Check the steering gear mounting for improper

installation.

Check the outer tie rods for improper installation.

Checks

Action

Be sure the power steering hose is correctly fitted into

the hose clips.

Lubricate the steering gear.

Tighten the steering gear mounting bracket nuts and

bolts.

Tighten the outer tie rod joints. Replace the outer tie rods.

Loss of Coolant

Check the steering wheel for contact with the turn

signal housing.

Check the intermediate shaft joints for binding or

looseness.

Check the power steering pump flow control valve for

sticking and improper alignment.

Check the wheel alignment.

Check the wheel bearings for wear or damage.

Check the intermediate shaft joints for improper

installation.

Check the outer tie rods and the ball joints for binding

or looseness.

Check the steering gear adjustments.

Check the steering column shaft seal for rubbing on

the shaft.

Check the steering shaft bearings for binding.

Checks

Action

Adjust the turn signal housing.

Replace the intermediate shaft.

Replace the power steering pump.

Align the wheels.

Replace the wheel bearings.

Adjust the intermediate shaft between the steering gear

and the steering column. Replace the intermediate shaft.

Tighten the tie rods and the ball joints. Replace the tie

rods and the ball joints.

Perform a straight-ahead check.

Replace the dash seal.

Replace the stub shaft bearings.

Check the power steering pump for internal leaks.

Check the hoses for damage or restricted flow.

Check the power steering fluid level.

Check the power steering pump flow control valve for

sticking and improper operation.

Checks

Action

Replace the power steering pump.

Replace the power steering hoses and/or pipes.

Fill the power steering fluid reservoir.

Replace the power steering pump.

Momentary Increase in Effort When Turning the Wheel Quickly

POWER STEERING GEAR  6C-5

SSANGYONG MY2002

Check the power steering pump for insufficient pres-

sure.

Check the power steering pump flow control valve for

sticking and improper operation.

Check the power steering pump serpentine belt for

slippage.

Check for air contamination in the power steering

system.

Checks

Action

Replace the power steering pump.

Replace the power steering pump.

Tighten the power steering serpentine belt.

Bleed the power steering system

Steering Surges or Jerks When Turning with Engine Running

Check for air contamination in the power steering

system.

Check the power steering pump serpentine belt for

looseness.

Checks

Action

Bleed the power steering system.

Tighten the power steering serpentine belt.

Steering Vibrates During Low Speed or Static Steering

Excessive Wheel Kickback or Loose Steering

Check for air contamination in the power steering

system.

Check the wheel bearings for wear or damage.

Check the steering gear mounting for improper instal-

lation.

Check the intermediate shaft joints for improper

Installation.

Check the outer tie rods and the ball joints for

looseness.

Checks

Action

Bleed the power steering system.

Replace the wheel bearings.

Tighten the steering gear mounting bracket nuts and

bolts.

Adjust the intermediate shaft between the steering

gear and the steering column. Replace the intermedi-

ate shaft.

Tighten the tie rods and the ball joints. Replace the tie

rods and the ball joints.

Hard Steering or Lack of Assist (Especially During Parking)

Check the intermediate shaft joints for improper

installation.

Check the power steering pump flow control valve for

sticking and improper installation.

Check the power steering pump for insufficient pressure.

Check the power steering pump for internal leaks.

Check for a loose or a worn intermediate shaft.

Check the power steering pump serpentine belt tension.

Checks

Action

Adjust the intermediate shaft between the steering gear

and the steering column. Replace the coupling flange.

Replace the power steering pump.

Replace the power steering pump.

Replace the power steering pump.

Tighten the intermediate shaft. Replace the intermedi-

ate shaft, as needed.

Tighten the power steering serpentine belt.
