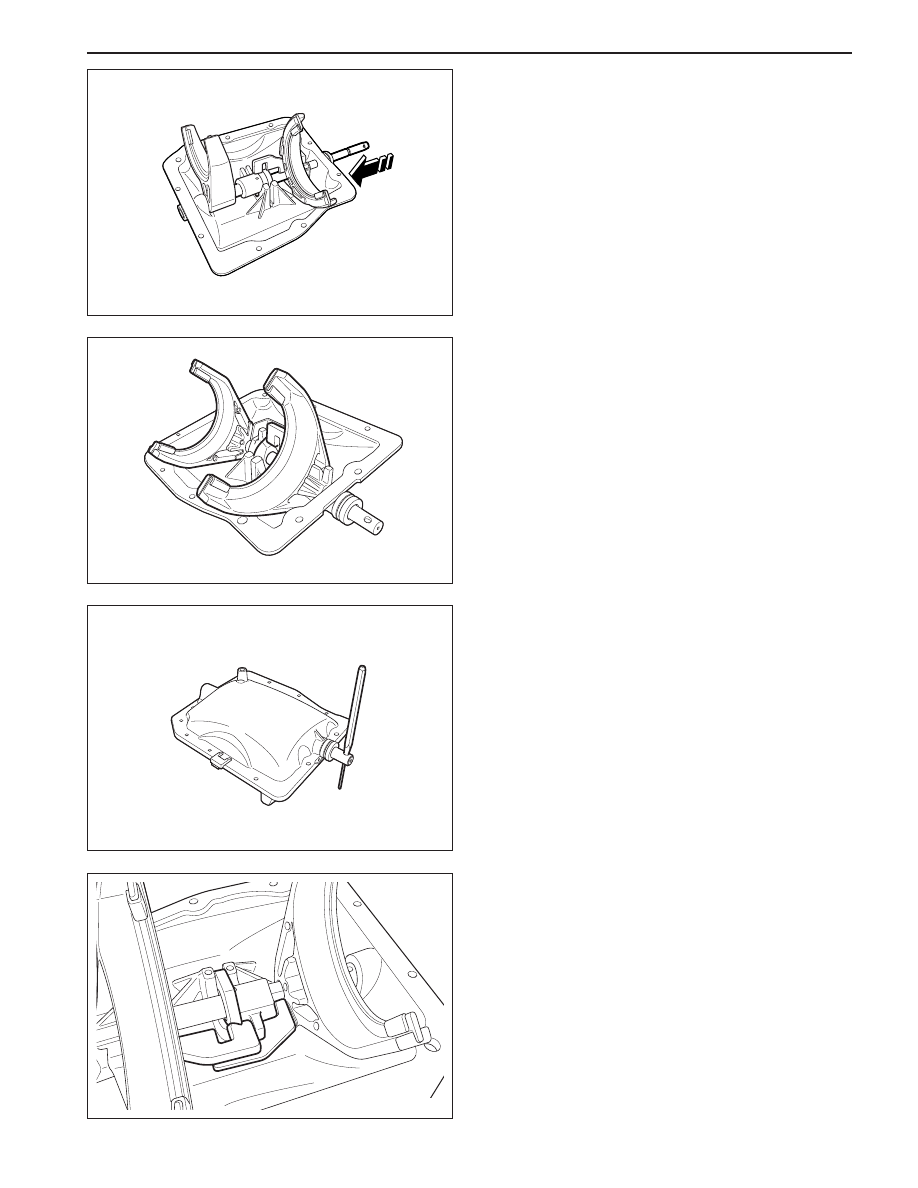

Install the 3-4 shift fork and its selector plate.

YAD5B0V0

YAD5B0S0

YAD5B0U0

YAD5B0T0

•

Push the shift shaft through the 1-2 shift fork.

•

Place the selector arm and interlock plate in the
cover.

Note the position of the interlock plate and
selector arm.

•

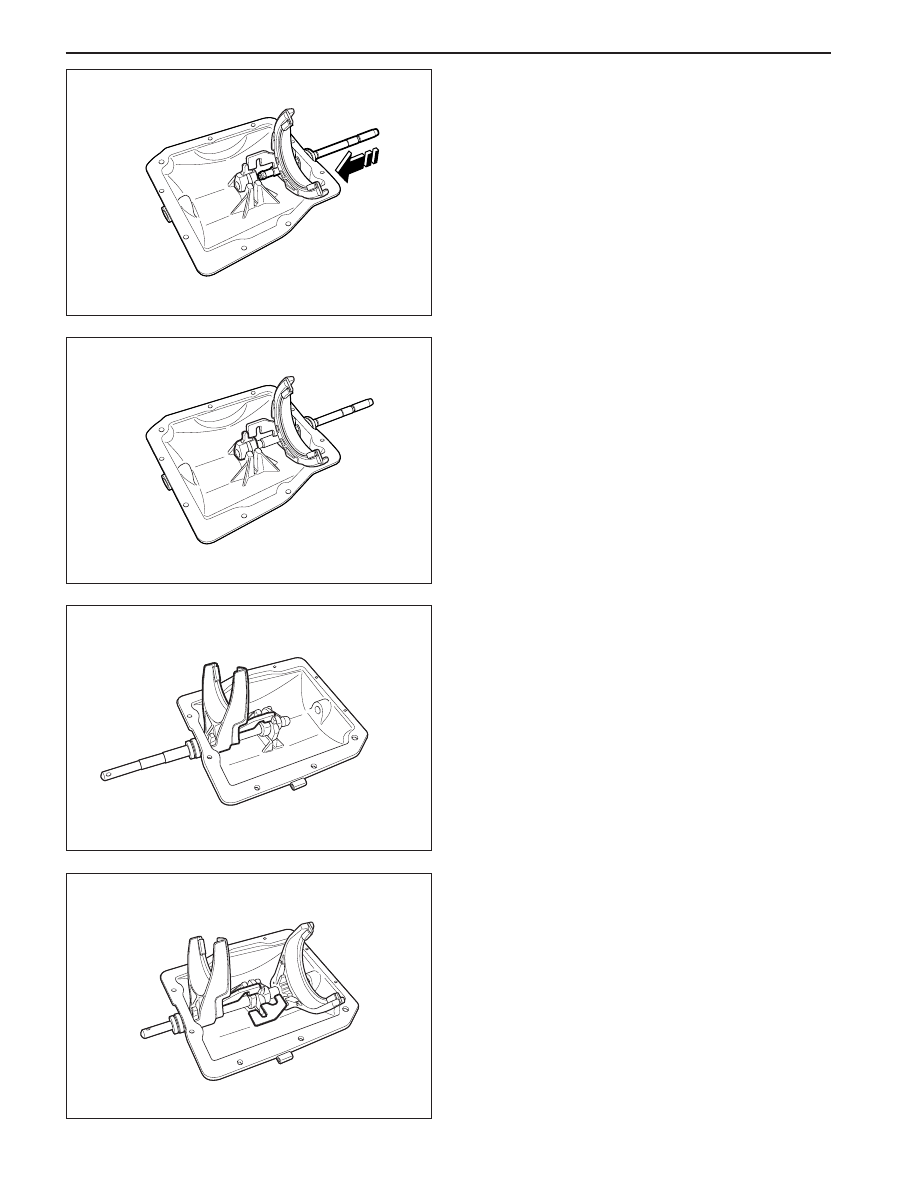

Push the shift shaft through the 3-4 shift fork.

MANUAL TRANSMISSION  5B-43

SSANGYONG  MY2002

YAD5B0W0

YAD5B0Y0

•

Push the shift shaft through the 3-4 shift fork.

YAD5B0X0

•

Install the roll pin that fixes the selector arm to
the shift shaft.

4. Check the shift cover parts for proper assembly

as follows :

•

Insert a pin punch (3/16) into the offset lever
hole of the shift shaft.

•

Place the shift cover to the flat ground and rotate
the shift shaft so that the punch is vertical.

•

Selector arm should be aligned with the 3/4 shift
fork selector plate.

YAD5B0Z0

SSANGYONG  MY2002

5B-44  MANUAL TRANSMISSION

YAD5B1A0

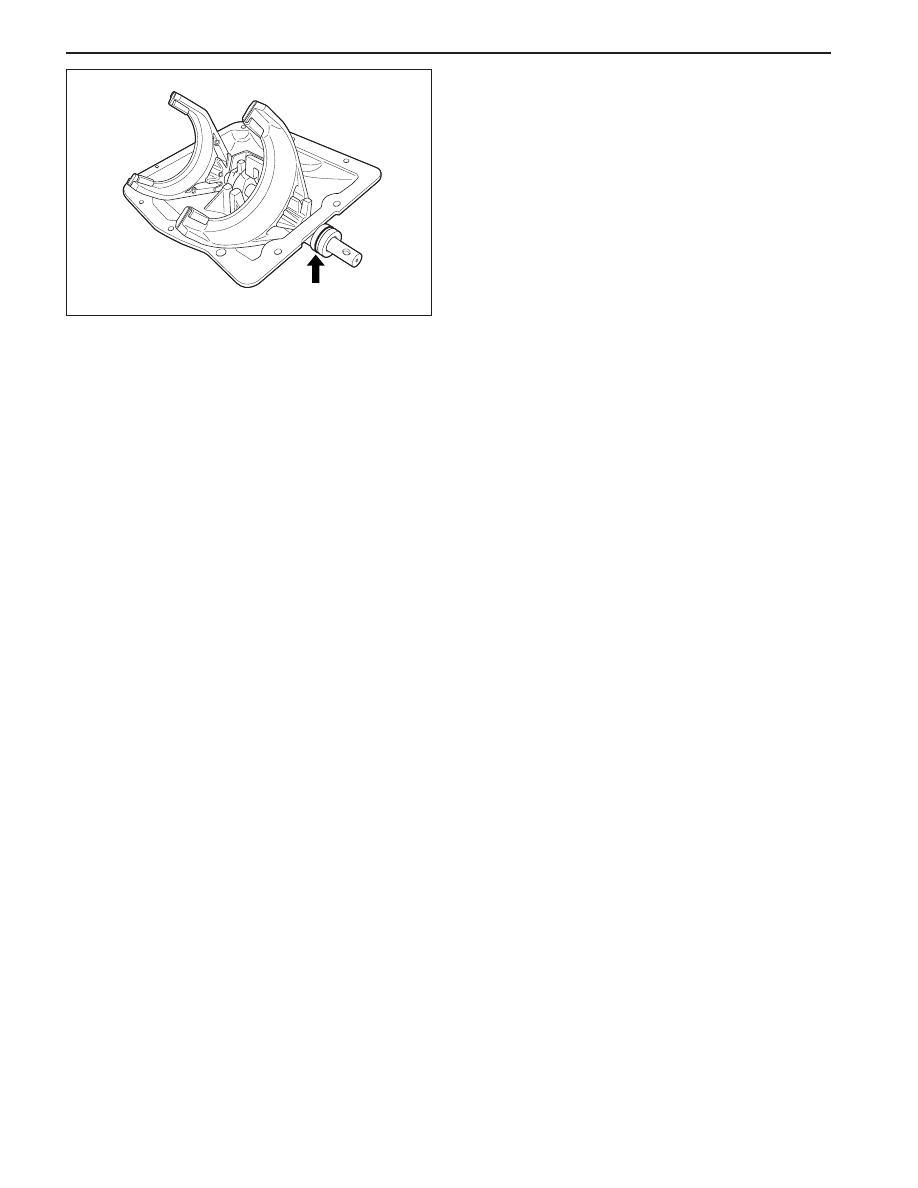

5. Lubricate and install the O-ring on the rear of the

shift cover.

MANUAL TRANSMISSION  5B-45

SSANGYONG  MY2002

YAD5B1C0

INSPECTION OF COMPONENTS

Inspection Procedure

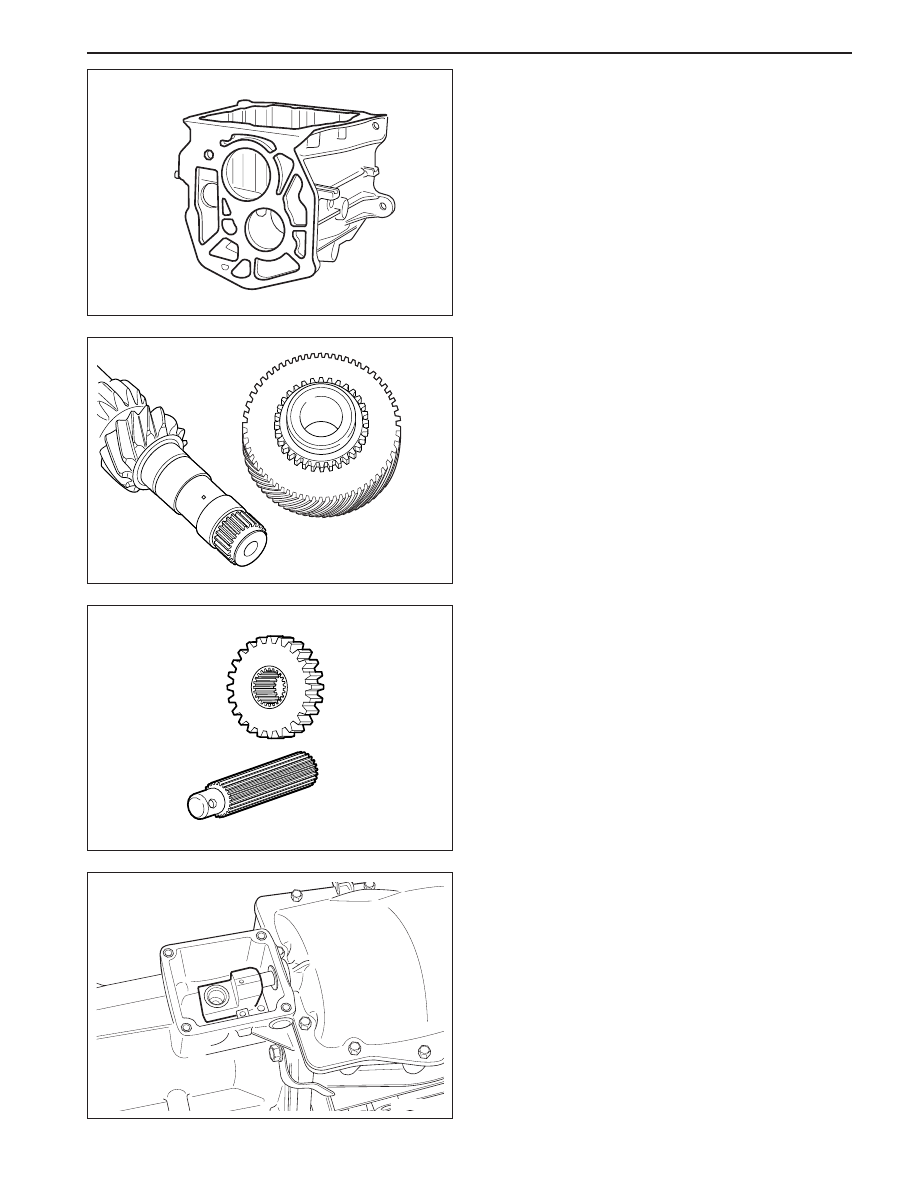

1. Clean all parts with solvent and dry them with

compressed air. Check the following parts for
cracks and damaged sealing surfaces.

•

Case

•

Extension housing

•

Shift Cover

•

Input bearing retainer

•

Counter shaft rear bearing retainer

2. Check the parts which support bearings and shafts

for excessive wear and replace them if necessary.

YAD5B1D0

YAD5B1B0

3. Check the bearing surfaces of the following parts ;

•

Input shaft

•

Main shaft and its gears

•

Counter shaft and 5th drive gear

4. Check the reverse idler shaft and its gears.

Notice: Replace excessive wear parts and do not
file on the hardened surface and precision ground.

5. Check the shift mechanism parts as follows :

•

Wear of the shift shaft.

•

Wear of the detent/guide plate and offset lever.

YAD5B1E0
