SsangYong Korando II (1996-2006 year). Manual - part 334

SSANGYONG  MY2002

5B-26  MANUAL TRANSMISSION

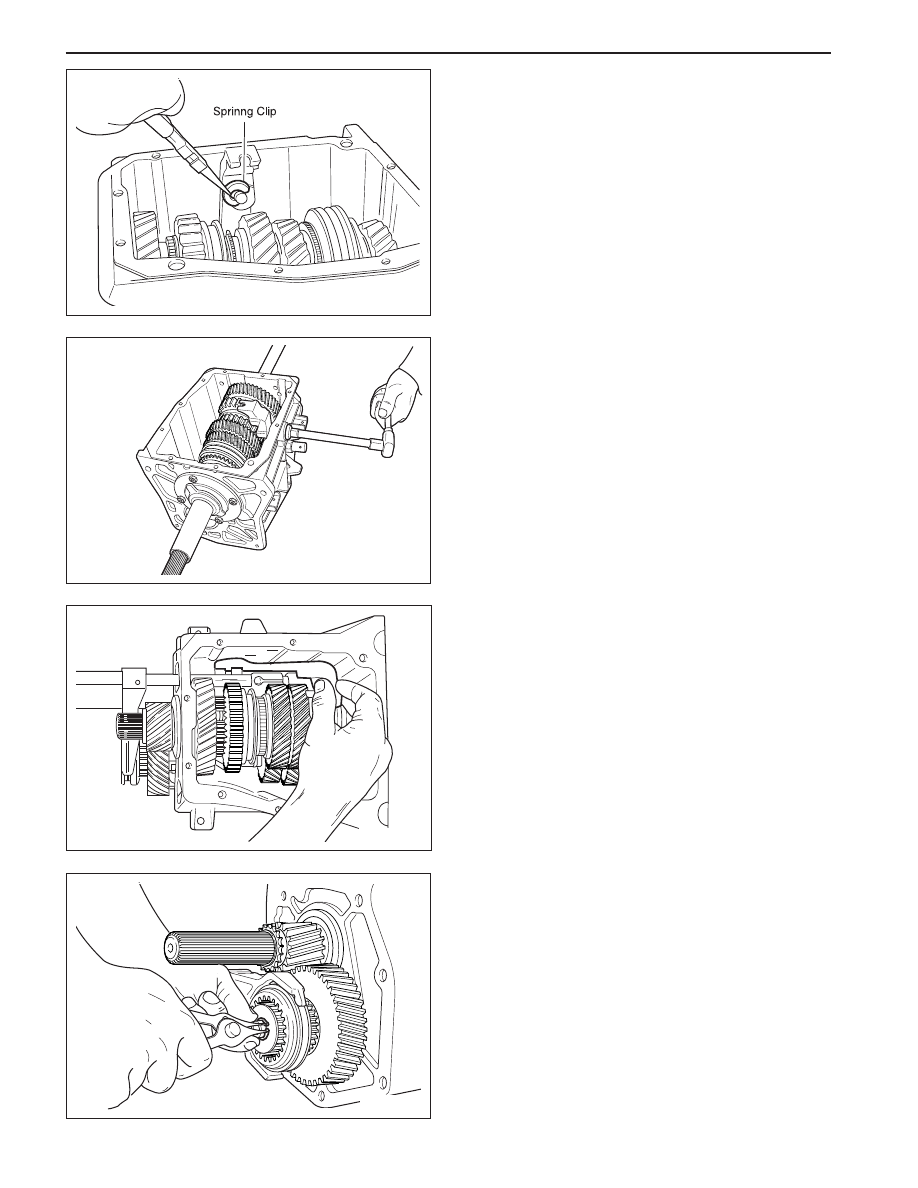

13. Using a needle nose pliers, remove the 5th-R lever

clip.

YAD5B550

YAD5B560

YAD5B580

YAD5B570

14. Using a 21 mm wrench or a T-50 bit, remove the

5th-R lever pivot bolt.

Notice: Apply sealer bond to this bolt during
assembly.

15. Using a 22 mm wrench, remove the back-up lamp

switch from the 5-R lever side.

Notice: Apply sealer to the threads.

16. Pull out the 5th-R lever out of the transmission.

17. U s i n g   a   s n a p   r i n g   p l i e r s ,   r e m o v e   t h e   5 t h

synchronizer snap ring from the end of the counter
shaft.

MANUAL TRANSMISSION  5B-27

SSANGYONG  MY2002

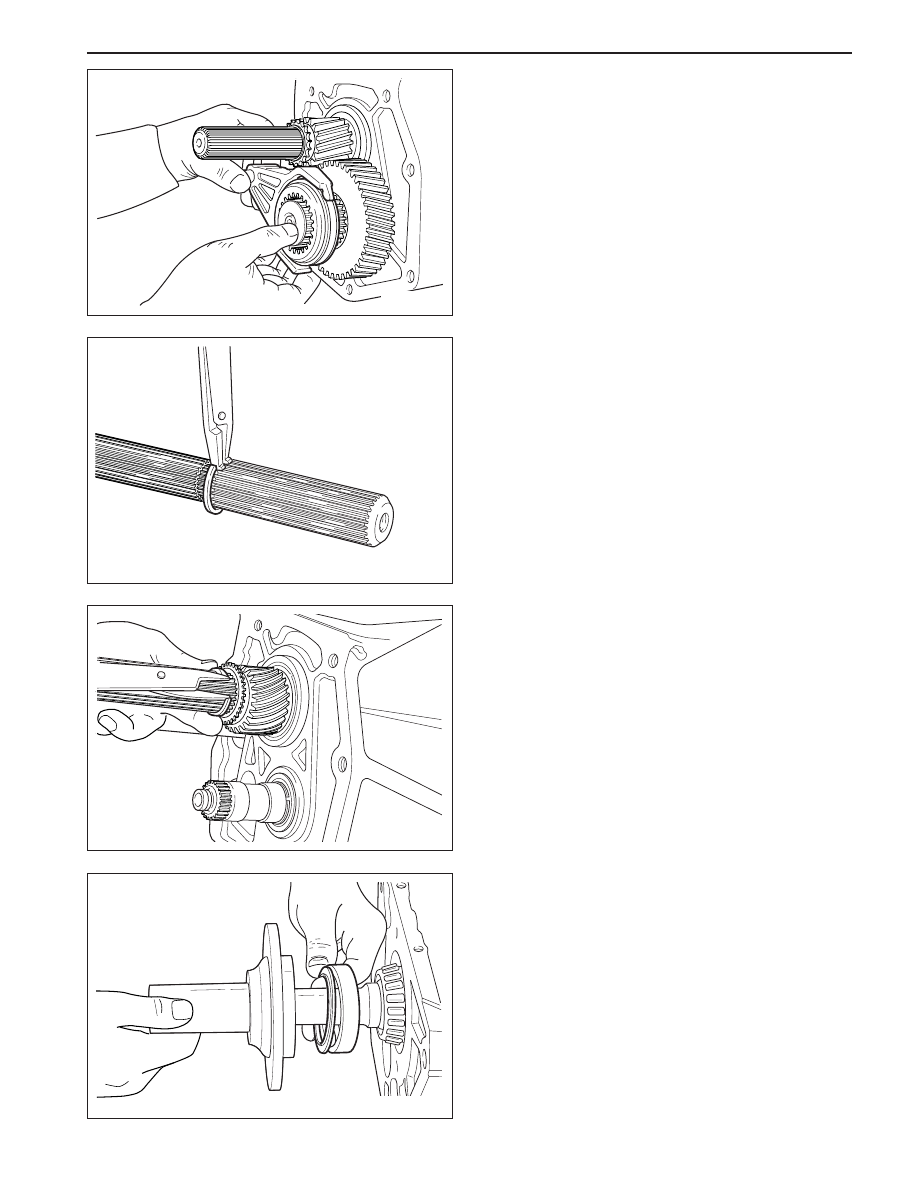

18. Remove the 5th synchronizer assembly with its

fork and rail assembly from the counter shaft.

YAD5B590

YAD5B600

YAD5B620

YAD5B610

19. Remove the slip yoke snap ring from the main

shaft.

20. Remove the 5th speed drive gear snap ring from

the main shaft.

21. Make alignment marks on the case and input

bearing retainer and remove the 4 input shaft
bearing retainer bolts, using a 13 mm wrench.

Remove the input bearing retainer with the bearing
outer race and shim.

Notice:  Apply sealer on these bolts during
assembly.

SSANGYONG  MY2002

5B-28  MANUAL TRANSMISSION

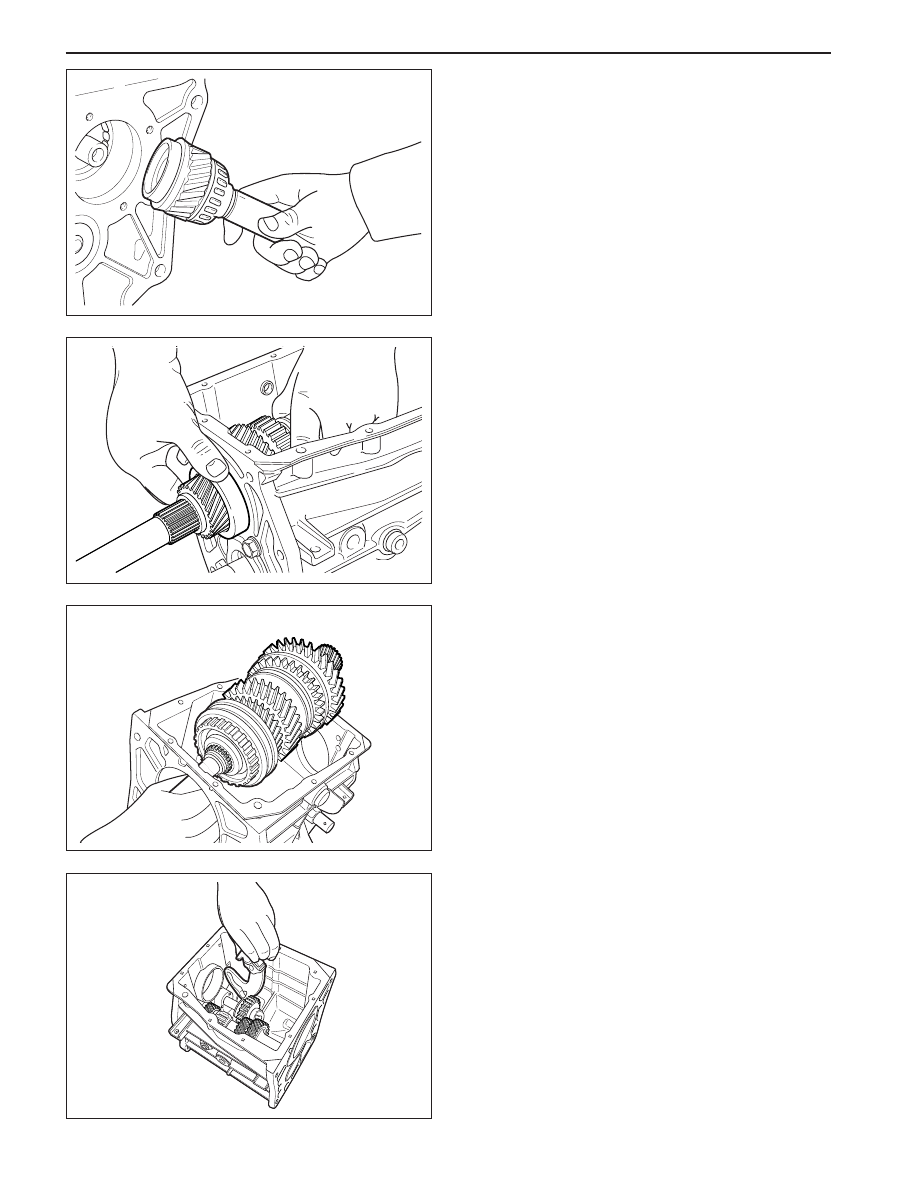

22. Remove the input shaft from the case by rotating

it until the flat surface appears.

23. Remove the following parts from the input shaft.

•

4th speed gear blocking ring.

•

Main shaft thrust race and bearing.

•

Main shaft pilot bearing rollers (15 rollers).

Notice: Be careful not to dissipate the pilot
bearing rollers.

YAD5B630

YAD5B640

YAD5B660

YAD5B650

24. Remove the main shaft in 2 steps.

•

To remove the rear bearing outer race, push the
main shaft rearward.

•

Tilt and lift the main shaft from the case.

25. Remove the reverse fork and spring from the case.

MANUAL TRANSMISSION  5B-29

SSANGYONG  MY2002

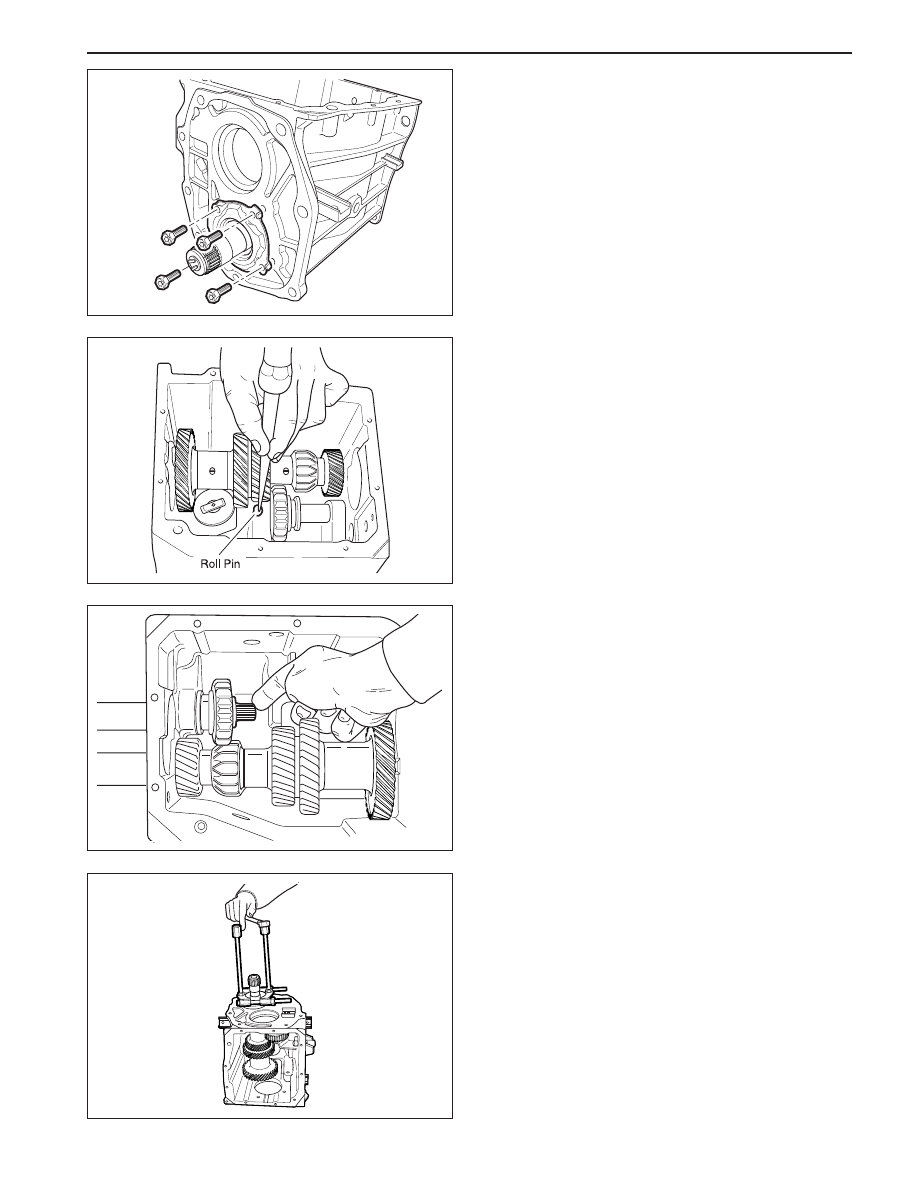

26. Remove the counter shaft as follows:

•

Using a punch and hammer, pry up the lock
tabs.

•

Using a 13 mm wrench or T-40 bit, remove the
4 bolts.

•

Remove the retainer and shim from the case.

•

Push the counter shaft rearward to remove the
rear bearing outer race.

YAD5B670

YAD5B680

YAD5B700

YAD5B690

27. Using a pin punch and a hammer, remove the roll

pin fixed on the reverse idler shaft.

28. By pushing the reverse idler shaft rearward and

out of the case, remove the reverse idler gear and
O-ring.

29. Using a puller, remove the rear bearing assembly

from the counter shaft.
