SsangYong Korando II (1996-2006 year). Manual - part 325

AUTOMATIC TRANSMISSION  5A-203

SSANGYONG  MY2002

SPECIFICATIONS

GENERAL SPECIFICATION

Model Specifications

Clutch Pack Details

Model Part Numbers And Applications

Descriprtion

260 mm (10.2 in.)

2.0 : 1

2.741 : 1

1.508 : 1

1.000 : 1

0.708 : 1

2.429 : 1

Castrol TQ95

9.0 Liters (approx.)

4.5 Liters (approx.)

0.50 - 0.65 mm (0.020 - 0.026 in.)

0.10 - 0.50 mm (0.004 - 0.020 in.)

Application

Torque Converter

Mean Diameter of Fluid Circuit Description

Maximum Torque Multiplication

Gear Ratios

First

Second

Third

Fourth

Reverse

Lubricant

Type

Capacity

Dry System

Service Refill

Gear Train End Float

Gear Set Pinion End Float

Transmission

0574-000013

0574-000012

Torque Converter

179K

150K

Engine Version

E23

E32

SYMC P/NO

36100-05442

36100-05432

C1

Composition

Steel

C2

Composition

Steel

C3

Composition

Steel

C4

Composition

Steel

0574-000012 (13)

5 (4)

5 (6)

5 (4)

4 (5)

4 (3)

4 (5)

3 (3)

4 (4)

5A-204  AUTOMATIC TRANSMISSION

SSANGYONG  MY2002

Speed limitations inhibiting Downshift

Downshift Type Max.

1/2

12

32

57

57

3L

-

-

-

119

2/3

24

66

110

110

4L

82

117

170

175

1/2

12

24

57

57

3/4

39

93

170

175

3L

-

70

114

119

2/3

20

50

110

110

4L

82

93

170

175

NORMA MODE

E32 Typical Shift Patterns

THROTTLE

OPENING

0 %

45 %

100 % (WOT)

Kickdown

POWER MODE

SHIFT (km/h)

THROTTLE

OPENING

0 %

45 %

100 % (WOT)

Kickdown

SHIFT (km/h)

Typical Manual Downshift Maximum Speed

Manual 2-1

Manual 3-2

Manual 4-3

Manual 4-2 (4-2 direct)

Manual 4-2 (4-3-2 sequence)

61 kph (37.9 mph)

117 kph (72.7 mph)

149 kph (92.5 mph)

64 kph (39.8 mph)

117 kph (72.7 mph)

1/2

12

31

47

48

3/4

42

97

147

150

3L

-

-

-

96

2/3

23

64

92

94

4L

75

94

147

150

1/2

10

23

47

48

3/4

36

72

147

150

3L

-

75

95

96

2/3

19

46

92

94

4L

79

92

147

150

NORMA MODE

E23 Typical Shift Patterns

THROTTLE

OPENING

0 %

50 %

100 % (WOT)

Kickdown

POWER MODE

SHIFT (km/h)

THROTTLE

OPENING

0 %

50 %

100 % (WOT)

Kickdown

SHIFT (km/h)

3/4

41

105

170

175

AUTOMATIC TRANSMISSION  5A-205

SSANGYONG  MY2002

FASTENER TIGHTENING SPECIFICATIONS

N • m

35 - 40

16 - 22

20 - 27

20 - 22

54 - 68

70 - 80

4 - 6

40 - 45

4 - 6

8 - 12

35

13 - 16

13 - 16

24 - 34

24 - 27

70 - 80

30 - 35

54 - 68

 42

35 - 60

30 - 35

11 - 16

8 - 13

8 -  12

Lb-Ft

26 - 30

12 - 16

15 - 20

15 - 16

40 - 50

52 - 59

 -

29 - 33

 -

 -

26

10 - 12

10 - 12

18 - 25

18 - 20

52 - 59

22 - 26

40 - 50

31

26 - 44

22 - 26

8 - 12

 -

 -

Application

Adaptor Housing to Case Bolts

Cam Plate to Case (Parking Pawl) Screws

Centre Support to Case Bolts

Detent Spring Screw

Extension Housing to Case Bolts

Front Propeller Shaft Bolts

Inhibitor Switch to Case Bolts

Oil Cooler Pipes

Oil Pan to Case Bolts

On/Off Solenoid Retainer Screws

Output Flange Nuts

Pump Cover Plate to Crescent Screw

Pump Cover Plate to Pump Cover Screws

Pump Cover to Case Bolts

Pump to Pump Cover Bolts

Rear Propeller Shaft Bolts

Rear Servo Cover to Case Bolts

Torque Converter Housing to Case Bolts

Torque Converter Mounting Bolts

Transfer Case to Transmission Housing Bolts

Transmission Filler Plug

Upper Valve Body to Lower Valve Body Screws

Valve Body To Case Bolts

Variable Pressure Solenoid (S5) Retainer Screw

Lb-Ft

-

-

-

-

-

-

35 - 53

-

35 - 53

71 - 106

-

-

-

-

-

-

-

-

-

-

-

-

71 - 115

71 - 106

5A-206  AUTOMATIC TRANSMISSION

SSANGYONG  MY2002

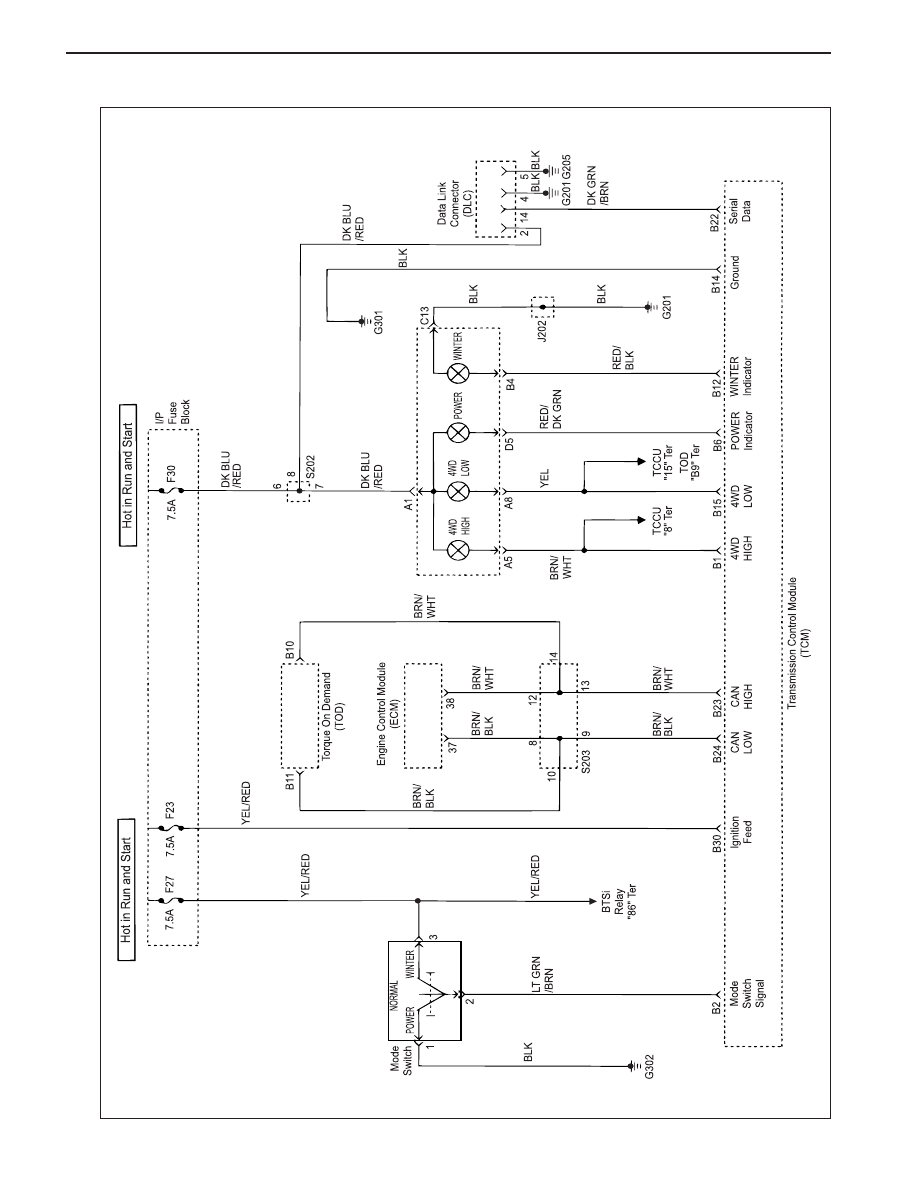

TCM WIRING DIAGRAM (GASOLINE ENGINE - 1

SCHEMATIC AND ROUTING DIAGRAMS

KAA5A010
