SSANGYONG MY2002

4E-14  REAR BRAKES

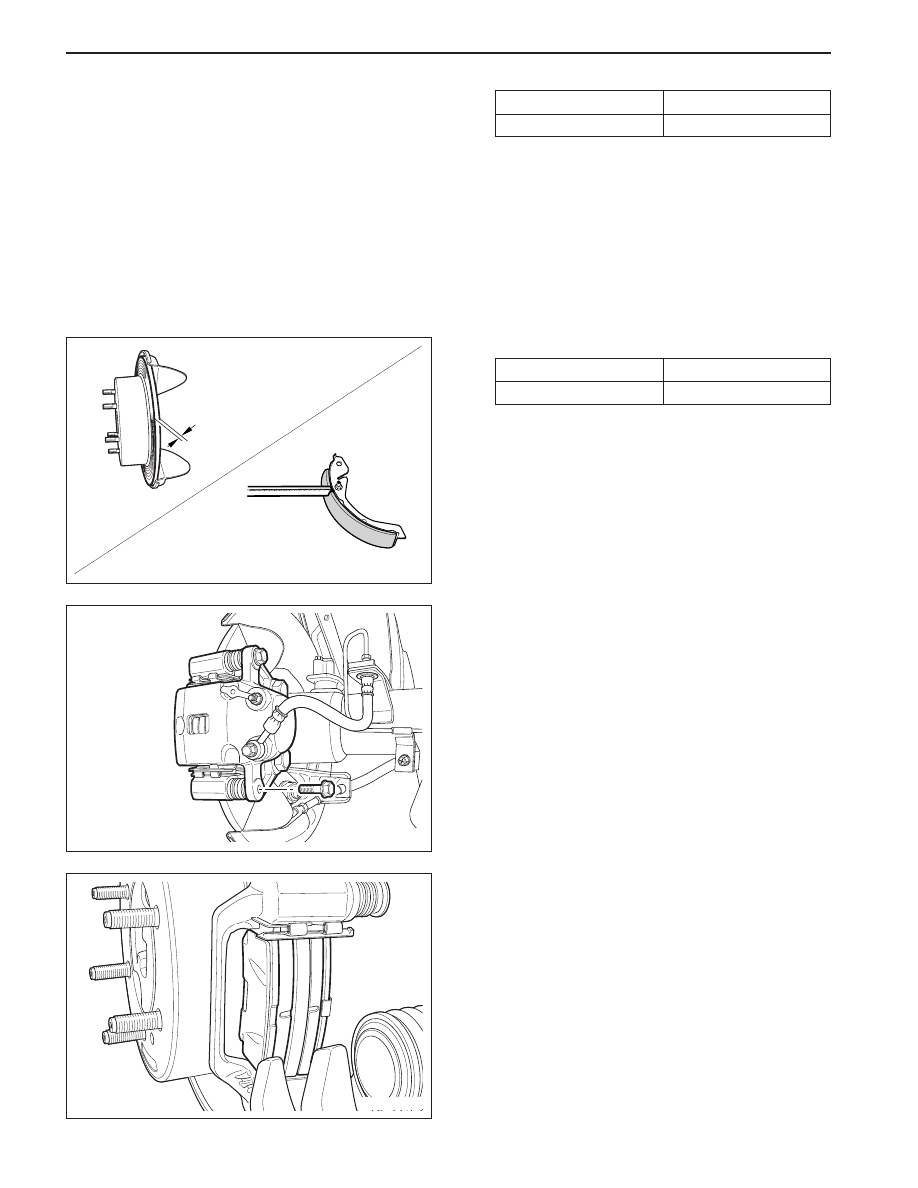

2. Inspect the brake pad thickness.

Pad Thickness

10 mm

Max wear Limit

2 mm

Notice: If the thickness of both pads is not same,
replace both pads at the same time.

3. Inspect the disc thickness.

Pad Thickness

10.4 mm

Max wear Limit

8.5 mm

4. Inspect the disc plate’s scratch and deformation.

Brake Pad

1. Remove the cylinder mounting bolt (lower) at the

brake caliper.

2. Raise and fix the caliper assembly at the proper

position not to cause any damage in the hoses or
others.

YAD4C200

YAD4C210

3. Remove the brake pad and replace the new pad.

YAD4C220

REAR BRAKES  4E-15

SSANGYONG MY2002

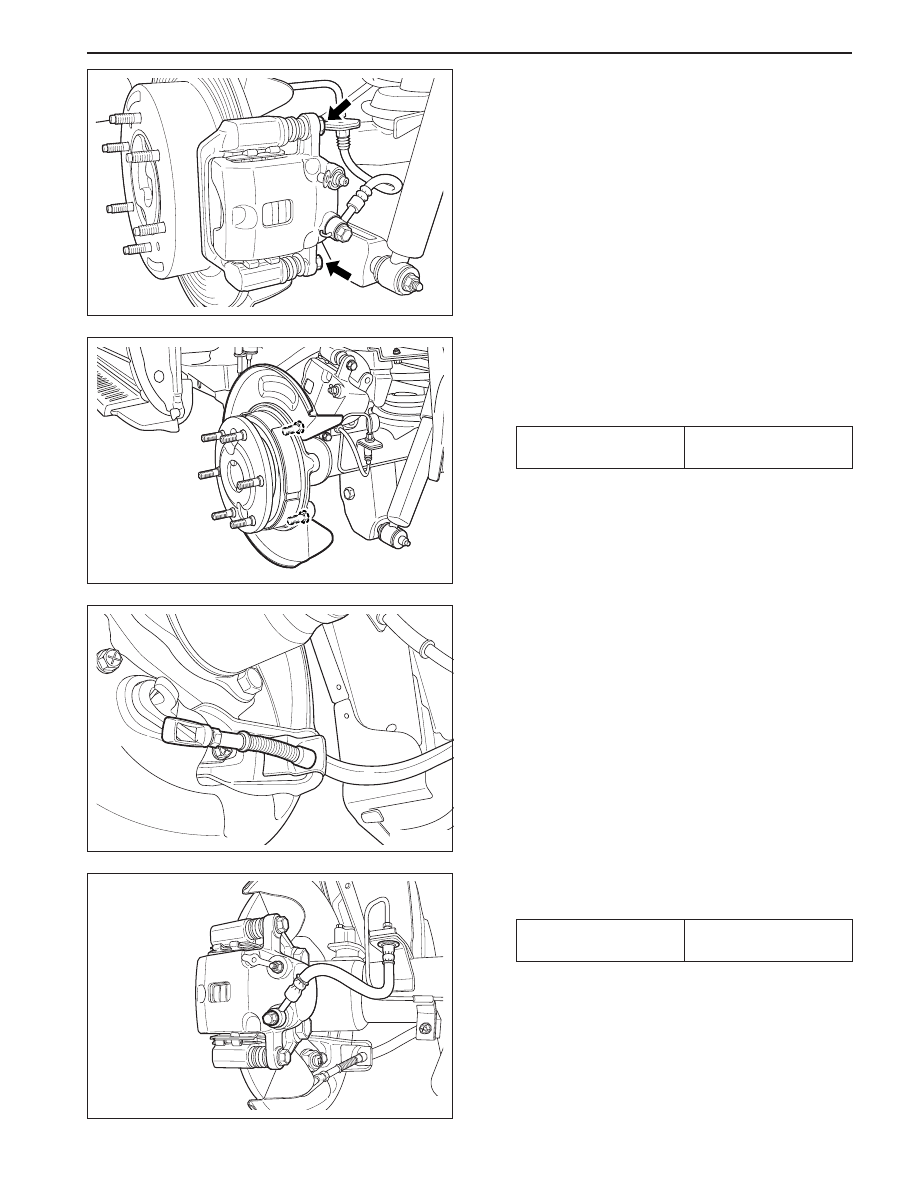

4. Install the caliper cylinder assembly and tighten

the retaining bolt.

Installation Procedure

1. Install the brake lining between the backing plate

and the flange.

Installation Notice

Tightening Torque

4 - 8 N•m

 (35 - 71 lb-in)

Notice: Apply a certain amount of grease on the
parking brake lining surface.

2. Install the brake disc and connect the parking

brake cable to the lever.

3. Install the caliper to the brake disc.

Installation Notice

Tightening Torque

4 - 8 N•m

(35 - 71 lb-in)

YAD4C230

YAD4C240

YAD4C250

YAD4C260

SSANGYONG MY2002

4E-16  REAR BRAKES

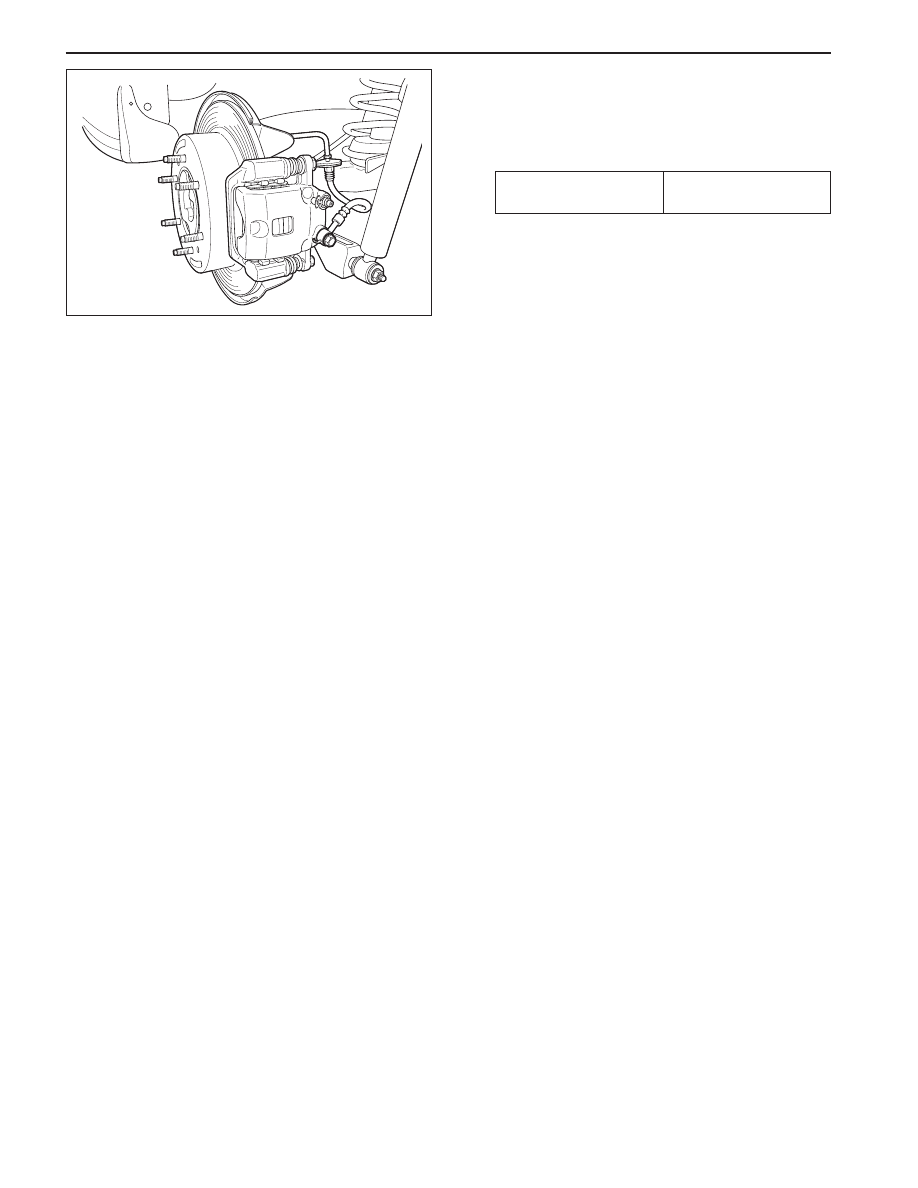

4. Install the brake hose.

Notice: The washer should be replaced new part.

5. Tighten the air bleeder screw.

Installation Notice

Tightening Torque

7 - 13 N•m

(62 - 115 lb-in)

6. Bleed the brake system after replacement.

YAD4C270

REAR BRAKES  4E-17

SSANGYONG MY2002

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

yyyyyyy

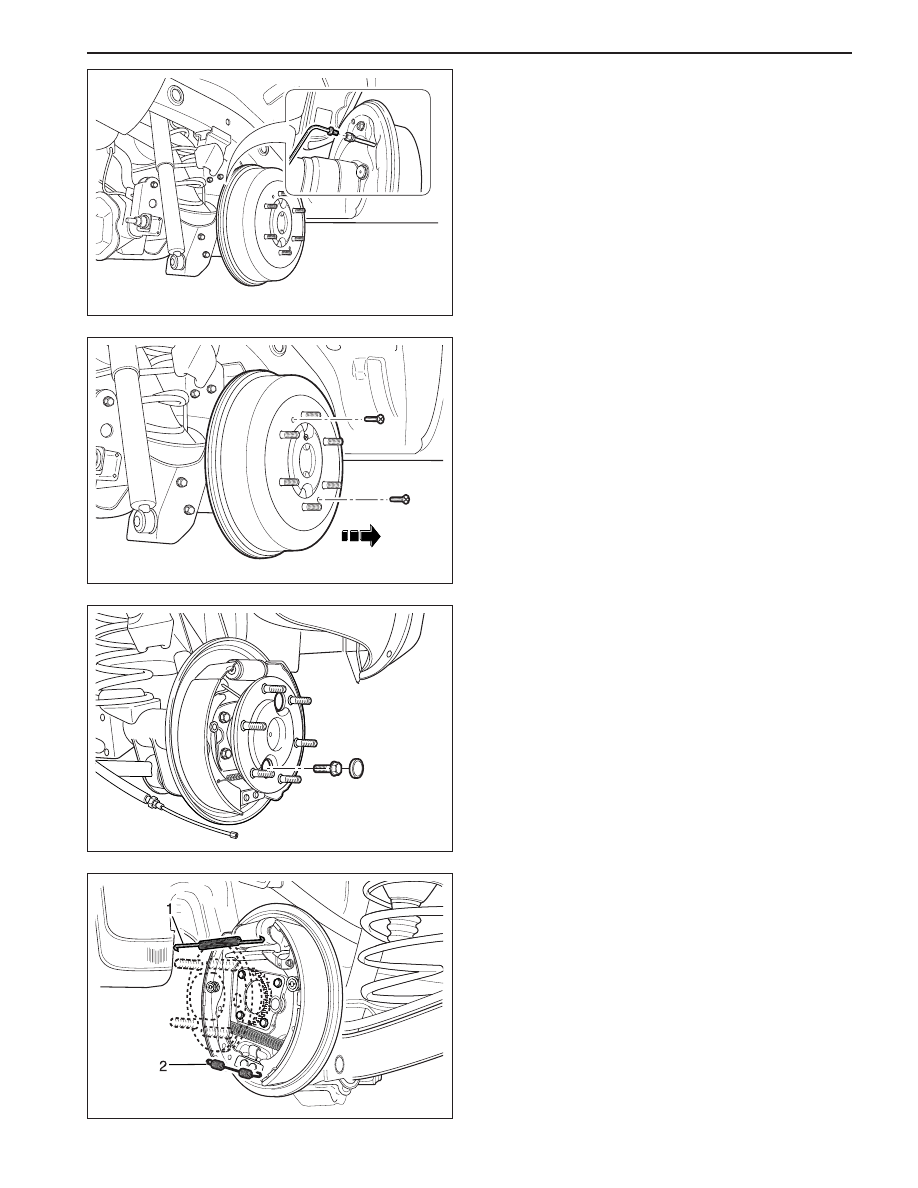

DRUM BRAKE ASSEMBLY

1. Remove the tires

Notice:

•

Park the vehicle on the flat ground and fix the
vehicle not to move it.

•

Position the transmission in NEUTRAL.

2. Disconnect the brake pipe from the rear brake.

Notice: Be carefully to prevent the brake fluid loss
and contamination.

3. Insert the bolt (M8) to the service hole of the brake

drum and remove the brake drum.

4. Remove the service hole plug of the axle shaft.

YAD4C290

YAD4C300

YAD4C310

5. Remove the return spring.

(1) Disconnect the upper return spring.

(2) Disconnect the lower return spring.

(3) Disconnect the lever spring.

(4) Disconnect the adjuster lever from the adjuster.

YAD4C320
