TIRE DIAGNOSIS
Irregular and Premature Wear
Irregular and premature tire wear has many causes.
Some of them are incorrect inflation pressures, lack of
regular rotation, poor driving habits, or improper wheel
alignment.
Rotate the tires if :
•
The front tire wear is different from the rear.
•
The left and right front tire wear is unequal.
•
The left and right rear tire wear is unequal.
Check wheel alignment if :
•
The left and right front tire wear is unequal.
•
The wear is uneven across the tread of either front
tire.
•
The front tire treads are scuffed with “feather” edges
on the side of the tread ribs or blocks.

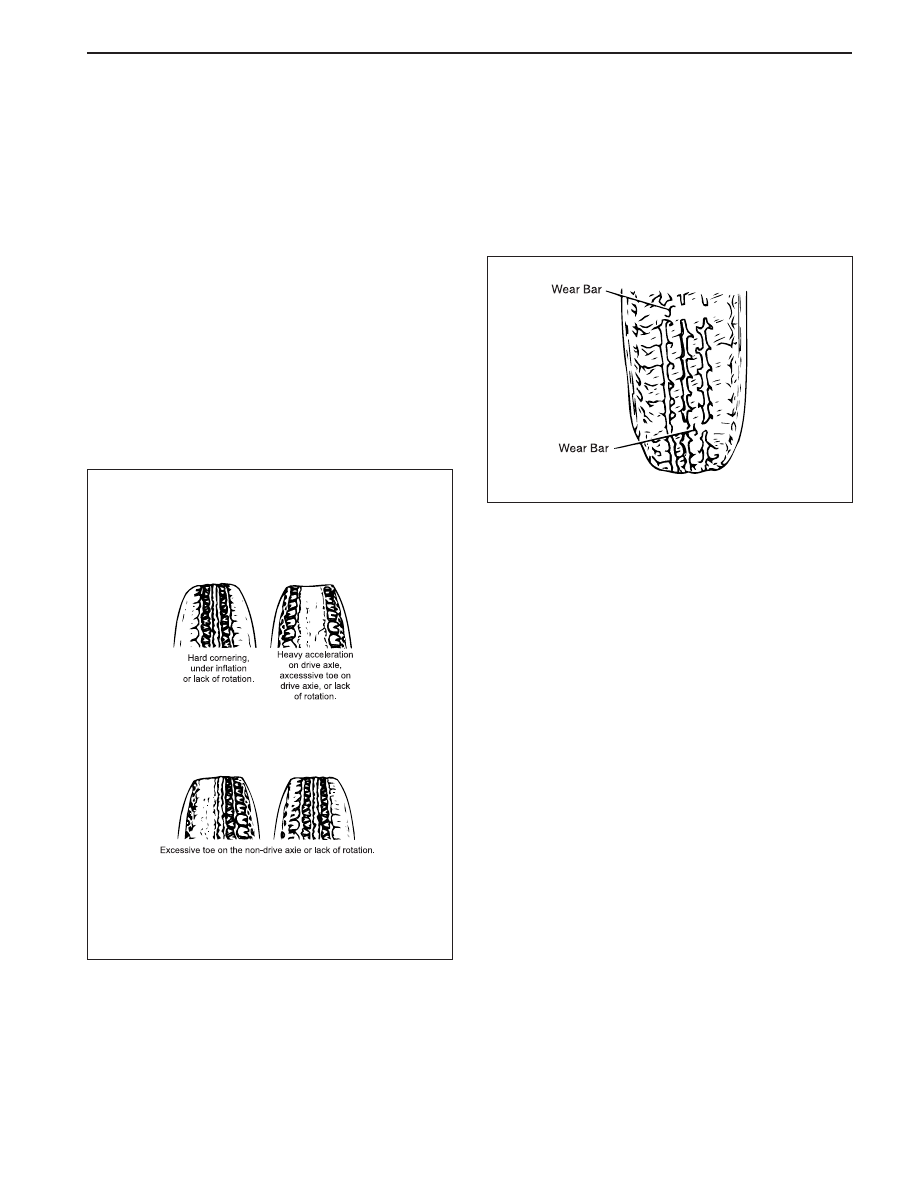

Tread Wear Indicators
The original equipment tires have built-in tread wear in
dicators to show when the tires need replacement.
These indicators appear as bands when the tire tread
depth becomes shallow. Tire replacement is recom
mended when the indicators appear in three or more
grooves at six locations.
KAA2B010
Radial Tire Waddle

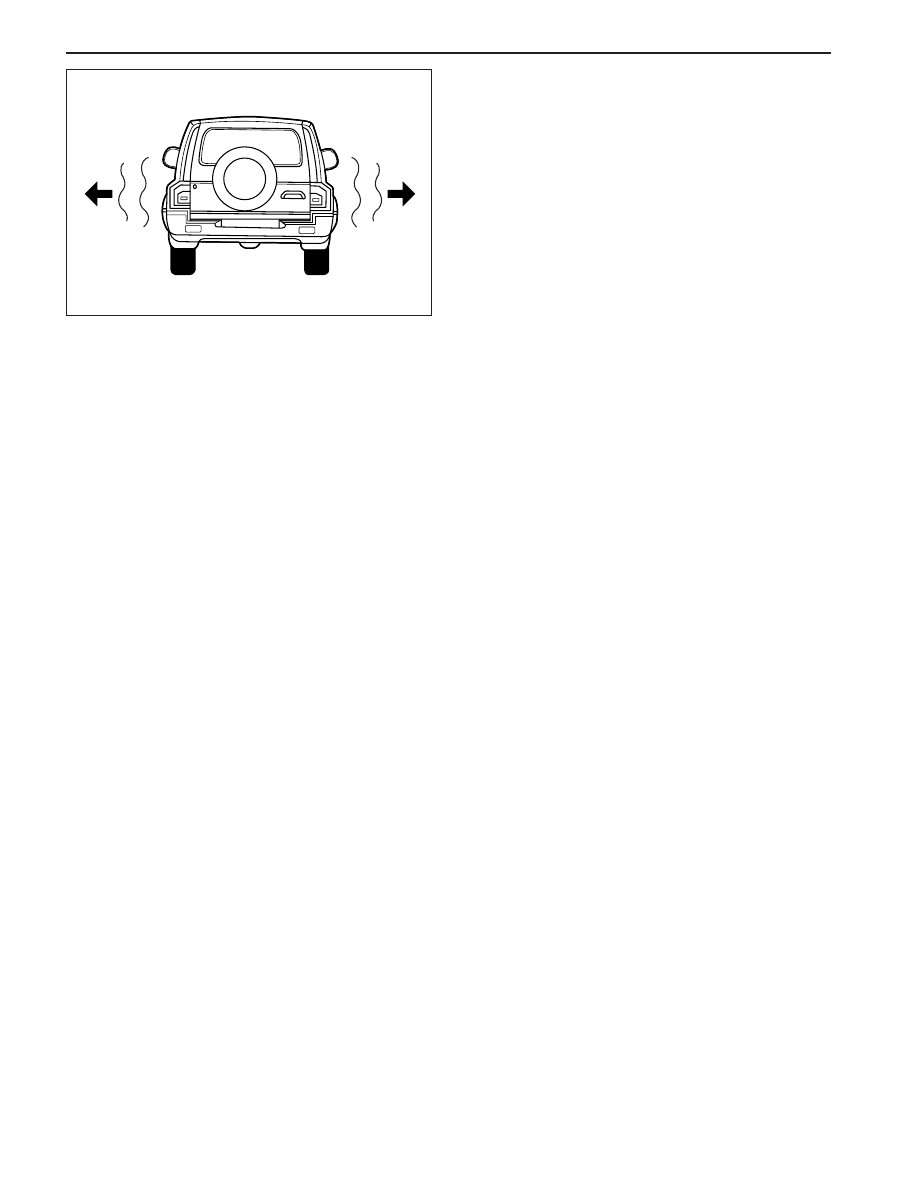

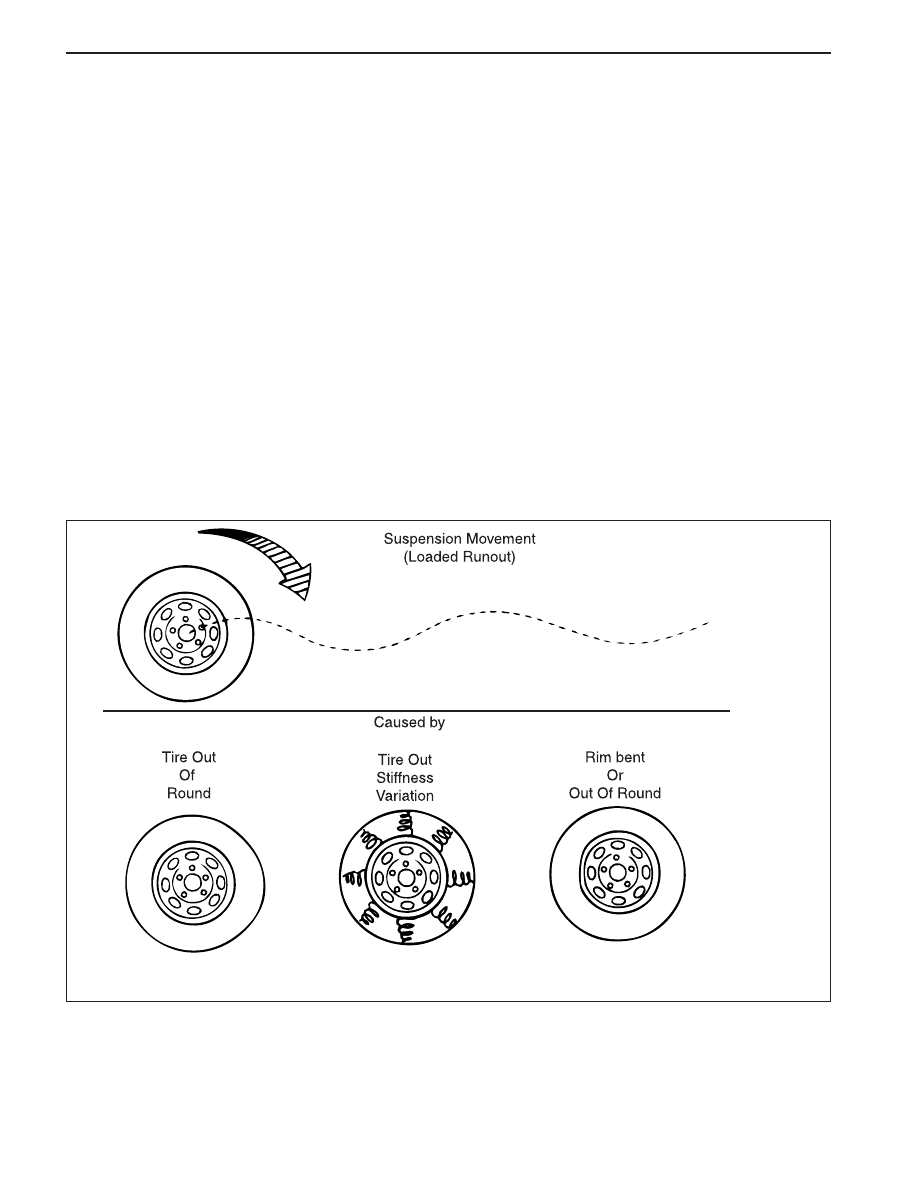

Waddle is side-to-side movement at the front or rear of
the vehicle. It is caused by the steel belt not being
straight within the tire, or by excessive lateral runout
of the tire or wheel.
The vehicle must be road tested to determine which
end of the vehicle has the faulty tire. The rear end of
the vehicle will shake from side to side or “waddle” if
the waddle tire is on the rear of the vehicle. From the
driver’s seat, it feels as though someone is pushing
on the side of the vehicle.
If the faulty tire is on the front of the vehicle, the waddle
is more visual. The front sheet meld appears to be mov-
ing back and forth, and the drivers seat feels like the
pivot point in the vehicle.
Waddle can be diagnosed using the method of substitut-
ing known good tire and wheel assemblies on the prob-
lem vehicle.
1. Road test the vehicle to determine if the waddle is
coming from the front or the rear of the vehicle.
2. Install good tires and wheels from a similar vehicle
in place of those on the offending end of the problem
vehicle. If the source of the waddle is not obvious,
change the rear tires.
3. Road test the vehicle. If there is improvement,
install the original tires to find the offending tire. If
there is no a straight improvement, install good tires
in place of all four offending tires.
