M161 ENGINE INTAKE & EXHAUST 1G2 -- 11

DAEWOO MY_2000

Removal & Installation Procedure

1. Remove the oxygen sensor if necessary.

Installation Notice

Tightening Torque

55 NSm (41 lb-ft)

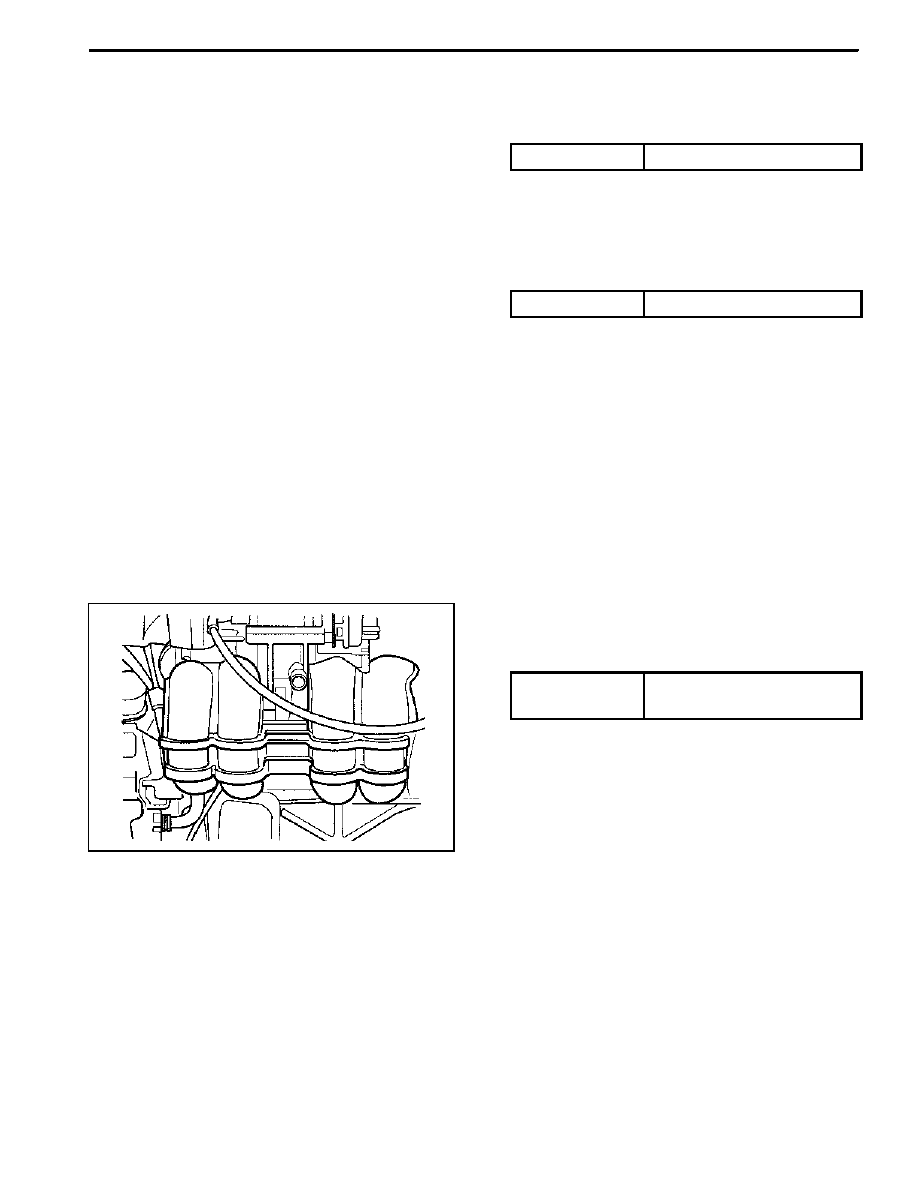

2. Unscrew the bolt (2) and remove the exhaust man-

ifold upper cover (3).

3. Unscrew the flange bolt (6) of front exhaust pipe and

separate the front exhaust pipe.
Installation Notice

Tightening Torque

30 NSm (22 lb-ft)

Notice: Check the exhaust pipe mounting nut, and re-

place it with new one if necessary.

4. Unscrew the eleven nuts (4) and remove the exhaust

manifold (5) and gasket (7).
Installation Notice

Tightening Torque

31.5 -- 38.5 NSm

(23.2 -- 28.4 lb-ft)

5. Replace the gasket (7) with new one.
6. Installation should follow the removal procedure in

the reverse order.

1G2 -- 12 M161 ENGINE INTAKE & EXHAUST

DAEWOO MY_2000

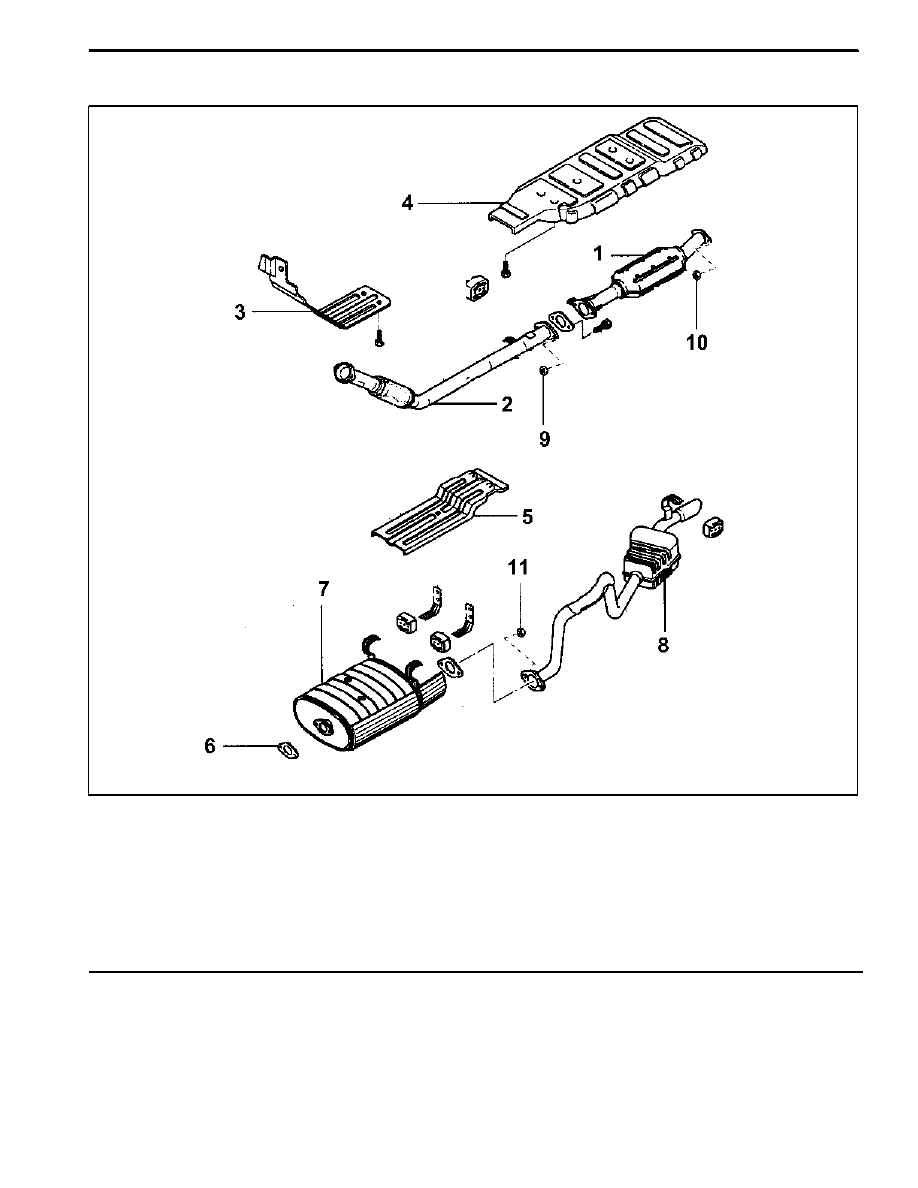

Removal and Installation of Exhaust System

1 Catalytic Converter

2 Exhaust Pipe

3 Heat Protector Dash

4 Heat Protector Front Floor

5 Hear Protector Rear Floor

6 Gasket

7 Front Muffler

8 Rear Muffler

9 Exhaust Pipe--to--Catalytic Converter

Flange Nuts

28--47 NSm (21--35 lb-ft)

. . . . . . .

10 Front Muffler Pipe--to--Catalytic Converter

Flange Nuts

28--47 NSm (21--35 lb-ft)

. . . . . . .

11 Rear Muffler Pipe Flange--to--Front Muffler Pipe

Flange Nuts

28--47 NSm (21--35 lb-ft)

. . . . . . .

DAEWOO MY_2000

SECTION 1

ENGINE

SECTION 1A3 (OM600 ENGINE)

GENERAL ENGINE INFORMATION

TABLE OF CONTENTS

Specifications

1A3--1

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Specifications

1A3--1

. . . . . . . . . . . . . . . . . . . . .

Sectional View

1A3--3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

OM662LA Engine

1A3--3

. . . . . . . . . . . . . . . . . . . . . . . .

OM661LA Engine

1A3--5

. . . . . . . . . . . . . . . . . . . . . . . .

Performance Curve

1A3--7

. . . . . . . . . . . . . . . . . . . . . . . .

OM662LA Engine

1A3--7

. . . . . . . . . . . . . . . . . . . . . . . .

OM661LA Engine

1A3--8

. . . . . . . . . . . . . . . . . . . . . . . .

Special Tools

1A3--9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Special Tools Table

1A3--9

. . . . . . . . . . . . . . . . . . . . . . .

Diagnosis

1A3--10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Oil Leak Diagnosis

1A3--10

. . . . . . . . . . . . . . . . . . . . . . .

Compression Pressure Test

1A3--11

. . . . . . . . . . . . . .

Cylinder Pressure Leakage Test

1A3--13

. . . . . . . . . . .

General Information

1A3--15

. . . . . . . . . . . . . . . . . . . . . .

Cleanliness and Care

1A3--15

. . . . . . . . . . . . . . . . . . . .

On--Engine Service

1A3--15

. . . . . . . . . . . . . . . . . . . . . .

SPECIFICATIONS

ENGINE SPECIFICATIONS

Application

OM662LA

OM661LA

Engine Type

Four--Stroke Diesel

Displacement (CC)

2874

2299

Cylinder (Bore x Stroke) (mm)

89 x 92.4

Fuel Injection / Ignition System

PES 5 M55 C320 RS 168

PES 5 M55 C320 RS 167

Compression Ratio

22 :1

Number of Cylinders

Camshaft Valve Arrangement

SOHC

Camshaft Drive Type

Chain--Drive

Max. Output (ps/rpm)

120 / 4000

101 / 4000

Max. Torque (kgSm/rpm)

25.5 / 4000

21.5 / 2400

Firing Order

1--2--4--5--3

1--3--4--2

Injection Timing

BTDC 18_ ± 10_

Valve Timing

( t 2

lift)

Intake

Open/Close

ATDC 11.33_ / ABDC 17_

(at 2mm lift)

Exhaust

Open/Close

BBDC 28_ / BTDC 15.25_

Valve Clearance Adjustment

Automatic Control

1A3 -- 2 GENERAL ENGINE INFORMATION

DAEWOO MY_2000

ENGINE SPECIFICATIONS (Cont’d)

Application

OM662LA

OM661LA

Idle Speed (rpm)

720 -- 820

750 -- 850

Fuel Injection Pressure (bar)

135 -- 143

Oil Capacity (liter)

8.0 -- 9.5

6.5 -- 8.0

Lubrication Type

Forced by Gear Pump

Oil Filter Type

Combined Full--Flow and Partial

Flow Filter

Combined Full--Flow and Partial

Flow Filter

Fuel

Diesel
