1. SPECIFICATIONS

Item

Item

Specification

SSPS solenoid valve

Rated voltage

DC 12 V

Rated voltage

1.0 A

Resistance

6.7 ±1 Ω

Power steering oil pump

(with SSPS)

Operating temperature

-40℃~150℃

Release pressure

90 bar

Displacement

9.3 cc/rev

Flow velocity

9.75~6 l/mn

Pulley size

Ø115

Pulley type

6 groove

Housing material

Aluminium

Power steering fluid reservoir

(with SSPS)

Fracture pressure

min 8kgf/㎠

Air leakage

2 kgf/㎠×min

Cap open torque

9.8 to 14.2 Nm

Oil capacity

FULL 550cc

Power steering gear box

(with SSPS)

Gear type

Rack & pinion type

Gear ratio

40.245

Fixed rack

3.78

Gear weight

12.800 kg

Steering angle

Inner

36.2°

Outer

32.4°

13-5

4620-01

1. OVERVIEW

The speed-sensitive power-assisted steering system can automatically adjust the boosts according to

the speed changes, automatically induct the high-speed or low-speed status, and relatively adjust the

reasonable steering boosts, enhance the operation precision, reduce the driving pressure of drivers. No

matter for steering, parking or reversing, it becomes much easier. The adjustable safety steering column

attached possesses the functions of electrically adjusting height and transverse position, has brought

much more abundant and comfortable spaces for legs, and has provided the great convenience to get in

or out the car.

The Speed Sensitive Power Steering (SSPS) unit controls the SSPS solenoid vale in steering gear box

to get proper power steering force.

13-6

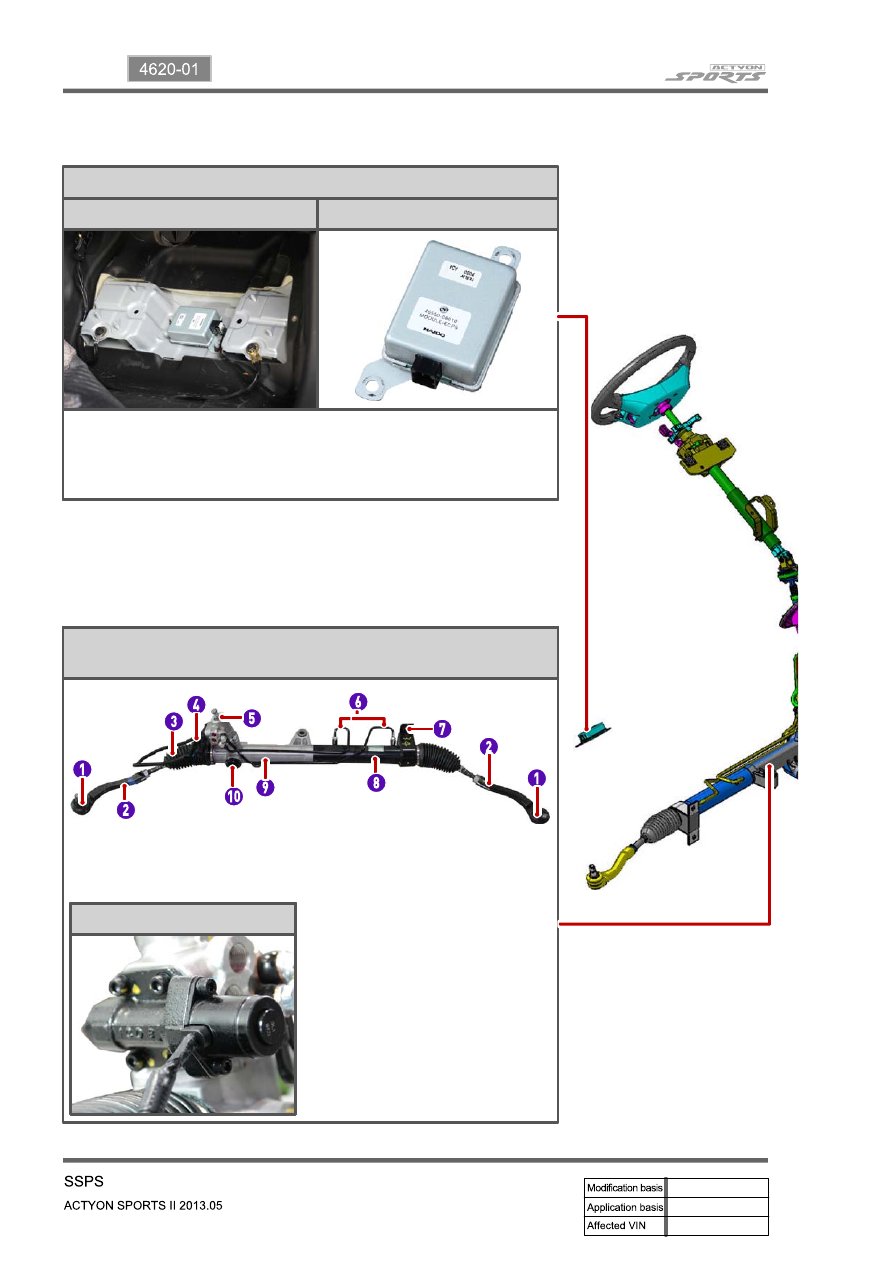

Power steering gearbox &

solenoid valve for SSPS model

SSPS control unit

Installed view

Unit components

It is installed at the bottom of the ECU inside the passenger's floor mat
foot protector cover and receives data related to the vehicle speed and
throttle position through the CAN communication and controls the
solenoid valves to obtain optimal steering force.

SSPS Solenoid Valve

Tie Rod End

Tie Rod

 Bellows

SSPS Solenoid Valve

Valve Assembly

Feed Tube

Mounting Bracket

Cylinder Tube

Rack Housing

Adjusting Plug

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

2. LAYOUT
