Change of Steering Wheel & Steering Column Shaft

▶

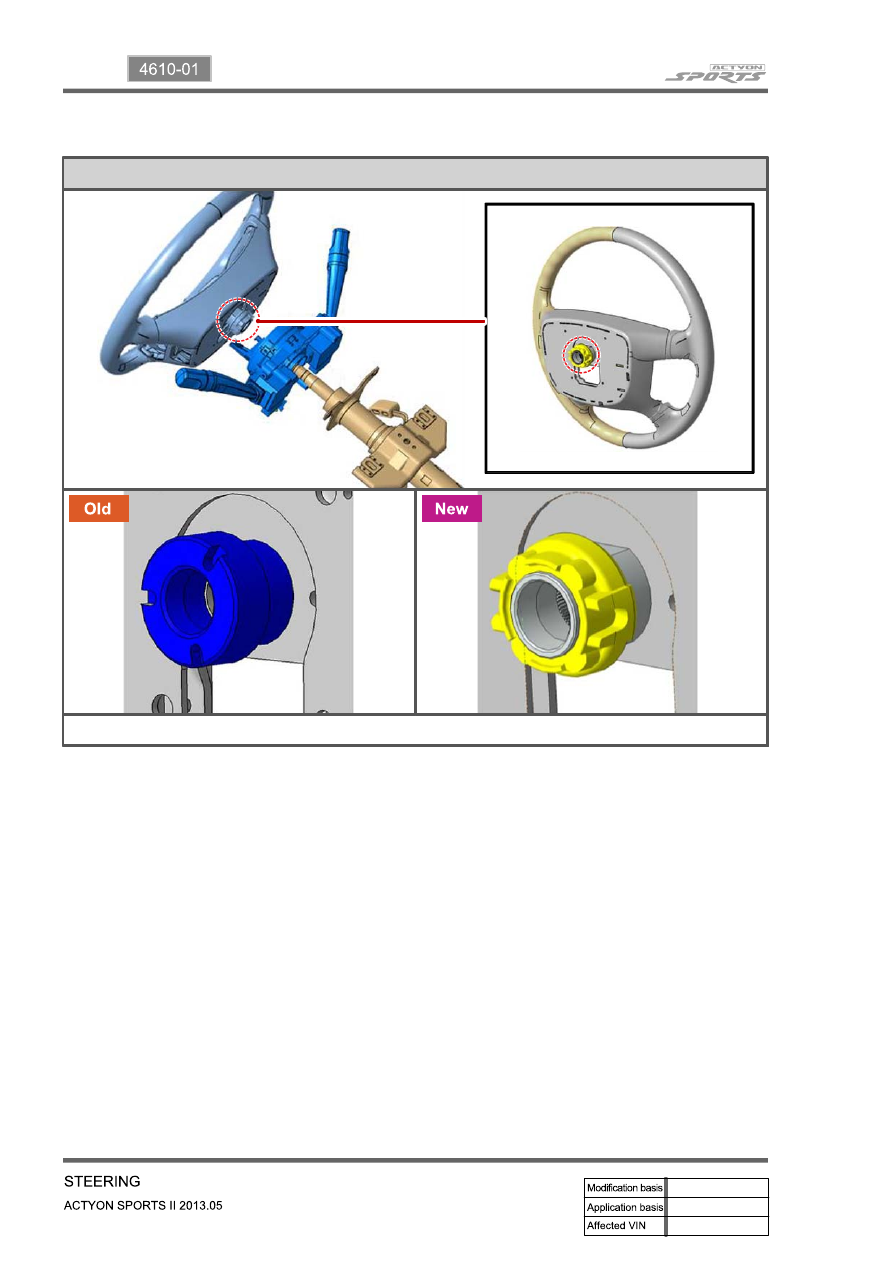

Appearance of steering wheel boss part changed

Steering wheel assembly boss part

12-9

4610-01

Steering column shaft

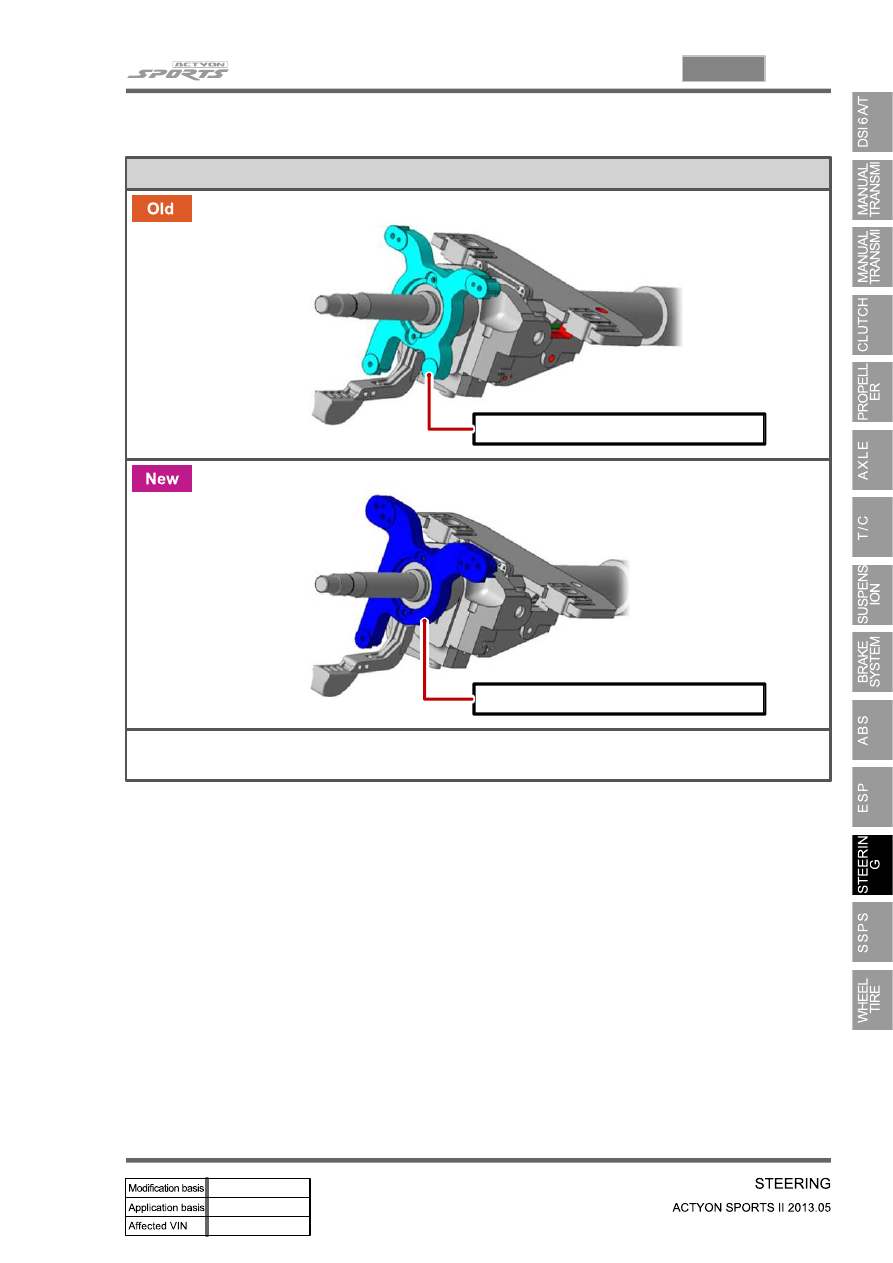

Steering column shaft upper multifunction switch mounting bracket changed due to change of
multifunction switch

Multifunction switch mounting bracket

Multifunction switch mounting bracket

12-10

3. SYSTEM LAYOUT

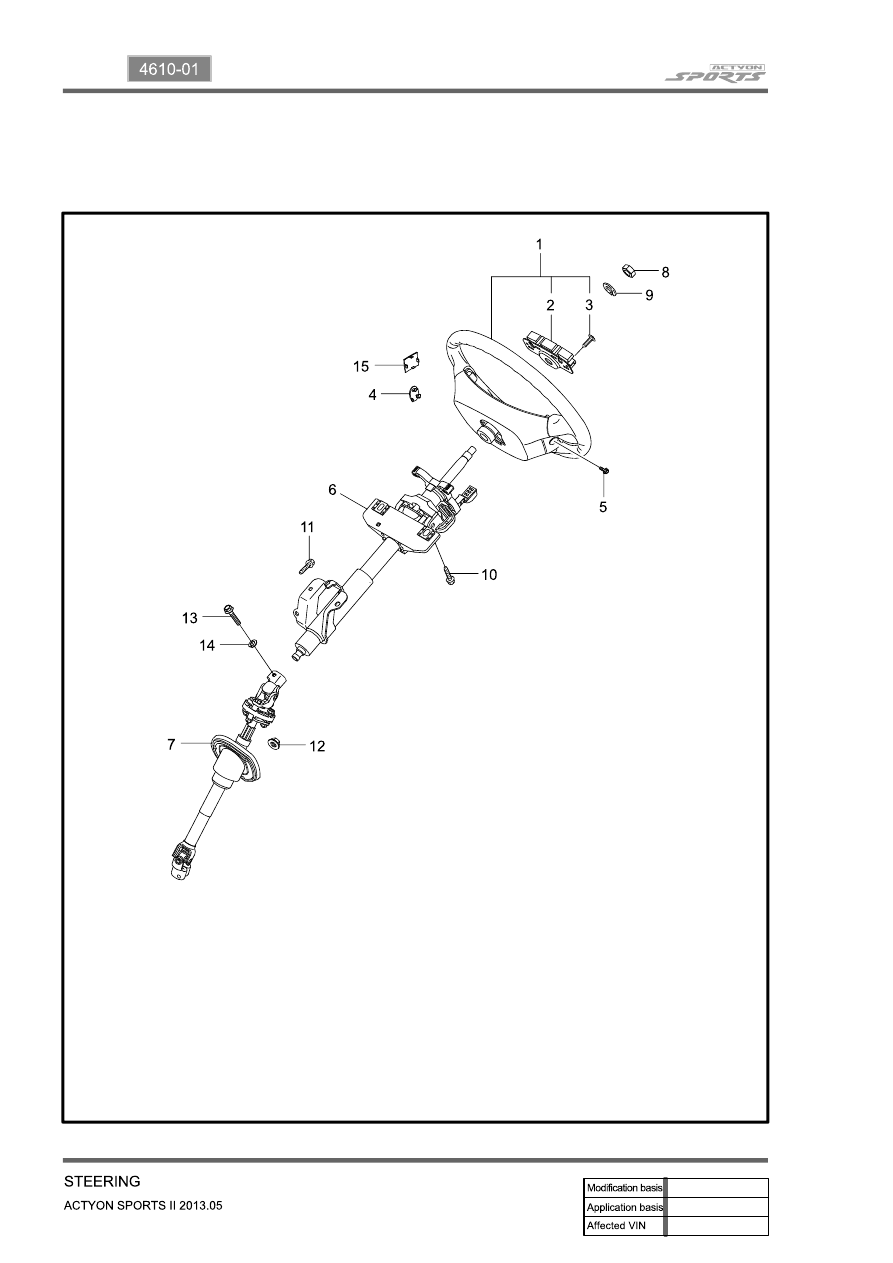

1) Steering Wheel and Column

Body assembly - steering wheel

Damper - steering wheel

Screw

Lid

Bolt

Column & shaft assembly - tilt

Shaft assembly - lower

Nut (39.2~58.5 Nm)

1.

2.

3.

4.

5.

6.

7.

8.

Washer

Bolt (19.6 ~ 24.5 Nm)

Bolt (19.6 ~ 24.5 Nm)

Nut

Bolt - joint (17.6~24.5 Nm)

Washer

Blanking cover - cruise switch

9.

10.

11.

12.

13.

14.

15.

12-11

4610-01

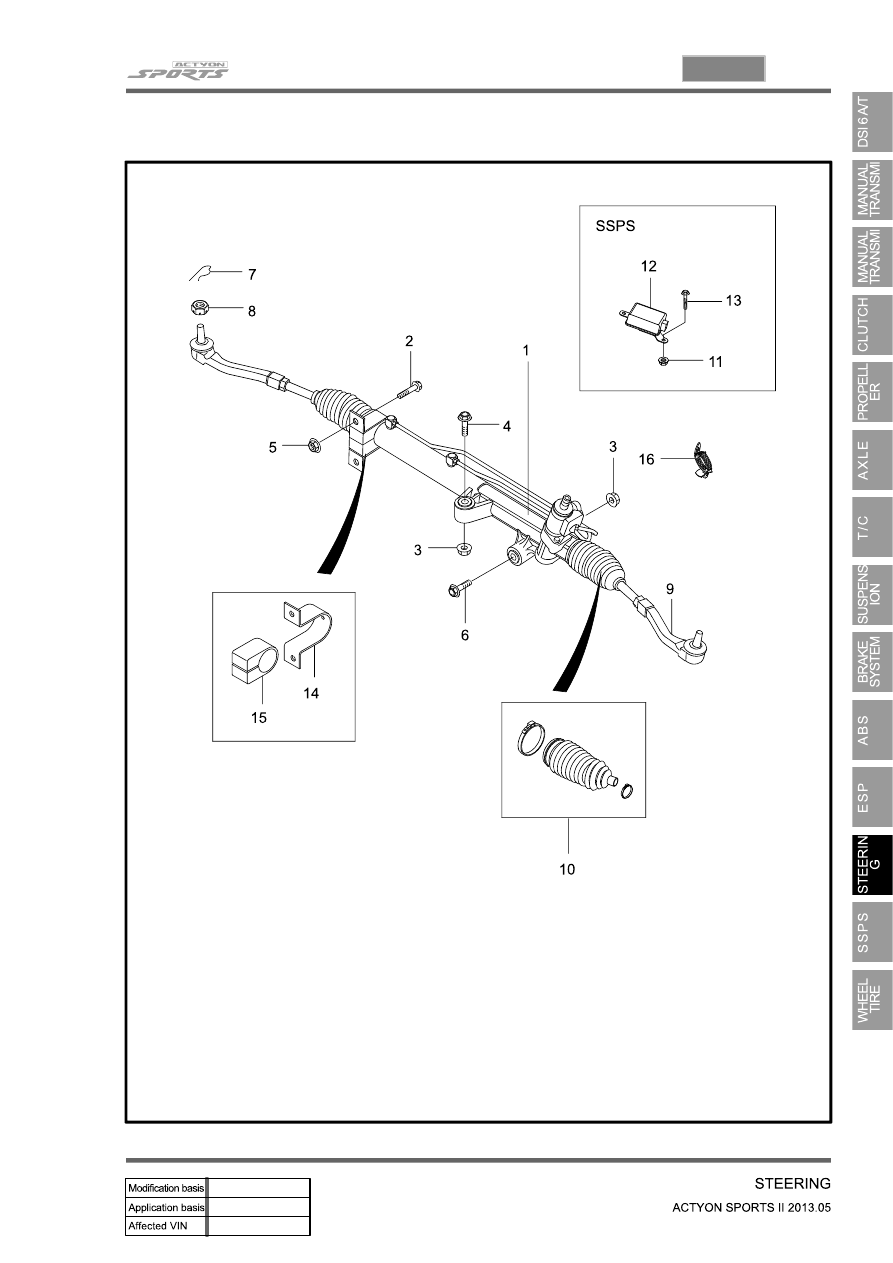

2) Steering Gear Linkage

Linkage assembly - gear & operation ball

joint

Bolt (100 ~ 130 Nm)

Nut (100~130 Nm)

Bolt (100 ~ 130 Nm)

Nut (100~130 Nm)

Bolt (100 ~ 130 Nm)

Pin

1.

2.

3.

4.

5.

6.

7.

Nut

End assembly - tie rod

Boot kit - power steering gear box

Nut

SSPS module

Clamp - mounting

Rubber - MTG

8.

9.

10.

11.

12.

14.

15.
