SsangYong Actyon Sports II. Manual - part 132

05-3

3310-00

1. SPECIFICATION

Description

Specification

Structure

Universal joint with yoke arm and spider

Number of spiders

Front

Part time T/C

Two

Rear

Three

Runout

Max. 0.3mm

Unbalance

Max. 18 g.cm / 4,500 rpm

Dimension of front
propeller shaft (Length x
Dia.) (mm)

A/T

552.3*Φ63.5 (Compressed)

M/T

603.8*Φ63.5 (Compressed)

Dimension of front
propeller shaft (Length x
Dia.) (mm)

2WD Front

1136.0*Φ63.5

Rear

743.*Φ63.5(Compressed)

4WD(M/T)

Front

785.1*Φ63.5

Rear

743.*Φ63.5(Compressed)

4WD(A/T)

Front

836.8*Φ63.5

Rear

743.*Φ63.5(Compressed)

2. TIGHTENING TORQUE

Fastener

Tightening torque

Mounting bolts for front/rear axle

66.7 ~ 73.5Nm

Mounting bolts for T/M and T/C

79.4 ~ 87.2Nm

Mounting bolts for center bearing

78.4  ~93.1Nm

05-4

1. OVERVIEW

The propeller shaft transfers the power through the transmission and transfer case to the front/rear axle

differential carrier (final reduction gear).

It is manufactured by a thin rounded steel pipe to have the strong resisting force against the torsion and

bending.

Both ends of propeller shaft are connected to the spider and the center of propeller shaft is connected to

the spline to accommodate the changes of the height and length.

The rubber bushing that covers the intermediate bearing keeps the balance of rear propeller shaft and

absorbs its vibration.

Function of propeller shaft

▶

Transmits driving torque.

Compensates the angle change (universal joint / CV joint).

Compensates the axial length change (splines for the slip joint).

-

-

-

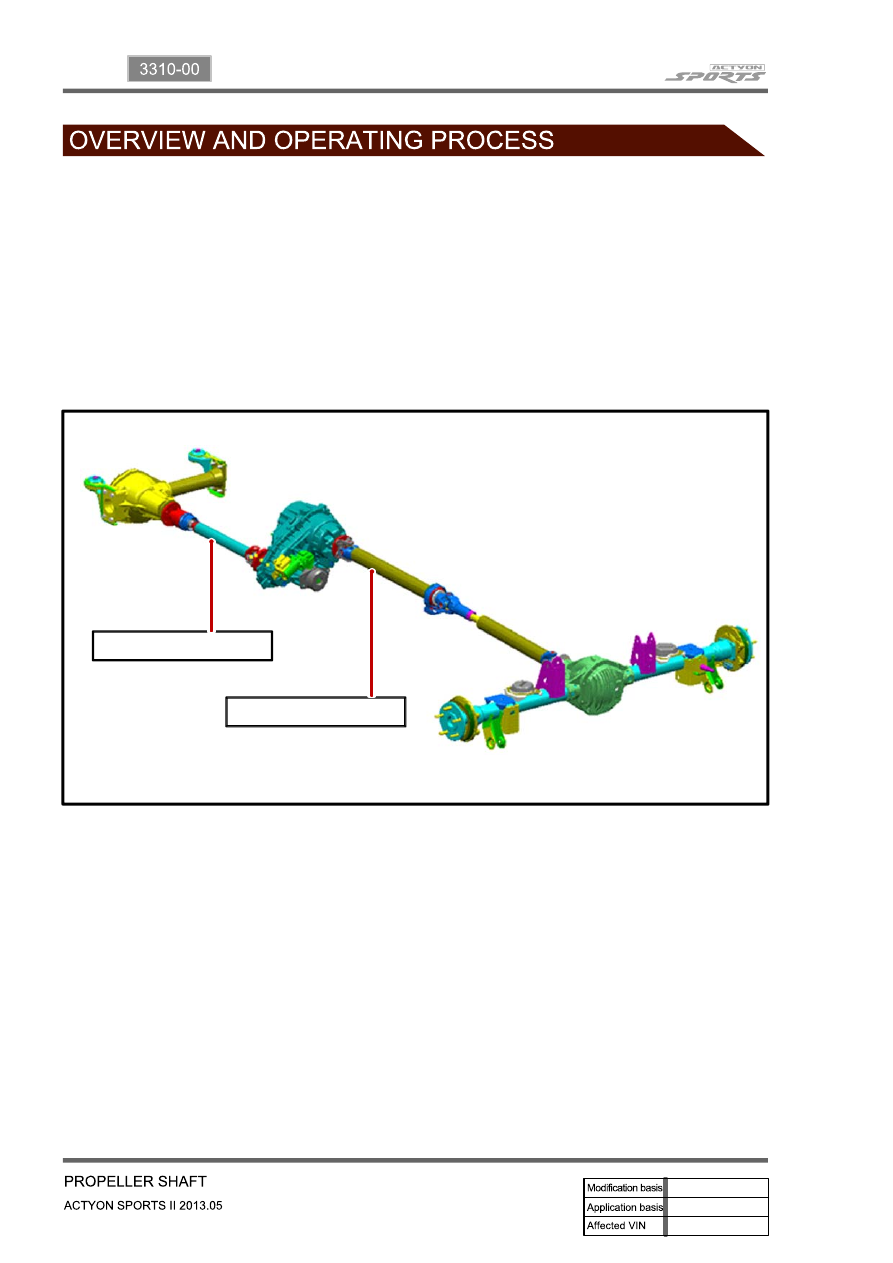

Front propeller shaft

Rear propeller shaft

06-2

1. SPECIFICATIONS

Location

Front Axle

Rear Axle

Gear

Type

Hypoid

←

←

←

Size

Ø182.8 mm

←

Ø228.6 mm

←

Offset

28.58 mm

(DYMOS)

35 mm(Tongil)

←

30 mm

-

Housing

Steel

←

Steel casting

←

Oil

Type

SAE 80W/90, API

GL-5

←

SAE 80W/90, API

GL-5

←

Capacity

1.4 L

←

2.0L

←

Length

448.0 mm

←

469.0 mm

←

Witdh

681.9 mm

←

1,717.7 mm

←

Weight

45 kg

←

90 kg

←

Specification

M/T

A/T

M/T

A/T

Gear ratio

4.55R(5MT DSL)

4.89R(5MT GSL)

3.54(5AT DSL)
3.91(6AT DSL)

4.55R(5MT DSL)

4.89R(5MT GSL)

3.54(5AT DSL)
3.91(6AT DSL)

07-3

3240-01

1. SPECIFICATIONS

Description

Specifications

Type

Part-time transfer case

Total length

343 mm

Mating surface of front flange

40 mm

Weight

32.4 kg (including oil)

Oil capacity

1.4 L

Oil type

ATF DEXRON III

Location

Transfer case

Major element

Housing

Part-time & TOD

Bolt

11 ea, M8 x 1.25

Input shaft

A/T: outer spline

M/T: inner spline
