SsangYong Actyon Sports II. Manual - part 104

06-6

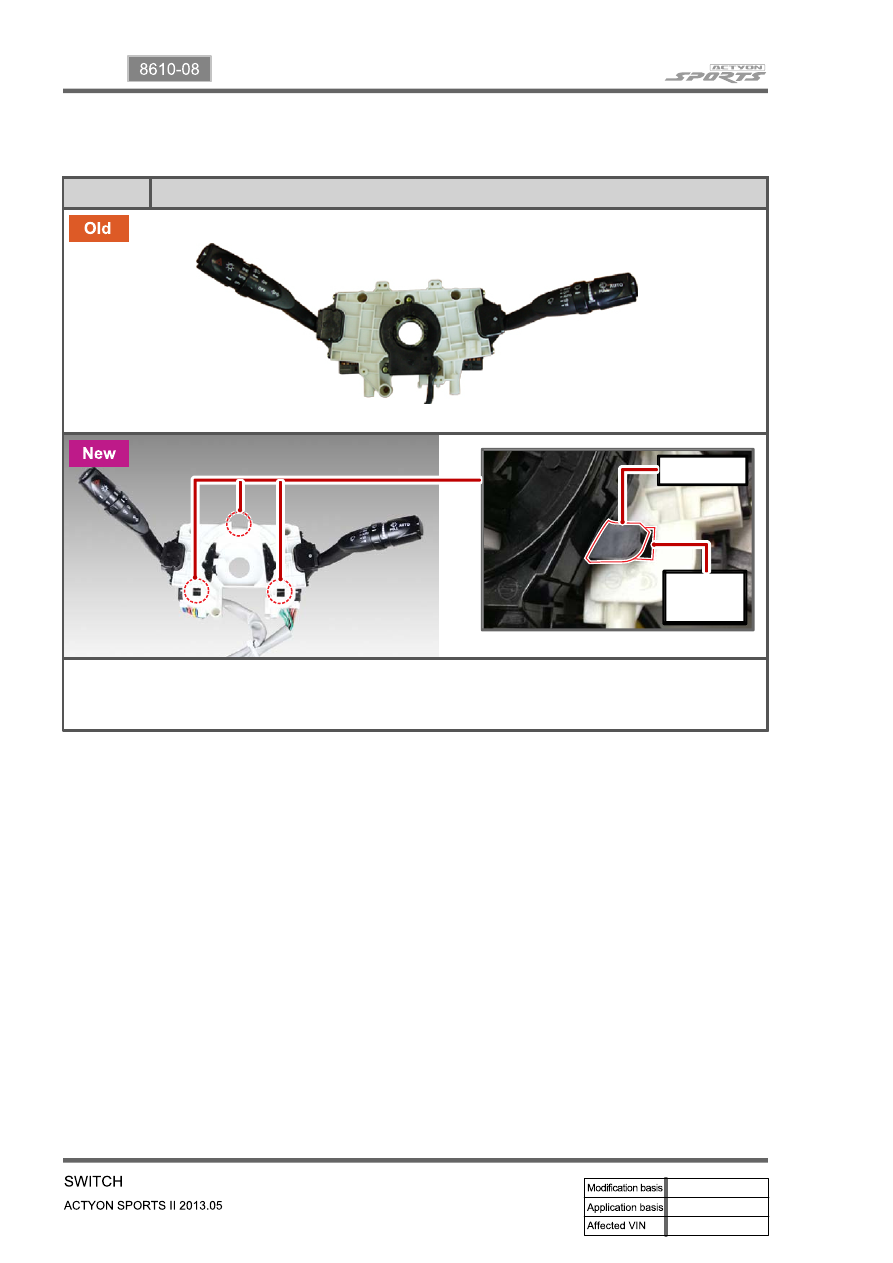

8510-72 Multifunction

switch

- Connector pin and layout changed due to heated steering wheel system adopted
- Mounting appearance changed due to changed steering wheel angle sensor
  (wiring route changed) and contact coil (fixing key)

Fixing key

Mounting

groove

06-8

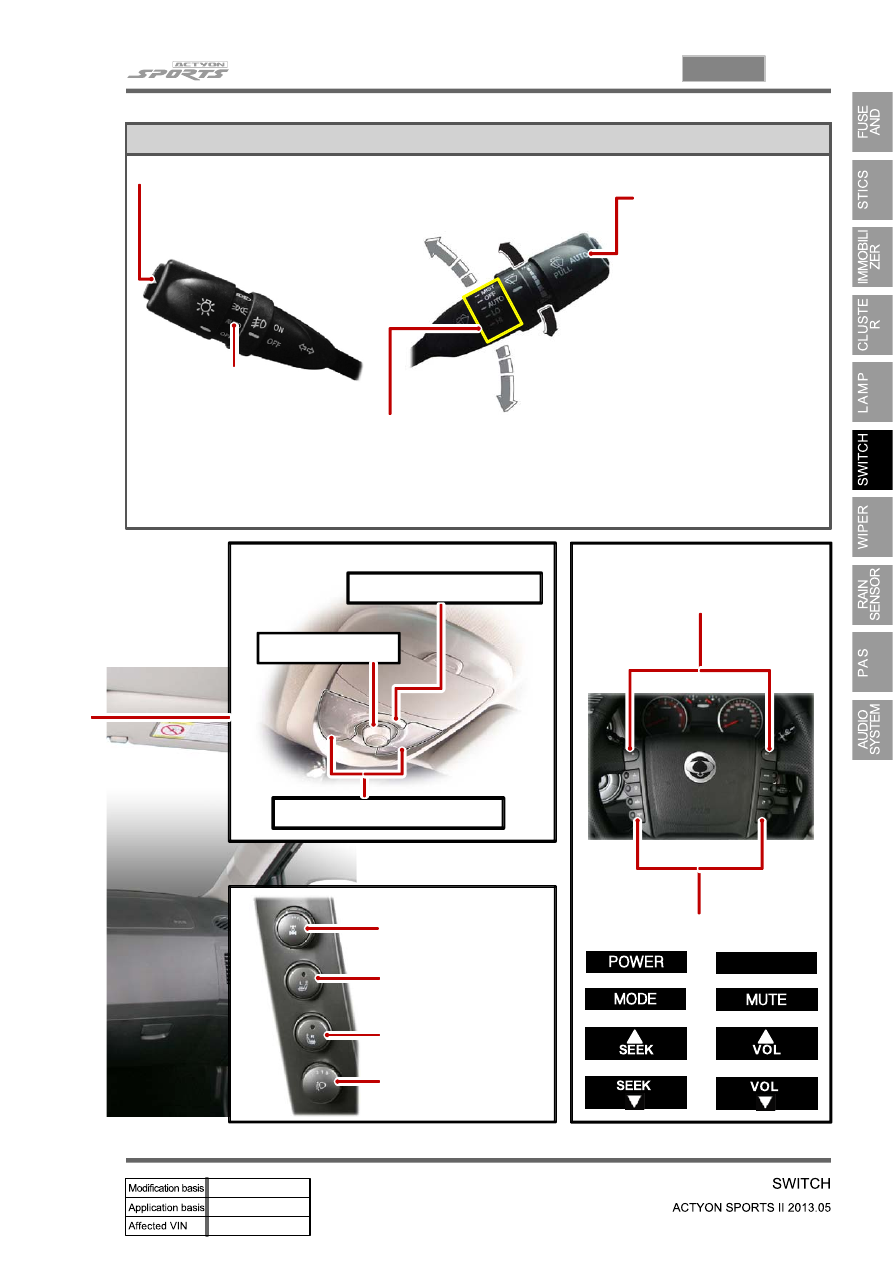

1. OVERVIEW

TRIP/RESET Switch

The mode is changed each time this button is

pressed as follows: TRIP A -> TRIP B -> DTE -

> Driving time -> Average fuel economy ->

Instant fuel consumption -> Tail lamp

illumination level.

Windshield de-icer switch

Pressing switch activates windshield

heated glass for approx. 12 minutes

The main switch which allows the

driver to control all door windows,

door lock and window lock from the

driver seat.

Tailgate and

outside rearview

mirror heated glass

switch

Pressing switch

activates tailgate and

outside rearview

mirror heated glass

for approx. 12

minutes

Driver power window switch

ESP ON/OFF switch

Pressing this switch deactivates the ESP (Electronic

Stability Program) system and turns on the ESP OFF

indicator on the instrument cluster. Pressing this

switch again turns off the ESP OFF indicator and

activates the ESP system.

Outside rearview mirror folding/unfolding switch

Press the FOLD/UNFOLD switch to fold the outside

rearview mirror and press the switch again to unfold

the mirror.

Rear Fog Lamp Switch

The rear fog lamp comes on when

the rear fog lamp is turned on only

while the front fog lamp is ON.

Steering Wheel Heating

Switch

To heat the steering wheel,

press this switch. To stop

the heating, press it again.

The indicator on the

instrument cluster comes

on when heating and goes

off when turning off. The

heating function stops when

stopping the engine.

06-9

8610-08

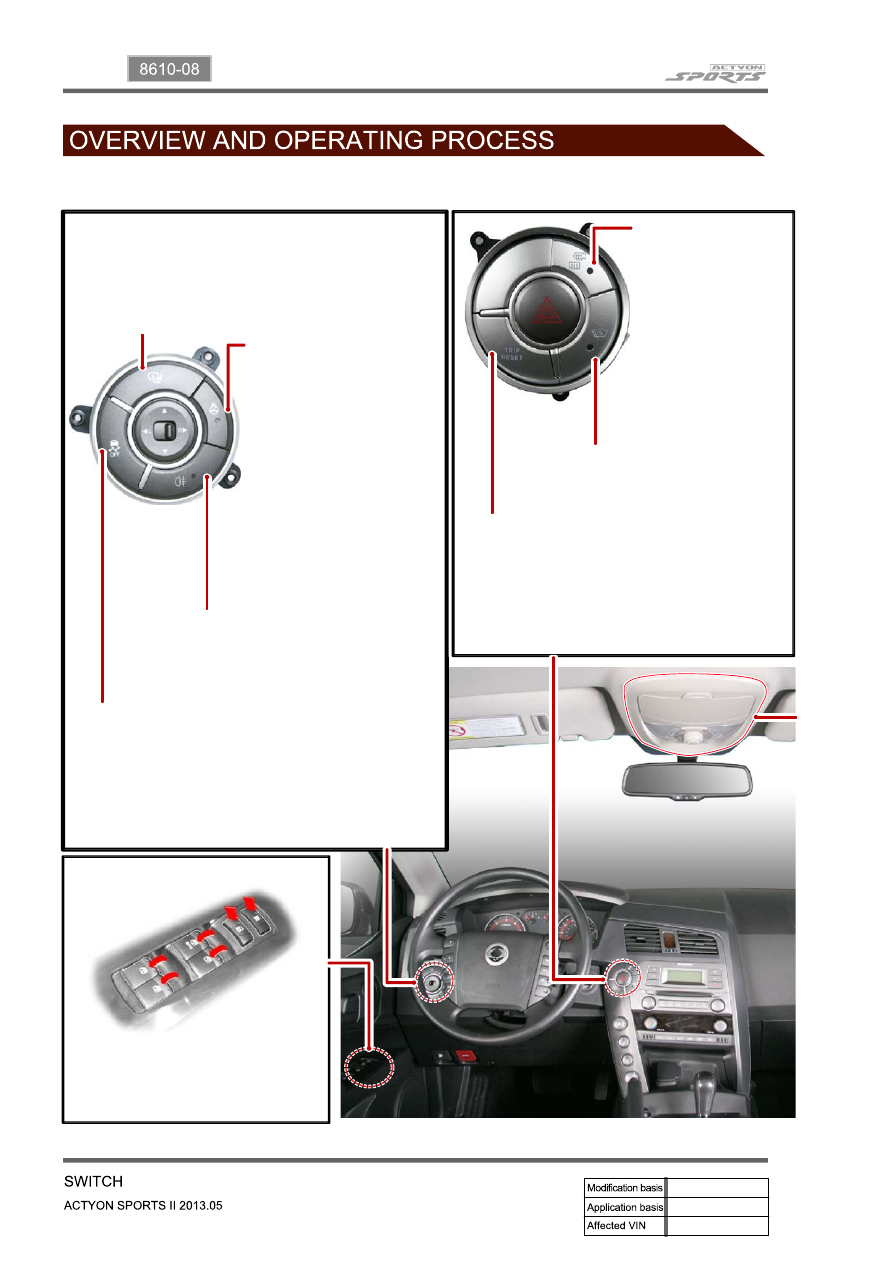

Major Functions of Multifunction Switch (Added functions)

Automatic hazard warning flasher switch

    ▶ Briefly press: Hazard warning flasher blinks three times.
    ▶ Press and hold: Hazard warning flasher blinks ten times.

Auto washer switch

Washer fluid is sprayed on

the windshield and the

wiper sweeps off 4 times.

Then, the fluid will be

sprayed again and the

wiper will automatically

operate 3 times.

Auto light switch

Front wiper and washer coupled operation

Pull the lever briefly (below 0.6 seconds):

Wiping without washer spray

Pull and hold the lever for more than 0.6 seconds:

Three wiping cycles with washer spray

4WD control switch

Driver's heated

seat switch

Passenger's heated

seat switch

Audio remote control switch

Gear shift switch

Front room lamp spot switch

Sun roof switch

Main room lamp switch

Front wiper operation range

(move the wiper lever up/down)

Head lamp leveling

switch
