02-23

8710-01

▶Ignition Key Reminder Warning

The chime buzzer sounds continuously when opening the driver's door while the ignition key is in

ignition switch.

When removing the ignition key or closing the driver's door during chime buzzer operation, the

buzzer stops.

This function does not work when the IGN1 switch is in "ON" position.

-

-

-

(The function has priority over the "TAILLAMP ON WARNING".)

Chime Buzzer

PAS buzzer

ICM relay box

STICS

02-24

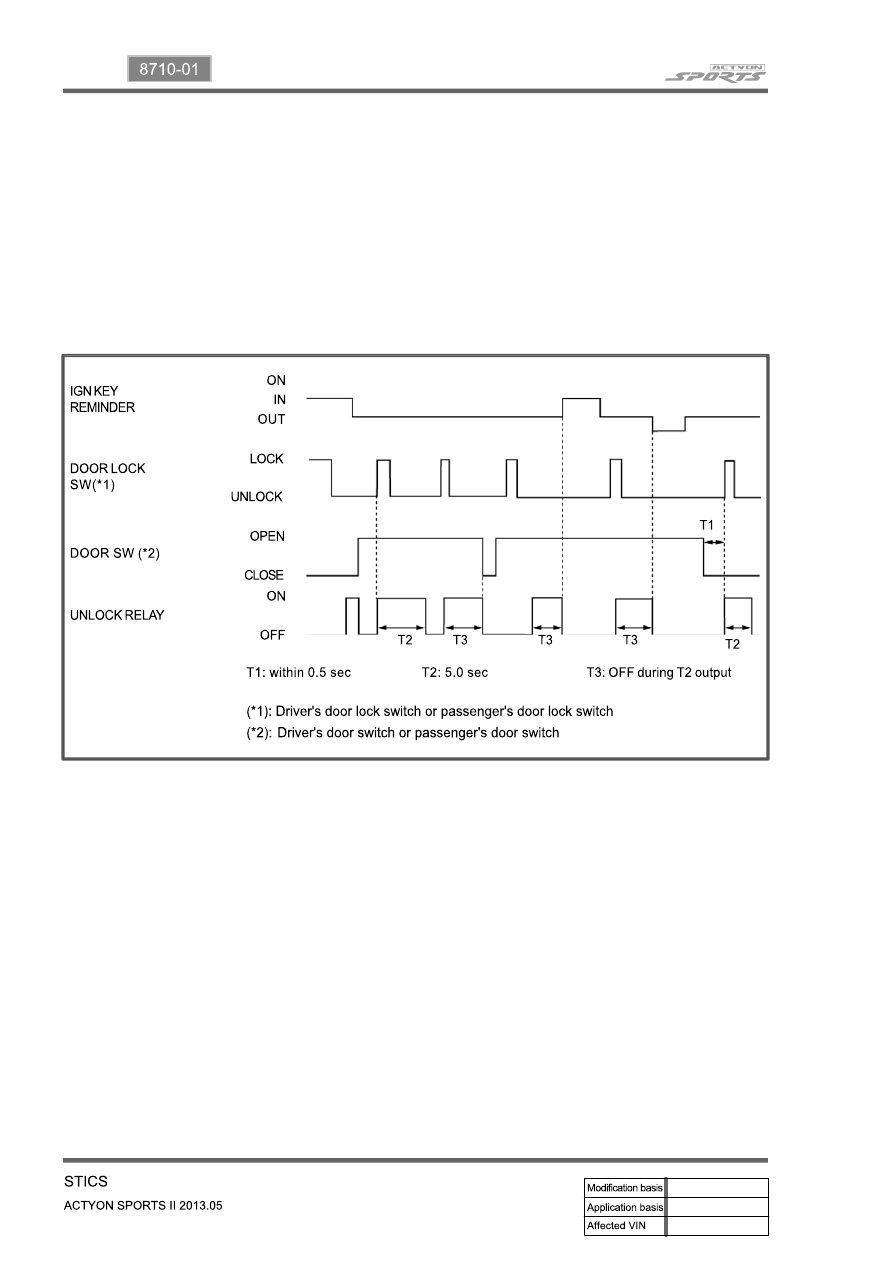

▶Ignition Key Reminder

The system outputs "UNLOCK" signal for 5 seconds after the driver's door is opened and the

door lock switch is changed to "LOCK" (while the ignition key is in ignition switch).

The system outputs "UNLOCK" signal for 5 seconds when the door lock switch is changed to

"LOCK" from "UNLOCK" and the driver's door is closed within 0.5 seconds (while the ignition key

is in the ignition switch).

If the "UNLOCK" conditions are met, the system outputs "UNLOCK" signal unconditionally.

However, if the ignition key is removed after the door lock switch is changed from "UNLOCK" to

"LOCK", the system does not output "UNLOCK" signal.

-

-

-

02-25

8710-01

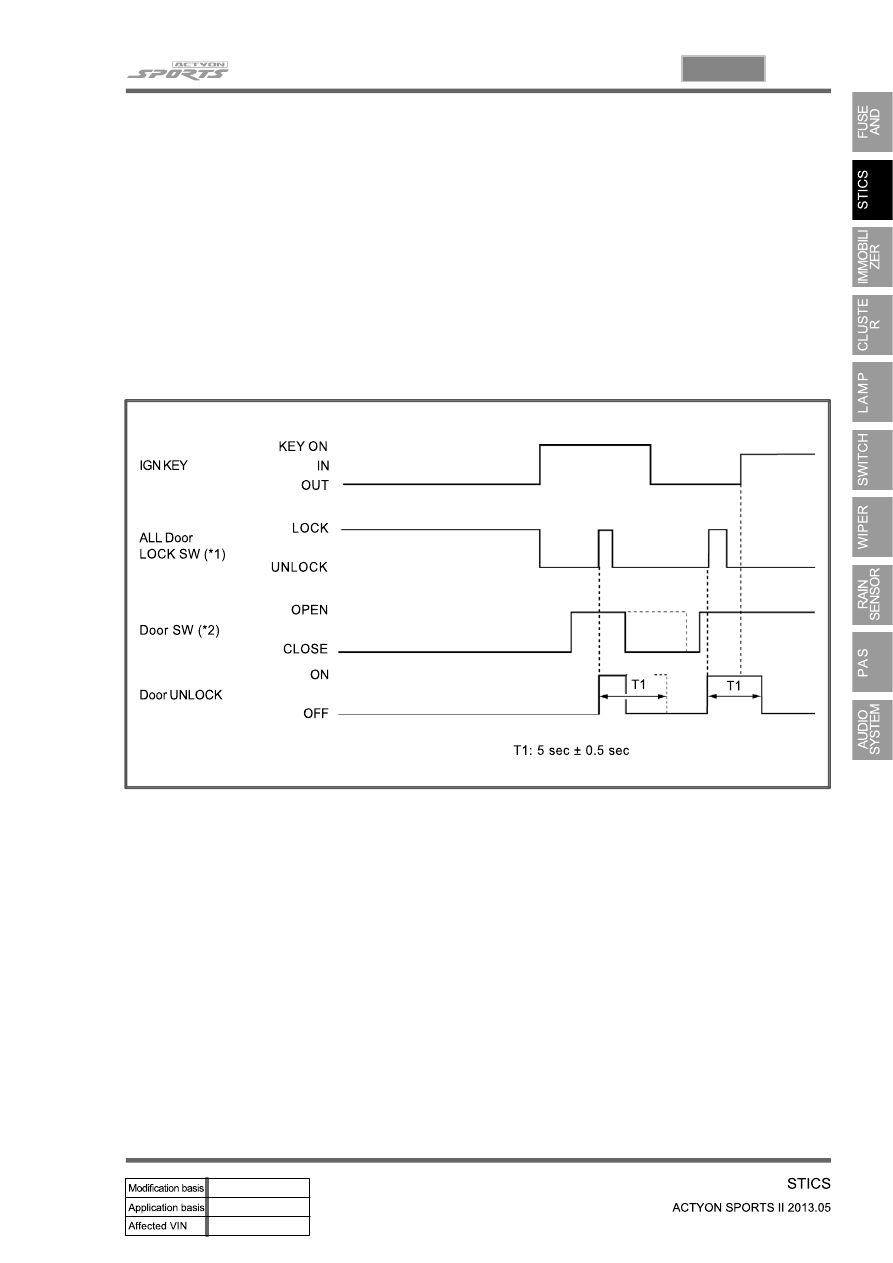

▶All Door Lock Prevention Function when a Door is Open

All doors, except the tailgate and hood, output "UNLOCK" signal for 5 seconds when the "LOCK"

signal is inputted (while the ignition key is removed and one of any doors is open).

When the door is closed during the UNLOCK output for approx. 5 seconds, the UNLOCK output

stops immediately.

When the ignition key is inserted during the 5 seconds output, the output continues for approx. 5

seconds.

If the ignition switch is in the "ON" position or the ignition switch is removed, the above steps are

performed. If the key is in the key cylinder, the ignition key reminder function is activated.

This function does not work if the vehicle speed is over 10 km/h.

-

-

-

-

-

02-26

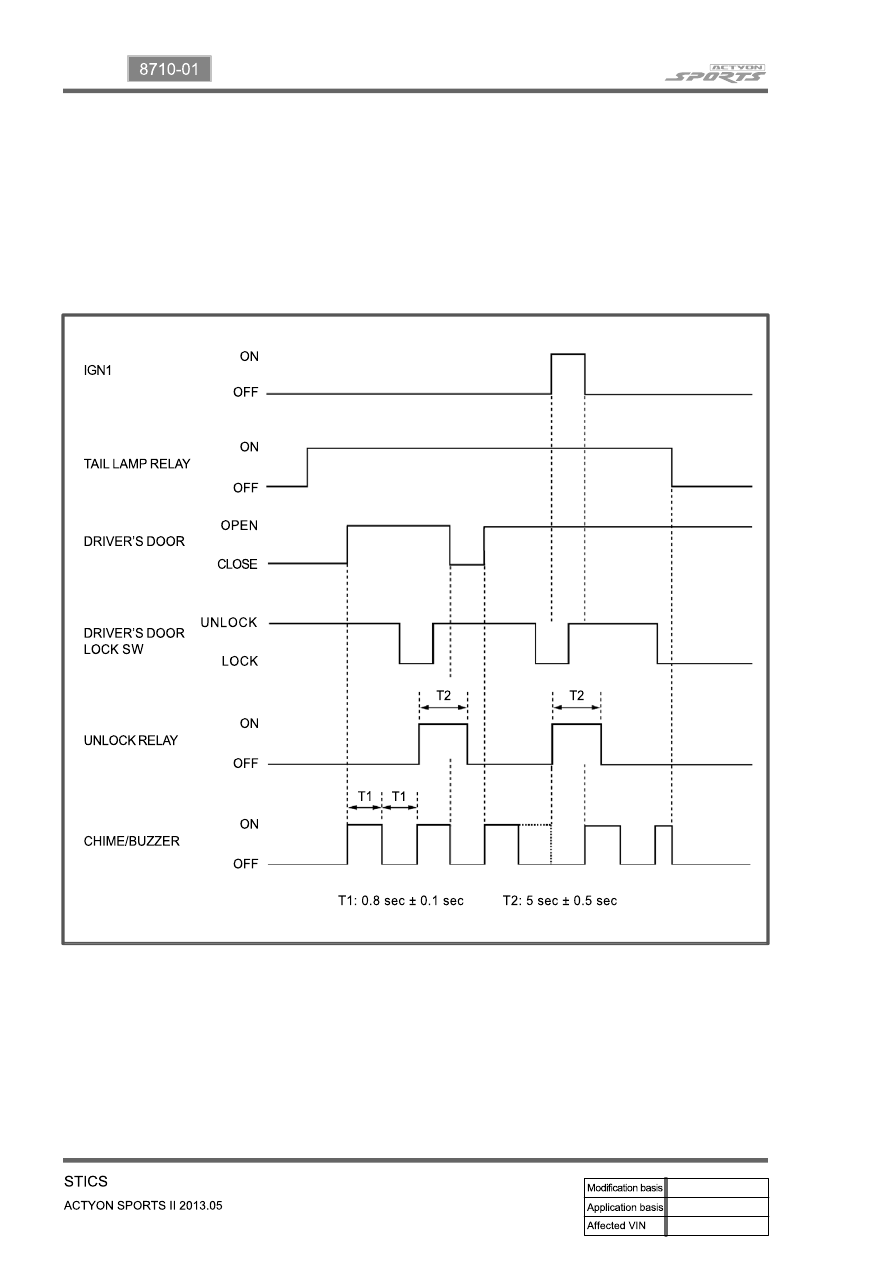

▶Tail Lamp Left On Warning

The chime buzzer sounds with the interval of 0.8 second when opening the driver's door while the

tail lamp is turned on and the ignition key is removed.

The c/buzzer output stops when turning off the tail lamp and closing the driver's door.

The system outputs "UNLOCK" signal for 5 seconds when the driver's and passenger's door lock

switch is locked (while the tail lamp is turned on and the driver's door is open).

This function does not work when the IGN1 switch is in "ON" position.

-

-

-

-
