Method for Reduction of NOx

▶

NOx is generated a great deal in case that combustion temperature and excess air factor are high. EGR

valve can decrease NOx (30 to 35% decrease) by making temperature of combustion chamber fall by

means of exhaust gas re-circulation.

EGR valve is installed on the diesel engine of Musso, Korando, Istana and Rexton.

And micro switch is installed together to control EGR valve.

The setting method of micro switch is identical with the existing one.

-

-

05-3

1531-24

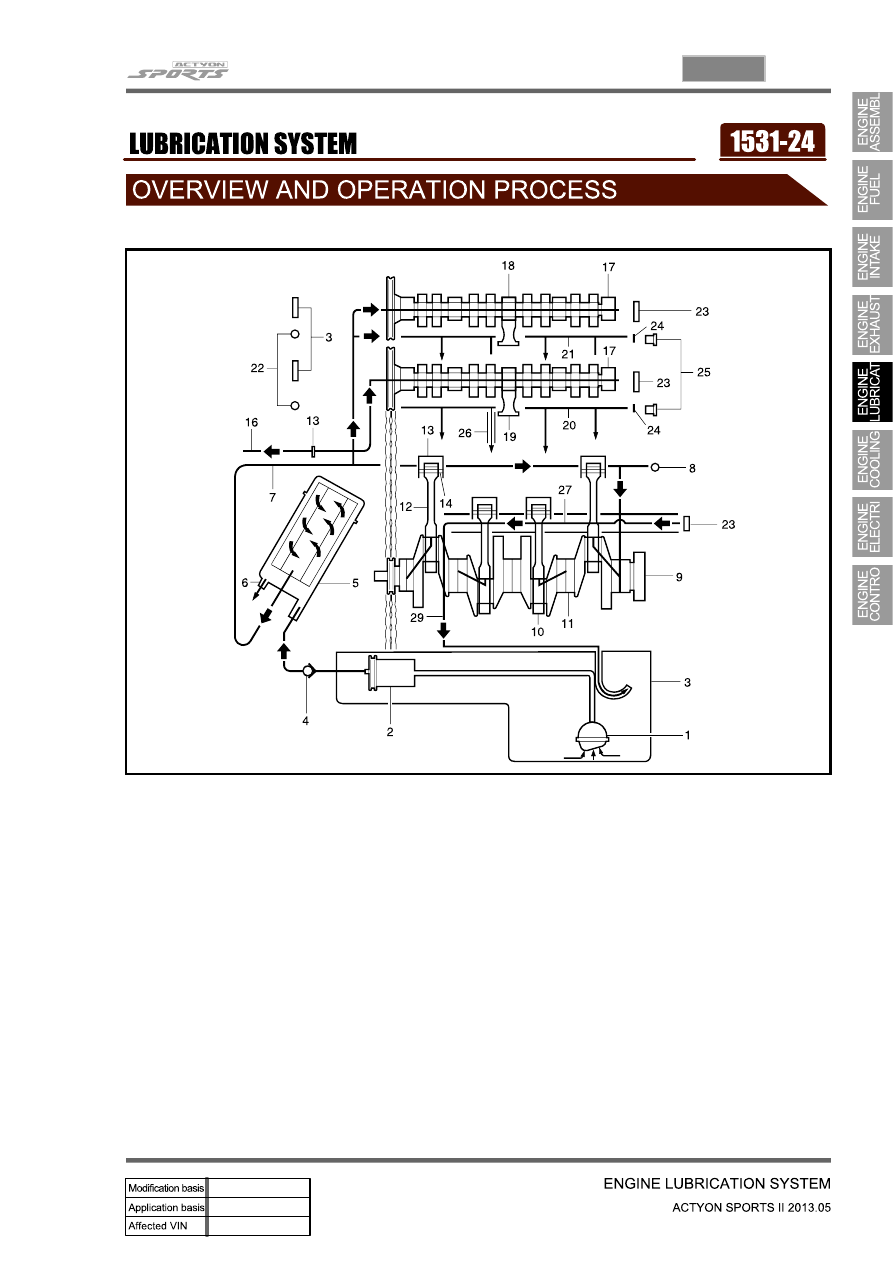

1. OIL CIRCULATION

1 Oil Strainer

2 Oil Pump

3 Oil Pan

4 Oil Non-Return Valve

5 Oil Filter

6 Oil Filter Bypass Valve

7 Main Oil Gallery
8 Closing Ball (φ 15 mm)

9 Crankshaft

10 Connecting Rod Bearing

11 Crankshaft Bearing

12 Connecting Rod

13 Piston

14 Oil Spray (Piston Crown Area)

15 Non-Return Valve (Crankcase)

16 Oil Supply (To Chain Tensioner)

17 Camshaft

18 Cam Bearing

19 Valve

20 Oil Gallery (Supply Oil to Intake Tappet)

21 Oil Gallery (Supply Oil to Exhaust Tappet)
22 Ball (φ 8 mm)

23 Camshaft Plug

24 Seal

25 Screw Plug

26 Oil Return Gallery (Cylinder Head and Crankcase)

27 Oil Return Gallery (Crankcase)
28 End Cover (φ 20 mm)

29 Oil Return Pipe

06-3

2110-01

1. GENERAL SPECIFICATIONS

Application

Gasoline engine

Cooling system

Type

Water cooling forced circulation

Coolant

Capacity

11.3L

Thermostat

Type

Wax Pellet Type

Initial Opening Temp.

87℃(188.6℉)

Fully Opening Temp.

102℃(215.6℉)

Fully Closing Temp.

85℃(187℉)

Stroke

7mm

Cooling fan module

Type

Electric

Capacity

Φ472 x 400W x 5B

Control type

PWM type

Coolant reservoir

Capacity

over 1.5L

Circulation

Closed roof type

Pressure cap

Screw type, 1.4bar

Vacuum valve

Screw type, 1.4bar

Water pump

Type

Turbo centrifugal

Impeller diameter

65mm

Impeller blades

8

Radiator

Core size

555W x 582.4H x 27T (over 326,250mm²)

Flow type

Cross flow

Min. cooling capacity

over 68,000kcal/h

Coolant temperature
gauge

Minimum radiation capability

45,000kcal/h

Resistance(50℃(122℉))

185.2Ω

Resistance(80℃(176℉))

47.4Ω

Resistance(105℃(221℉))

28.2Ω

06-4

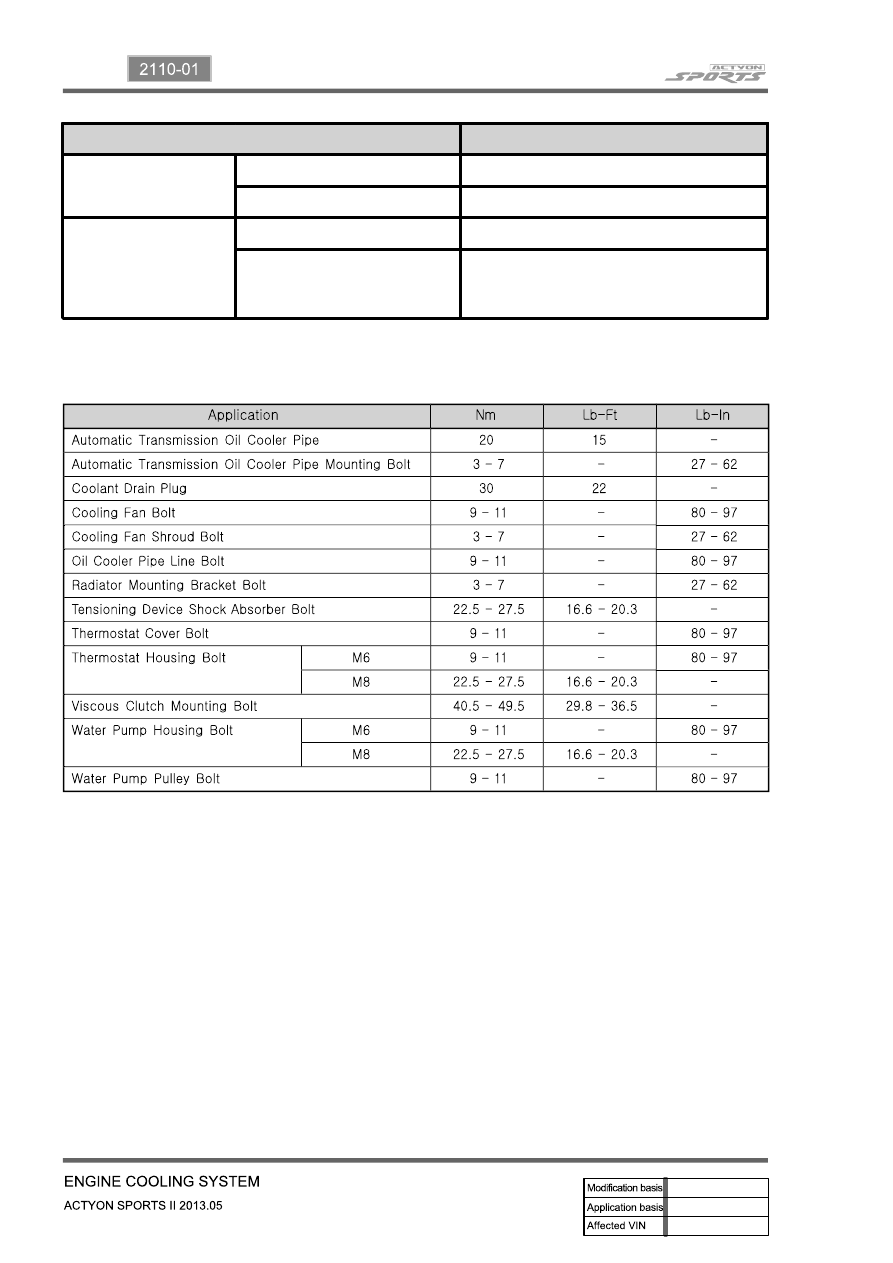

2. FASTENER TIGHTENING SPECIFICATIONS

Application

Gasoline engine

Engine coolant
temperature sensor

Resistance(20℃(68℉))

3.33 - 37.8kΩ

Resistance(80℃(176℉))

0.32 - 0.35kΩ

Anti-freeze agent

Type

ALUTEC-P78

Mixture of water and good

quality ethylene glycol-base

anti-freeze

50  : 50
