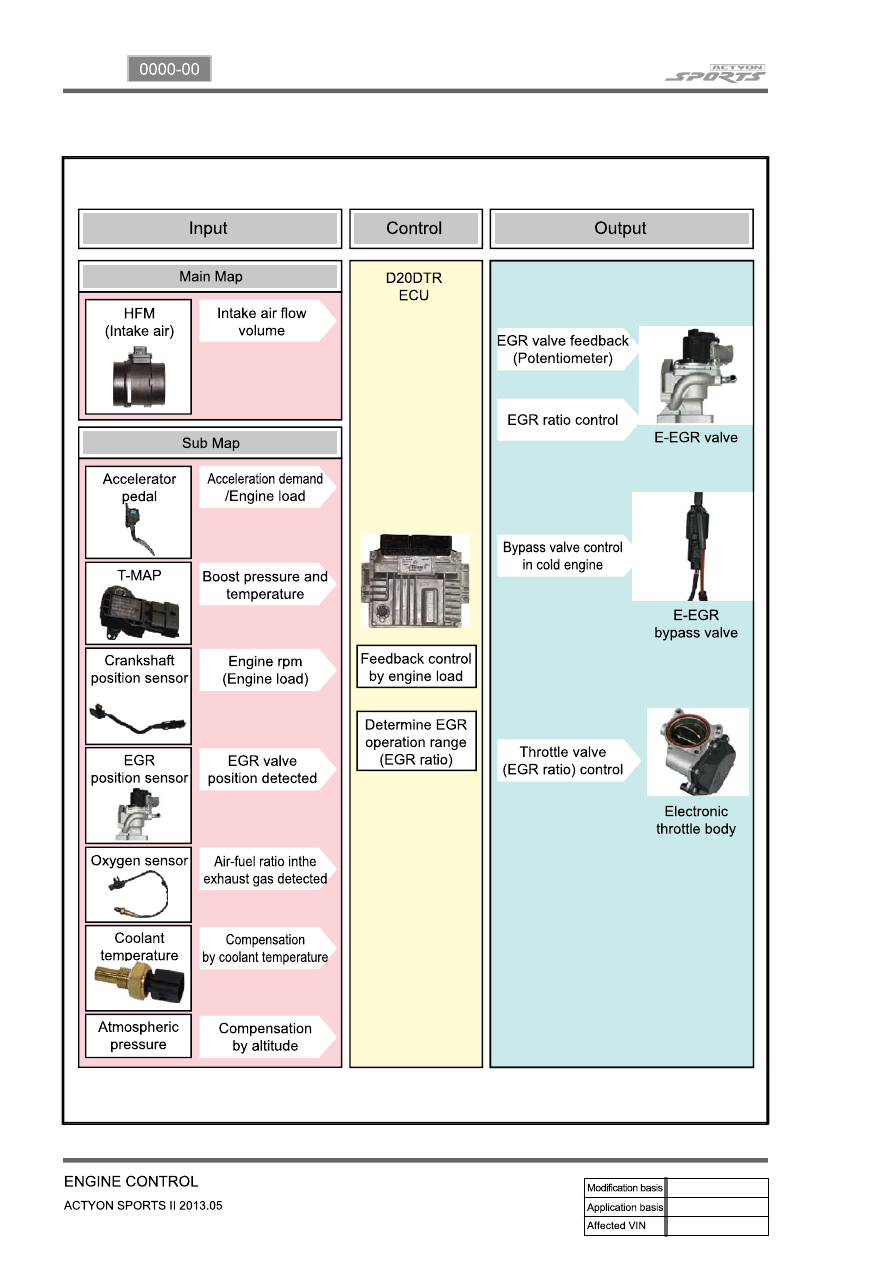

15-29 0000-00 (9) EGR control A. Overview The EGR (Electric-Exhaust Gas Recirculation) valve reduces the NOx emission level by recirculating some of the exhaust gas to the intake system. To meet Euro-V regulation, the capacity and response rate of E-EGR valve in D20DTR engine have been greatly improved. The EGR cooler with high capacity reduces the Nox, and the bypass valve reduces the CO and HC due to EGR gas before warming up. Also, the engine ECU adjusts the E-EGR opening by using the air mass signal through HFM sensor. If the exhaust gas gets into the intake manifold when the EGR valve is open, the amount of fresh air through HFM sensor should be decresed. B. Components E-EGR cooler Accelerator pedal module D20DTR ECU Coolant temperature sensor Oxygen sensor HFM (intake air temperature) Electric throttle body Crankshaft position sensor E-EGR valve T-MAP sensor |
