06-7

1914-01

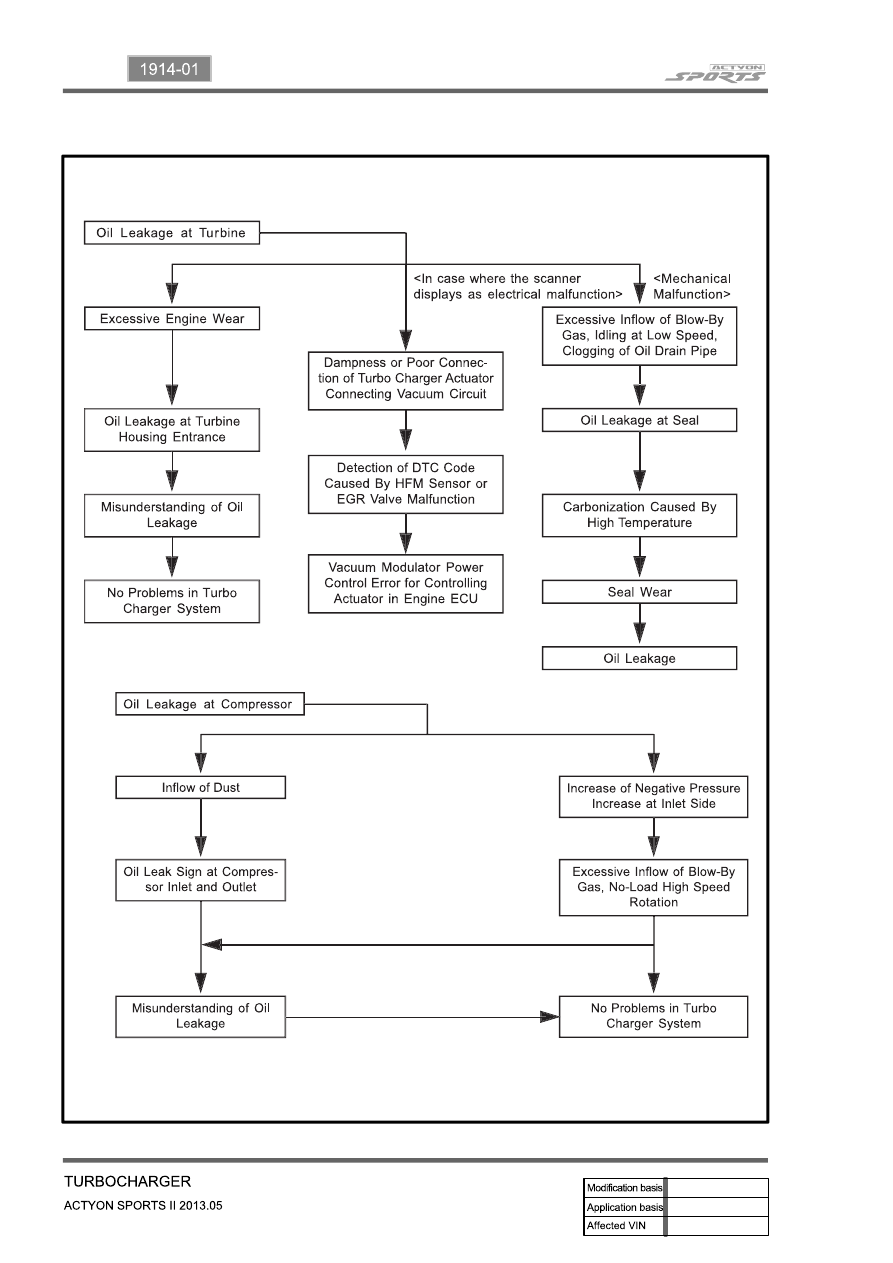

4) Possible Causes of Defect

The following tries to understand the defects that can occur with vehicle installed with the turbocharger

and to manage the reasons of such defects.

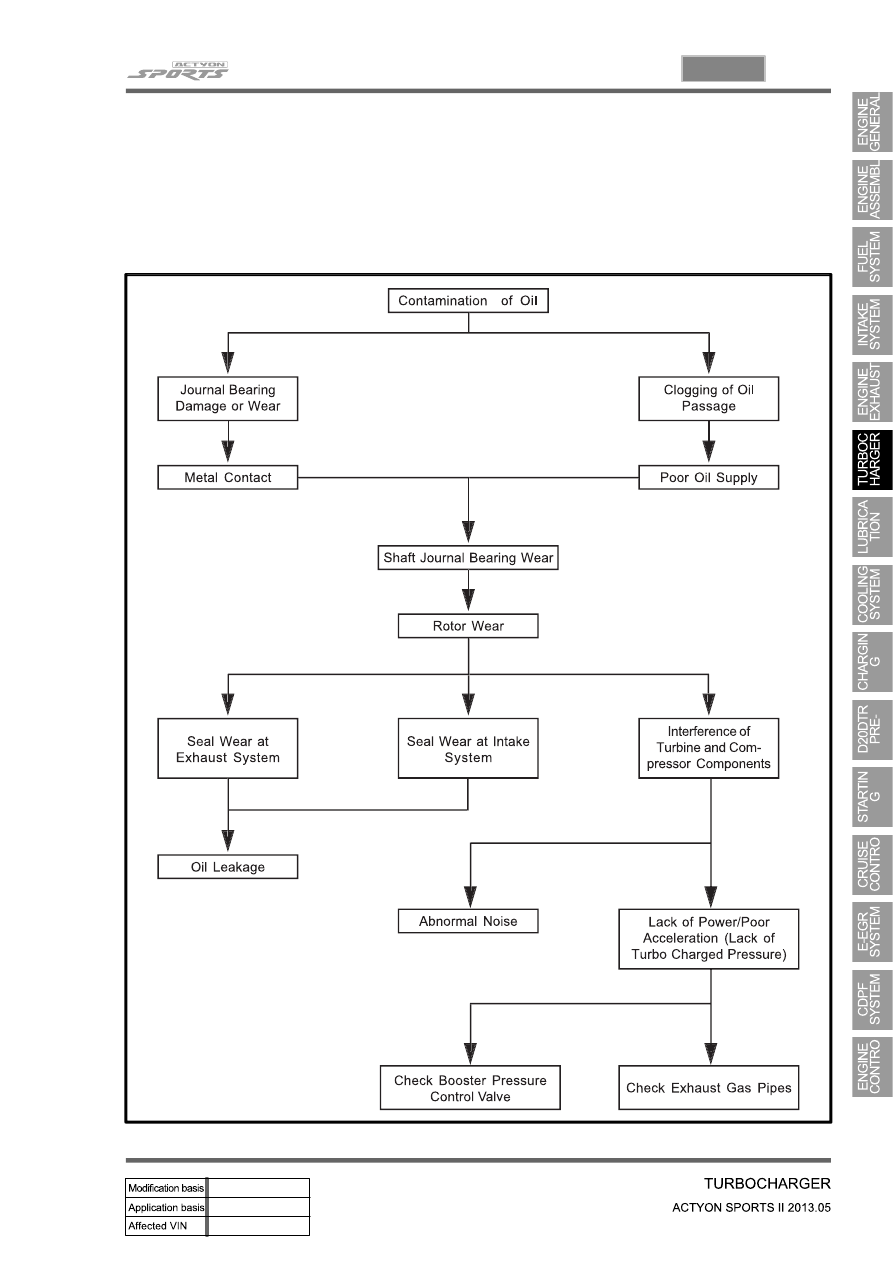

In case where oil pan/oil pipe has been contaminated, oil filter is defected and where adhesive of

gaskets has been contaminated into the oil line.

1.

06-8

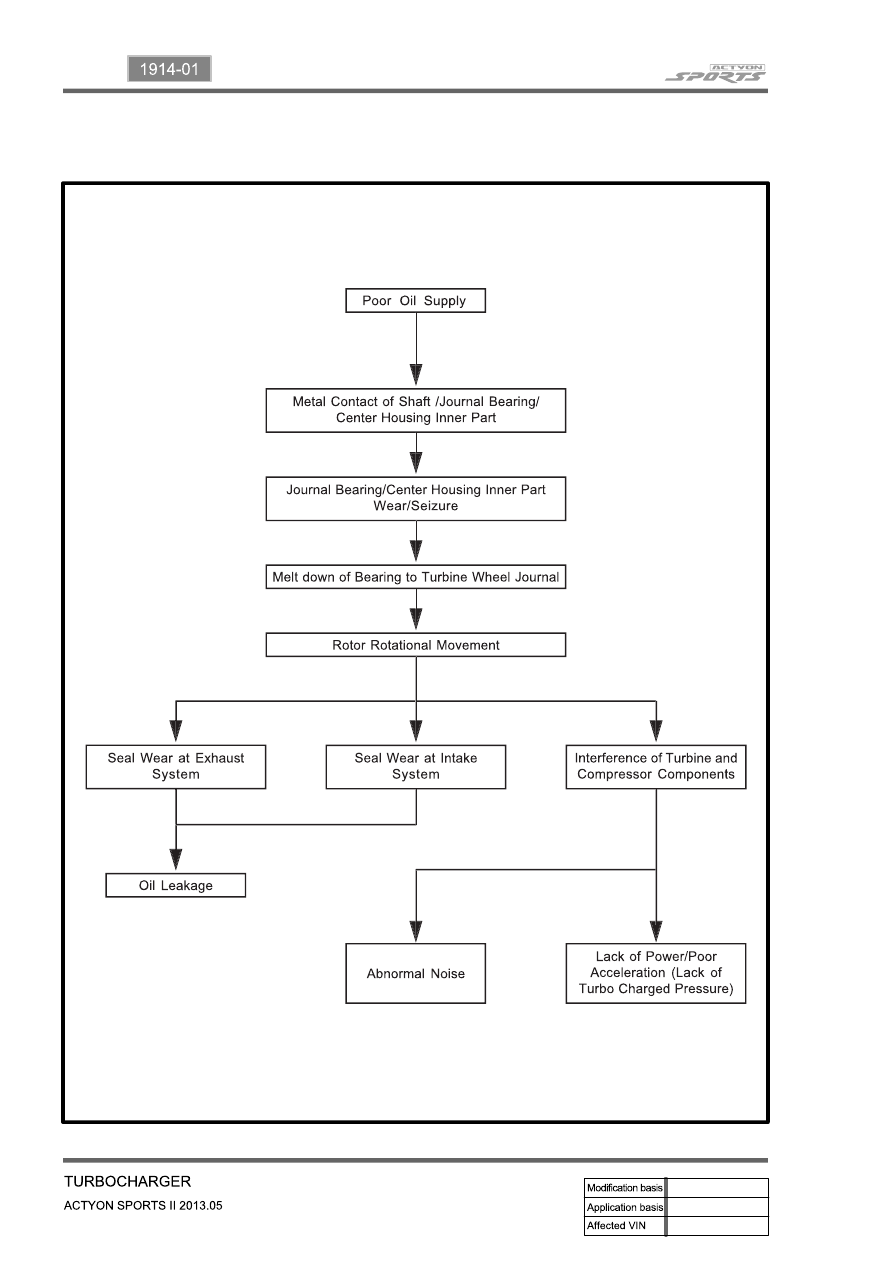

Oil Pump Defect: Rapid over-loaded driving after replacing oil filter and oil and clogging of oil line.

2.

06-9

1914-01

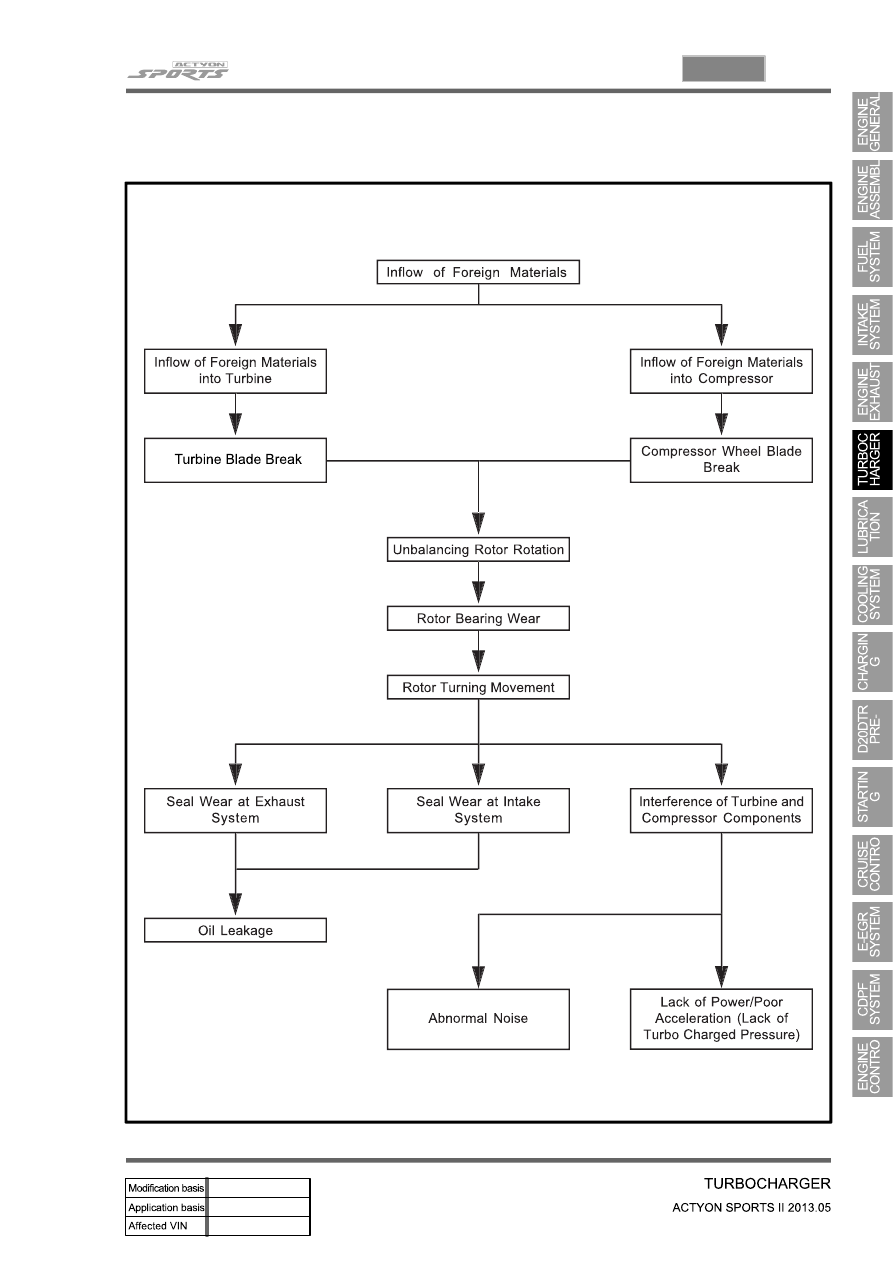

Turbine Side: Inflow of foreign materials from engine

Compressor Side: such as air filter, muffler and nut

3.

06-10

Defects caused by reasons other than that of the turbocharger.

4.
