02-34

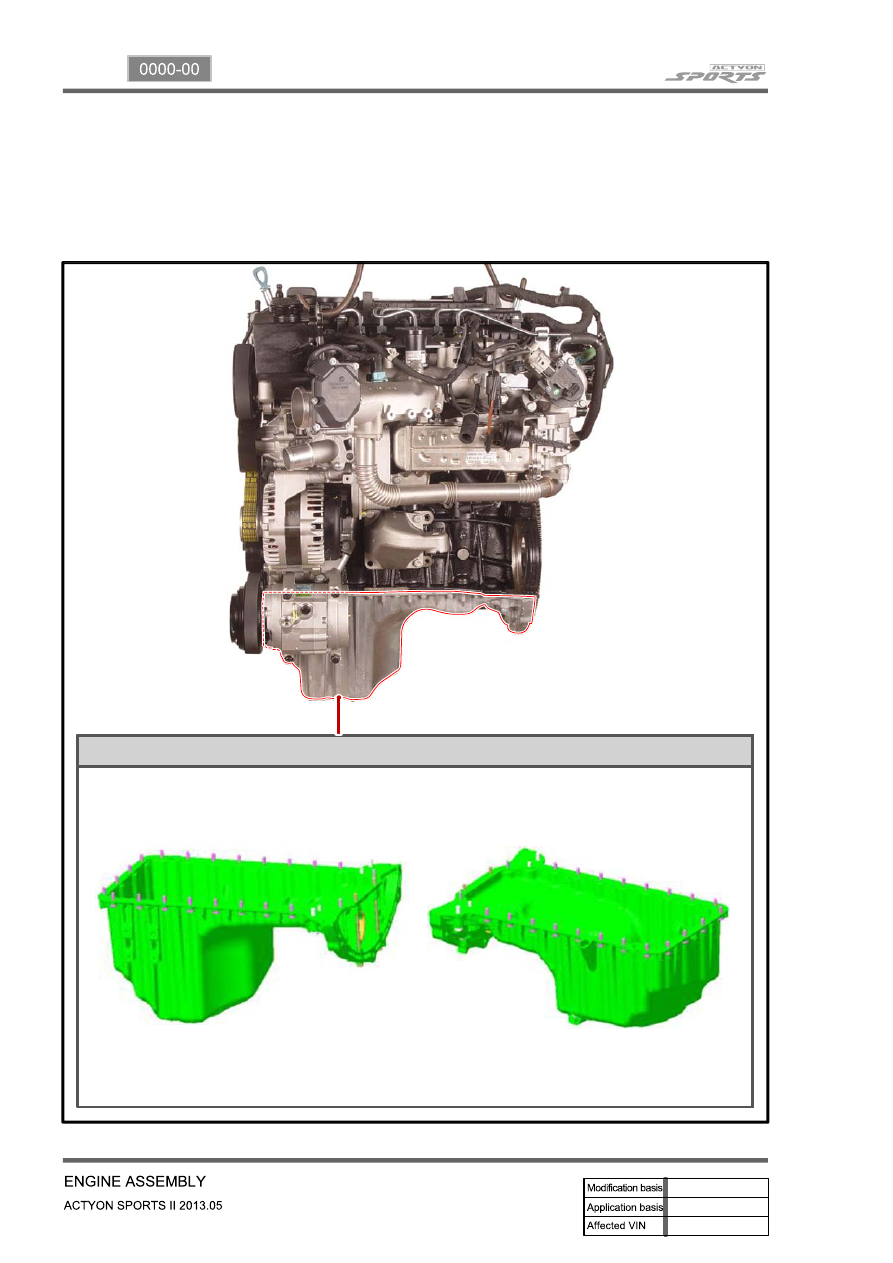

Oil pan sassembly

8. OIL PAN

The oil pan in D20DTR engine improves the NVH. Especially, the oil draining is much easier than before.

Components

▶

02-35

0000-00

9. DUAL MASS FLYWHEEL (DMF) & DRIVE PLATE

1) Overview

Flywheel is installed on crankshaft. When

starting the engine, this functions as follows:

Reducing the irregular speed of crankshaft

due to unbalanced combustion -> Improving

the power train NVH, Improving the driving

performance

Reducing the clutch noise by using ball

bearing

Improving the durability of DMF by using

strong arch spring

-

-

-

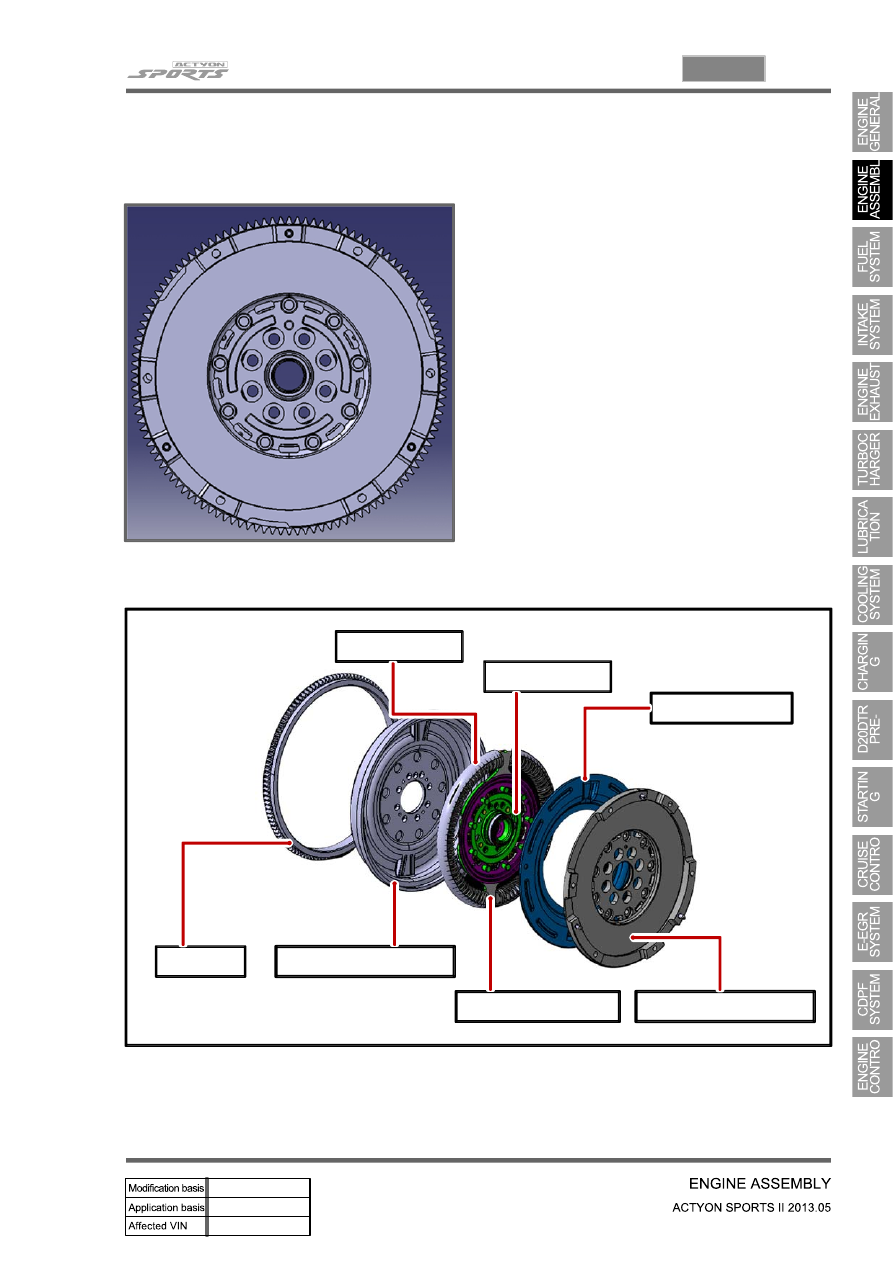

2) Layout

Spring guide

Drive plate

Primary cover

Primary flywheel

Internal/external ring

Secondary flywheel

Ring gear

02-36

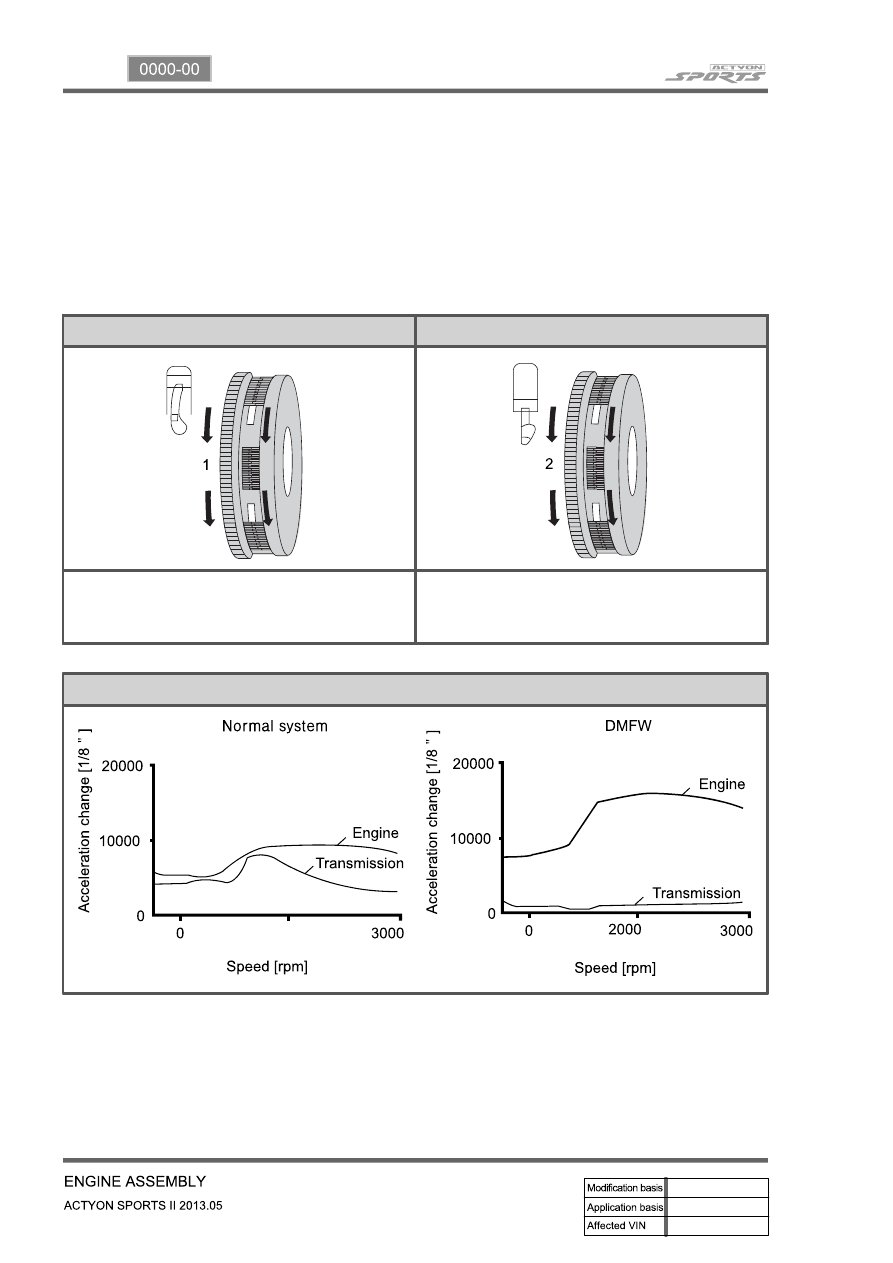

Torque change curve of engine and drive shaft

Compression stroke

Combustion stroke

Small changes from engine (k):
Damper increases the torque changes to clutch

Large changes from engine (j):
Damper decreases the torque changes to
transaxle by absorbing the impact

3) Operation

Compensating the irregular operation of engine: The secondary flywheel operates almost evenly so

does not cause gear noises

The mass of the primary flywheel is less than conventional flywheel so the engine irregularity

increases more (less pulsation absorbing effect).

Transaxle protection function: Reduces the torsional vibration to powertrain (transaxle) by reducing

the irregularity of engine.

-

-

-

02-37

0000-00

4) Features

Reduced vibration noise from the powertrain by blocking the torsional vibrations

Enhanced vehicle silence and riding comforts: reduced engine torque fluctuation

Reduced shifting shocks

Smooth acceleration and deceleration

-

-

-

-

5) Advantages

Improved torque response by using 3-stage type spring: Strengthens the torque response in all

ranges (low, medium, and high speed) by applying respective spring constant at each range.

Stable revolution of the primary and secondary wheel by using planetary gear: Works as auxiliary

damper against spring changes

Less heat generation due to no direct friction against spring surface: Plastic material is covered on

the spring outer surface

Increased durability by using plastic bushing (extends the lifetime of grease)

-

-

-

-

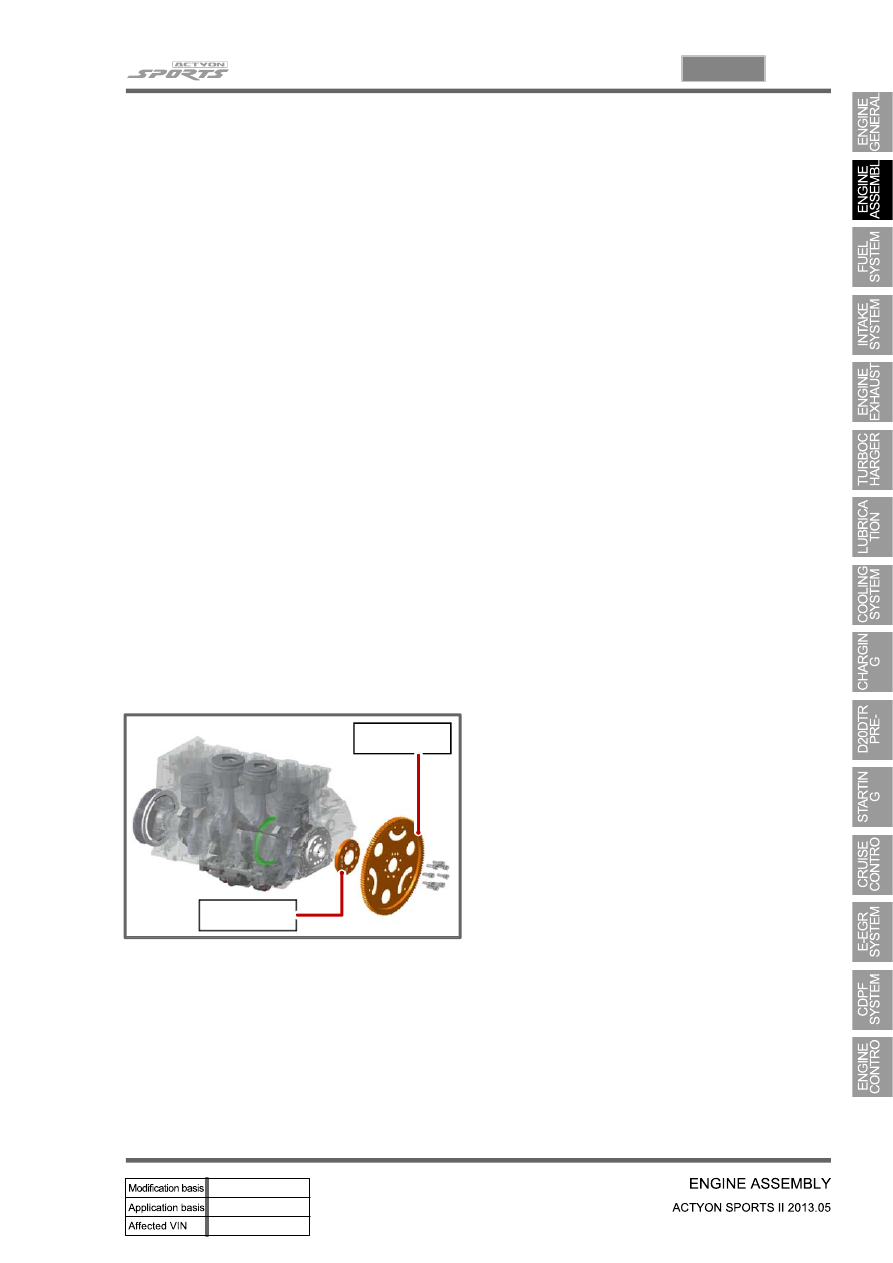

6) Drive Plate

Drive plate receives the power from the start motor when starting the engine. With this, the drive plate

initially drives the power train system. And, it is connected to the torque converter to transfer the engine

torque to the power train system.

Trigger ring

Drive plate

Components

▶
