TRANSFER CASE (TOD)  5D2-51

25. Install the pin on the tang end of the helical cam into the

hole in the front case. Position the torsion spring tangs so
that they are pointing toward the top side of the transfer
case and just touching the high-low shift fork.

CAUTION

Do not bend the helical cam during installation to the front
case because of possible damage to the pin at the tang
end of the motor shaft.

26. Install the shift rail through the high-low shift fork and make

sure that the reverse gear shift rail is seated in the front
case bore.

27. Install upper and lower speed sensors into the cover. Feed

the coil wire through the upper speed sensor wire shield.

28. Install upper tone wheel, speedometer gear and rear output

seal. Use Output Shaft Seal Replacer and Driver or
equivalent to install seal.

29. Coat the mating surface of the front case with a bead of

Black Non-Acid Cure Silicone Rubber or equivalent.

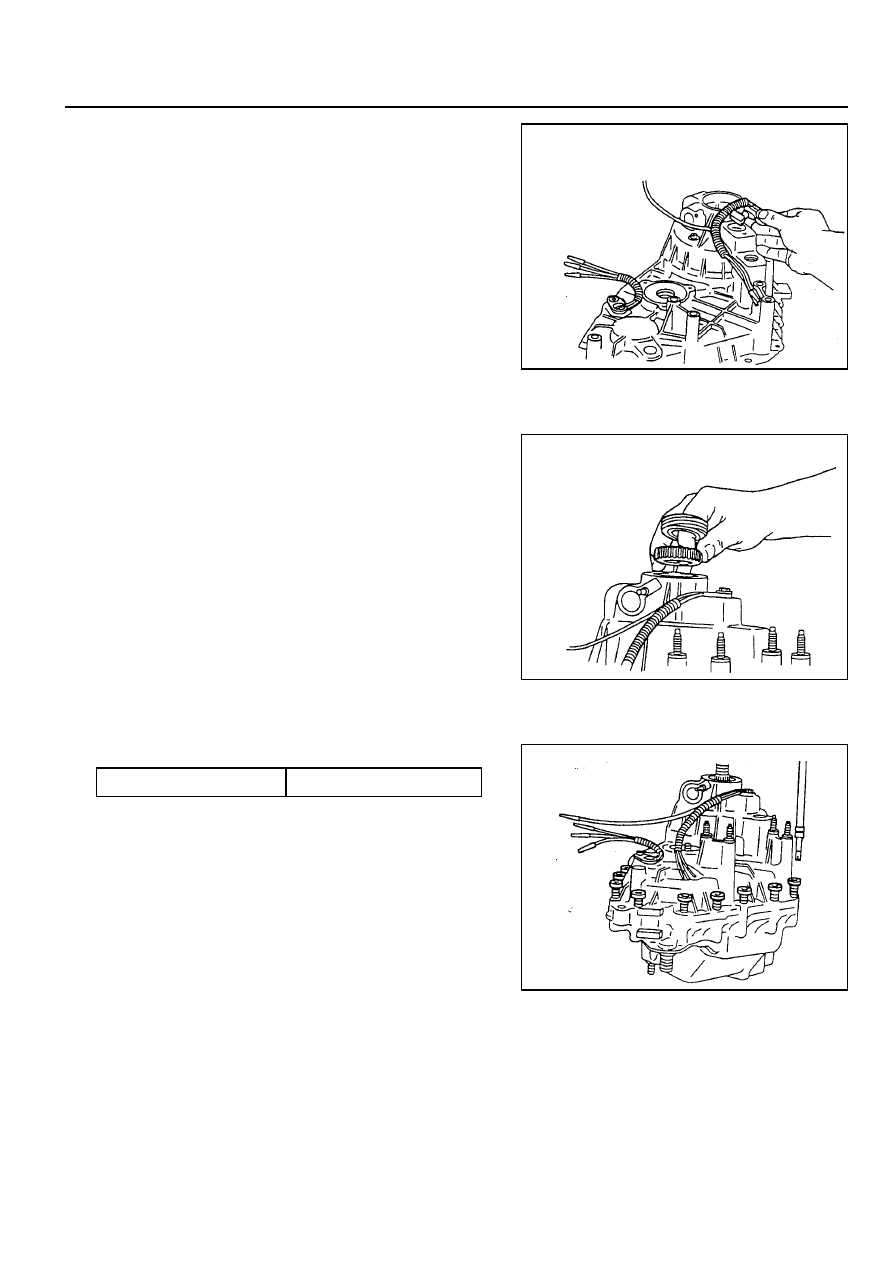

30. The following procedure must be followed prior to installing

the rear case onto the front case half:

a. Align the output shaft with the rear case output shaft bore.

b. Align the helical cam with the rear case motor bore.

If difficulty is encountered with seating the rear case, tap
the rear output shaft with a sharp blow using a rubber
mallet in a direction away from the triangular shaft while
pushing down on the rear case.

Tightening  Torque

25 - 37 Nm

31. Install the bolts retaining the case halves and tighten.

5D2-52  TRANSFER CASE (TOD)

32. Install shift shaft oil seal if it is not installed.

33. Using pliers equipped with soft jaws, rotate the triangular

shaft so it is aligned with the triangular slot in the transfer
case shift motor. If triangular shaft will not rotate, rotate
the rear output shaft.

34. Slightly loosen the two nuts that attach the slotted support

bracket to the end of the motor house.

35. Apply Black Non-Acid Cure Silicone Rubber or equivalent

to motor housing base and install on transfer case.

36. Install the transfer case shift motor and three bolts along

with speed sensor wire harness bracket and tighten.

Notice

The wire harness must be routed as shown to provide
clearance and to prevent the wire harness from grounding
the damper.

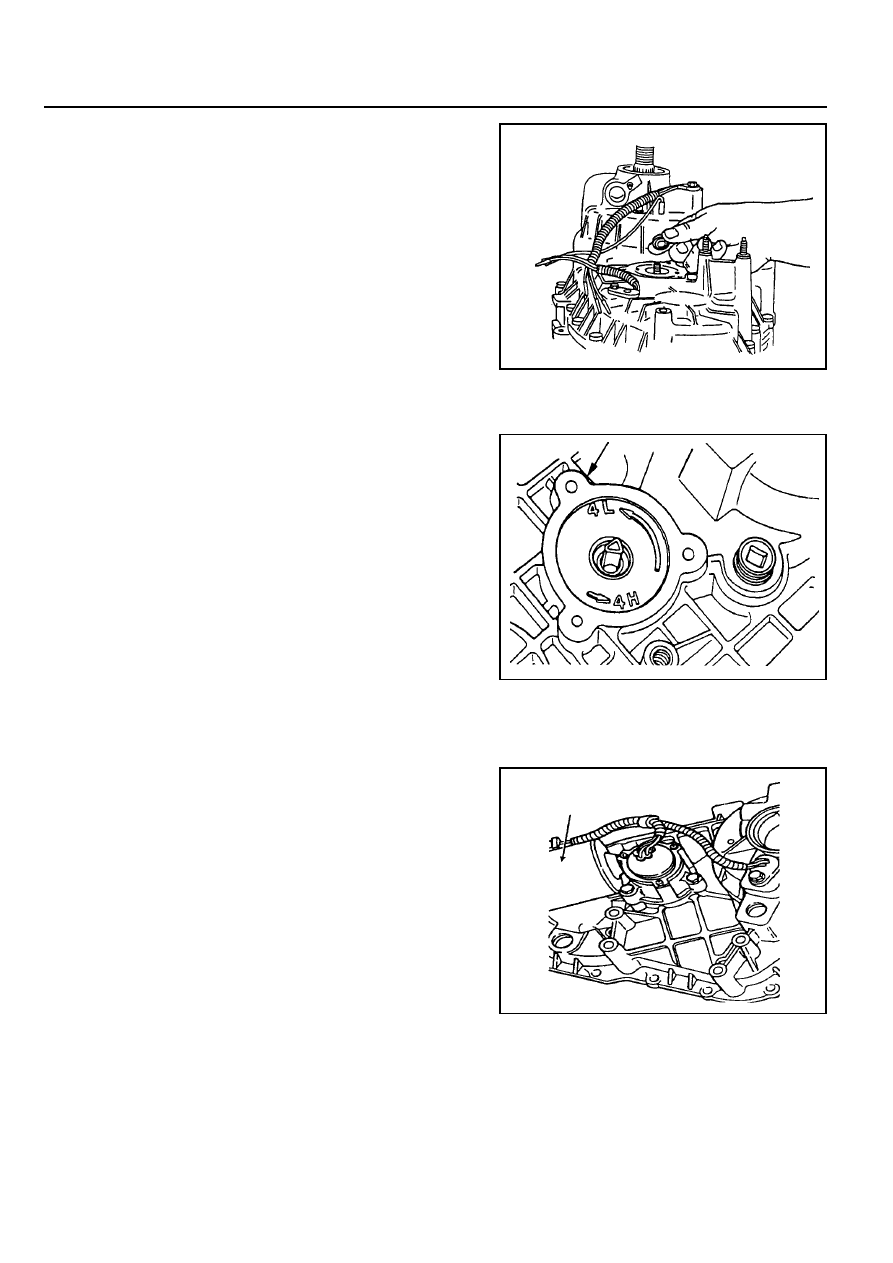

37. Holding the slotted support bracket tight against the motor

housing end, secure the bracket to the transfer case,
tightening the bolt with lockwasher to 8-11 Nm (72-96 lb-
in).

38. Retighten the two nuts that attach the slotted support

bracket to the end of the motor.

39. Install the clutch coil wire terminal and sensor wires.

TRANSFER CASE (TOD)  5D2-53

40. Install the rear case flange on the output shaft. Install the

rubber seal, output shaft yoke washer and nut. Tighten
the nut.

Tightening Torque

137 - 196 Nm

41. Install the drainplug and tighten.

42. Fill the transfer case with 1.4 liters of Automatic

Transmission Fluid or equivalent.

Notice

Fluid level should be just below the filler plug hole.

Tightening  Torque

19 - 30 Nm

Tightening  Torque

19 - 30 Nm

43. Install the fill pulg and tighten.

44. Install the transfer case as outlined in removal and

Installation, transfer case in the section.

Notice

Make sure proper drain and fill plugs are installed if case
is replaced.

Application

Steering Wheel

Steering Gear Box

Oil Pump

Steering Column

Minmum Turning Radius

Oil

SECTION 6A

POWER  STEERING  SYSTEM

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . .  6A-1

General Specifications . . . . . . . . . . . . . . . . . .  6A-1

Fastener  Tightening  Specifications . . . . . . . . .  6A-1

Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . .  6A-2

Hard Steering . . . . . . . . . . . . . . . . . . . . . . . . .  6A-2

Steering Pulls to One Side . . . . . . . . . . . . . . .  6A-2

Excessive Wheel Play . . . . . . . . . . . . . . . . . . .  6A-2

Poor Return of Steering Wheel . . . . . . . . . . . .  6A-2

Steering Wheel Shimmy . . . . . . . . . . . . . . . . .  6A-3

SPECIFICATIONS

GENERAL SPECIFICATIONS

Abnormal Noise From Steering System . . . . .  6A-3

Component Locator . . . . . . . . . . . . . . . . . . .  6A-4

Steering System . . . . . . . . . . . . . . . . . . . . . . .  6A-4

Maintenance and Repair . . . . . . . . . . . . . . .  6A-5

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . .  6A-5

Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6A-5

Oil Pump Pressure Check . . . . . . . . . . . . . . . .  6A-6

Bleeding of Power Steering System . . . . . . . .  6A-6

Steering Gear Box . . . . . . . . . . . . . . . . . . . . .  6A-7

Number of Spoke

Outer Diameter

Type

Gear Ratio

Inner Steering Angle

Outer Steering Angle

Type

Maximum Pressure

Upper Tilting Angle

Lower Tilting Angle

Type

Capacity

Change Interval

Description

4

396 mm

Rack and Pinion

33°37'

31°50'

Vane

75-82 kg/cm

2

4.646°

6.969°

5.25m

ATF DEXRON II

1 L

Every 24,000 km

FASTENER TIGHTENING SPECIFICATIONS

Application

Steering Shaft Bolt

Pressure Hose Bolt

Return Pipe Nut

Slotted Nut

Steering Gearbox Bolt

N

!

!

!

!

!

m

30 - 40

12 - 18

12 - 18

35 - 45

35 - 45
