SsangYong Musso. Manual - part 513





5D1-36  TRANSFER CASE (PART TIME 4408)

TRANSFER CASE CONTROL UNIT
(TCCU)

System Description

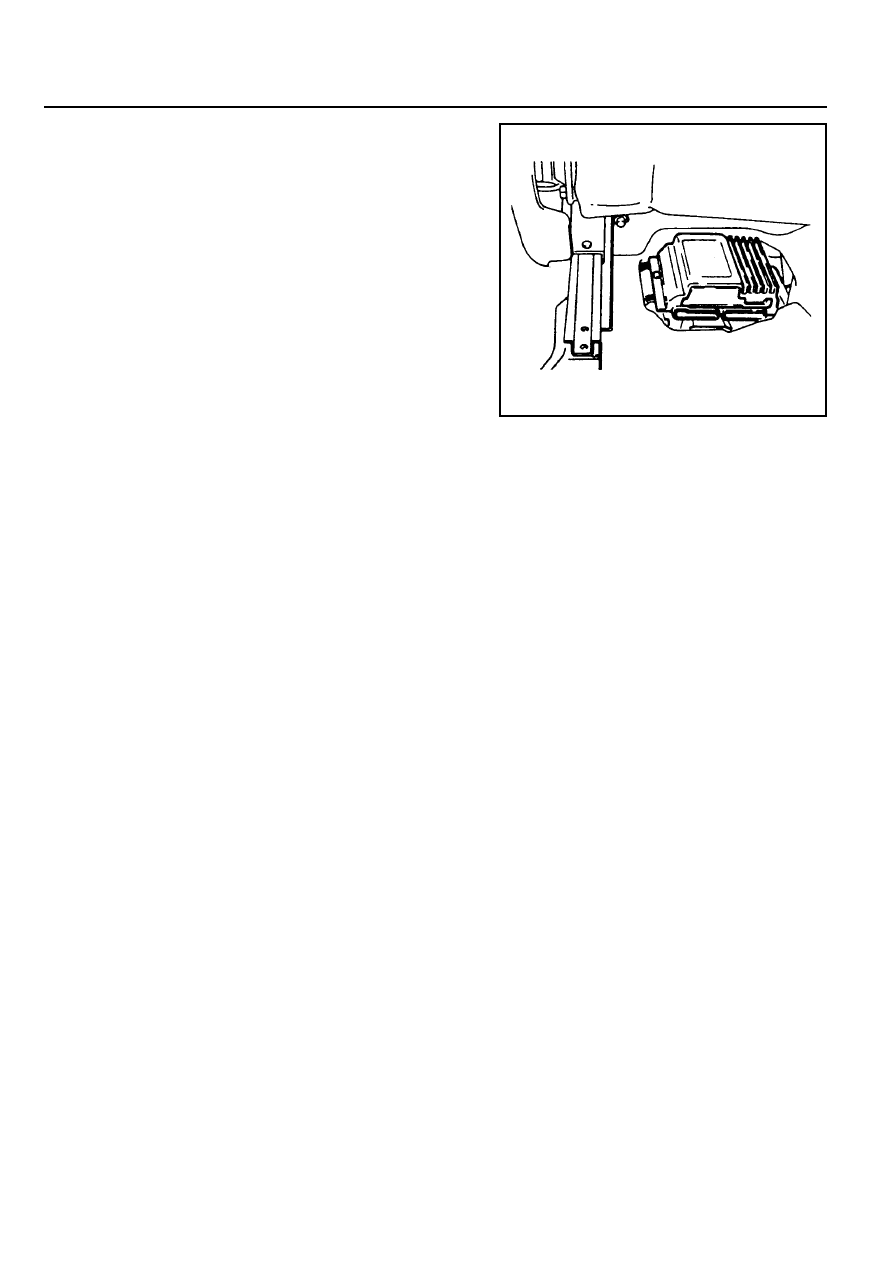

TCCU is located under the front left handed seat and permits
the vehicle to shift from two-wheel drive to four-wheel drive
(and back shift) according to driver’s switch operation during
driving (For the shifting between 4WD HIGH and 4WD LOW,
stop the vehicle).

1. Shifting from 2H to 4H

!

Position the transfer case switch from '2H' to '4H'.

!

Shifting is possible during driving.

!

'4WD Hl' indicator light will turn on.

2. Shifting from 4H to 2H

!

Position the transfer case switch from '4H' to '2H'.

!

Shifting is possible during driving.

!

'4WD Hl' indicator light will turn off.

3. Shifting between 4H and 4L

!

Shifting is possible when the vehicle is almost stopped

(below approx. 2 km/h), so it would be better stop the
vehicle.

!

In case of manual transmission equipped vehicle, apply

clutch pedal.

!

In case of auto transmission equipped vehicle, put the

lever position into 'N'.

!

Position the transfer case switch '4H' to '4L' or '4L' to

'4H'.

!

According to the shifted position, indicator light will turn

on.

Notice

If there are malfunctions during shifting,'4H' or '4L' indicator
light will blink.

TRANSFER CASE (PART TIME 4408)  5D1-37

Inspection and Repair

1. 4H and 4L indicator light inspection

!

When turn the ignition switch to "ON" position, 4H and

4L indicator light will turn on for 0.6 second and will turn
off immediately.

Notice

If indicator light does not turn on, check bulb, wiring harness
and TCCU.

2. TCCU inspection

Pin No.

Operation Condition

4H or 4L

2H

4H indicator light ON

4H indicator light OFF

2H or 4H

4L

Clutch pedal applied

Clutch pedal released

4L indicator light ON

4L indicator light OFF

Motor OFF

Motor ON

Motor OFF

Motor ON

Auto locking hub ON

Auto locking hub OFF

Voltage(V)

4.75 - 5.35

0 - 0.50

< 1.00

> 11.00

4.75 - 5.35

0 - 0.50

< 0.50

> 11.00

< 1.00

> 11.00

< 1.00

> 11.00

< 1.00

> 11.00

> 11.00

< 1.00

J1 - 7

J1 - 8

J1 - 13

J1 - 14

J1 - 15

J1 - 16

J1 - 17

J1 - 23

Notice

!

DC 12V for the TCCU operation should be maintained.

!

In case of J1-8 and J1-15, indicator light will turn on for 0.6
second when turn the ignition switch ON.

!

If 4H and 4L indicator lights remain turned on when turn the
ignition switch on or during driving, perform the TCCU
diagnosis.

SECTION 5D2

TRANSFER  CASE (TOD)

Specifications . . . . . . . . . . . . . . . . . . . . . . .  5D2-1

General Specifications . . . . . . . . . . . . . . . . .  5D2-1

Schematic and Routing Diagrams . . . . . . .  5D2-2

TOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5D2-2

T.C.C.U . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5D2-3

Function Description . . . . . . . . . . . . . . . . .  5D2-4

TOD Control Unit . . . . . . . . . . . . . . . . . . .  5D2-12

Control Unit Diagram . . . . . . . . . . . . . . . .  5D2-14

TOD Control Unit . . . . . . . . . . . . . . . . . . . .  5D2-14

Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . .  5D2-15

Diagnostic Tests . . . . . . . . . . . . . . . . . . . . .  5D2-15

Diagnostic Trouble Codes (DTC's) . . . . . . .  5D2-17

TABLE OF CONTENTS

SPECIFICATIONS

GENERAL SPECIFICATIONS

Model

Length (mm)

Weight (kg)

Shift Mode

Gear Ratio

Oil

Max. Torque

High

Low

Specification

Capacity

Interval

TOD(Torque On Demand) Transfer Case (4423E)

343.0

36.6

4H and 4L

1 : 1

2.48 : 1

ATF S-3, S-4 or Dexron II, III

   1.4 L

Inspect Every 15,000km, Replace Every 50,000km

550 lb

ft (   76kg

m)

.

=

.

.

=

.

Application

Description

Coding . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5D2-18

Eliminate the Memorized Fault Code . . . . .  5D2-20

Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . .  5D2-21

Maintenance and Repair . . . . . . . . . . . . .  5D2-33

On-Vehicle Service . . . . . . . . . . . . . . . . . . .  5D2-33

TOD Control Unit . . . . . . . . . . . . . . . . . . . .  5D2-33

Transfer Case (TOD) . . . . . . . . . . . . . . . . .  5D2-34

Speed Sensor in Front and Rear

Propeller Shaft . . . . . . . . . . . . . . . . . . . . .  5D2-38

Replacement of Oil . . . . . . . . . . . . . . . . . . .  5D2-40

Unit Repair . . . . . . . . . . . . . . . . . . . . . . . .  5D2-41

Transfer Case . . . . . . . . . . . . . . . . . . . . . . .  5D2-41

5D2-2  TRANSFER CASE (TOD)

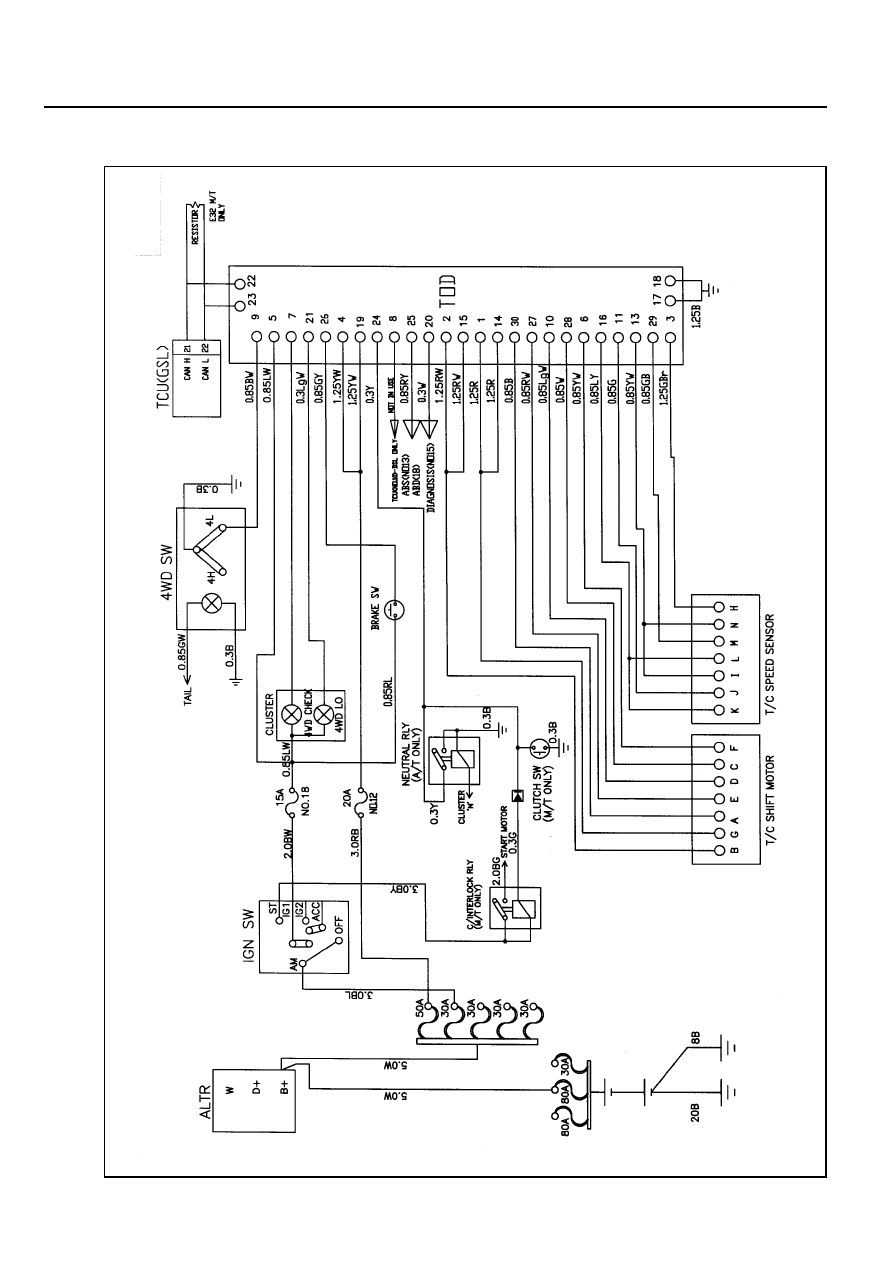

SCHEMATIC AND ROUTING DIAGRAMS

TOD
