AUTOMATIC TRANSMISSION  5A-81

Throttle Clearing

The leant throttle clearing routine uses the mode switch and gear lever. Carry out the following steps to complete the
automated throttle clearing procedure:

1. Switch ignition ‘ON’ with handbrake applied and engine ‘OFF’.

2. Select ‘M1’ and ‘WINTER’ mode.

3. Move the T-bar to ‘M2’ and then select ‘NORMAL’ or ‘POWER’ mode.

4. Move the T-bar to ‘M3’ and then select ‘WINTER’ mode.

Vehicle Coding

The vehicle coding is integrated as part of the diagnostic software. The coding applies to the following vehicle
models:

1. 4WD Gasoline E32.

2. 4WD Gasoline 523

3. 4WD Gasoline 520.

4. 4WD Diesel D29NA.

5. 4WD Diesel D29LA.

6. 4WD Diesel D23LA.

7. RWD E20.

8. RWD E23.

5A-82  AUTOMATIC TRANSMISSION

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

Tightening Torque

70 - 80 Nm

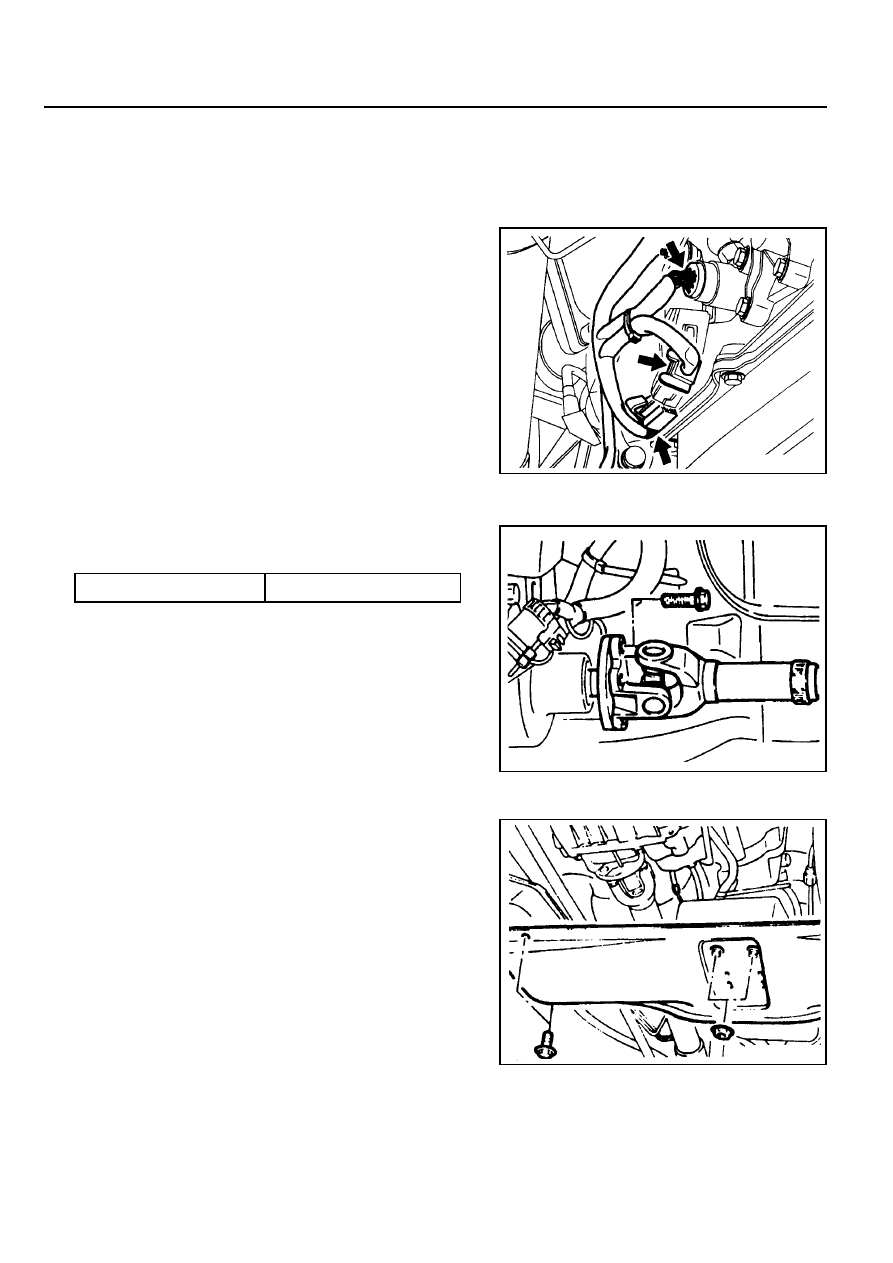

5. Remove the rear propeller shaft .

Installation Notice

REMOVAL & INSTALLATION OF
TRANSMISSION

1. Disconnect the negative battery cable.

2. Disconnect the connectors from transfer case.

3. Disconnect the speedometer connector from transfer

case.

4. Disconnect the inhibitor and Sear position sensor

connector.

6. Unscrew the eight bolts and two nuts, and remove the

cross member.

AUTOMATIC TRANSMISSION  5A-83

Tightening Torque

70 - 80 Nm

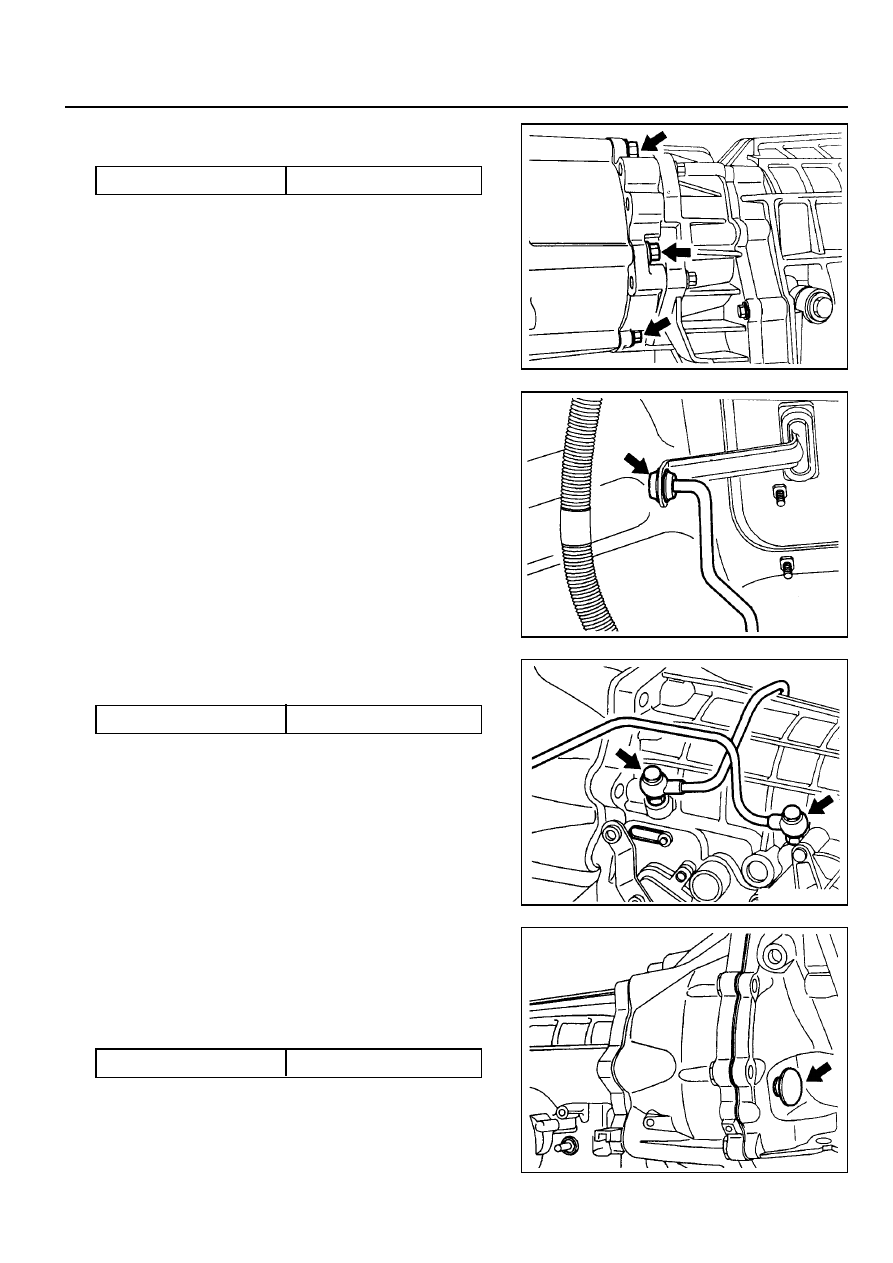

11. Remove the two pipes for oil cooler.

Installation Notice

Tightening Torque

24.5 - 34.3 Nm

12. Remove the service hall cover on torque converter.

13. Put the alignment mark for installation, and unscrew the

six mounting bolts for torque converter from drive plate
through the service hole (arrow) by rotating the engine
and remove the torque converter.

Installation Notice

Tightening Torque

42 Nm

7. Remove the rear propeller shaft.

Installation Notice

8. Unscrew the five bolts and remove the transfer case.

9. Disconnect the 10-Pins Plug connector from transmission.

10. Separate the locking clip on shift lever and remove the

shift rod.

Notice

Removal and installation performed when the shift
procedure should be lever is in “D” range.

Screw the six bolts mounting the torque converter through
the service hole by using a mirror and rotating the engine.

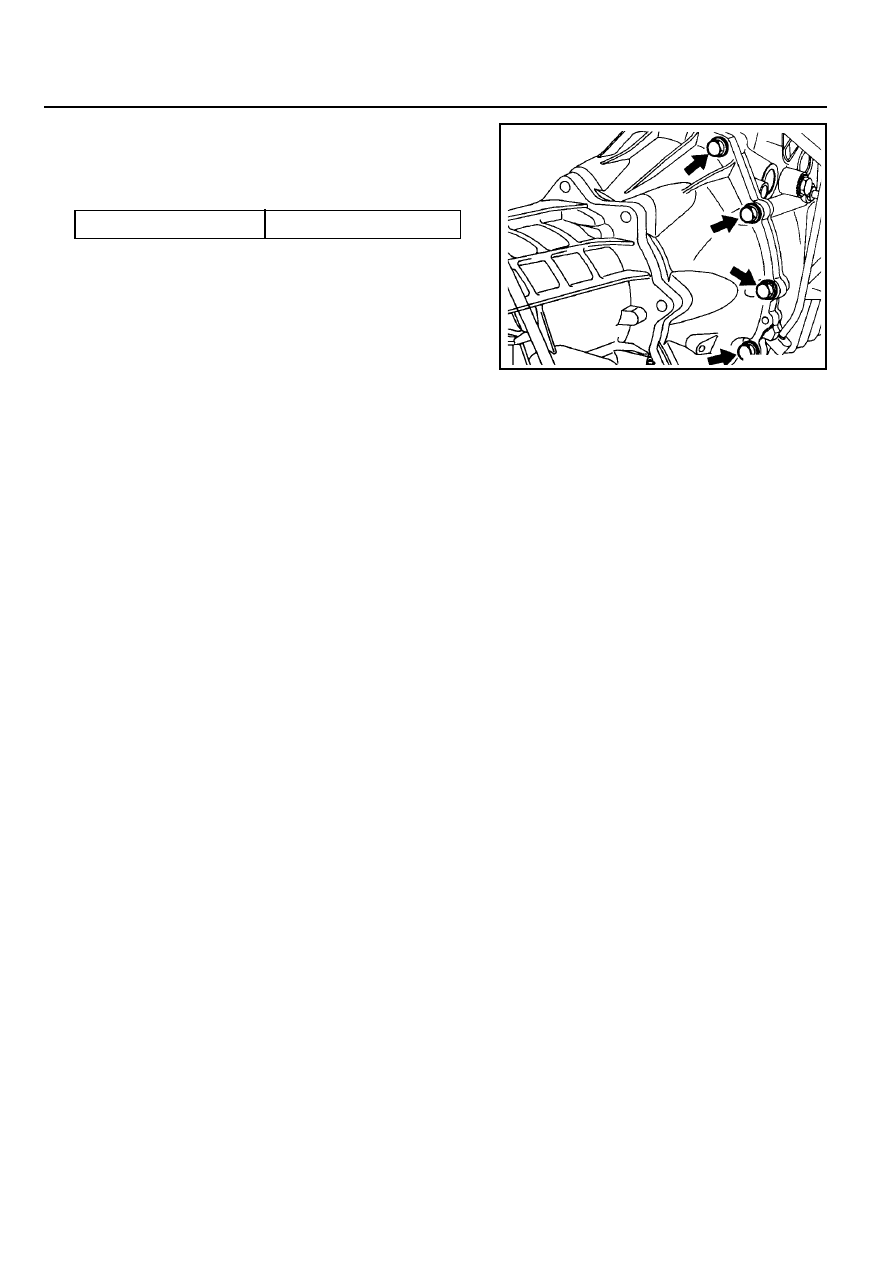

5A-84  AUTOMATIC TRANSMISSION

Tightening Torque

55 - 65 Nm

14. Remover the starter.

15. Unscrew the eight transmission housing bolts and remove

the transmission assembly.

Installation Notice

Be careful not to drop the torque converter while removing
the transmission.

16. Installation should follow the removal procedure in the

reverse order.
