M161 ENGINE CONTROLS  1F2-63

4. Remove the line to canister and measure the pressure with

the vacuum pressure gauge.

Test

1. Maintain the normal temperature and idling state by

operating the engine.

2. Connect the ECU terminal No.11 and No.34 and check for

normal operation through the output waves using the
scanner.

Notice

Test during purge control switchover valve operation after
the minimum of 1 minute after the engine turned on.

3. Connect the ECU terminal No.34 and No.10 and check for

current consumption during the ignition switch ON.

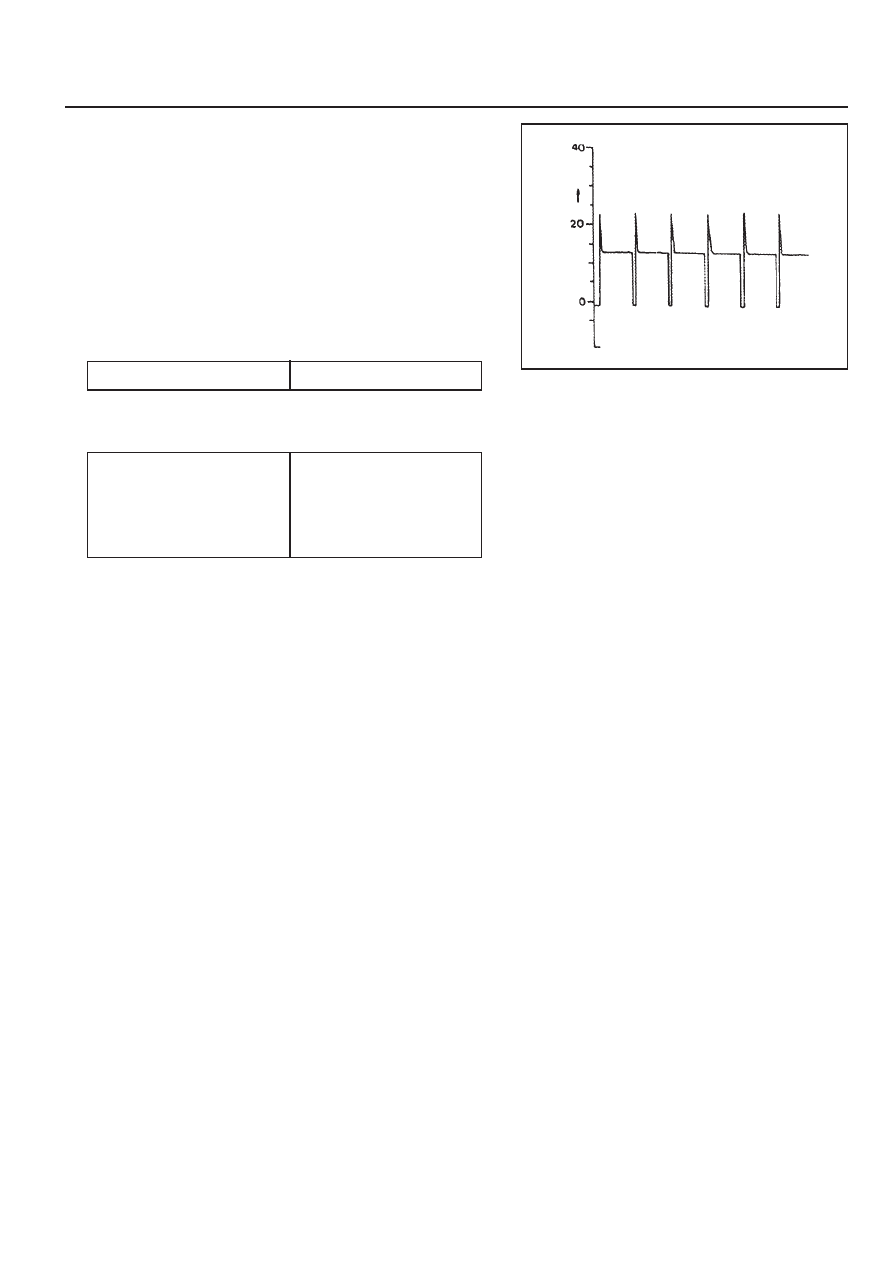

Purge switchover valve output wave

 Specified Value

0.3 - 0.5

 Specified Value

 > 50mbar

  (after approx. 1min.)

 purge switchover valve

operates at this time

Notice

Test while at normal temperature and at idling state by
operating the engine.

1F2-64  M161 ENGINE CONTROLS

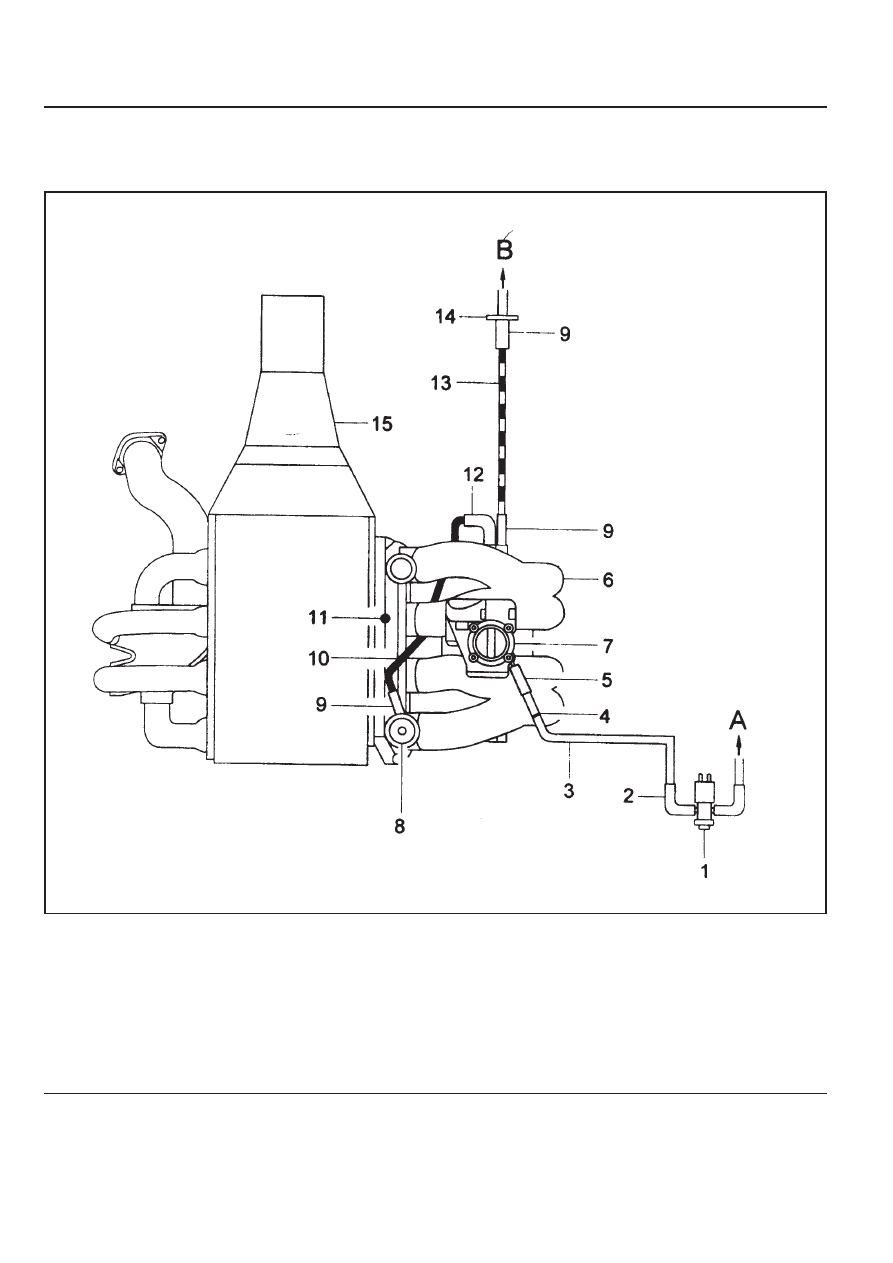

1 Purge Switchover Valve
2 Molded Hose
3 Fuel Tube (270 mm)
4 Clamp
5 Molded Hose
6 Intake Manifold
7 Throttle Body

VACUUM SYSTEM

Manual Transmission

8 Fuel Pressure Regulator
9 Vacuum Line Rubber Hose (40 mm)

10 Vacuum Tube (Gray, 540 mm)

11 Rubber Cap

12 Molded Hose
13 Vacuum Tube (Brown)
14 Connector

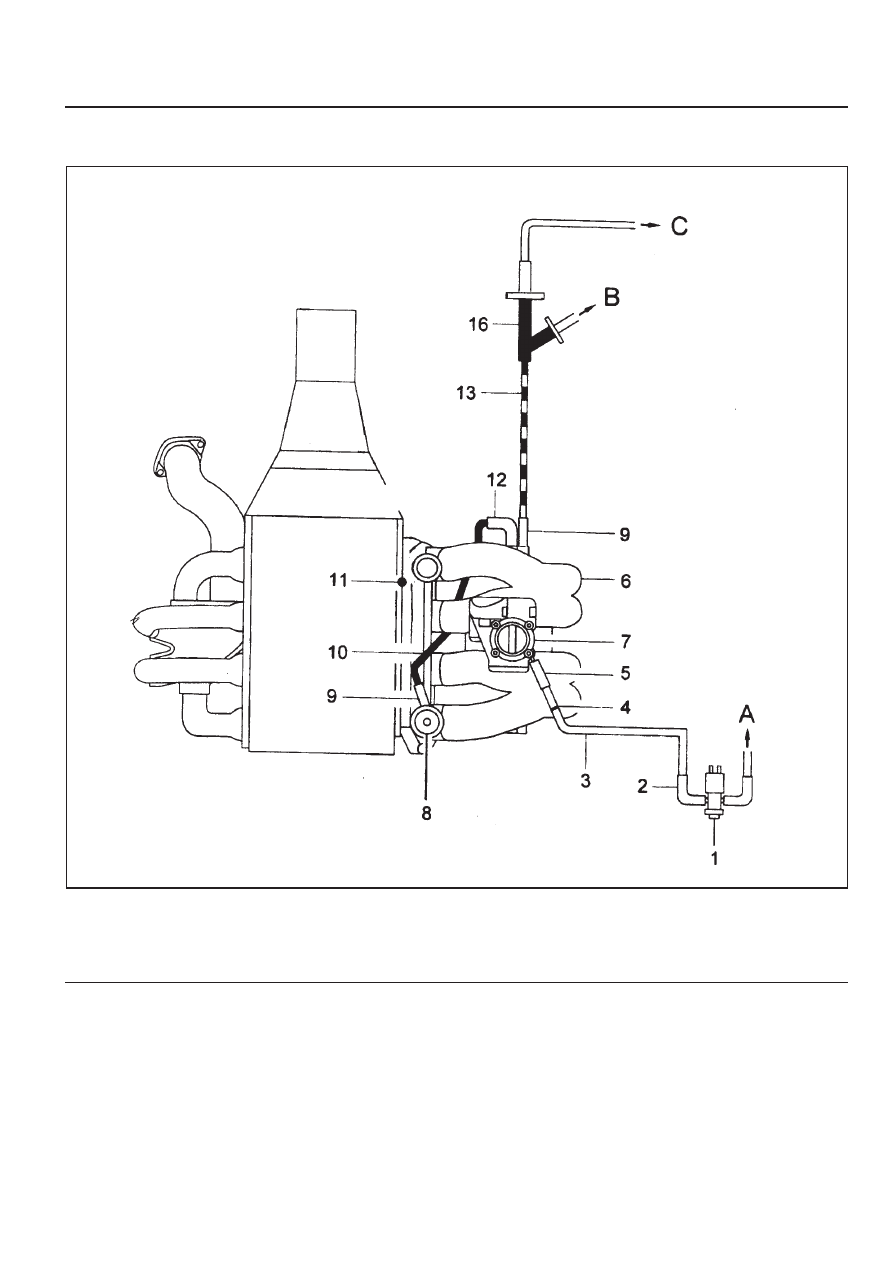

M161 ENGINE CONTROLS  1F2-65

15 Manual Transmission
16 Distributor

Automatic Transmission

A. To Canister
B. To Auto Locking Hub

1F2-66  M161 ENGINE CONTROLS

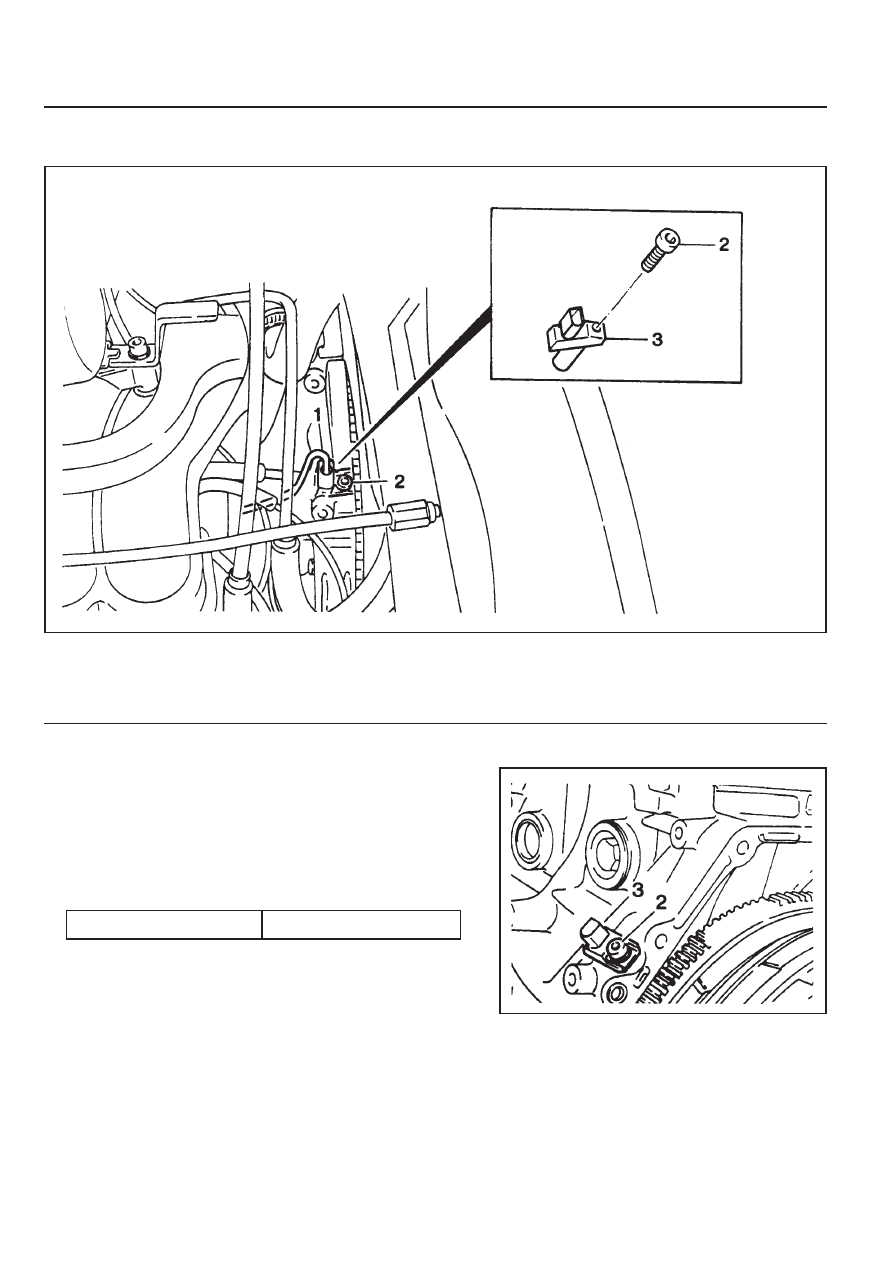

1 Crankshaft Position Sensor (connector)
2 Bolt (M6 X 14) ........................................ 9-11 Nm

CRANKSHAFT POSITION SENSOR

Removal & Installation Procedure

1. Disconnect the wiring connector at the crankshaft position

sensor.

2. Unscrew the bolt (2)  and remove the crankshaft position

sensor unit (3).

Installation Notice

3. Installation should follow the removal procedure in the

reverse order.

3 Sensor Unit

Tightening  Torque

9 - 11 Nm
