M161 ENGINE CONTROLS  1F2-3

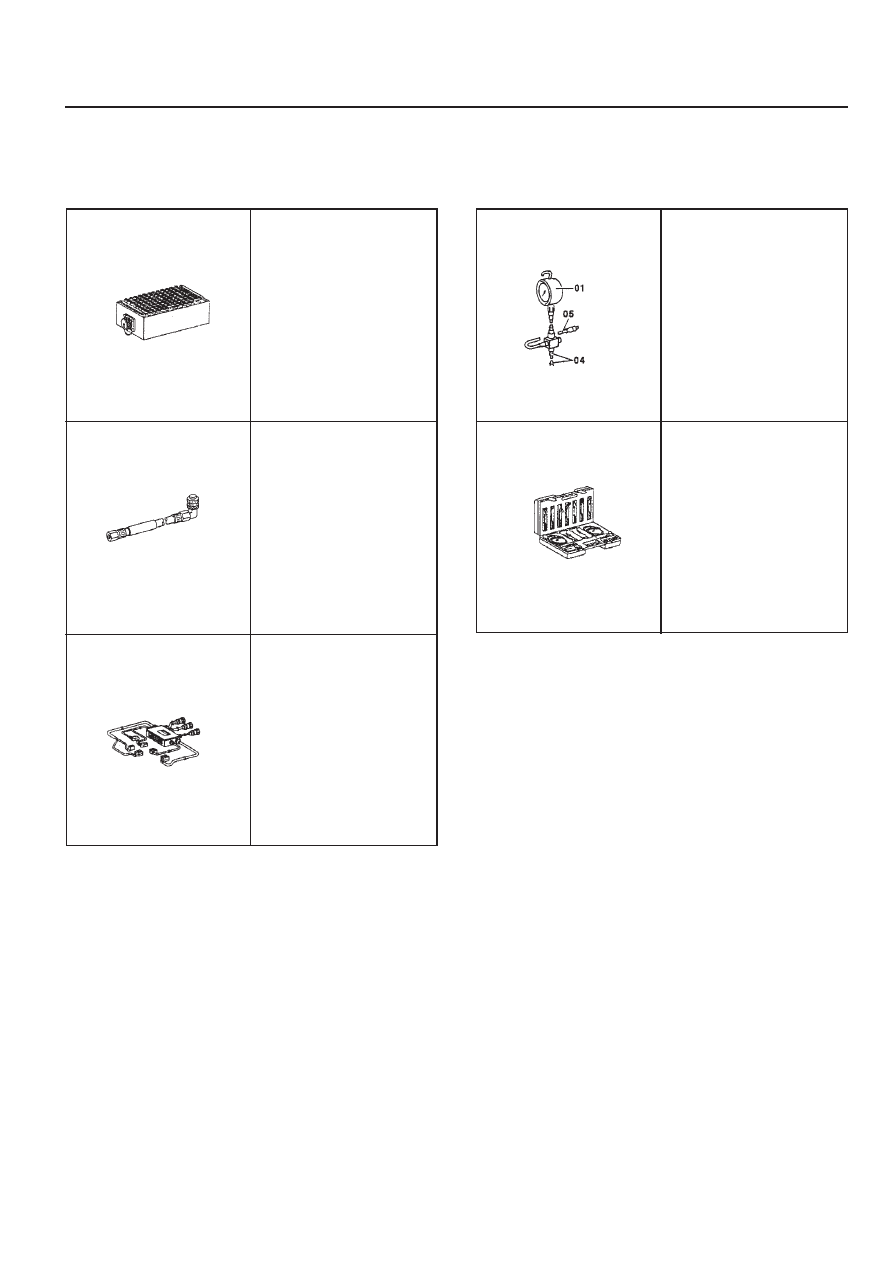

SPECIAL TOOLS

SPECIAL TOOLS TABLE

129 589 00 21 00

Test Box

119 589 04 63 00

Pressure Hose

106 589 00 21 00

Pressure Tester

210 589 08 63 00

ECU Test Cable

210201

Adaptor Line

1F2-4  M161 ENGINE CONTROLS

SCHEMATIC AND ROUTING DIAGRAMS

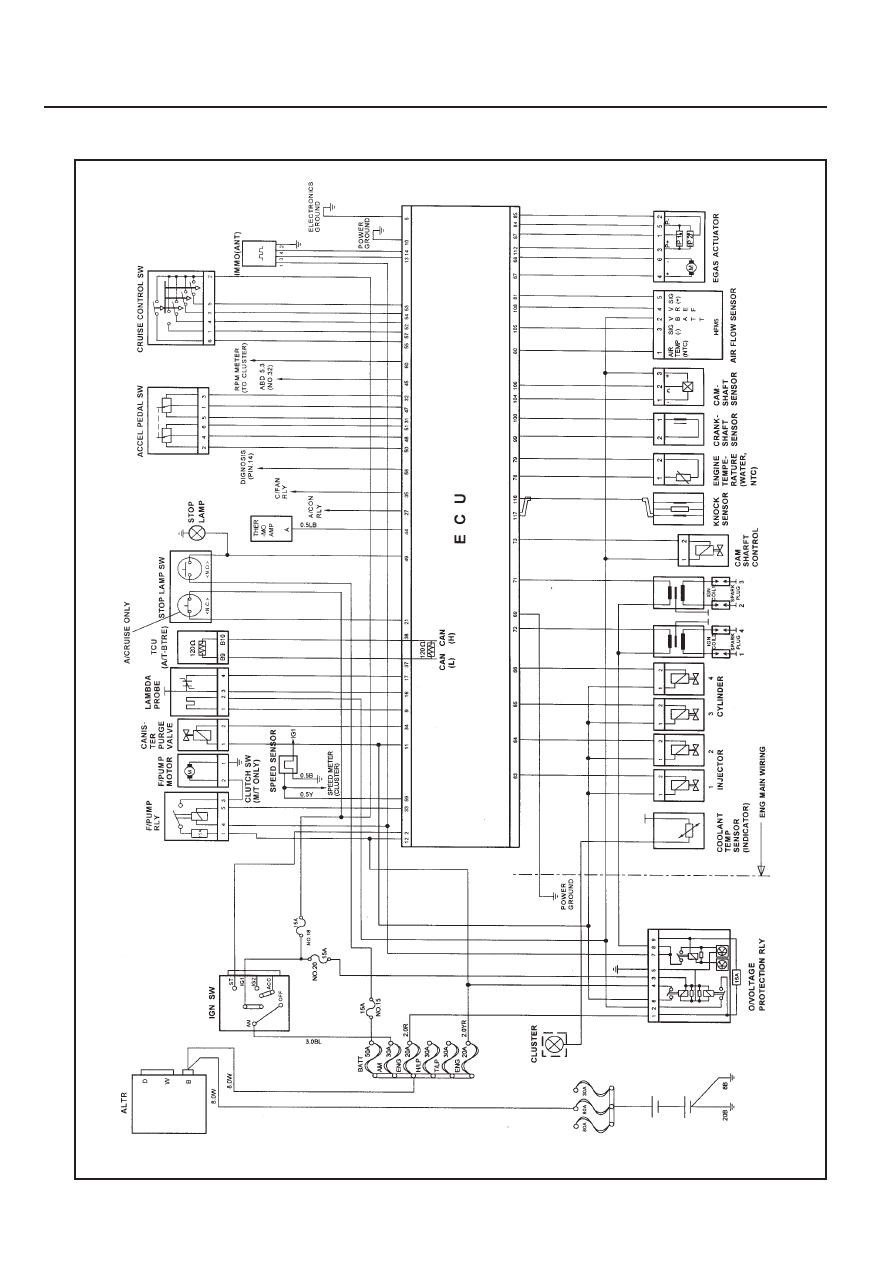

E23 ECU (MSE)

M161 ENGINE CONTROLS  1F2-5

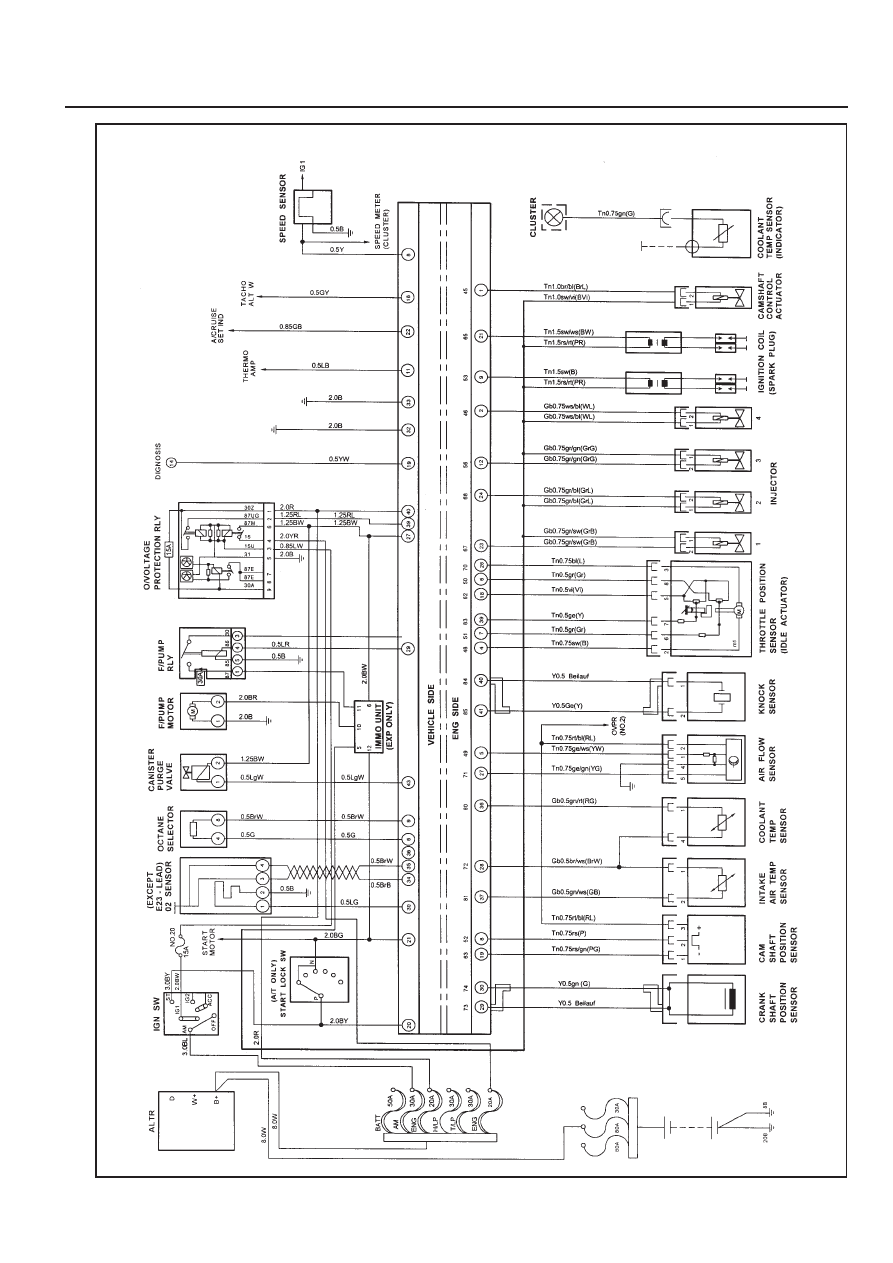

E23 ECU (HFM)

1F2-6  M161 ENGINE CONTROLS

DIAGNOSIS

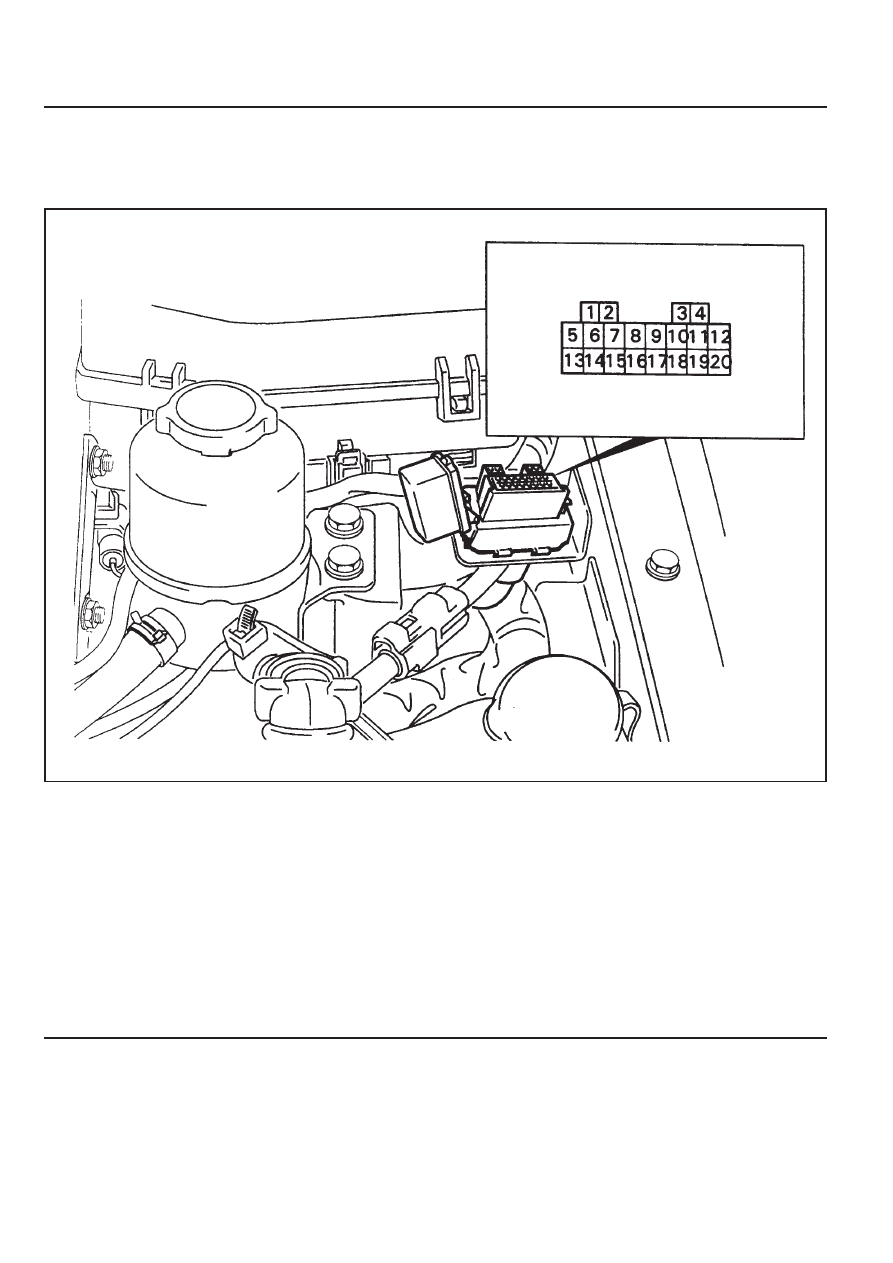

SELF DIAGNOSIS SOCKET PIN NUMBERS AND DESCRIPTIONS

1 Ground
2 Ignition 1
3 Battery Power Supply (Fuse NO.17)
4 REKES :PIN 6
5 Engine Speed Signal :MSE PIN 60
6 TCCU(Part-time)
7 STICS(PIN 26)
8 -
9 -

10 Air Bag(PIN 20)

11 Remote Engine Start Unit(PIN 10)

12 -
13 Brake System

(ABS 5.3:PIN 11, ABS/ABD 5.3:PIN 46)

14 MSE 3.62S/3.53S(ECU Data Output:PIN 58)
15 TOD(PIN 20)
16 Immobilizer
17 -
18 TCU(PIN 23)
19 -
20 K-LINE(ECS:PIN 23)
