1D2-6  M161 ENGINE COOLING

4. After complete draining of the coolant, remove the hose

connector to drain plug and reinstall the drain plug.

Installation Notice

5. Tighten the radiator lower drain cock.

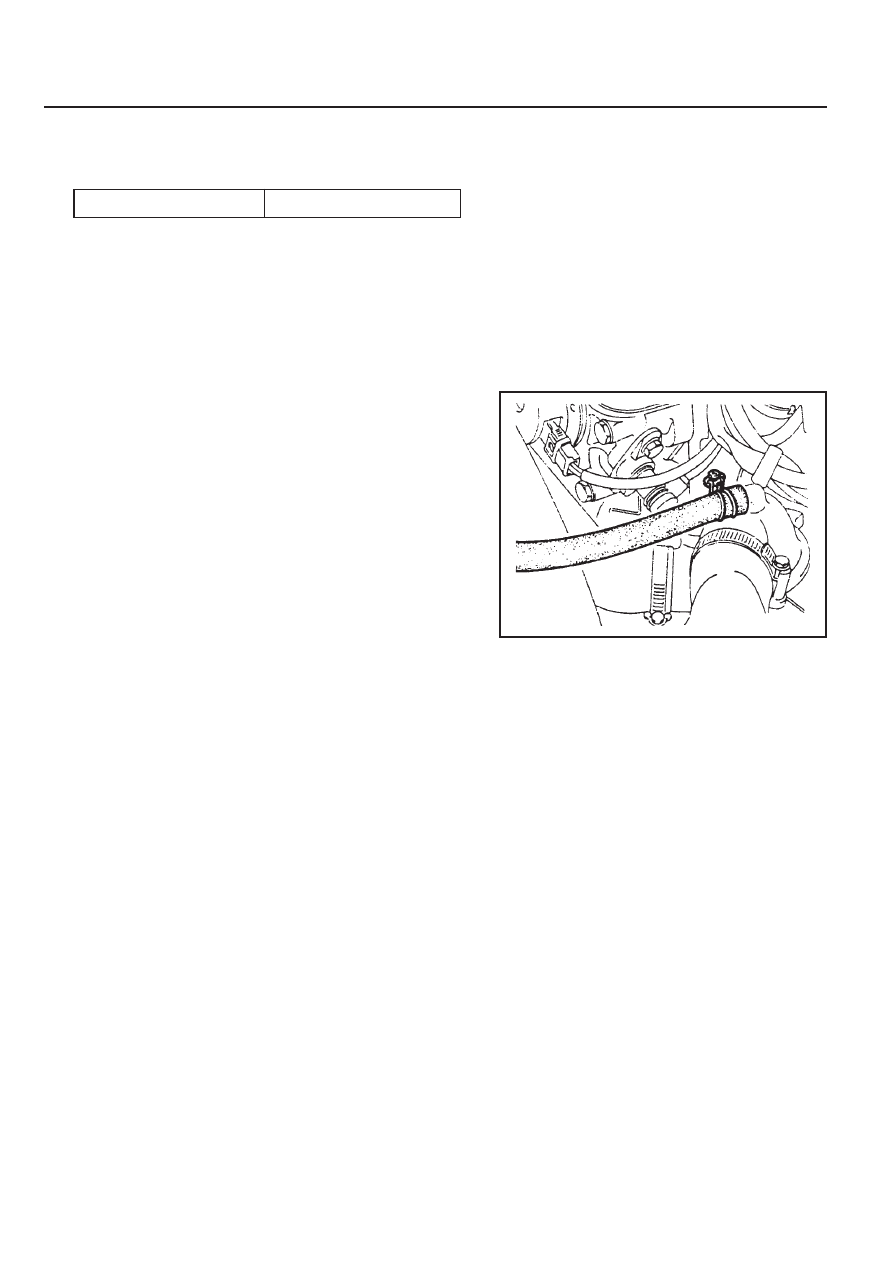

6. Remove the de-aeration hose clamp in the coolant pump

and remove the de-aeration hose.

7. Fill up the coolant through the coolant reservoir tank.

Notice

z

Match the anti-freeze and the water ratio to 50 : 50.

z

Supplement the coolant until the coolant overflows to
the deaeration hose.

Tightening Torque

30 Nm

8. Insert the de-aeration hose and completely tighten the

clamp.

9. Check the coolant level in the coolant reservoir tank.

10. Warm up(until thermostat is opened) the engine and

recheck the coolant level in the reservoir tank and fill up
the coolant if necessary.

M161 ENGINE COOLING  1D2-7

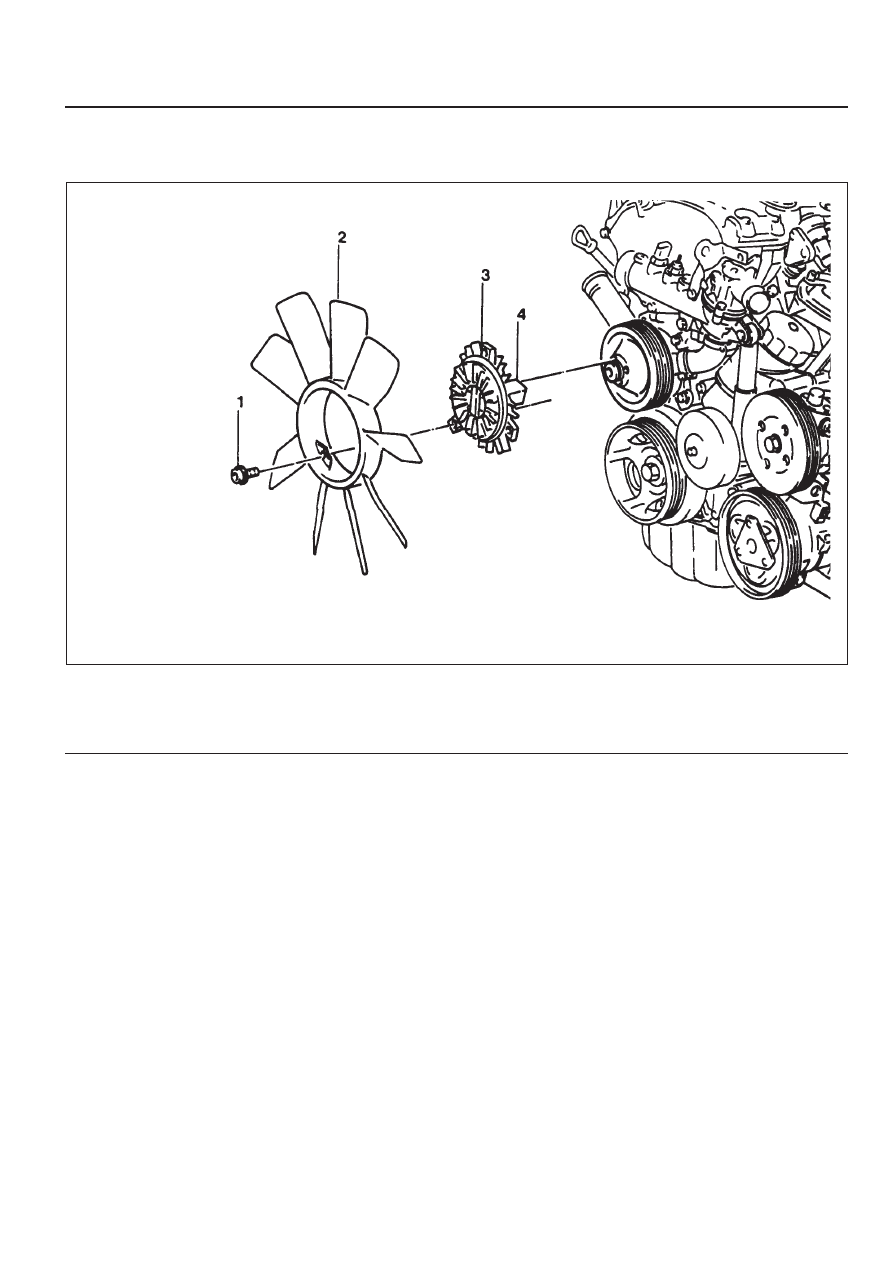

COOLING FAN AND VISCOUS CLUTCH

1 Bolt (M6 X 14, 3 piece) ........................... 9-11 Nm
2 Cooling Fan

3 Viscous Clutch
4 Union Nut (Left Threaded Screw) ... 40.5-49.5 Nm

1D2-8  M161 ENGINE COOLING

Tools Required

111 589 02 01 00  Open End Wrench

111 589 00 40 00  Open End Wrench

Removal & Installation Procedure

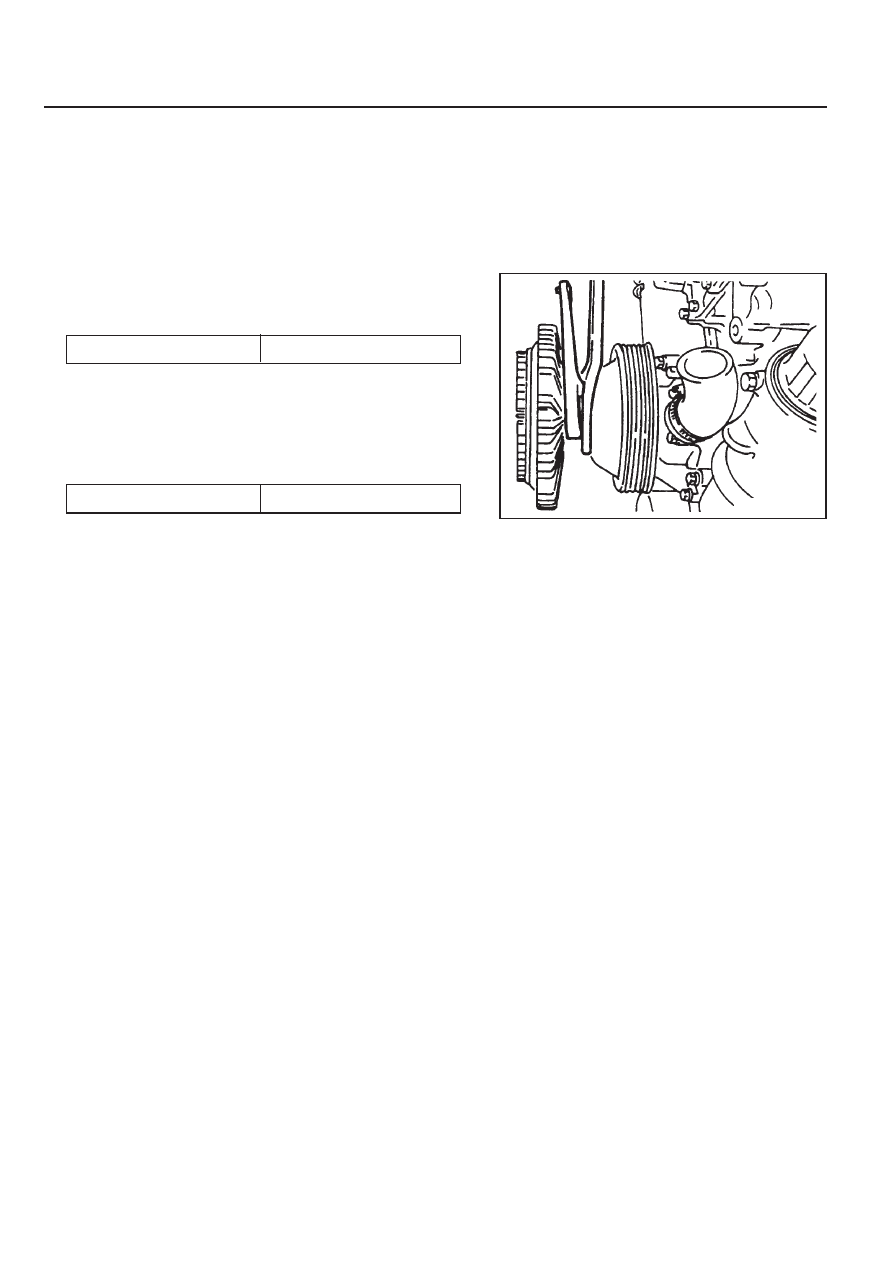

1. Install the holder (special tool : 111 589 00 40 00) to the bolt

at the pulley as shown in the right figure to hold the pulley.

2. Remove the viscous clutch using an open end wrench

(special tool : 111 589 02 01 00).

Installation Notice

Notice

The union nut is left threaded screw.

3. Remove the 3 bolts (1) from the viscous clutch and remove

the cooling fan and the viscous clutch.

Installation Notice

Tightening  Torque

40.5 - 49.5 Nm

Tightening  Torque

9 - 11 Nm

Notice

You may change the procedure (2) and (3) if necessary.

4. Installation should follow the removal procedure in the

reverse order.

M161 ENGINE COOLING  1D2-9

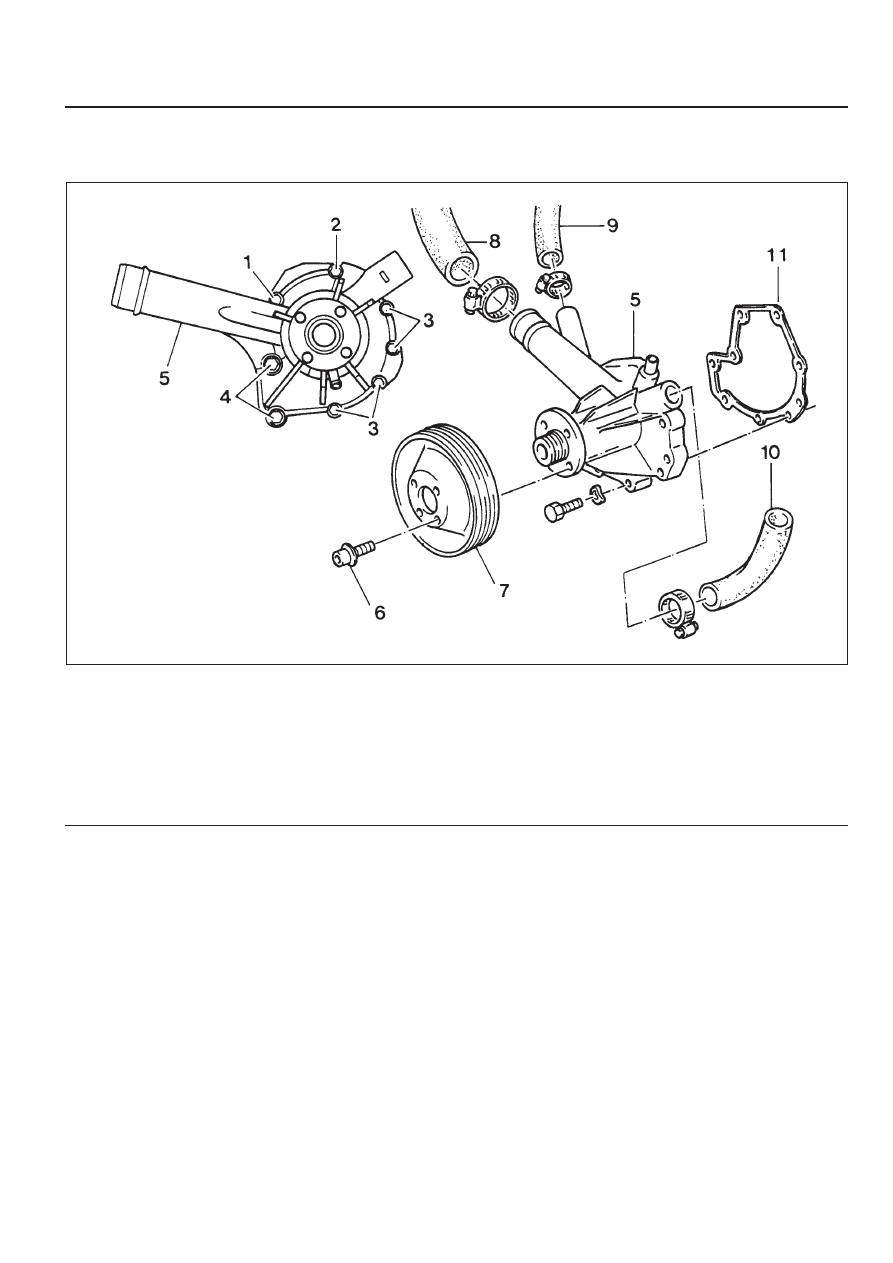

COOLANT PUMP

Preceding Work : Removal of viscous clutch

1 Bolt (M6 X 45, 1 piece) ........................... 9-11 Nm
2 Bolt (M6 X 95, 1 piece) ........................... 9-11 Nm
3 Bolt (M6 X 25, 4 piece) ........................... 9-11 Nm
4 Bolt (M8 X 85, 2 piece) ................... 20.5-20.5 Nm
5 Coolant Pump Housing
6 Bolt (M6 X 16, 4 piece) ........................... 9-11 Nm

7 Coolant Pump Pulley
8 Coolant Inlet Hose
9 Heater Hose

10 Coolant Bypass Hose

11 Gasket
