M161 ENGINE MECHANICAL  1B2-83

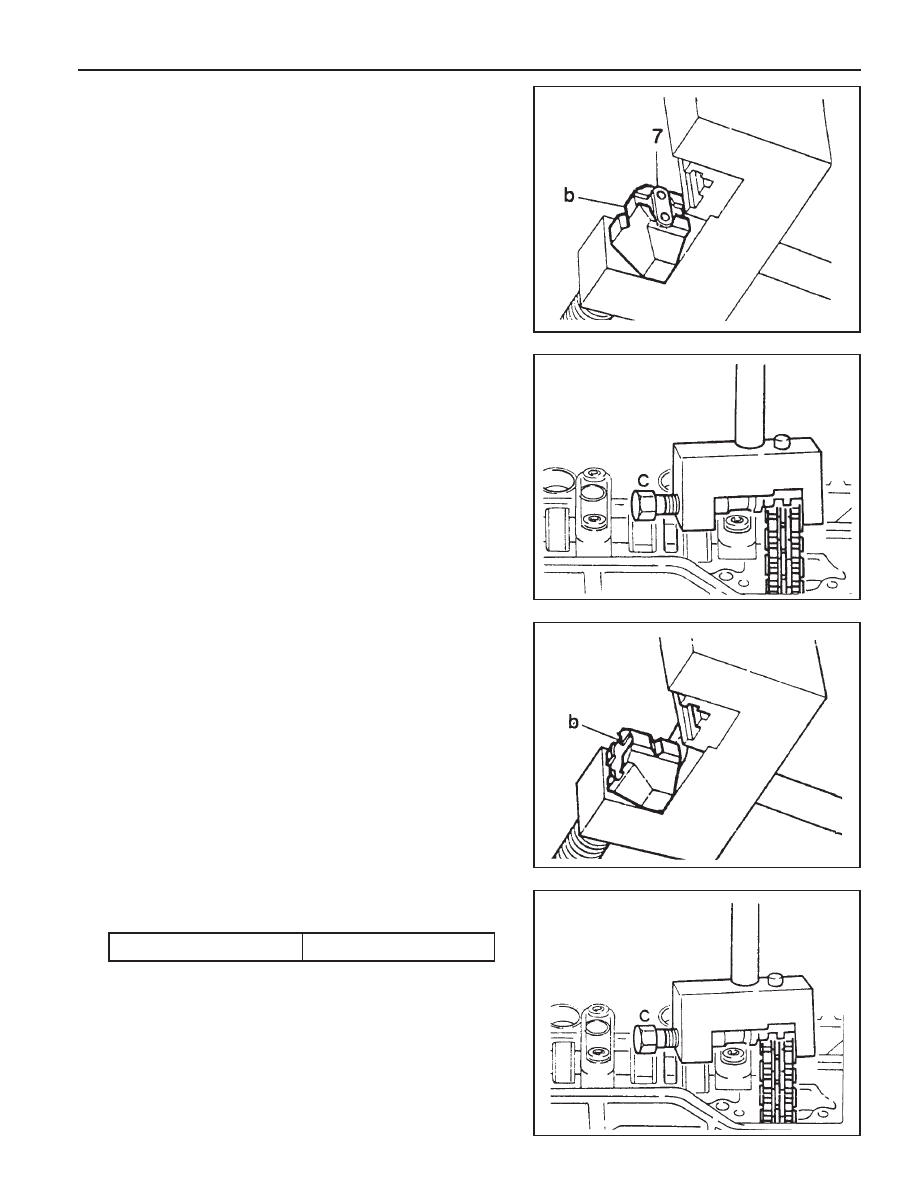

15. Replace the thrust piece (b) as shown in the figure.

13. Install the assembly tool above the link and tighten the

spindle (c) until a block is felt.

14. Place the assembly tool.

12. Place the outer plate (7, thickness 1.2mm) inside the thrust

piece (b).

16. Install the assembly tool to the link pin and tighten the

spindle (c).

Tightening Torque

30 Nm

1B2-84  M161 ENGINE MECHANICAL

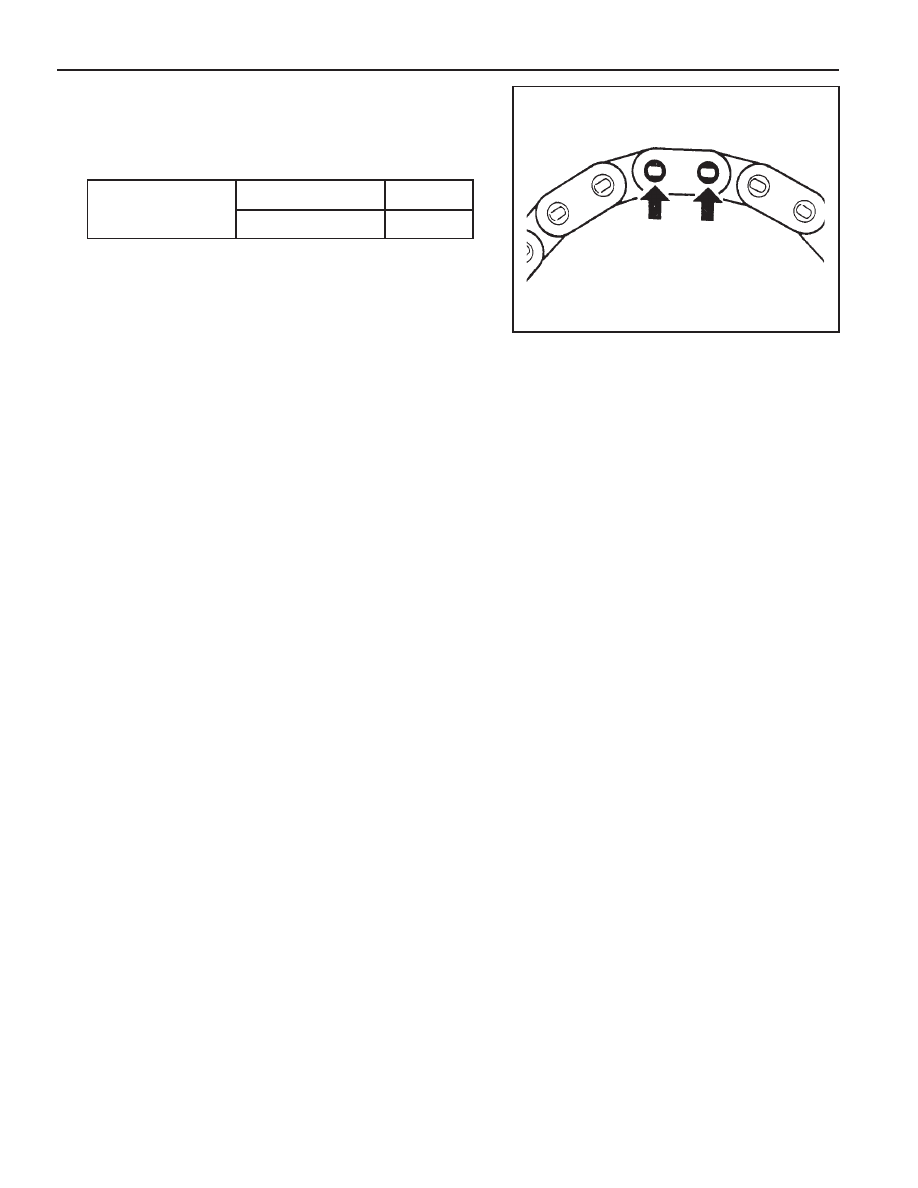

17. Rivet the link pin.

Check the condition and it again if necessary.

18. Install the chain tensioner.

Installation Notice

19. Check the camshaft timing position.

Tightening Torque

Screw Plug

40 Nm

Tensioner Assembly 72 - 88 Nm

M161 ENGINE MECHANICAL  1B2-85

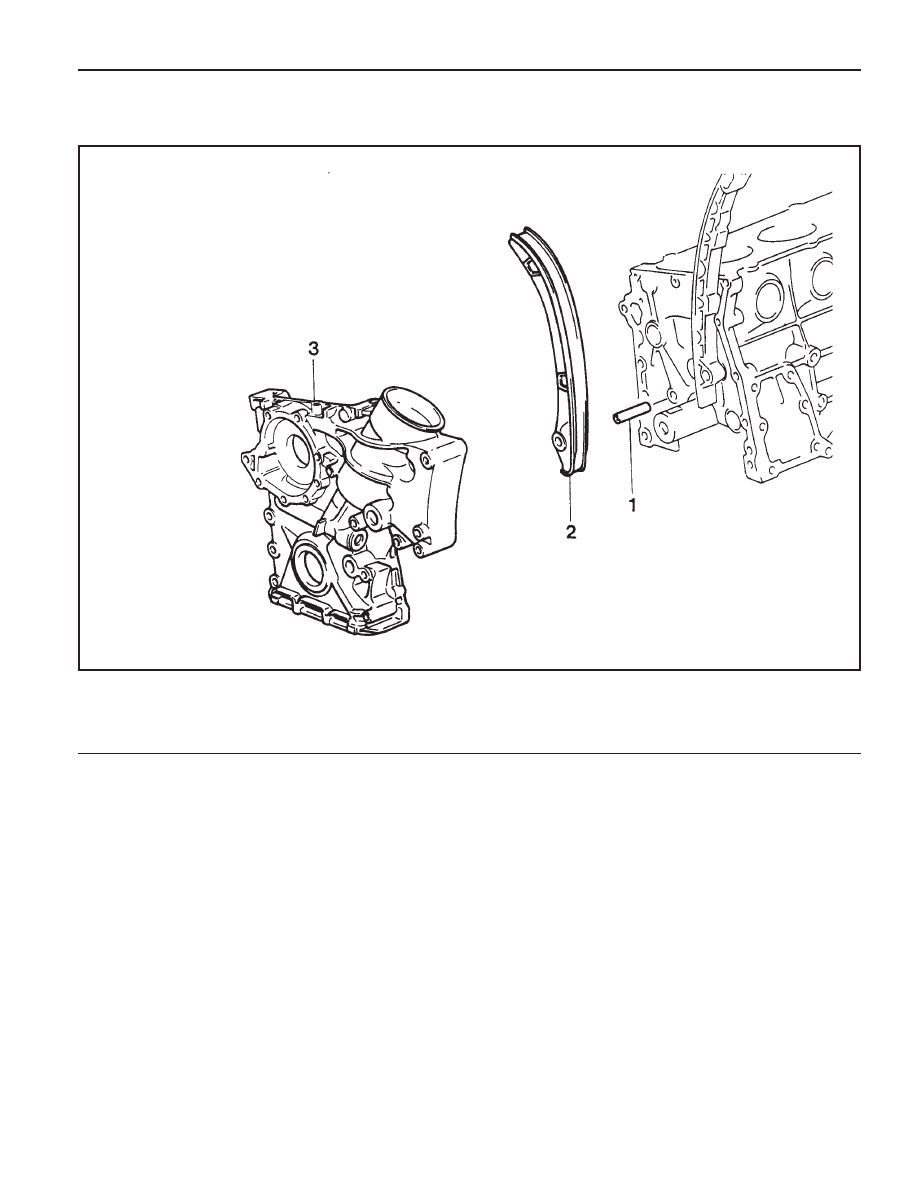

TENSIONING RAIL

Preceding Work : Removal of cylinder head

Removal & Installation Procedure

1. Remove the timing gear case cover (3).

Notice

Be careful not to damage the gasket.

2. Remove the sliding rail (1) from the sliding rail pin (2).

Notice

z

Replace the plastic guide (2) if it is damaged.

z

For installation, exactly align the plastic guide (2) with

the sliding rail (1).

3. Installation should follow the removal procedure in the

reverse order.

1 Sliding Rail Pin
2 Sliding Rail

3 Timing Gear Case Cover

1B2-86  M161 ENGINE MECHANICAL

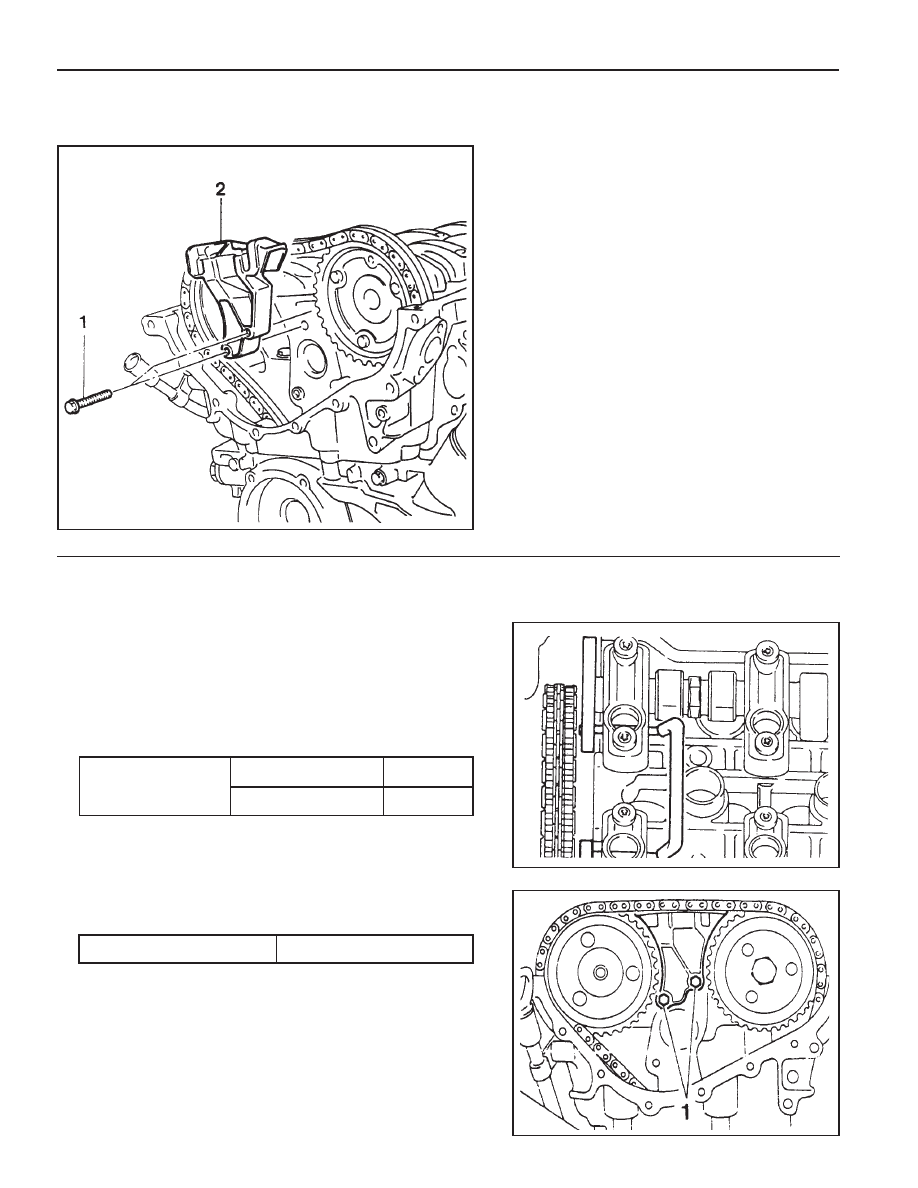

CYLINDER HEAD GUIDE RAIL

Preceding Work : Removal of cylinder head cover

1 Bolt (M6 X 45, 2 pieces) .................. 9-11 Nm
2 Guide Rail

Removal & Installation Procedure

1. Position the number 1 cylinder to ATDC20° guide rail.

2. Install the pin (special tool : 111 589 03 15 00) into the no.1

and no.6 bearing cap hole.

3. Remove the chain tensioner.

Installation Notice

Tightening Torque

Screw Plug

40 Nm

Tensioner Assembly

72 - 88 Nm

4. Unscrew the bolt (1) and remove the guide rail.

Installation Notice

Tightening  Torque

9 - 11 Nm

5. Installation should follow the removal procedure in the

reverse order.
