M162 ENGINE MECHANICAL 1B1-115

CYLINDER HEAD MATING SURFACE

Preceding Work : Removal of valves

Service Data Standard

Notice

Do not exceed 0.4mm for the milling of the mating surface of crankcase and cylinder head.

Overall Height of Cylinder Head

Minimum Height After Machining

Flatness

Distance ‘T’

(Between Camshaft Bearing

and Valve Stem)

Axial Direction

Transverse Direction

Standard Size

Repair Size

135.9 - 136.0 mm

135.5 mm

0.08 mm

0.0 mm

24.21 - 24.75 mm

22.21 - 22.75 mm

23.96 - 24.51 mm

21.96 - 22.51 mm

Intake

Exhaust

Intake

Exhaust

1B1-116 M162 ENGINE MECHANICAL

Measurement of Mating Surface

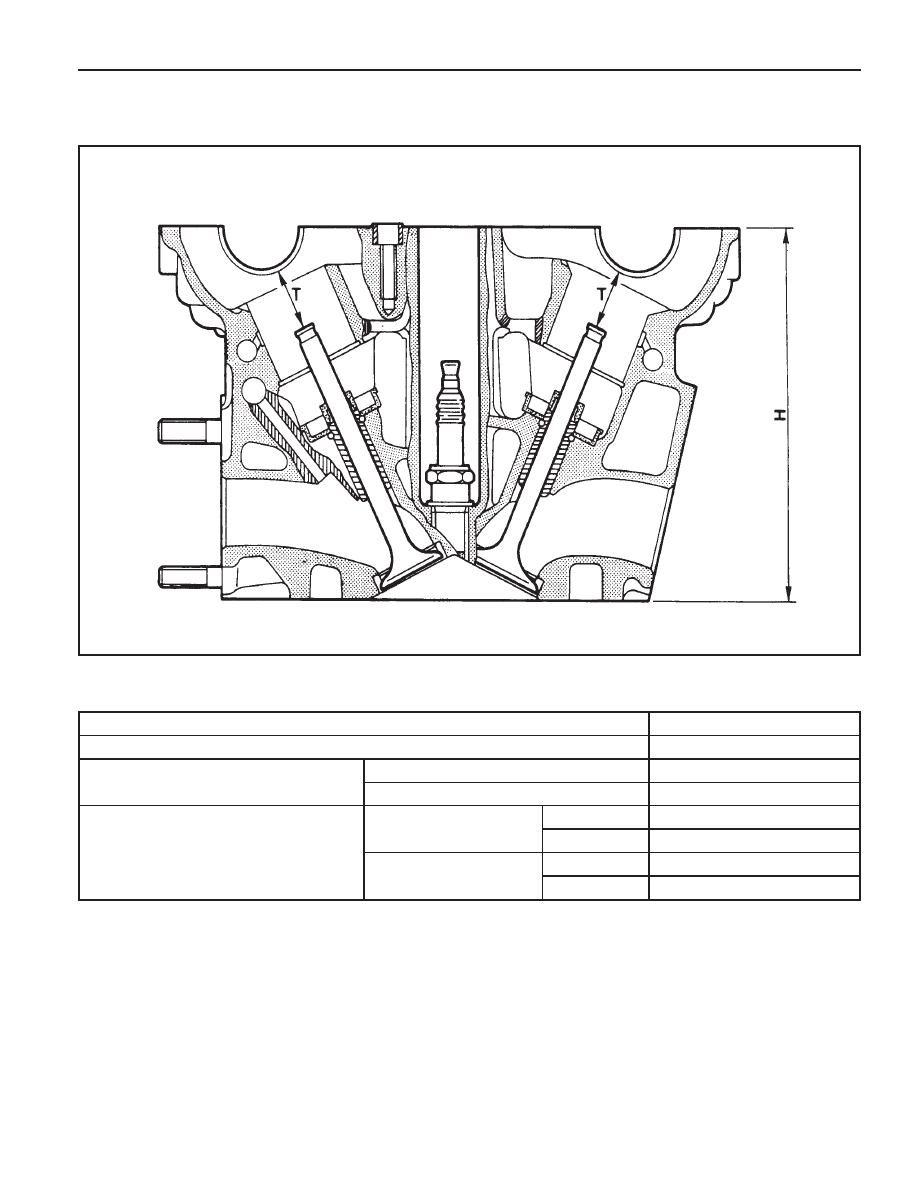

1. Measure the height (H) of the cylinder head (refer to Service

data standard).

2. Check the mating surface of the cylinder head.

3. Mill the sharp edge of the combustion chamber.

4. Re-measure the height (H) of the cylinder head.

5. Seal the intake and exhaust valves.

6. Measure the dimension (T) between the camshaft bearing

and the valve system (refer to Service data standard).

7. Mill the cylinder head valve seat (refer to Service data

standard).

Universal Tool

Surface Grinding Machine

Sceledum, Type RTY

Roaro

Schio/Italy
