M162 ENGINE MECHANICAL  1B1-39

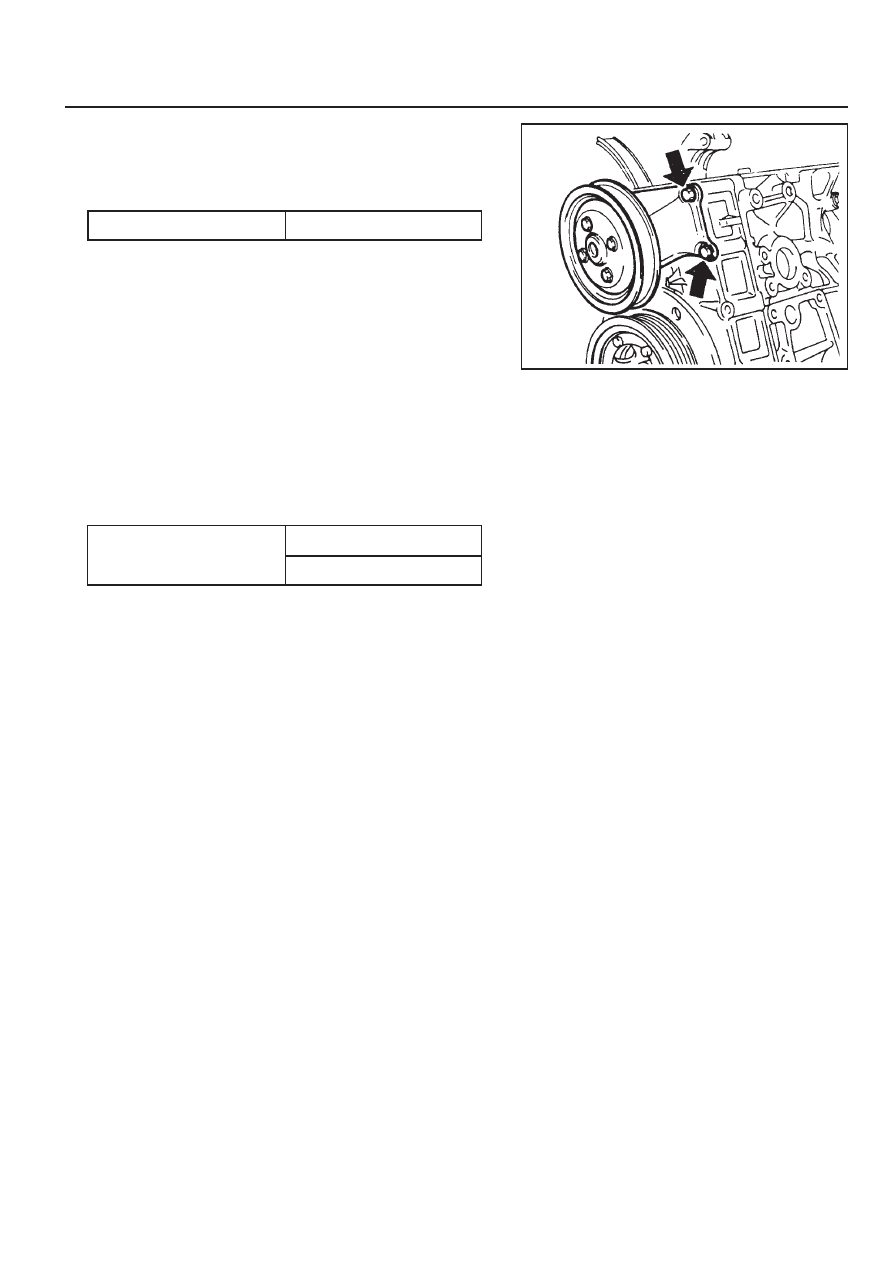

3. Remove the cooling fan and the viscous clutch. Unscrew

the three bolts from the cooling fan bracket and remove the
bracket (arrows).

Installation Notice

4. Remove the timing gear case cover after unscrewing the

bolts (3) and (4) from the timing gear case cover and the
bolt (9) from the oil pan.

Notice

Be careful not to damage the oil pan gasket.

Installation Notice

z

Apply the sealant after cleaning the timing gear case

cover surface.

z

Be careful not to stain the oil chamber of chain tensioner

with the sealant.

5. Installation should follow the removal procedure in the

reverse order.

6. Warm up the engine and check for oil leaks.

Tightening  Torque

22.5 - 27.5 Nm

Tightening Torque

Bolt (3,4) 22.5 - 27.5 Nm

Bolt (9) 9 - 11 Nm

1B1-40  M162 ENGINE MECHANICAL

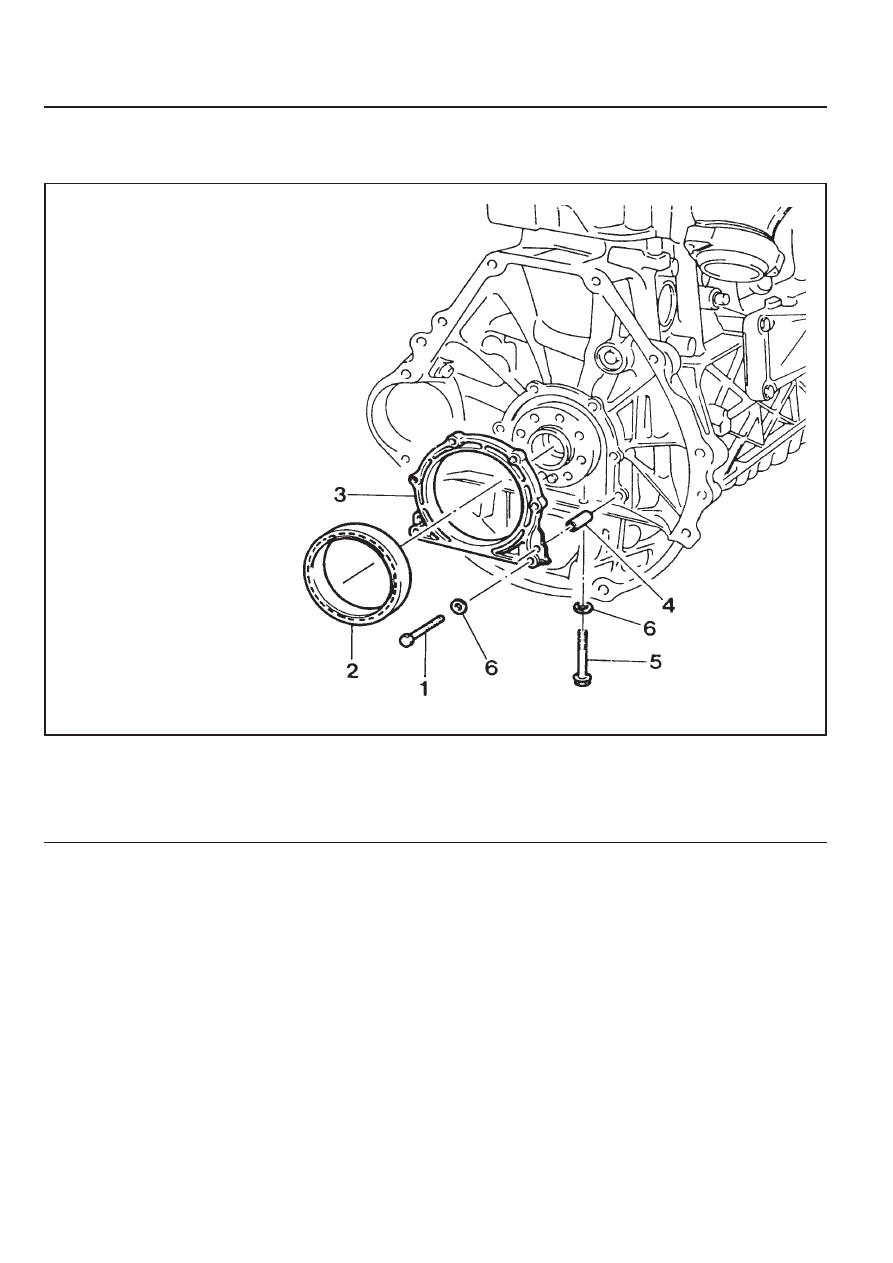

CRANKSHAFT SEALING REAR COVER

Preceding Work : Removal of the automatic transmission drive plate

1 Bolt (M6 x 20, 6 pieces) ......................... 9-11 Nm
2 Radial Shaft Seal
3 Rear Cover

4 Sleeve
5 Bolt (M6 x 85, 2 pieces) ......................... 9-11 Nm
6 Washer

M162 ENGINE MECHANICAL  1B1-41

Tools Required

601 589 03 43 00 Sleeve

Removal & Installation Procedure

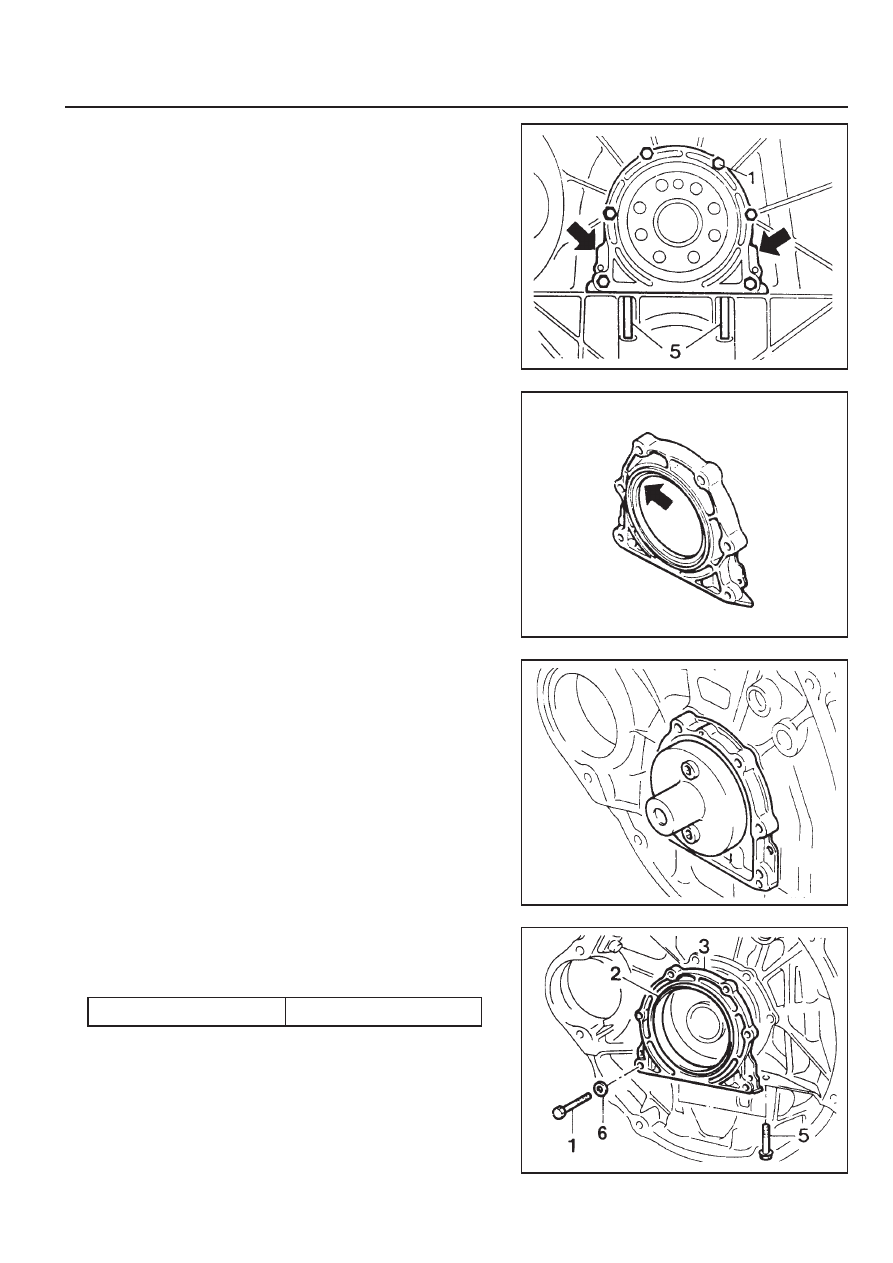

1. Unscrew the bolts (1) and (5) and remove the closing cover

by pulling the rear cover lug (arrows).

Notice

Be careful not to damage the oil pan gasket.

2. Clean the sealing surface of the crankcase and the rear

sealing cover.

3. Check the radial shaft seal and replace it if necessary.

4. Apply the Loctite 573 to the rear cover sealing surface.

5. Apply the engine oil to the dust lip of the radial shaft seal.

Notice

Do not use the grease.

6. Using the special tool, press the radial shaft seal and the

rear cover.

7. Tighten the rear cover bolt (1) and then tighten the oil pan

bolt (5) as specified and remove the special tool.

Installation Notice

Seal  Assembler  601  589  03  43  00

Tightening  Torque(Bolt  1,5)

9 - 11 Nm

1B1-42  M162 ENGINE MECHANICAL

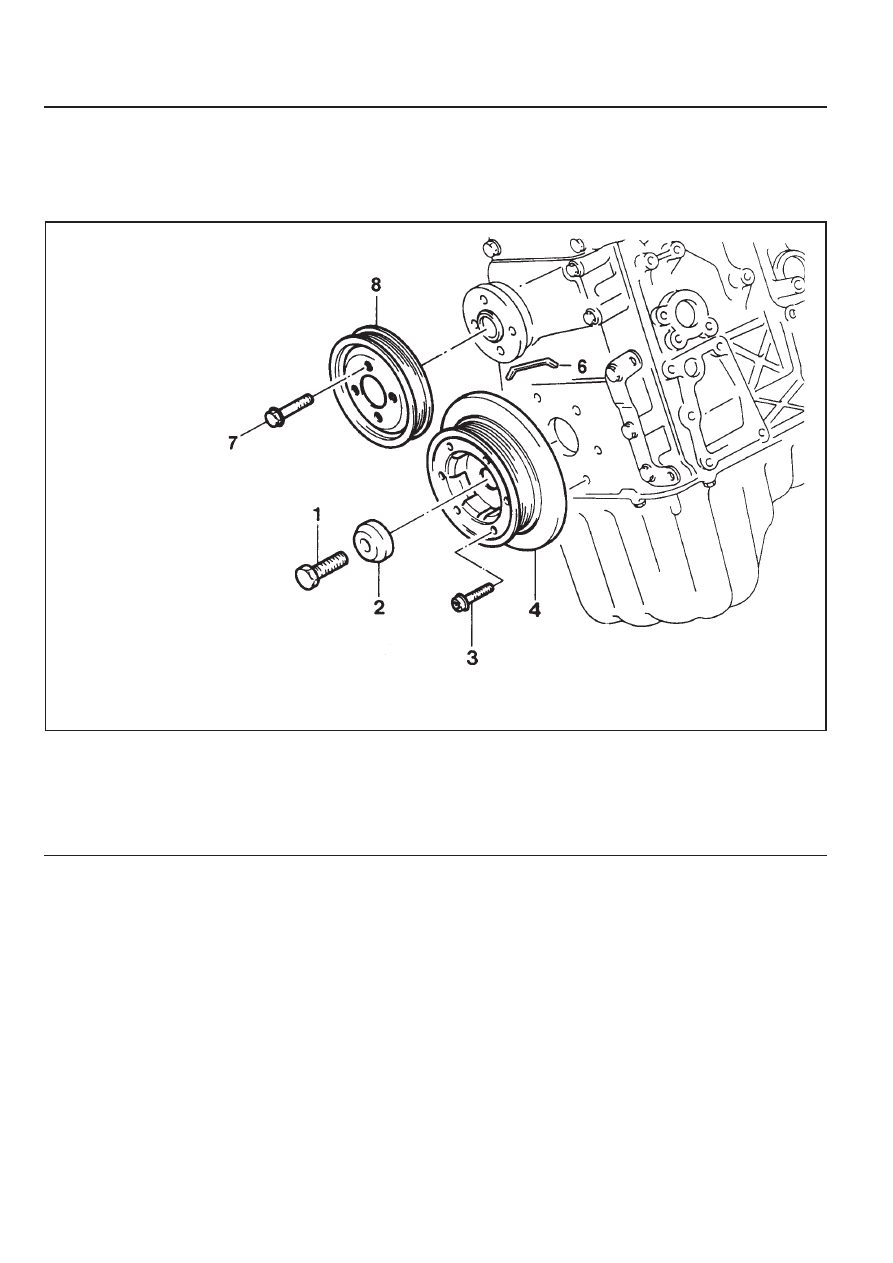

1 Center Bolt (M18 x 50) ...... 1st step 200- 220 Nm

2nd step 90°+10°

2 Vibration Damper Disk
3 Bolt (M6 x 20, 6 pieces) ..................... 7.7-9.5 Nm

BELT PULLEY AND VIBRATION DAMPER

Preceding Work : Removal of cooling fan and viscous clutch

Removal of fan shroud
Removal of drive belt

4 Vibration Damper Assembly
5 Woodruff Key
6 Bolt (M6 x 12, 4 pieces) ......................... 9-11 Nm
7 Cooling Fan Pulley
