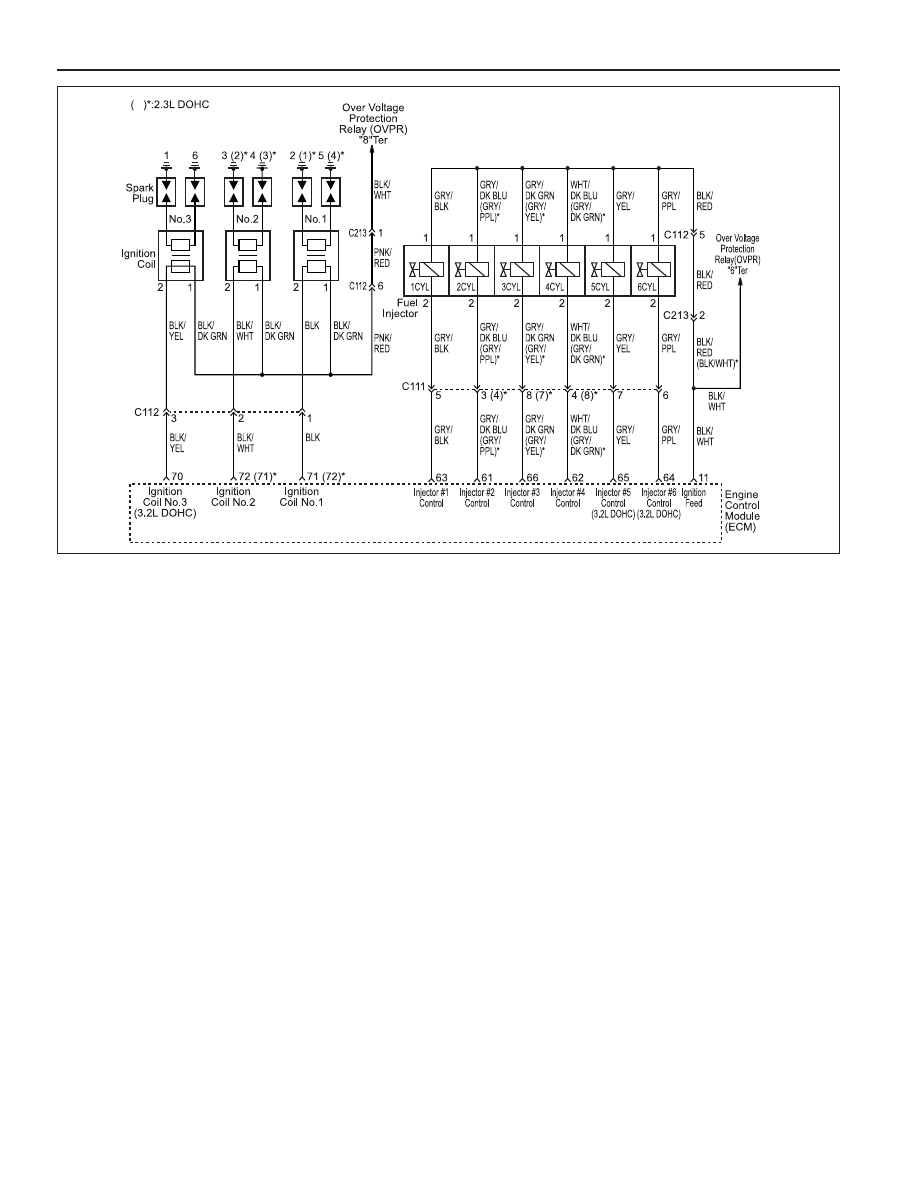

1F-300 ENGINE CONTROLS SSANGYONG Y158 DIAGNOSTIC TROUBLE CODE (DTC) P0300 MULTIPLE CYLINDER MISFIRE Circuit Description The Engine Control Module (ECM) monitors the crank- Conditions for Setting the DTC ••••• DTCs P0101, P0102, P0103, P0111, P0112, P0113, ••••• Counting of misfire within 1000 revolutions and ••••• Counting of misfire within 1000 revolutions and ••••• Counting of misfire within 200 revolution and 18 weighted (MIL BLINK after 1st exceed). ••••• Misfire starting end (500 rpm) is reached. ••••• At least one injector is reversible shut down by limiter ••••• Engine speed is between 500 and 5700 rpm (2.3L ••••• Engine speed is between 450 and 4000 rpm (3.2L ••••• Load gradient is between 0.05 and -0.05. ••••• At least two injectors are irreversible shut down or ••••• Load below threshold is between 0.17 and 0.34 (2.3L ••••• Load below threshold is between 0.18 and 0.35 (3.2L ••••• Increment wheel compensation precess is successful ••••• Gear shift (A/T) is not active. ••••• Crankshaft/camshaft synchronizationis no fault. ••••• Tip down during cruise control active is not active. ••••• Tank level is greater than 13 liters. ••••• Clutch switch signal (M/T) is not active. YAB1F180 |
