1F-220 ENGINE CONTROLS

SSANGYONG Y158

Replace the O2S 4 sensor.
Is the repair complete?
Check the O2S 4 low circuit for an open or poor
connection and repair as necessary.
Is the repair complete?
1. Turn the ignition OFF.
2. Disconnect the ECM connector.
3. Check the O2S 4 high circuit for continuity and repair

as necessary.

Is the repair complete?
1. Turn the ignition switch OFF.
2. Replace the ECM.
Is the repair complete?
1. Using the scan tool, clear the Diagnostic Trouble

Codes (DTCs).

2. Start the engine.
3. Operate the vehicle within the conditions for setting

this DTC as specified in the supporting test.

Does the scan tool indicate that this diagnostic has run
And passed?
Check if any additional DTCs are set.
Are any DTCs displayed that have not been diagnosed?

Step

Action

Value(s)

Yes

DTC P0160 O2 Bank 2 Sensor 4 Not Lean After Coasting Shut Down (3.2L DOHC) (Cont’d)

Go to Step 11

Go to Step 5

Go to Step 11

Go to Step 10

Go to Step 12

Go to Step 2

Go to

applicable

DTC table

System OK

ENGINE CONTROLS 1F-221

SSANGYONG Y158

BLANK

1F-222 ENGINE CONTROLS

SSANGYONG Y158

DAGNOSTIC TROUBLE CODE (DTC) P0161-214

O2 BANK 2 SENSOR 4 HEATER SHORT CIRCUIT TO BATTERY

(3.2L DOHC)

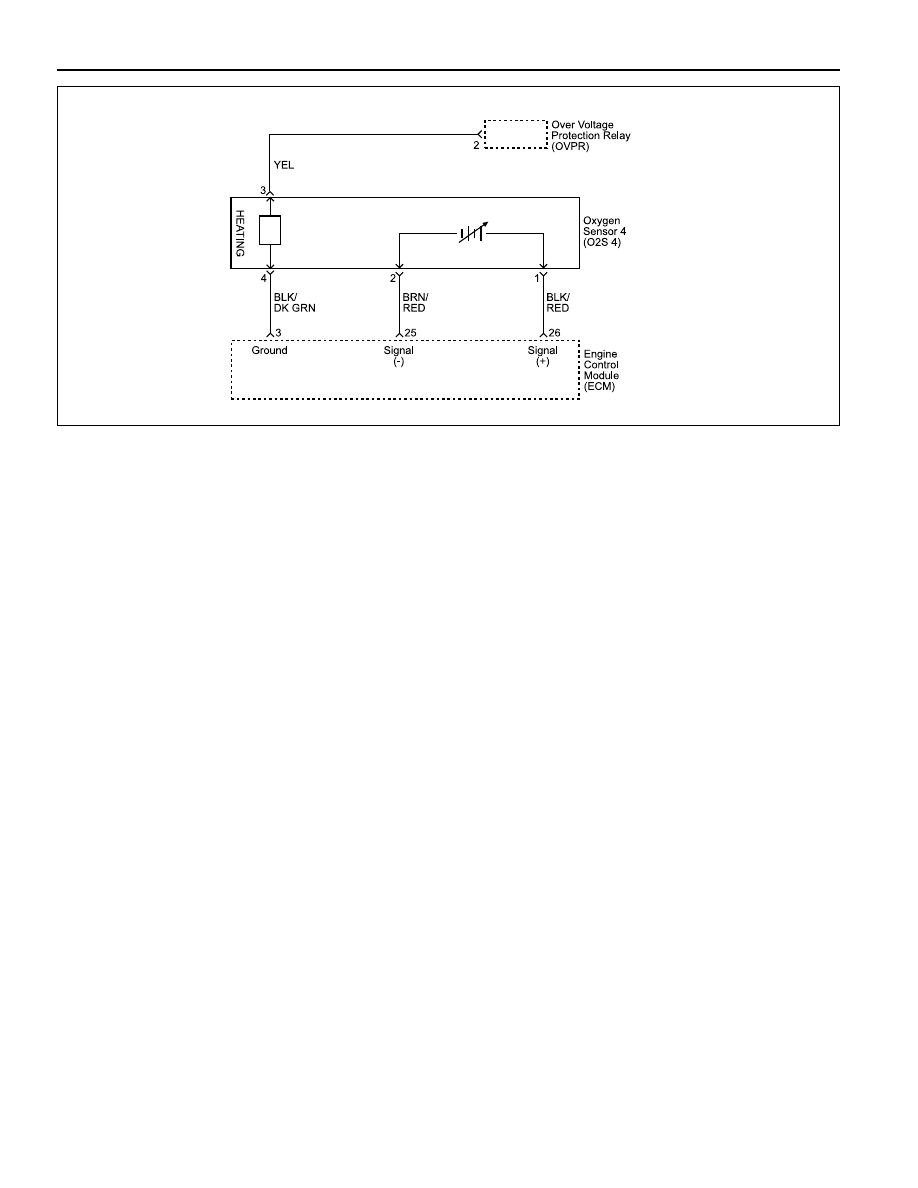

Circuit Description

In order to control emissions, a catalytic converter is
used to convert harmful emissions into harmless water
vapor and carbon dioxide.

The Engine Control Module (ECM) has the ability to
monitor this process by using a Heated Oxygen Sensor
(O2S 4). The O2S 4 produces an output signal which
indicates the storage capacity of the catalyst. This in
turn indicates the catalyst’s ability to convert exhaust
emissions effectively.

If the O2S 4 pigtail wiring, connector, or terminal is
damaged, the entire O2S 4 assembly must be replaced.
Do not attempt to repair the wiring, connector, or
terminals. In order for the sensor to function properly, it
must have a clean air reference provided to it. This clean
air reference is obtained by way of the O2S 4 wire(s).

Any attempt to repair the wires, connector, or terminal
and degrade the O2S 4 performance.

Conditions for Setting the DTC

•••••

Current is between 2.2 ampares and 4.3 ampares
(depending on driver condition).

•••••

Output stage is active.

Action Taken When the DTC Sets

•••••

The Malfunction Indicator Lamp (MIL) will illuminate
after two consecutive driving cycles in which the diag-
nostic runs with the fault active.

•••••

The ECM will record operating conditions at the time
the diagnostic fails. This information will be stored in
the Freeze Frame and Failure Records buffers.

•••••

A history DTC is stored.

Conditions for Clearing the MIL/DTC

•••••

The MIL will turn off after three consecutive driving
cycles in which the diagnostic runs without a fault.

•••••

A history DTC will clear after 40 consecutive warm-
up cycles without a fault.

•••••

The DTC(s) can be cleared by using the scan tool.

Diagnostic Aids

Check for the following conditions:

An intermittent may be caused by a rubbed-through wire
insulation or a wire contacting the exhaust.

Check for a poor connection or a damaged harness and
inspect the harness connectors for the following
conditions:

•••••

Improper mating

•••••

Broken locks

•••••

Improperly formed

•••••

Damaged terminals

•••••

Poor terminal-to-wire connection

•••••

Damaged harness

YAB1F160

ENGINE CONTROLS 1F-223

SSANGYONG Y158

Step

Action

Value(s)

Yes

DTC P0161-214 O2 Bank 2 Sensor 4 Heater Short Circuit to Battery (3.2L DOHC)

Go to Step 2

Go to “Euro

On-Board

Diagnostic

System Check”

Go to Step 7

Go to Step 8

Go to Step 2

Perform an Euro On-Board Diagnostic (EOBD) System
Check.
Is the system check complete?

1. Turn the ignition ON, with the engine OFF.
2. Install a scan tool.
3. Operate the vehicle within the Freeze Frame

Conditions for Setting the DTC as noted.

Does the heater ampere within the specified value?
1. Turn the ignition OFF.
2. Disconnect the O2S 4 electrical connector.
3. Turn the ignition ON, with the engine OFF.
4. With a test light connected to ground, probe the O2S

4 electrical connector, terminal 4.

Does the test light illuminate?
1. Disconnect the ECM electrical connector.
2. Check the short to voltage between O2S 4 electrical

connector, terminal 4 and ECM electrical connector,
terminal 3 and repair as necessary.

Is a repair complete?
Replace the O2S 4.
Is the repair complete?
1. Turn the ignition switch OFF.
2. Replace the ECM.
Is the repair complete?
1. Using the scan tool, clear the Diagnostic Trouble

Codes (DTCs).

2. Start the engine and idle at normal operating

temperature.

3. Operate the vehicle within the Conditions for setting

this DTC as specified in the supporting text.

Does the scan tool indicate that this diagnostic has ran
and passed?
Check if any additional DTCs are set.
Are any DTCs displayed that have not been diagnosed?

Go to Step 7

GO to Step 6

0.2 - 2 amps

Go to Step 3

Go to Step 5

Test Description

Number(s) below refer to the step number(s) on
theDiagnostic Table.

1. The Euro On-Board Diagnostic (EOBD) System

Check prompts the technician to complete some
basic checks and store the freeze frame and failure
records data on the scan tool if applicable. This

creates an electronic copy of the data taken when
the malfunction occurred. The information is then
stored on the scan tool for later reference.

4. If the test light is still on after disconnecting the

ECM connector, the wire between the heater and
the ECM is short to voltage. If the test light goes
off, the ECM is at fault.

Go to Step 4

Go to

“Diagnostic

Aids”

Go to

applicable

DTC table

System OK
