1-2  HOW TO USE ELECTRICAL WIRING DIAGRAM

1. HOW TO READ ELECTRICAL WIRING DIAGRAM

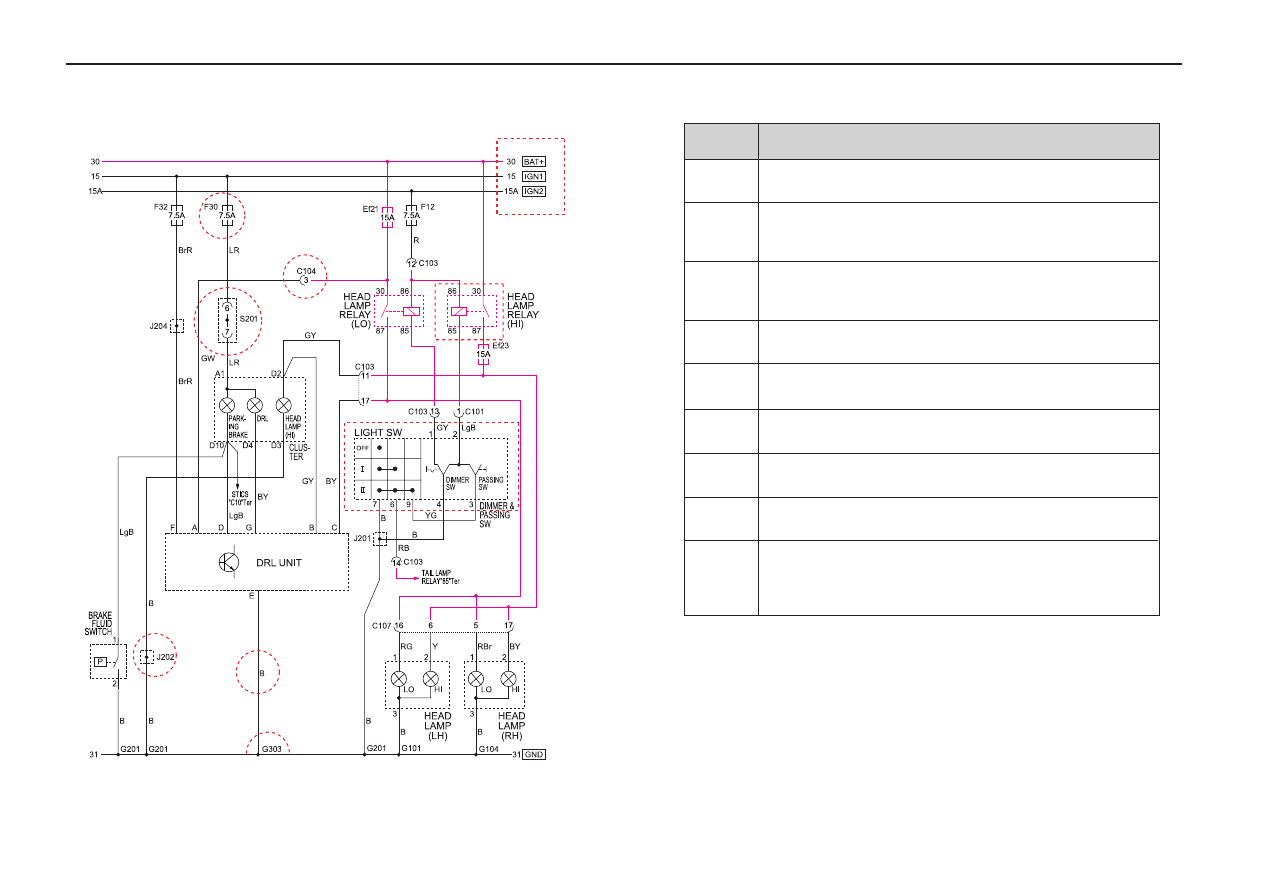

1) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)

POSITION

EXPLANATION

-

Upper horizontal lines : Power supply lines

-

Power supply lines : 30, 15, 15A, 15C, 58

-

Ef20 or F2 : Fuse Number
•

Ef20 : Fuse No #20 in engine room compartment

•

F2 : Fuse No #2 in passenger room compartment

-

Connector (C101~C901)
•

Connector No C203 terminal No1

* Refer to Major Connector Position (Section 2)

-

S201 : Splice pack (S101~S306)
* Refer to Major Splice Pack Position (Section2)

-

Wiring Harness Color
* Refer to Wiring Harness Color Abbreviation

-

Internal circuit of component (Relay)
(Component Name and Terminal Number)

-

Internal circuit of component (Switch)

   (Component Name, Terminal Number and Connecting Wiring Circuit)

-

J201 : Joint(J101~J401)
* Refer to Major Joint Position(Section2)

-

Lower horizontal line : Ground line
•

Ground position(G101~G402)

•

B : Body Ground

* Refer to Major Ground Position (Section2)

A

B

C

D

E

F

G

H

I

A

B

C

D

F

G

E

I

H

HOW TO USE ELECTRICAL WIRING DIAGRAM  1-3

Connector

Diode

Fuse in engine room fuse & relay box

Fuse in passenger room fuse box

Ground

Joint - Inline wire connected point

Splice pack(Junction connector)

C

D

Ef

F

G

J

S

2. CIRCUIT IDENTIFICATION SYMBOL

3. FUNCTION OF POWER SUPPLY LINE (NUMBER)

IDENTIFICATION

SYMBOL

MEANING

Power supply No

Power supply condition

Battery Voltage(B+) supply in Ignition Switch "ON" and "ST" (IGN 1)

Battery Voltage(B+) supply in Ignition Switch "ON" (IGN 2)

Battery Voltage(B+) supply in Ignition Switch "ON" and "ACC"

Battery Voltage(B+) supply directly regardless of Ignition Switch

Ground connected to battery(–)

Battery Voltage(B+) supply in Head Lamp Switch 1st and 2nd step

(Illumination circuit)

15

15A

15C

30

31

58

Abbreviation

Color

Brown

Green

Violet

Pink

White

Orange

Light Green

Br

G

V

P

W

Or

Lg

Abbreviation

Color

Sky Blue

Red

Blue

Yellow

Gray

Black

Sb

R

L

Y

Gr

B

4. WIRING HARNESS COLOR IDENTIFICATION

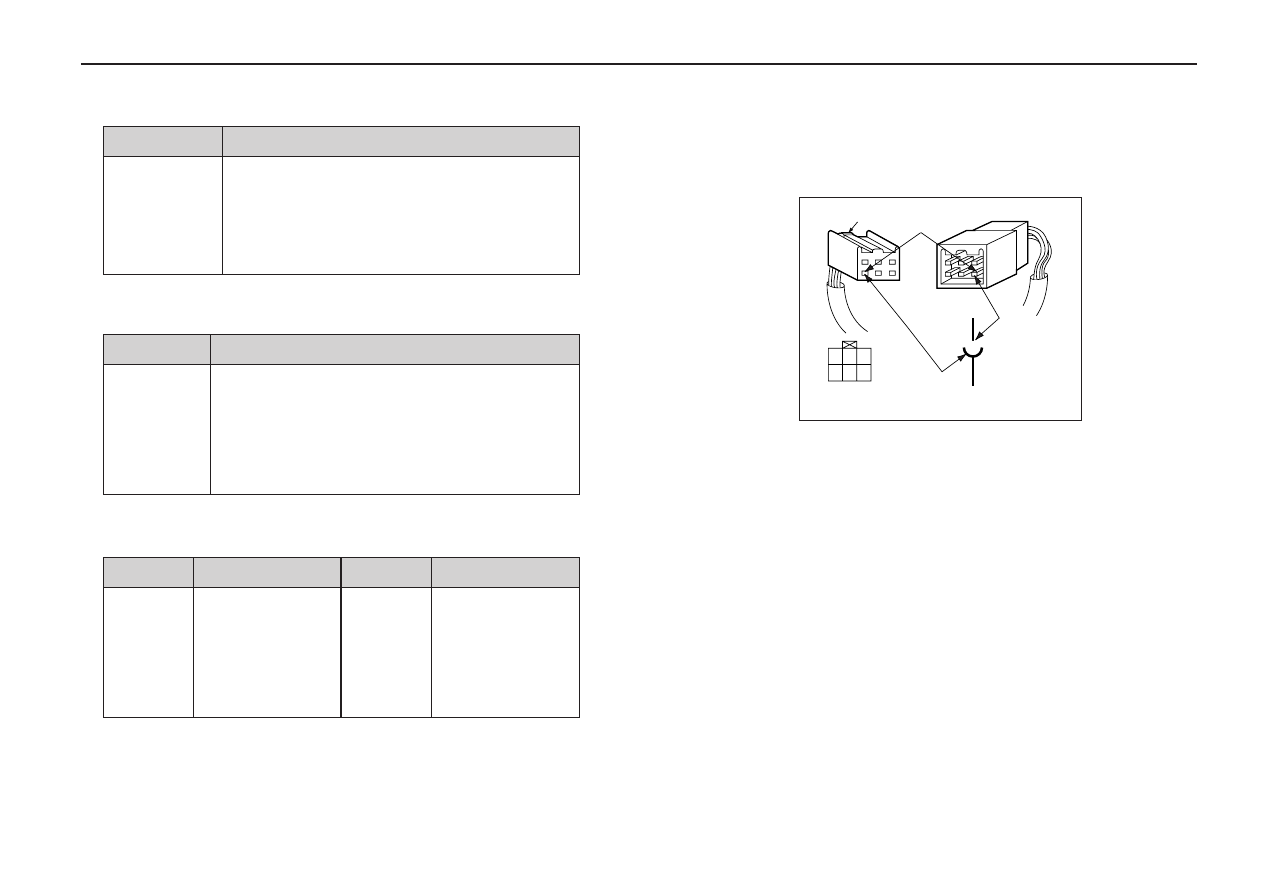

5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR

-

Terminal number is given based on Female Terminal Connector

   ex) Terminal Number 4 of C901 connection

Locking

Terminal Number 4

of total 6 pins

Male Connector

(W/H Fuel Tank)

4 C901

Female Connector

(W/H Floor)

C901

W/H Floor

1

3

2

4

6

5

1. COMPONENTS LOCATION ..................................................................2-2

2. POSITION OF CONNECTOR, GROUND & SPLICE PACK ...............2-3

3. CONNECTOR, GROUND & SPLICE PACK INFORMATION .............2-4

4. WIRING HARNESS, CONNECTOR & GROUND LOCATION ............2-6

CONTENTS

SECTION 2

POSITION OF CONNECTORS AND GROUNDS

2-2  POSITION OF CONNECTORS AND GROUNDS

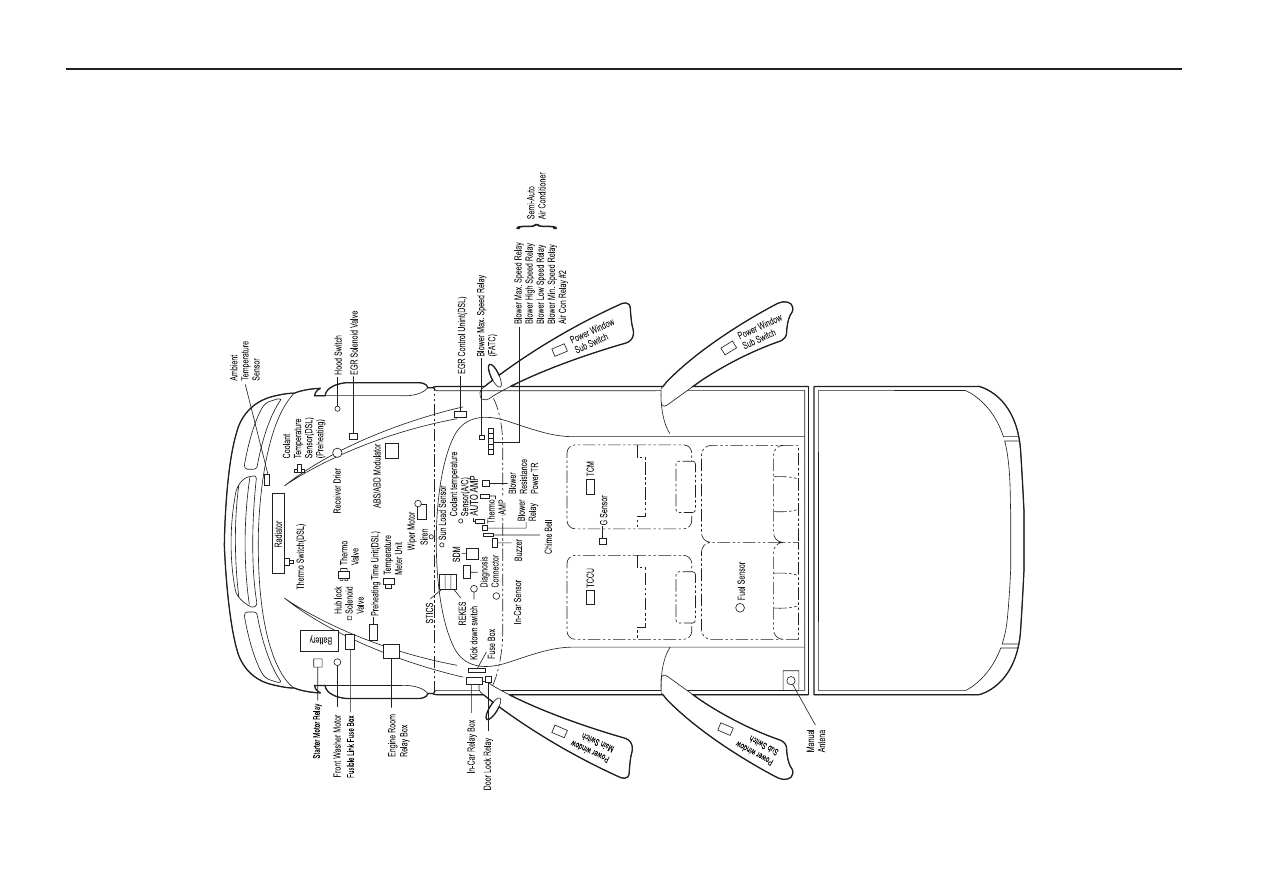

1. COMPONENTS LOCATION
