SsangYong Musso. Manual - part 74

5-18 ELECTRICAL WIRING DIAGRAMS

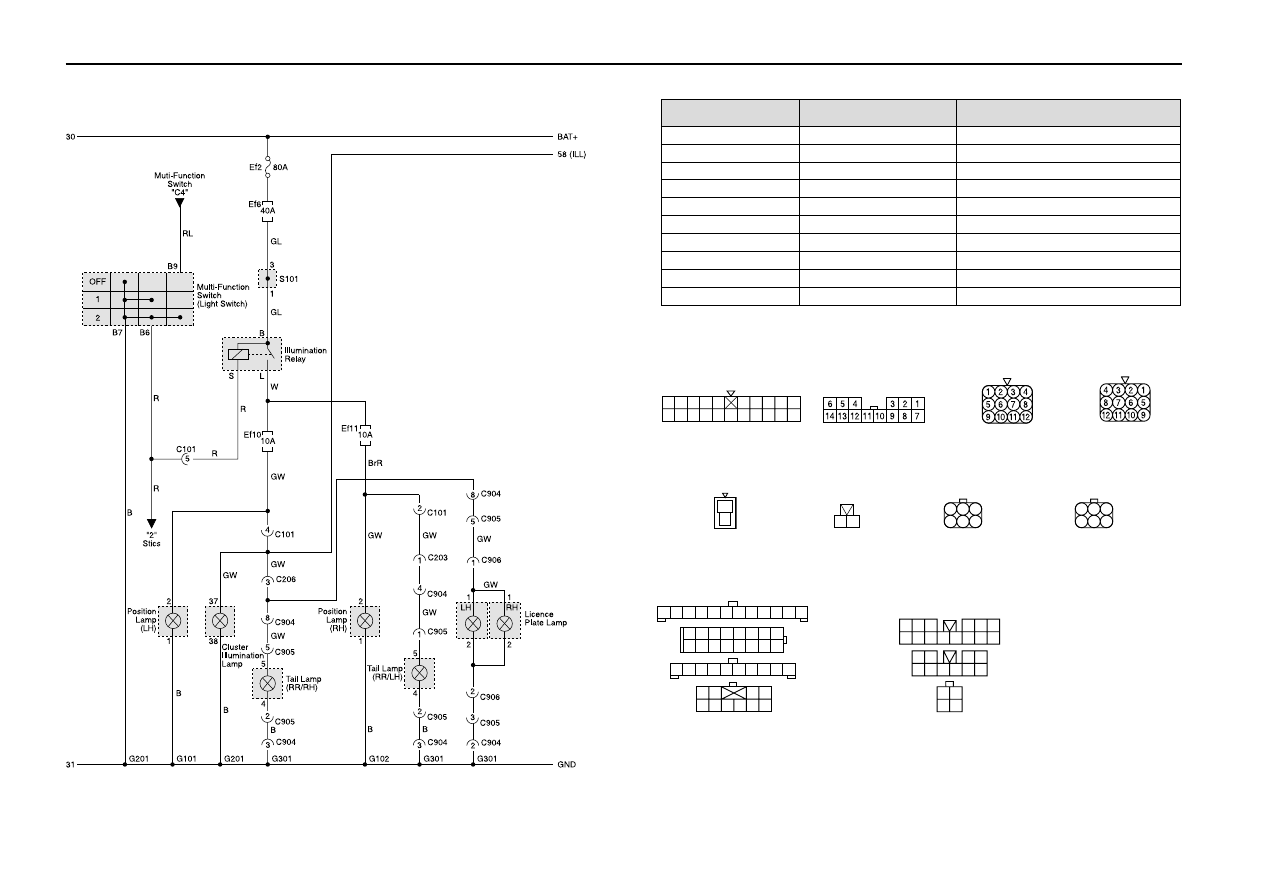

12. POSITION LAMP, TAIL LAMP, LICENCE PLATE LAMP CIRCUIT

C101

W/H MAIN

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21

Main - Engine

Main - Floor

Floor - FRAMME

FRAME - DECK

DECK - DECK LID

Main

Engine

Main

Floor

C101 (21Pin, Colorless)

C206 (Colorless)

C904 (12Pin, Black)

C905 (12Pin, Black)

C906 (2Pin, Black)

S101 (Black)

G101

G102

G201

G301

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

a. CONNECTOR INFORMATION

CONNECTOR(NUMBER)

CONNECTING. WIRING HARNESS

CONNECTOR POSITION

Inside The Engine Room Fuse Block

Inside Co-Driver Side Cowl Panel

Behind The Left FRAME

Behind The Left DECK LID

Inside The Engine Room Fuse Block

Behind The Left The Lamp

Behind The Right Head Lamp

Right The I/P Fuse Block

Center The Left 'B' Pillar

1 2

TAIL LAMP

LICENCE

LAMP

1 2 3
4 5 6

HEAD LAMP

MULTI-FUNCTION

SWITCH

C1 C2
C3 C4

B1 B2

B3 B4

B5 B6 B7 B8 B9 B10

A1 A2 A3

A4 A5 A6

A7 A8 A9 A10 A11 A12 A13 A14

1 2 3 4 5 6 7 8 9 10 11 12

29 30 31 32 33 34 35 36 37 38

28
13

27
14

26
15

25
16

24
17

23
18

22
19 20

39
43

40
44 45 46

41
47 48

CLUSTER

1 2 3
4 5 6

C206

W/H MAIN

C905

W/H DECK

C904

W/H FLOOR

C906

W/H DECK

ELECTRICAL WIRING DIAGRAMS 5-19

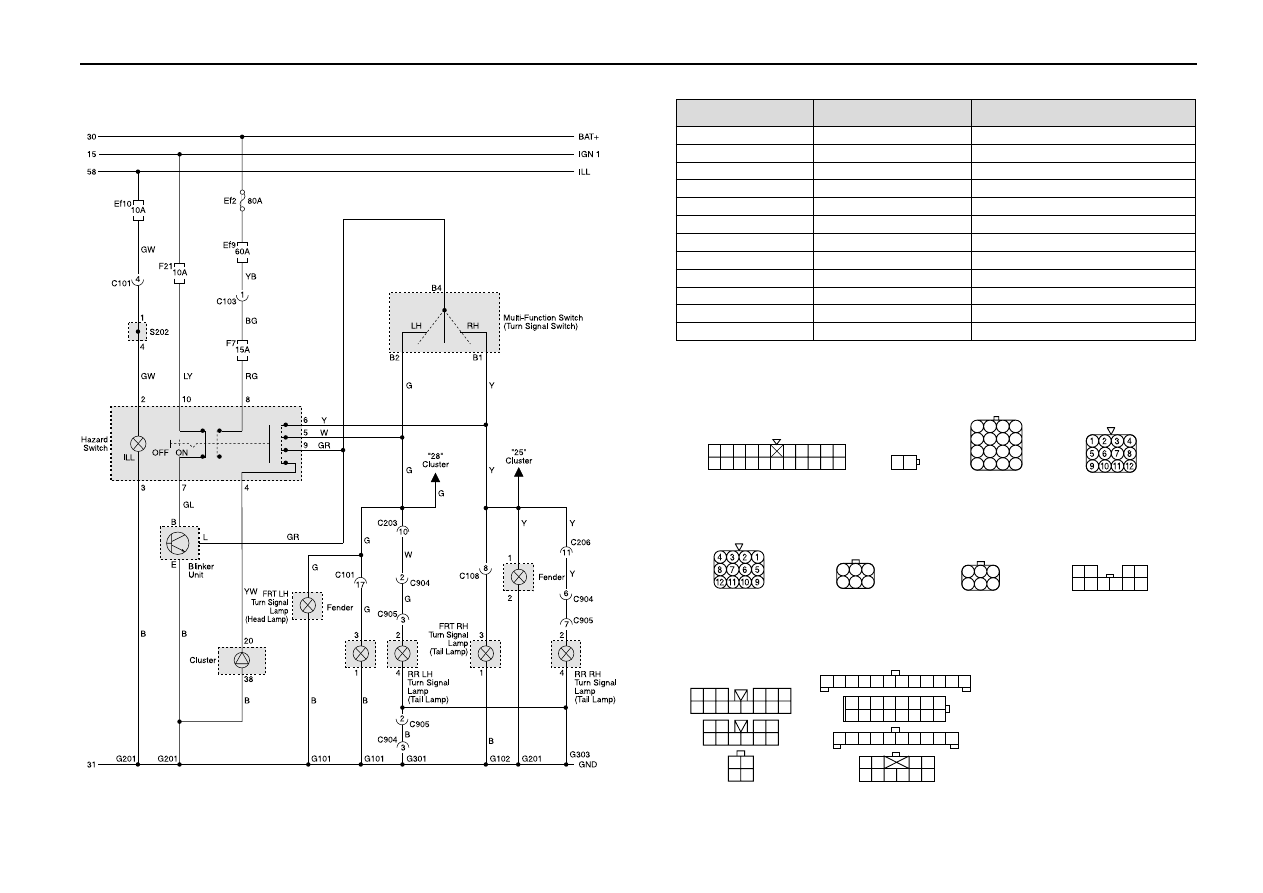

13. TURN SIGNAL LAMP, HAZARD LAMP CIRCUIT

C101

W/H MAIN

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21

Main - Engine

Engine - Main

Main - Floor

Floor - FRAME

FRAME - DECK

Main

Engine

Main

Floor

C101 (21Pin, Colorless)

C103 (2Pin, White)

C108 (16Pin, Black)

C206 (Colorless)

C904 (12Pin, Black)

C905 (12Pin, Black)

S101 (Black)

G101

G102

G201

G204

G301

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

a. CONNECTOR INFORMATION

CONNECTOR(NUMBER)

CONNECTING. WIRING HARNESS

CONNECTOR POSITION

Inside The Engine Room Fuse Block

Under The Coolant Reservoir Tank

Inside Co-Driver Side Cowl Panel

Behind The Left FRAME

Inside The Engine Room Fuse Block

Behind The Left Lamp

Behind The Right Head Lamp

Right The I/P Fuse Block

Upper The ECM

Center The Left 'B' Pillar

1 2 3
4 5 6

HEAD LAMP

MULTI-FUNCTION

SWITCH

C1 C2
C3 C4

B1 B2

B3 B4

B5 B6 B7 B8 B9 B10

A1 A2 A3

A4 A5 A6

A7 A8 A9 A10 A11 A12 A13 A14

1 2 3 4 5 6 7 8 9 10 11 12

29 30 31 32 33 34 35 36 37 38

28
13

27
14

26
15

25
16

24
17

23
18

22
19 20

39
43

40
44 45 46

41
47 48

CLUSTER

C108

W/H ENGINE

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

C103

W/H MAIN

1 2
5 6 7 8 9 10

3 4

HAZARD

SWITCH

TAIL

LAMP

1 2 3
4 5 6

C905

W/H DECK

C904

W/H FLOOR

5-20 ELECTRICAL WIRING DIAGRAMS

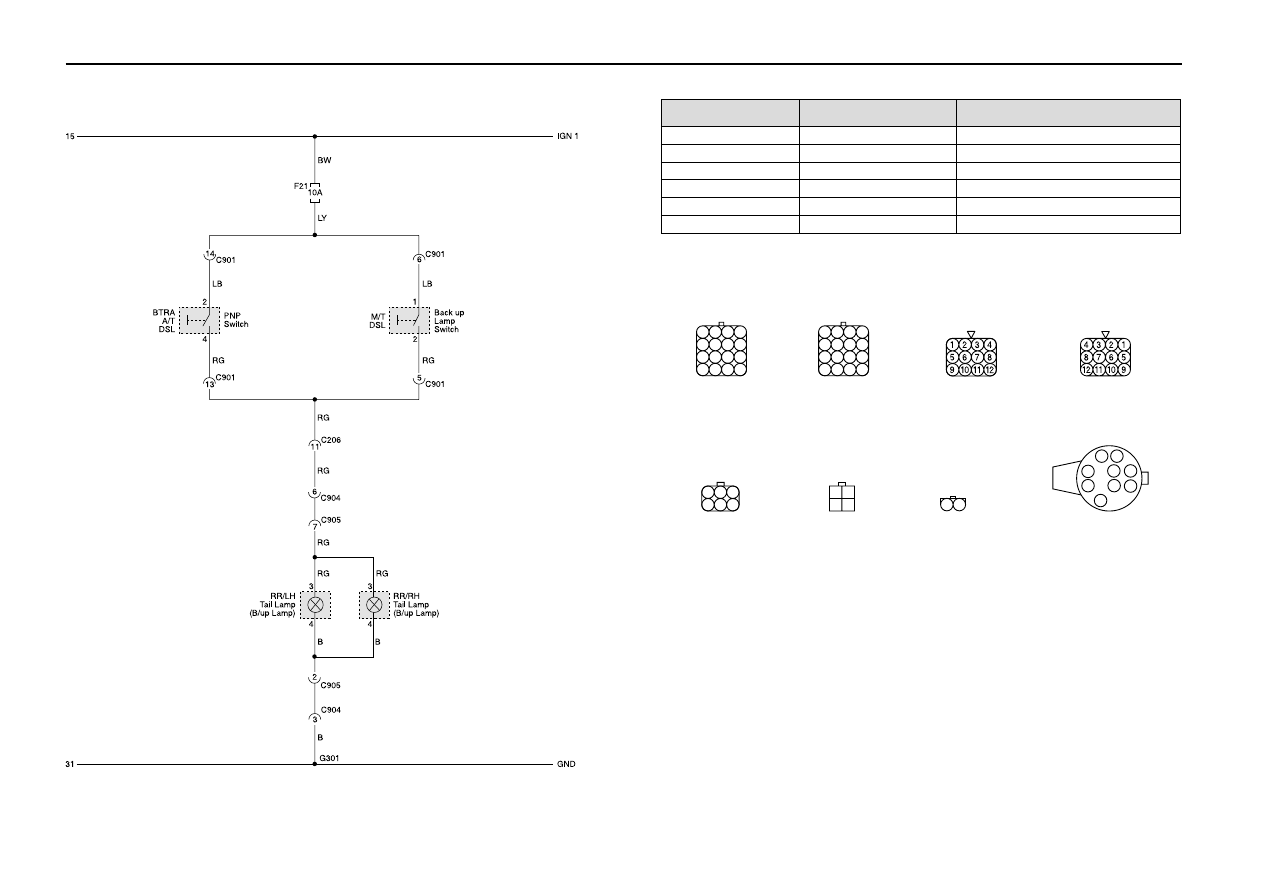

14. BACK UP LAMP CIRCUIT

Main - Floor

Main - T/M

Floor - FRAME

FRAME - DECK

Floor

C203 (14Pin, White)

C901 (16Pin, Black)

C904 (12Pin, Black)

C905 (12Pin, Black)

G301

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

a. CONNECTOR INFORMATION

CONNECTOR(NUMBER)

CONNECTING. WIRING HARNESS

CONNECTOR POSITION

Beside The/P Relay Block

Upper The T/C(M/T)

Upper The T/C (A/T)

Behind The Left FRAME

Center The Left 'B' Pillar

BACK UP

LAMP

PNP

SWITCH

1 2

3 4

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

C901

W/H T/M (M/T)

1 2 3 4
5 6 7 8
9 10 11 12

13 14 15 16

C901

W/H T/M (A/T)

TAIL

LAMP

1 2 3
4 5 6

IGN

1 2

START LOCK

SWITCH

C905

W/H DECK

C904

W/H FLOOR

ELECTRICAL WIRING DIAGRAMS 5-21

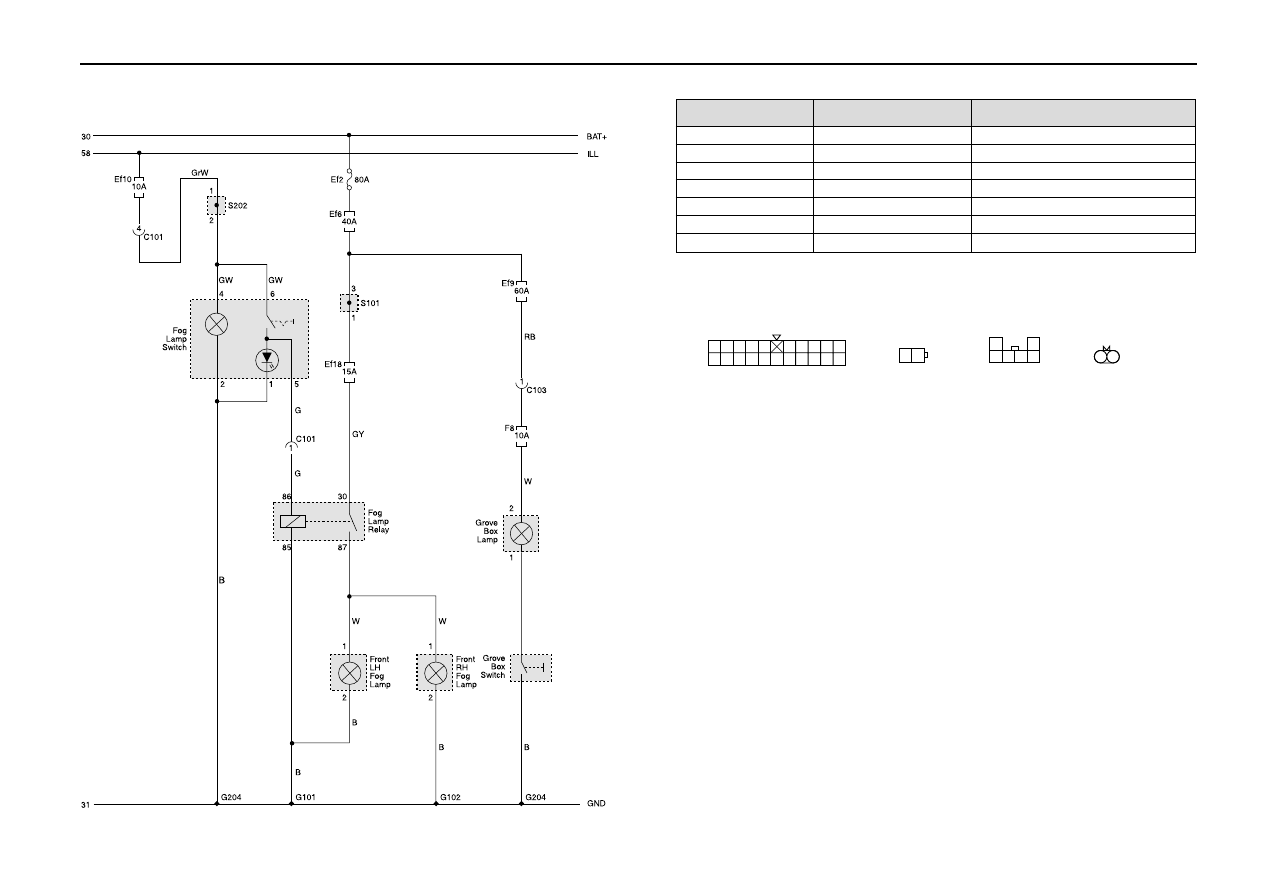

15. FRONT FOG LAMP CIRCUIT/GLOVE BOX LAMP

C101

W/H MAIN

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15 16 17 18 19 20 21

Main - Engine

Main

Engine

Main

C101 (21Pin, Colorless)

C103 (21Pin, White)

S101 (Black)

S202 (Black)

G101

G102

G204

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

a. CONNECTOR INFORMATION

CONNECTOR(NUMBER)

CONNECTING. WIRING HARNESS

CONNECTOR POSITION

Inside The Engine Room Fuse Block

Upper Right The Audio

Behind The Left Lamp

Behind The Right Head Lamp

Upper The EGR

FOG LAMP

1 2

FOG LAMP

SWITCH

3 4 5 6

C103

W/H MAIN
