HOW TO USE ELECTRICAL WIRING DIAGRAM 1-3
Connector
Diode
Fuse in engine room fuse & relay box
Fuse in passenger room fuse box
Ground
Joint - Inline wire connected point
Splice pack(Junction connector)
C
D
Ef
F
G
J
S
2. CIRCUIT IDENTIFICATION SYMBOL
3. FUNCTION OF POWER SUPPLY LINE (NUMBER)
IDENTIFICATION
SYMBOL
MEANING
Power supply No
Power supply condition
Battery Voltage(B+) supply in Ignition Switch "ON" and "ST" (IGN 1)
Battery Voltage(B+) supply in Ignition Switch "ON" (IGN 2)
Battery Voltage(B+) supply in Ignition Switch "ON" and "ACC"
Battery Voltage(B+) supply directly regardless of Ignition Switch
Ground connected to battery(–)
Battery Voltage(B+) supply in Head Lamp Switch 1st and 2nd step
(Illumination circuit)
15
15A
15C
30
31
58
Abbreviation
Color
Brown
Green
Violet
Pink
White
Orange
Light Green
Br
G
V
P
W
Or
Lg
Abbreviation
Color
Sky Blue
Red
Blue
Yellow
Gray
Black
Sb
R
L
Y
Gr
B
4. WIRING HARNESS COLOR IDENTIFICATION

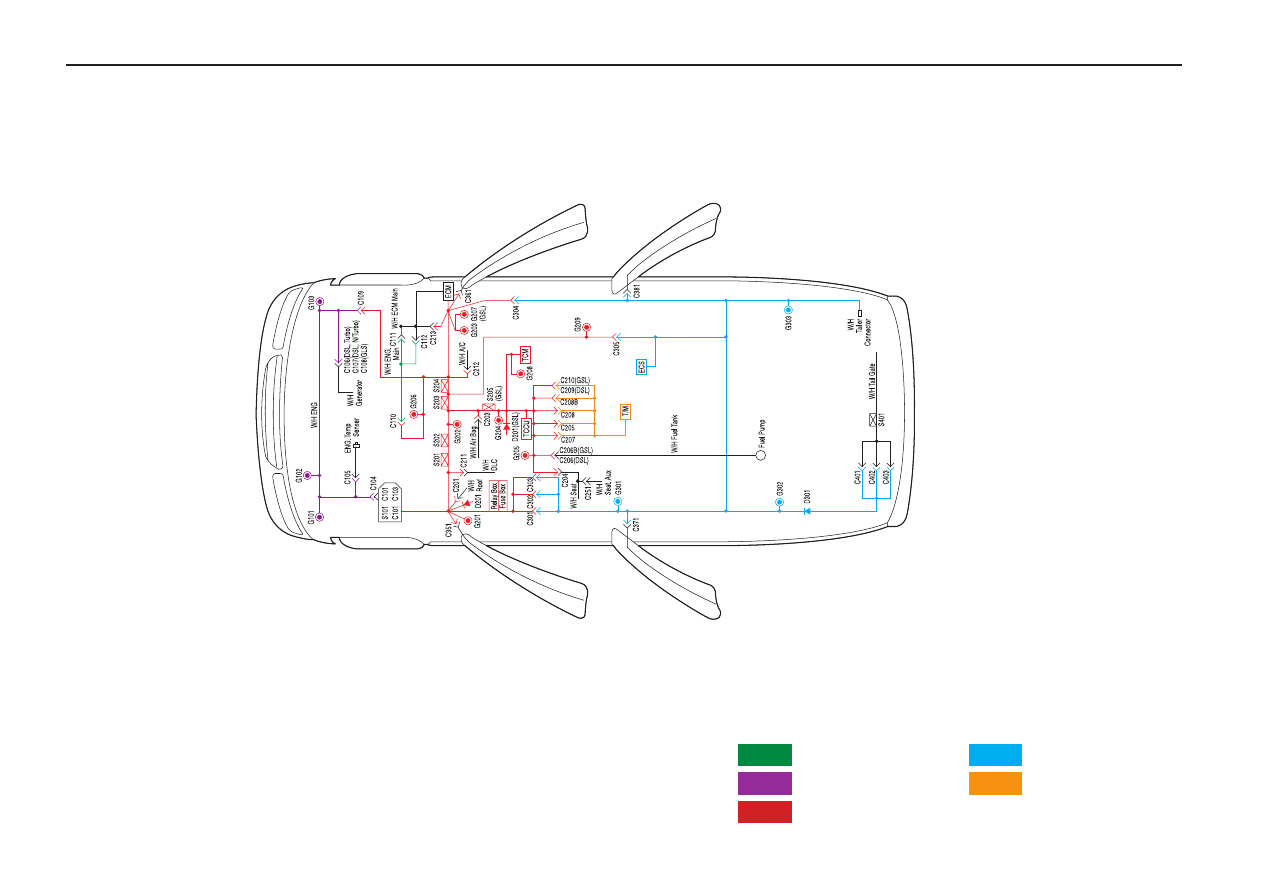

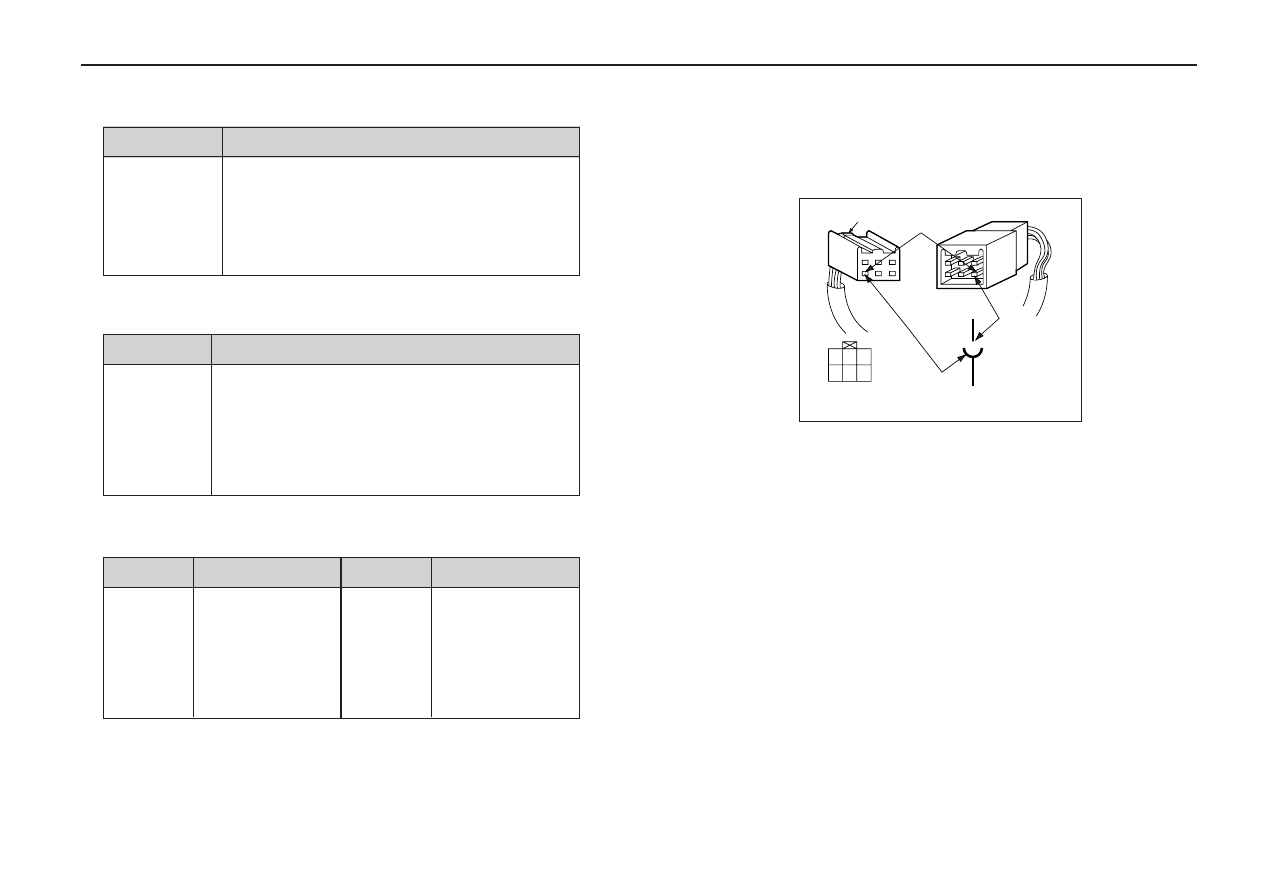

5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR
-
Terminal number is given based on Female Terminal Connector
ex) Terminal Number 4 of C901 connection
Locking
Terminal Number 4
of total 6 pins
Male Connector
(W/H Fuel Tank)
4 C901
Female Connector
(W/H Floor)
C901
W/H Floor
1
3
2
4
6
5
