9P-2  DOORS

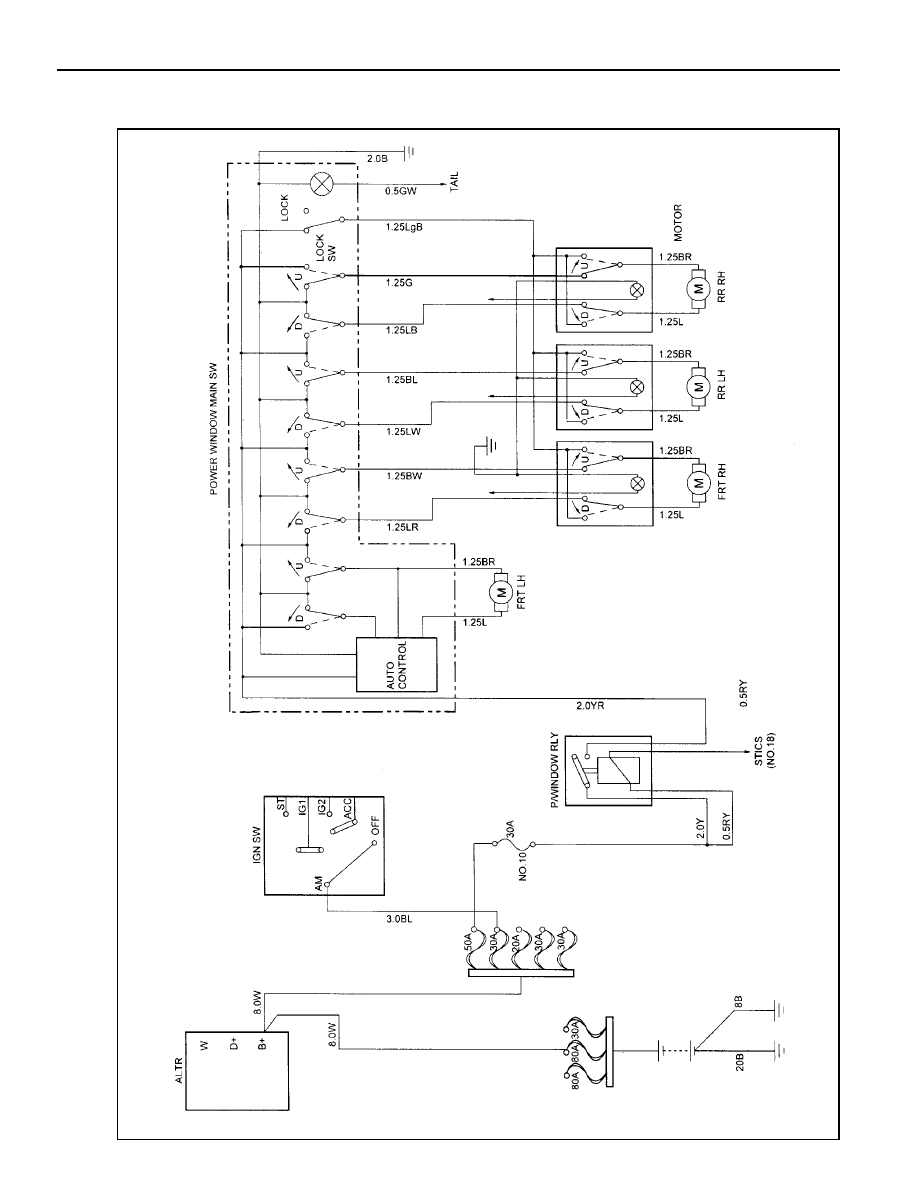

SCHEMATIC  AND ROUTING DIAGRAMS

POWER WINDOW

DOORS  9P-3

MAINTENANCE  AND REPAIR

ON-VEHICLE SERVICE

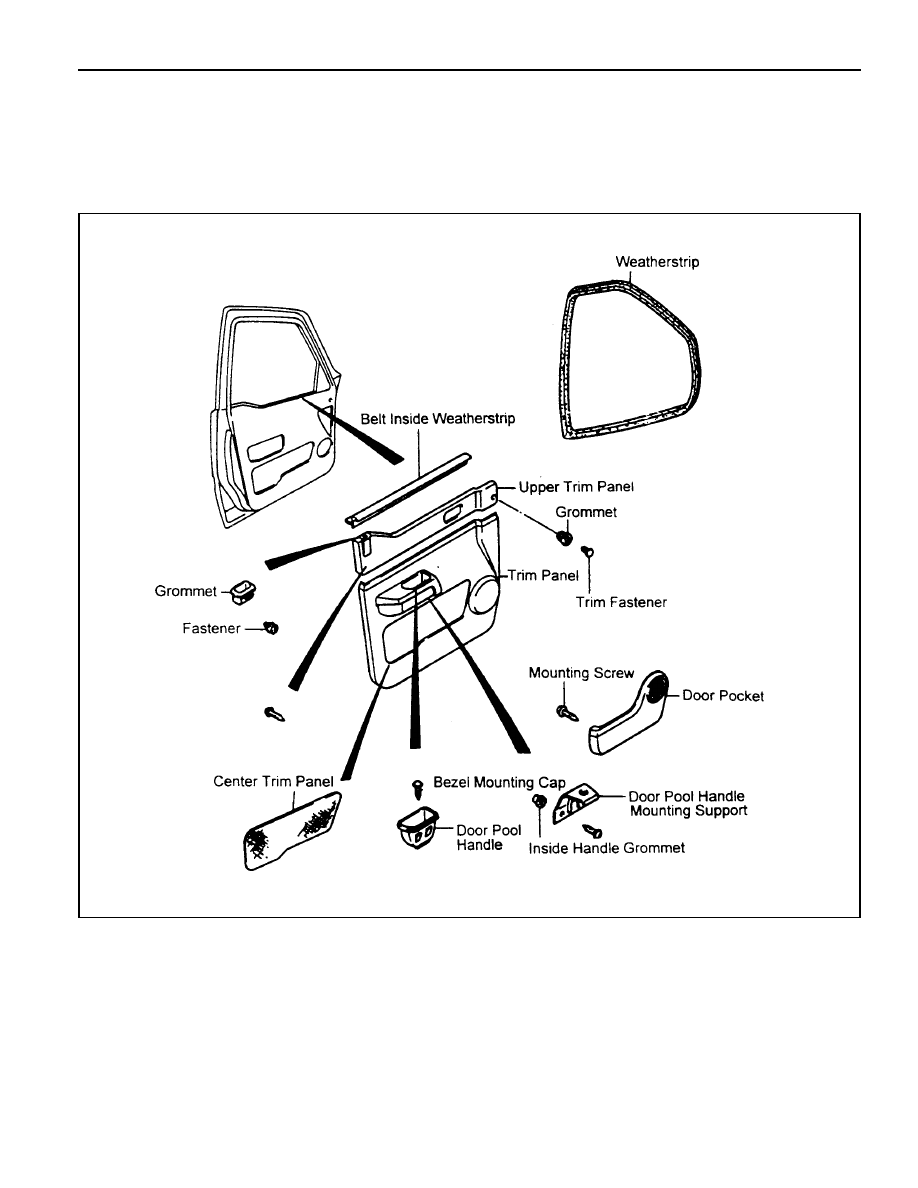

FRONT DOOR

Removal & Installation Procedure

1. Remove the pin from the center hinge of the door.

2. Remove the upper/lower hinge bolts from the body and

remove the door assembly.

3. Installation should follow the removal procedure in the

reverse order.

9P-4  DOORS

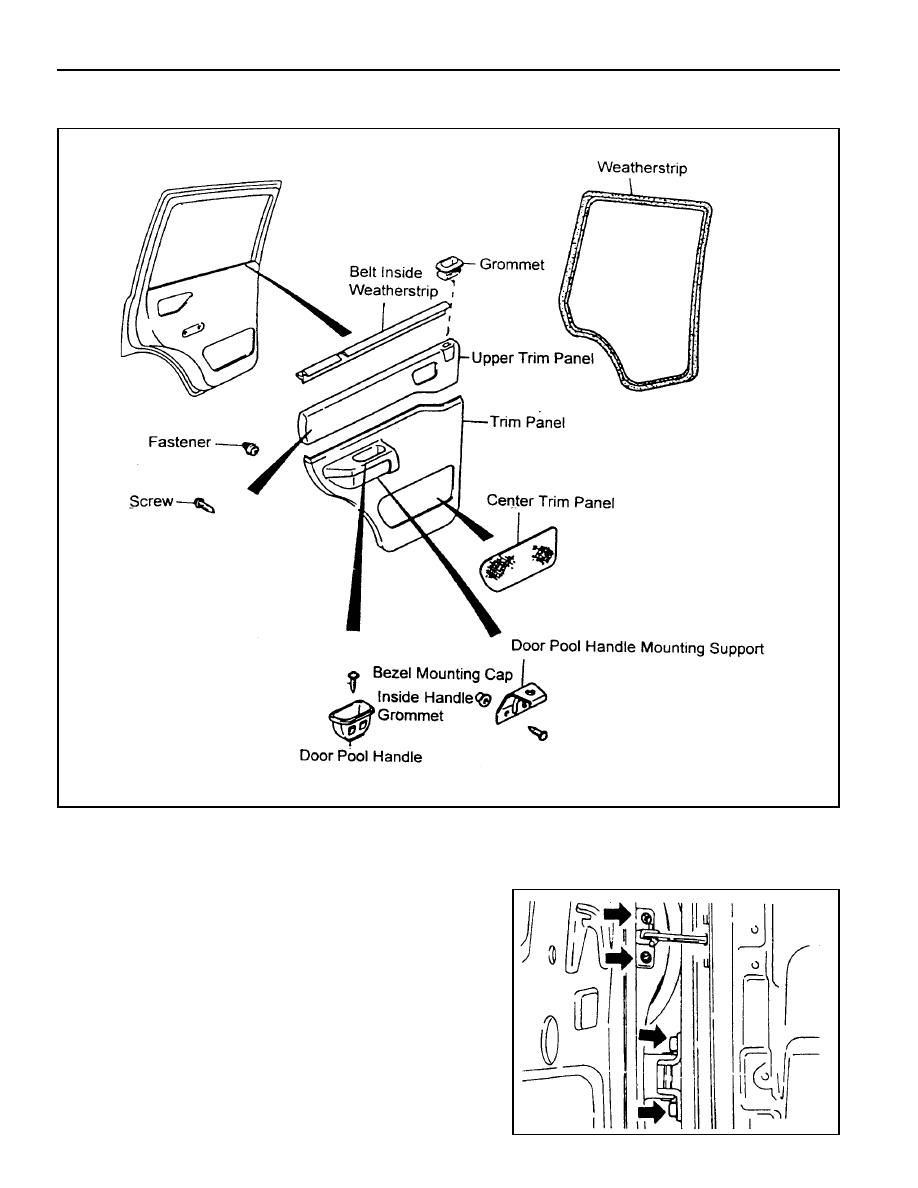

REAR DOOR

Removal & Installation Procedure

1. Remove the pin from the center hinge of the door.

2. Remove the upper/lower hinge bolts from the body and

remove the door assembly.

3. Installation should follow the removal procedure in the

reverse order.

DOORS  9P-5

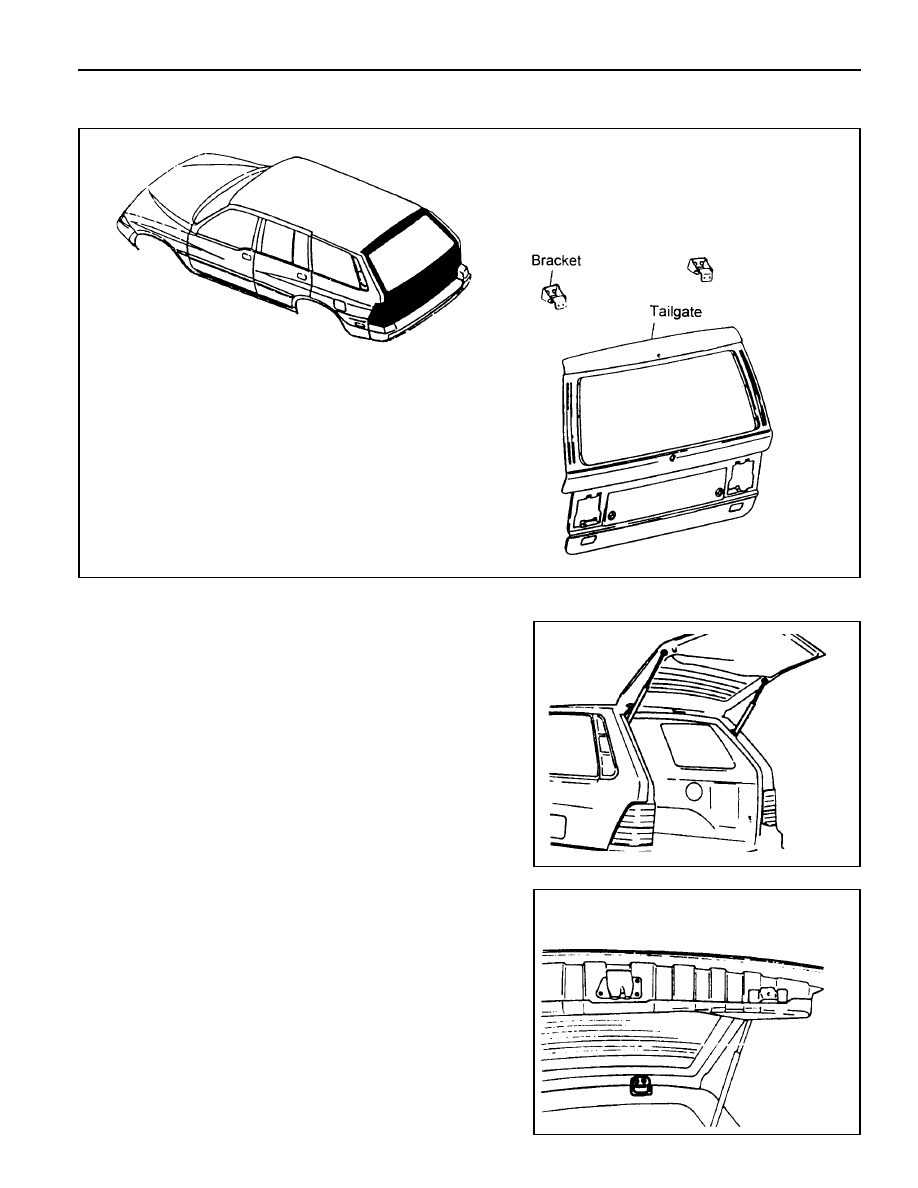

TAIL GATE

Removal & Installation Procedure

1. Remove the shock absorber mounting bolts.

2. Disconnect the tailgate wiring harness.

3. Remove the tailgate by removing the tailgate bracket bolts.

4. Installation should follow the removal procedure in the

reverse order.
