Smart fortwo coupe and smart fortwo cabriolet (2019). Manual - part 13

Engine (model passion)

Maximum torque
acc. to SAE J 1349

68 lb-ft/4



500 rpm

(92 Nm/4



500 rpm)

Maximum engine
speed

6



400 rpm

Firing order

1-2-3

Poly‑V‑belt

802 mm

Electrical system (model passion)

Alternator

14 V/90 A

Starter motor

12 V/0.95 kW

Battery

12 V/42 Ah

Spark plugs, type

DENSO XU22 HDR9

Spark plugs,
electrode gap

0.035 in (0.9 mm)

Spark plugs,
tightening torque

11 - 15 lb-ft

(15 - 20 Nm)

Main dimensions (model passion)

Overall vehicle
length

106.1 in (2



695 mm)

Overall vehicle
width

20

69.0 in (1



752 mm)

Overall vehicle
height

60.7 in (1



542 mm)

Wheelbase

73.5 in (1



867 mm)

Track, front

50.5 in (1



283 mm)

Track, rear

54.5 in (1



385 mm)

Turning circle

28.7 ft (8.75 m)

Weights (model passion)

Cargo
compartment load

max. 110 lb (50 kg)

Roof load

21

None

G

Warning!

No racks or loads may be secured to the roof
of the vehicle, as

R

the panorama roof* may be damaged, thus
injuring persons

R

this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents

R

the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off

Vehicle specification (model BRABUS)

The quoted data apply only to the standard
vehicle. Contact an authorized smart
center for the corresponding data of all
special bodies and special equipment.

Engine (model BRABUS)

Engine, type

132

Mode of operation

4‑stroke engine,

gasoline injection

No. of cylinders

3

Valves per
cylinder

4

Bore

2.83 in (72.00 mm)

Stroke

3.22 in (81.80 mm)

20

Exterior rear view mirrors folded out.

21

This vehicle is not intended to carry items on its roof. Thus roof rails and any roof-mounted devices
must not be used.

Vehicle specification (model BRABUS)

205

>> Technical data.

* optional

Z

Engine (model BRABUS)

Total piston
displacement

61.0 cu in (999 cm

3

)

Compression ratio

10.0:1

Output acc. to
SAE J 1349

70 hp/5



800 rpm

(52 kW/5



800 rpm)

Maximum torque
acc. to SAE J 1349

68 lb-ft/4



500 rpm

(92 Nm/4



500 rpm)

Maximum engine
speed

6



400 rpm

Firing order

1-2-3

Poly‑V‑belt

802 mm

Electrical system (model BRABUS)

Alternator

14 V/90 A

Starter motor

12 V/0.95 kW

Battery

12 V/42 Ah

Spark plugs, type

DENSO XU22 HDR9

Spark plugs,
electrode gap

0.035 in (0.9 mm)

Spark plugs,
tightening torque

11 - 15 lb-ft

(15 - 20 Nm)

Main dimensions (model BRABUS)

Overall vehicle
length

107.4 in (2



727 mm)

Overall vehicle
width

22

69.0 in (1



752 mm)

Overall vehicle
height

60.3 in (1



532 mm)

Main dimensions (model BRABUS)

Wheelbase

73.5 in (1



867 mm)

Track, front

50.0 in (1



270 mm)

Track, rear

53.7 in (1



363 mm)

Turning circle

28.7 ft (8.75 m)

Weights (model BRABUS)

Cargo
compartment load

max. 110 lb (50 kg)

Roof load

23

None

G

Warning!

No racks or loads may be secured to the roof
of the vehicle, as

R

the panorama roof* may be damaged, thus
injuring persons

R

this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents

R

the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off

Rims and tires

Notes

!

Only use tires which have been tested

and approved by smart. Tires approved by
smart are developed to provide best
possible performance in conjunction
with the driving safety systems on your
vehicle such as the ABS or the ESP

®

.

Using tires other than those approved by
smart may result in damage that is not
covered by the smart Limited Warranty.

22

Exterior rear view mirrors folded out.

23

This vehicle is not intended to carry items on its roof. Thus roof rails and any roof-mounted devices
must not be used.

206

Rims and tires

>> Technical data.

* optional

!

Using tires other than those approved

by smart can have detrimental effects,
such as

R

poor handling characteristics

R

increased noise

R

increased fuel consumption

Moreover, tires and rims not approved by
smart may, under load, exhibit
dimensional variations and different
tire deformation characteristics that
could cause them to come into contact
with the vehicle body or axle parts.
Damage to the tires or the vehicle may be
the result.

i

Further information on tires and rims

is available at any authorized smart
center. A placard with the recommended
tire inflation pressure is located on the
driver’s door B‑pillar.
The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance
recommendation included with vehicle.

Mobility

Your vehicle is equipped with a tire repair
kit (

Y

 page 176). In case of a flat tire, it

enables you to drive to the nearest
authorized smart center on the sealed tire.
If the tire is damaged too severely for the
tire sealant to provide a reliable tire
repair:

X

Contact the nearest smart center.

or

X

Call Roadside Assistance.

Rims and tires

207

>> Technical data.

Z

Same size tires

Model

pure

passion

Front axle

Rims (steel)
Wheel offset

4.5 J x 15 H2
0.93 in (23.5 mm)

—
—

Rims (light alloy)
Wheel offset

4.5 J x 15 H2*
0.93 in (23.5 mm)

4.5 J x 15 H2
0.93 in (23.5 mm)

All-season tires

155/60 R15 74T M+S

155/60 R15 74T M+S

Winter tires

24

155/60 R15 74T M+S i

155/60 R15 74T M+S i

Rear axle

Rims (steel)
Wheel offset

5.5 J x 15 H2
0.87 in (22 mm)

—
—

Rims (light alloy)
Wheel offset

5.5 J x 15 H2*
0.87 in (22 mm)

5.5 J x 15 H2
0.87 in (22 mm)

All-season tires

175/55 R15 77T M+S

175/55 R15 77T M+S

Winter tires

24

175/55 R15 77T M+S i

175/55 R15 77T M+S i

Model

BRABUS

Front axle

Rims (light alloy)
Wheel offset

4.5 J x 15 H2
0.93 in (23.5 mm)

Winter tires

24

155/60 R15 74T M+S i

Rear axle

Rims (light alloy)
Wheel offset

5.5 J x 15 H2
0.87 in (22 mm)

Winter tires

24

175/55 R15 77T M+S i

24

Not available as factory equipment.

208

Rims and tires

>> Technical data.

* optional

Mixed size tires

Model

BRABUS

Front axle

Rims (light alloy)
Wheel offset

5.5 J x 15 H2
1.18 in (30 mm)

All-season tires

175/55 R15 77T M+S

Rear axle

Rims (light alloy)
Wheel offset

7.5 J x 17 H2
1.30 in (33 mm)

All-season tires

215/35 R17 79H M+S

Service fluids and capacities

Notes

Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by smart.
Please contact an authorized smart center
for products tested and approved by smart.

G

Warning!

Comply with all valid regulations with
respect to handling, storing and disposing
of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.

Service fluids and capacities

209

>> Technical data.

Z

Capacities

Components

Model

Capacity

Fuels, coolants, lubricants,
etc.

Engine with oil
filter

All models

3.5 US qt (3.3 l)

Approved engine oils

Transmission

All models

2.4 US qt (2.3 l)

Castrol Manual BOT 328

Brake system

All models

1.05 US qt (1.0 l)

Brake fluid (DOT 4+)

Cooling system

All models

approx. 4.5 US qt (4.3 l)

Anticorrosion/Antifreeze
meeting specification
MB 325.0

Fuel tank

All models

8.72 US gal (33.0 l)

Premium unleaded gasoline
(Minimum Posted Octane 91
[Avg. of 96 RON/86 MON])

Fuel tank
reserve

All models

approx. 1.32 US gal (5.0 l)

Air
conditioning
system*

All models

—

R134a refrigerant and
special PAG lubricant oil
(never R 12)

Windshield
washer system

All models

4.0 US qt (3.8 l)

Windshield washer
concentrate

25

 (

Y

 page 212)

Washer fluid mixing ratio
(

Y

 page 212)

Engine oils

Engine oils are specifically tested for
their suitability in our engines and
durability for our service intervals.
Therefore, only use engine oils and oil
filters required for vehicles with
Maintenance System. For a listing of
approved engine oils and oil filters
contact an authorized smart center.

!

Using engine oils and oil filters of

specification other than those expressly
required for the Maintenance System, or
changing of oil and oil filter at change
intervals longer than those called for by

the Maintenance System will result in
engine or emission control system
damage not covered by the smart Limited
Warranty.
Please follow Maintenance System
recommendations for scheduled oil
changes. Failure to do so will result in
engine or emission control system
damage not covered by the smart Limited
Warranty.

25

Use a windshield washer concentrate labeled for summer and water for temperatures above freezing
point or a windshield washer concentrate labeled for winter and water for temperatures below freezing
point.

210

Service fluids and capacities

>> Technical data.

* optional

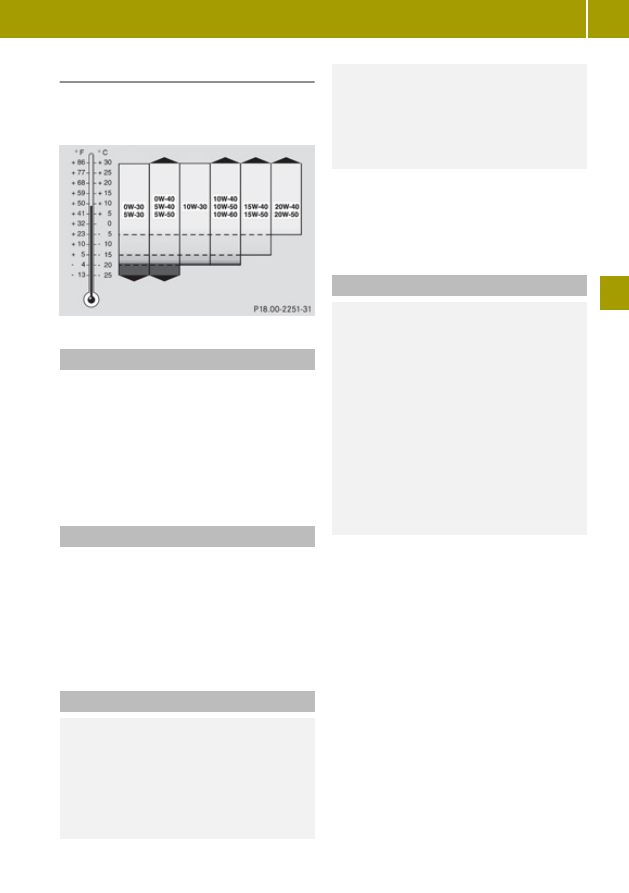

Viscosity grades for engine oils

Using the chart below, select oil viscosity
according to the lowest air temperature
expected before the next oil change.

Engine oil additives

!

Do not blend oil additives with engine

oil. They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered
by the smart Limited Warranty. Any
authorized smart center will provide you
with additional information.

Air conditioning refrigerant

R134a (HFC) refrigerant and special
PAG lubricating oil are used in the air
conditioning system.

!

Never use R 12 (CFC) or mineral-based

lubricating oil. Otherwise damage to the
system will occur.

Brake fluid

G

Warning!

During vehicle operation, the boiling
point of the brake fluid is continuously
reduced through the absorption of moisture
from the atmosphere. Under extremely
strenuous operating conditions, this
moisture content can lead to the formation

of bubbles in the system, thus reducing the
system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.

Only brake fluid approved by smart is
recommended. Any authorized smart center
will provide you with additional
information.

Premium unleaded gasoline

G

Warning!

Gasoline is highly flammable and
poisonous. It burns violently and can cause
serious personal injury.
Never allow sparks, flame or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin or clothing
contact. Extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging to
your health.

!

To maintain the engine’s durability

and performance, premium unleaded
gasoline must be used. If premium
unleaded gasoline is not available and
low octane fuel is used, follow these
precautions:

R

Have the fuel tank only partially filled
with unleaded regular gasoline and
fill up with premium unleaded
gasoline as soon as possible.

R

Avoid full throttle driving and abrupt
acceleration.

R

Do not exceed an engine speed of
3



000 rpm if the vehicle is loaded with

Service fluids and capacities

211

>> Technical data.

Z

a light load such as two persons and no
cargo.

R

Do not exceed

2

/

3

 of maximum

accelerator pedal position if the
vehicle is fully loaded or operating in
mountainous terrain.

Fuel requirements

Only use premium unleaded fuel. The octane
number (posted at the pump) must be 91 min.
It is an average of both the Research Octane
Number (RON) and the Motor Octane Number
(MON): (RON+MON)/2. This is also known as
the ANTI‑KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.

Gasoline additives

A major concern among engine
manufacturers is carbon build-up caused
by gasoline. smart recommends only the use
of quality gasoline containing additives
that prevent the build-up of carbon
deposits.
After an extended period of using fuels
without such additives carbon deposits can
build up, especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:

R

Warm-up hesitation

R

Unstable idle

R

Knocking/pinging

R

Misfire

R

Power loss

In areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
smart recommends the use of additives
approved by us for use on smart vehicles.
Contact an authorized smart center for a
listing of approved product(s). Follow
directions on product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary costs and
may be harmful to the engine operation.

!

Damage or malfunction resulting from

poor fuel quality or from blending
additional fuel additives other than
those tested and approved by us for use
on smart vehicles are not covered by the
smart Limited Warranty.

Windshield/rear window washer system

During all seasons:

X

Use a windshield washer concentrate
labeled for summer and water for
temperatures above freezing point.

X

Use a windshield washer concentrate
labeled for winter and water for
temperatures below freezing point.

X

Premix the windshield washer fluid in a
suitable container depending on the
outside temperature and in accordance
with the manufacturer’s instructions

26

.

Washer fluid mixing ratio

R

Temperature above 32

¦ (0¥):

26

Refer to the notes for use on the container.

212

Service fluids and capacities

>> Technical data.

1 part windshield washer concentrate
labeled for summer to 100 parts water

R

Temperature of 14

¦ (-10¥):

1 part windshield washer concentrate
labeled for winter to 2 parts water

R

Temperature of -4

¦ (-20¥):

1 part windshield washer concentrate
labeled for winter to 1 part water

G

Warning!

Windshield washer concentrate is highly
flammable. Fire, naked flames and smoking
are prohibited when windshield washer
concentrate is being handled.

Coolants

The engine coolant is a mixture of water
and anticorrosion/antifreeze, which
provides:

R

Corrosion protection

R

Freeze protection

R

Boiling protection (by increasing the
boiling point)

The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35

¦ (-37¥) and

corrosion protection.

!

Add premixed coolant solution only.

Adding water and MB 325.0
Anticorrosion/Antifreeze separately
from each other, could cause engine
damage not covered by the smart Limited
Warranty.

If the antifreeze mixture is effective to
-35

¦ (-37¥), the boiling point of the

coolant in the pressurized cooling system
is reached at approximately 266

¦ (130¥).

The coolant solution must be used year
round, even in countries which have high
temperatures to provide the necessary
corrosion protection and increase
boil‑over protection. Refer to

Maintenance/ Service Booklet for
replacement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze
solution or other smart approved products
of equal specification are used to renew
the coolant concentration or bring it back
up to the proper level.
For information on other smart approved
products of equal specification, contact an
authorized smart center.
To provide important corrosion
protection, the solution must be at least
50% anticorrosion/antifreeze (equivalent
to freeze protection to approximately
-35

¦ [-37¥]).

If you use a solution that is more than 55%
anticorrosion/antifreeze (freeze
protection to approximately -49

¦

[(-45

¥]), the engine temperature will

increase due to the lower heat transfer
capability of the solution. Therefore, do
not use more than this amount of
anticorrosion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion/Antifreeze should
be used to bring it up to the proper level
(have cooling system checked for signs of
leakage). Please make sure the mixture is
in accordance with label instructions.
Always use anticorrosion/antifreeze that
have been approved by smart. For
information contact an authorized smart
center.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water.
If you are not sure about the water quality,
consult an authorized smart center.

Service fluids and capacities

213

>> Technical data.

Z

Anticorrosion/antifreeze

Your vehicle contains a number of
aluminum parts. The use of aluminum
components in motor vehicle engines
necessitates that anticorrosion/
antifreeze coolant used in such engines be
specifically formulated to protect the
aluminum parts.
Failure to use such anticorrosion/
antifreeze coolant will result in a
significantly shortened service life.

Therefore, the following product is
strongly recommended for use in your
vehicle: MB 325.0 Anticorrosion/
Antifreeze agent.
Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked.
The coolant is also regularly checked each
time you bring your vehicle to an
authorized smart center for service.

Anticorrosion/antifreeze quantity:

Model

Approximate freeze protection

-35

¦ (-37¥)

-49

¦ (-45¥)

Cooling system

All models

2.27 US qt (2.15 l)

2.45 US qt (2.32 l)

214

Service fluids and capacities

>> Technical data.
