Skoda Rapid (2019 year). Manual - part 14

Fuses in the dashboard

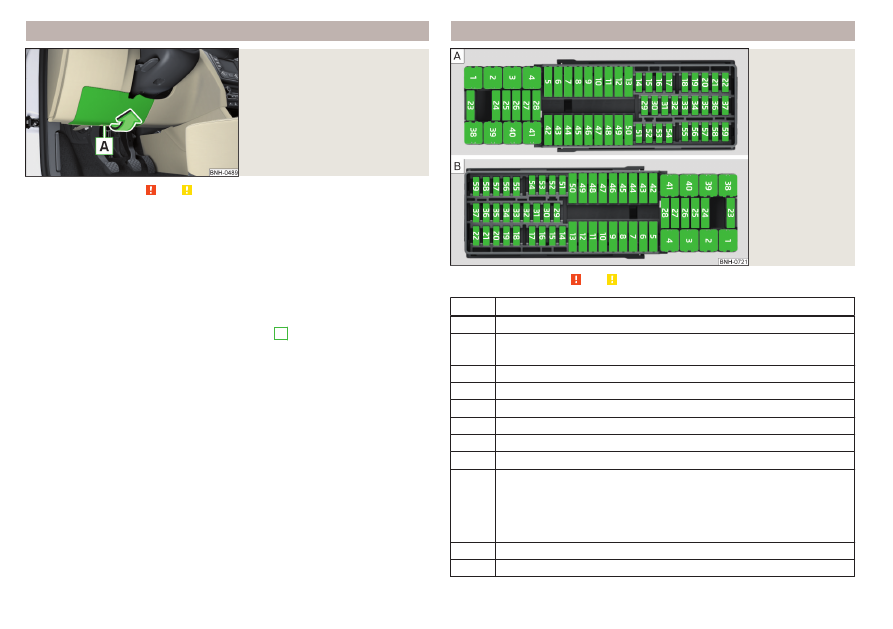

Fig. 258

Remove the fuse box cover.



Read and observe   and   on page 219 first.

The fuses are located on the bottom of the dash panel behind a cover.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Remove the cover of the fuse box

» Fig. 258

 in the direction of the arrow.

›

Remove the plastic clip from the holder in the fuse box cover.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Replace the bracket at the original position.

›

Insert the top edge of the cover into the dash panel first.

›

Push the lower edge of the cover in the region

A

.

Fuse assignment in the dashboard

Fig. 259

Fuses:  LHD /


 - RHD



Read and observe   and   on page 219 first.

No.

Power consumer

1

Light - left

2

Central locking, front and rear window washer system (only with

KESSY or heated windscreen)

3

Ignition

4

Light - right

5

Power windows - driver

6

Interior lighting

7

Horn

8

Tow hitch

9

Operating lever beneath the steering wheel, engine control unit (only

without KESSY), automatic gearbox (only without KESSY), automatic

gearbox (only without KESSY), ESC (only without KESSY), towing

equipment (only without KESSY), power steering (only without KES-

SY)

10

Power windows - rear left

11

Headlight cleaning system



220

Do-it-yourself

No.

Power consumer

12

Infotainment screen

13

Not assigned

14

Operating lever under the steering wheel, light switch, ignition key

removal lock (automatic gearbox), headlight flasher, rain sensor, re-

versing camera

15

Air conditioning, automatic gearbox, diagnostic connector, heated

windscreen

16

Instrument cluster, emergency call

17

Anti-theft alarm, horn

18

Heating of the rear seats

19

Not assigned

20

Not assigned

21

Not assigned

22

Front and rear window washer system (without KESSY or without

heated windscreen)

23

Heated front seats

24

Air conditioning/heating

25

Not assigned

26

Heated front seats

27

Rear window wiper

28

Not assigned

29

Airbag

30

Electric windows, reverse light switches, air conditioning system,

Park Assist, exterior mirror settings, power feed for centre button

strip, power feed for side button strip, interior mirror, switch for haz-

ard warning lights

31

Fuel pump, radiator fan, cruise control, front and rear window wash-

er, light switch

32

Diagnostic connection, headlamp levelling, operating lever under the

steering wheel

33

Engine starting, clutch pedal switch

34

Heated windscreen washer jets

35

Not assigned

No.

Power consumer

36

USB charge function

37

Radar

38

Not assigned

39

Not assigned

40

Not assigned

41

Rear window heater

42

Power windows - front passenger

43

Tow hitch

44

Cigarette lighter, 12-volt outlet in the interior, 12-volt power socket

in the luggage compartment

45

Power windows - rear right

46

Front and rear window washer, operating lever under the steering

wheel

47

Tow hitch

48

Tow hitch

49

Fuel pump

50

Infotainment

51

Heating of the external mirror

52

KESSY

53

Steering lock (KESSY)

54

ABS or ESC

55

Not assigned

56

Not assigned

57

Not assigned

58

Heating of the rear seats

59

Not assigned

221

Fuses and light bulbs

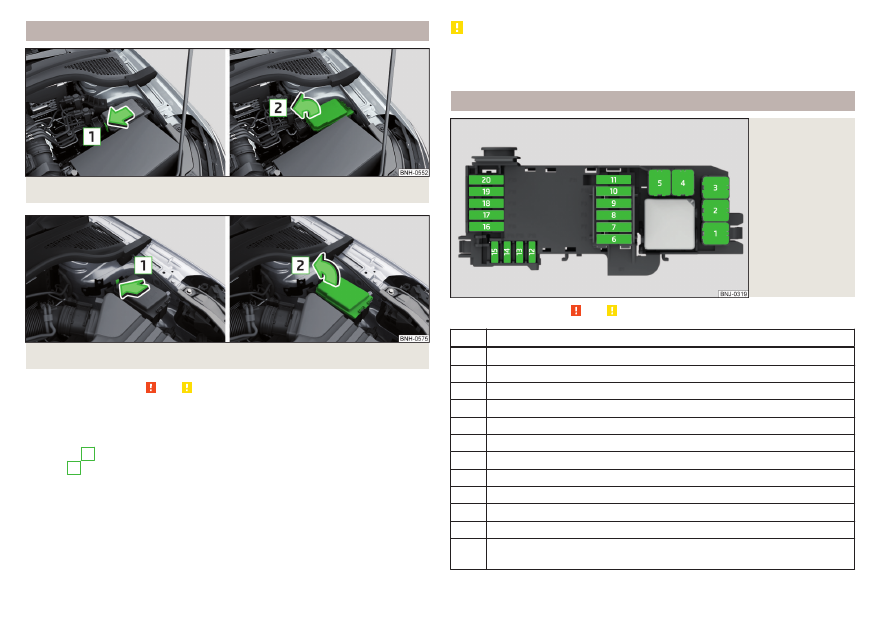

Fuses in the engine compartment

Fig. 260  Cover for the fuse box - variant 1

Fig. 261  Cover for the fuse box - variant 2



Read and observe   and   on page 219 first.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Press together the lock buttons of the cover simultaneously in the direction

of arrow

1



» Fig. 260

 or

» Fig. 261

 and remove the cover in the direction of

arrow

2

.

›

Remove the plastic clip from the holder on the cover of the fuse box in the

dashboard.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Replace the cover, push the lock buttons of the cover together and lock.

›

Replace the bracket at the original position.

CAUTION

The cover of the fuse box in the engine compartment must always be inserted

correctly, otherwise water may penetrate into the fuse box – there is a danger

of damage to the vehicle!

Fuse assignment in engine compartment

Fig. 262

Fuses



Read and observe   and   on page 219 first.

No.

Power consumer

1

Radiator fan

2

Not assigned

3

ABS or ESC

4

Heated windscreen

5

Heated windscreen

6

Automatic gearbox

7

Engine control system

8

Windscreen wipers

9

Battery data module

10

ABS or ESC

11

Vacuum pump for the brake system

12

Injectors, valve for fuel metering, control valve for fuel pressure, en-

gine components



222

Do-it-yourself

No.

Power consumer

13

Brake pedal switch

14

Fuel pump, radiator fan, Pump for intercooling, Engine components

15

Engine control system

16

Starter

17

Engine control system

18

Valve for intake manifold, wastegate, oil temperature, valve for activa-

ted charcoal filter, valve for oil pressure control, engine components

19

Lambda probe

20 Ignition coils, engine components

Bulbs



Introduction

This Owner's Manual only describes the replacement of bulbs where it is possi-

ble to replace the bulbs on your own without any complications arising. Other

bulbs, Xenon gas-discharge lamps or LED lights must be replaced by a special-

ist garage.
We recommend having bulbs replaced by a specialist garage or seeking other

expert help in the event of any uncertainties.

▶

Switch off the ignition and all of the lights before replacing a bulb.

▶

Faulty bulbs must only be replaced with the same type of bulbs. The designa-

tion is located on the light socket or the glass bulb.

We recommend having the headlight settings checked by a specialist garage

after replacing a bulb in the low, high or fog beam.

WARNING

■

Always read and observe the warnings before completing any work in the

engine compartment

» page 195

.

■

Accidents can be caused if the road in front of the vehicle is not suffi-

ciently illuminated and the vehicle cannot or can only be seen with difficulty

by other road users.

WARNING (Continued)

■

Bulbs H7 H8 and H15 are pressurised and may burst when changing the

bulb - risk of injury! We therefore recommended wearing gloves and safety

glasses when changing a bulb.

■

Do not carry out any work on the Xenon gas discharge lamps - risk of

death!

CAUTION

■

Do not take hold of the glass bulb with naked fingers (even the smallest

amount of dirt reduces the working life of the light bulb). Use a clean cloth,

napkin, or similar.

■

The cap of the filament bulb must always be seated correctly in the head-

light, otherwise this may allow water and debris to enter the headlight - risk of

damage to the headlights.

Note

We recommend that a box of replacement bulbs always be carried in the vehi-

cle.

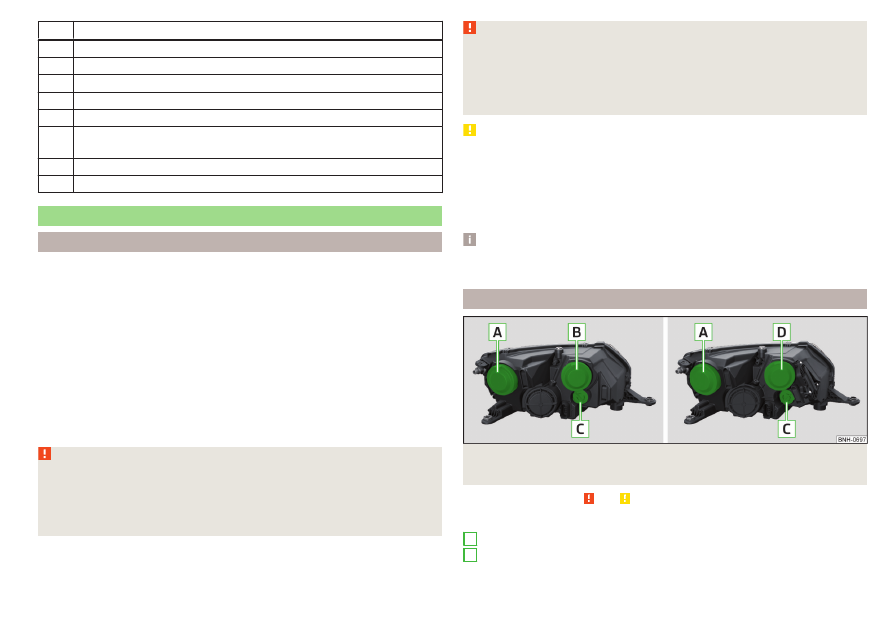

Bulb arrangement in the halogen headlights

Fig. 263  Left headlight: Halogen headlights / halogen headlights with

LED daytime running lights



Read and observe   and   on page 223 first.

Bulb arrangement

» Fig. 263

Low beam
Main beam, separate daytime running lights, and parking light



A
B

223

Fuses and light bulbs

Flashing
Main beam

Replace bulb for main beam, daytime running lights and parking

light (halogen headlight)

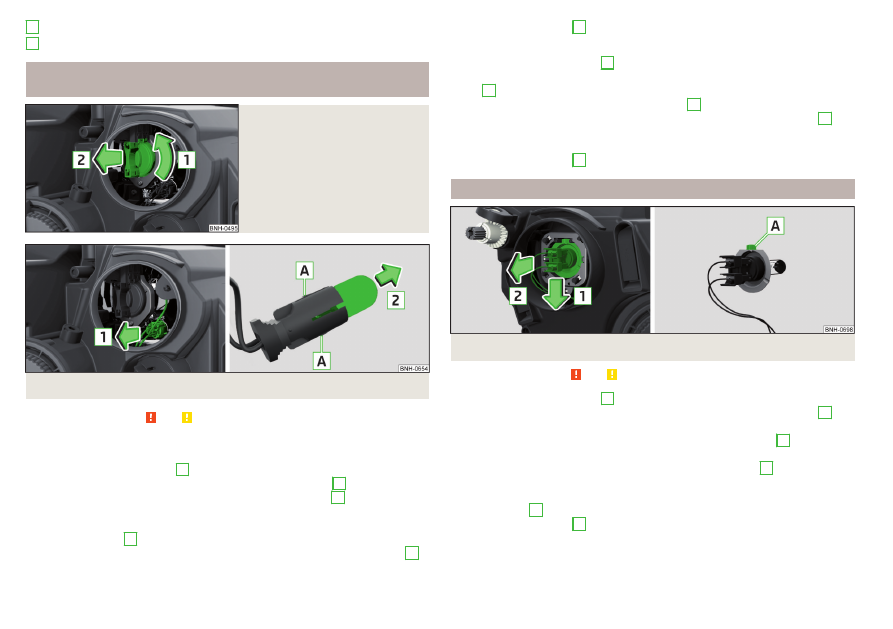

Fig. 264

Replacing the bulb for main

beam and separate daytime run-

ning lights

Fig. 265  Change the light bulb for the parking light



Read and observe   and   on page 223 first.

Removing/inserting the bulb for main beam and separate daytime running

lights

›

Remove the protective cap

B



» Fig. 263

 on page 223.

›

Turn the holder with the bulb in the direction of the arrow

1



» Fig. 264

.

›

Remove the holder with the bulb in the direction of arrow

2

 .

›

Replace the bulb in the holder.

›

Insert the holder with the new bulb into the headlight in the opposite direc-

tion to the arrow

2

.

›

Turn the holder with the new bulb in the opposite direction to the arrow

1

until it stops.

C
D

›

Fit the protective cap

B



» Fig. 263

 on page 223.

Removing/inserting the bulb for the parking light

›

Remove the protective cap

B



» Fig. 263

 on page 223.

›

Remove the holder with the bulb by jiggling it out in the direction of the ar-

row

1



» Fig. 265

.

›

Hold the housing containing the bulb in area

A

.

›

Remove the faulty bulb from the housing in the direction of the arrow

2

.

›

Insert a new bulb in the housing until it stops.

›

Insert the housing with bulb into the headlight again.

›

Fit the protective cap

B



» Fig. 263

 on page 223.

Changing the bulb for the low beam

Fig. 266  Changing the bulb for the low beam



Read and observe   and   on page 223 first.

›

Remove the protective cap

A



» Fig. 263

 on page 223.

›

Disconnect the connector with the light bulb in the direction of arrow

1

» Fig. 266

.

›

Remove the connector with the bulb in the direction of arrow

2

.

›

Remove the connector.

›

Plug the connector into the new bulb so that the fixing lug

A

 on the bulb

points upwards.

›

Insert the connector, with the bulb, into the headlight opposite to the direc-

tion of arrow

2

 until you feel it lock into place.

›

Fit the protective cap

A



» Fig. 263

 on page 223.

224

Do-it-yourself

Changing the bulb for the front turn signal light

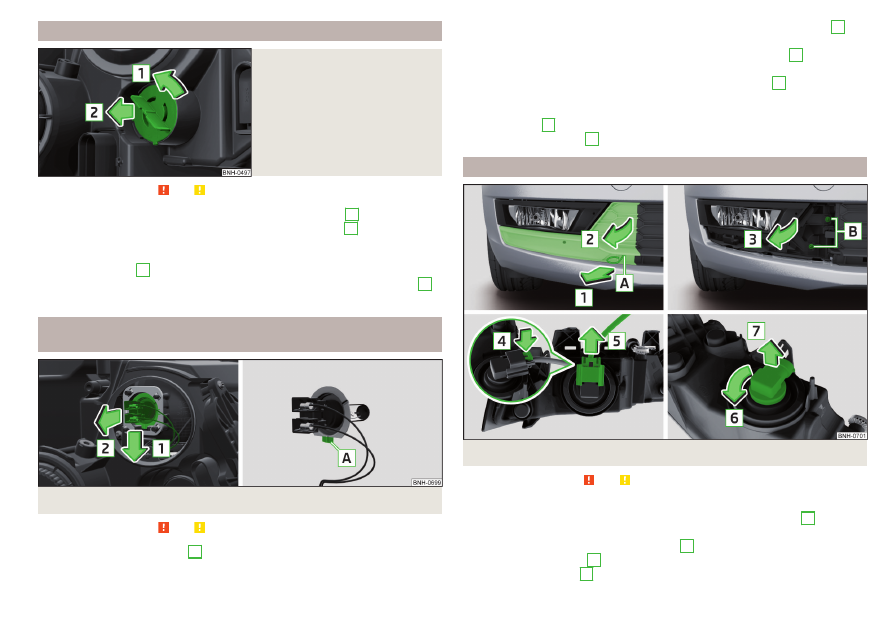

Fig. 267

Changing the bulb for the front

turn signal light



Read and observe   and   on page 223 first.

›

Turn the holder with the bulb in the direction of the arrow

1



» Fig. 267

.

›

Remove the holder with the bulb in the direction of arrow

2

 .

›

Replace the bulb in the holder.

›

Insert the holder with the new bulb into the headlight in the opposite direc-

tion to the arrow

2

.

›

Turn the holder with the new bulb in the opposite direction to the arrow

1

until it stops.

Replace the bulb for the main beam (halogen headlight with LED

daytime running lights)

Fig. 268  Changing the bulb for the main beam



Read and observe   and   on page 223 first.

›

Remove the protective cap

D



» Fig. 263

 on page 223.

›

Disconnect the connector with the light bulb in the direction of arrow

1

» Fig. 268

.

›

Remove the connector with the bulb in the direction of arrow

2

.

›

Remove the connector.

›

Plug the connector into the new bulb so that the fixing lug

A

 on the bulb

points downwards.

›

Insert the connector, with the bulb, into the headlight opposite to the direc-

tion of arrow

2

 until you feel it lock into place.

›

Fit the protective cap

D



» Fig. 263

 on page 223.

Replacing light bulbs for fog lights

Fig. 269  Removing / replacing the fog light bulb



Read and observe   and   on page 223 first.

Removing the protective grille and headlight

›

Insert the clamps for removing the full wheel trims into opening

A

» Fig. 269

.

›

By pulling the hook in direction of arrow

1

, remove the protective grille in

the direction of arrow

2

.

›

Unscrew the screws

B

 with the screwdriver from the tool kit.



225

Fuses and light bulbs

›

Remove the headlight in the direction of arrow

3

.

Replacing the light bulb

›

Press the latch on the connector in the direction of arrow

4

.

›

Remove the key in the direction of the arrow

5

.

›

Turn the holder with the bulb to the stop in the direction of the arrow

6

.

›

Remove the holder with the bulb in the direction of arrow

7

 .

›

Insert a new holder with the bulb in the headlamp and turn it in the direction

of arrow

6

 as far as the stop.

›

Attach the connector.

Insert the headlight and grille

›

Replace the fog light by inserting it in the opposite direction of the arrow

3

» Fig. 269

 and tighten.

›

Insert the guard and push it gently until it locks into place.

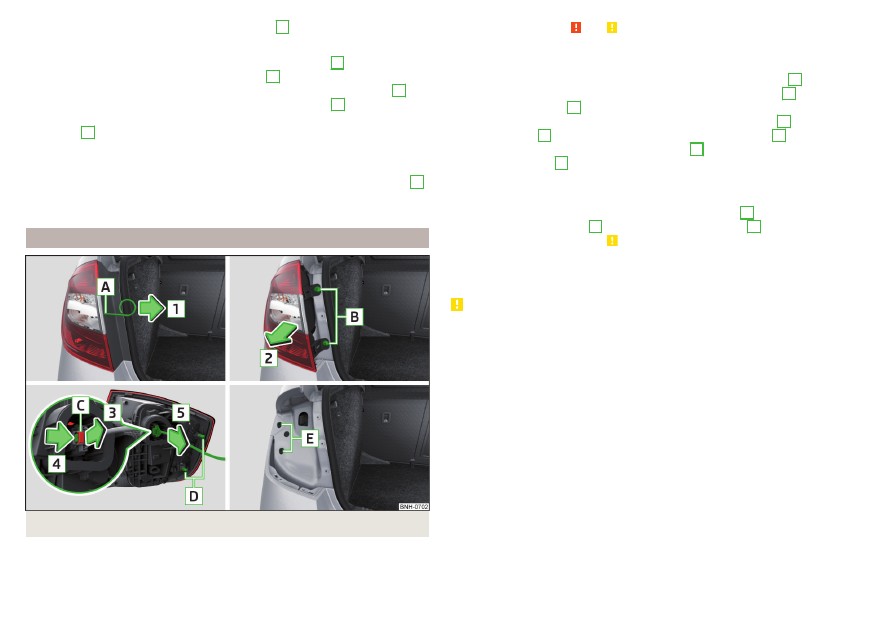

Removing/inserting the taillight

Fig. 270  Remove light / pull out connector



Read and observe   and   on page 223 first.

Removing

›

Open the boot lid.

›

Insert the clamps for removing the full wheel trims into opening

A

» Fig. 270

.

›

Remove the cover by pulling the hook in the direction of arrow

1

.

›

Unscrew the screws

B

 with the key from the tool kit.

›

Grasp the lamp and carefully remove in the direction of arrow

2

.

›

Press the latch

C

 on the holder in the direction of the arrow

3

.

›

Press the safety lug in the direction of arrow

4

 and pull out the holder in the

direction of arrow

5

.

Fitting

›

Insert the connector into the light and lock it securely.

›

Tighten the lock in the opposite direction to the arrow

3

 .

›

Insert the lamp with pins

D



» Fig. 270

 into the recesses

E

 in the body.

›

Carefully push the cover in

»

.

›

Screw the lamp into place and install the cover. The cover must engage se-

curely.

›

Close the boot lid.

CAUTION

■

When installing the light, ensure that the cable bundle does not become

pinched between the body and the lamp – risk of damage to the electrical in-

stallation and risk of water ingress.

■

If you are not sure whether the cable bundle has become pinched, we rec-

ommend that you have the light connection checked by a specialist garage.

■

Ensure that the vehicle paintwork and the tail lamp are not damaged when

removing and installing the tail lamp.

226

Do-it-yourself

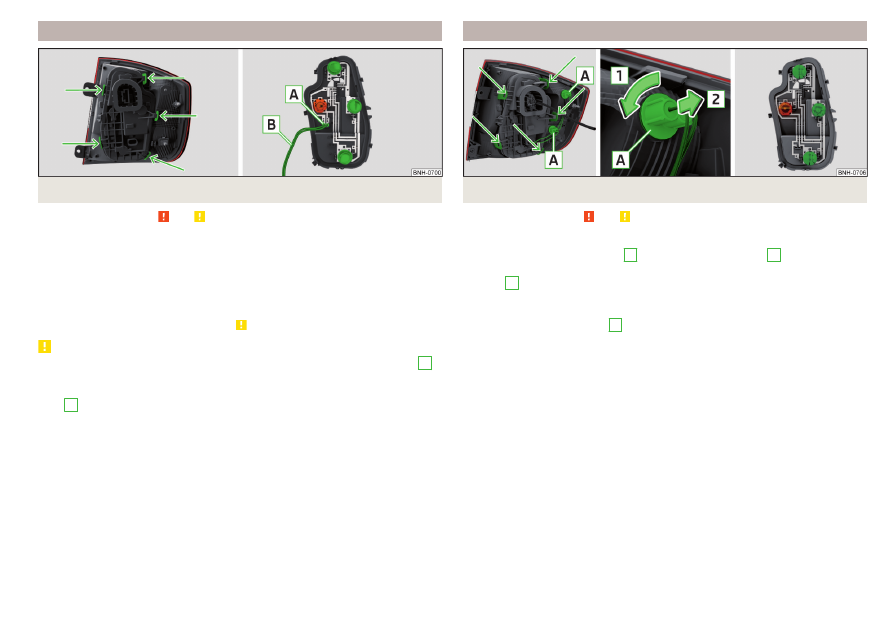

Replacing bulbs in the rear lamp - Option 1 (with LED lamps)

Fig. 271  Outer part of the lamp/holder with bulbs



Read and observe   and   on page 223 first.

›

Unlock the bulb holder at the areas marked with arrows

» Fig. 271

 and re-

move from the light.

›

Turn the respective light bulb counter-clockwise to the stop and remove it

from the bulb holder.

›

Insert a new bulb into the holder and turn in a clockwise direction to the

stop.

›

Insert the bulb holder into the light

»

. The holder must engage securely.

CAUTION

■

Before inserting the bulb holder into the light , check that the connector

A

» Fig. 271

 is fitted correctly between the light and the bulb holder.

■

Make sure that when refitting the bulb holder into the light, the wiring har-

ness

B

 is not pinched - otherwise there is a risk of damage to the electrical

installation.

Replacing the bulbs in the rear lamp - Option 2

Fig. 272  Outer part of the lamp / removing the bulb / lamp holder



Read and observe   and   on page 223 first.

Outer part of the lamp

›

Turn the holder with the bulb

A

 in the direction of arrow

1



» Fig. 272

.

›

Remove the socket with the bulb from the lamp housing in the direction of

arrow

2

.

›

Change the bulb.

›

Reinsert the holder with the bulb into the light housing and turn in the oppo-

site direction of the arrow

1

 to the stop.

Inner parts of the lamp

›

Unlock the bulb holder at the areas marked with arrows

» Fig. 272

 and re-

move the bulb holder from the light.

›

Turn the respective light bulb counter-clockwise to the stop and remove it

from the bulb holder.

›

Insert a new bulb into the holder and turn in a clockwise direction to the

stop.

›

Insert the bulb holder in the tail lamp assembly. The holder must engage se-

curely.

227

Fuses and light bulbs

Technical data

Technical data

Basic vehicle data



Introduction

The details given in the vehicle's technical documentation always take prece-

dence over the details in the Owner's Manual.
The performance values listed were determined without performance-reduc-

ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with regulations and in

conditions prescribed by legal or technical provisions for determining the op-

erating and technical data of vehicles.
The listed values are for the basic model without optional equipment.

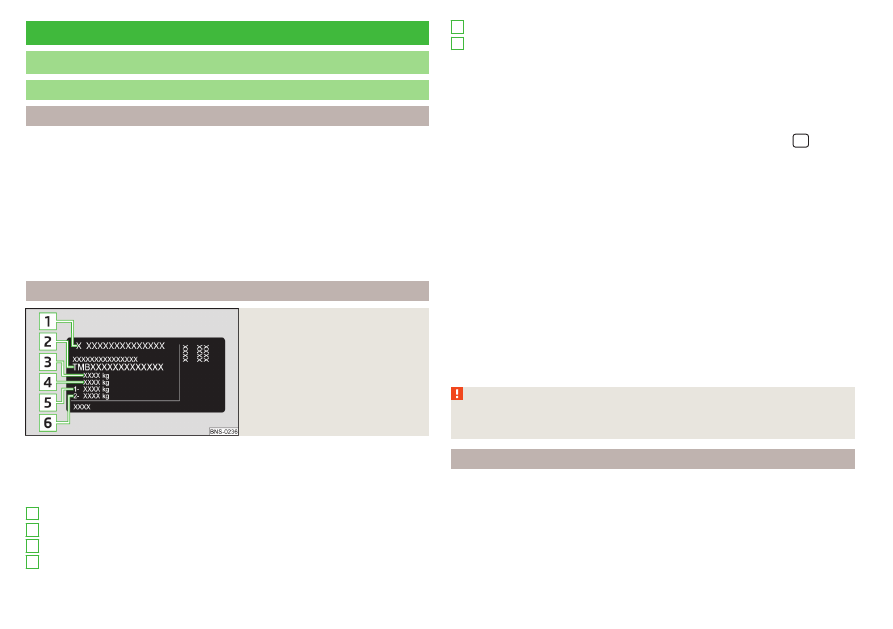

Vehicle data

Fig. 273

Type plate

Type plate

The type plate

» Fig. 273

 is located at the bottom of the B-pillar on the right-

hand driver's side.
The type plate contains the following data.

Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)

1

2
3
4

Maximum permissible front axle load
Maximum permissible rear axle load

Vehicle identification number (VIN)

The vehicle identification number - VIN (vehicle body number) is stamped into

the engine compartment on the right hand suspension strut dome. This num-

ber is also located on a sign on the lower left hand edge below the windscreen

(together with a VIN bar code), and on the type plate.
In Infotainment, the VIN number can also be displayed in the menu



 →  → !

Service.

Engine number

The engine number is embossed in the engine block.

Supplementary Information (applies to Russia)

The full type approval number of the means of transport is indicated in the

registration documents, field 17.

Maximum permissible trailer weight

The listed maximum allowable trailer weight is only valid for altitudes up to

1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing

power. Therefore, for every additional 1000 m in height (or part), the maxi-

mum permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-

cle and the loaded trailer.

WARNING

Do not exceed the specified maximum permissible weights – risk of acci-

dent and damage!

Operating weight

This value is only a guide value and corresponds to the lowest possible operat-

ing weight without any equipment added that would also increase the weight

(e.g. emergency or spare wheel etc.). This includes 75 kg driver's weight, the

weight of the operating fluids and the on-board tool kit and a fuel tank filled to

min. 90%.



5
6

228

Technical data

Operating weight

Engine

Transmission

Operating weight (kg)

1.0 l/70 kW TSI

MG (EU6W)

1174

MG (EU6AG)

1184

1.0 l/81 kW TSI

MG (EU6W)

1190

MG (EU6AG)

1200

DSG

1234

1.4 l/92 kW TSI

DSG

1227

1.6 l/66 kW MPI

MG

1160

1.6 l/81 kW MPI

MG

1175

AG

1215

Note

If required, you can find out the precise weight of your vehicle at a specialist

garage.

Payload

It is possible to calculate the approximate maximum payload from the differ-

ence between the permissible total weight and the operating weight.
The payload consists of the following weights.

▶

The weight of the passengers.

▶

The weight of all items of luggage and other loads.

▶

The weight of the roof, including the roof rack system.

▶

The weight of the equipment that is excluded from the operating weight.

▶

Trailer bearing load for trailer towing

» page 181

.

Measurement of fuel consumption and CO

2

 emissions according to

ECE Regulations and EU Directives

The data on fuel consumption and CO

2

 emissions were not available at the

time of going to press.
The valid specifications for your vehicle can be found in the technical vehicle

documentation (e.g. vehicle approval documentation, the COC document) or

at a ŠKODA partner.

Note

■

The emission and fuel consumption values have been determined in accord-

ance with rules and under conditions set out by legal or technical requirements

for determining operational and technical data for motor vehicles.

■

Depending on the range of equipment, style of driving, traffic situation,

weather influences and vehicle condition, consumption values may deviate

from the indicated values.

229

Technical data

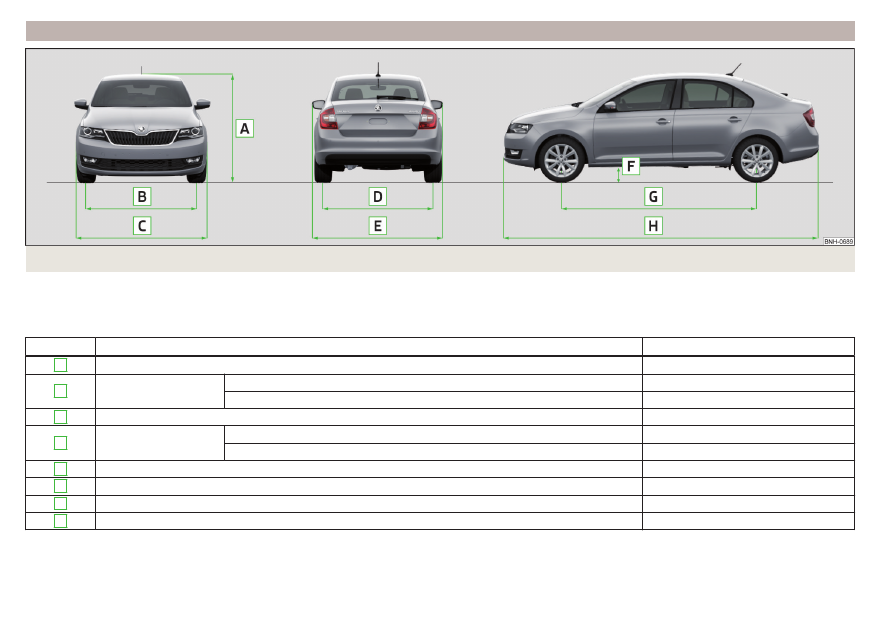

Dimensions

Fig. 274  Vehicle dimensions

The vehicle dimensions given in the vehicle's technical documentation always take precedence over the details in the Owner's Manual.
The dimensions listed below are for the basic model without any optional equipment.

Vehicle dimensions for operating weight without driver (in mm)

» Fig. 274

Specification

Value

A

Height

1461

B

Front track

Basic dimensions

1457

Vehicles with the 1.0 ltr./70 kW TSI and 1.6 ltr./66 kW MPI engine

1463

C

Width

1706

D

Rear track

Basic dimensions

1494

Vehicles with the 1.0 ltr./70 kW TSI and 1.6 ltr./66 kW MPI engine

1500

E

Width including exterior mirror

1940

F

Clearance

136

G

Wheel base

2602

H

Length

4483

230

Technical data

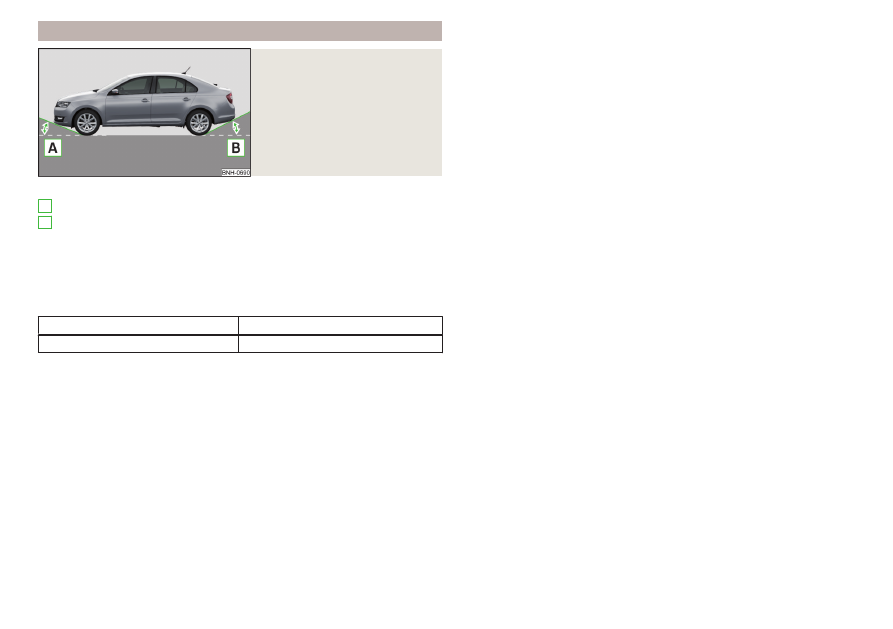

Departure angle

Fig. 275

Overhang angle

Angle

» Fig. 275

Overhang angle, front
Overhang angle, rear

The overhang angle values indicate the maximum incline of a slope, up which

the vehicle can drive at a slow speed without the bumper or underbody mak-

ing contact with the slope. The values listed correspond to the maximum axle

load, front or back.

Overhang angle (°)

Overhang angle, front

Overhang angle, rear

14.0

12.3

A
B

231

Technical data

Vehicle-specific details per engine type



Introduction

The values given have been determined in accordance with regulations and in conditions prescribed by legal or technical provisions for determining the operat-

ing and technical data of vehicles.
The exhaust gas standard is specified in the vehicle's technical documentation, as well as in the declaration of conformity (in the so-called COC document). The

declaration of conformity (the so-called COC document) can be obtained from a ŠKODA partner (only valid for some countries and some models).

1.0 ltr./70 kW TSI engine

Output (kW at 1/min)

70/5000-5500

Maximum torque (Nm at rpm)

160/1500-3500 (160/1800-3500)

a)

Number of cylinders/displacement (cm

3

)

3- 999

Transmission

MG

Top speed (km/h)

with the mentioned gear engaged

187

(5)

189

a)

(4)

Acceleration 0-100 km/h (s)

11.0

11.1

a)

a)

Applies to cars with the EU6AG emission standard.

1.0 ltr./81 kW TSI engine

Output (kW at 1/min)

81/5000-5500

Maximum torque (Nm at rpm)

200/2000-3500

Number of cylinders/displacement (cm

3

)

3- 999

Transmission

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

200

(5)

201

a)

(5)

200

(6)

Acceleration 0-100 km/h (s)

9.8

9.9

a)

10.2

a)

Applies to cars with the EU6AG emission standard.

232

Technical data

1.4 ltr./92 kW TSI engine

Output (kW at 1/min)

92/5000-6000

Maximum torque (Nm at rpm)

200/1400-4000

Number of cylinders/displacement (cm

3

)

4- 1395

Transmission

DSG

Top speed (km/h)

with the mentioned gear engaged

208- 190

a)

(6)

Acceleration 0-100 km/h (s)

9.0

a)

Applies to Russia.

1.6 l/66 kW MPI engine

Output (kW at 1/min)

66/4250-6000

Maximum torque (Nm at rpm)

155/3800-4000

Number of cylinders/displacement (cm

3

)

4- 1598

Transmission

MG

Top speed (km/h)

with the mentioned gear engaged

185

(5)

Acceleration 0-100 km/h (s)

11.4

1.6 l/81 kW MPI engine

Output (kW at 1/min)

81- 5800

Maximum torque (Nm at rpm)

155/3800-4000

Number of cylinders/displacement (cm

3

)

4- 1598

Transmission

MG

AG

Top speed (km/h)

with the mentioned gear engaged

197- 190

a)

(5)

193- 190

a)

(5)

Acceleration 0-100 km/h (s)

10.3

11.6

a)

Applies to Russia.

233

Technical data
