Remote control of the auxiliary heating

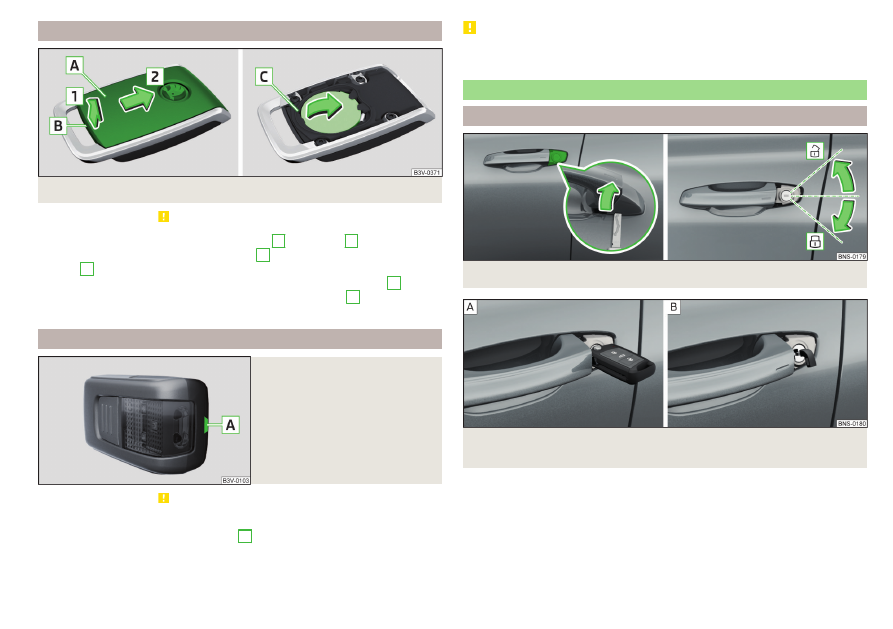

Fig. 354  Open the cover/remove the battery



Read and observe   on page 299 first.

›

Use a thin screwdriver to remove the cover

A

 in the area

B

» Fig. 354

.

›

Open the cover in the direction of arrow

1

 and push out in the direction of

arrow

2

.

›

Use the screwdriver to remove and replace the battery in the area

C

.

›

Insert the battery cover in the opposite direction to arrow

2

 until it audibly

clicks into place.

Removable light

Fig. 355

Locking clip on the battery cov-

er



Read and observe   on page 299 first.

›

Lever off the cover for the rechargeable batteries with a narrow and pointed

object from the area of the lock clips

A



» Fig. 355

.

›

Replace the batteries.

›

Insert the cover for the rechargeable batteries and press it down until it

clicks into place.

CAUTION

If an incorrect battery type is used or a non-rechargeable battery, there is a

risk of damaging the light and the vehicle's electrical system.

Emergency unlocking / unlocking of doors

Unlocking/locking the driver's door

Fig. 356  Handle on the driver's door: Open/unlock and lock cover

Fig. 357  Handle on the driver's door: Key with fold/out key bit/KESSY

key

The driver's door can be emergency unlocked / emergency locked using the

key via the lock cylinder.

›

Pull on the door handle and hold.

›

Insert the key into the recess on the lower side of the cover and fold up the

cover in the direction of arrow

» Fig. 356

.

›

Release the door handle.



301

Emergency equipment and self-help

›

For vehicles with LHD, insert the key with the fold-out key bit with the but-

tons facing upwards

» Fig. 357

 -  into the lock cylinder and unlock/lock the

vehicle.

›

For vehicles with RHD, insert the key with the fold-out key bit with the but-

tons facing downwards into the lock and unlock/lock the vehicle.

›

On vehicles with the KESSY system, insert the emergency key with the han-

dle facing downwards

» Fig. 357

 -  into the lock cylinder and unlock/lock

the vehicle.

›

Pull on the door handle and hold.

›

Replace the cover.

CAUTION

Make sure you do not damage the paint when performing an emergency lock-

ing/unlocking.

Locking the door without locking cylinders

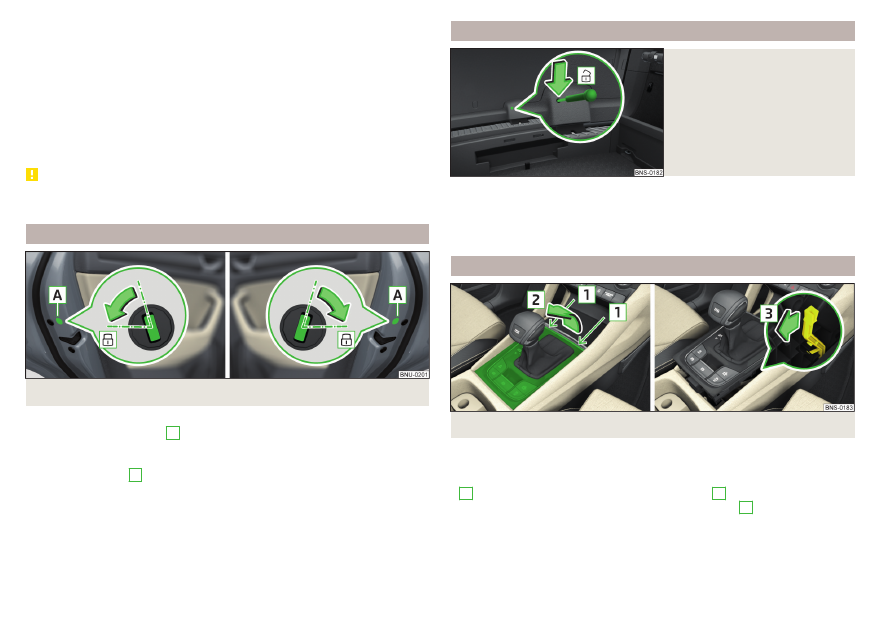

Fig. 358  Left door/right door:

›

Open the corresponding door.

›

In vehicles with the panel

A

, remove this panel

» Fig. 358

.

›

Insert the key into the slot and turn in the direction of the arrow (sprung po-

sition).

›

Replace the cover

A

.

After closing, the door is locked.

Unlock the boot lid

Fig. 359

Unlocking the door

The boot lid can be unlocked manually from inside.

›

Insert a screwdriver or similar tool into the opening in the trim

» Fig. 359

 as

far as the latch.

›

Unlock the lid by moving it in the direction of the arrow.

Selector lever emergency unlocking

Fig. 360  Remove the cover/release the selector lever

›

Switch on the parking brake.

›

Open the stowage compartment in the front centre console.

›

Insert a slotted screwdriver or similar tool into the gap in the area of arrow

1



» Fig. 360

 and lift the cover in arrow direction

2

.

›

Pull on the yellow plastic part in the direction of arrow

3

, simultaneously

press the lock button in the selector lever handle and put the lever in position

N.

If the selector lever is moved again to position P, it is once again blocked.



302

Do-it-yourself

CAUTION

Make sure when lifting not to damage cover parts by the screwdriver in the

shift lever environment.

Replacing windscreen wiper blades



Introduction

WARNING

Replace the windscreen wiper blades once or twice a year for safety rea-

sons.

Replacing the windscreen wiper blades

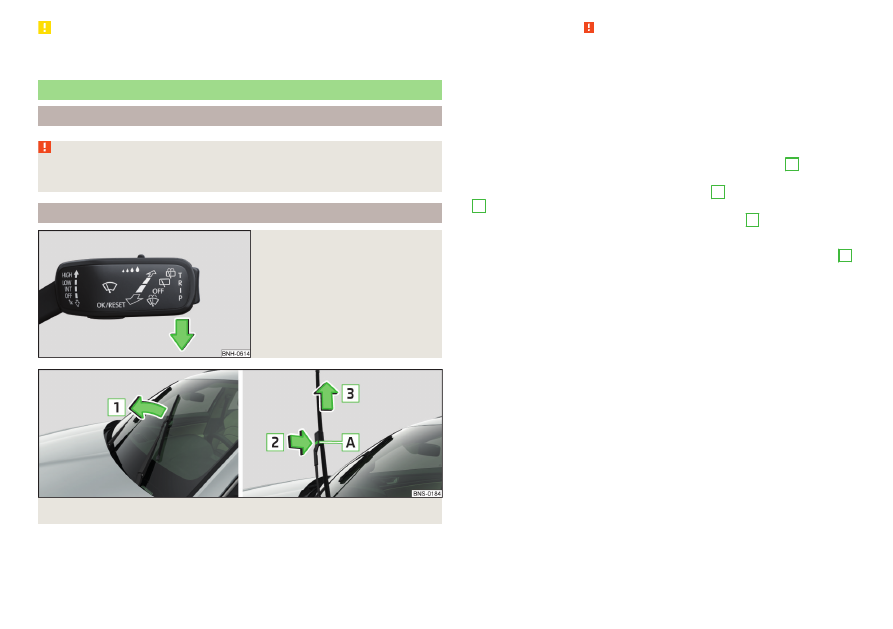

Fig. 361

Setting the service position for

the wiper arms

Fig. 362  Replace windscreen wiper blade



Read and observe   on page 303 first.

Before replacing the windscreen wiper blade, put the windscreen wiper arms

into the service position.

Setting the service position

›

Switch the ignition on and off again.

›

Within 10 seconds, push the lever in the direction of arrow

» Fig. 361

 and

hold for approximately 2 seconds.

Removing the wiper blade

›

Lift the wiper arm from the window in the direction of arrow

1



» Fig. 362

.

›

Tilt the wiper blade to the stop in the same direction.

›

Hold the wiper arm and press the safety catch

A

 in the direction of arrow

2

.

›

Remove the wiper blade in the direction of the arrow

3

.

Attaching the windscreen wiper blade

›

Push the windscreen wiper blade in the opposite direction of the arrow

3

until it locks into place. Check that the windscreen wiper blade is correctly

attached.

›

Fold the windscreen wiper arm back to the windscreen.

›

Turn on the ignition and press the lever into the direction of the arrow

» Fig. 361

.

Move the windscreen wiper arms into the home position.

303

Emergency equipment and self-help

Replacing the rear window wiper blade

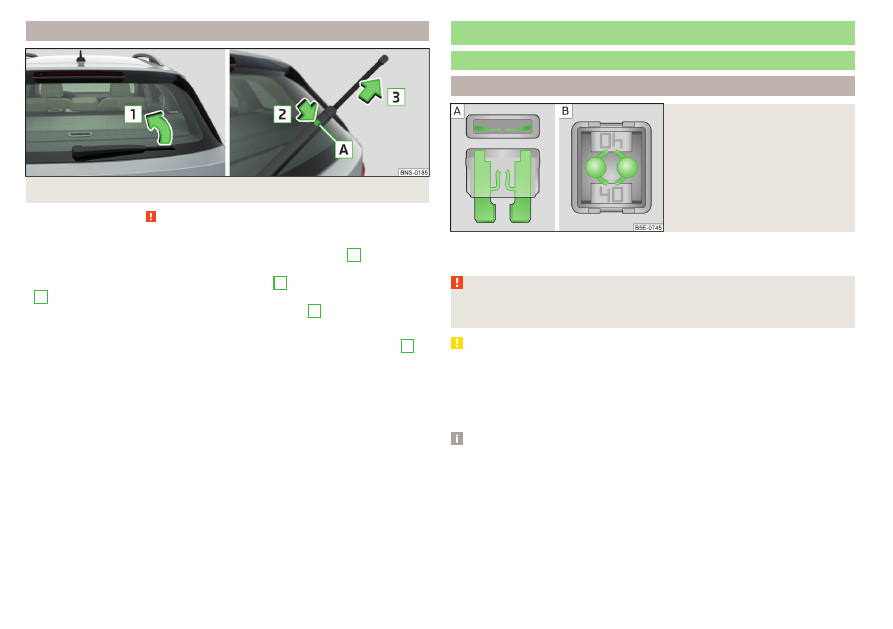

Fig. 363  Replace the rear window wiper blade



Read and observe   on page 303 first.

Removing the wiper blade

›

Lift the wiper arm from the window in the direction of arrow

1



» Fig. 363

.

›

Tilt the wiper blade to the stop in the same direction.

›

Hold the wiper arm and press the safety catch

A

 in the direction of arrow

2

.

›

Remove the wiper blade in the direction of the arrow

3

.

Attaching the windscreen wiper blade

›

Push the windscreen wiper blade in the opposite direction of the arrow

3

until it locks into place. Check that the windscreen wiper blade is correctly

attached.

›

Fold the windscreen wiper arm back to the windscreen.

Fuses and light bulbs

Fuses



Introduction

Fig. 364

Blown fuse

Individual electrical circuits are protected by fuses. A blown fuse is recognisa-

ble by the molten metal strip

» Fig. 364

 /.

WARNING

Always read and observe the warnings before completing any work in the

engine compartment

» page 277

.

CAUTION

■

Replace the faulty fuse with a new one of the same amperage.

■

If a newly inserted fuse blows after a short time, then seek the assistance of

a specialist garage.

■

Do “not repair” the fuses and do not replace them with stronger ones - it can

cause a fire and could damage parts of the electrical system.

Note

■

We recommend always carrying replacement fuses in the vehicle.

■

There can be several power consuming devices for one fuse. Multiple fuses

may exist for a single power consuming device.

304

Do-it-yourself

Fuses in the dashboard- LHD

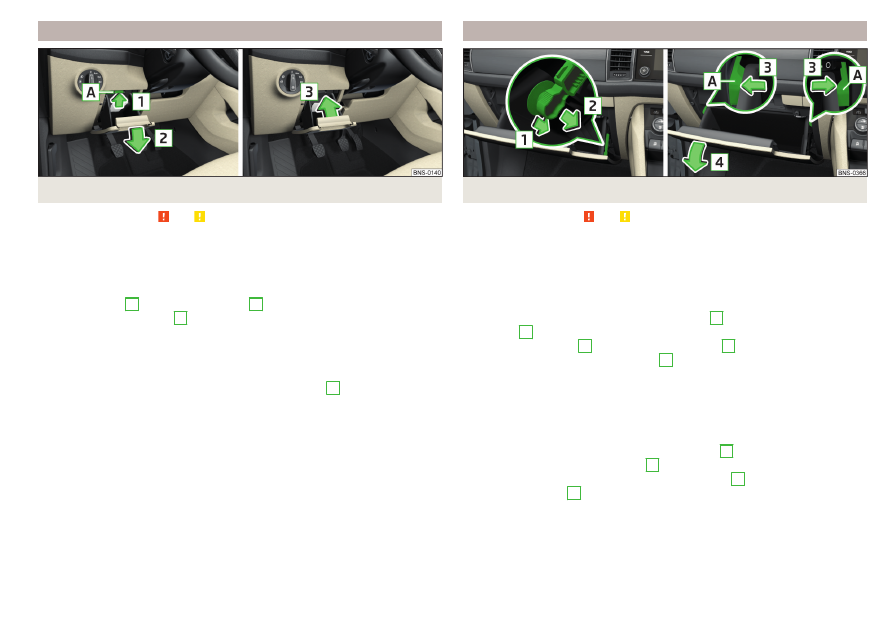

Fig. 365  Storage compartment on the driver's side



Read and observe   and   on page 304 first.

The fuse box is located behind the storage compartment on the driver's side.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Open the storage box on the driver side.

›

Press the latch

A

 in direction of arrow

1



» Fig. 365

 open the compartment

in the direction of arrow

2

.

›

Remove the plastic clip under the cover of the fuse box in the engine com-

partment

» Fig. 368

 on page 307.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Stow the clamp back in the original position.

›

Close the compartment by pressing in arrow direction

3

 until you hear it

click.

Fuses in the dashboard- RHD

Fig. 366  Storage compartment on the front passenger side



Read and observe   and   on page 304 first.

The fuse box is located behind the storage compartment on the front passen-

ger side.

Fold down the storage compartment and replace the fuse

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Open the storage compartment on the front passenger side.

›

Unlock the brake rod in the direction of arrow

1

 and remove in the direction

of arrow

2



» Fig. 366

.

›

Unlock the stop pad

A

 in the direction of arrow

3

 and the compartment

folds down in the direction of arrow

4

.

›

Remove the plastic clip under the cover of the fuse box in the engine com-

partment

» Fig. 368

 on page 307.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Stow the clamp back in the original position.

Fold back the storage compartment

›

Raise the tray in the opposite direction of arrow

4

.

›

Overcome resistance of stop pad

A

.

›

Insert the brake rod against the direction of arrow

2

 and lock against the

direction of arrow

1

.

›

The compartment closes (increased force is required to close it) until it clicks

into place.

305

Fuses and light bulbs

Fuse assignment in the dashboard

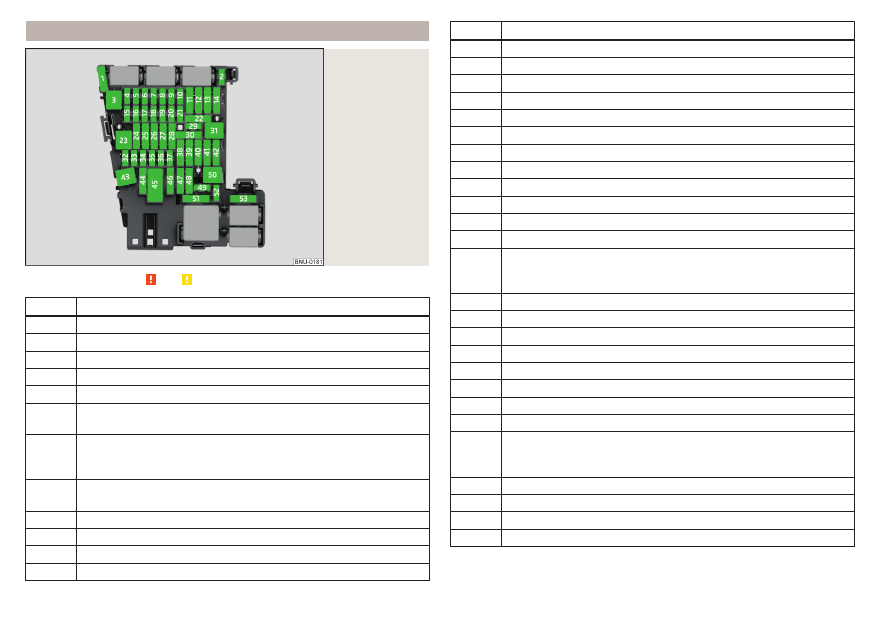

Fig. 367

Fuses



Read and observe   and   on page 304 first.

No.

Consumer

1

SCR (AdBlue

®

)

2

Heated steering wheel

3

Not assigned

4

Anti-theft alarm

5

Databus

6

Automatic gearbox, ignition key lock (vehicle with automatic trans-

mission)

7

Air conditioning, receiver for the remote control for the auxiliary

heating, heated rear window, heated windscreen, rear air condition-

ing system, tyre pressure monitoring

8

Light switch, rain sensor, parking brake, ambient lighting, sensor of

the alarm system, headlight

9

Operating lever underneath the steering wheel

10

Infotainment screen

11

Light - left

12

Infotainment

No.

Consumer

13

Left side belt tensioner

14

Air blower for air conditioning,heating

15

Electric steering lock

16

USB ports, diagnostics connector, Phonebox

17

Instrument cluster, emergency call

18

Reversing camera

19

KESSY system

20

SCR (AdBlue

®

), braking system

21

All-wheel drive

22

Tow hitch

23

Panoramic tilting / sliding sunroof

24

Light - right

25

Central locking- front and rear door left, power window - left, exte-

rior mirrors left - heating, fold-in function, setting the mirror sur-

face

26

Heated front seats

27

Interior lighting

28

Tow hitch

29

Not assigned

30

Shock absorber setting

31

Opening the boot lid

32

Park Assist, Manoeuvre Assist, Assist for “blind spot”monitoring

33

airbag

34

Air conditioning, reversing light switch, mirror with automatic dim-

ming, seat heating, parking brake, light switches, bar with switches,

electric auxiliary heating, USB ports

35

Diagnostic connector, camera, radar sensor

36

LED spotlight - right

37

LED spotlight - left

38

Tow hitch



306

Do-it-yourself

No.

Consumer

39

Central locking- front and rear door right, power window - right,

exterior mirrors right - heating, fold-in function, setting the mirror

surface

40

12 volt sockets

41

Right side belt tensioner

42

Luggage compartment cover lock, headlight washers, front and

rear window washer

43

Music amplifier

44

Tow hitch

45

Electrical operation of driver's seat

46

230 volt sockets

47

Rear window wiper

48

Sport sound generator

49

Engine starting, clutch pedal switch

50

Not assigned

51

Heating of the rear seats

52

Heated front seats

53

Heated rear window

Fuses in the engine compartment

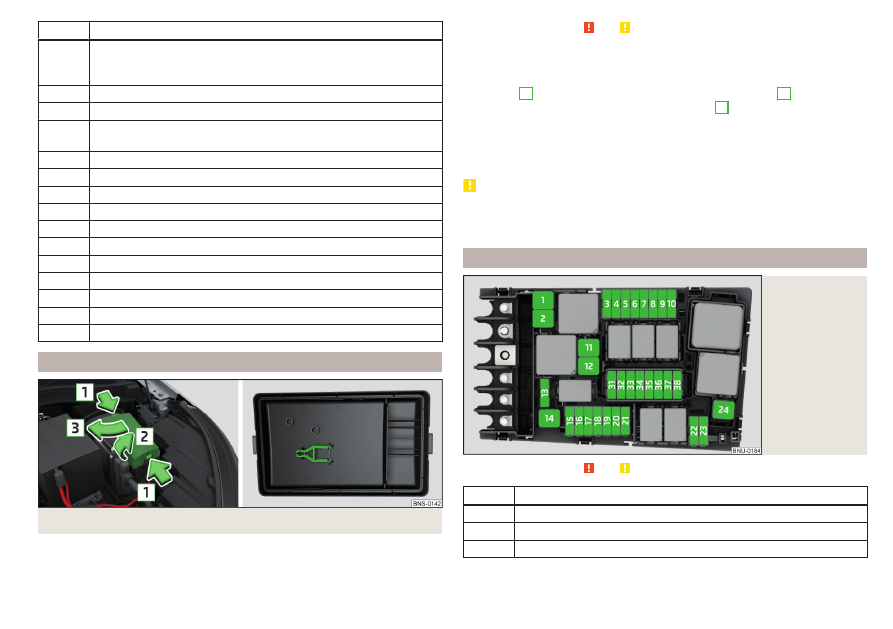

Fig. 368  Fuse box cover: Removing the cover / Plastic clip for fuses



Read and observe   and   on page 304 first.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Press together the lock buttons of the cover simultaneously in the direction

of arrow

1

 and remove the cover in the direction of arrow

2



» Fig. 368

.

›

Remove the cover in the direction of the arrow

3

.

›

Remove the plastic clip under the cover of the fuse box

» Fig. 368

.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Stow the clamp back in the original position.

›

Replace the cover, push the lock buttons of the cover together and lock.

CAUTION

The cover of the fuse box in the engine compartment must always be used

correctly, otherwise water may penetrate into the fuse box – there is a danger

of damage to the vehicle!

Fuse assignment in engine compartment

Fig. 369

Fuses



Read and observe   and   on page 304 first.

No.

Consumer

1

ESC, parking brake

2

ESC

3

Engine control system



307

Fuses and light bulbs

No.

Consumer

4

Radiator fan, control valve for fuel pressure, electric auxiliary heat-

ing, glow plug system, air mass meter, braking system, engine com-

ponents, oil level and oil temperature encoder

5

Ignition, fuel pump, engine components

6

Brake sensor

7

Coolant pump, exhaust flap, crankcase ventilation, engine compo-

nents

8

Lambda probe, NOx sensor and particle sensor

9

Coolant pump, ignition, engine components

10

Fuel pump

11

Additional electrical heating, heated windscreen

12

Electrical auxiliary heating

13

Oil pump for automatic gearbox

14

Not assigned

15

Horn

16

Ignition

17

ESC, engine control unit, main relay coil

18

Databus, battery data module

19

Windscreen wipers

20

Not assigned

21

Automatic gearbox

22

Engine control system

23

Starter

24

Electrical auxiliary heating

31

Not assigned

32

Not assigned

33

Automatic gearbox

34

Not assigned

35

Windscreen wipers

36

Not assigned

37

Aux. heating

38

Not assigned

Bulbs



Introduction

This Owner's Manual only describes the replacement of bulbs where it is possi-

ble to replace the bulbs on your own without any complications arising. Other

bulbs or LED lights must be replaced by a specialist garage.
For this reason, we recommend having bulbs replaced by a specialist garage or

seeking other expert help in the event of any uncertainties.

▶

Switch off the ignition and all of the lights before replacing a bulb.

▶

Faulty bulbs must only be replaced with the same type of bulbs. The designa-

tion is located on the light socket or the glass bulb.

We recommend having the headlight settings checked by a specialist garage

after replacing a bulb in the low, high or fog beam.

WARNING

■

Always read and observe the warnings before completing any work in the

engine compartment

» page 277

.

■

Accidents can be caused if the road in front of the vehicle is not suffi-

ciently illuminated and the vehicle cannot or can only be seen with difficulty

by other road users.

■

H7 and H8 bulbs are pressurised and may burst when changing the bulb -

risk of injury! We therefore recommended wearing gloves and safety

glasses when changing a bulb.

CAUTION

■

Do not take hold of the glass bulb with naked fingers (even the smallest

amount of dirt reduces the working life of the light bulb). Use a clean cloth,

napkin, or similar.

■

The cap of the filament bulb must always be seated correctly in the head-

light, otherwise this may allow water and debris to enter the headlight - risk of

damage to the headlights.

Note

We recommend that a box of replacement bulbs always be carried in the vehi-

cle.

308

Do-it-yourself

Bulb arrangement in the halogen headlights

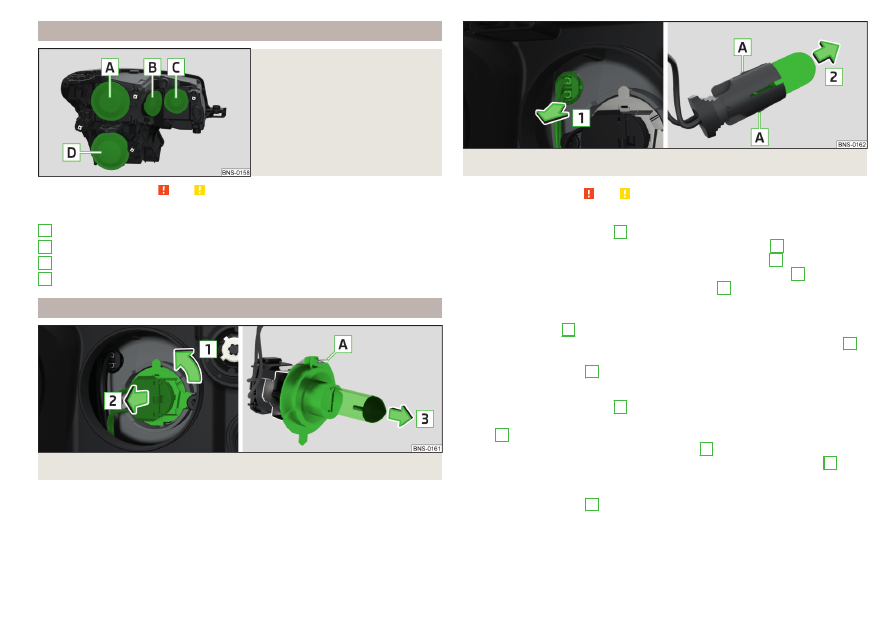

Fig. 370

Left headlight



Read and observe   and   on page 308 first.

Bulb arrangement

» Fig. 370

Low beam
Flashing
Main beam and side lights
Fog lights

Change light bulb for main beam light and parking lights

Fig. 371  Changing the bulb for the main beam

A
B
C
D

Fig. 372  Change the light bulb for the parking light



Read and observe   and   on page 308 first.

Remove / insert the bulb for main beam

›

Remove the protective cap

C



» Fig. 370

 on page 309.

›

Turn the holder with the bulb in the direction of the arrow

1



» Fig. 371

.

›

Remove the holder with the bulb in the direction of arrow

2

 .

›

Remove the bulb from the holder in the direction of the arrow

3

.

›

Insert a new bulb into the holder so that the lug

A

 on the holder snaps into

the groove on the bulb.

›

Insert the holder with the new bulb into the headlight in the opposite direc-

tion to the arrow

2

.

›

Turn the holder with the new bulb in the opposite direction to the arrow

1

until it stops.

›

Fit the protective cap

C



» Fig. 370

 on page 309.

Remove / insert the bulb for parking light

›

Remove the protective cap

C



» Fig. 370

 on page 309.

›

Remove the holder with the bulb by jiggling it out in the direction of the ar-

row

1



» Fig. 372

.

›

Hold the housing containing the bulb in area

A

.

›

Remove the faulty bulb from the holder in the direction of the arrow

2

.

›

Insert a new bulb in the holder until it stops.

›

Insert the housing with bulb into the headlight again.

›

Fit the protective cap

C



» Fig. 370

 on page 309.

309

Fuses and light bulbs

Changing the bulb for the front turn signal light

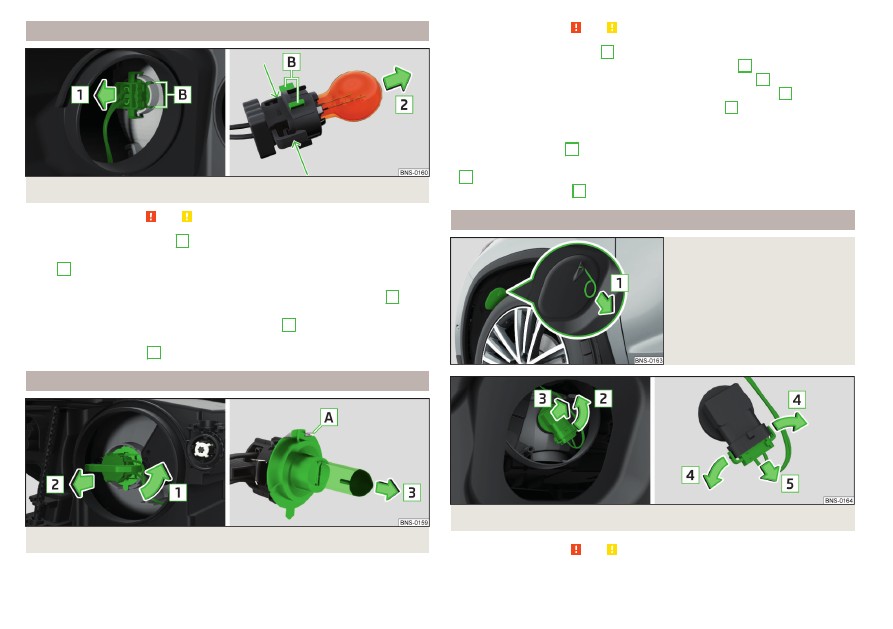

Fig. 373  Changing the bulb for the front turn signal light



Read and observe   and   on page 308 first.

›

Remove the protective cap

B



» Fig. 370

 on page 309.

›

Remove the holder with the bulb by jiggling it out in the direction of the ar-

row

1



» Fig. 373

.

›

Hold the holder with the bulb in the locations shown by the arrows.

›

Remove the faulty bulb from the holder in the direction of the arrow

2

.

›

Insert a new bulb in the holder until it stops.

›

Slide the holder with the bulb with the fixing lug

B

 upwards so that it fits

into the recess on the reflector.

›

Fit the protective cap

B



» Fig. 370

 on page 309.

Changing the bulb for the low beam

Fig. 374  Changing the bulb for the low beam



Read and observe   and   on page 308 first.

›

Remove the protective cap

A



» Fig. 370

 on page 309.

›

Turn the holder with the bulb in the direction of arrow

1



» Fig. 374

.

›

Remove the holder with the bulb in the direction of arrow

2

.

›

Remove the bulb from the holder in the direction of the arrow

3

.

›

Insert a new bulb into the connector so that the lug

A

 on the connector

snaps into the groove on the bulb.

›

Insert the connector with the new bulb into the headlight in the opposite di-

rection to the arrow

2

.

›

Turn the connector with the new bulb in the opposite direction to the arrow

1

until it stops.

›

Fit the protective cap

A



» Fig. 370

 on page 309.

Changing light bulbs for fog lights

Fig. 375

Remove plastic cover

Fig. 376  Changing light bulbs for fog lights



Read and observe   and   on page 308 first.

To replace the bulb for the fog lists, remove the cover of the front wheel arch.



310

Do-it-yourself

Remove the cover

›

Set the front wheels so that the respective cover is accessible

» Fig. 375

.

›

Insert the clamp for removing the full wheel covers into the recess in the

cover.

›

Remove the cover by pulling the hook in the direction of arrow

1

.

Replacing the light bulb

›

Remove the protective cap

D



» Fig. 370

 on page 309.

›

Turn the holder with the bulb in the direction of the arrow

2

 as far as the

stop

» Fig. 376

.

›

Remove the holder with the bulb in the direction of arrow

3

 .

›

Press the latches on the connector in the direction of arrow

4

.

›

Remove the key in the direction of the arrow

5

.

›

Attach the connector to the new holder with the light bulb.

›

Insert a new holder with the bulb in the headlamp and turn it in the direction

of arrow

2

 as far as the stop.

Fit the protective cap

D



» Fig. 370

 on page 309.

Insert cover

›

Insert and push the cover into the corresponding opening

» Fig. 375

. The

cover must engage securely.

Removing/installing tail light

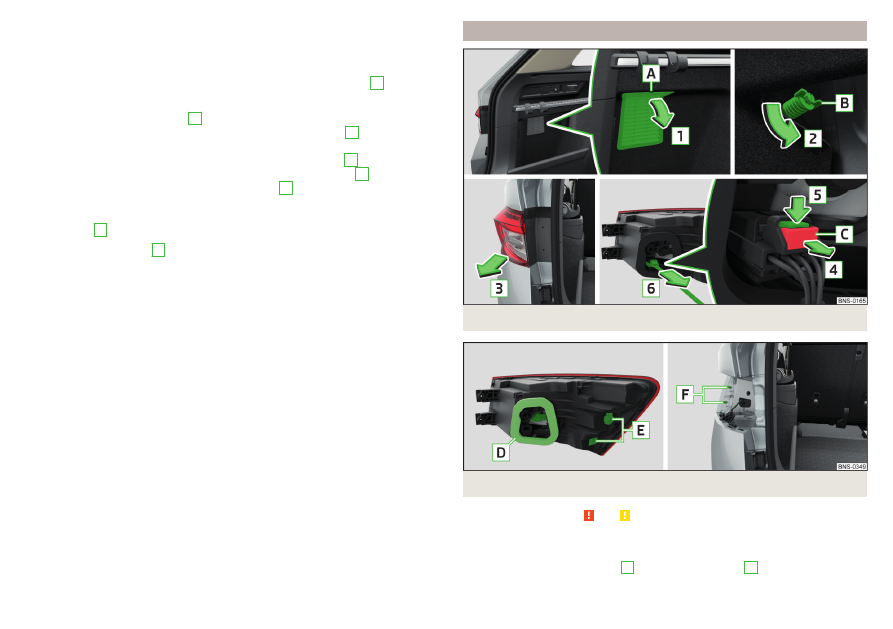

Fig. 377  Removing light / pulling out connector

Fig. 378  Fitting the lamp



Read and observe   and   on page 308 first.

Removing

›

Open the boot lid.

›

Remove the respective grille

A

 in direction of arrow

1



» Fig. 377

.



311

Fuses and light bulbs

›

Unscrew bolt

B

 in the direction of arrow

2

.

›

Hold the light and carefully remove in the direction of arrow

3

.

›

Press the latch

C

 on the holder in the direction of the arrow

4

.

›

Press the securing lug in the direction of arrow

5

 and pull out the plug in the

direction of arrow

6

.

Fitting

›

Slide the plug in the opposite direction of the arrow

6

» Fig. 377

 into the

light.

›

Secure the latch

A

 in the opposite direction to arrow

4

.

›

Insert the light with the openings

E

 onto the studs

F



» Fig. 378

 in the body

and carefully press in the light

»

.

›

Screw in bolt

B

 in the opposite direction to arrow

2



» Fig. 377

.

›

Insert the grille

A

 in the associated opening in the lower area and press in

against the direction of arrow

1

.

CAUTION

■

When re-inserting the light, ensure that the wiring harness between the

body and the light is not jammed and the seal

D



» Fig. 378

 is correctly inserted

- otherwise there is a risk of water ingress and damage to the electrical instal-

lation.

■

Ensure that the vehicle paintwork and the tail lamp are not damaged when

removing and installing the lamp.

Replace bulb for indicator light in the rear light

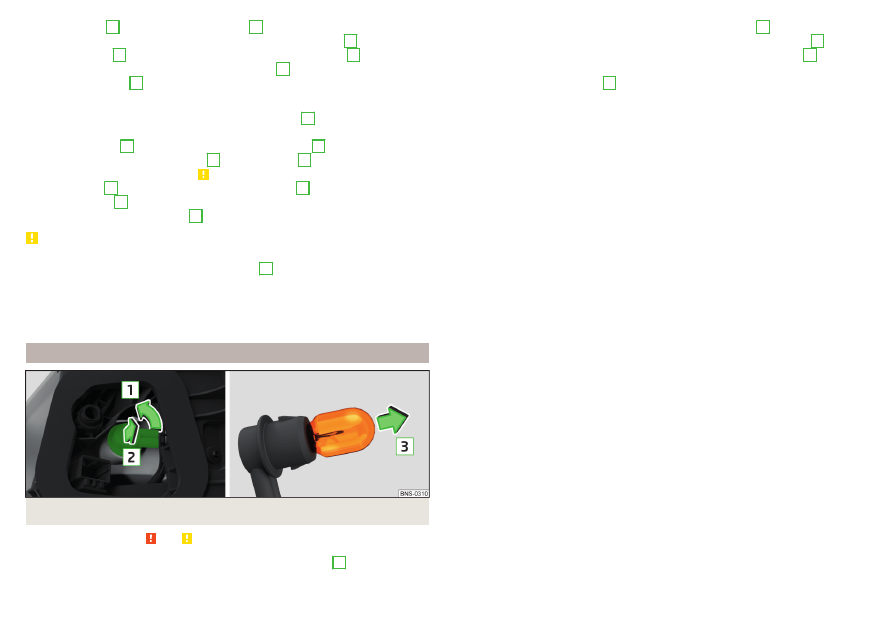

Fig. 379  Replacing bulb / installing light



Read and observe   and   on page 308 first.

›

Turn the holder with the bulb in the direction of the arrow

1

 as far as the

stop

» Fig. 379

.

›

Remove the holder with the bulb in the direction of arrow

2

 .

›

Remove the faulty bulb from the holder in the direction of the arrow

3

.

›

Insert a new bulb into the holder in the opposite direction to arrow

3

.

›

Reinsert the holder with the new bulb into the lamp housing and turn in the

opposite direction to arrow

1

 as far as the stop.

312

Do-it-yourself

Technical data

Technical data

Basic vehicle data



Introduction

The details given in the vehicle's technical documentation always take prece-

dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc-

ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with the rules and con-

ditions specified in statutory or technical regulations for determining opera-

tional and technical data for motor vehicles.
The values listed are for the basic model without any optional equipment.

Vehicle data

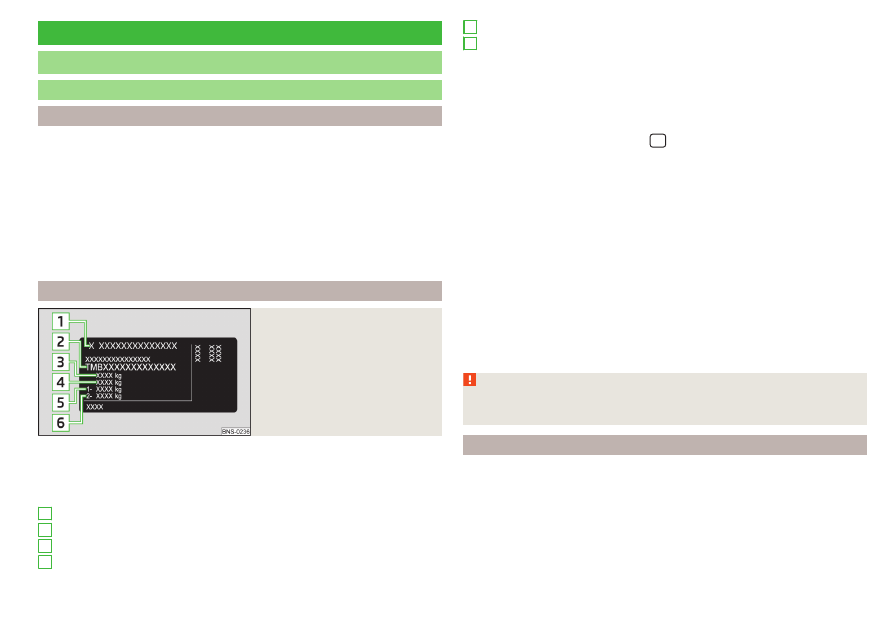

Fig. 380

Type plate

Type plate

The rating plate

» Fig. 380

 is located at the bottom of the B-column on the

right-hand driver's side.
The type plate contains the following data.

Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)

1

2
3
4

Maximum permissible front axle load
Maximum permissible rear axle load

Vehicle identification number (VIN)

The vehicle identification number - VIN (vehicle body number) is stamped into

the engine compartment on the right hand suspension strut dome. This num-

ber is also located on a sign on the lower left hand edge below the windscreen

(together with a VIN bar code), and on the type plate.
The VIN can also be displayed in the



/  →  → Events menu.

Engine number

The engine number is embossed in the engine block.

Supplementary Information (applies to Russia)

The full type approval number of the means of transport is indicated in the

registration documents, field 17.

Maximum permissible towed weight

The listed maximum allowable trailer weight is only valid for altitudes up to

1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing

power. Therefore, for every additional 1000 m in height (or part), the maxi-

mum permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-

cle and the loaded trailer.

WARNING

Do not exceed the specified maximum permissible weights – risk of acci-

dent and damage!

Operating weight

This value is only a guide value and corresponds to the lowest possible operat-

ing weight without any equipment added that would also increase the weight

(e.g. emergency or spare wheel etc.). This includes 75 kg driver's weight, the

weight of the operating fluids and the on-board tool kit and a fuel tank filled to

min. 90%.



5
6

313

Technical data

Operating weight

Engine

Transmission

Operating weight (kg)

Five-seat version Seven-seat ver-

sion

1.4 l/110 kW TSI

MG 4x4

1626

1669

DSG

1572

1615

1.5 l/110 kW TSI

MG

1549

1592

DSG

1582

1625

DSG 4x4

1661

1704

2.0 l/132 kW TSI

DSG 4x4 (EU6)

1695

1738

DSG 4x4 (EU4)

1691

1734

2.0 l/140 kW TSI

DSG 4x4

1711

1754

2.0 l/85 kW TDI CR

MG

1651

1694

2.0 l/110 kW TDI CR

MG 4x4

1725

1768

DSG

1686

1729

DSG 4x4 (EU6)

1762

1805

DSG 4x4 (EU5)

1709

1752

2.0 l/130 kW TDI CR

DSG 4x4

1707

1750

2.0 l/140 kW TDI CR

DSG 4x4

1775

1818

2.0 l/176 kW TDI CR

DSG 4x4

-

a)

-

a)

a)

The valueswere not available at the time of going to press.

Note

If required, you can find out the precise weight of your vehicle at a specialist

garage.

Payload

It is possible to calculate the approximate maximum payload from the differ-

ence between the permissible total weight and the operating weight.
The payload consists of the following weights.

▶

The weight of the passengers.

▶

The weight of all items of luggage and other loads.

▶

The weight of the roof load including the roof rack system.

▶

The weight of the equipment that is excluded from the operating weight.

▶

Trailer bearing load for trailer towing

» page 262

.

Measurement of fuel consumption and CO

2

 emissions according to

ECE Regulations and EU Directives

The data on fuel consumption and CO

2

 emissions were not available at the

time of going to press.
The valid specifications for your vehicle can be found in the technical vehicle

documentation (e.g. vehicle approval documentation, the COC document) or

at a ŠKODA partner.

Note

■

The emission and fuel consumption values have been determined in accord-

ance with rules and under conditions set out by legal or technical requirements

for determining operational and technical data for motor vehicles.

■

Depending on the range of equipment, style of driving, traffic situation,

weather influences and vehicle condition, consumption values may deviate

from the indicated values.

314

Technical data

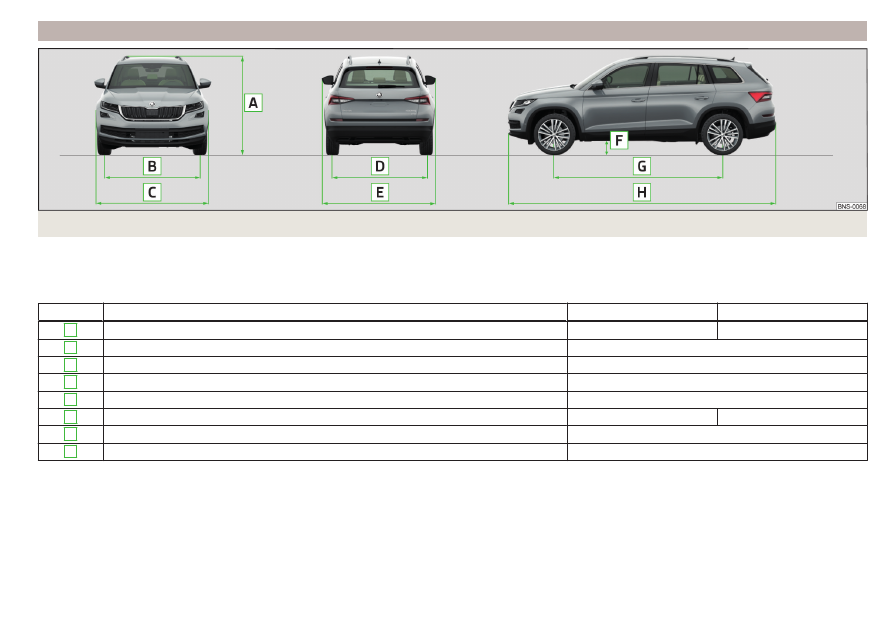

Dimensions

Fig. 381  Vehicle dimensions

The vehicle dimensions given in the vehicle's technical documentation always take precedence over the details in the Owner's Manual.
The dimensions listed below are for the basic model without any optional equipment.

Vehicle dimensions for operating weight without driver (in mm)

» Fig. 381

Specification

Five-seat version

Seven-seat version

A

Height

1660

1659

B

Front track

1586

C

Width

1882

D

Rear track

1576

E

Width including exterior mirror

2087

F

Clearance

193- 191

a)

192- 191

a)

G

Wheel base

2791

H

Length

4697

a)

Applies to 4x4 vehicles.

315

Technical data

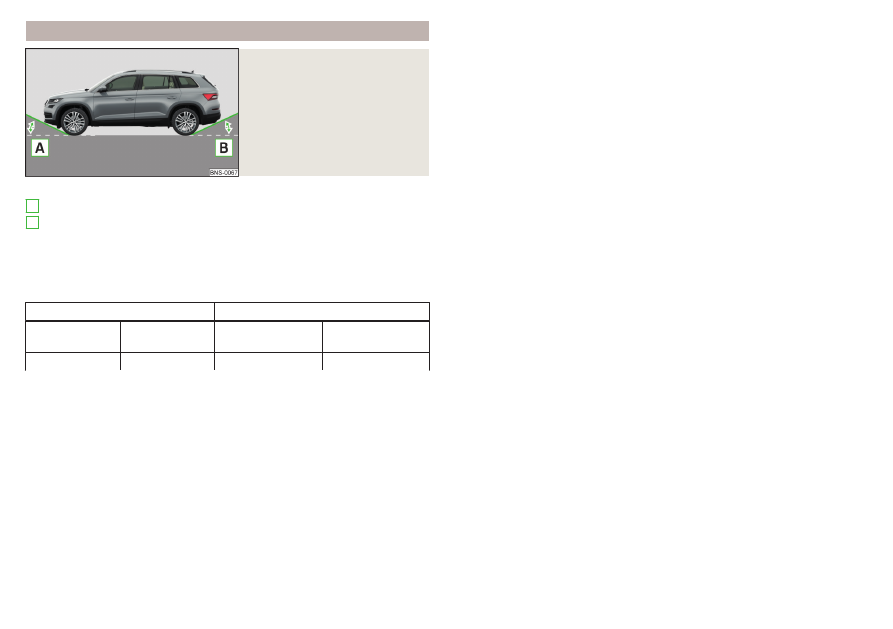

Overhang angle

Fig. 382

Overhang angle

Angle

» Fig. 382

Approach angle
Departure angle

The values shown indicate the maximum incline of an embankment, up which

the vehicle can drive at a slow speed without collision of the bumper or under-

body. The values listed represent the maximum axle load at the front and rear.

Overhang angle (°)

Approach angle

Departure angle

Five-seat version Seven-seat ver-

sion

Five-seat version

Seven-seat version

19.4

19.3

15.9

15.6

A
B

316

Technical data
