Skoda Karoq (2019 year). Manual - part 14

Depending on the equipment, the following system versions are possible

» Fig. 262

.

▶

Variant 1: warns of obstacles in areas

C

,

D

.

▶

Variant 2: warns of obstacles in areas

A

,

B

,

C

,

D

.

▶

Variant 3: warns of obstacles in the areas

A

,

B

,

C

,

D

,

E

.

Approximate range of sensors (in cm)

Area

» Fig. 262

Variant 1

(4 sensors)

Variant 2

(8 sensors)

Variant 3

(12 sensors)

A

-

120

120

B

-

60

90

C

160

160

160

D

60

60

90

E

-

-

90

Audible signals

The interval between the acoustic signals becomes shorter as the clearance is

reduced. At a distance of approx. 30 cm a continuous tone starts to sound -

Danger area.
The acoustic signals can be set in Infotainment

» page 220

.

Towing a trailer

When towing, or when another accessory is connected to the trailer socket,

only the areas

A

 and

B



» Fig. 262

 are active in the system.

Note

■

If with Version 3 vehicles not all fields around the vehicle silhouette are ac-

tive after activation the vehicle should be moved forwards or backwards.

■

The signal tones for front obstacle recognition are factory-set to be higher

than for rear obstacle recognition.

■

The setting of the acoustic signals is stored (depending on the Infotainment

type) in the active user account personalisation

» page 57

.

Display in Infotainment screen

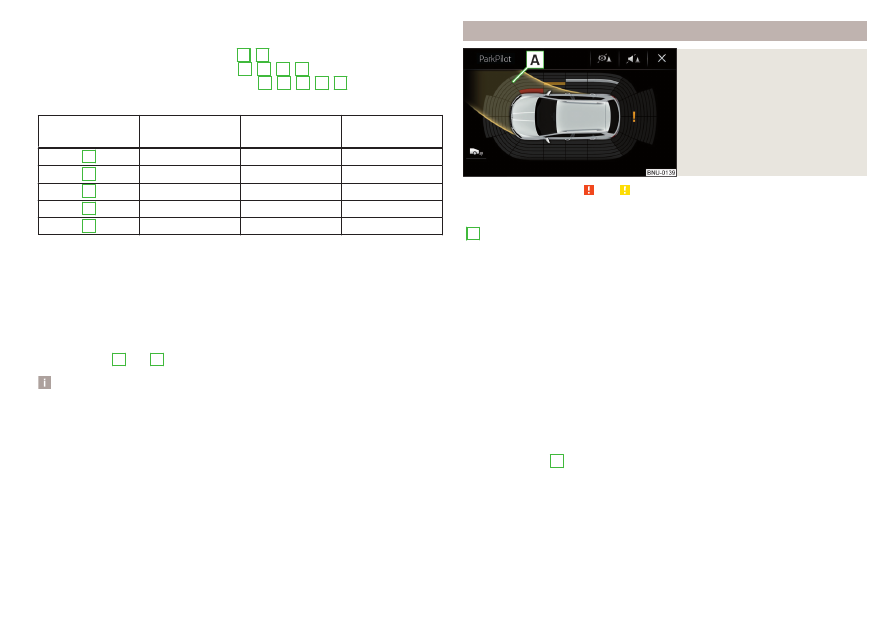

Fig. 263

Screen display



Read and observe   and   on page 220 first.

Function surfaces and warnings

» Fig. 263

A

Road display.



   Depending on the Infotainment type: Switching off park assistant dis-

play.



Switching audible parking signals on/off.



Disable / enable the automatic emergency braking.



Change to rear-view camera display .



There is an obstacle in the collision area (the distance to the obstacle

is less than 30 cm).



 Stop moving in the direction of the obstacle!



There is an obstacle in the road (the distance to the obstacle is great-

er than 30 cm).



An obstacle is located outside of the road (the distance to the obsta-

cle is greater than 30 cm).



System failure (there is no indication of obstacles).

Road display

The road display

A



» Fig. 263

 indicates the road on which the vehicle would

take the current steering wheel and shift / selector lever position.
The shift lever is in the neutral position and the gear selector is in mode N. the

road display is at the front.

221

Assist systems

Activation / deactivation

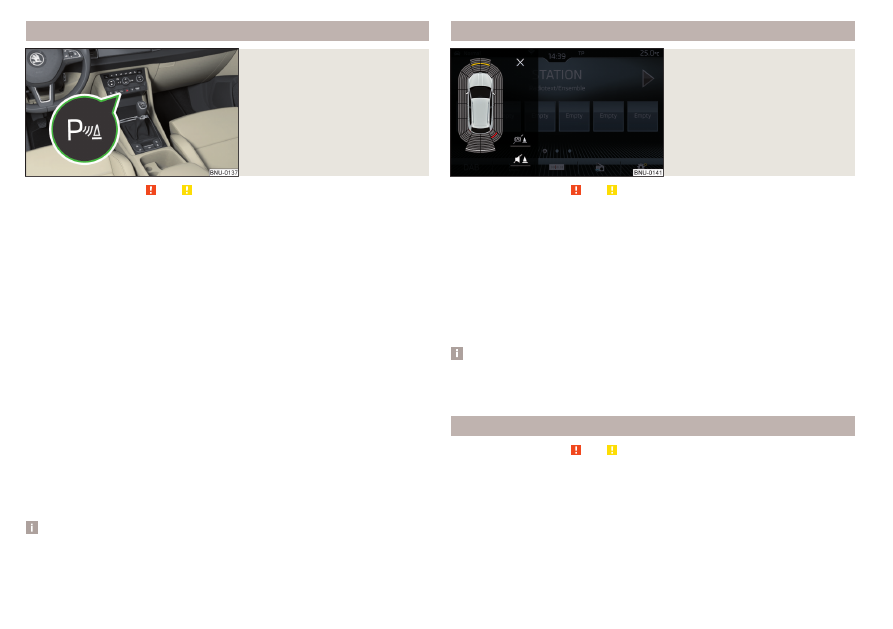

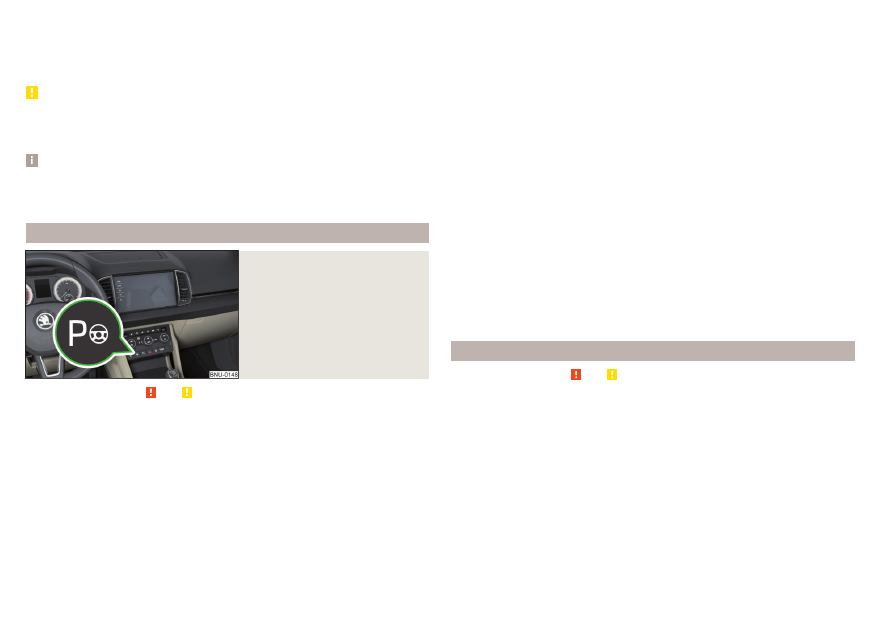

Fig. 264

System key (option 2, 3)



Read and observe   and   on page 220 first.

Activation

To activate the system, engage reverse gear and, on vehicles with version 2

and 3, also press the 

» Fig. 264

 button.

When activating, an alarm sounds and the symbol



 illuminates in the button.

Deactivation

On vehicles with Version 1, the system can be deactivated by moving out of

reverse gear.
For vehicles with version 2 and 3, the system is automatically deactivated by

pressing the  button or at a speed above 15 km/h (the



 symbol in the but-

ton goes out).

Displaying an error

Vehicles with Variant 1

▶

After system activation an acoustic signal sounds for approx. 3 seconds

(there is no obstacle near the vehicle).

Vehicles with the Variants 2 and 3

▶

After system activation, the



 symbol flashes in the button.

▶

In the display of the instrument cluster a message about an error of the Park-

Pilot system appears (at the same time there is an audible signal).

Seek help from a specialist garage.

Note

The system can only be activated with the button at a speed of below 15

km/h.

Automatic system activation when moving forward

Fig. 265

Infotainment screen: Display

with automatic activation



Read and observe   and   on page 220 first.

The automatic system activation occurs when moving forward at a speed be-

low 10 km/h when the vehicle approaches an obstacle.
After activation, the following is shown in the left pane of Infotainment display

» Fig. 265

.

Acoustic signals are sounded as of a distance from the obstacle of around

50 cm.
The automatic display can be activated / deactivated in Infotainment

» page 220

.

Note

The setting (activate / deactivate) of the automatic display is stored (depend-

ing on the Infotainment type) in the active user account personalisation

» page 57

.

Automatic emergency braking



Read and observe   and   on page 220 first.

If the system detects a collision risk when travelling forwards or reversing at a

speed up to 8 km/h, there is an automatic emergency braking to reduce the

impact consequences.

Disable / Enable

The brake function can be enabled / disabled in the Infotainment in the menu

Parking and manoeuvring

» page 220

.



222

Driving

After switching the ignition on and off, the systems remains activated / deacti-

vated depending on the setting prior to switching off the ignition.
The brake function can also be deactivated once with the function surface 

» Fig. 263

 on page 221.

CAUTION

Automatic emergency braking will only work if the system is engaged by en-

gaging reverse gear or pressing the button  has been activated.

Rear traffic alert and wizard for “Blind spot”Monitoring



Introduction

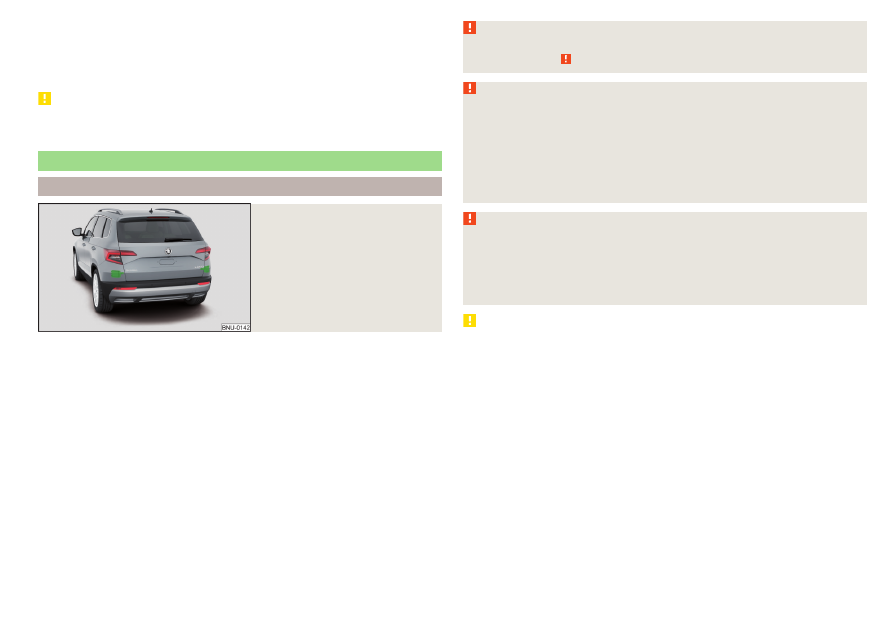

Fig. 266

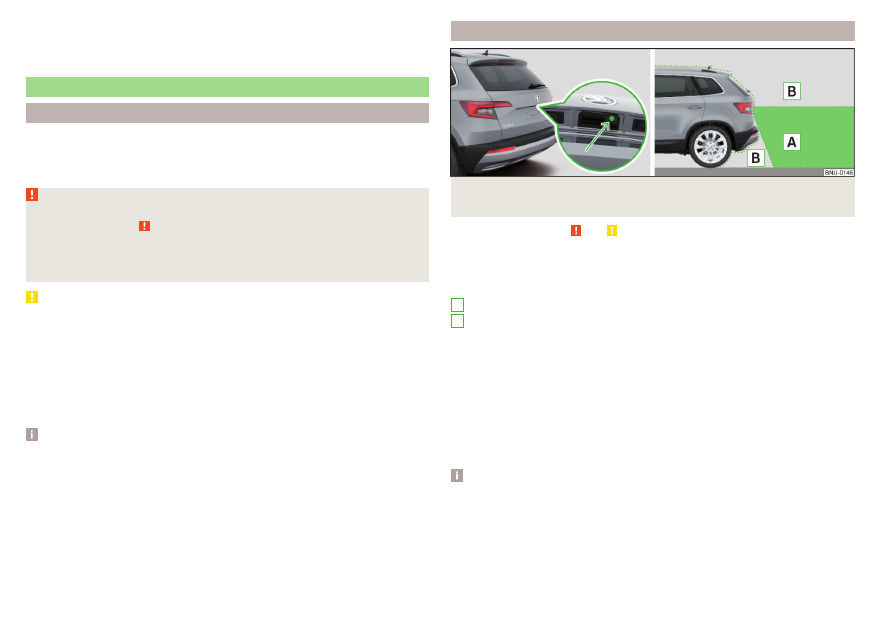

Installation location of the radar

sensors

The Rear Traffic Alert and Wizard for “blind spot” monitoring works based on

the information from the radar sensors in the rear bumper

» Fig. 266

. The radar

sensors are not visible from the outside.

Rear Traffic Alert

The Rear Traffic Alert (hereinafter referred to as system) warns when leaving a

parking space from a transverse parking space about any approaching vehi-

cles.
If necessary, the system tries to avoid a collision with automatic braking, or at

least to mitigate the consequences.

Wizard for “blind spot”monitoring

The wizard for“blind spot monitoring” (hereafter referred to as system) draws

attention to vehicles travelling in the same direction in the next lane in the so-

called blind spots.
The “blind spot” is an area that is not easily visible in a rear-view mirror or even

directly from the vehicle.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

» page 214,

   in section Introduction.

WARNING

■

In the case of a collision or damage to the rear of the vehicle, the function

of the systems may be affected - risk of accident! Have the vehicle

checked by a specialist garage.

■

Do not cover the sensor area - the function of the systems could be limi-

ted.

■

Remove snow, ice and such obstacles from the sensor environment im-

mediately.

WARNING

The wizard for “blind spot”monitoring is limited by physical and system-re-

lated limits. Therefore, in the following situations the system can be de-

layed in drawing attention (or not at all) to a vehicle in the next land.

■

When a vehicle is approaching at a very high speed.

■

When passing through a very sharp curve or a roundabout.

CAUTION

■

If a trailer or other accessory is to be connected to the trailer socket, then

the two systems are not available.

■

In adverse weather conditions (heavy rain, water vapour, very low or high

temperatures, etc.), the system function may be limited - “failure to recognise

a vehicle”.

■

Accessories additionally installed on the vehicle rear, such as bicycle carriers,

can impair the system function.

223

Assist systems

Rear Traffic Alert- Operation

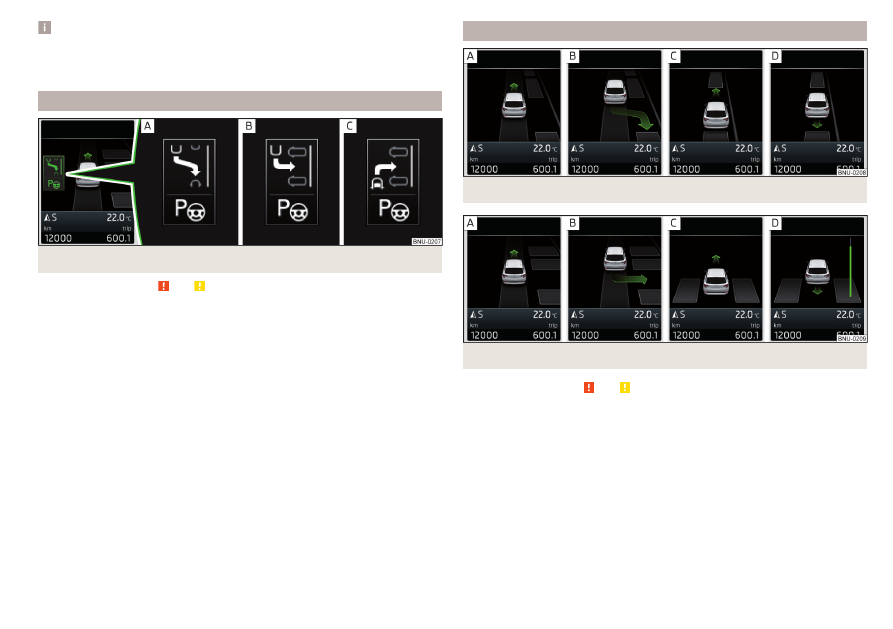

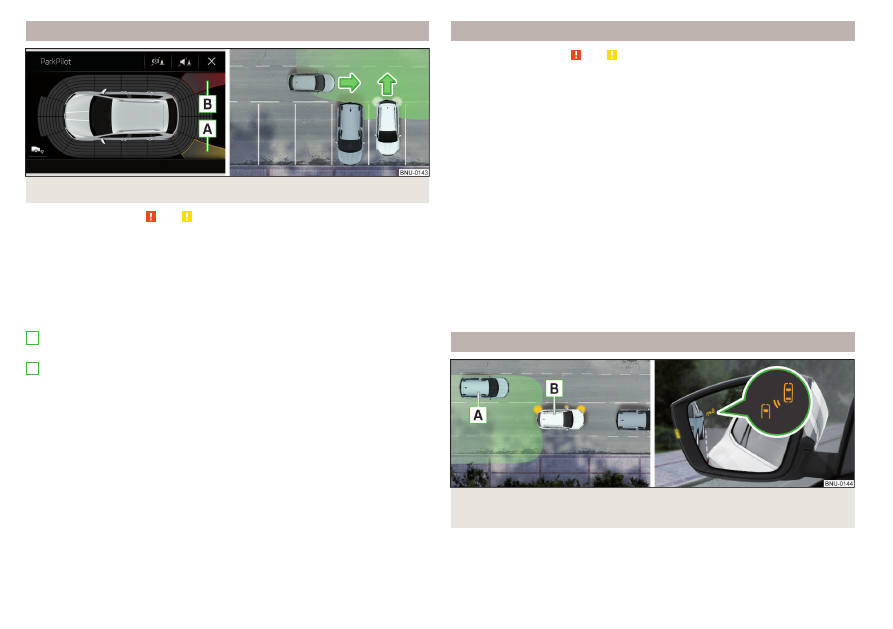

Fig. 267  Infotainment screen: warning indicator / driving situation



Read and observe   and   on page 223 first.

With the ignition switched on, the area next to and behind the vehicle is moni-

tored by the radar sensors of the system. If an approaching vehicle is detected

from the rear of the vehicle

» Fig. 267

, the system warns of this fact.

Warning - vehicles with parking aid

You will hear a continuous tone and one of the following warning levels ap-

pears on the Infotainment screen

» Fig. 267

.

An oncoming vehicle is detected. Do not continue driving backwards and

check around the vehicle.
A vehicle in the collision region is detected. Do not continue driving back-

wards



.

Warning - vehicles without parking sensors

An acoustic signal is sounded and information for the driver to observe the

traffic behind is shown in the instrument cluster.

Automatic emergency braking

If the driver does not react to the warning and the system detects an impend-

ing collision, then this can trigger an automatic braking at a speed up to 10

km/h. A corresponding message is shown in the information cluster display.

A

B

Wizard for “Blind Spot”Monitoring - Operation



Read and observe   and   on page 223 first.

At a speed over 15 km/h, the area alongside and behind the vehicle is moni-

tored by the system. At the same time, the distance and the difference in

speed between your vehicle and the other vehicles in the monitored area can

be measured.
When driving, the sensors monitor an area to the left and right to the extent of

a normal lane width.
If a vehicle is detected in the “blind spot” area, the system indicates this vehi-

cle by the indicator light



 in the exterior mirror.

System limitation

The system is unable to recognise the specific lane width by means of sensors.

Therefore this can e.g. in the following cases respond to a vehicle in a further

lane.

▶

When driving on a road with narrow lanes or on the lane edge.

▶

Driving around a bend.

The system may also respond to objects on the roadside such as crash barri-

ers, noise barriers or similar objects.

Wizard for “Blind Spot”Monitoring - driving situations and warnings

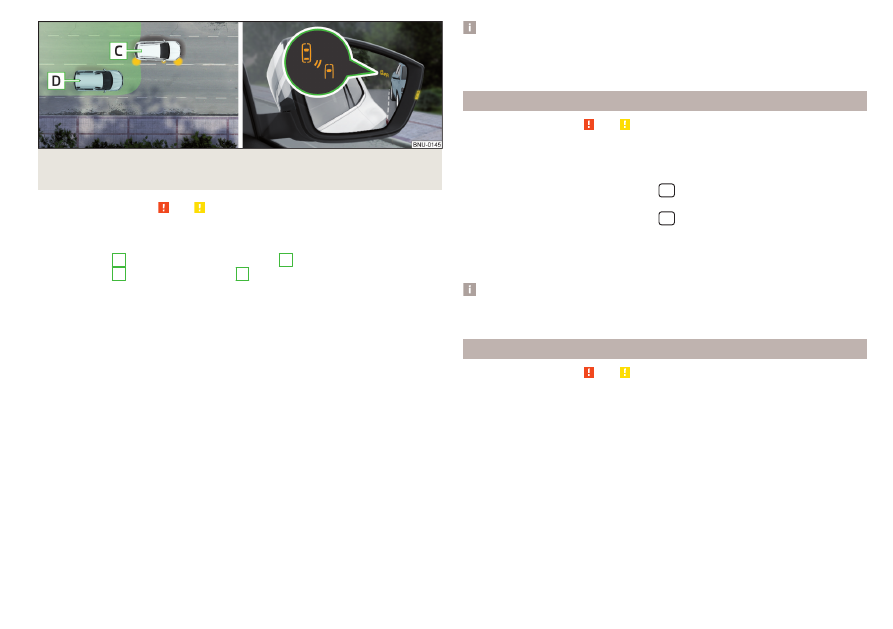

Fig. 268  Driving situation / indicator light in the left outside mirror indi-

cates the driving situation



224

Driving

Fig. 269  Driving situation / indicator light in the right outside mirror in-

dicates the driving situation



Read and observe   and   on page 223 first.

In the following situations, the indicator light in the outside mirror indicates a

vehicle in the “blind spot”.

▶

Your vehicle

B

 is being overtaken by vehicle

A

» Fig. 268

.

▶

Your vehicle

C

 is overtaking vehicle

D

 at a speed of max. 10 km high-

er

» Fig. 269

. If the speed during the overtaking is even higher, then there is

no warning by the warning light.

The warning display is always in the exterior mirror on the side of the vehicle

where a vehicle is detected in the “blind spot”.
The greater the speed difference between the two vehicles, the earlier the

warning (by means of the warning light) regarding the vehicle that is overtak-

ing you takes place.

Two warning levels



 light up - a vehicle has been detected in the “blind spot”.



 flash - a vehicle has been detected in the “blind spot” and the turn signal is

switched on.

An advanced warning for vehicles with Lane Assist



 flash also if the steering wheel is turned in the direction of the vehicle in

the “blind spot” . Therefore the Lane Assist

» page 245

 must be enabled and

the boundary line between the vehicles detected.
If in this case your vehicle indicates crossing the boundary line, with a short vi-

bration of the steering wheel.

Note

The brightness of the indicator light



 is dependent on the setting of the vehi-

cle lighting. With the low or high beam on the brightness of the light will be

lower.

Activation / deactivation



Read and observe   and   on page 223 first.

The activation or deactivation of the system can be carried out in one of the

following ways.

▶

In the instrument cluster display

» page 56

, Assist systems menu item.

▶

In the infotainment system, in menu



/  →  → Driver assistance (applies to

the wizard for “blind spot” monitoring).

▶

In the infotainment system, in menu



/  →  → Parking and manoeuvring (Ap-

plies to Rear Traffic Alerts).

After switching off and switching on the ignition, depending on the setting pri-

or to switching off the ignition, the systems remains activated / deactivated.

Note

When activating the wizard for “blind spot” monitoring, the



 warning lights

illuminate briefly in the two exterior mirrors.

Malfunctions



Read and observe   and   on page 223 first.

If the systems are not available, an appropriate message appears in the display

of the instrument cluster.

Sensor covered / dirty

If the sensor is dirty or covered, a message indicating that there is no sensor

view appears. Clean or remove the obstructing object from the sensor envi-

ronment

» Fig. 266

 on page 223.

Systems unavailable

If the systems are unavailable, a message regarding unavailability appears. Stop

the vehicle, switch off the engine and then start it again. If the systems are still

not available, seek the assistance of a specialist garage.



225

Assist systems

System fault

In the case of a system fault, an error message appears. Seek help from a spe-

cialist garage.

Reversing camera



Introduction

The rear view camera (following as system) helps the driver when parking and

manoeuvring by displaying the area behind the vehicle in the Infotainment

screen (hereinafter only referred to as screen).

WARNING

■

Please take note of the general points relating to the use of assistance

systems

» page 214,

   in section Introduction.

■

The camera may not be soiled or obscured, otherwise the system func-

tion will be significantly affected - there is a risk of accident. For informa-

tion on cleaning

» page 260

.

CAUTION

■

The camera image is distorted by contrast with eyesight. For this reason, the

screen display is only of limited use for estimating distances to following vehi-

cles.

■

Some items, such as thin posts, chain link fences, grilles or uneven road sur-

faces may not be properly displayed in terms of screen resolution.

■

In a crash or damage the vehicle's rear camera can possibly deviate from the

correct position. If this is the case, have the sensor checked by a specialist ga-

rage.

Note

The camera is equipped with a cleaning system. The spraying is carried out au-

tomatically when the rear window is sprayed.

Function

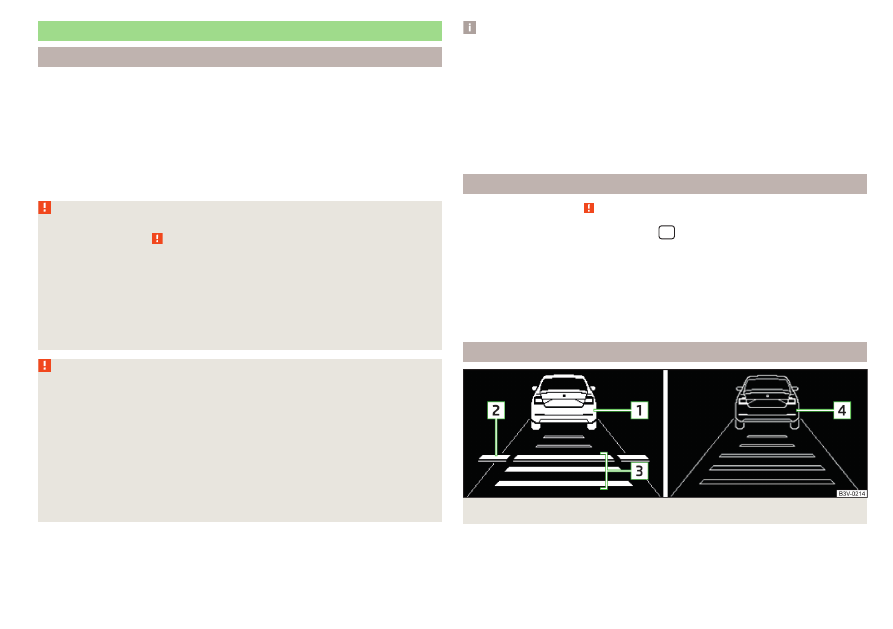

Fig. 270  Installation location of the camera / scanned area behind the

vehicle



Read and observe   and   on page 226 first.

The camera for capturing the area behind the vehicle is in the grip of the boot

lid

» Fig. 270

.

Area behind the vehicle

» Fig. 270

Detection range of the camera
Area outside the detection range of the camera

The system can assist the driver when parking and manoeuvring under the fol-

lowing basic conditions.

The ignition is switched on.
The reverse gear is engaged.
The luggage compartment lid is completely closed.
The vehicle is travelling at less than 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.

Note

■

The screen display can be interrupted by pressing the symbol button 

» Fig. 264

 on page 222.

■

After disengaging reverse gear, automatic screen display of the parking aid is

carried out (variant 2, 3)

» page 220

.

A
B













226

Driving

Guidelines and function surfaces

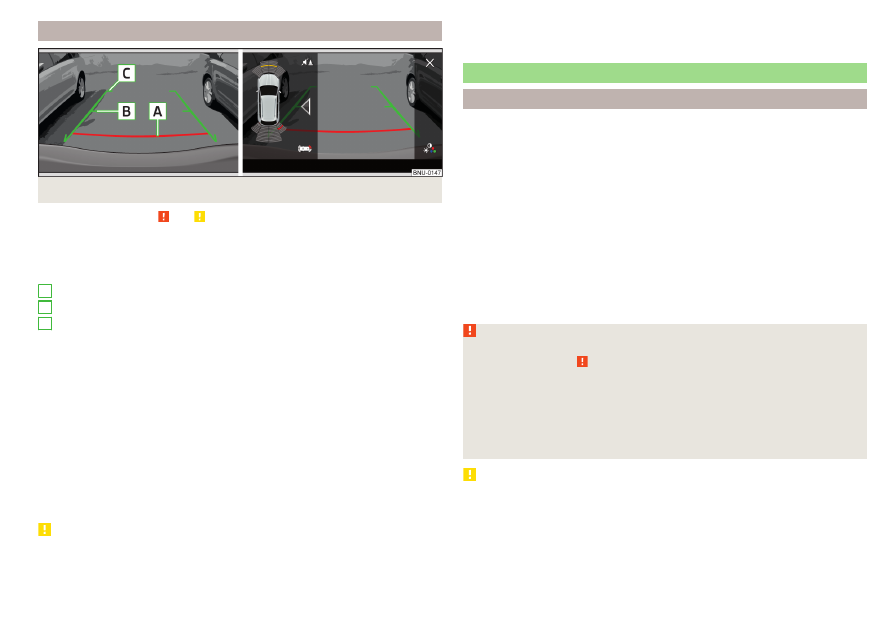

Fig. 271  Infotainment screen: Orientation lines / function interfaces



Read and observe   and   on page 226 first.

On the screen, orientation lines are shown along with the monitored area be-

hind the vehicle.
Distance of the orientation lines behind the vehicle

» Fig. 271

The distance is about 40 cm (safety distance limit).
The distance is about 100 cm.
The distance is about 200 cm.

The distance may vary slightly depending on the load of the vehicle and the

road inclination.
The distance between the side lines corresponds approximately to the vehicle

width including mirrors.
Function surfaces

» Fig. 271

Depending on the Infotainment type: Turns off the display of the area

behind the vehicle
Screen settings - brightness, contrast, colour

Switching audible parking signals on/off

Enabling and reduced park assistance display

Change to park assistance display

CAUTION

The objects shown on the screen can be closer or even further away than they

appear. This is especially the case in the following situations.

■

Protruding objects, such as the rear of a truck and the like.

A
B
C



  





  



  



■

When driving from a horizontal surface into a slope or a depression.

■

When driving from a slope or a depression onto a horizontal surface.

Park Assist



Introduction

Park Assist (following referred to system) helps drivers park in suitable parallel

and perpendicular parking places or also to manoeuvre out of parallel parking

spaces.
The system takes over the steering movements only when parking or leaving a

parking space. The driver operates the brake, accelerator or clutch pedal and

the shift / selector lever.
The state in which the steering wheel is operated by the system, is referred to

as parking operation.
The Park Assist is an extension of the parking aid

» page 219

 and operates on

the basis of data collected by the ultrasonic sensors.
For this reason, the chapter on the parking aid is to be read carefully and

the safety notes are to be observed.

WARNING

■

Please take note of the general points relating to the use of assistance

systems

» page 214,

   in section Introduction.

■

During the parking process, the system automatically performs rapid

steering movements. While it is doing so, do not place your hands between

the steering wheel – risk of injury!

■

During a parking manoeuvre on loose or slippery surfaces (gravel, snow,

ice, etc.) you may stray from the calculated road. It is therefore recommen-

ded that you do not use the system in such situations.

CAUTION

The correct evaluation of the parking space and the parking procedure de-

pends on the circumference of the wheels on the vehicle.

■

The system only works correctly if the vehicle is fitted with the wheel size

approved by ŠKODA AUTO.



227

Assist systems

■

Do not use the system if snow chains or an emergency wheel are fitted.

■

If wheels other than those approved by ŠKODA AUTO are fitted, the result-

ing position of the vehicle in the parking space can differ slightly. This can be

avoided by readjusting the system at a specialist garage.

CAUTION

If other vehicles are parked behind or on the curb, the system can drive your

vehicle over the kerb or up to the kerb - there is a risk of damage to the

wheels. Intervene in time if necessary.

Note

■

We recommend performing the parking at a safe speed to about 5 km/h.

■

The parking procedure can be stopped at any time by pressing the 

» Fig. 272

 on page 228 button or by a steering intervention.

Operation

Fig. 272

System button



Read and observe   and   on page 227 first.

The system support is provided in the following manner.

▶

While the parking space search is going on, a measurement and evaluation of

the parking space size is completed.

▶

The display of the instrument cluster (hereinafter only display) shows suita-

ble parking spaces and a parking mode is recommended.

▶

The display shows instructions and information before the start and during

the parking.

▶

Based on the calculated road surface, the front wheels will be automatically

rotated during the parking.

Conditions for the system function

The system can look for a parking space only if the following basic conditions

are met.

The system is activated.
The vehicle is travelling at less than 40 km/h.
The vehicle is travelling at less than 20 km/h.
The distance to a number of parked vehicles is approximately 0.5 - 1.5 m.
TCS is activated

» page 216

.

The system can only carry out the parking procedure if the following basic

conditions are met.

The vehicle is travelling at less than 7 km/h.
The parking procedure takes less than 6 minutes.
There is no driver intervention in the automatic steering operation.
TCS is activated

» page 216

.

The TCS does not engage.
No trailer or other accessory is connected to the trailer socket.

Activation/deactivation

The system can be activated/deactivated by pressing the  button

» Fig. 272

.

When the system is activated, the



 symbol illuminates in the button.

Parking space search



Read and observe   and   on page 227 first.

The system searches for a parking space in a number of parallel and transverse

parked vehicles on the passenger or driver's side.

Process with the parking space search

›

Slowly drive past a row of parked vehicles.

›

Activate the system with the  button

» Fig. 272

 on page 228.

The system will automatically search for a parking space on the passenger

side.
If the system finds a parking space, the recommended parking mode is dis-

played

» Fig. 274

 on page 229  or

» Fig. 275

 on page 229 - .

Activate the turn signal on the driver's side if you wish to look for a parking

space on this side of the road. The display changes and the system searches

for a parking space on the driver's side.

























228

Driving

Note

If the symbol  (km / h) is shown in the display while you are looking for a

parking space, the vehicle speed should be reduced below 40 km / hr (parallel

parking) or below 20 km / hr (Transverse parking).

Switch to park mode

Fig. 273  Menus with the parking modes: Display



Read and observe   and   on page 227 first.

While the parking space search is going on and before the start of the parking,

a menu may appear showing other suitable parking modes.
Parking modes

» Fig. 273

To park backwards in a parallel parking space
To park backwards in a traverse parking space
To park forwards in a traverse parking space

The parking mode can be changed by pressing the 

» Fig. 272

 on page 228

button.
After switching through all parking modes offered, an additional press of the


 button deactivates the system.

If you want to return to the originally recommended parking mode, press the


 button again.







Parking

Fig. 274  To park in a parallel parking space: Display

Fig. 275  To park in a traverse parking space: Display



Read and observe   and   on page 227 first.

The system supports the driver when reverse parking in the parking space

found in a number of traverse and parallel parked vehicles.
Display view

» Fig. 274

 or

» Fig. 275

Parking space recognised with the information to drive on
Parking space recognised with the information to reverse
Note to drive on to the parking space
Note to reverse to the parking space

Process for reverse parking

The parking space found is shown in the display

» Fig. 274

 -  or

» Fig. 275

 - .

›

Continue driving forwards until  appears in the display.











229

Assist systems

›

Stop and ensure that the vehicle does not continue to move forward until the

parking procedure starts.

›

Select reverse gear or move the selector lever into position R.

›

As soon as the following message is shown in the display: Steering int. active. Be

mindful of your surroundings, let go of the steering wheel and the steering is tak-

en over by the system.

›

Observe the direct vicinity of the vehicle and reverse carefully.

If necessary, the parking procedure can be continued with further steps.

›

If the arrow in the information display is flashing to the front , engage

1st gear or move the selector lever into the position D/S.

The display shows the  icon (brake pedal).

›

Depress the brake pedal and wait until the steering wheel automatically ro-

tates into the required position, the symbol  goes out.

›

Carefully drive forwards.

›

If the backwards arrow is flashing in the display - , select reverse gear again

or move the selector lever into position R.

The display shows the  icon (brake pedal).

›

Depress the brake pedal and wait until the steering wheel automatically ro-

tates into the required position, the symbol  goes out.

›

Carefully move backwards.

You can repeat these steps several times in succession.
As soon as the parking procedure is complete, an audible signal sounds and the

following message appears in the display.

Parking forwards

Fig. 276

To park forwards in a traverse parking space: Display



Read and observe   and   on page 227 first.

The system supports the driver when parking forward in the parking space

found in a number parallel parked vehicles.
As soon as the system finds a parking space, select the 

» Fig. 272

 on

page 228 button for forwards parking mode

» Fig. 273

 on page 229 - .

» Fig. 276

 Is shown in the display.

The further procedure is analogous to that for reverse parking.

›

Follow the system instructions shown in the display.

As soon as the parking procedure is complete, an audible signal sounds and the

following message appears in the display.
The system is activated by pressing the  button and this is also possible if the

vehicle has already been partially moved to a suitable parking space.

Departing from a parallel parking space



Read and observe   and   on page 227 first.

The system supports the driver when leaving a parking space of a parallel

parking space.

Leaving a parking space process

›

Press the 

» Fig. 272

 on page 228 button.

The following message is displayed: Please indicate and engage reverse gear.

›

Activate the turn signal for side of the vehicle where the parking space is out

of which you wish to manoeuvre.

›

Select reverse gear or move the selector lever into position R.

The further procedure is analogous to that for reverse parking.

›

Follow the system instructions shown in the display.

As soon as the parking procedure is complete, an audible signal sounds and the

following message appears in the display.
If the parking space is too small, it is not possible to use the system to leave

the parking space. A corresponding message is shown in the information clus-

ter display.

230

Driving

Automatic brake assist



Read and observe   and   on page 227 first.

Automatic brake assist when speeding

If a velocity of 7 km / h is exceeded during the parking manoeuvre for the first

time, the speed will be automatically reduced by the system to less than 7 km /

h. This prevents the parking manoeuvre from aborting.

Automatic emergency braking

If the system detects a risk of collision during parking, automatic emergency

braking takes place to prevent a collision.
The parking is terminated by the emergency braking.

CAUTION

The automatic emergency braking is not triggered by the system when the

parking process stops due to the speed of 7 km / hr being exceeded!

Malfunctions



Read and observe   and   on page 227 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

System unavailable

If the system is not available because the vehicle has a fault, a message ap-

pears concerning the unavailability. Seek help from a specialist garage.

System fault

In the case of a system fault, an error message appears. Seek help from a spe-

cialist garage.

Cruise Control System



Introduction

The Cruise Control System (CCS) maintains a set speed without you having to

actuate the accelerator pedal. The state where the CCS maintains the speed is

referred to hereinafter as the control.

WARNING

■

Please take note of the general points relating to the use of assistance

systems

» page 214,

   in section Introduction.

■

After pressing the clutch pedal, no interrupted control occurs! For exam-

ple, if a different gear is engaged and the clutch pedal is released, control is

continued.

Function

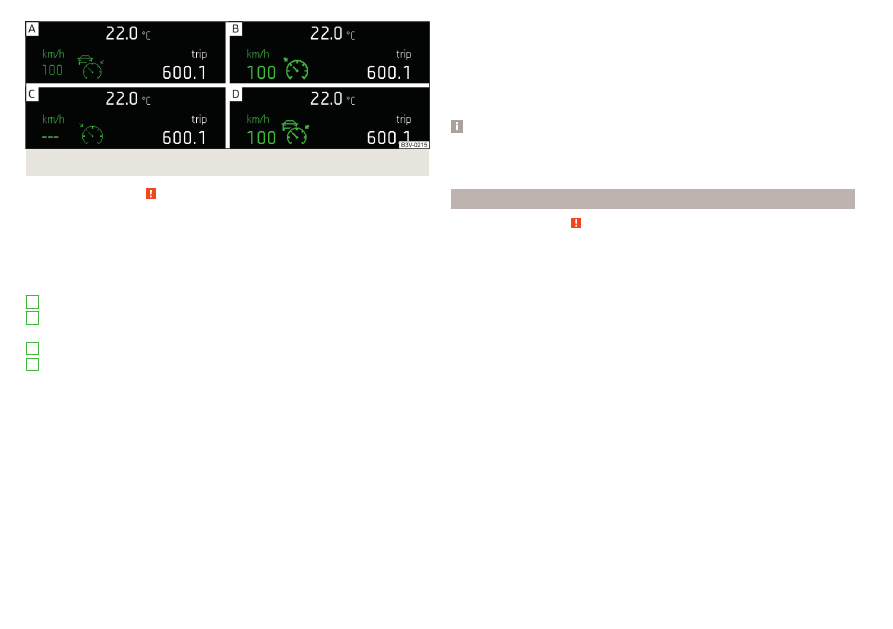

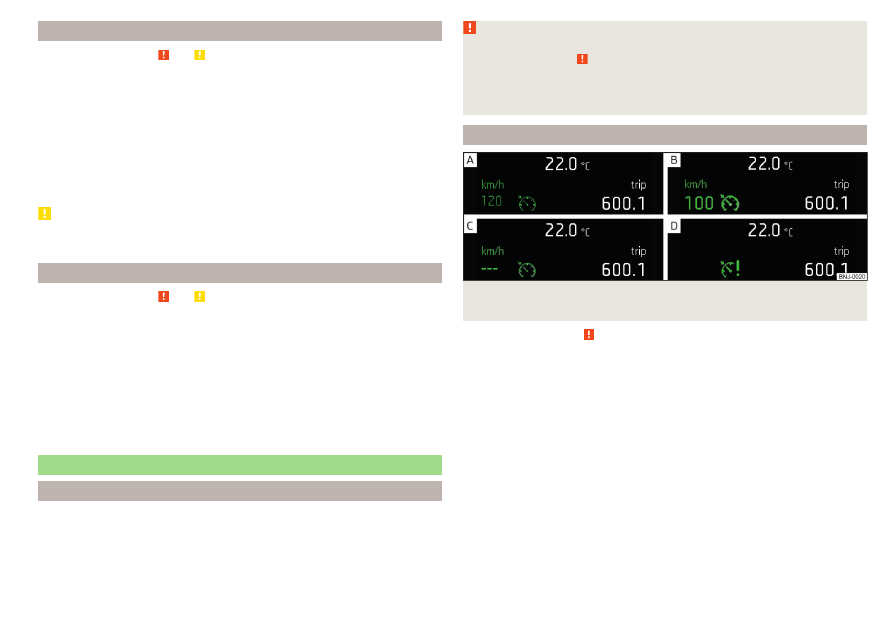

Fig. 277  Instrument cluster display: Examples of status displays the

CCS



Read and observe   on page 231 first.

CCS status displays

» Fig. 277

Speed is set, control is inactive (in the colour display the digits of speed

limits is shown in grey).
Control active (in the colour display the digits of the speed limits are high-

lighted).
No speed set.
System fault - seek assistance from a specialist garage immediately.

Basic requirements for start of control

The CCS is activated.
On vehicles with a manual transmission, the second gear or higher is en-

gaged.
On vehicles with automatic transmission, the selector lever is in the D/S

position or in the Tiptronic position.
The current speed is greater than approx. 20 km/h.



















231

Assist systems

This is only possible within the range which is permitted by the power output

and braking power of the engine.

WARNING

If the engine power and engine braking effect is insufficient in order to

maintain the set speed, the acceleration and brake pedals must be taken

over!

operation description

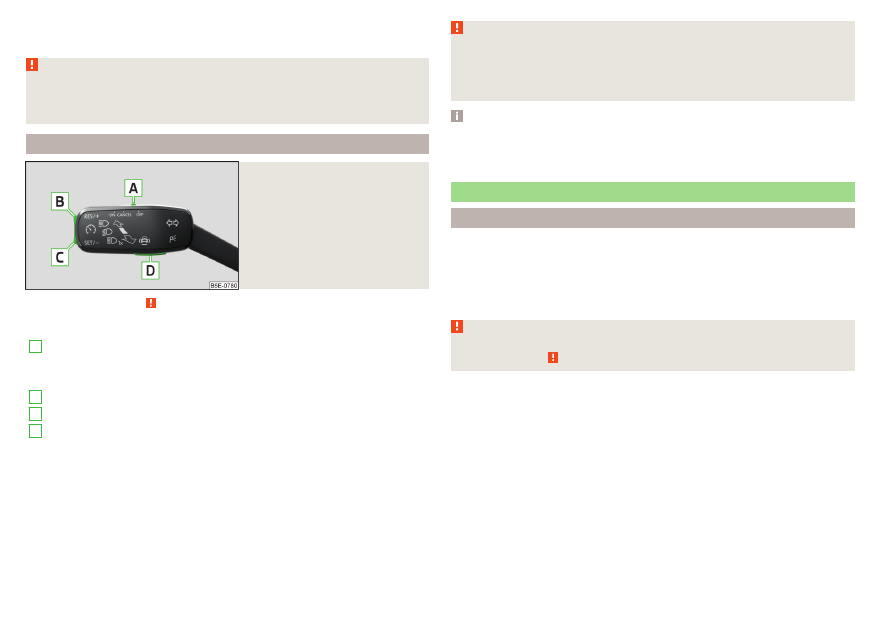

Fig. 278

Cruise control system controls



Read and observe   on page 231 first.

Overview of the control elements of the CCS

» Fig. 278

A



Activate CCS (regulation deactivated)





Interrupt control (sprung position)





Deactivate CCS (delete set speed)

B



Take control again

a)

 / Increase speed

C



Launch control / reduce speed

D



Display assistance systems menu - possibility to switch between

GRA and speed limiter

a)

If no speed is set the current speed is adopted.

After the start of the regulation, the CCS regulates the vehicle to the current

speed and the warning light



 illuminates in the instrument cluster.

The automatic control interruption occurs if any of the following conditions

are met.

▶

The brake pedal is operated.

▶

When one of the brake assist systems (e.g. ESC) intervenes.

▶

Through an airbag deployment.

WARNING

■

Always deactivate the cruise control system after use to prevent the sys-

tem being switched on unintentionally.

■

The control does not resume if the set speed for the existing traffic con-

ditions is too high.

Note

During control, speed can be increased by pressing the accelerator pedal. Re-

leasing the accelerator pedal will cause the speed to drop again to the set

speed.

Speed limiter



Introduction

The Speed Limiter limits the maximum driving speed to the set speed limit.
The speed limit can only be exceeded by depressing the accelerator pedal fully.
The condition in which the Speed Limiter prevents a potential set speed limit

excess is referred to as Regulation.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

» page 214,

   in section Introduction.

232

Driving

Function

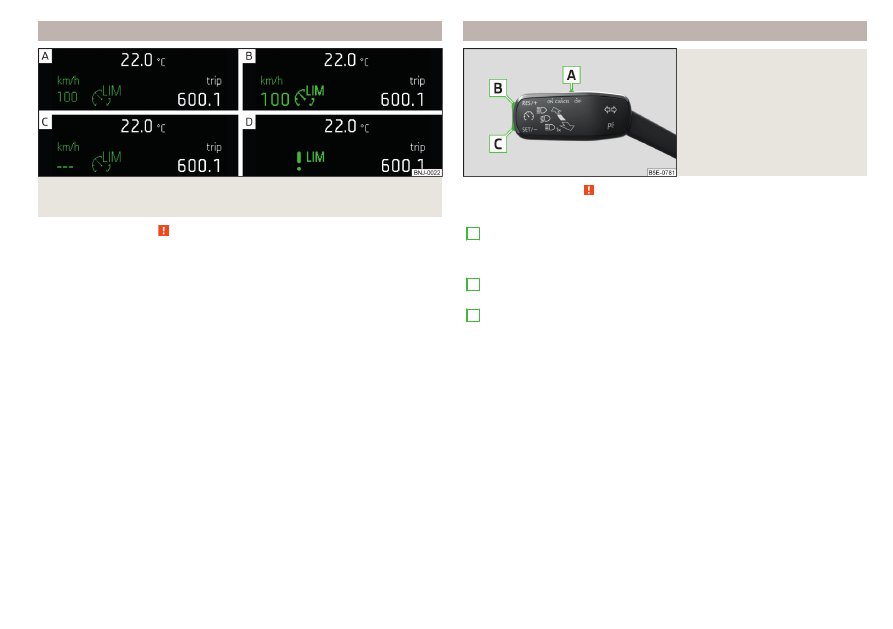

Fig. 279  Instrument cluster display: Examples of Speed Limiter status

displays



Read and observe   on page 232 first.

Speed limiter status displays

» Fig. 279

Speed limit is set, control is inactive (in the colour display the digits of

speed limits is shown in grey).
Control active (in the colour display the digits of the speed limits are high-

lighted).
No speed limit set.
System fault - seek assistance from a specialist garage immediately.

Basic requirements for start of control

The Speed Limiter is activated.
The current speed is greater than approx. 30 km/h.

After starting the system, the current speed is set as the speed limit, the warn-

ing light



 lights up in the instrument cluster.

Exceeding the speed limit during the regulation

If, during the control, it is necessary to exceed the speed limit (e.g. to over-

take), the accelerator pedal must be pressed fully.
When exceeding the speed limit (e.g. driving down a hill), an acoustic signal

sounds and the warning light



 flashes in the instrument cluster.

The regulation is resumed once the speed has fallen below the set limit.













Operation description - variant without GRA

Fig. 280

Operating elements of the

speed limiter



Read and observe   on page 232 first.

Overview of the control elements of the speed limiter

» Fig. 280

A



Activate speed limiters





Interrupt control (sprung position)





Disable speed Limiter (delete set limit )

B



Take control again

a)

 / increase speed limit - press (in increments

of 1 km/h), hold (in increments of 10 km/h)

C



Start control/ reduce speed limit - press (in increments of 1 km/h),

hold (in increments of 10 km/h)

a)

If no speed limit is set, the current speed is set as the speed limit.

233

Assist systems

Operation description - variant with GRA

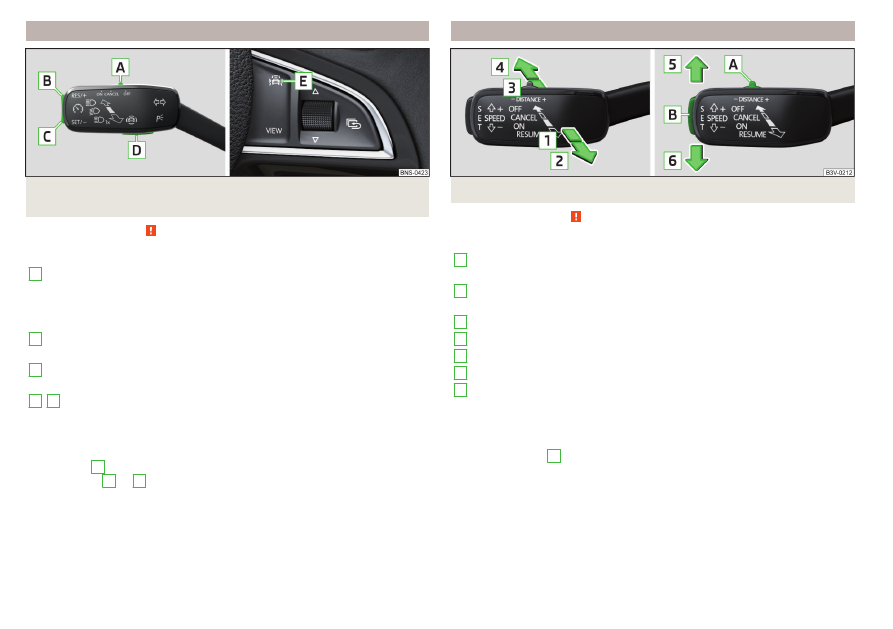

Fig. 281  Operating elements of the speed limiter: Lever / multifunction

steering wheel



Read and observe   on page 232 first.

Overview of the control elements of the speed limiter

» Fig. 281

A



Activate CCS (required condition for the subsequent activation of

the speed limiter)





Interrupt control (sprung position)





Disable speed Limiter (delete set limit )

B



Take control again

a)

/ increase speed limit - press (in increments of

1 km/h), hold (in increments of 10 km/h)

C



Start control/ reduce speed limit - press (in increments of 1 km/h),

hold (in increments of 10 km/h)

D

/

E



Display assistance systems menu - possibility to switch between

GRA and speed limiter

a)

If no speed limit is set, the current speed is set as the speed limit.

Activate speed limiters

▶

Put switch

A

 in position 

» Fig. 281

.

▶

Press button

D

 or

E

.

▶

In the instrument cluster select the menu item Speed limited.

Operating Instructions - Variant with ACC

Fig. 282  Operating elements of the speed limiter



Read and observe   on page 232 first.

Overview of the control elements of the speed limiter

» Fig. 282

1



Activate ACC (required condition for the subsequent activation

of the speed limiter)

2



Resume control

a)

 / increase speed limit by 1 km/h at a time

(sprung position)

3



Interrupt control (sprung position)

4



Disable speed Limiter (delete set limit )

5



 

Increase speed limit by 10 km/h at a time

6



 

Decrease speed limit by 10 km/h at a time

A



Start control / reduce speed limit in increments of 1 km/h

a)

If no speed limit is set, the current speed is set as the speed limit.

Activate speed limiters

▶

Put the ACC operating lever in position 

» Fig. 282

.

▶

Press the button

E



» Fig. 281

 on page 234.

▶

In the instrument cluster select the menu item Speed limited.

234

Driving

Adaptive Cruise Control (ACC)



Introduction

The Adaptive Cruise Control (hereinafter referred to as ACC) maintains the set

speed and at the same time the distance to the vehicle ahead without the ac-

celerator or brake pedal being pressed.
The front of the vehicle and the distance to the vehicle ahead is monitored by

a radar sensor

» page 214

.

The state in which the ACC maintains the speed or the proximity is described

as control from here on.

WARNING

■

Please take note of the general points relating to the use of assistance

systems

» page 214,

   in section Introduction.

■

The driver must always be ready to take over the operation of the accel-

erator and brake pedal.

■

The ACC does not react when approaching a stationary obstacle, such as

traffic jams, vehicle breakdowns or vehicles waiting at a traffic light.

■

The ACC does not respond to crossing or oncoming objects.

■

If the ACC does not decelerate fast enough, immediately apply the vehi-

cle's foot brake.

WARNING

For safety reasons, do not use the ACC under the following conditions.

■

When driving in turning lanes, motorway exits or construction sites, to

avoid an unwanted acceleration to the stored speed.

■

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

■

When road conditions are poor (e.g. ice, slippery road, gravel, dirt road).

■

Driving in “sharp” corners or in steep gradients / on steep inclines.

■

When driving through places where metal objects (such as metal build-

ings, railway tracks, etc.) can be found.

■

When driving through very divided and enclosed spaces (such as large-

capacity garages, car ferries, tunnels and the like.).

Note

■

The ACC is designed primarily for use on motorways.

■

The ACC reduces the speed by automatically releasing the accelerator or by

means of a braking procedure as appropriate. If the brakes are used for an au-

tomatic speed reduction at any moments, then the brake light illuminates.

■

In case of failure of more than one brake light on the vehicle or on the con-

nected trailer, the ACC becomes unavailable.

■

The control automatically cancels the engagement of the brake supportive

assistance systems (e.g. ESC) or when the maximum permitted engine speed is

exceeded.

Settings in Infotainment



Read and observe   on page 235 first.

›

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

■

ACC (adaptive cruise control) - Setting for the ACC

■

Driving progr.: - Adjustment of vehicle acceleration when ACC is activated

(this setting is made for vehicles with driving mode selection

» page 242

)

■

Last distance selected - Last selected distance level on/off

■

Distance: - Set the distance to the vehicles ahead

Operation

Fig. 283  Instrument cluster display: Examples of ACC displays



235

Assist systems

Fig. 284  Instrument cluster display: Examples of ACC status displays



Read and observe   on page 235 first.

The ACC makes it possible to set a speed of 30-160 or 30-210 km/h (depend-

ing on equipment fitted) as well as the distance to preceding vehicles.
The ACC can detect a vehicle that is up to approx. 150 m ahead using the radar

sensor.
ACC displays

» Fig. 283

Vehicle detected (control active)
Line showing the displacement of the distance when setting

» page 238

,

Setting the distance
Set distance to the vehicle ahead
Vehicle detected (control deactivated)

Status conditions of the ACC

» Fig. 284

Regulation is inactive (in the colour display the digits of speed limits is

shown in grey).
Regulation active - no vehicle detected (in the colour display the digits of

the speed limits are highlighted).
Regulation deactivated - no speed stored.
Regulation active - vehicle detected (in the colour display the digits of the

speed limits are highlighted).

Note to reduce speed

If the delay of the ACC is insufficient in relation to the vehicle in front, the

warning light



 lights up in the instrument cluster and the display shows a

message to engage the brake pedal.

1

2

3
4









Regulation according to the vehicle in the adjacent lane

During regulation your vehicle may be regulated according to the vehicle in the

adjacent lane.
This could occur at speeds above about 80 km/h when your vehicle is moving

faster than the vehicle in the adjacent lane on the driver's side. The display

shows the detected vehicle is in the adjacent lane.

Note

Some ACC notifications in the display of the instrument cluster may be hidden

by notifications for other functions. An ACC notification automatically appears

for a brief moment when there is a change in status of the ACC.

Automatic stopping and starting



Read and observe   on page 235 first.

Vehicles with an automatic transmission can decelerate to a standstill and

start moving again using the ACC.

Decelerate to a standstill

If a vehicle ahead decelerates to a standstill, the ACC will also decelerate your

vehicle to a standstill.

Starting to drive again after a holding period

As soon as the vehicle ahead starts moving again after a holding period, your

vehicle will also move and the speed will continue to be regulated.
If the preceding vehicle starts moving again after a long break, then to contin-

ue the regulation press the accelerator pedal or lever to set the lever in 

position

» page 237

.

236

Driving
