Stabilisation control (ESC)

Traction control (TCS)

» page 28

Antilock brake system (ABS)

» page 28

Tyre pressure

» page 29

Fuel reserve - petrol

» page 29

Fuel reserve - CNG

» page 29

Rear fog light

» page 29

Exhaust control system

» page 29



Engine performance check

» page 30

Airbag system

» page 30

Handbrake - automatic transmission

» page 30

Brake pedal - automatic transmission

» page 30



Turning signal system

» page 30

Cruise control system

» page 30

Main beam

» page 30

 

Rear seat belt warning light

» page 31

City Safe Drive

» page 31

 

START-STOP system

» page 31

Natural gas container test

» page 31

The warning lights in the instrument cluster indicate the status of certain func-

tions or the presence of faults.
Some warning lights can be accompanied by acoustic signals and messages in

the display of the instrument cluster if required.
After switching on the ignition, some warning lights light up briefly as a func-

tion test. If the tested systems are OK, the corresponding warning lights extin-

guishes for a few seconds after switching on the ignition or after starting the

engine.

WARNING

Ignoring light-up indicator lamps in the instrument cluster and the control

symbols in the display may cause serious injury or damage to the vehicle.

If you have to stop for technical reasons, then park the vehicle at a safe

distance from the traffic, switch off the engine and activate the hazard

warning light system

» page 46

. Place the warning triangle at the prescri-

bed distance.

The engine compartment of your car is a hazardous area. The following

warning instructions must be followed at all times when working in the en-

gine compartment

» page 112

Engine compartment.

 Handbrake

Read and observe   on page 26 first.

 illuminates - the hand brake is applied.

An audible warning is also given if you drive the vehicle for at least 3 seconds

at a speed of more than 6 km/h.

 Braking system

Read and observe   on page 26 first.

 lights up - the brake fluid level in the brake system is too low or there is an

ABS fault.

Stop the vehicle, switch off the engine, and check the level of the brake fluid

» page 116

.

WARNING

If the warning light

 lights up at the same time as warning light

» page 28

 Anti-lock braking system (ABS)

 do not continue your

journey! Seek help from a specialist garage.

A fault to the ABS system or the braking system can increase the vehi-

cle's braking distance – risk of accident!

 Front seat belt warning light

Read and observe   on page 26 first.

 illuminates - the driver or front passenger has not fastened their seat belt.

26

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

At a speed of over 20 km/h the warning light

 flashes and an audible warning

sounds at the same time.
The warning signal is switched of and the

 indicator light is permanently lit if

the driver and front passenger have not fastened their seat belts within the

next 90 seconds.

 Alternator

Read and observe   on page 26 first.

 illuminates - the battery is not being charged while the engine is running.

Seek help from a specialist garage.

CAUTION

If, while driving, the warning light

 lights up in addition to the warning light



» page 27

 do not drive any further - risk of damage to the engine!

Switch off the engine and seek assistance from a specialist garage.

 Engine oil pressure

Read and observe   on page 26 first.

 lights up or flashes - the engine oil pressure is too low.

An audible signal sounds as a warning.

Stop the vehicle, switch off the engine, and check the engine oil level

» page 115

Checking and refilling.

If the warning light

 lights up or flashes, do not drive any further, even if the

oil level is correct! Switch off the engine and seek assistance from a special-

ist garage.

CAUTION

The oil pressure light

 is not an oil level indicator! One should therefore

check the oil level at regular intervals, preferably after every refuelling stop.

If it is not possible to refill the engine oil,

 do not continue driving! Switch

off the engine and seek assistance from a specialist garage.

 Coolant

Read and observe   on page 26 first.

 lights up or flashes – the coolant temperature is too high or the coolant lev-

el is too low.
An audible signal sounds as a warning tone.

Stop the vehicle, switch off the engine, and allow the engine to cool down.

Check the coolant level, if necessary top up the coolant.

If the coolant level is within the specified range and the warning light

 lights

up or flashes again, then there may be a malfunction of the cooling fan.

Switch off the ignition.

Check the fuse for the cooling fan, replace if necessary.

If the coolant level and fan fuse are both OK but the warning light

 is still

illuminated

 do not drive any further!

Seek help from a specialist garage.



 Automatic transmission

Read and observe   on page 26 first.

fault

 lights up - there is a fault in the automatic transmission.

An audible signal sounds as a warning tone.

 Do not drive the vehicle! Switch off the engine and seek assistance from

a specialist garage.

Functional impairment

 lights up and gear change is not possible - for technical reasons there may

be an impairment of the automatic transmission.

Stop the car, turn the ignition off and on again.

If the warning light

 lights up after you again switch on the ignition, seek as-

sistance from a specialist garage.

Gearbox overheating



 may also light up - the automatic transmission is overheating.

An audible signal sounds as a warning tone.

27

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Stop and allow the transmission to cool down or drive more quickly than

20 km/h (12 mph).

If the warning light

 lights up again, switch off the vehicle, shut off the en-

gine and allow the gearbox to cool down.
Further information

» page 93

Automated transmission.







 Power steering

Read and observe   on page 26 first.

Fault in the power steering



 lights up – this indicates a complete failure of the power steering and the

steering assist is no longer working (significantly higher steering forces).



 illuminates - this indicates a partial failure of the power steering and the

steering forces may be greater.

Switch off the ignition, start the engine again and travel a short distance.

If the warning light does not go out, obtain assistance from an authorised

dealer.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the warning

light comes on after switching on the

 ignition.

The warning light should go out after driving a short distance.
If, after the motor is restarted and a short drive, the indicator light does not go

out, there is a system error.

Seek help from a specialist garage.

 Stability control (ESC) / Traction control (TCS)

Read and observe   on page 26 first.

 flashes – the ESC or TCS is currently being activated.

 illuminates – there is an ESC or TCS fault.

Seek help from a specialist garage.

As the ESC operates in conjunction with the ABS, the ESC warning light will

also come on if the ABS system fails.

If the warning light

 comes on after starting the engine, the ESC or TCS may

have been switched off for technical reasons.

Switch the ignition off and on again.

If the warning light

 does not illuminate after you switch the engine back on,

the ASR is fully functional again.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the warning

light comes on after switching on the

 ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-

ror.

Seek help from a specialist garage.

More information about the ESC system

» page 96

Stability Control (ESC) or

TCS system

» page 96

Traction control (TCS).

 Anti-lock braking system (ABS)

Read and observe   on page 26 first.

 lights up – there is an ABS fault.

The vehicle will only be braked by the normal brake system without the ABS.

Seek help from a specialist garage.

In the event of an ABS fault, the other braking and stabilization systems are

turned off

» page 96

Braking and stabilisation systems .

WARNING

If the ABS warning light

 together with the indicator light



» page 26

,

 Braking system lights up,

 do not continue to drive! Seek help from a

specialist garage.

A fault to the ABS system or the braking system can increase the vehi-

cle's braking distance – risk of accident!

28

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Tyre pressure

Read and observe   on page 26 first.

Change of tyre pressure values

 illuminates - there was a pressure change in one of the tyres.

An audible signal sounds as a warning.

Immediately reduce speed and avoid sudden steering and braking manoeu-

vres.

Stop the vehicle, turn the ignition off and check the tyres and their inflation

pressures

» page 120

.

Correct the tyre pressure if necessary or replace the affected wheel

» page 124

 or use the repair kit

» page 127

.

Save the tyre pressure values in the system

» page 101

.

System fault

 flashes for approximately 1 minute and remains lit – there may be a fault in

the tyre pressure monitoring system.

Stop the vehicle, turn the ignition off and start the engine again.

If the warning light

 flashes again after the engine has started, there is a sys-

tem error.

Seek help from a specialist garage.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the warning

light comes on after switching on the

 ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-

ror.

Seek help from a specialist garage.

Other incidents

The following reasons can explain the warning light

 being illuminated.

The vehicle is loaded on one side. Distribute the load evenly.

The wheels of one axle are loaded more heavily (e.g. when driving uphill or

downhill).

Snow chains are mounted.

A wheel has been changed.

CAUTION

Under certain circumstances (e.g. sporty style of driving, wintry or unpaved

roads) the warning light

 in the instrument cluster can be delayed or does

not light up at all.

 Fuel reserve - petrol

Read and observe   on page 26 first.

 lights up – the petrol level in the fuel tank is at the reserve level (approxi-

mately 4-5 litres).
An audible signal sounds as a warning.

Fill up with fuel

» page 109

.

 Fuel reserve - natural gas

Read and observe   on page 26 first.

 lights up – the natural level in the fuel tank is at the reserve level (approxi-

mately 1.5 kg litres).
An audible signal sounds as a warning.

Fill up with fuel

» page 110

.

 Rear fog light

Read and observe   on page 26 first.

 illuminates - the rear fog light is switched on.

 Emission control system

Read and observe   on page 26 first.

 illuminates – there is a fault in the emission control system. The system

makes it possible to drive on in emergency mode – there may be a noticeable

reduction in engine performance.

Seek help from a specialist garage.

29

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------



 Engine electronics check

Read and observe   on page 26 first.



 lights up – there is a fault in the engine management system. The system

makes it possible to drive on in emergency mode – there may be a noticeable

reduction in engine performance.

Seek help from a specialist garage.

 Airbag system

Read and observe   on page 26 first.

System fault

 lights up – there is a fault in the airbag system.

This also applies if the warning light does not come on when the ignition is

switched on.
The functionality of the airbag system is monitored automatically even if one

of the airbags is switched off.

One of the airbags or a belt tensioner has been disabled by the diagnostic

tool

 lights up for approximately 4 seconds after the ignition is switched on and

then flashes for approximately 12 seconds.

The front passenger airbag has been disabled with the key switch

 lights up for a few seconds when the ignition is switched on.



 

 Below the lettering    in the middle of the dashboard, lights

up after switching on the ignition

» page 16

Deactivating the front passenger

airbag.

WARNING

When a fault in the airbag system occurs, there is a risk of the system not

being triggered in the event of an accident. Therefore, this must be

checked immediately by a specialized garage.

 Handbrake - automatic transmission

Read and observe   on page 26 first.

 lights up or flashes - engage the parking brake.

Further information

» page 93

Automated transmission.

 Brake pedal - automatic transmission

Read and observe   on page 26 first.

 lights up – apply the brake.

Further information

» page 93

Automated transmission.



 Turn signal system

Read and observe   on page 26 first.

 flashes - the left turn signal is switched on.

 flashes – the right turn signal is turned on.

If there is a fault in the turn signal system, the warning light flashes at twice its

normal rate.
When the hazard warning light system is switched on, this will cause all of the

turn signal lights as well as both warning lights to flash.

 Cruise control system

Read and observe   on page 26 first.

 illuminates – the vehicle speed is regulated by the cruise control system.

 Main beam

Read and observe   on page 26 first.

 illuminates - the main beam or headlight flasher is switched on.

30

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Rear seat belt warning light

Read and observe   on page 26 first.

 illuminates – a rear seat belt is not fastened.

 illuminates - a rear seat belt is fastened.

When the seat belt is fastened/unfastened, the particular light lights up briefly

and indicates the current belt status!

 City Safe Drive

Read and observe   on page 26 first.

 flashes quickly - the City Safe Drivesystem is braking the vehicle automati-

cally.

 flashes slowly - the system is not available or there is a system malfunction.

If the system is turned off and the vehicle is moving at a speed of about 5-30

km/h, the warning light   lights up in the instrument cluster display.
If the system is activated again, the warning light   lights up in the instru-

ment cluster display for about 5 s.
Further information

» page 99

City Safe Drive.

  START-STOPsystem

Read and observe   on page 26 first.

 lights up - the START-STOPsystem is active.

 lights up - the START-STOPsystem is active, but automatic engine cut-off is

not possible.

 flashes - the START-STOPsystem is not available.

Further information

» page 89

START-STOP system.

 Natural gas tank test

Read and observe   on page 26 first.

 lights up - Note on the natural gas tank test

The indicator light  will be displayed along with the remaining days until the

natural gas tank check.
An audible signal sounds as a warning.

Seek help from a specialist garage.

WARNING

If the natural gas tank test fails, the natural gas drive is not available in your

vehicle.

31

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Information system

Driver information system

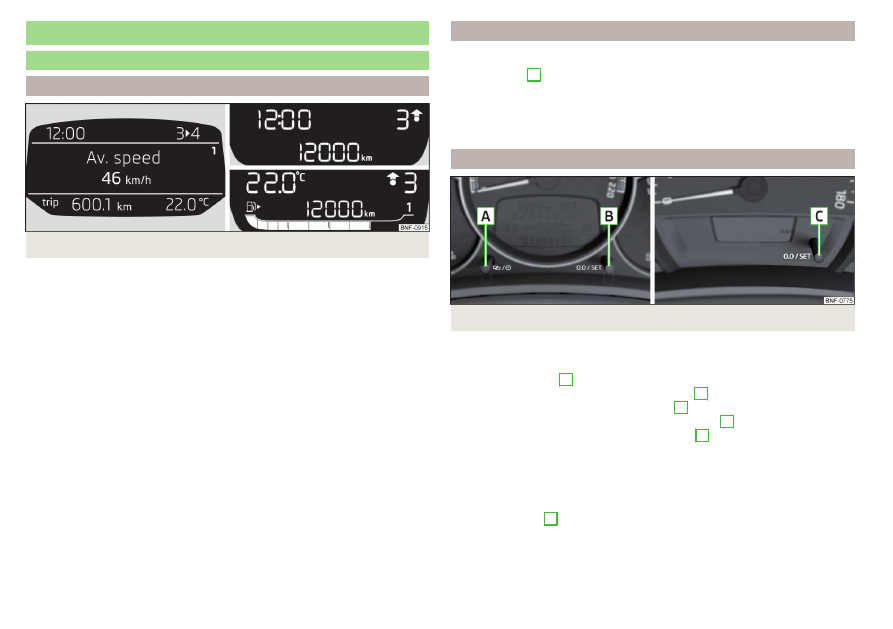

Display in the instrument cluster

Fig. 22  Display types: MAXI DOT / segment displays

Depending on the vehicle's equipment, the information system uses the dis-

play in the instrument cluster to provide the following information

» Fig. 22

.

Time

Counter for distance travelled (trip)

Engaged gear / gear recommendation

Warning lights

Information messages

Service interval display

Multifunction display

External temperature display

Fuel gauge

» Fig. 18

 on page 24

Door alarm

Door, luggage compartment and bonnet alarm

When the door or luggage compartment / bonnet is open, a graphical warning

appears in theMAXI DOT display. An acoustic signal will also sound if you drive

the vehicle above 6 km/h when a door is open.

Switching between the time and external temperature display

only applies to the segment display (instrument cluster - variant 3).

Hold the key

C



» Fig. 23

 on page 32 until the time / external temperature

display flashes.

Release the button.

Select the desired indication by pressing briefly.

Wait a few seconds until the selected indication stops flashing.

Setting the time in the instrument cluster

Fig. 23  Buttons in the instrument cluster: Variant 1 and 2 / variant 3

The time can be adjusted with the ignition on.

Instrument cluster - Var. 1 and 2

Press down button

A

 until

» Fig. 23

the hour flashes in the display.

The hour is set by repeatedly pressing button

B

.

Switch to the minutes by pressing button

A

.

The minutes are set by repeatedly pressing button

B

.

Confirm the value entered by pressing button

A

 again, or wait for around 5

seconds. The setting is saved automatically (the value stops flashing).

In vehicles equipped with the instrument cluster-Var.1 display, it is also possi-

ble to set the Time in the time menu item

» page 36

Menu item Settings.

Instrument cluster - Var. 3

Hold the button

C



» Fig. 23

until the time display flashes.

Release the button and keep it pressed down until the hour display starts

flashing.

Release the button and set the hour by pressing repeatedly.

Press and hold the button until the minutes display flashes.

32

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Release the button and set the minutes by pressing repeatedly.

Keep the button pressed down until the minute indicator stops flashing on

the display.

Trip counter

Fig. 24  Counter for distance travelled (trip)

Display

» Fig. 24

MAXI DOTdisplay- Counter showing the distance travelled since the last

reset (trip)
Segment display- Counter showing the distance travelled since the last re-

set (trip)
Segment display - Odometer

Choose between the odometer display and the counter showing the

distance driven (trip)

Only applies to vehicles with a segment display.

Press the button

B

 or

C



» Fig. 23

 on page 32.

On vehicles with the MAXI DOTdisplay, an indication of the total odometer is

part of the driving data

» page 34

.

Reset counter for distance travelled (trip)

Select the counter for the distance driven which has been reset (trip) and

hold the button

B



C

 or

» Fig. 23

 on page 32.

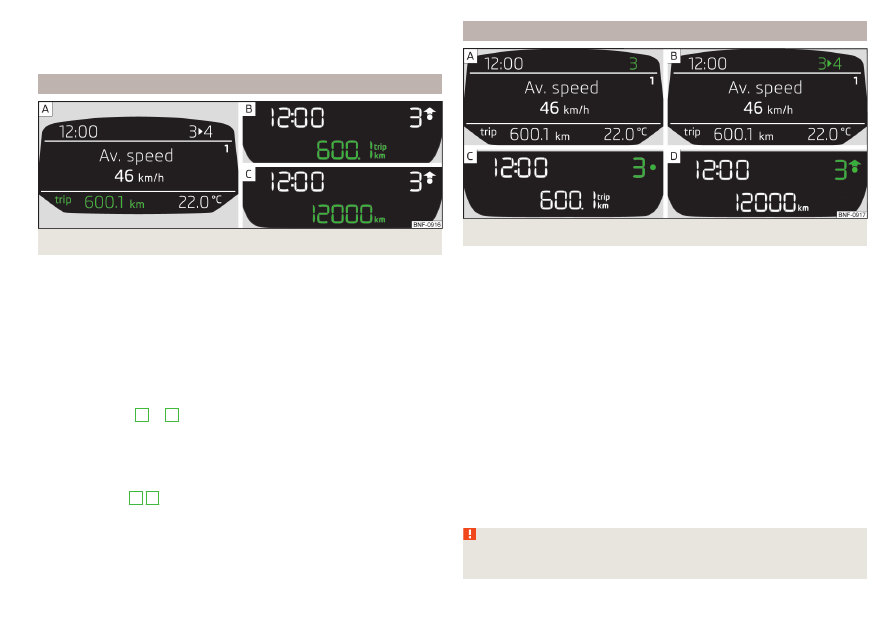

Recommended gear

Fig. 25  Information on the selected gear / Recommended gear

A suitable engaged gear or, where appropriate, a recommended gear is dis-

played, with the aim of conserving the life of the engine and increasing driving

efficiency.
For vehicles with automatic transmission the recommended gear will be

shown when the mode for manual gear-changing (Tiptronic) is selected.

Display

MAXI DOT display

» Fig. 25

Optimal gear engaged
Gear recommendation (e.g.    means that it is advantageous to switch

from 3. to 4. gear)

Segment display

» Fig. 25

Optimal gear engaged
Recommended gear

 - Recommends that you change up to a higher gear

 - Recommends that you change down to a lower gear

Recommended gear (e.g.   means that it would be beneficial to change

from 3. gear to a higher gear)

WARNING

The driver is always responsible for selecting the correct gear in different

driving situations (e.g. when overtaking).

33

Information system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

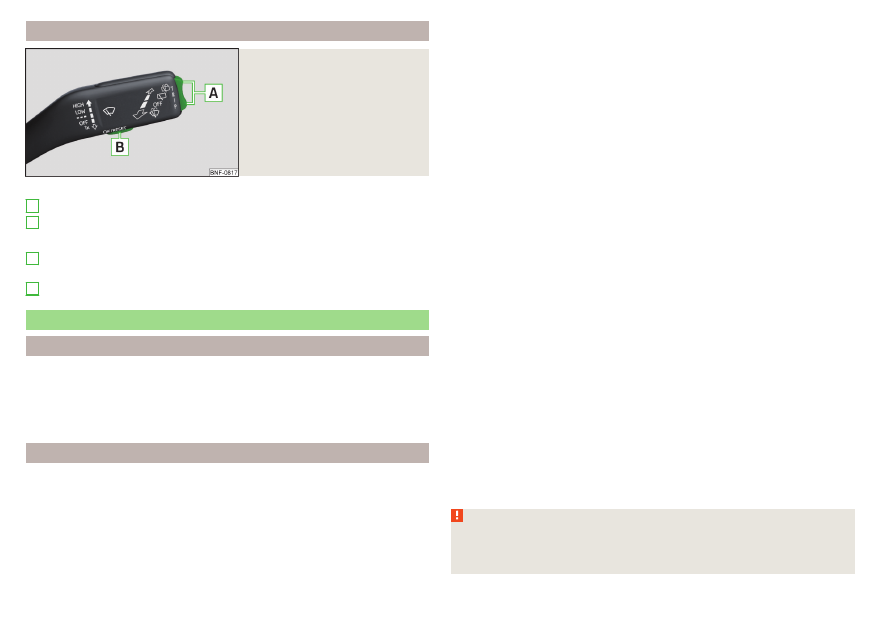

Operating the information system

Fig. 26

Buttons on the control lever

Operating the multifunction display

Press (up or down) - Select data / Setting values
Press Show / confirm entry

Operating the MAXI DOT display

Press (up or down) - move to the selected menu

Hold (up or down) - display main menu
Press - confirm selected menu item

Driving data (multifunction display)

Introduction

The driving data is displayed in the multifunction display when is ignition is

switched on.
On vehicles with a MAXI DOT display, there is an option to fade out the units

and some of the information

» page 36

Menu item Settings.

Information overview

Overview of driving data (depending on the vehicle equipment).
Clock - current time is displayed.
Outside temperature - If the outside temperature drops below +4 °C, the

temperature indicator appears and a snowflake symbol  (display for low tem-

perature) flashes for a few seconds, then remains displayed together with the

outside temperature.
Driving time - Driving time since last clearing the memory.

A
B

A

B

Current fuel consumption - When the vehicle is stationary or moving slowly,

the fuel consumption is displayed in l/h (in models in some countries the fol-

lowing appears --,- km/l). With G-TEC vehicles the current consumption of the

fuel currently being used is displayed ( with regards to a stationary or slow

moving vehicle, the natural gas consumption is displayed in kg/h).
Average fuel consumption - Is calculated continuously since the last clearing

of the memory. After erasing the memory, no data will appear for the first 300

m driven. With G-TEC vehicles, the average consumption of fuel currently be-

ing used is displayed.
Natural gas quality - The details of the quality of natural gas are displayed as a

percentage of between 70% to 100%. The higher the value of natural gas, the

lower is the consumption.
Range - Drive distance in km which can be covered with the existing tank ca-

pacity and with the same driving style. If you drive more efficiently this value

can increase. With G-TEC vehicles the following details are displayed - Range

with natural gas / petrol.
Distance driven - Distance driven since the memory was last cleared.
Total distance travelled - Odometer
Average speed - Value constantly recalculated, for distance since last clearing

the memory. After erasing the memory, no data will appear for the first 300 m

driven.
Current Speed - Digital speedometer.
Coolant temperature - If the coolant temperature is in the range 70-120 °C,

the engine operating temperature has been reached. If the temperature is be-

low 70 ° C, high engine speeds and straining the engine should be avoided. If

the temperature is over 120 ° C, the warning light lights up the instrument

cluster



» page 27

.

Oil temperature - if the temperature is lower than 50 °C or if there is a fault in

the system for checking the oil temperature, the  symbols are displayed.
Warning of excessive speed - It is possible to set a speed limit.

WARNING

Even at temperatures of around +4 °C, black ice may still be on the road

surface! You should therefore not only rely on the outside temperature dis-

play for accurate information as to whether there is ice on the road.

34

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning at excessive speeds

The system offers the possibility to set a speed limit beyond which an acoustic

warning signal will sound and the following warning message (MAXI DOT Dis-

play) and the  symbol appears in the display of the instrument cluster.

Adjust the speed limit while the vehicle is stationary

Select the menu item Speed warning at or  and confirm.

Set the desired speed limit.

Confirm the set value, or wait several seconds; your settings will be saved

automatically.

Adjusting the speed limit while the vehicle is moving

Select the menu item Speed warning at or  and confirm.

Drive at the desired speed.

Confirm the current speed as the speed limit.

The set speed limit can be manually adjusted later if needed.

Reset speed limit

Select the menu item Speed warning at or  and confirm.

By confirming the speed stored in the memory, the speed limit is reset.

The set driving mode remains stored even after switching the ignition on and

off. If the break in a journey exceeds 2 hours, the pre-set speed limit is deacti-

vated.

Memory

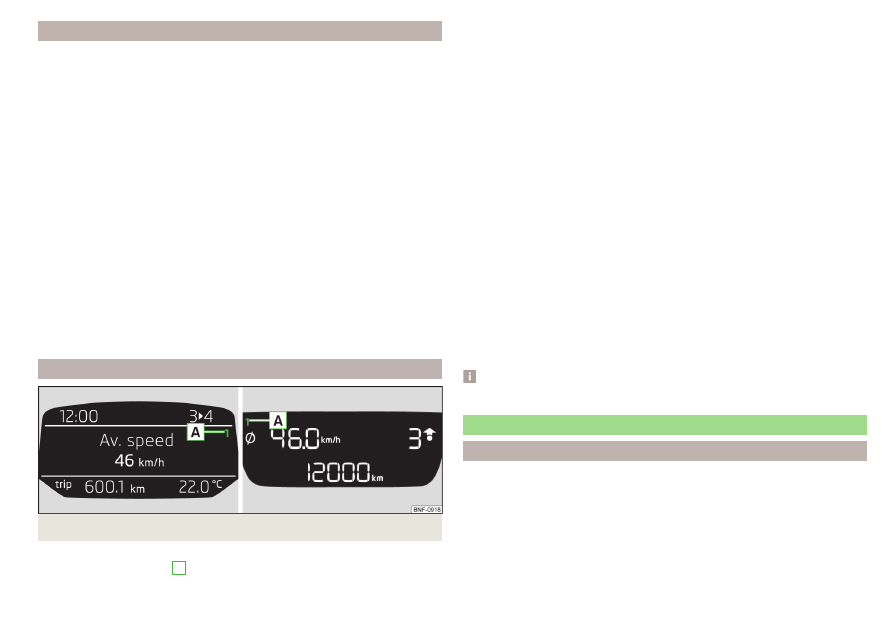

Fig. 27  Memory display: MAXI DOT display / Segment Display

The system stores data from the two memories described below, which are

then displayed at position

A



» Fig. 27

.

“1” - Single-trip memory

Drive data is stored from when the ignition is switched on to when it is switch-

ed off. If the trip is continued within 2 hours after switching off the ignition,

new data will also flow into the calculation of the current driving information.
If the trip is interrupted for more than 2 hours, the memory is automatically

erased.

“2” - Long-term memory

The memory gathers driving information from any number of individual jour-

neys up to a total of 19 hours and 59 minutes driving or 1,999 kilometres driv-

en.
The indicator is automatically set back to zero if one of these two values is ex-

ceeded.

To select the preferred memory bank choose the desired specification of

the multi-function display and select by repeatedly confirming the preferred

memory bank.

For Deleting the memory for the selected information, hold down the but-

ton confirming the specification.

The following drive data is stored in different memory banks.

Average fuel consumption.

Distance driven.

Average speed.

Driving time.

Note

Disconnecting the vehicle battery will delete all memory data.

MAXI DOT display

Introduction

The MAXI DOT display is a user interface which, depending on equipment fit-

ted, provides information about the radio, the multifunction display, the assis-

tance systems etc.
The menus with details can be operated and displayed using the buttons on

the operating lever

» page 34

.

35

Information system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Main menu points

MFD (Multifunction display)

» page 34

Audio

» page 36

Vehicle status

» page 36

Settings

» page 36

Note

If warning messages are displayed, these messages must be verified to ac-

cess the main menu.

The menu chosen always shifts to one of the higher levels after 10 seconds if

the display is not currently active.

Menu item Audio

The following information is displayed in the Audio menu item.

Radio

Currently playing station (name/frequency).

The selected frequency range (e.g. FM) optionally with the number of the

station button (e.g. FM 3), if the station is stored in the memory list.

List of available stations (if more than 5 stations can be received).

TP traffic announcements.

Media

Name of the track being played, if necessary, further information regarding

title (e.g. artist, album name), if this information is stored as a so called ID3

tag on the audio source.

Menu item Vehicle status

Certain functions and conditions of individual vehicle systems are checked

continuously when the ignition is switched on. If there is a system failure, the

relevant message is displayed in the MAXI DOTDisplay, in conjunction with in-

dicator lights, if necessary, indicator light illumination takes place in the instru-

ment cluster

» page 25

Warning lights.

The menu item Vehicle status is shown in the main menu of the MAXI DOT dis-

play whenever there is at least one fault message . After selecting this menu,

the first of the error messages is displayed.
Several error messages are shown on the display under the message e.g. 1/3.

This indicates that the first of a total of three error messages is being dis-

played.

Menu item Settings

There is an option to change certain settings using the display. The following

menu items can be selected.
Language Setting the language for the texts shown on the display.
MFD data - Switching on/off certain information of the multifunction display.
Time - Setting the time, the time format (24 or 12 hour) and the change-over to

summer/winter time.
Units - Setting the units for temperature, consumption and distance travelled.
Service - Display the distance travelled and the days until the next service date.
Factory setting. - Resetting the display functions to factory settings.

Service intervals

Introduction

Compliance with the service intervals is of crucial importance for the serv-

ice life and value retention of the vehicle. Never exceed the service date.
The specialist garage will inform you about the type of service interval, the op-

tion to change it, and the service scope.
The service interval display in the display of the instrument cluster will notify

you when a service is due.

Service record

A specialist garage will confirm the corresponding service record in the service

information system called Digital Service Plan.
We recommend that you always print out the respective service record.

Note

The customer is responsible for covering the cost of all services including

changing or replenishing the oil, even during the warranty period, unless stated

otherwise in the ŠKODA AUTO warranty terms or other binding agreements.

36

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Displaying the distance and days until the next service interval

Messages regarding the kilometres and days until the next service appoint-

ment can be displayed any time when the ignition is on, in the service menu

item

» page 36

Menu item Settings.

Service messages

Prompt in the MAXI DOT display

Before the next service date has been reached, the symbol as well as a mes-

sage about the mileage or days until the next service event appears in the dis-

play after switching on the ignition.
Once the service date has been reached, a message appears in the display af-

ter the ignition is switched on.

Prompt in the segment display

Before the next service date has been reached, a key symbol  and the re-

maining kilometres are indicated on the display for several seconds after

switching on the ignition.
Once the service date has been reached, an acoustic signal will sound when

the ignition is switched on and the symbol  will be displayed for a few sec-

onds.

Unlocking and opening

Unlocking and locking

Introduction

The vehicle may be equipped with a central locking system which makes it

possible to unlock/lock all doors and the boot lid simultaneously.
The turn signal lights flash twice as confirmation that the vehicle has been un-

locked.
If you unlock the vehicle and do not open a door or the boot lid within the next

30 seconds, the vehicle will lock again automatically.
The turn signal lights flash once as confirmation that the vehicle has been

locked.
If the driver's door has been opened, the vehicle cannot be locked.
If the doors or the luggage compartment lid remain open after the vehicle has

been locked, the turn signal lights do not flash until they have been closed.

Automatic locking / unlocking of a vehicle with central locking system

This function enables the locking of all doors and the boot lid from a speed of

15 km / h. Opening the doors and the boot lid from the outside is not possible.
Renewed automatic unlocking of all doors as well as the luggage compartment

door when removing the ignition key or by opening any of the doors.

WARNING

Never leave the key in the vehicle when you exit the vehicle. Unauthorised

persons (e.g. children) could lock the car, turn on the ignition or start the

engine - danger of injury and accidents!

When leaving the vehicle, never leave persons who are not completely in-

dependent, such as children, unattended in the vehicle. These individuals

might not be able to exit the vehicle by themselves or to help themselves.

Can be fatal at very high or very low temperatures!

37

Unlocking and opening

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Each key contains electronic components; therefore it must be protected

against moisture and severe shocks.

Keep the key grooves clean. Impurities (textile fibres, dust etc.) have a nega-

tive effect on the functionality of the locking cylinder and ignition lock.

Unlock / lock using key and lock

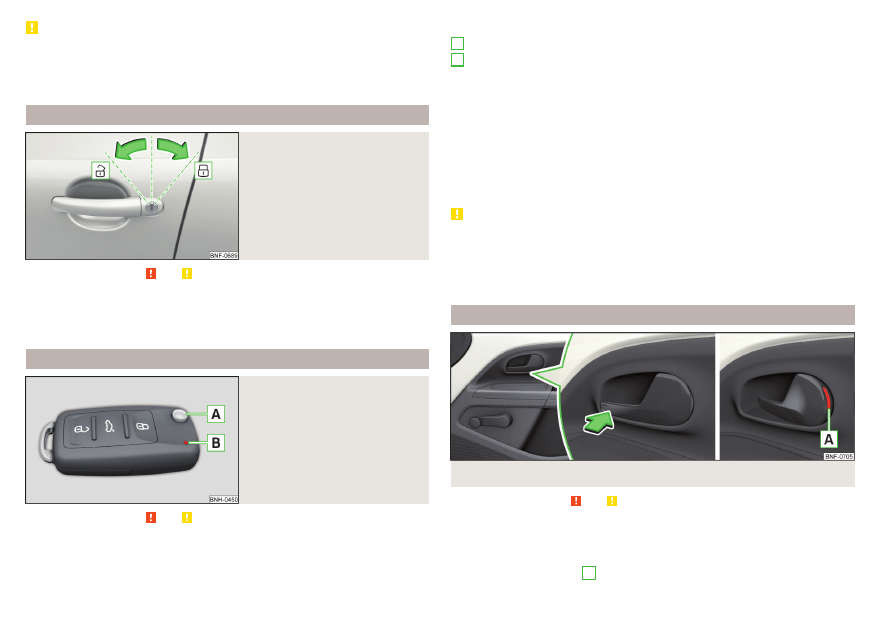

Fig. 28

Left side of the vehicle: Turning

the key for unlocking and lock-

ing the vehicle

Read and observe   and   on page 37 first.

Unlocking/locking the vehicle with the key

» Fig. 28

Unlocking the vehicle
Locking the vehicle

Unlocking/locking with the remote control key

Fig. 29

Key with pop-out key bit

Read and observe   and   on page 37 first.

Description of the key

» Fig. 29

Unlock button
Lock button

Button to unlock the boot lid
Button for popping out/pushing in the key bit
Battery status warning light - if the warning light does not flash when you

press a button on the key, the battery is discharged.

Unlocking / locking the boot lid

By pressing lightly on the button  the lid is unlocked.
By pressing down on the button  the lid is unlocked and unlatched (part-

opened).
If the lid is unlocked or released with the button , then the lid is automatical-

ly locked after closing. The period of time after which the flap is locked can be

set

» page 41

.

CAUTION

The remote control may be affected by signal superimposition by transmit-

ters close to the car.

The range of the remote control key is about 30 m. The battery must be re-

placed if the central locking only reacts to the remote control at a distance of

less than approximately 3 m away

» page 131

.

Vehicle unlocking / locking with the door opening lever

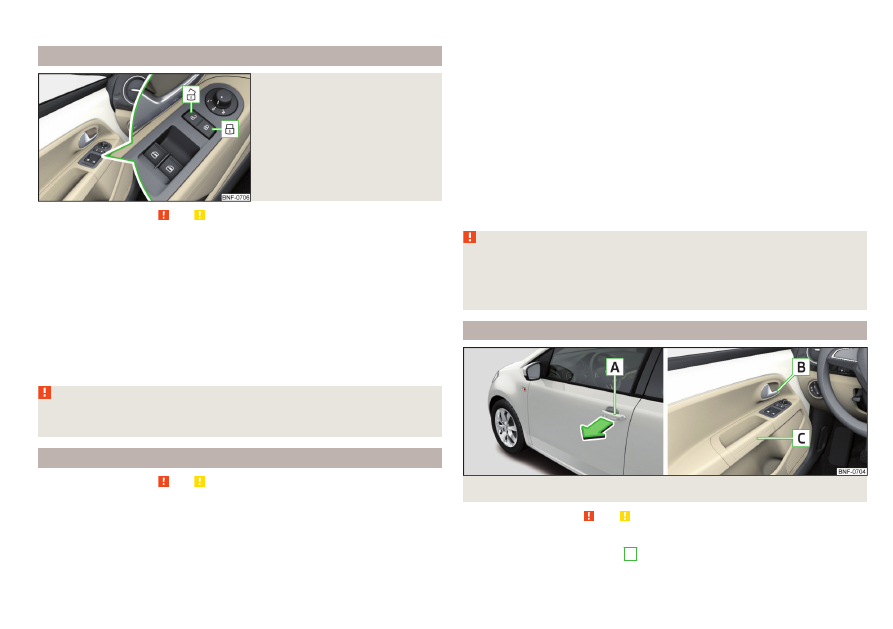

Fig. 30  Door opening lever

Read and observe   and   on page 37 first.

On vehicles without central locking, you can lock and unlock doors which do

not have a locking cylinder from the inside.

To unlock the door, push the door opening lever in the direction of the arrow

so that the red marking

A

 is visible

» Fig. 30

.

A
B

38

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To unlock the door pull the door opening lever.

Vehicle locking / unlocking with the central locking button

Fig. 31

Central locking button

Read and observe   and   on page 37 first.

Conditions for locking/unlocking using the central locking button.

The vehicle is not locked from the outside.
All doors are closed.

To lock, press the  button

» Fig. 31

.

To unlock, press the button .

The following applies after locking.

Opening the doors and the boot lid from the outside is not possible.

The doors can be unlocked and opened from the inside by a single pull on the

opening lever of the respective door.

WARNING

Doors locked from the inside make it difficult for rescuers to get into the

vehicle in an emergency – risk to life!

SafeLock

Read and observe   and   on page 37 first.

SafeLock prevents the door from being opened from the inside. This makes an

attempted break-in to the vehicle more difficult.

Activating

SafeLock is activated when the vehicle is locked from the outside.

This function is pointed out by the following message   on the display of

the instrument cluster after switching out the ignition.

Activation display

When SafeLock is activated the warning light in the driver's door flashes for 2

seconds in rapid succession, then starts to flash at longer intervals.

Deactivating

The safelock can be switched off by locking twice within 2 seconds.
The warning light in the driver door flashes rapidly for about 2 seconds, then

goes out and starts to flash at longer intervals after about 30 seconds.
If the vehicle is locked and the safe securing system is switched off, the door

can be opened separately from the inside by a single pull on opening lever.
The Safelock system switches back on when the vehicle is locked.

WARNING

If the car is locked and the safe securing system activated, no people must

remain in the car as it will then not be possible to either unlock a door or

open a window from the inside. The locked doors make it more difficult for

rescuers to get into the vehicle in an emergency – risk to life!

Opening/closing a door

Fig. 32  Door handle/door opening lever

Read and observe   and   on page 37 first.

To open from the outside, unlock the vehicle and pull in the direction of ar-

row

» Fig. 32

 the door handle

A

.

39

Unlocking and opening

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To open from the inside pull the door opening lever

B

 and push the door

away from you.

To the lock from the inside grab handle

C

 and close the door.

WARNING

The door must be closed properly, otherwise it could open whilst the ve-

hicle is in motion - risk of fatality!

Only open and close the door when there is no one in the opening/closing

range – risk of injury!

Never drive with the doors open - there is a risk of death!

An opened door can close automatically if there is a strong wind or the

vehicle is on an incline – risk of injury!

Child safety lock

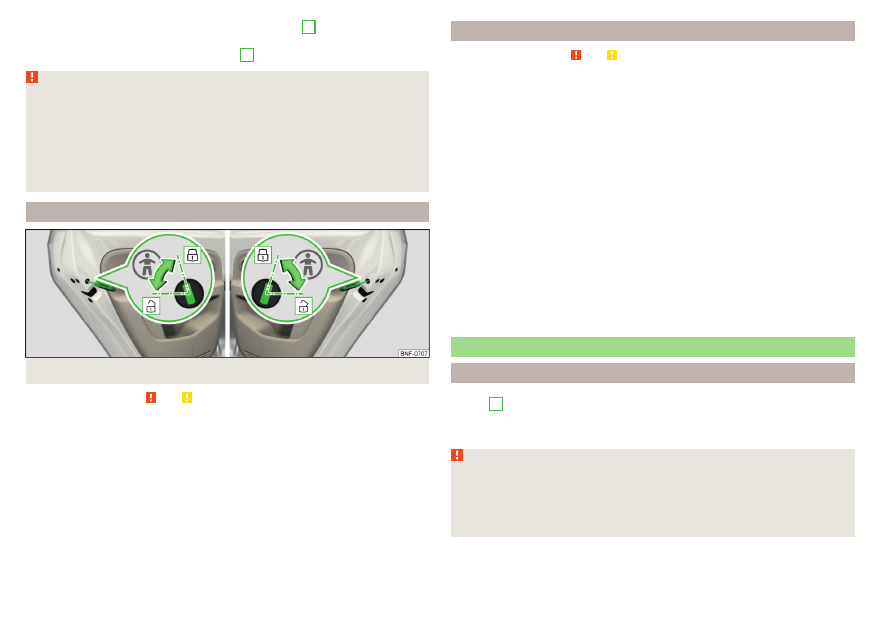

Fig. 33  Rear door: Child safety lock switch on / off

Read and observe   and   on page 37 first.

The child safety lock prevents the rear door from being opened from the in-

side. The door can only be opened from the outside.

To turn on the child safety lock, turn the vehicle key to position 

» Fig. 33

.

To turn off the child safety lock, turn the vehicle key to position .

Malfunctions

Read and observe   and   on page 37 first.

Synchronise remote

If the buttons on the remote control key have been depressed several times

beyond the effective range of the equipment or the battery has been replaced

in the remote control key and the vehicle cannot be unlocked with the remote

control, the key must be synchronised.

Press any button on the remote control key.

Unlock the door with the key in the lock cylinder within 1 minute of pressing

the button.

Central locking fault

If the warning light in the driver's door initially flashes quickly for around 2 sec-

onds, and then illuminates for 30 seconds without interruption before flashing

again slowly, you will need to seek the assistance of a specialist garage.
A failure in the central locking system can lead the vehicle doors and the boot

lid can emergency lock or emergency release

» page 132

.

Low voltage of the key battery

Replace the battery

» page 131

.

Luggage compartment lid

Introduction

Button

A



» Fig. 34

 on page 41 is deactivated when starting or at a speed of

more than 5 km/h. The button is reactivated when the vehicle has stopped and

a door is opened.

WARNING

Never drive with the luggage compartment lid open or ajar, as otherwise

exhaust gases may get into the interior of the vehicle – risk of poisoning!

Ensure that the lock is properly engaged after closing the lid. Otherwise,

the lid might open suddenly while the vehicle is moving, even if the lid was

locked – risk of accident!

40

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING (Continued)

Make sure that when closing the boot lid, no body parts are crushed -

there is danger of injury!

Do not press on the rear window when closing the boot lid, it could crack

– risk of injury!

Opening / closing the boot lid

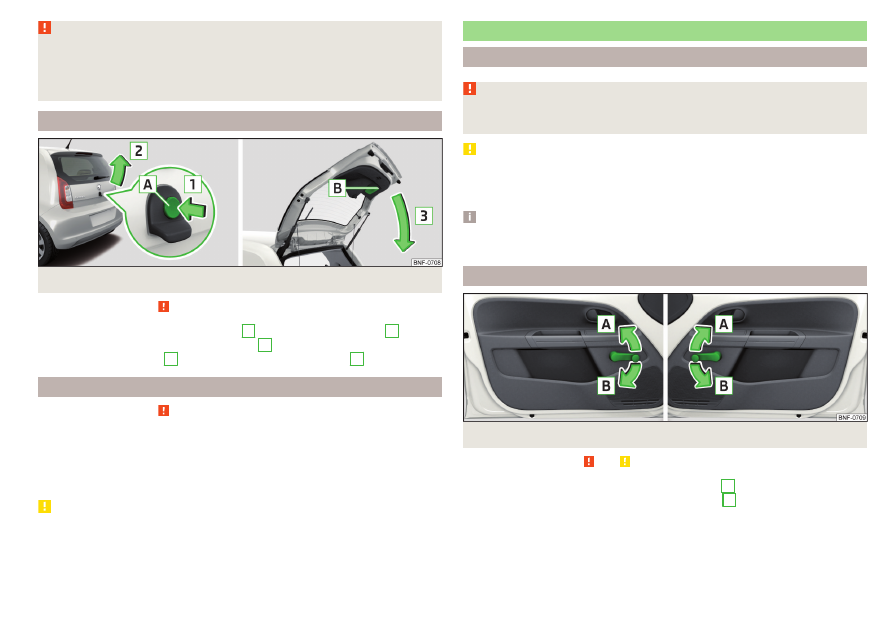

Fig. 34  Opening / closing the boot lid

Read and observe   on page 40 first.

To open the lid, press

» Fig. 34

 button

A

 in the direction of arrow

1

.

Raise the lid in the direction of the arrow

2

 .

To close it, grip recess

B

 and pull in the direction of arrow

3

.

Delayed locking of the boot lid

Read and observe   on page 40 first.

If the boot lid is unlocked with the button  on the key, then the boot lid is

automatically locked after closing.
The period after which the boot lid is locked automatically can be extended by

a specialist garage.

CAUTION

There is a risk of unwanted entry into the vehicle before the boot lid is locked

automatically.

Window operation

Introduction

WARNING

Always close the window carefully and in a controlled manner. Otherwise

these could cause severe crushing injuries!

CAUTION

Keep the windows clean (free of ice and similar) to ensure the correct func-

tionality of the electric windows.

Always close the electric windows before disconnecting the battery.

Note

If the windows are open, dust as well as other dirt can get into the vehicle and

in addition the wind noise is more at certain speeds.

Mechanical window openers

Fig. 35  Window operation: left / right

Read and observe   and   on page 41 first.

To open, turn the crank in the direction of arrow

A



» Fig. 35

.

To close, turn the crank in the direction of arrow

B

.

41

Unlocking and opening

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
