Multifunction display (MFD)



Introduction

This chapter contains information on the following subjects:
Information overview

41

Warning when exceeding the set speed

41

Memory

42

The driving data is displayed in the multifunction display when is ignition is
switched on. After the ignition is switched on, the function that was last selec-
ted before switching off the ignition is displayed.
If vehicles with MAXI DOTdisplay do not show the driving data after switching
on the ignition, select the menu item MFD in the main menu and confirm

» page 42

, MAXI DOT display.

On vehicles with a MAXI DOT display, there is an option to fade out the units
and some of the information

» page 43

, Menu item Settings.

Note

If the display of the second speed is activated in mph, the current speed is not
indicated in km/h on the display.

Information overview

Overview of driving data (depending on the vehicle equipment fitted).
Exterior temperature - For vehicles with a MAXI DOT display this information
is always shown.
Driving time - driving time since last clearing the memory.
Current fuel consumption - when the vehicle is stationary or moving slowly,
the fuel consumption is displayed in l/h (in models in some countries the fol-
lowing appears --,- km/l).
Average fuel consumption - is calculated continuously since the last clearing
of the memory. After erasing the memory, no data will appear for the first 300
m driven.
Range - drive distance in km which can be covered with the existing tank ca-
pacity and with the same driving style. If you drive more efficiently this value
can increase.

AdBlue

®

 range - drive distance in km which can be covered with the existing

AdBlue

®

tank capacity and with the same driving style. If you drive more effi-

ciently this value can increase.
Distance driven - distance driven since the memory was last cleared.
Average speed - value constantly recalculated, for distance since last clearing
the memory. After erasing the memory, no data will appear for the first 300 m
driven.
Current Speed - digital speedometer.
Oil temperature - if the temperature is lower than 50 °C or if there is a fault in
the system for checking the oil temperature, the  symbols are displayed.
Warning when the preset speed is exceeded - allows the setting of a speed
limit where, if exceeded, an acoustic warning signal and a warning message
appears on the display of the instrument cluster.

Warning when exceeding the set speed

The system offers the possibility to set a speed limit beyond which an acoustic
warning signal will sound and the following warning message (MAXI DOT Dis-
play) and the symbol appears in the display of the instrument cluster.

Adjust the speed limit while the vehicle is stationary

›

Select the menu item Speed warning at () or  () and confirm.

›

Set the desired speed limit.

›

Confirm the set value, or wait several seconds; your settings will be saved
automatically.

Adjusting the speed limit while the vehicle is moving

›

Select the menu item Speed warning at () or  () and confirm.

›

Drive at the desired speed.

›

Confirm the current speed as the speed limit.

The set speed limit can be manually adjusted later if needed.

Reset speed limit

›

Select the menu item Speed warning at () or  () and confirm.

›

By confirming the speed stored in the memory, the speed limit is reset.

The set driving mode remains stored even after switching the ignition on and
off.

41

Information system

Memory

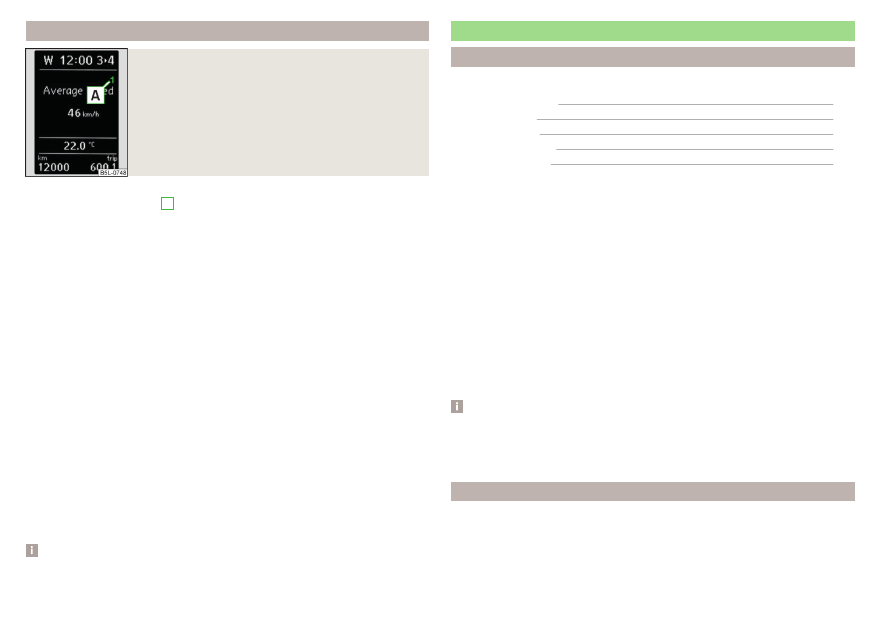

Fig. 26
Multi-function display - memory display

The system stores data from the two memories described below, which are
then displayed at position

A

» Fig. 26

.

“1” - Single-trip memory
Drive data is stored from when the ignition is switched on to when it is switch-
ed off. If the trip is continued within 2 hours after switching off the ignition,
new data will also flow into the calculation of the current driving information.
If the trip is interrupted for more than 2 hours, the memory is automatically
erased.

“2” - Long-term memory
The memory saves data from any number of individual journeys up to a total of
19 hours and 59 minutes or 1999 kilometres driven (), and up to a total of
99 hours and 59 minutes or 9999 kilometres driven ().
The indicator is automatically set back to zero if one of the indicated values is
exceeded.

›

For the Storage choice, repeatedly confirm the selected indication and select
the desired memory.

›

For Deleting the memory for the selected information, hold down the button
confirming the specification.

The following driving data is stored in different memory banks.

▶

Average fuel consumption.

▶

Distance driven.

▶

Average speed.

▶

Driving time

Note

Disconnecting the vehicle battery will delete all memory data.

MAXI DOT display



Introduction

This chapter contains information on the following subjects:
Menu itemNavigation

42

Menu itemAudio

43

Menu itemPhone

43

Menu itemAssistants

43

Menu item Settings

43

The MAXI DOT display is a user interface which, depending on the equipment
configuration, provides information about the Infotainment, the multifunction
display, the assistance systems etc. Furthermore, it enables some other func-
tions of your vehicle to be set.
The menus with details can be operated and displayed using the buttons on
the operating lever or the multifunction steering wheel

» page 40

.

Main menu items (depending on vehicle equipment)

■

MFD (Multifunction display)

» page 41

■

Audio

» page 43

■

Navigation

» page 42

■

Phone

» page 43

;

■

Aux. heating

» page 97

■

Assist systems

» page 43

■

Vehicle status

» page 30

■

Settings

» page 43

Note

■

If warning messages are displayed, these messages must be verified to ac-

cess the main menu.

■

The menu chosen always shifts to one of the higher levels after 10 seconds if

the display is not currently active.

Menu itemNavigation

The following information is displayed in the Navigation menu item.

▶

Driving recommendations

▶

Compass

▶

Last destinations

42

Using the system

Menu itemAudio

The following information is displayed in the Audio menu item.

Radio

▶

Currently playing station (name/frequency).

▶

The selected frequency range (e.g. FM) optionally with the number of the sta-
tion button (e.g. FM 3), if the station is stored in the memory list.

▶

List of available stations (if more than 5 stations can be received).

▶

TP traffic announcements.

Media

▶

Name of the track being played, if necessary, further information regarding
title (e.g. artist, album name), if this information is stored as a so called ID3
tag on the audio source.

Menu itemPhone

The call list with the following symbols is displayed in the Telephone menu item.

Incoming call
Outgoing call
Missed call

Symbols in the display

Charge status of the telephone battery

1)

Signal strength

1)

A telephone is connected to the unit
Missed calls (if there are several missed calls, the number of calls is shown
next to the symbol)

Menu itemAssistants

In the Assistants menu item, the fatigue detection can be enabled/disabled

» page 122

.

Menu item Settings

There is an option to change certain settings using the display. The following
information can be selected (depending on the equipment installed in the ve-
hicle).















Language Setting the language for the texts shown on the display.
MFD dataSwitching on/off certain information of the multifunction display.
Comfort-Turn on / off or adjust the following functions.

ATA confirm

Switch on/off the audible signal indicating activation
of the anti-theft alarm system

» page 51

, Anti-theft

alarm system.

Central locking

Switch on/off the central locking and automatic lock-
ing function

» page 50

, Individual settings.

Window op.

Setting the comfort controls for the driver window or
for all windows

» page 55

, Window convenience op-

eration.

Mirror down

Activate/deactivate the function for lowering the mir-
ror on the front passenger side when in reverse
gear

» page 67

, Tilting the mirror area of the front

passenger mirror (vehicles with electrically adjustable
driver's seat).

Mirror adjust.

Activation / deactivation of the synchronous exterior
mirror function settings

» page 67

, Setting the mir-

ror surfaces synchronously.

Factory setting.

Resetting the Comfort menu to the factory setting.

Lights & Vision - Turn on / off or adjust the following functions.

Coming Home

Activate/deactivate and adjust the light duration of
the COMING HOME function

» page 61

.

Leaving Home

Switch on/off and adjust the light duration of the
LEAVING HOME function

» page 61

.

Dayt. r. light

Activate/deactivate the daylight driving
light

» page 59

, Daylight running lights (DAY LIGHT).

Rear wiper

Activate/deactivate the function of the automatic
rear window wiping

» page 65

, Automatic rear wip-

er.

Lane ch. flash

Activate/deactivate the Comfort Indicating func-
tion

» page 59

, Comfort signalling.



1)

This function is only supported by some mobile phones.

43

Information system

Travel mode

Activate/deactivate the travel mode fea-
ture

» page 62

.

Factory setting.

Resetting Lights & Visionmenu item to the factory set-
ting.

Coasting -Enable / disable the idle position (coasting) for vehicles with automat-
ic transmission

» page 108

, Driving in neutral (“coasting”).

Time - Setting the time, the time format (24 or 12 hour) and the change-over to
summer/winter time.
Winter tyres - Setting the speed and the switching on and off of the acoustic sig-
nals when exceeding this speed. This function is, for example, used for winter
tyres where the maximum permissible speed is lower than the maximum
speed of the vehicle

» page 150

, Wheels and tyres. If the set speed is excee-

ded, an audible signal sounds and the following message appears in the infor-
mation display.
Units - Setting the units for temperature, consumption and distance travelled.
Assistants - Adjustment of the sound in Park Assist

» page 114

, Parking aid

(ParkPilot).
Alt. speed dis. Turn on / off the display of the second speedometer in
mph

1)

» page 39

, Display of the second speedometer.

ServiceDisplay the distance travelled and the days until the next service
date

» page 44

, Service interval display.

Factory setting. - Resetting the display functions to factory settings.

Service interval display



Introduction

This chapter contains information on the following subjects:
Prompt in the MAXI DOT display

44

Prompt in the segment display

44

Resetting the service interval display

45

The service interval display shows the kilometres or days until the next service
event.

Information regarding the service intervals

» page 133

.

Prompt in the MAXI DOT display

Messages before reaching the scheduled service date
Before the next service date has been reached, the symbol as well as a mes-
sage about the mileage or days until the next service event appears in the dis-
play after switching on the ignition.

Messages upon reaching scheduled service date
Once the service appointment is reached, a message appears in the display af-
ter switching on the ignition.

Displaying the distance and days until the next service interval
Messages about the remaining kilometres and days until the next service date
can be displayed at any time when the ignition is switched on by going to the
Service menu item

» page 43

, Menu item Settings or from the Vehicle status in the

main menu of the Maxi DOTdisplay.

» page 42

.

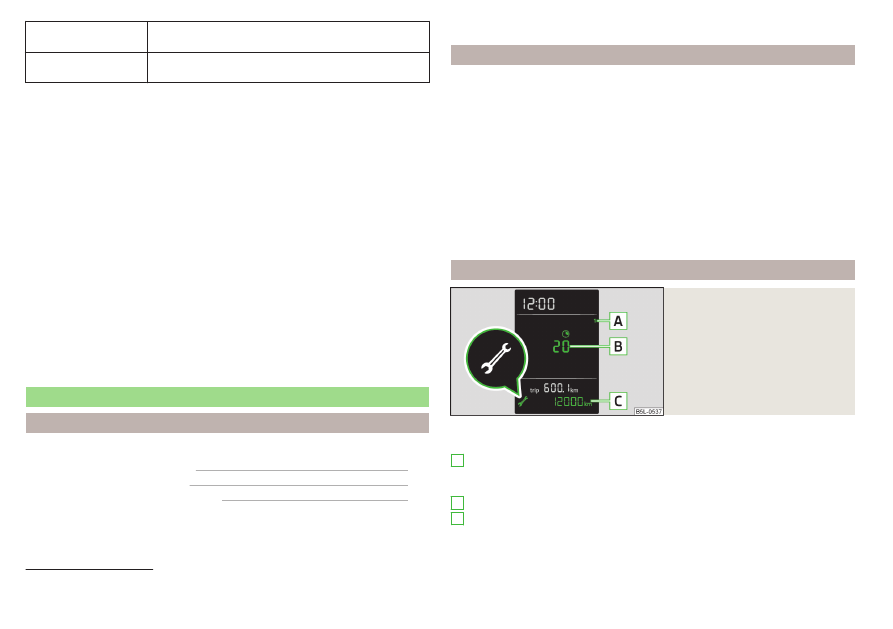

Prompt in the segment display

Fig. 27
Segment display: Example of a
message

Image description

» Fig. 27

Service due
Differentiating between types of service

▶



 - Oil change service

▶



 - Inspection



 - Days remaining until the next service interval

Kilometres remaining until the next service interval





A

B
C

1)

For models with the speedometer in mph, the second speedometer is displayed in km/h.

44

Using the system

Messages before reaching the scheduled service date
Before the next service date has been reached, the symbol

» Fig. 27

 as well as

a message about the mileage or days until the next service event appears in
the display for approx. 10 seconds after switching on the ignition.

Messages upon reaching scheduled service date
As soon as the service date is reached, the flashing  icon and the message
appears in the display for about 20 seconds after the ignition is switched on.

Displaying the distance and days until the next service interval
Messages regarding kilometres and days until the next service date can be dis-
played at any time with the ignition switched on by pressing the button again

A



» Fig. 22

 on page 39.

The following is shown in the displayed

» Fig. 27

 (First information on theOil

Change Service, By pressing the key again

A



» Fig. 22

 on page 39 Information

on Inspection).

Resetting the service interval display

We recommend that the display reset is completed by a specialist garage.

We recommend that you do not reset the service interval display yourself. In-
correctly setting the service interval display could cause problems to the vehi-
cle.

Variable service interval
For vehicles with variable service intervals, after resetting the oil change serv-
ice display in a specialist garage, the values of the new service interval are dis-
played, which are based on the previous operating conditions of the vehicle.
These values are then continuously matched according to the actual operating
conditions of the vehicle.

SmartGate

Introduction to the subject

Fig. 28
QR code with reference to the
ŠKODA websites

SmartGate is a system that transmits certain driving data (such as fuel con-
sumption, speed or similar) via Wi-Fi and Wi-Fi Direct.
The ŠKODA applications installed in a supported external device (e.g. phone,
tablet) give the option to further transmit the received data.
Some ŠKODA applications can be displayed in the Infotainment display by
means of a SmartLinkconnection

»

Owner's Manual Infotainment.

Read in the QR code

» Fig. 28

 using the respective application on your external

device or enter the following address in the web browser to open the website
with an overview of the available applications, compatible devices and other
information about SmartGate.

http://go.skoda.eu/connectivity-smartgate

CAUTION

■

To increase the access security to the transmitted vehicle data, once the

ŠKODA application has been started, you are requested to change the pass-
word/PIN code if the default password/PIN code has not yet been changed

» page 47

, Password/PIN code. It is not possible to start the ŠKODA applica-

tion without changing it.

■

ŠKODA accepts no responsibility for any problems caused by incompatibility

or improper functioning of the external devices.

45

Information system

connection to SmartGate using Wi-Fi

This type of connection is intended for external devices running Android and
iOS operating systems.

Connecting to an Android external device

›

Switch on the ignition.

›

Switch on Wi-Fi in the external device that is to be connected and search for
available Wi-Fi networks (see Owner's Manual for the external device).

›

In the menu of the detected networks, select the “SmartGate_...”

1)

 menu item.

›

Enter the password (vehicle identification number using uppercase let-
ters

» page 47

).

›

In the external device that is to be connected to, start the SmartGate appli-
cation.

›

Then follow the instructions in the manual, which is included in the
SmartGate application.

With SmartGate, a maximum of four external devices can be connected simul-
taneously using Wi-Fi, with as many launched ŠKODA applications as required.

Connecting to an external iOS device

›

Switch on the ignition.

›

Switch on Wi-Fi in the external device that is to be connected and search for
available Wi-Fi networks (see Owner's Manual for the external device).

›

In the menu of the detected networks, select the “SmartGate_...”

1 )

 menu item.

›

Enter the password (vehicle identification number using uppercase let-
ters

» page 47

).

With SmartGate, a maximum of four external devices can be connected simul-
taneously using Wi-Fi. In these external devices, up to four ŠKODA applications
can be started simultaneously.

Disconnection
The connection can be switched off in one of the following ways.

›

Switch off the ignition for longer than 5 seconds (for vehicles with a starter
button, switch off the engine and open the driver's door).

›

End the connection in the SmartGate application.

›

Switch off Wi-Fi in the connected external device.

Automatic connection
If the communication device has already had a connection with SmartGate,
then the connection is automatically restored under the following conditions.

The ignition is switched on.
Wi-Fi is switched on in the external device that is to be connected to.
The external device that is to be connected to stores the password re-
quired for the connection check.

Connection to SmartGate using Wi-Fi direct

This type of connection is intended for external devices running the Android
operating system.

Connection set-up

›

Switch on the ignition.

›

In the external device that is to be connected to, start the SmartGate appli-
cation.

›

In the application, change the connection type to Wi-Fi direct.

›

Then follow the instructions in the manual, which is included in the
SmartGate application.

The password for the connection to SmartGate _...

1 )

 includes the last six digits

of the vehicle identification number

» page 47

.

With SmartGate, a maximum of two external devices can be connected simul-
taneously using Wi-Fi direct, with as many launched ŠKODA applications as re-
quired.
If you want to connect to SmartGate in a different vehicle, you must make a
new connection in the SmartGate application.

Disconnection
The connection can be switched off in one of the following ways.

›

Switch off the ignition for longer than 5 seconds (for vehicles with a starter
button, switch off the engine and open the driver's door).

›

End the connection in the SmartGate application.

›

Switch off Wi-Fi in the connected external device.

Automatic connection
If the external device once had a connection with SmartGate, then the connec-
tion is automatically restored after the ignition is started.







1)

The last 6 characters of the VIN vehicle identification number of your vehicle are displayed at position ....

46

Using the system

SmartGate web interface

SmartGate parameters can be set in the SmartGate web interface.
The following address must be entered in the web browser of the external de-
vice that is connected with SmartGate.

HTTP://192.168.123.1

The setting changes are only effective after tapping the buttons “Save” →
“Reboot”.

Password/PIN code

The password for the Wi-Fi connection preset by the factory is the complete
vehicle identification number (entered in upper case); the PIN code for the Wi-
Fi direct connection is the last 6 digits of the vehicle identification number.
After changing the password/PIN, the connection to SmartGate must be re-es-
tablished on the external device to be connected using the new password or
new PIN code.

Changing the password for the Wi-Fi connection

›

Open the SmartGate web interface

» page 47

, SmartGate web interface.

›

In the “WPA / WPA2 key”menu item: Enter the new password (8 to 63 alpha-
numeric characters and special characters, small and capital letters).

›

Confirm the password change by tapping on the “Save” interface.

›

Restart SmartGate by tapping on the “Reboot”

1)

 interface.

Changing the PIN code for the Wi-Fi Direct connection

›

Open the SmartGate web interface

» page 47

, SmartGate web interface.

›

In the “WiFi Direct PIN”menu item: Enter the new PIN code (6 digits).

›

Confirm the PIN code change by tapping on the “Save” interface.

›

Restart SmartGate by tapping on the “Reboot”

1)

 interface.

Note

If you have forgotten your password for the connection to SmartGate,
SmartGate must be reset to factory settings in a specialised workshop.

Unlocking and opening

Unlocking and locking



Introduction

This chapter contains information on the following subjects:
Unlock / lock using key and lock

48

Unlocking/locking with the remote control key

48

Unlocking/locking - KESSY

49

Vehicle locking / unlocking with the central locking button

49

SafeLock

50

Individual settings

50

Opening/closing a door

50

Child safety lock

51

Malfunctions

51

The vehicle is equipped with a central locking system which makes it possible
to unlock / lock all the doors, the fuel filler flap and boot lid simultaneously.
The door unlocking can be adjusted individually

» page 50

.

The unlocking of the vehicle is displayed by the turn signal lights flashing
twice.
If you unlock the vehicle and do not open a door or the boot lid within the next
30 seconds, the vehicle will lock again automatically.
The locking of the vehicle is displayed by the turn signal lights flashing once.
If the driver's door has been opened, the vehicle cannot be locked.
If the doors or the boot lid remain open after the vehicle has been locked, the
turn signal lights do not flash until they have been closed.



1)

If the “Reboot” interface is not displayed, you must manually restore the web browser display.

47

Unlocking and opening

WARNING

■

Never leave the key in the vehicle when you exit the vehicle. Unauthor-

ised persons (e.g. children) could lock the car, turn on the ignition or start
the engine - There is risk of injury and accidents!

■

When leaving the vehicle, never leave people who are not completely in-

dependent, such as children, unattended in the vehicle. These individuals
might not be able to exit the vehicle by themselves or to help themselves.
Can be fatal at very high or very low temperatures!

CAUTION

■

Each key contains electronic components; therefore it must be protected

against moisture and severe shocks.

■

Keep the key grooves clean. Impurities (textile fibres, dust etc.) have a nega-

tive effect on the functionality of the locking cylinder and ignition lock.

Unlock / lock using key and lock

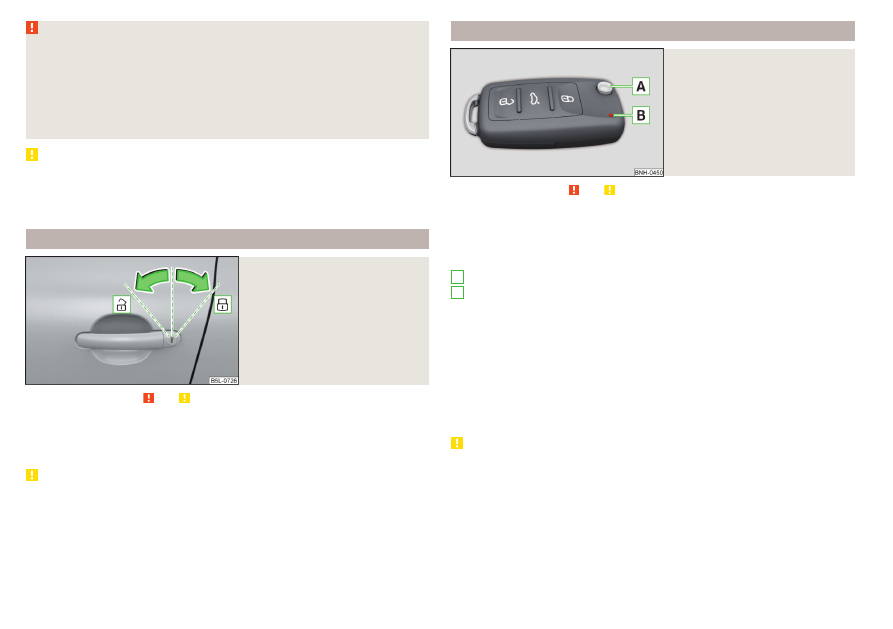

Fig. 29
Left side of the vehicle: Turning
the key for unlocking and locking
the vehicle

Read and observe   and   on page 48 first.

Unlocking/locking the vehicle with the key

» Fig. 29

Unlocking the vehicle
Locking the vehicle

CAUTION

If the locking cylinder is provided with a cap, the cap must be removed before-
hand to unlock/lock the vehicle.

» page 165

.







Unlocking/locking with the remote control key

Fig. 30
Key with pop-out key bit

Read and observe   and   on page 48 first.

Description of the key

» Fig. 30

Unlock button
Lock button
Button to lock/unlock the boot lid
Button for folding out/folding in the key bit
Battery status warning light - if the warning light does not flash when you
press a button on the key, the battery is discharged

Unlocking / locking the boot lid
By pressing lightly on the button  the lid is unlocked.
By pressing down on the button  the lid is unlocked and unlatched (partly-
opened).
If the lid is unlocked or released with the button , then the lid is automati-
cally locked after closing. The period of time after which the flap is locked can
be set

» page 53

.

CAUTION

■

The remote control may be affected by signal superimposition from transmit-

ters close to the car.

■

The range of the remote control key is about 30 m. The battery must be re-

placed if the central locking only reacts to the remote control at a distance of
less than 3 m away

» page 164

.









A
B

48

Using the system

Unlocking/locking - KESSY

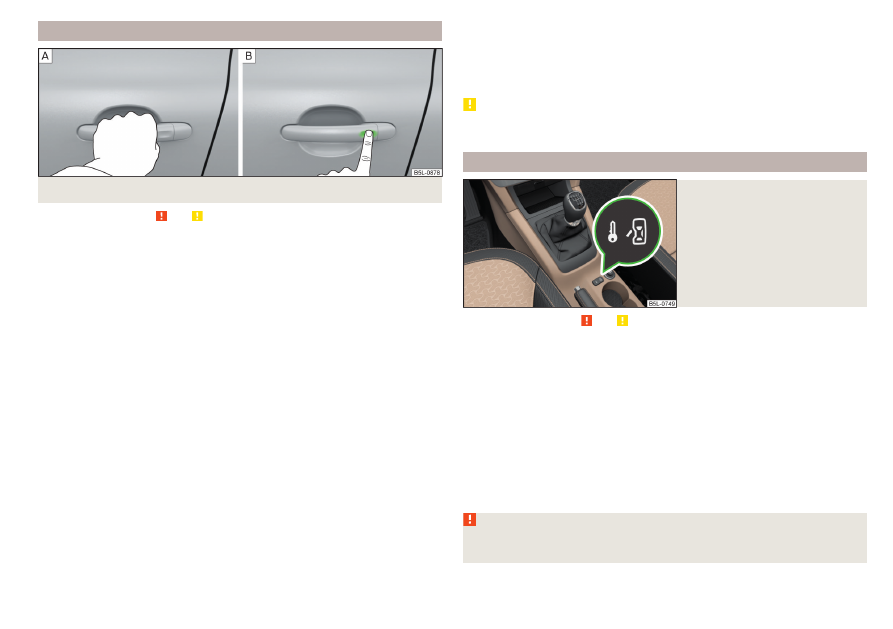

Fig. 31  Vehicle unlocking / vehicle locking

Read and observe   and   on page 48 first.

The KESSY system (Keyless Entry Start Exit System) enables unlocking and
locking of the vehicle without actively using the remote control key.

›

Grip the door handle to unlock

» Fig. 31

 -  the vehicle.

›

Touch the sensor on the door handle with your finger to lock

» Fig. 31

 -  the

vehicle.

When unlocking/locking the vehicle, the key must be at a maximum distance
of approximately 1.5 m from the front door handle.

Information on locking
On vehicles fitted with automatic gearbox, the selector lever must be moved
into the position P before unlocking.
The vehicle cannot be locked from the outside if the ignition has not been
turned off.
After locking the vehicle, it is not possible to unlock it within the next 2 sec-
onds by touching the door handle. This can be used to check whether the vehi-
cle is locked.

Protection against inadvertently locking the key in the vehicle
If one of the doors is closed after locking the vehicle and the key with which
the vehicle was locked remains in the passenger compartment, the vehicle is
automatically unlocked. After automatically unlocking, the turn signal lights
will flash four times. If no door is opened within 45 seconds, the vehicle is au-
tomatically locked again.



If the boot lid is closed after locking the vehicle and the key with which the
vehicle was locked remains in the luggage compartment, the lid is automatical-
ly unlatched (partially opened). After automatically unlocking, the turn signal
lights will flash four times. The boot lid remains unlatched (partially opened);
the other doors remain locked.

CAUTION

Some types of gloves can affect the unlocking or locking device via the sen-
sors in the door handle.

Vehicle locking / unlocking with the central locking button

Fig. 32
Central locking button

Read and observe   and   on page 48 first.

Conditions for the locking/unlocking using the central locking button.

The vehicle is not locked from the outside.
None of the doors are open.

›

To lock, press the  button in the area

» Fig. 32

.

Locking is displayed in the button by the illumination of the



 symbol.

›

To unlock, press the button in the area .

The following applies after locking.

▶

Opening the doors and the boot lid from the outside is not possible.

▶

The doors can be unlocked and opened from the inside by a single pull on the
opening lever of the respective door.

WARNING

Doors locked from the inside make it difficult for rescuers to get into the
vehicle in an emergency – risk to life!







49

Unlocking and opening

SafeLock

Read and observe   and   on page 48 first.

SafeLock prevents opening the doors from inside as well as window operation.
This makes an attempted break-in to the vehicle more difficult.

Activating
SafeLock is activated when the vehicle is locked from the outside.
This function is pointed out by the following message on the display of the in-
strument cluster after the ignition is switched off.

Check SAFELOCK! Log book!
CHECK DEADLOCK

Activation display
When SafeLock is activated, the warning light in the driver's door flashes for 2
seconds in rapid succession, then starts to flash at longer intervals.

Deactivating

▶

By locking twice within 2 seconds.

▶

or: by deactivating the interior monitor and the towing protection

» page 52

.

The warning light in the driver door flashes rapidly for about 2 seconds, then
goes out and starts to flash at longer intervals after about 30 seconds.
If the vehicle is locked and the safe securing system is switched off, the door
can be opened separately from the inside by a single pull on opening lever.
The Safelock system switches back on when the vehicle is locked.

WARNING

If the car is locked and the safe securing system activated, no people must
remain in the car as it will then not be possible to either unlock a door or
open a window from the inside. The locked doors make it more difficult for
rescuers to get into the vehicle in an emergency – risk to life!

Individual settings

Read and observe   and   on page 48 first.

The following central locking functions can be individually set via the MAXI
DOT display

» page 43

, Menu item Settings.









All doors
The function allows you to unlock all doors, the boot lid and the fuel filler flap.

Single door
The function allows you to unlock only the driver's door and the fuel filler flap
with the radio remote control. KESSY allows the unlocking of a single door
which is in the vicinity of the key, as well as the fuel filler flap. The other doors
and the boot lid are only unlocked once the door handle is unlocked or
touched.

Doors on a vehicle side
This function enables you to unlock both doors on the driver's side and the
fuel filler flap with the radio remote control unit. KESSY allows the unlocking of
both doors which are in the vicinity of the key, as well as the fuel filler flap. The
other doors and the boot lid are only unlocked once the door handle is un-
locked or touched.

Automatic locking/unlocking
This function enables the locking of all doors and the boot lid from a speed of
15 km / h. Opening the doors and the boot lid from the outside is not possible.
The renewed unlocking of the doors and the boot lid is carried out when the
ignition key is removed or when the door is opened from inside (depending on
the individual setting for the central locking system).

Opening/closing a door

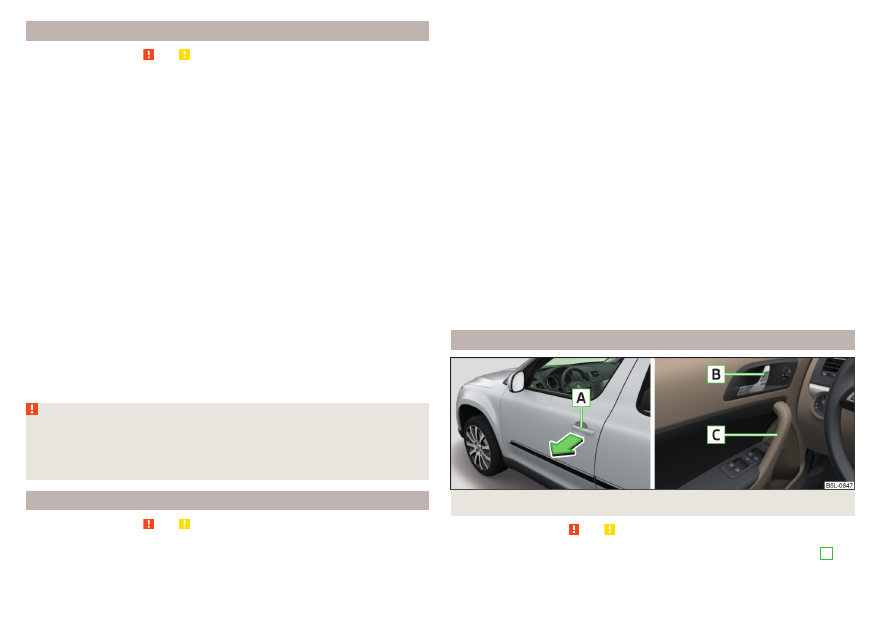

Fig. 33  Door handle/door opening lever:

Read and observe   and   on page 48 first.

›

To open from the outside, unlock the vehicle and pull the door handle

A

 in

the direction of arrow

» Fig. 33

.





50

Using the system

›

To open from the inside pull the door opening lever

B

 and push the door

away from you.

›

To the lock from the inside, grab the handle

C

 and close the door.

WARNING

■

The door must be closed properly, otherwise it could open whilst the ve-

hicle is in motion - There is a risk of death!

■

Only open and close the door when there is no one in the opening/closing

range – There is a risk of injury!

■

Never drive with the doors open - it can be fatal!

■

An opened door can close automatically if there is a strong wind or the

vehicle is on an incline – risk of injury!

Child safety lock

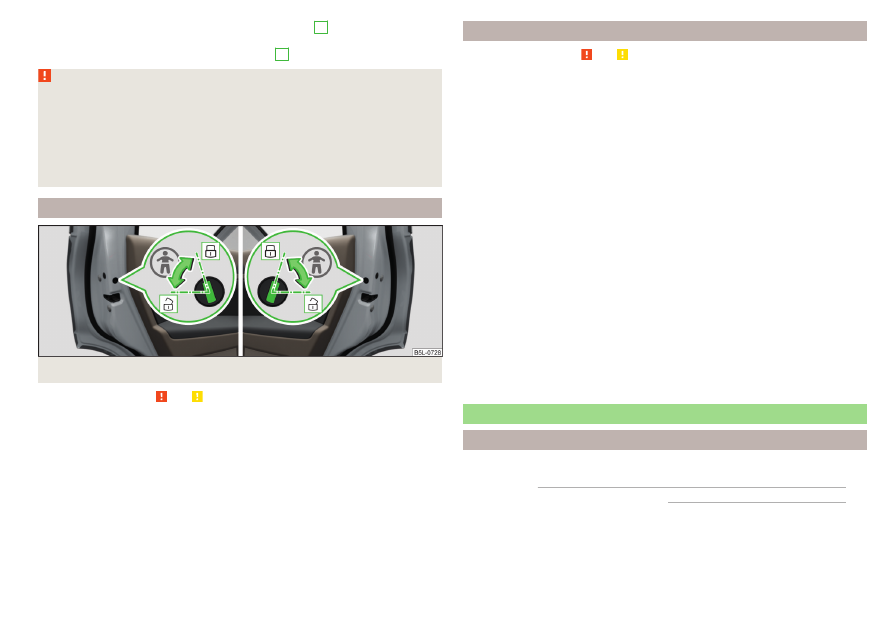

Fig. 34  Rear door: Switching the child safety system on/off

Read and observe   and   on page 48 first.

The child safety lock prevents the rear door from being opened from the in-
side. The door can only be opened from the outside.

›

To turn on the child safety lock, turn the vehicle key to position 

» Fig. 34

.

›

To turn off the child safety lock, turn the vehicle key to position .



Malfunctions

Read and observe   and   on page 48 first.

Synchronise remote
If the buttons on the remote control key have been depressed several times
beyond the effective range of the equipment, or the battery has been replaced
in the remote control key and the vehicle cannot be unlocked with the remote
control, the key must be synchronised.

›

Press any button on the remote control key.

›

Unlock the door with the key in the lock cylinder within 1 minute of pressing
the button.

Central locking fault
If the warning light in the driver's door initially flashes quickly for around 2 sec-
onds, and then illuminates for 30 seconds without interruption before flashing
again slowly, you will need to seek the assistance of a specialist garage.
In the case of a fault with the central locking system, the vehicle doors and the
boot lid can be emergency locked or emergency released

» page 165

.

Failure of the KESSY system
If there is a fault in the KESSY system, the appropriate error message is dis-
played in the instrument cluster.

Low voltage of the key battery
If the voltage of the key battery is too low, a message appears in the display of
the instrument cluster referring to the need to replace the battery. Replace
the battery

» page 164

.

Anti-theft alarm system



Introduction

This chapter contains information on the following subjects:
Alarm trigger

52

Interior monitor and towing protection

52

The alarm system triggers audible and visual signals if an attempt is made to
break into the vehicle (hereafter referred to as alarm).
The alarm system is activated automatically approximately 30 seconds after
the vehicle is locked. This is automatically disabled after release.





51

Unlocking and opening

CAUTION

Before leaving the vehicle, it must be checked that all of the windows, doors
and the sliding/tilting roof are locked in order to ensure the full functionality of
the anti-theft alarm system.

Note

The alarm system has its own power source, whose service life is 5 years.

Alarm trigger

Read and observe   on page 52 first.

The alarm is triggered when one of the following unauthorised actions is acti-
vated on the vehicle with an activated warning system.

▶

Opening the bonnet.

▶

Opening the boot lid.

▶

Opening the doors.

▶

Manipulation of the ignition lock.

▶

Towing the vehicle.

▶

Movement in the vehicle.

▶

Sudden and significant voltage drop of the electrical system.

▶

Uncoupling the trailer.

An alarm is triggered also when the driver's door is unlocked and opened by
the lock cylinder.
The alarm is switched off by pressing the  button on the key or switching on
the ignition.

Interior monitor and towing protection

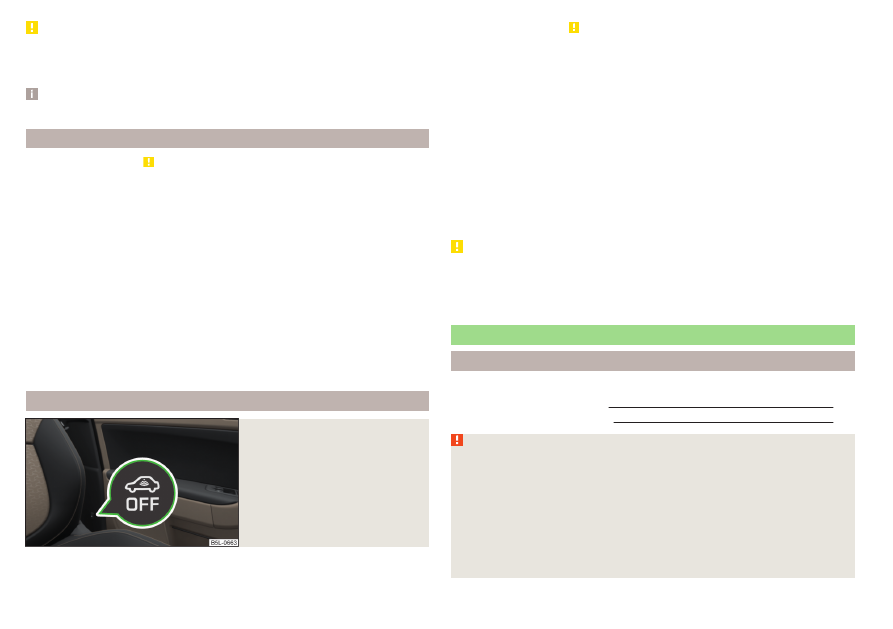

Fig. 35
Button for interior monitor and
towing protection



Read and observe   on page 52 first.

The interior monitor detects movements inside the locked vehicle and then
triggers the alarm.
The anti-towing detects tilts in the locked vehicle and then triggers the alarm.
Both systems should be deactivated if there is a possibility that the alarm will
be triggered by movements (e.g. by people or animals) within the vehicle inte-
rior or if the vehicle has to be transported (e.g. by train or ship) or towed.

Deactivation

›

Switch off the ignition and open the driver's door.

›

Press the  button on the centre column on the driver side

» Fig. 35

, the



symbol illuminates in the button.

›

Lock the vehicle within 30 seconds.

Disabling the two systems, switches off SafeLock.

CAUTION

The opened glasses storage compartment reduces the effectiveness of the in-
terior monitor. To ensure the full functionality of the interior monitor, the
glasses storage compartment must always be closed before locking the vehi-
cle.

Luggage compartment lid



Introduction

This chapter contains information on the following subjects:
Opening / closing the boot lid

53

Delayed locking of the boot lid

53

WARNING

■

Never drive with the boot lid open or ajar, as otherwise exhaust gases

may get into the interior of the vehicle – risk of poisoning!

■

Ensure that the lock is properly engaged after closing the lid. Otherwise,

the lid might open suddenly while the vehicle is moving, even if the lid was
locked – There is a risk of an accident!

■

Make sure that when closing the boot lid, no body parts are crushed -

there is danger of injury!

■

Do not press on the rear window when closing the luggage compartment

lid, it could crack – There is a risk of injury!



52

Using the system

Opening / closing the boot lid

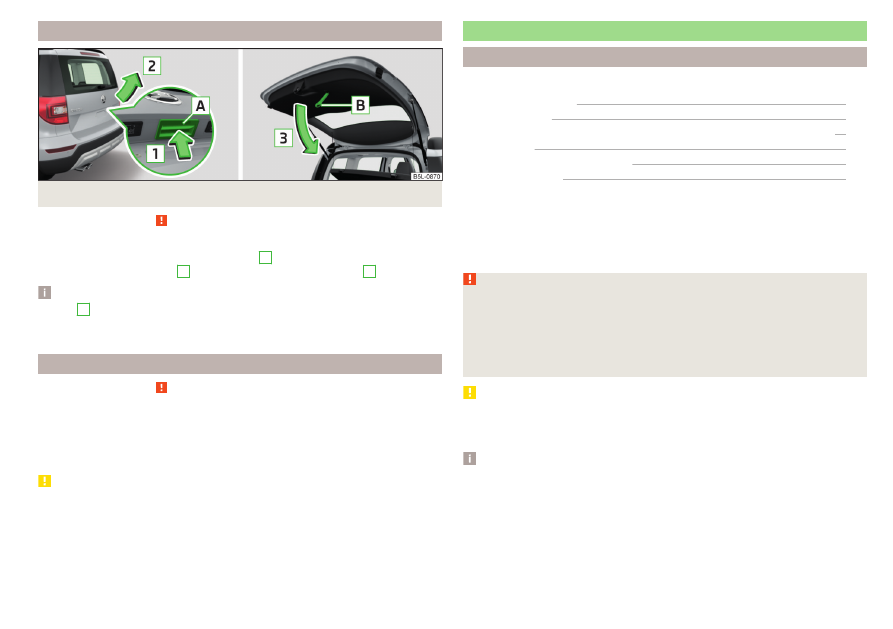

Fig. 36  Opening / closing tailgate

Read and observe   on page 52 first.

›

To open the lid, press-- --

» Fig. 36

 button A in the direction of arrow 1.

›

Raise the lid in the direction of the arrow

2

.

›

To close, grab the mount

B

 and pull in the direction of arrow

3

.

Note

Button

A



» Fig. 36

 is disabled when starting off or driving at a speed of over 5

km/h. The button is reactivated when the vehicle has stopped and a door is
opened.

Delayed locking of the boot lid

Read and observe   on page 52 first.

If the boot lid is unlocked with the button  on the key, then the boot lid is
automatically locked after closing.
The period after which the boot lid is locked automatically can be extended by
a specialist garage.

CAUTION

There is a risk of unwanted entry into the vehicle before the boot lid is locked
automatically.





Window operation



Introduction

This chapter contains information on the following subjects:
Mechanical windows

54

Electric window

54

Opening the windows in the front passenger door and in the rear doors

54

Force limiter

55

Window convenience operation

55

Operational faults

55

The windows can be operated mechanically by the winder attached to the re-
spective door panel.
The windows can be operated electrically from the following locations; all win-
dows from the driver's seat and also via the buttons for the windows in the
passenger door or the rear doors.

WARNING

■

Always close the window carefully and in a controlled manner. Otherwise

these could cause severe crushing injuries.

■

The system is fitted with a force limiter

» page 55

. If there is an obsta-

cle, the closing process is stopped and the window goes down by several
centimetres. However, the windows should be closed carefully – risk of in-
jury.

CAUTION

■

Keep the windows clean (free of ice and similar) to ensure the correct func-

tionality of the electric windows.

■

Always close the electric windows before disconnecting the battery.

Note

If the windows are opened, dust as well as other dirt can get into the vehicle
and in addition the wind noise is more at certain speeds.

53

Unlocking and opening

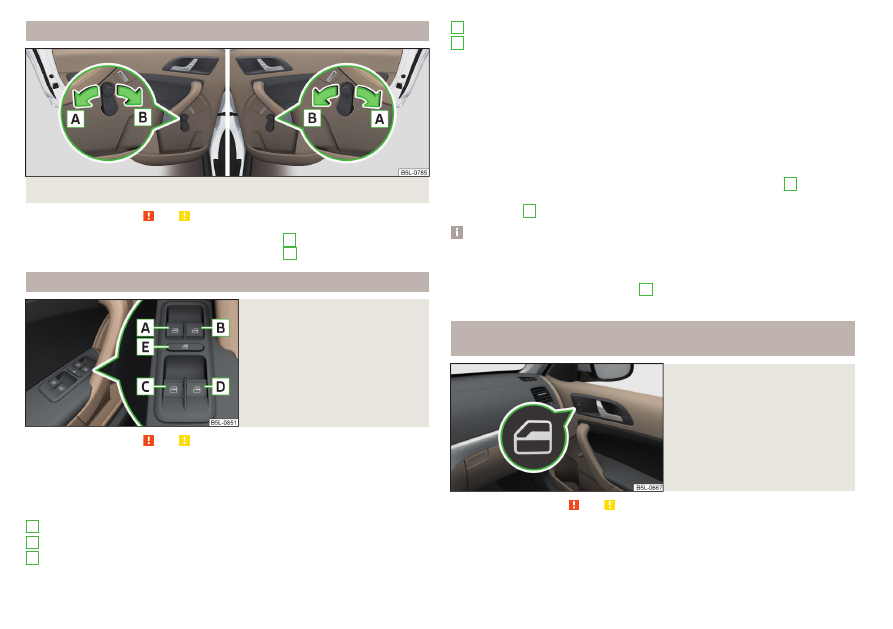

Mechanical windows

Fig. 37  Window Operation: Left / Right

Read and observe   and   on page 53 first.

›

To open, turn the crank in the direction of arrow

A



» Fig. 37

.

›

To close, turn the crank in the direction of arrow

B

.

Electric window

Fig. 38
Window lifter buttons

Read and observe   and   on page 53 first.

All windows can be operated from the driver's seat. The window in the front
passenger door and the windows in the rear doors are operated via the button
in each door.
Electric window buttons

» Fig. 38

Left front door
Right front door
Left rear door





A
B
C

Right rear door
Deactivate/activate the buttons in the rear doors (the deactivation may be
advantageous if, for example, children are transported on the rear seats)

›

To open, lightly press the appropriate button and hold it until the window
has moved into the desired position.

›

or: press the button to the stop, the window automatically opens fully. Re-
newed pressing of the button causes the window to stop.

›

To close, pull gently on the top edge of the corresponding button and hold
until the window has moved into the desired position.

›

or: pull the button briefly to the stop, the window automatically closes fully.
Renewed pulling of the button causes the window to stop immediately.

›

To deactivate/activate the buttons in the rear doors, press the

E

 button. If

the buttons in the rear doors are deactivated, the warning light



 illumi-

nates in the

E

 button.

Note

■

After switching off the ignition, the windows can still open and close for

about 10 minutes.

■

After the driver or front passenger door is opened, the operation of the win-

dow is only possible with the button

A

» Fig. 38

, in which case this is pressed

or pulled for approx. 2 seconds.

Opening the windows in the front passenger door and in the rear
doors

Fig. 39
Power window button

Read and observe   and   on page 53 first.

There is a button in the front passenger door and in the rear doors for that
window.

›

To open, lightly press the buttonunderneathand hold it until the window has
moved into the desired position.



D

E



54

Using the system

›

or: press the buttonunderneath to the stop, the window automatically opens
fully. Renewed pressing of the button causes the window to stop.

›

To open, lightly press the button above and hold it until the window has
moved into the desired position.

›

or: press the buttonabove to the stop, the window automatically opens fully.
Renewed pressing of the button causes the window to stop.

Force limiter

Read and observe   and   on page 53 first.

The electric windows are fitted with a force limiter.
If there is an obstacle, the closing process is stopped and the window goes
down by several centimetres.
If the obstacle prevents the window from being closed during the next 10 sec-
onds, the closing process is interrupted once again and the window goes down
by several centimetres.
If you attempt to close the window again within 10 seconds of the window be-
ing moved down for the second time, even though the obstacle was not yet
been removed, the closing process is only stopped. During this time it is not
possible to automatically close the window. The force limiter is still switched
on.
The force limiter is only not operational if you attempt to close the window
again within the next 10 seconds – the window will now close with full force!
If you wait longer than 10 seconds, the force limiter is switched on again.

Window convenience operation

Read and observe   and   on page 53 first.

The convenience operation for the window offers the option to open/close all
the windows at once (or only the window in the driver's door). The setting, ac-
tivation and deactivation for the window convenience operation is in the MAXI
DOT display in the Window op. menu item.

» page 43

.

Opening

›

Press and hold the  button on the key.

›

Or Hold the key in the unlock position in the driver's door lock.

›

Or:Hold the central locking button in the area of the symbol 

» Fig. 32

 on

page 49 .





›

Or Switch off the ignition, open the driver's door and hold the key

A

 until it

stops in the open position

» Fig. 38

 on page 54.

Closing

›

Press and hold the  button on the key.

›

Or Hold the key in the lock position in the driver's door lock.

›

Or:Hold the central locking button in the area of the symbol 

» Fig. 32

 on

page 49 .

›

Or Switch off the ignition, open the driver's door and hold the key

A

 until it

stops in the closed position

» Fig. 38

 on page 54.

›

In the KESSY system, hold your finger on the sensor on the outside of the
door handle of the front door

» Fig. 31

 on page 49.

The convenience operation will only function correctly if all the windows auto-
matically open/close properly.
Convenience opening or closing the window using the key in the driver's door
locking cylinder is only possible within 45 seconds of locking the vehicle.
The movement of the window is stopped immediately when the respective
button is released.

Operational faults

Read and observe   and   on page 53 first.

Repeatedly opening and closing the window can cause the window mecha-
nism to overheat and become temporarily blocked. You will be able to operate
the window again as soon as the operating mechanism has cooled down.
The electric windows are deactivated after the vehicle battery has been dis-
connected. After connecting the vehicle battery, the system is activated as fol-
lows.

Window in the driver's door

›

Switch on the ignition.

›

Pull the top edge of the button and close the window.

›

Release the button.

›

Pull up the respective button and hold for 1 second.

Windows in the other doors

›

Switch on the ignition.

›

Press the respective key above and close the window.

›

Release the button.

›

Pull up the respective buttonabove and hold for 1 second.



55

Unlocking and opening

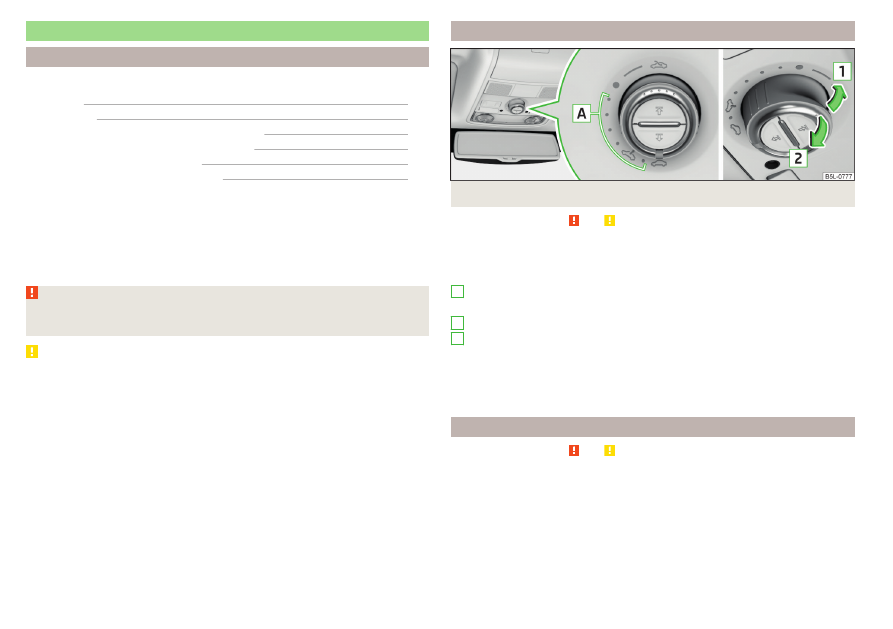

Panorama sliding/tilting roof



Introduction

This chapter contains information on the following subjects:
Operation

56

Force limiter

56

Convenience operation of sliding / tilting roof

57

Activate operation of the tilt / slide sunroof

57

Sunshade with electric operation

57

Activating operation of the sunshade

57

The panoramic tilt / slide sunroof (hereinafter referred to as tilt / slide sunroof)
can only be operated when the ignition is turned on and when the outdoor
temperature is above -20 °C.
The sliding/tilting roof can still be operated for approx. 10 minutes after
switching the ignition off. After opening the driver or front passenger door, it
is no longer possible to operate the sliding/tilting roof.

WARNING

When operating the tilt/slide sunroof and the sunshade, proceed with cau-
tion to avoid causing crushing injuries – There is a risk of injury!

CAUTION

■

During the winter it may be necessary to remove any ice and snow in the vi-

cinity of the sliding/tilting roof before opening it to prevent any damage to the
opening mechanism.

■

Always close the sliding/tilting roof before disconnecting the battery.

Operation

Fig. 40  Operation of the sliding/tilting roof

Read and observe   and   on page 56 first.

Operation of the tilt / slide sunroof

» Fig. 40

Open fully
Open to the low-noise position
Open partially
Close completely
Opening (switch in position  )
Closing (switch in position  )

After turning the switch one stop to position  (spring-tensioned position),
the tilt / slide sunroof stops in the position in which the intensity of the wind
noise is low. After turning the switch further to position , the tilt / slide sun-
roof opens up to the stop.

Force limiter

Read and observe   and   on page 56 first.

The sliding/tilting roof is fitted with a force limiter.
If there is an obstacle, the closing process is stopped and the glass pane re-
tracts by several centimetres.









A



1

2



56

Using the system
