Scania DI16 PDE. Marine engine en-GB 2 805 697. Operator’s manual - part 2

Engine data plate

The engine data plate indicates, in the form of a

code, the engine type, its size and applications. It

also indicates the engine power and the nominal

engine speed. The engine EU type approval for

exhaust emissions is indicated under Output,

where applicable.

The engine serial number is stamped onto the top

of the cylinder block at the front right.

Made b y

Example: DI16 070M

DI Supercharged diesel engine with water-

Type

DI16 070M

cooled charge air cooler.

6950106

Engine No

Displacement in whole dm³.

Output.

552

1800

r pm.

070

Performance and certification code. The

code indicates, together with the applica-

tion code, the normal gross engine output.

M Code for application. M means for marine

Example of an engine data plate.

use.

Component identification

Engine

The illustrations show a normal version of a DI16 engine with heat exchanger. The engine ordered may have

different equipment.

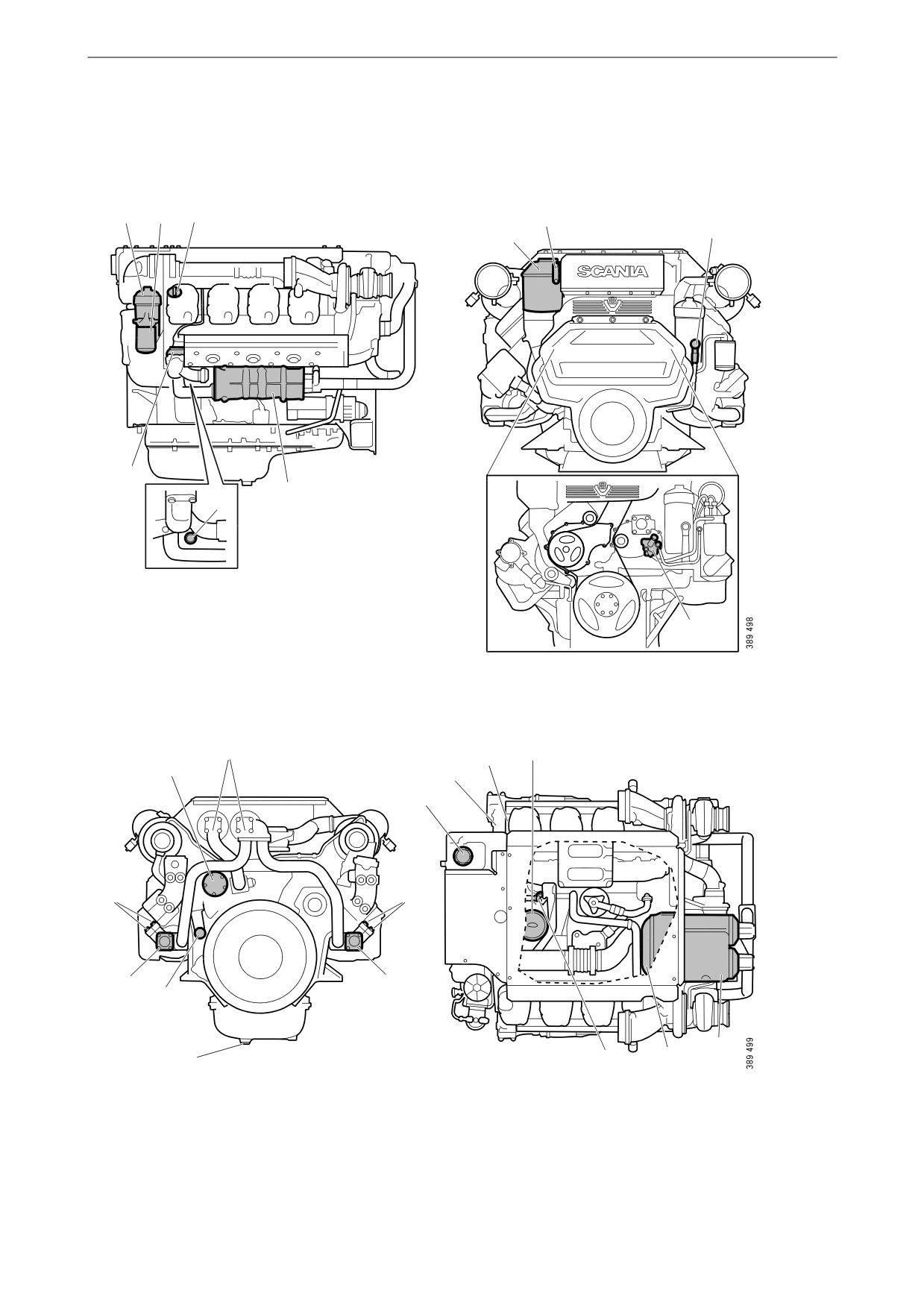

Component identification

1. Oil filter.

2. Fuel filter.

3. Oil filler.

4. Heat exchanger (1 on each side).

5. Nipples for draining and filling coolant (1 on

each side behind the heat exchanger).

6. Thermostat (1 on each side)

7. Expansion tank.

8. Level glass for checking coolant level.

9. Oil dipstick.

10. Hand pump for fuel.

11. Sea water pump.

12. Sacrificial anodes (6).

13. Sea water outlet.

14. Oil plug.

15. Sea water intake.

16. Filling coolant.

17. Engine number, stamped into the cylinder

block.

18. Engine data plate.

19. Centrifugal oil cleaner.

20. Charge air cooler.

21. Holes for draining condensation in charge air

cooler (2 off on the underside).

22. Fuel manifold bleed nipple.

Component identification

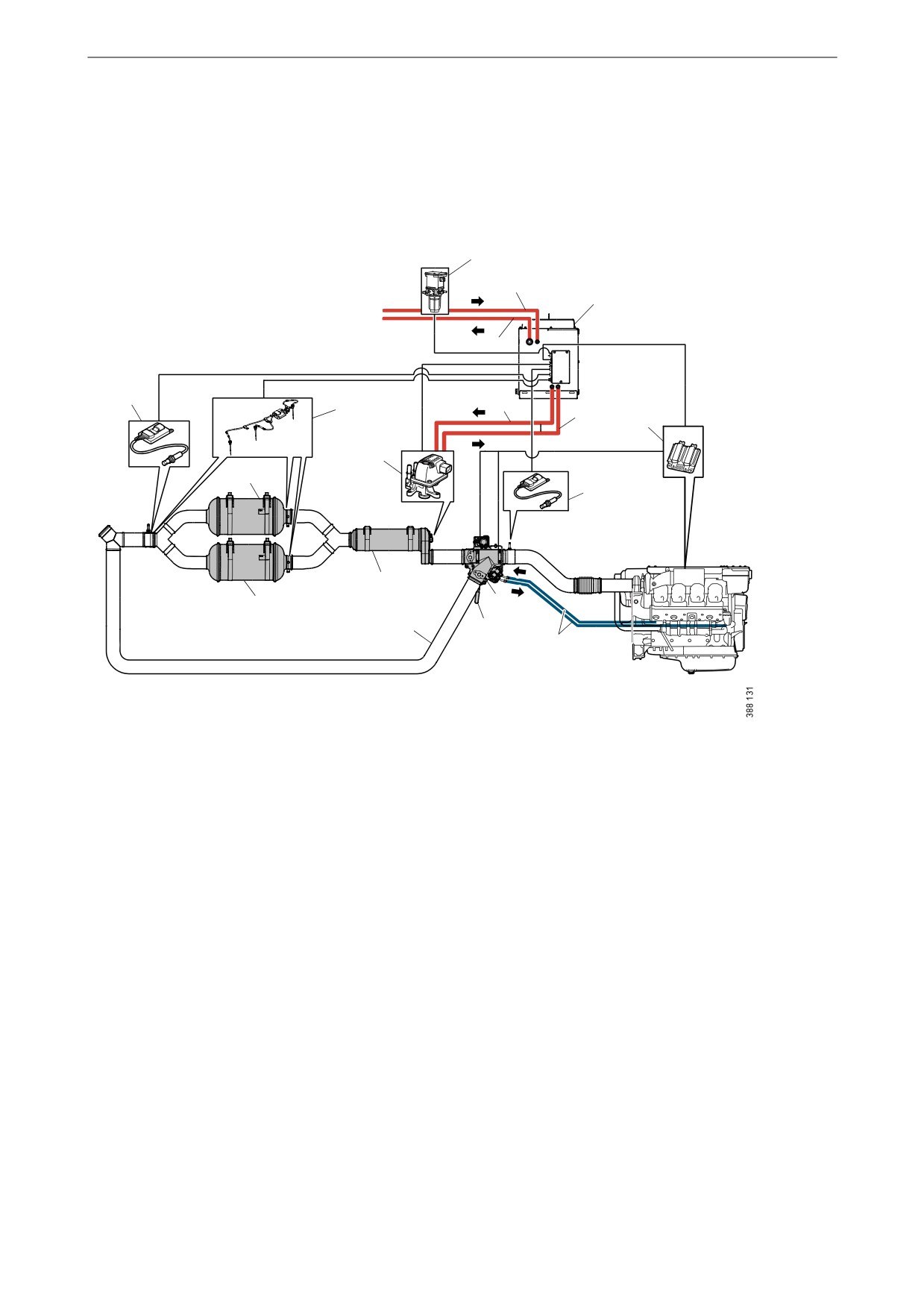

SCR system

For engines equipped with SCR systems, the il-

lustration shows an overview of the component

parts of the SCR system.

1. Reductant pump (option).

2. Reductant pressure pipe.

3. Reductant return pipe.

4. Reductant tank (buffer tank).

5. Engine control unit.

6. NOx sensor with control unit.

7. Coolant pipe.

8. Exhaust routing valve.

9. Handle to bypass the SCR system.

10. Bypass pipe.

11. Evaporator.

12. Reductant doser.

13. Exhaust gas temperature sensor.

14. SCR catalytic converter.

Starting and running

Checks before first start

Before the engine is started for the first time, car-

ry out the maintenance items listed under First

start in the maintenance schedule. Check the fol-

lowing (also see Maintenance interval):

• Oil level.

• Coolant.

• Fuel level.

• Fluid level in batteries.

• State of battery charge.

• Condition of the drive belt.

Reductant tank

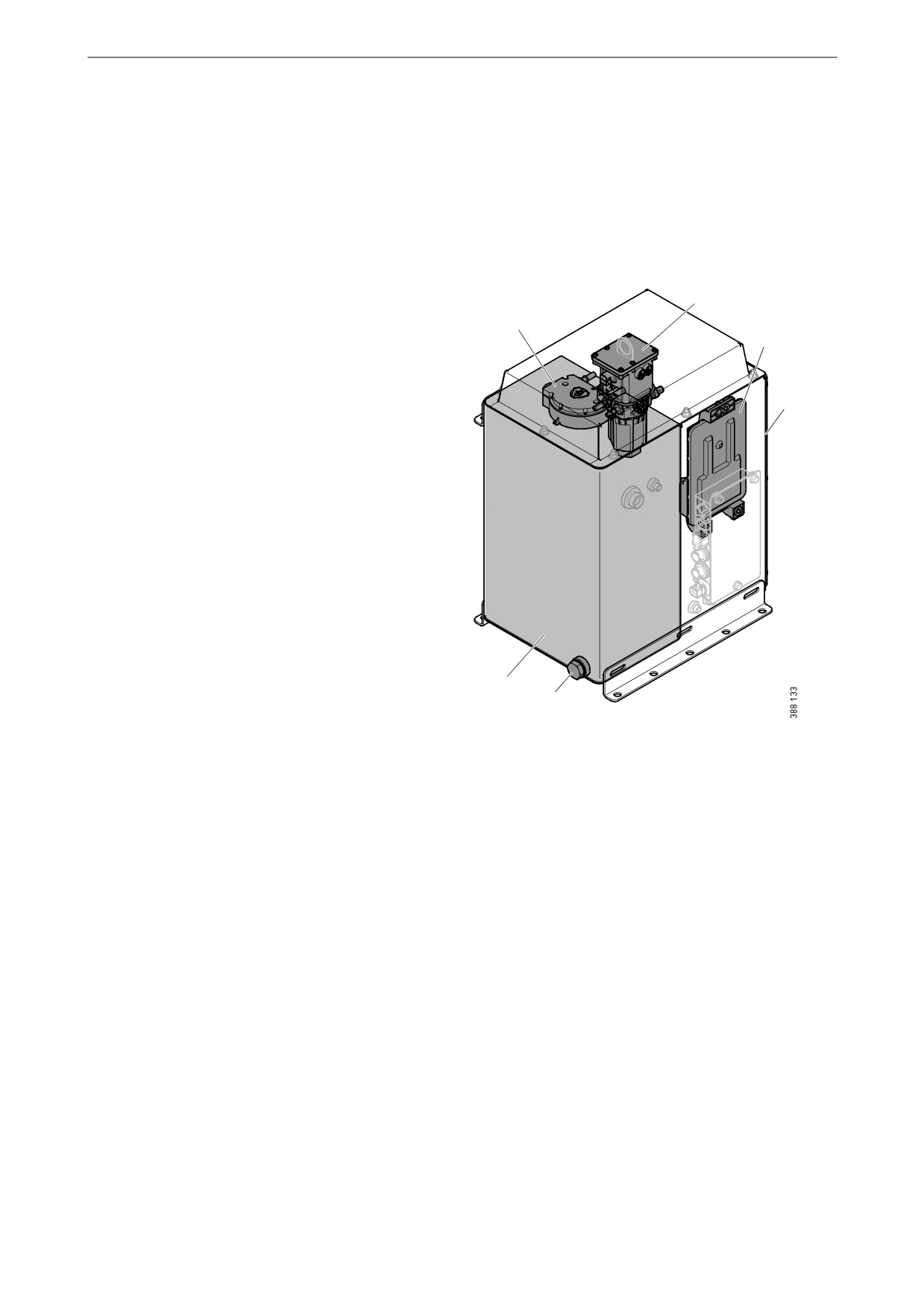

The illustration shows the component parts of

the reductant tank (buffer tank). You can access

the reductant pump in the tank by opening the in-

spection hatch (4) on the right-hand side of the

tank.

Reductant volume:

• Total volume: 30 litres (7.9 US gallons).

• Filling volume: 16 litres (4.2 US gallons).

Reductant tank.

1. Reductant pick-up unit.

2. Reductant pump.

3. EEC3 control unit.

4. Inspection hatch.

5. Drain plug.

6. Reductant tank.

Starting and running

Reductant pump

When the reductant pump is new, the check

valves may need to be slackened.

Note:

There may be two reductant pumps: one located

in the reductant tank and one located between the

main tank for reductant and the buffer tank.

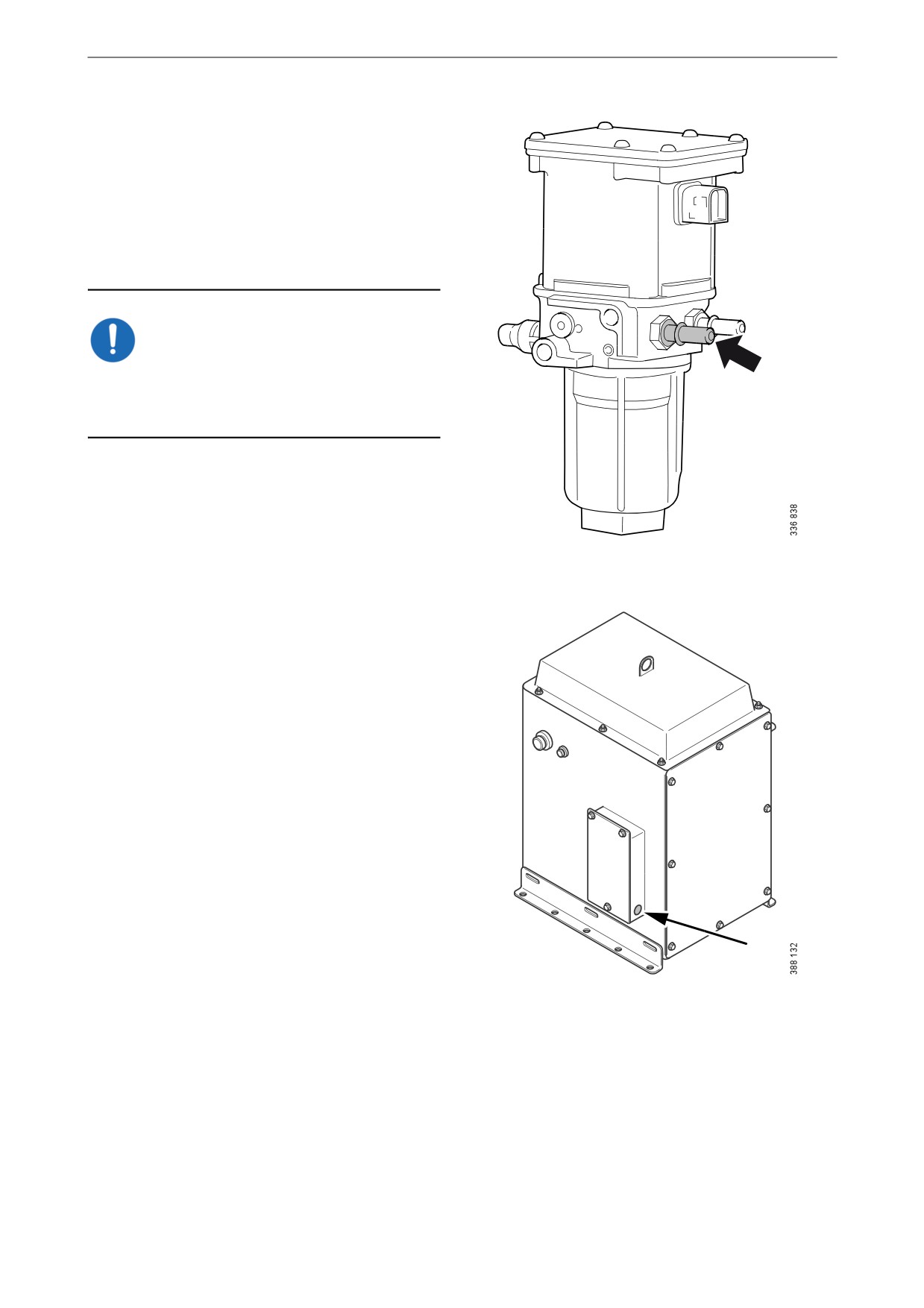

IMPORTANT!

Blow the reductant pump suction nipple with

compressed air (approx. 6 bar) for at least 3 sec-

onds before starting the engine for the first time.

Reductant pump suction nipple.

Reset button on the reductant tank

The reductant tank has a reset button that can be

used, for example, when the tank is topped up for

the first time.

When the Scania EEC3 control unit checks fill-

ing, the following applies:

• If you keep the button depressed for 5 sec-

onds, the reductant pump operates for 30 min-

utes. This function can be used, for example,

when the tank is topped up for the first time

or after cleaning.

• If the reductant pump is operating and you

briefly press the button, the pump stops and a

fault code is generated.

The reductant pump can be started again by

pressing the button, thus also making the

fault code passive.

Reset button.

• If the level does not increase even though the

reductant pump is running, the pump is

switched off and a fault code is generated. If

you briefly press the button, the pump re-

starts.

Starting and running

Checks before running

Carry out daily maintenance as described in the

maintenance schedule prior to operation. See

Maintenance interval.

Starting the engine

WARNING!

Never use starter gas or similar agents to help

start the engine. This can cause an explosion in

the intake manifold and possible injury.

Only start the engine in a well ventilated area.

When the engine is run in an enclosed space,

there must be effective devices to extract exhaust

gases and crankcase gases.

IMPORTANT!

The starter motor must only be cranked twice for

30 seconds at a time. After that, it must rest for at

least 5 minutes before the next attempt to start it.

For environmental reasons the Scania engine has

been developed to be started with a low fuel feed.

Using unnecessarily large amounts of fuel when

starting the engine always results in emissions of

unburnt fuel.

1. Open the fuel cock if fitted.

2. Disengage the engine.

3. If the engine has a battery master switch:

Switch on the power by means of the battery

master switch.

4. Start the engine.

If the fuel tank has been run dry or if the engine

has not been used for a long time, bleed the fuel

system. See the section Bleeding the fuel system.

Starting and running

Starting at low temperatures

Limp home mode

Take the local environmental requirements into

If there is a fault in the normal throttle opening or

account. Use a fuel heater and engine heater to

if CAN communication is interrupted, the fol-

avoid starting problems and white smoke.

lowing emergency operation option is provided:

Scania recommends that an engine heater should

A CAN fault or throttle opening fault in an all-

be used if the engine will be used at temperatures

speed engine (both signal and idling switch):

below -10°C (14°F).

• The throttle opening value is 0% and the en-

A low engine speed and a moderate load on a

gine is running at normal idling speed.

cold engine limits white smoke, gives better

• The throttle opening value is 0% and the en-

combustion and warms up the engine more

gine is running at raised idling speed (750

quickly than warming it up with no load.

rpm) if this function is activated.

Avoid running it longer than necessary at idling

CAN fault:

speed.

• The engine is switched off if the shutdown

function is activated.

Running

Driving at high altitude

Check instruments and warning lamps at regular

When driving at high altitudes engine power is

intervals.

reduced automatically due to the lower oxygen

content in the air. It is then not possible to run the

Engine speed range

engine at maximum power.

The engine operating speed range is between low

• ICFN and PRP engines may be used at an al-

idling and the nominal engine speed. The nomi-

titude of up to 2,000 metres.

nal engine speed is indicated on the engine data

plate. Low idling can be set between 500 and

• IFN, Patrol Craft Long and Patrol Craft Short

1,050 rpm.

engines must not be used at an altitude of

more than 1,000 metres.

• Contact Scania if the operating conditions de-

viate from these.

Starting and running

Coolant temperature

Oil pressure

Normal oil pressure during operation is 3-6 bar

IMPORTANT!

(43.5-87 psi). The lowest permitted oil pressure

when idling is 0.7 bar (10.2 psi).

An excessive coolant temperature can cause en-

The incorrect oil pressure alarm has the follow-

gine damage.

ing functions:

• Alarm only.

Normal coolant temperature during operation is

• Alarm and torque reduction by 30%.

90 to 95°C/194 to 203°F for engines with a heat

exchanger and 83 to 88°C/181 to 190°F for en-

• Alarm and engine shutdown.

gines with keel cooling.

• Alarm and engine shutdown override control.

Alarm levels are set in the engine control unit.

Note:

The default setting for the lowest and highest

limit values for high coolant temperature are

High oil pressure (above 6 bar/87 psi) is normal

95°C/203°F and 105°C/221°F respectively.

if the engine is cold when started.

The high coolant temperature alarm has the fol-

lowing functions:

• Alarm only.

Alarm levels, engines without SCR sys-

• Alarm and torque reduction at the lowest lim-

tem

it value.

If the engine does not have the SCR system, the

• Alarm at the lowest limit value and engine

engine management system activates an alarm at

shutdown at the highest limit value.

the levels below. The values refer to overpres-

sure, not absolute pressure. The alarm is activat-

• Alarm, torque reduction at the lowest limit

ed after 3 seconds.

value and engine shutdown at the highest lim-

it value.

• At an engine speed below 1,000 rpm and an

• Alarm at the lowest limit value and engine

oil pressure below 0.7 bar (10.2 psi).

shutdown at the highest limit value with the

• At an engine speed above 1,000 rpm and an

possibility of engine shutdown override con-

oil pressure below 2.5 bar (36.3 psi).

trol.

• Alarm, torque reduction at the lowest limit

value and engine shutdown at the highest lim-

it value, with the possibility of engine shut-

down override control.

If run for extended periods under an extremely

light load, the engine may have difficulty in

maintaining the coolant temperature. At an in-

creased load the coolant temperature rises to the

normal value.

Starting and running

Alarm levels, engines with SCR system

If the engine is equipped with the SCR system,

the engine management system activates an

alarm at the levels below. The values refer to

overpressure, not absolute pressure. The alarm is

activated after 10 seconds.

• At an engine speed below 600 rpm and an oil

pressure below 0.7 bar (10.2 psi).

• At 1,200 rpm and with oil pressure below

2.2 bar (32 psi).

• At 2,100 rpm and with oil pressure below

2.8 bar (40.6 psi).

Charging indicator lamp

If the lamp comes on during operation: Check

and adjust the alternator drive belt according to

the instructions in the section Checking the drive

belt.

If the charging indicator lamp is still on, this

could be due to an alternator fault or a fault in the

electrical system.

Belt transmission

When the belt transmission is new, it may make

a squeaking noise when running. This noise is

normal and disappears after 50-100 hours of op-

eration. The noise does not affect the service life

of the belt transmission.

Starting and running

Bypass of the SCR system

If the SCR system has been activated and needs

to be bypassed in an emergency, this can be done

manually using the handle on the exhaust routing

valve.

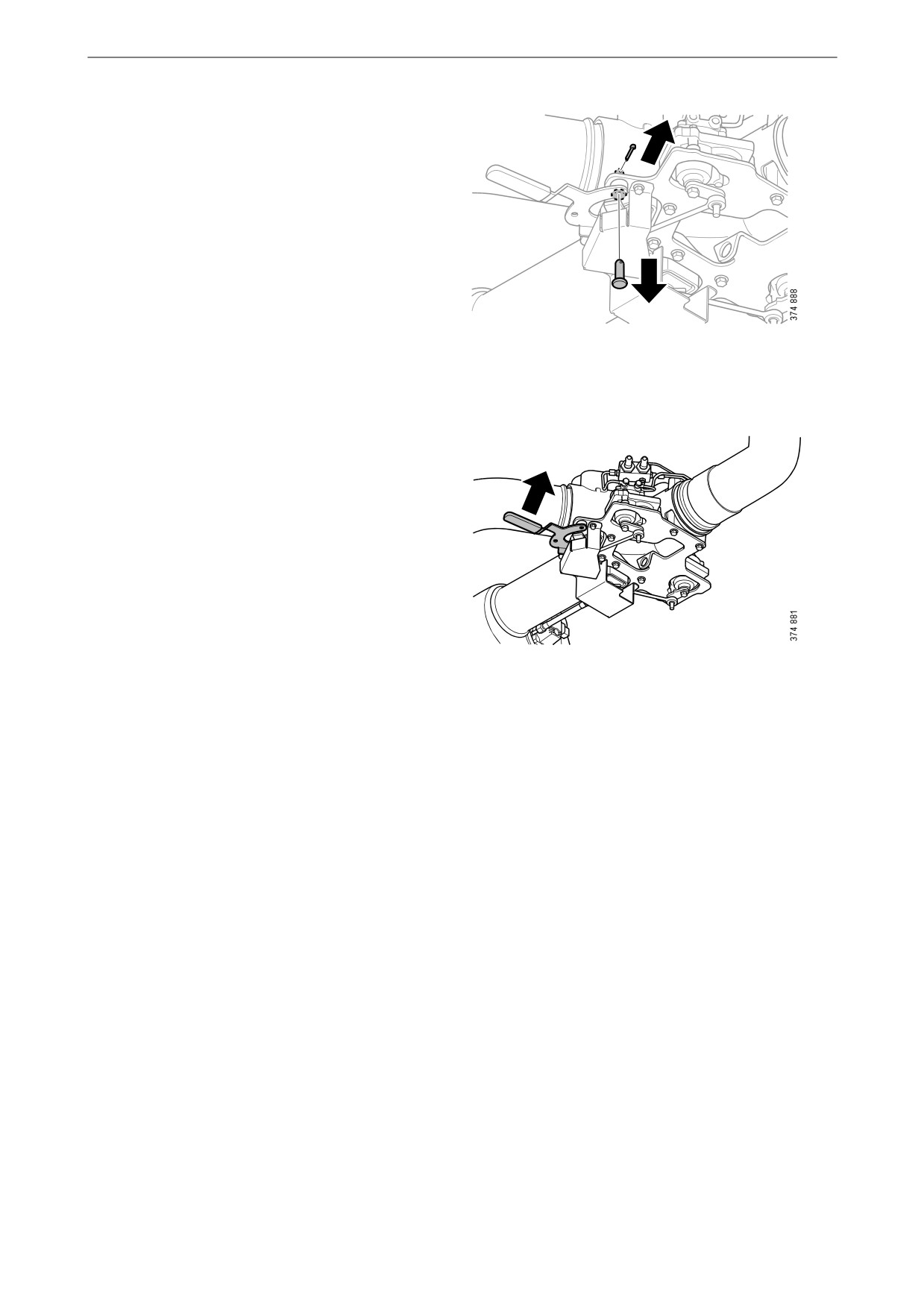

Proceed as follows:

1. Remove the pin.

2. Remove the bolt.

3. Pull the handle to the Open position. See il-

lustration.

4. Lock the handle in the open position using

the pin and the bolt.

Starting and running

Engine shutdown

Checks after running

IMPORTANT!

WARNING!

There is risk of the oil boiling and of damage to

Secure the starting device or disconnect a battery

the turbocharger if the engine is switched off

cable before working on the engine. If the engine

without cooling. The power must not be

starts unexpectedly, there is a serious risk of in-

switched off before the engine has stopped.

jury.

If the engine is equipped with a battery master

There is always a risk of sustaining burns when

switch and an SCR system, the SCR system must

an engine is hot. Particularly hot parts are engine

run for a while after the engine has been switched

manifolds, turbochargers, oil sumps, as well as

off to allow it to cool down. During this period

hot coolant and oil in pipes and hoses.

the power must not be cut using the battery mas-

ter switch.

IMPORTANT!

Note:

Check the coolant level following the first start.

The battery voltage must remain on for a few

Top up with coolant as necessary.

seconds after the 15 voltage is switched off so

that the control units can store the values and

switch to standby mode.

1. Check that the power supply has been cut.

10 prohibited engine shutdowns in a row will

2. Top up the fuel tank. Make sure that the filler

cause a torque reduction (70% of fuel quantity).

cap and the area round the filler opening are

Reset the engine by switching it off correctly

clean to avoid contamination of the fuel.

once.

3. If the engine is equipped with an SCR sys-

tem: Top up the reductant tank. Make sure

that the filler cap and the area round the filler

1. Run the engine without a load for a few min-

opening are clean to avoid contamination of

utes if it has been run continuously with a

the reductant.

heavy load.

4. If there is a risk of freezing, the cooling sys-

2. Switch off the engine.

tem must contain enough glycol. See the sec-

tion Risk of freezing.

5. If the temperature is below 0°C (32°F): Pre-

pare for the next start by connecting the en-

gine heater (if fitted).

Maintenance

IMPORTANT!

The maintenance programme covers a number of

points that are divided into the following sec-

On delivery a Scania engine is optimised for its

tions:

application. However, regular maintenance is

necessary to

• Lubrication system.

•

prevent unplanned stops

• Air cleaner.

•

extend the service life of the engine

• Cooling system.

•

maximise the long-term emission perfor-

• Fuel system.

mance of the engine

• Miscellaneous.

•

give the best possible operating economy.

WARNING!

Secure the starting device or disconnect a battery

cable before working on the engine. If the engine

starts unexpectedly, there is a serious risk of in-

jury.

There is always a risk of sustaining burns when

an engine is hot. Particularly hot parts are engine

manifolds, turbochargers, oil sumps, as well as

hot coolant and oil in pipes and hoses.

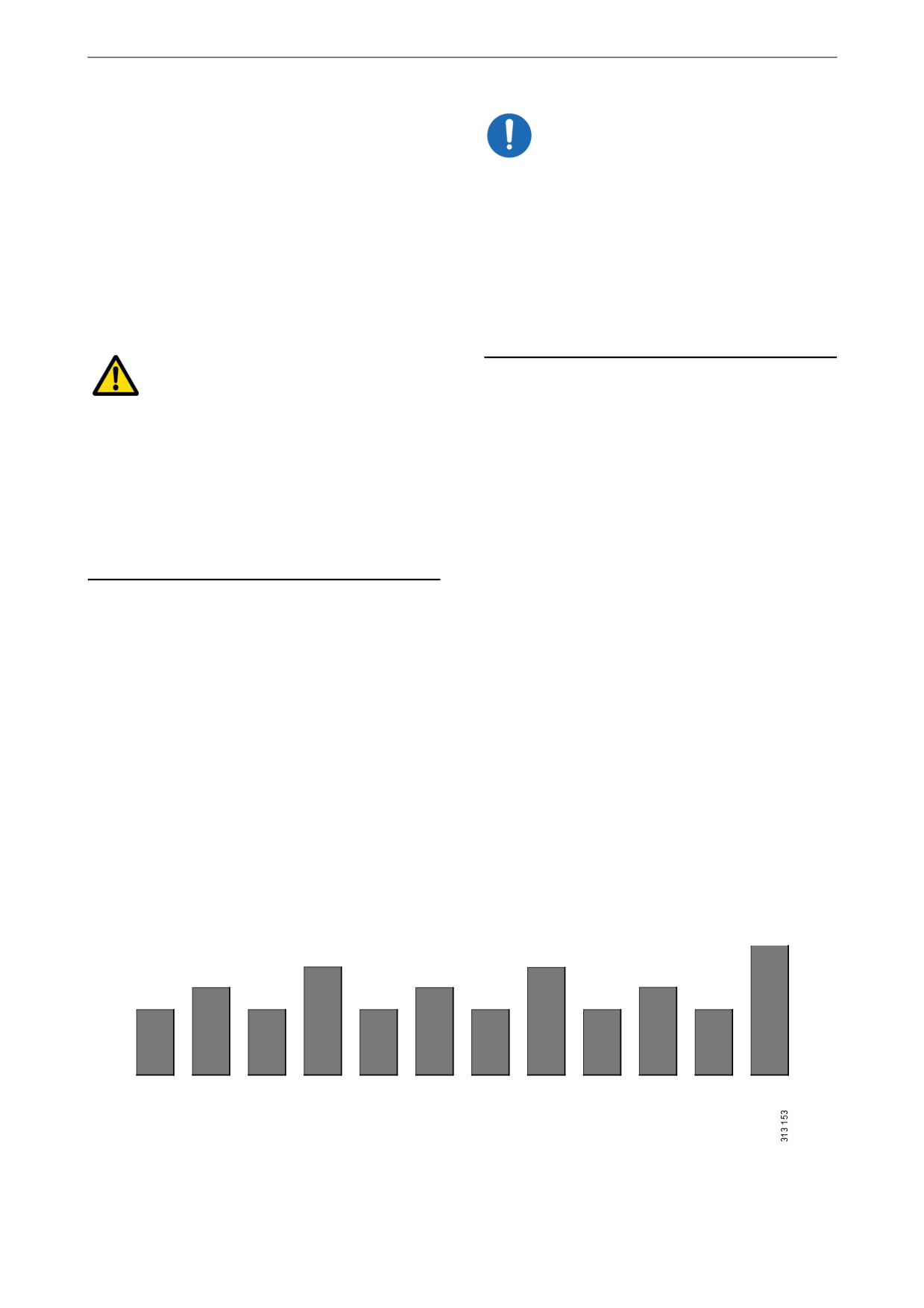

The maintenance programme includes the fol-

lowing:

• R maintenance: One event when taken into

service.

• S maintenance: Minimum basic maintenance.

• M maintenance: More extensive mainte-

nance.

• L maintenance: Includes nearly all mainte-

nance items in the form.

• XL maintenance: Includes all maintenance

items in the form.

During a period, the sequence is S-M-S-L-S-M-

S-L-S-M-S-XL.

500

1000

1500

2000

2500

3000

3500

4000

4500

5000

5500

6000

Maintenance

Maintenance interval

Daily

First time at

Interval (hours)

Minimum

first start

500

1,000

2,000

6,000

annu-

every

ally

years

Lubrication system

Checking the oil level

Changing the oil

Cleaning the centrifugal oil

cleaner

Renewing the oil filter

Air cleaner

Reading the vacuum indicator

Renewing the filter element

Renewing the safety cartridge

Renewing an air filter with a

non-renewable element

Cooling system

Checking the coolant level

Checking coolant antifreeze and

corrosion protection

Checking sacrificial anodes

Checking the sea water pump

impeller

Changing the coolant and clean-

ing the cooling system

Fuel system

Checking the fuel level

Draining the water separating

prefilter

Renewing the fuel filters

Miscellaneous

Checking the drive belt

Checking for leaks

Checking and adjusting the valve

clearance and unit injectors

Renewing the reductant filters

Lubrication system

For operation at extremely low outdoor tempera-

Lubrication system

tures: Consult your nearest Scania representative

on how to avoid starting difficulties.

Oil grade

Scania LDF stands for the Scania Long Drain

Viscosity

Outdoor temperature in °C

Field test standard. Scania LDF oils have been

class

carefully selected after extensive testing. The ap-

SAE 20W-30

-15°C

+30°C

proval is only granted to the highest quality en-

gine oils available on the market.

SAE 30

-10°C.

+30°C

SAE 40

-5°C

+45°C

Recommended engine oil

SAE 50

0°C

+45°C

Scania Oil LDF-3

SAE 5W-30

<-40°C

+30°C

Scania Oil LDF-2

SAE 10W-30

-25°C

+30°C

Scania Oil LDF

SAE 15W-40

-20°C

+45°C

Scania Oil E7

Viscosity

Outdoor temperature in °F

The engine oil must fulfil the following quality

class

requirements:

SAE 20W-30

5°F

86°F

• ACEA E5/API CI-4.

SAE 30

14°F

86°F

• ACEA E7/API CI-4 +.

SAE 40

23°F

113°F

• For engines not run on low-sulphur fuel, the

SAE 50

32°F

113°F

TBN (Total Base Number) should be at least

12 (ASTM D2896).

SAE 5W-30

< -40°F

86°F

• Oils with a low ash content (ACEA E9/API

SAE 10W-30

-13°F

86°F

CJ4) are not recommended.

SAE 15W-40

-4°F

113°F

Check with your oil supplier that the oil meets

these requirements.

If the engine is used in areas of the world where

engine oil with ACEA or API classification is

not available, the oil grade must be measured in

actual operation. In this case contact the nearest

Scania workshop.

Lubrication system

Labels for filled engine oil grade

When changing oil it is important to use the cor-

rect engine oil grade. The oil filler should there-

fore be clearly marked with a label for the filled

oil grade. However, there are only labels for oils

with Scania LDF approval and oil grade

ACEA E7.

Stick on a new label if the oil type or oil grade is

changed in favour of any of the oil types above.

Replace the label if it is missing.

If the oil grades below are used, you can order oil

filler labels from Scania.

Oil grade

Colour

Part no.

Scania LDF-3

Red

2 427 133

ACEA E7

White

2 427 132

Content .. 1 2 3 ..
