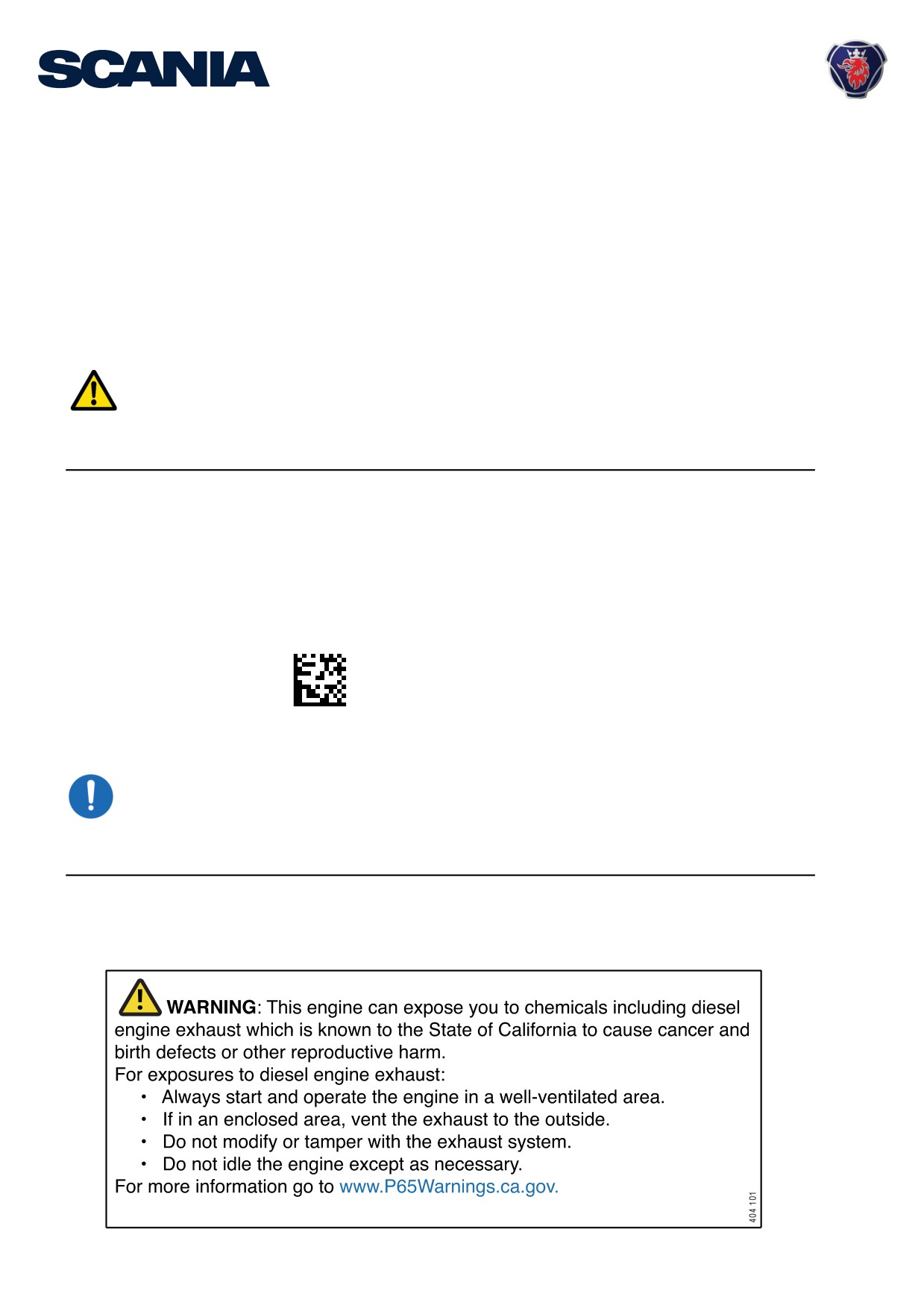

Scania DC16 XPI en-GB 2 826 309. Industrial engine. Operator’s manual - part 1

Important information

Serious risk of injury

When working on the engine, for example when adjusting drive belts and the clutch, or when changing the

oil, it is important not to start the engine. The engine could be damaged, but more importantly there is a

serious risk of injury.

For this reason, always secure the starting device or disconnect a battery cable before working on the engine.

This is especially important if the engine has a remote starter or automatic starting.

WARNING!

This warning symbol and text can be found next to those maintenance items where it is particularly impor-

tant to bear in mind the risk of injury.

Operator's manual

DC16 XPI Industrial engine

en-GB 2 826 309

Issue 9.0

IMPORTANT!

The owner is responsible for making sure that maintenance is carried out on time and in accordance with

the instructions.

The owner must entrust the maintenance, renewal and repair of emission-related components and systems

to a qualified workshop or person.

Start of warranty

protection

Scania engines engine warranty for industrial

Changing the coolant and cleaning the cooling

engines

system

Emission control systems warranty

Fuel system

Emission control system warranty statement . 4

Cleanliness requirements

California emission control warranty statement

Checking the fuel level

Renewing the fuel filters

Your warranty rights and obligations

Bleeding the fuel system

Manufacturer's warranty coverage

Other

Owner's warranty responsibilities

Checking the drive belt

SCR catalytic converter

Checking for leaks

Introduction

Checking and adjusting the valve clearance .74

Certification

Renewing the reductant filter

Power classes

Cleaning the reductant tank filler filter

Environment and safety

Cleaning the reductant tank ventilation filter.80

Environmental responsibility

Quality requirements for fuel

Safety

Diesel

Warnings and advisories

Biodiesel (FAME)

Engine data plate

Reductant for SCR

Component identification

Preparing the engine for storage

Engine

Preservative products

SCR system

Preparations for storage

Starting and running

Technical data

Checks before first start

General data

Checks before running

Lubrication system

Starting the engine

Intake system

Running

Cooling system

Engine shutdown

Fuel system

Checks after running

Electrical system

Transporting engines

Scania Assistance

Maintenance

General tightening torques for screw joints . .92

Engines with few hours of operation

Hexagon screws, hexagon socket screws, Torx

Cleaning the engine

screws, hexagon nuts

Maintenance interval

Flange screws with hexagonal head and hexago-

Lubrication system

nal flange nuts

Oil grade

Hose clamps

Oil analysis

Checking the oil level

Maximum angles of inclination during operation

Changing the oil

Cleaning the centrifugal oil cleaner

Operational testing of the centrifugal oil cleaner

Renewing the oil filter

Air cleaner

Reading the vacuum indicator

Renewing the air cleaner filter element and safe-

ty cartridge

Cooling system

Coolant

Checking coolant level

Checking the coolant's antifreeze and corrosion

Start of warranty

The more we know about you, your company and your equipment, the more effectively we can adapt our

services to you. If you have started to use a new Scania engine, it is very important that you send in the war-

ranty start report to us immediately. Quite simply, we need to register all the details on engine ownership

etc., so we can monitor it for you.

You can report the start of the warranty on the Scania website: www.scania.com.

Note:

If you do not send in the warranty report, the engine is not covered by the accompanying Scania warranty.

Also fill in below the details you enter in the warranty report. These details can facilitate contact with a

workshop, for example. The engine serial number is on the engine data plate and is also engraved on the

cylinder block.

Engine serial number (e.g. 1111111)

Ship ID (for example MMSI 111111111 or IMO 1111111)

Start date (yyyy-mm-dd)

Company name

Contact person

Telephone number

E-mail address

Address

Post code

Postal town

State/County

Country

Scania engines engine warranty for industrial engines

in the engine manufacturer's application for

Scania engines engine war-

certification.

ranty for industrial engines

Where a warrantable condition exists, Scania

will repair your heavy-duty off-road engine at no

Emission control systems

cost to You including diagnosis, parts, and labor.

warranty

IMPORTANT!

Warranty period

Only applicable to engines used in the U.S.A.

This warranty shall apply for one of the follow-

ing periods, whichever occurs first:

•

3,000 hours of operation as determined by a

Table of Contents

device to measure hours of use, or

General warranty provisions

• Five years

Warranty period

Each engine is equipped with a device to meas-

Parts covered by the Warranty

ure hours of use. If that device fails to account for

hours of use due to defects in materials or work-

General warranty limitations

manship, the engine shall be warranted for a pe-

Specific warranty exclusions

riod of five years. The warranty period shall

Customer support

begin on the date the engine is delivered to the

first ultimate purchaser who, in good faith, pur-

chases the engine for purposes other than immi-

nent resale.

Emission control system war-

ranty statement

The Warranty on emission-related

General warranty provisions

parts shall be interpreted as follows:

The emission control systems of your new Scan-

1. Any warranted part which is not scheduled

ia Engines (“Scania”) industrial diesel engine

for replacement as required maintenance in

were designed, built and tested using genuine

Scania's written instructions for maintenance

parts, and were certified as being in conformity

and use of the engine by owner shall be war-

with federal emission control regulations. Scania

ranted for the warranty period defined above.

warrants to the original owner, and to each sub-

If any such part fails during the period of

sequent owner, of a new Scania industrial diesel

warranty coverage, it shall be repaired or re-

engine (“You”) that the engine:

placed by the engine manufacturer according

to Subsection (4) below. Any such part re-

1. Was designed, built and equipped so as to

paired or replaced under the Warranty shall

conform at the time of sale with all applica-

be warranted for the remaining warranty pe-

ble regulations under Section 213 of the

riod.

Clean Air Act, 42 U.S.C. § 7547, for their

2. Any warranted part which is scheduled only

full useful life and designed, built and

for regular inspection in Scania's written in-

equipped so as to conform with all applicable

structions for maintenance and use of the en-

regulations adopted by the California Air Re-

gine by owner shall be warranted for the

sources Board pursuant to its authority under

warranty period defined above. A statement

Chapters 1 and 2, Part 5, Division 26 of the

in such written instructions to the effect of

California Health and Safety Code, and;

“repair or replace as necessary” shall not re-

2. Is free from defects in material and work-

duce the period of warranty coverage. Any

manship which would cause such engine to

such part repaired or replaced under warran-

fail to conform to applicable regulations for

ty shall be warranted for the remaining war-

its warranty period or otherwise cause the

ranty period.

failure of a warranted part to be identical in

all material respects to the part as described

Scania engines engine warranty for industrial engines

3. Any warranted part which is scheduled for

shall not be liable under this article to war-

replacement as required maintenance in Sca-

rant failures of warranted parts caused by the

nia's written instructions for maintenance

use of a non-exempted add-on or modified

and use of the engine by owner shall be war-

part.

ranted for the period of time prior to the first

11. The Executive Officer of the California Air

scheduled replacement point for that part. If

Resources Board may request, and in such

the part fails prior to the first scheduled re-

case, the engine manufacturer shall provide,

placement, the part shall be repaired or re-

any documents which describe that manufac-

placed by the engine manufacturer according

turer's warranty procedures or policies.

to Subsection (4) below. Any such part re-

paired or replaced under warranty shall be

warranted for the remainder of the period

prior to the first scheduled replacement point

Parts covered by the Warranty

for the part.

The following is a list of parts considered to be

4. Repair or replacement of any warranted part

part of the Emission Control Systems covered by

under the warranty provisions of this article

the Emission Warranty for Scania industrial en-

shall be performed at no charge to the owner

gines which were built to conform to federal and

at a warranty station.

California emission control regulations:

5. Notwithstanding the provisions of Subsec-

tion (4) above, warranty services or repairs

1. Fuel injection system.

shall be provided at all manufacturer distri-

2. Air induction system.

bution centers that are franchised to serve the

3. Exhaust manifold system.

subject engines.

4. Smoke puff limiter (included in ECU).

6. The owner shall not be charged for diagnos-

tic labor that leads to the determination that a

5. Oil filler cap.

warranted part is in fact defective, provided

6. EGR system (when applicable):

that such diagnostic work is performed at a

a) Cooler.

warranty station.

b) EGR valve.

7. The engine manufacturer shall be liable for

7. Exhaust brake (when applicable).

damages to other engine components proxi-

mately caused by a failure under warranty of

8. NOx sensors:

any warranted part.

a) NOx sensor, engine out.

8. Throughout the engine's warranty period de-

b) NOx sensor, tail pipe.

fined above, the engine manufacturer shall

9. DOC (when applicable).

maintain a supply of warranted parts suffi-

10. SCR system:

cient to meet the expected demand for such

parts.

a) DEF tank.

b) DEF tank level, temperature and quality

9. Any replacement part, as defined in Section

sensors.

1900(b), Title 13 of the California Code of

c) DEF hose.

Regulations, may be used in the performance

d) DEF injector.

of any maintenance or repairs and must be

e) DEF injector pressure and temperature

provided without charge to the owner. It is

sensors.

not necessary for replacement parts to be the

f) Evaporator.

same brand or by the same manufacturer as

g) SCR catalyst inlet temperature sensor.

the original part sold with the engine. Such

h) SCR catalyst including the ammonia-slip

use shall not reduce the warranty obligations

catalyst.

of the engine manufacturer.

i) SCR control unit (EEC3).

10. Add-on or modified parts, as defined in Sec-

tion 1900(b), Title 13 of the California Code

of Regulations, that are not exempted by the

California Air Resources Board may not be

used. The use of any non-exempted add-on

or modified parts shall be grounds for disal-

lowing a warranty claim made in accordance

with this article. The engine manufacturer

Scania engines engine warranty for industrial engines

11. Miscellaneous items used in the above sys-

Receipts covering the performance of regular

tem:

maintenance should be retained in the event

questions arise concerning maintenance. The re-

a) Electronic control unit (ECU), sensors,

ceipts should be transferred to each subsequent

wiring harnesses.

owner of the engine with the emission warranted

b) Hoses, belts, connectors, assemblies,

engine. Scania cannot, however, deny warranty

clamps, fittings tubing, sealing gaskets or

solely for the lack of receipts or for your failure

devices and mounting hardware.

to ensure the performance of all scheduled main-

c) Pulleys, belts and idlers.

tenance.

d) Emission control information label.

The Warranty covers the cost of diagnosis, repair

IMPORTANT!

and replacement parts and services of warranted

components and systems performed by an au-

This list does not include all expendable mainte-

thorized Scania distributor or dealer using genu-

nance parts.

ine Scania parts. You may elect to have

maintenance, replacement or repair of these

• Expendable emission related parts requiring

components and systems performed by any re-

scheduled maintenance are warranted until

pair establishment or individual without invali-

their first scheduled replacement point.

dating the Warranty.

• Emission related parts scheduled for inspec-

The use of other than Scania replacement parts

tion and replacement only as necessary are

also does not invalidate the warranty on other

not considered expendable and if repaired or

components unless such parts cause damage to

replaced under warranty shall be warranted

warranted parts. However, the cost of such ser-

for the remaining warranty period.

vices or parts will not be covered by the Warran-

ty.

See Specific Warranty Exclusions below.

You are responsible for initiating the warranty

process. The California Air Resources Board

suggests that You present your heavy-duty off-

road engine to an authorized Scania dealer as

General warranty limitations

soon as a problem exists. The warranty repairs

should be completed by the dealer as expedi-

To retain the dependability of the exhaust emis-

tiously as possible.

sion control originally built into your Scania in-

dustrial diesel engine, it is essential that the

engine is installed according to Scania installa-

WARNING!

tion instructions and emission certificates. Your

engine is designed to operate on diesel fuel only.

Use of replacement parts which are not of equiv-

Use of any other fuel may result in your engine

alent quality may impair the effectiveness of

no longer operating in compliance with state or

emission control systems. Accordingly, it is rec-

federal emissions requirements. The use of alter-

ommended that only Scania repair or replace-

native fuels shall not void the warranties on any

ment parts be used for maintenance, repair or

engine certified to use such fuel.

replacement of emission control systems.

In addition, as the engine owner, You are respon-

If other than Scania parts are used for mainte-

sible for the performance of all scheduled main-

nance, repair or replacement, the owner should

tenance listed in your owner's manual, and all

obtain assurance that such parts are warranted by

necessary repairs, on your new Scania industrial

their manufacturer to be equivalent to genuine

diesel engine. Scania may deny a warranty claim

Scania parts.

if the engine or part has failed due to abuse, ne-

glect, improper maintenance or unapproved

modifications.

Scania engines engine warranty for industrial engines

Specific warranty exclusions

Customer support

This warranty does not cover:

In the event that You do not receive the warranty

service to which You believe You are entitled

1. Malfunctions in any part caused by any of

under the Warranty, or if You need additional

the following: misuse, abuse, improper ad-

support or information concerning the Warranty,

justments, modifications, alteration, tamper-

please contact:

ing, disconnection, improper or inadequate

maintenance, or use of fuels not recommend-

Scania USA, Inc.

ed for the engine as described in the Opera-

Address: 121 Interpark Blvd, suite 1002, 78216,

tor’s Manual.

San Antonio, Texas

2. Engine installation, including cooling sys-

tem, intake system and exhaust system in-

Mailing address: 121 Interpark Blvd, suite

stallation, that is not completed in

1002, 78216, San Antonio, Texas

accordance with the Scania installation in-

Telephone: +1 210 403 0007

structions and emissions certificate for this

engine type.

Fax: +1 210 403 0211

3. Damage resulting from accidents, acts of na-

E-mail: na.contact@scania.com

ture or other events beyond the control of

Scania.

California customers shall also be furnished a

4. The replacement of expendable maintenance

copy of the California Emission Control Warran-

items such as filters, hoses, belts, oil, ther-

ty Statement applicable to each new Scania en-

mostat, exhaust system and coolant made in

gine purchased.

connection with scheduled maintenance ser-

vices once these parts have been replaced.

5. Replacement items which are not genuine

Scania parts or not authorized by Scania.

6. Inconvenience, loss of use of the engine or

commercial loss.

7. Any engine on which the actual use cannot

be accurately determined due to a failure of

the device to track hours of use unrelated to

defects in materials or workmanship.

8. Any engine operating outside the United

States.

California emission control warranty statement

California emission control

Owner's warranty responsi-

warranty statement

bilities

•

As the off-road engine owner, you are respon-

Your warranty rights and obli-

sible for the performance of the required

maintenance listed in your owner's manual.

gations

Scania CV AB recommends that you retain

The California Air Resources Board is pleased to

all receipts covering maintenance on your

explain the emission control system warranty on

off-road engine, but Scania CV AB cannot

your 2019 engine. In California, new heavy-duty

deny warranty solely for the lack of receipts

off-road engines must be designed, built and

or for your failure to ensure the performance

equipped to meet the State's stringent anti-smog

of all scheduled maintenance.

standards. Scania CV AB must warrant the

•

As the off-road engine owner, you should

emission control system on your engine for the

however be aware that Scania CV AB may

periods of time listed below provided there has

deny you warranty coverage if your off-road

been no abuse, neglect or improper maintenance

engine or a part has failed due to abuse, ne-

of your engine.

glect, improper maintenance or unapproved

modifications.

Your emission control system may include parts

such as the fuel injection system and the air in-

•

Your engine is designed to operate on ultra

duction system. Also included may be hoses,

low-sulfur diesel fuel only. Use of any other

belts, connectors and other emission-related as-

fuel may result in your engine no longer oper-

semblies.

ating in compliance with California's emis-

sions requirements.

Where a warrantable condition exists,

•

You are responsible for initiating the warran-

Scania CV AB will repair your heavy-duty off-

ty process. The ARB suggests that you pres-

road engine at no cost to you including diagno-

ent your off-road engine to a Scania CV AB

sis, parts and labor.

dealer as soon as a problem exists. The war-

ranty repairs should be completed by the

dealer as expeditiously as possible.

Manufacturer's warranty cov-

If you have any questions regarding your war-

ranty rights and responsibilities, you should con-

erage

tact Scania U.S.A. Inc +1-210-403-0007.

The 2019 heavy-duty off-road engines are war-

ranted for a period of five years or 3,000 hours,

whichever occurs first. If any emission-related

part on your engine is defective, the part will be

repaired or replaced by Scania CV AB.

SCR catalytic converter

Environmental protection measures

SCR catalytic converter

•

The SCR catalytic converter is a manufac-

tured article that contains vanadium pentox-

WARNING!

ide, a hazardous substance. Before disposing

of, or scrapping, a spent SCR catalytic con-

The SCR catalytic converter contains vanadium

verter, it should be tested for any hazardous

pentoxide, a chemical known to the State of Cal-

characteristics (ignitability, corrosivity, reac-

ifornia to cause cancer.

tivity, acute hazardousness, and toxicity), as

those categories are described in 22 CCR §

66261.30. If the spent SCR catalytic convert-

The SCR catalytic converter is fitted in the si-

er exhibits hazardous characteristics and is

lencer and does not constitute a health hazard

being disposed of, it will be considered by the

during normal use and handling.

State of California to be a hazardous waste

When carrying out work on the SCR catalytic

subject to Title 22, California Code of Regu-

converter which may result in exposure to dust,

lations. Before disposing of hazardous waste,

safety precautions must be taken. Such work in-

review and follow all pertinent federal and

cludes, for example, opening the silencer ma-

California requirements.

chining and scrapping the SCR catalytic

•

Vanadium pentoxide is a listed commercial

converter.

chemical product - P120 - pursuant to 22

CCR § 66261.33(e). According to the State of

Safety precautions when working on the SCR

California, commercial chemical products

system.

that are discarded or intended to be discarded

• Inhalation: If dust is inhaled, the person

are hazardous wastes and are subject to all

should be provided with fresh air immediate-

provisions of Title 22, California Code of

ly. Seek medical attention.

Regulations. Before disposing of vanadium

pentoxide, review and follow all pertinent

• Eye contact: Rinse eyes with water immedi-

federal and California requirements.

ately. If irritation persists, seek medical atten-

tion.

•

If the SCR catalytic converter is opened for

maintenance, any dust spillages from the cat-

• Skin contact: Wash with water and soap. Re-

alyst should be collected and tested for the

move contaminated clothes.

presence of vanadium pentoxide prior to

• Ingestion: If large amounts have been ingest-

proper disposal. Dust spillages should also be

ed, drink plenty of water and induce vomit-

tested for any hazardous characteristics (ig-

ing. Seek medical attention

nitability, corrosivity, reactivity, acute haz-

ardousness, and toxicity), as those categories

Environmental hazards

are described in 22 CCR § 66261.30, prior to

• Vanadium pentoxide is toxic to water organ-

proper disposal. If the dust contains either va-

isms and can cause detrimental long term ef-

nadium pentoxide or exhibits hazardous char-

fects to water environment.

acteristics and is being disposed of, it will be

considered by the State of California to be a

hazardous waste subject to Title 22, Califor-

nia Code of Regulations. Before disposing of

hazardous waste, review and follow all perti-

nent federal and California requirements.

SCR catalytic converter

• Do not dispose of the spent SCR catalytic

•

Any dust from the SCR catalytic converter

converter or its constituent parts into any wa-

should be removed using a vacuum cleaner

terways, storm drains or sanitary sewers.

with microfilter to minimize exposure.

•

Make sure that the work surface is cleaned af-

ter completed work; Vacuum first then swab.

WARNING!

•

Make sure you clean your hands after work-

ing with SCR catalytic converter to avoid in-

The SCR catalytic converter contains vanadium

gestion.

pentoxide, a chemical known to the State of Cal-

ifornia to cause cancer.

•

Work done on the SCR catalytic converter

may generate waste considered by the State

of California to be a hazardous waste subject

Additional considerations when working on the

to Title 22, California Code of Regulations.

SCR system

Before disposing of hazardous waste, review

and follow all pertinent federal and California

•

Carry out work on the SCR catalytic convert-

requirements.

er in a well ventilated area. Use protective

goggles and gloves if there is any risk of

splashing or spraying of reductant or coolant.

•

When engine is running, the exhaust system

parts can reach such high temperatures that

there is a risk of personal injury. Make sure

that the exhaust system temperature has de-

creased to a suitable level before starting to

work.

•

The SCR system is heated by water from the

engine cooling system. The cooling system

runs at overpressure and when the engine is

hot the coolant is hot. Do not open any hoses

without first stopping the coolant flow in the

hose.

•

A P3 type respirator/filter mask or a type

FFP3 fine dust musk, protective goggles and

gloves should be used for any work where

there is a risk of exposure to dust from the

SCR catalytic converter.

•

Use a disposable overall and dispose of it

properly after machining.

•

Eating, drinking or smoking while working is

not permitted.

Introduction

Certification

This Operator's manual describes the operation

IMPORTANT!

and maintenance of Scania industrial engines.

The engines are direct-injection, liquid-cooled,

For Scania to guarantee that the engine corre-

four-stroke turbocharged diesel engines. Certain

sponds to its certified configuration, and take re-

engines are also equipped with an SCR system

sponsibility for any damage and injuries that

for emission control.

occur, maintenance must be carried out in ac-

cordance with the instructions in this Operator's

The engines are available with different output

manual.

and engine speed settings. Engine power for the

engine ordered is indicated on a plate located on

the engine control unit.

An emissions certified engine fulfils the emis-

sions requirements for a particular range of ap-

Note:

plication.

Only standard components are described in the

operator's manual. Information about special

On each emissions certified engine there is a la-

equipment is contained in instructions from the

bel which shows which requirements the engine

various manufacturers.

fulfils. Scania guarantees that each such engine

fulfils the emissions requirements for the range

of application for which it is certified.

To ensure the maximum performance and the

The following are required for the certified en-

longest service life for the engine remember the

gine to fulfil the emissions requirements once it

following:

has been taken into service:

• Read through the Operator's manual before

• Maintenance is to be carried out in accord-

starting to use the engine. Even regular users

ance with the instructions in this Operator's

of Scania engines will get new information

manual.

from the Operator's manual. Even regular us-

ers of Scania engines will get new informa-

• Maintenance and repairs of injection equip-

tion from the Operator's manual.

ment are to be carried out by an authorised

Scania workshop.

• Always follow the maintenance instructions.

• The engine may only be modified with equip-

• Read the section on safety carefully.

ment that has been approved by Scania.

• Get to know your engine so that you know

• Seals may be broken and setting data edited

what it can do and how it works.

only once approval has been granted by Sca-

• Always contact a workshop with qualified

nia. Modifications may be made by author-

personnel for maintenance and repair.

ised personnel only.

The information in this Operator's manual was

• Modifications affecting the exhaust and in-

correct at the time of going to press. Scania re-

take systems must be approved by Scania.

serves the right to make alterations without prior

Otherwise, the instructions in the Operator's

notice.

manual for the running and maintenance of the

engine shall apply. Follow the safety precautions

on the following pages.

Power classes

Scania supplies engines in five different power

classes:

ICFN, Continuous service: Intended for contin-

uous use and an unlimited number of operational

hours per year at a total load factor of 100%.

IFN, Intermittent service: Intended for periodic

use, where the rated power is available for one

hour per three-hour period. The total load factor

must not exceed 80% of the rated power. Unlim-

ited number of operational hours per year.

PRP, Prime power: Intended for continuous use

and an unlimited number of operational hours

with varying loads. The average load factor must

not exceed 70% of the rated power in a 24-hour

period. Accumulated overload 110% for one

hour per 12-hour period. This power class ap-

plies to single-speed engines.

COP, Continuous power: Intended for continu-

al use with a non-varying load and an unlimited

number of operational hours.

ESP, Emergency standby power: Intended for

use with varying loads for a maximum of 200

hours per year. Cannot be overloaded. The aver-

age load factor must not exceed 70% of the rated

power in a 24-hour period. ESP engines are in-

tended as back-up power supplies in the efficient

electrical networks in Europe, North and South

America, Australia, New Zealand, Japan and

Taiwan. In other areas, PRP is recommended for

back-up power supply.

The engine serial numbers and power classes for

the engines that are used in this installation

should be listed below: You can find the power

class of your engine in the engine type data sheet

on the Scania website, www.scania.com.

Engine serial no.:

Engine type:

Engine power:

kW at

rpm

ICFN, Continuous service

Power classes

IFN, Intermittent service

PRP, Prime power

COP, Continuous Power

ESP, Emergency standby power

Environment and safety

Different types of advisory

Environment and safety

Warning!

Environmental responsibility

All advisories preceded by Warning! are very

Scania develops and produces engines that are as

important. They warn of serious faults and incor-

environmentally-friendly as possible. Scania has

rect operation that could lead to personal injury.

made major investments in the reduction of

Example:

harmful exhaust emissions in order to fulfil the

environmental requirements in force in almost

WARNING!

every market.

At the same time, we have been able to maintain

Block the starting device when working on the

a high level of performance and operating econ-

engine. If the engine starts unexpectedly, there is

omy for Scania engines. To maintain these

a serious risk of injury.

throughout the entire service life of the engine, it

is important for the user to follow the instruc-

tions on running, maintenance and fuel, lubricat-

Important!

ing oil and coolant as outlined in the Operator's

Advisories preceded by Important! warn of

manual.

faults and incorrect operation that could lead to

Other green initiatives taken include ensuring

equipment being damaged. Example:

that, following maintenance and repair, waste

that is harmful to the environment (for example

IMPORTANT!

oil, fuel, coolant, filters and batteries) is disposed

of accordance with the applicable environmental

An excessive coolant temperature can cause en-

requirements.

gine damage.

Safety

Note:

The following pages contain a summary of the

Advisories preceded by Note: refer to informa-

safety precautions to be complied with when op-

tion important to ensure the best possible opera-

erating and maintaining Scania engines. The

tion and functionality. Example:

equivalent text can also be found under the rele-

vant maintenance item.

Note:

Leave the engine off for at least 7 minutes before

To prevent damage to the engine and to ensure

you check the oil level.

that it runs optimally, follow the instructions in

the warnings and advisories.

If the instructions are not followed, the warranty

can cease to apply.

Environment and safety

Environment

Fuel

This Operator’s manual contains specially high-

lighted text with instructions to help protect the

WARNING!

environment during maintenance. Example:

The wrong fuel grade can cause breakdowns or

stoppages by causing the injection system to

Environment

malfunction. This can cause damage to the en-

gine and, possibly, personal injury.

Use a suitable container. The fuel collected must

be disposed of as specified in national and inter-

national laws and regulations.

REQUIREMENT!

Use only fuel which fulfils the requirements in

the Quality requirements for fuel section.

Warnings and advisories

Smoking

Refuelling

WARNING!

Smoking is prohibited

During refuelling there is a risk of fire and explo-

• in the vicinity of flammable or explosive ma-

sion. The engine must be switched off and smok-

terial, e.g. fuel, oils, batteries, chemicals

ing is prohibited.

• when refuelling and in the vicinity of the fill-

Never overfill the tank as the fuel needs space to

ing station

expand. Make sure that the filler cap is fully

• when working on the fuel system

closed.

Safety precautions for running the

Hazardous gases

engine

WARNING!

Daily maintenance

Always carry out a visual inspection of the en-

Only start the engine in a well-ventilated area.

gine and engine compartment before starting the

The exhaust gases contain carbon monoxide and

engine or when the engine has been switched off

nitrogen oxides, which are toxic.

after operation.

When the engine is run in an enclosed space,

This inspection should be done to detect fuel, oil

there must be an effective device to extract ex-

or coolant leaks, or anything else that may re-

haust gases and crankcase gases.

quire corrective action.

Content .. 1 2 ..
