Scania D14, DC14, DI14. Industrial engine. Operator’s manual

2001-05:1

14. Every 2400 hours:

CHECKING THE INJECTORS

Injectors should be inspected by trained personnel with access to the neces-
sary equipment. Inspection should be carried out at least once a year or every
2400 hours.

Removal

Clean around the injectors and connections, including clamps and
brackets.

Detach the delivery pipe bundle and leak-off fuel lines.

Unscrew the injector.

Fit protective plugs on the injector and delivery pipe.

Lift up the seal from the bottom of the injector seat if it does not come
out together with the injector.

Fit a core plug in the injector seat in the cylinder head.

Clean the injectors and check/adjust in a nozzle tester.

Correct opening pressure, see Technical data, page 46.

Fitting

Check that there is no old seal in place and fit a new seal in the bottom
of the injector seat.

Fit a new O-ring in the socket nut and a new seal under the socket nut.

Fit the injector.

Tighten the socket nut to 70 Nm (7.0 kpm).

Fit the delivery pipe and tighten the union nuts to 20 Nm (2.0 kpm). Fit
clamps and brackets.

Important

Take care to fit the delivery pipe without tension and make sure
that the cone on it is correctly positioned in the connection.

Fit the leak-off fuel line. Tighten the bolts to 11 Nm (1.1 kpm).

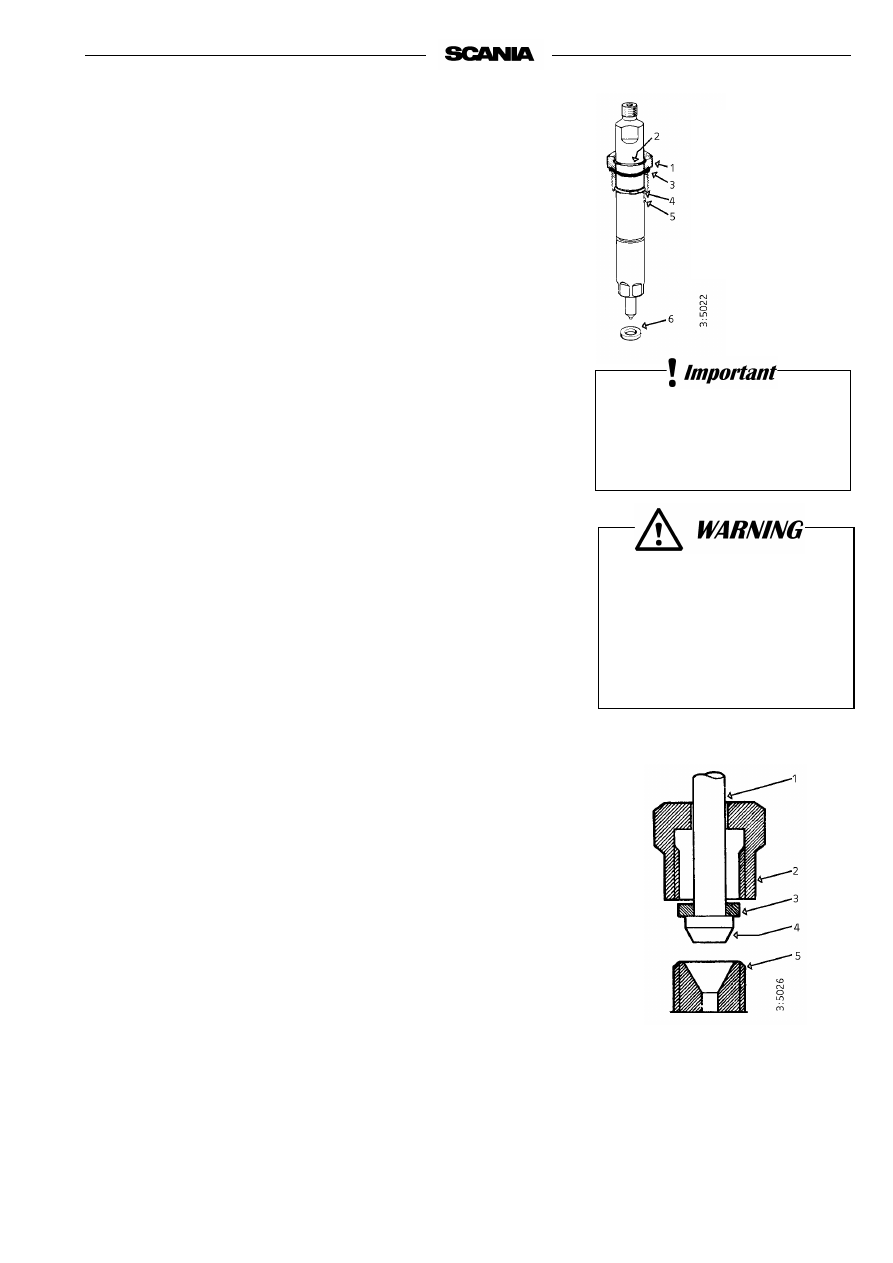

Delivery pipes

Cap nut

Washer

Cone

Connector on injector or
injection pump

Socket nut

O-ring

Stop ring

Guide pin

Seal

The delivery pipes must

not be bent.

All clamps must be refitted.

Always wear gloves and eye

protection when testing

injectors.

Fuel escaping under high

pressure can penetrate body

tissue and cause serious injury.

ELECTRICAL SYSTEM

15. Every 200 hours:

CHECKING THE ELECTROLYTE
LEVEL IN BATTERIES

Unscrew the plugs and check the electrolyte level in all cells.

Top up with distilled water until the level is 10-15 mm above the plates.

16. Every 200 hours:

CHECKING THE STATE OF CHARGE IN
BATTERIES

Note

Every 200 hours applies to generator sets and the like. Other
installations every 1200 hours.

- Check the density with an acid tester.

In a fully-charged battery it should be:

1.280 at +20 °C

1.294 at 0°

1.308 at -20 °C

- If the density is below 1.20, the battery must be charged. A discharged

battery freezes at -5 °C.

Do not rapid-charge the batteries. This will damage the battery in the
long run.

17. Every 200 hours:

CLEANING THE BATTERIES

Note:

Every 200 hours applies to generator sets and the like. Other
installations every 1200 hours.

Clean batteries, cables and cable terminals.

Check that all cable terminals are firmly tightened.

Grease battery terminal posts and cable terminals with vaseline.

Wear gloves and eye protection

when charging and

handling batteries.

Batteries contain a highly

corrosive acid.

Do not connect the cables to the

wrong terminals.

This could cause serious

damage to the electrical system.

If the terminals are

shortcircuited, sparks

will be generated.

Do not let open flame or sparks

come near the batteries.

When batteries are charged,

they emit highly flammable

fumes that can explode.

2001-05:1

18. Every 1200 hours:

CHECKING THE COOLANT LEVEL
MONITOR

(optional equipment)

Start the engine.

Lower the coolant level in the expansion tank.

Automatic stop in case of fault: The engine stops, the indicator lamp
comes on and the buzzer sounds if the level monitor is OK.

Without automatic stop in case of fault: The indicator lamp comes on
and the buzzer sounds if the level monitor is OK.

Top up coolant to the correct level, refer to page 24.

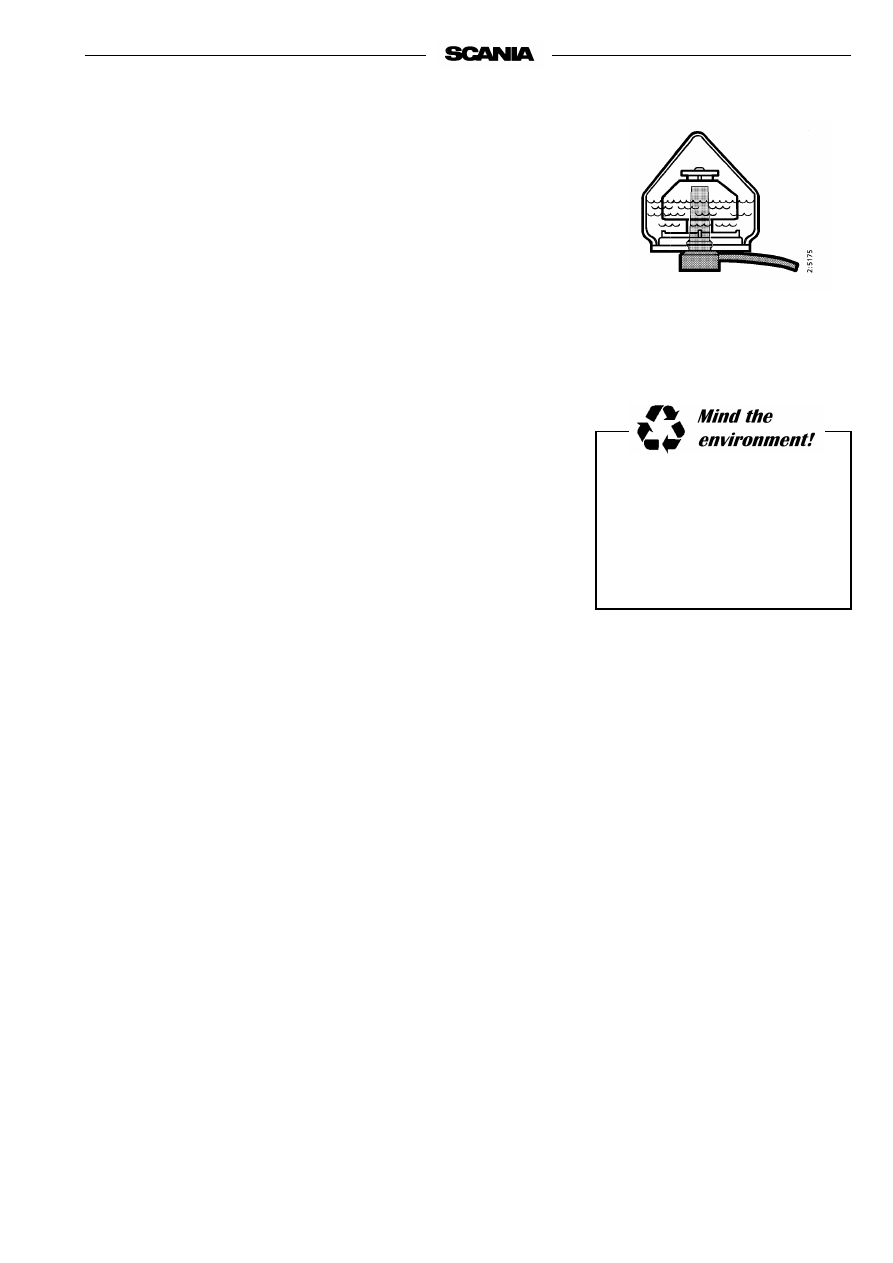

2-pole level monitor installed

in expansion tank for radiator

supplied by Scania

Always use a suitable container

to avoid spillage when

draining coolant.

Dispose of used coolant through

an authorized waste disposal

contractor.

19. Every 1200 hours:

CHECKING THE TEMPERATURE
MONITOR

Drain the coolant, allowing the temperature monitor to be removed.

Remove the temperature monitor cable(s).

Unscrew the monitor.

Refit the cable(s) to the monitor.

Submerge the monitor sensor body in water. Heat the water slowly
(approx. 1° minute) using e.g. an immersion heater.

Set the control switch to "ON". Use a thermometer to check that the
warning lamp comes on or that an alarm is initiated at the correct
temperature.

The correct temperature is stamped on the hexagonal part of the
monitor.

The monitor tolerance is

± 3°.

CHECKING THE TEMPERATURE
SENSOR

Drain the coolant, allowing the temperature sensor to be removed.

Remove the temperature sensor cable(s).

Unscrew the sensor.

Connect an ohmmeter to the temperature sensor.

Submerge the sensor body in water. Heat the water slowly
(approximately 1° per minute) using e.g. an immersion heater.

Check the resistance at the temperatures given below.

The sensor should give the following readings:

At temp. °C

Resistance

Ω

Tolerance °C

134

± 13.5

±4

51.2

± 4.3

±3

100

38.5

± 3

±3

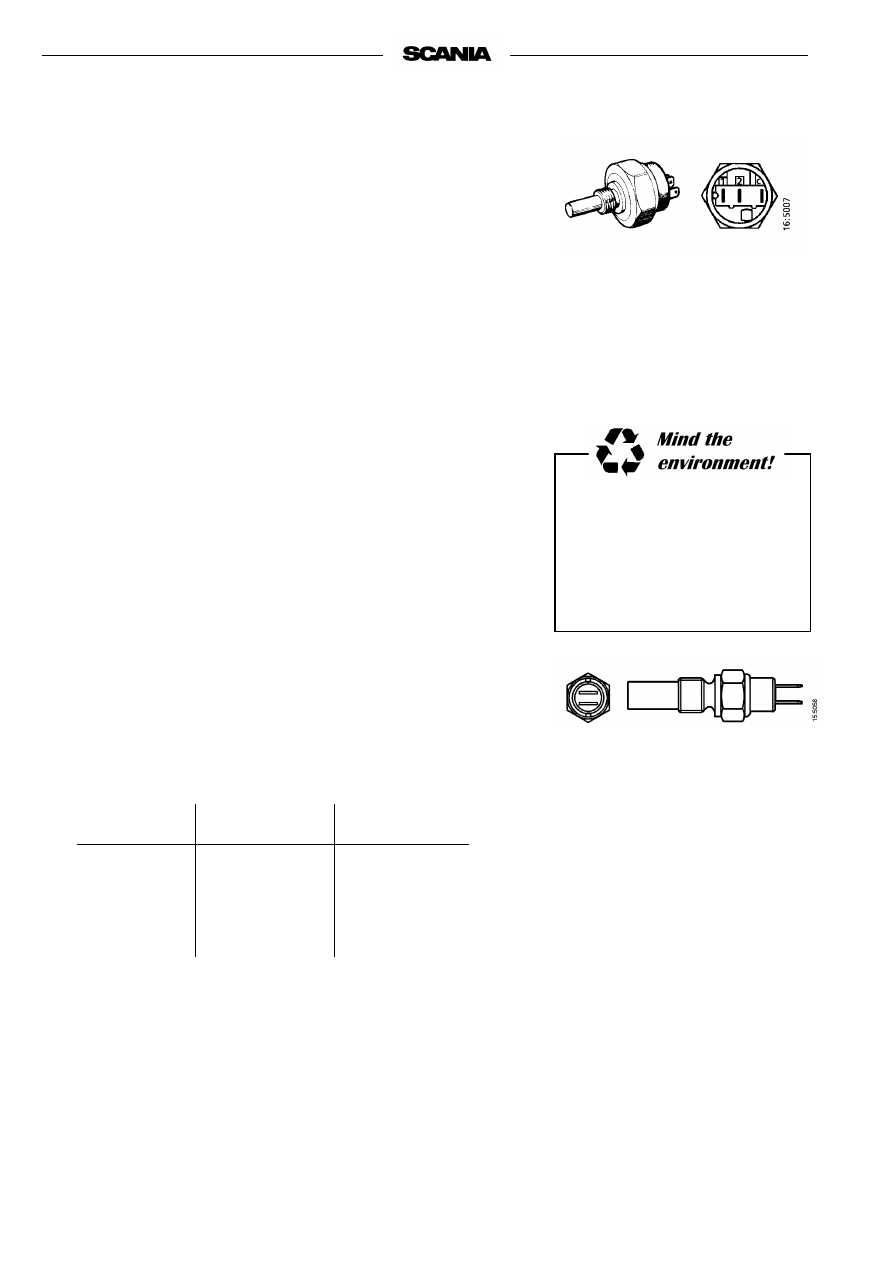

2-pole temperature sensor

C =Common connection

1 = Connection C -1 closes at

stamped temperature

2 = Connection C -2 opens at

stamped temperature

2-pole temperature monitor

Always use a suitable container

to avoid spillage when

draining coolant.

Dispose of used coolant through

an authorized waste disposal

contractor.

2001-05:1

20. Every 1200 hours:

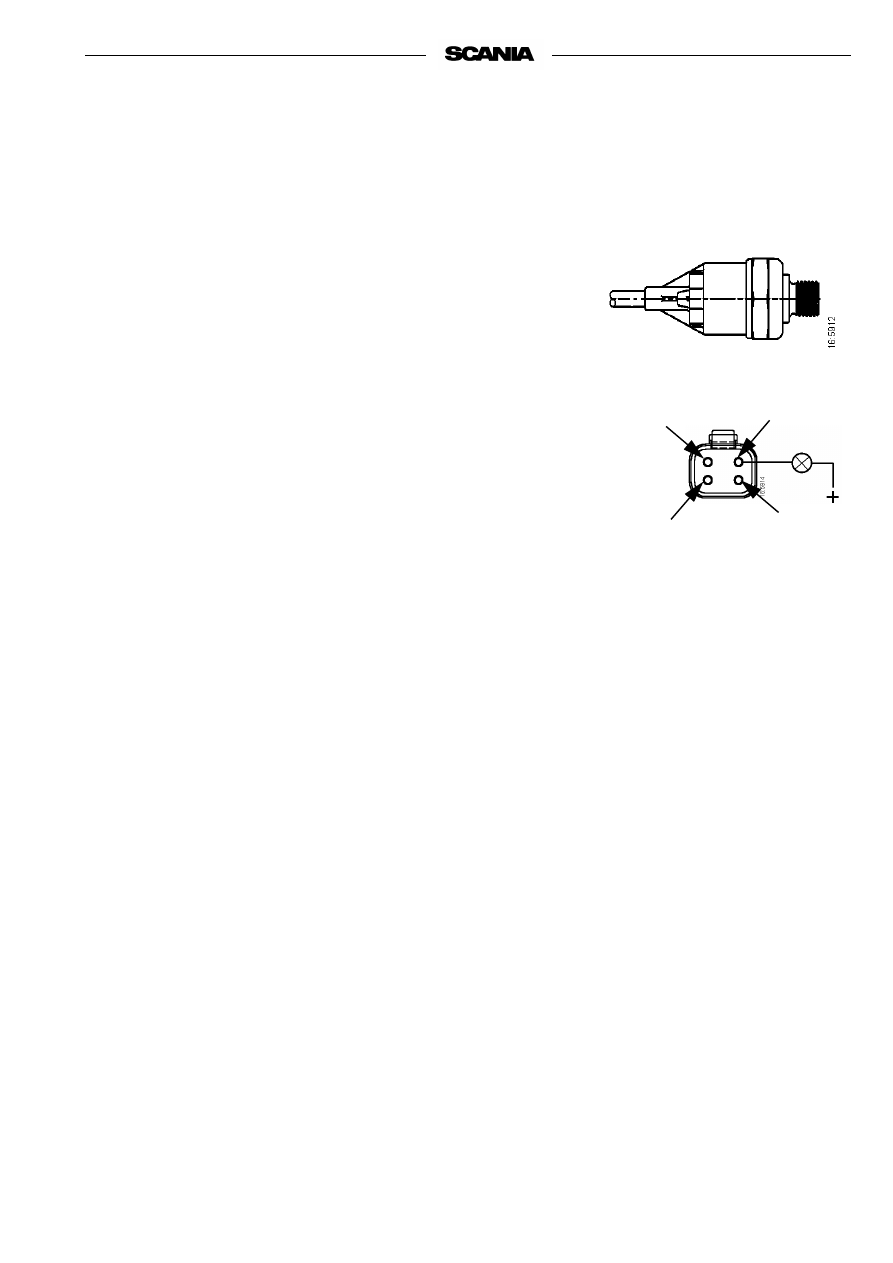

CHECKING THE OIL PRESSURE
SENSOR/MONITOR

Sensor function

Measure the sensor output voltage (pin 3) at different oil pressures. The
sensor output voltage shall be as follows:

0.85-1.15 bar = 2.45 volt
1.80-2.20 bar = 3.70 volt
2.75-3.25 bar = 4.50 volt
3.79-4.20 bar = 5.20 volt
4.55-5.45 bar = 5.70 volt
5.40-6.6 bar

= 6.10 volt

The tolerances apply at +30°C - 110°C. At lower temperatures the tolerance
range is wider, e.g. 0°C = x 1.4.

Monitor function

Connect a test lamp to the oil pressure monitor, pin 4 (

ground), and check

that the monitor switches on at the correct pressure when the engine is started
and stopped. The monitor shall switch on at 0.7

± 0.15 bar when the engine is

stopped.

Important

The sensor/monitor must be supplied with voltage during the
measurement. Maximum 4 W load from a test lamp.

Monitor connected for automatic stop in case of a fault:

Start the engine.

Check on the oil pressure gauge that oil pressure rises.

Stop the engine manually (using the emergency stop).

Check on the oil pressure gauge at what pressure the stop solenoid oper-
ates and the monitor opens. Correct pressure: 0.7

± 0.15 bar.

Monitor connected to buzzer:

Main power switch in operating position, check that buzzer sounds.

With the engine running, check that the buzzer falls silent when the oil
pressure is above 1.1

±0.15 bar and the monitor closes.

21. Every 400 hours:

CHECKING THE STOP FEATURE

Check that the stop solenoid is activated and stops the engine when the stop
signal is given by the button, temperature monitor, coolant level monitor and
oil pressure monitor if these are coupled for automatic stop in the case of
fault.

Important

Stop solenoids with a timer module may be activated for start
and stop a maximum of 3 times per minute. Otherwise, the
timer module may be damaged and the stop feature cease.

CHECKING STOP SOLENOID STOP POSITION

The following should be checked when changing the stop solenoid:

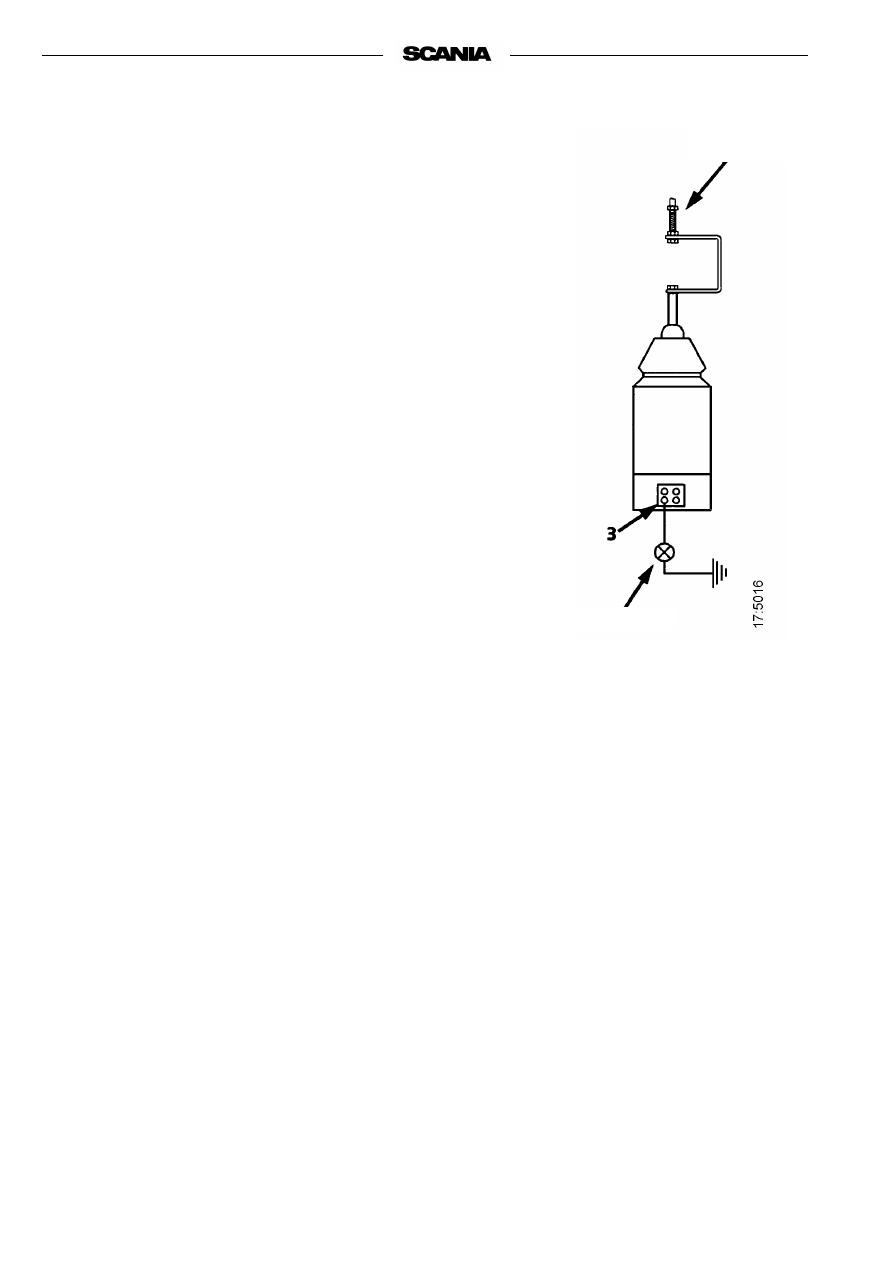

Plunger end position

- Connect a test lamp between connector pin 3 in the stop solenoid con-

nector and battery negative.

- With the stop solenoid in energized position, the test lamp should light,

i.e. there should be power on pin 3). Adjust the stop solenoid linkage
until the test lamp lights (adjusting screw at yoke, see drawing) with the
solenoid energized.

The test lamp indicates that the pull coil is disconnected and that

the latch coil is connected.

If the pull coil is connected for more than 10 seconds, the solenoid is
damaged.

Adjusting

screw

Test lamp

Check the stop arm on the injection pump

RSV governor

- The stop arm should precisely touch the end stop in both operating and

stop positions.

RQ governor

- The stop arm should be against the mechanical stop inside the governor

housing in both operating and stop positions.

Important

Adjust as necessary with the yoke adjusting nut.

2001-05:1

RENEWING THE BATTERY

Removal

Disconnect the negative cable (-) from the battery (cable connected to
ground).

Disconnect the positive cable (+) from the battery (cable connected to
starter motor).

Fitting

Connect the positive cable (+) to the battery (cable connected to starter
motor).

Connect the negative cable (-) to the battery (cable connected to
ground).

MISCELLANEOUS

22. Every 200 hours:

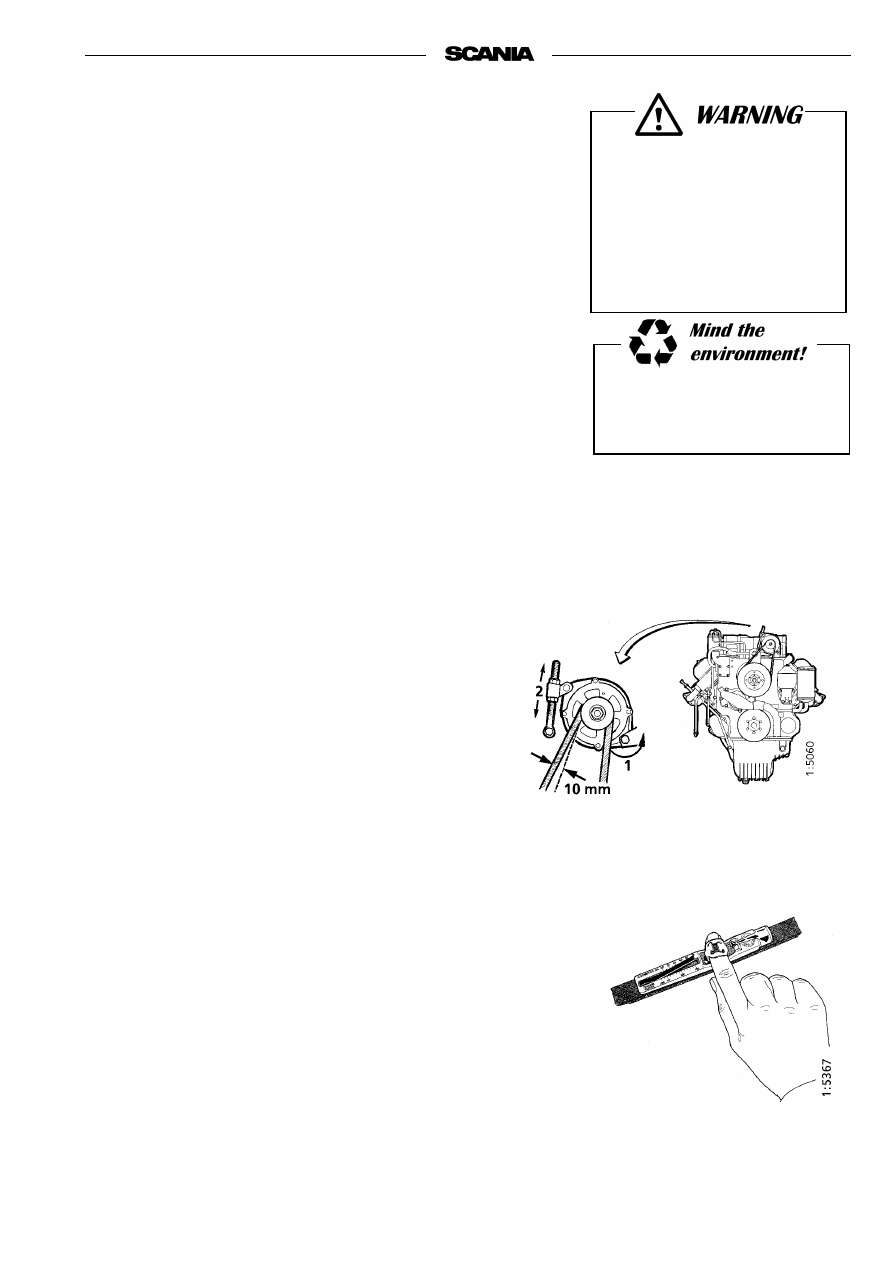

CHECK/TENSION V-BELTS

Correctly tensioned drive belts should be possible to depress
about 10 mm with a force of 35-50 N (depending on the
free length of the belt) when pressing on one belt.

Change worn or damaged belts.

Detach the securing screws.

Set the correct tension using the adjusting screw.

Do not over-tighten the belts.

Measurement using belt tension gauge Krikit
(Part. No. 587 495)

Zero the gauge by pressing the measuring arm.

Place the gauge on the V-belt at an equal distance from two pulleys.

Press until the gauge clicks.

Read the gauge.

- Recommended tension in Scania genuine belts

at test is 300 N.

- When changing belts, slightly higher (10-15%) tension should be used.

Do not connect the cables to the

wrong terminals.

This could cause serious

damage to the electrical system.

If the terminals are short-

circuited, sparks will be

generated.

Dispose of used batteries

through an authorized waste

disposal contractor.

23. Daily:

CHECKING FOR LEAKAGE, RECTIFY
AS NECESSARY

- Start the engine.

- Check for oil, coolant, fuel, air and exhaust leakage.

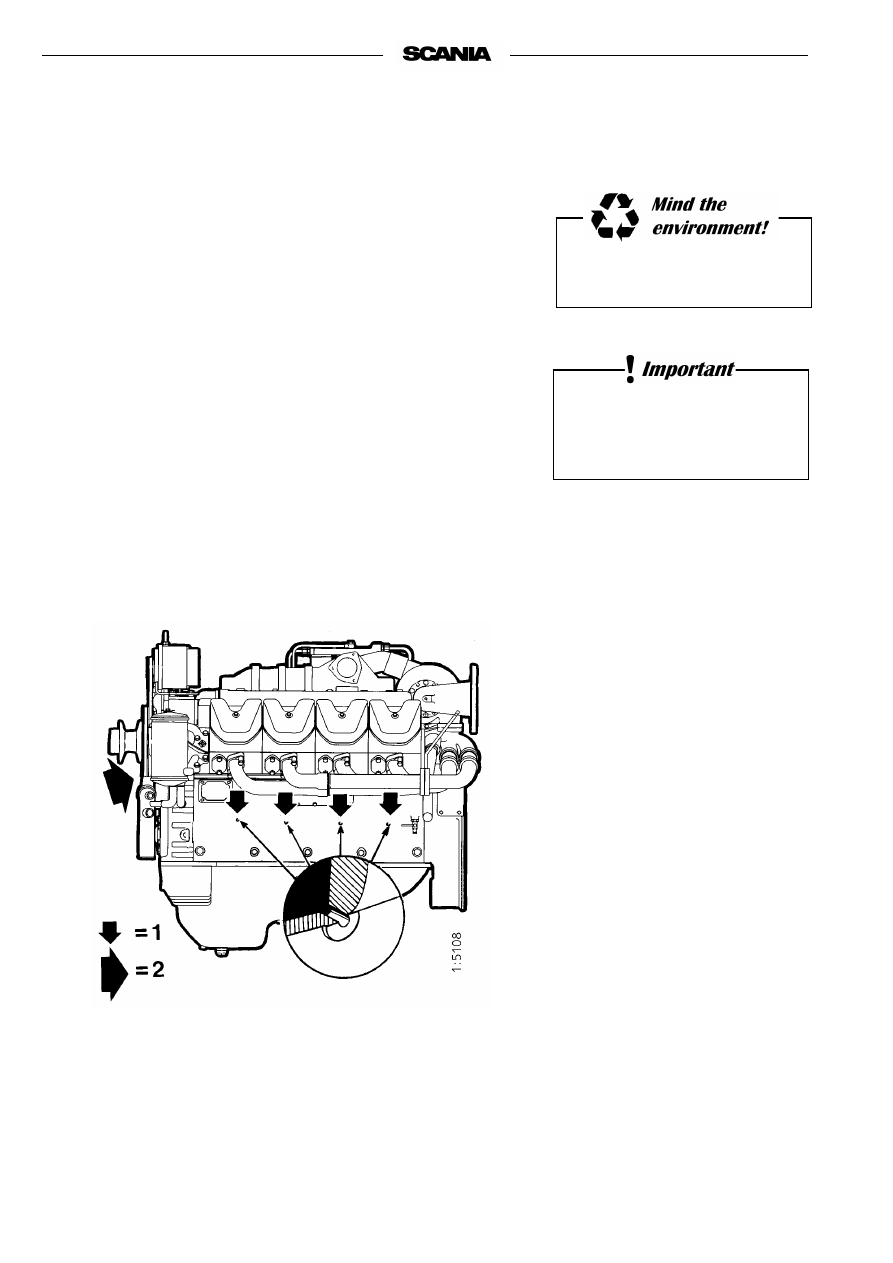

- Tighten or change leaking connections. Check the overflow holes (1)

which show whether the O rings between the cylinder liners and crank-
case are leaking, refer to illustration.

a) If coolant is leaking out, the two upper O-rings are leaking.

b) If oil is leaking out, the lower O-ring is leaking.

- Check that the drain hole (2) on the coolant pump is not blocked, see

drawing. If there is leakage, change the pump seal.

- Check that the drain for the “V” behind the injection pump is open all

the way through the block and drain pipe so that no fluid can collect in
the “V”. See illustration.

A small amount of leakage from the overflow holes during the engine
running-in period is normal. (Seals and O-rings to be lubricated with
soap or oil when fitted).

This leakage normally stops after a time.

Ensure that any leakage does

not pollute the environment.

In case of major leakage,

contact the nearest Scania

workshop.

2001-05:1

24. Every 2400 hours:

CHECKING/ADJUSTING VALVE
CLEARANCE

Note

Checking/adjusting valve clearance should also be done after the
first 400 hours of operation.

Valve clearances should be adjusted when the engine is cold, at least 30 min-
utes after running.

The rocker cover gaskets should be changed as necessary. Tightening torque:
25 Nm.

Intake valve clearance: 0,45 mm.
Outlet valve clearance: 0,80 mm.

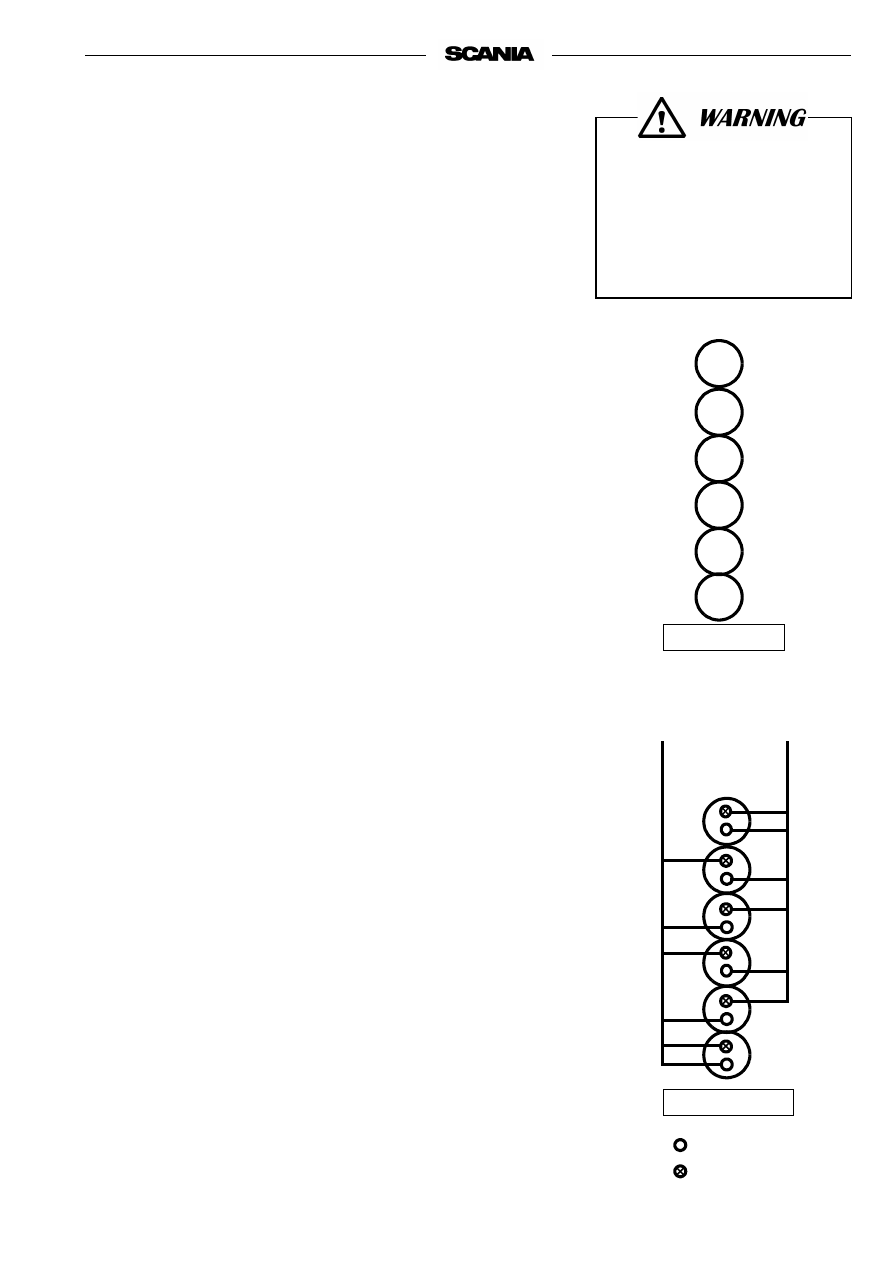

Alternative 1

- Turn the crankshaft in its direction of rotation until the No. 1 cylinder is

at 30 after TDC on the combustion stroke. There is a mark,

⊥ , at

this point.

- Adjust the following valves. Correct valve clearance is indicated on the

instruction plate on one of the rocker covers:

- Set No. 6 cylinder to TDC by turning the engine one revolution in its

direction of rotation and adjust the following valves:

Right side

Cyl 1

Intake and exhaust

Left side

Cyl 5

In och Ex

Right side

Cyl 2

In och Ex

Left side

Cyl 6

In och Ex

TDC

No. 6 cyl

TDC

No. 1 cyl

Intake valve

Exhaust valve

Cylinder numbering

FLYWHEEL

WARNING

Immobilise the starting device

when working on the engine.

If the engine starts out of

control, there is a

SERIOUS RISK

OF INJURY.

Alternative 2

- Set the No. 1 cylinder to TDC by turning the engine in its direction of

rotation until both valves are closed.

- Adjust both the valves for the No.1 cylinder. Correct valve clearance is

indicated on the instruction plate on one of the rocker covers.

- Repeat this procedure with the remaining cylinders in the order

5 - 4 - 2 - 6 - 3 - 7 - 8 (firing sequence) by turning the engine 1/4 revolu-
tion in its direction of rotation between each adjustment..

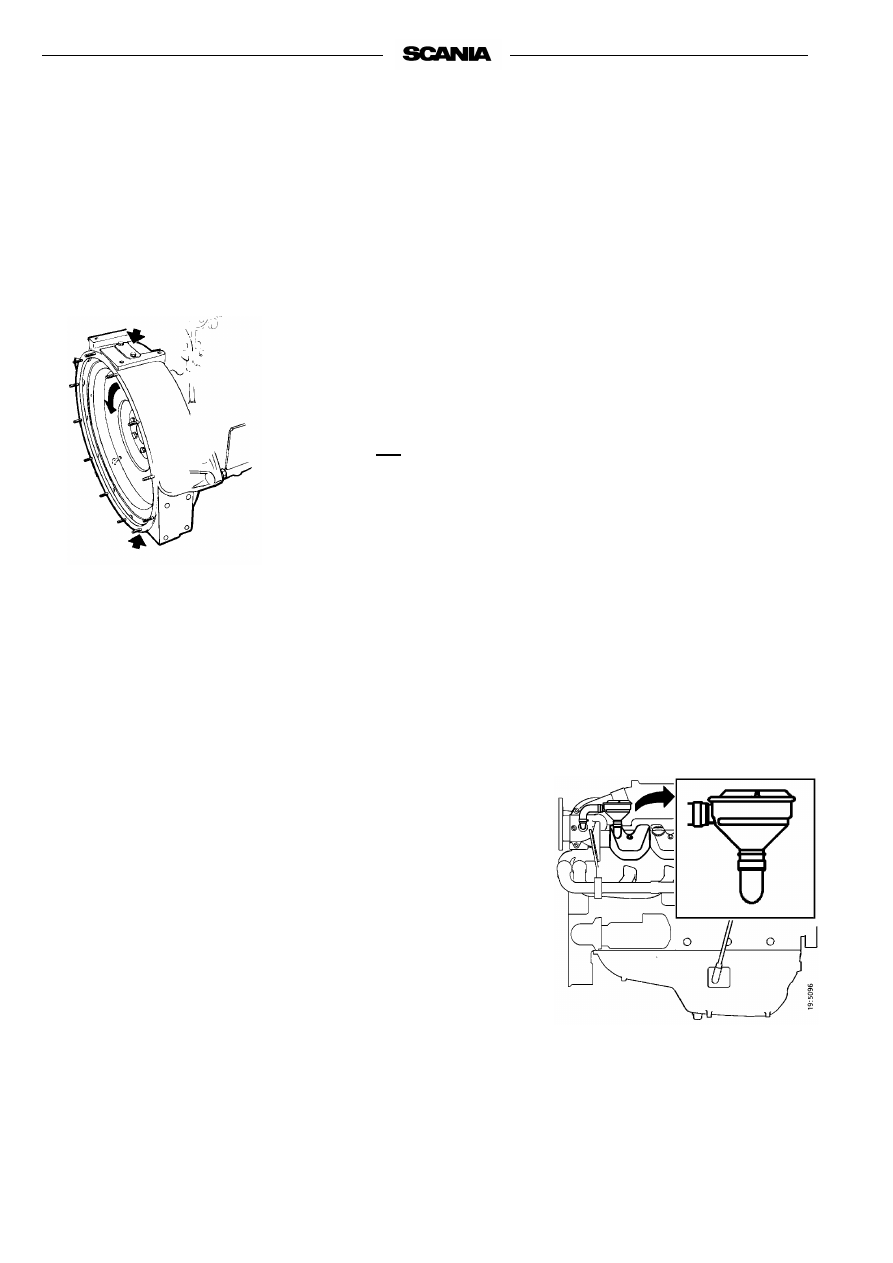

Covers for reading

on flywheel casing

Note

Readings can either be taken

from underneath or from
above, depending on which
flywheel is used.

The cover not being used is

covered with a seal and an
instruction plate.

25. Every 2400 hours:

CHANGING (or CLEANING) THE
CLOSED CRANKCASE VENTILATION
VALVE

Alternative 1:

Change the valve at the specified interval.

Alternative 2:

- Remove the valve after the specified interval.

- Clean the valve by placing it in a bath of diesel oil overnight. Then rinse

it several times in diesel oil and allow it to drip dry.

- Refit the valve.

- The valve may be reused (cleaned), maximum twice after the initial

2400 hours of operation. Take care to mark the valve after cleaning it.

2001-05:1

LONG-TERM STORAGE

If the engine is not to be used for a lengthy period of time, special measures
should be taken to protect the cooling system, fuel system and combustion
chamber from corrosion and the exterior from rusting.

The engine can normally stand idle for up to six months. If it remains unused
for longer than this the following measures, which provide protection for
about four years, should be adopted. An alternative to preparing the engine
for long-term storage is to start the engine and warm it up every 6 months.

Preparing the engine for long-term storage means:

- Thoroughly cleaning the engine

- To run the engine for a period of time with preservative fuel,

preservative oil and preservative coolant.

- Otherwise preparing the engine for storage (filter changes, lubrication,

etc.).

Preservative coolant

If the engine is to be stored with a full cooling system, use coolant containing
50% glycol by volume. Glycol without nitrite-based inhibitor must be used.
E.g. BASF G48 or BASF D542.

Preservative fuel

- Use diesel fuel mixed with Lubrizol 560A or equal.

- Mix 1 cm

(ml) of Lubrizol 560A with 10 dm

(l) of fuel.

HANDLING LUBRIZOL 560A

Hazardous!

Contains aromatic hydrocarbons

Use spot extractors where there is a danger of vapour build-up.

Wear protective gloves and goggles when handling Lubrizol. Do not use contaminated clothing.

In case of splashes in the eye: Rinse with moderate water spray (for min. 15 minutes). Seek medical attention.

In case of skin contact:

Wash affected areas with soap and water.

If you inhale it:

Fresh air, rest and warmth

Flammable:

Fire class 2A. Flash point + 27°.
In case of fire: Extinguish using carbonic acid, powder or foam

Storage:

In properly sealed container in a dry, cool place. Keep out of reach of children.

Ethylene glycol, if swallowed

can be fatal.

Avoid contact with the skin.

Preservative oil

Suitable preservative oil can be supplied by most petroleum companies.

E.g. Dinitrol 40 or the equivalent.

Preparations for storage

- Drain and flush the cooling system. Top up with preservative coolant.

- Warm up the engine on regular fuel. Stop the engine and drain the oil.

- Change the fuel filter and turbo filter.

- Fill the engine with preservative oil up to the minimum level on the

dipstick.

- Mix preservative fuel in a can. Detach the fuel pipe at the feed pump

suction line and connect a hose from the can.

- Detach the fuel pipe at the overflow valve and connect a return hose to

the can.

- Start the engine and run it at approximately 1000 rpm (not single-speed

engines) for 20-25 minutes.

- Stop the engine, remove the hoses and connect the normal fuel lines.

- Oil the valve mechanism generously with preservative oil.

- Remove the injectors and spray preservative oil into each cylinder,

maximum 30 cm

(ml).

Turn the engine over a few revolutions using the starter motor. Spray an
additional small amount of oil into each cylinder.
After this the engine must not be cranked. Refit the injectors.

- Drain the preservative oil from the engine. Fresh engine oil can be filled

directly or when the engine is taken out of storage.

- Drain the coolant if the engine is not to be stored with a full cooling

system. Plug and tape over all coolant connections (if the cooling system
is not completely assembled).

- Air cleaner: Clean or renew the filter element.

- Cover air intakes and exhaust pipes.

- Alternator and starter motor:

- Spray with water-repellent anti-corrosive oil, CRC 226, LPS1 or equal.

- Spray the outside of bright metal engine parts, first with penetrating pre-

servative oil such as Dinitrol 25B and then with Dinitrol 112 or equal.

Always use suitable containers

to avoid spillage when

draining oil and coolant.

Dispose of used oil and coolant

through an authorized waste

disposal contractor.

2001-05:1

- Attach a label to the engine showing the date of preservation and

clearly stating that it must not be started or cranked.

Batteries

Remove the batteries for trickle charging at a charging station. (Does not
apply to batteries, which the manufacturer specifies to be maintenance free).
The same is applicable for short-term storage if the engine has not been
prepared for storage as above.

Storage

After the preparations, the engine should be stored in a dry and warm place
(room temperature).

Taking out of storage

(Procedure when the engine is to be put into operation)

- Remove plugs and tape from coolant connections, air intakes and

exhaust pipes.

- Fill the cooling system with coolant, refer to page 12.

- Check the oil level in the engine or fill up with fresh motor oil.

- Turn the engine over a few times with the injectors removed, at the same

time copiously oiling the valve mechanism with pushrods and tappets.

Important

The engine must be cranked with the injectors removed so that
surplus preservative oil will be pressed out of the cylinders.

- Fit the injectors.

- Empty the fuel system’s main filter of preservative oil.

- Bleed the fuel system.

- Wash off any externally applied preservative oil, using white spirit.

STORED ENGINE

Date . . . . . . . . . . .

Do not start or crank!

Wear gloves and eye protection

when charging and handling

batteries.

Batteries contain a highly

corrosive acid.

TECHNICAL DATA

GENERAL D14

DI14

DC14

Number of cylinders

V8, 90

Cylinder bore

127

Stroke

140

Displacement

(litres)

14,2

Number of main bearings

Firing sequence

1 - 5 - 4 - 2 - 6 - 3 - 7 - 8

Compression ratio

15:1(standard)

17:1 (OEM)

Engine direction of rotation viewed from rear

Anti-clockwise

Fan direction of rotation viewed from the front

Anti-clockwise

Cooling

Fluid

Valve clearance, cold engine

intake valve

exhaust valve

0,45
0,80

Weight, without coolant and oil
*With charge air cooler, radiator,

expansion tank and pipes

1160

1180

1255

Output

see “Engine record card”

LUBRICATION SYSTEM

Max. oil pressure

(warm engine at speed above 800 rpm) bar (kp/cm

)

Normal oil pressure

(warm engine at operating speed)

bar (kp/cm

)

3 - 6

Min. oil pressure

(warm engine 800 rpm)

bar (kp/cm

)

0,7

Oil capacity, see page 21

Crankcase pressure with closed crankcase

mm VP

ventilation

-55 - +20

2001-05:1

FUEL SYSTEM

D14

DC14

DI14

Pump setting BTDC

See plate on rocker cover

Injectors, opening pressure

bar (kp/cm

)

300

Low idle

rpm

700

Maximum full load speed

See engine card

Fuel

Diesel fuel oil

Tightening torques:

Socket nut for injectors

Cap nut for delivery pipe

Oil leakage connection

70
20
11

see page 48

COOLING SYSTEM

Number of thermostats

Thermostat, opening temperature

Coolant temperature:

system with atmospheric pressure

system with positive pressure

70 - 93

70 - about 100

Capacity including radiator, engine and expansion tank

and for DI14 including charge air cooler
with 0.75 m

radiator

(litres)

with 1.00 m

radiator

(litres)

with 1.20 m

radiator

(litres)

ELECTRICAL SYSTEM

System voltage

Alternator, current

65 or 2x65

Starter motor power

kW (hp)

6.7 (9.1)

Monitors, settings:

Oil pressure monitor

bar (kp/cm

)

Temperature monitor

°C

2-pole:0.7

0.15

Stamped on monitor hexagon

FUEL

Diesel fuel

The composition of the diesel fuel is vitally important to the operation and
life of the engine and the fuel injection pump. The engine power output and
the exhaust emissions are also dependent on the fuel quality. The
requirements and the test standards for the most important properties are
described in the workshop manual in sections that can be ordered from your
Scania dealer or directly from Scania. The address of Scania is printed on the
cover.

The diesel fuel shall comply with the following standard: EN 590 (European
standard).

The table below shows the requirements for some of the most important
properties:

Environmentally favourable fuels (low sulphur fuels)

There are three different grades of so called environmentally favorable fuels
(SS15 54 35). Grade 1 is sulphur-free and grade 2 is low in sulphur.
Compared with class 3 (normal fuel), these fuels are less dense and this
reduces engine power output. Only class 1 fuel should be used with a
catalytic converter.

Short term use of fuel with a higher sulphur content than 0.05% by weight
will not cause permanent damage to the catalytic converter.

The catalytic converter may, however, require fuel with low sulphur content
for some time after this to regain its normal efficiency.

Property

Requirement

Viscosity at 40

2.0 - 4.5 mm

/s (cSt)

Density at 15

0.82 - 0.86 kg/dm

Sulphur (concentration by mass)

max. 0.3%

Ignitability (CET rating)

min. 49

Flashpoint

56°C

Scania D14, DC14, DI14. Industrial engine. Operator’s manual - part 3
