Scania DI12, DC12 EMS with S6/PDE. Industrial engine. Operator’s manual

1. Daily:

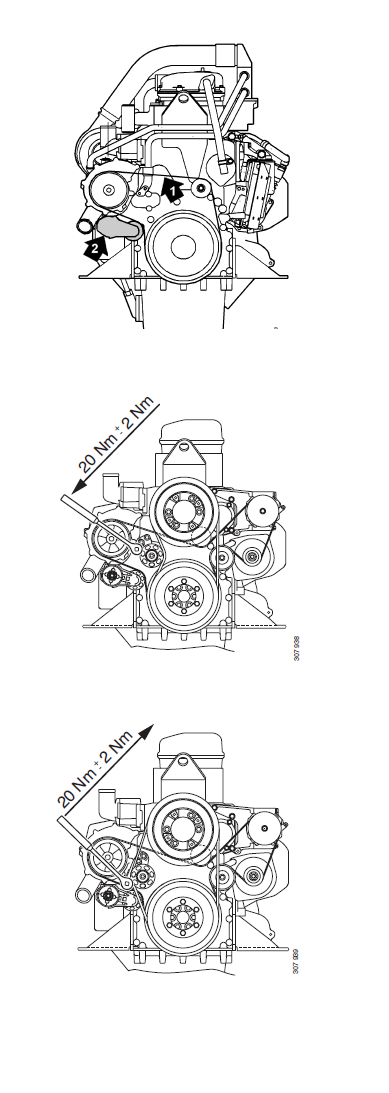

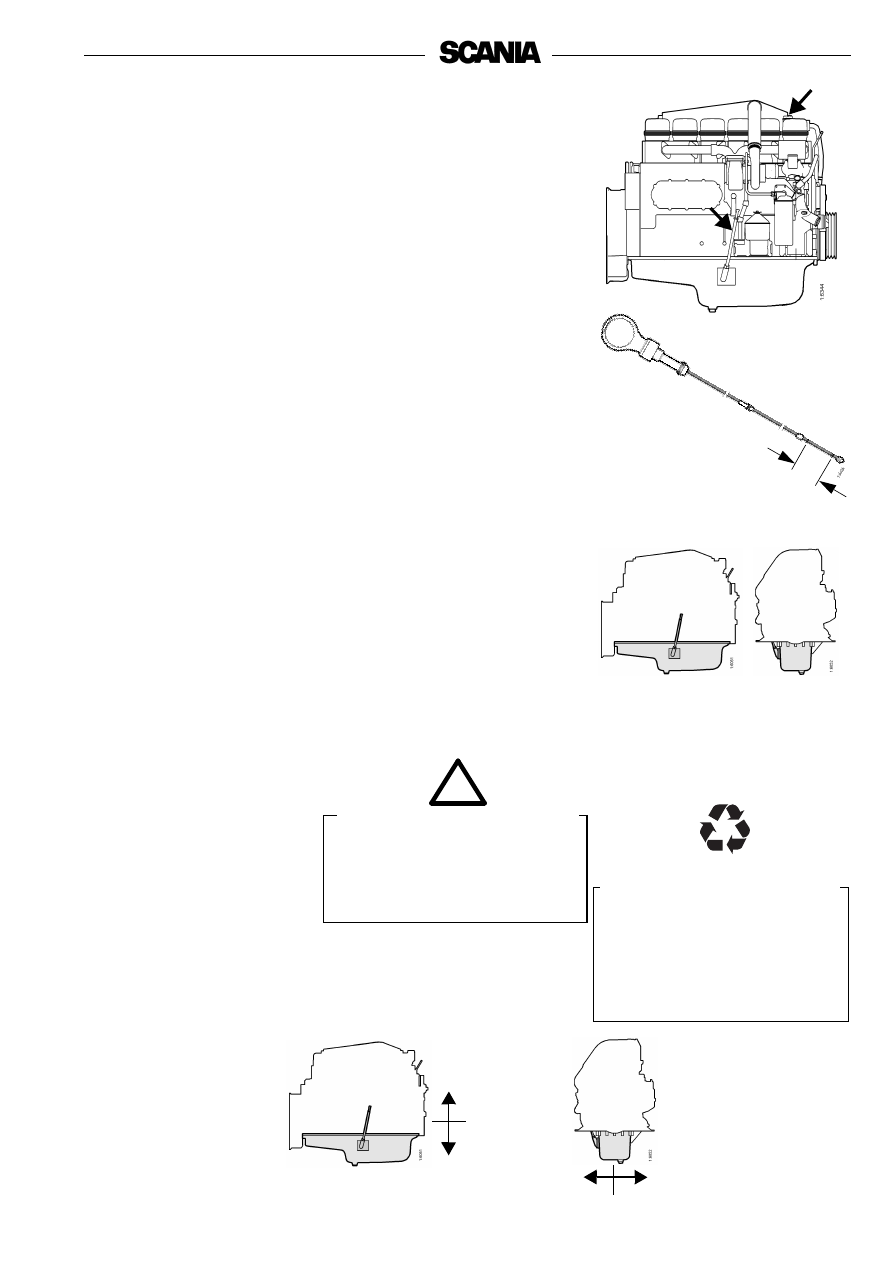

Checking the oil level

Note:

Before checking oil level: Leave the engine switched off for at

least 1 minute.

- The correct level is between the marks on the dipstick. Top up when the

level is at the lower mark.

- For the correct oil grade, see page 32.

Checking oil level during operation

On some engines the oil level can be checked during operation.

- Remove the oil filler cap to release the pressure in the crankcase.
- Check the level on the dipstick. Correct oil level: 10 mm below the Min.

or Max. mark.

2. Every 400 hours:

Oil change

Note:

If the engine is used for especially demanding operations,

particularly in a dusty environment or if the deposits in the

centrifugal cleaner are thicker than 20 mm: change the oil more

frequently.

- Unscrew the oil plug and drain the oil when the engine is hot.
- In certain engines the oil is pumped out by means of a bilge pump.
- Clean the magnet on the oil plug.
- Refit the oil plug and top up with oil.
- Check the level on the oil dipstick.

Max. 33 dm

Min. 28 dm

1 dm

= 1 litre

Maximum angles of inclination during operation

Maximum permissible angles during operation vary, depending on the type of

oil sump, see illustration.

Note:

The specified angles may only occur intermittently.

35°

25°

35°

The oil may be hot.

Wear protective gloves and

goggles.

Max.

Min.

Use a container to avoid spillage

when changing the oil. Dispose

of used oil through an

authorised waste disposal

contractor.

WARNING

Help protect our

environment!

3. Every 400 hours:

Cleaning the oil cleaner

(in connection with oil change)

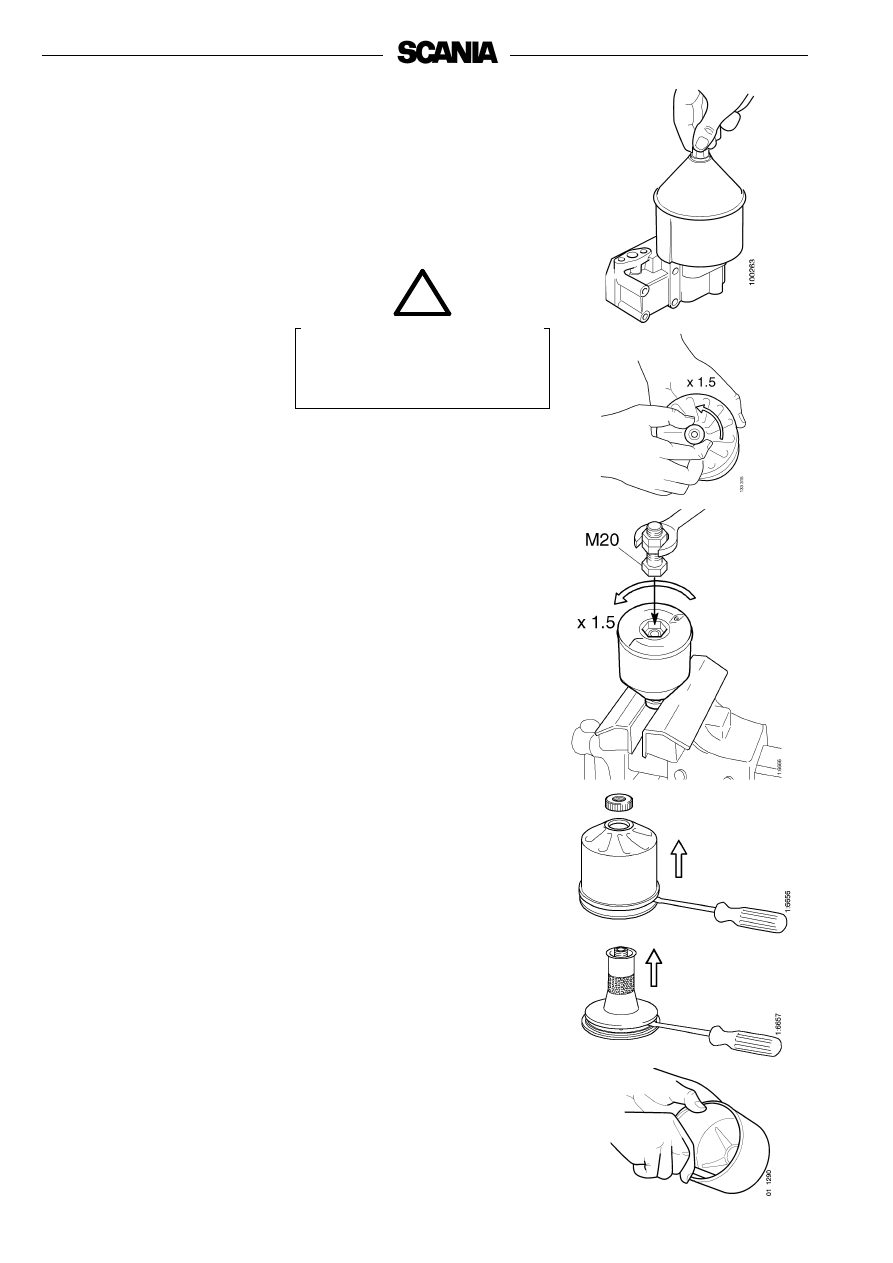

- Clean the cover. Unscrew the nut and remove the cover.

- Lift out the rotor and wipe the outside. Unscrew the rotor cover nut

about one and a half turns.

- If the rotor nut is jammed:

Turn the rotor upside down and fasten the nut in a vice, and turn the

rotor one and a half turns counterclockwise by hand, or use an M20 nut

as illustrated.

Note:

The rotor must never be put in a vice.

- Hold the rotor and tap lightly on the rotor nut with a plastic mallet or

against the workbench, so that the rotor bowl comes loose from the

bottom plate. Never strike on the rotor directly as this may damage the

bearings.

- Unscrew the nut and remove the rotor cover.
- Remove the strainer. If the strainer has seized in the rotor bowl, pry

carefully using a screwdriver between the rotor bowl and the strainer.

- If the strainer has seized in the rotor, pry carefully between the rotor and

the strainer.

- Scrape off the deposits from the inside of the rotor cover. If there are no

deposits, this indicates that the cleaner is not working properly.

- If the deposits are thicker than 28 mm: clean more often.

Open the cover carefully. The

oil may be hot.

WARNING

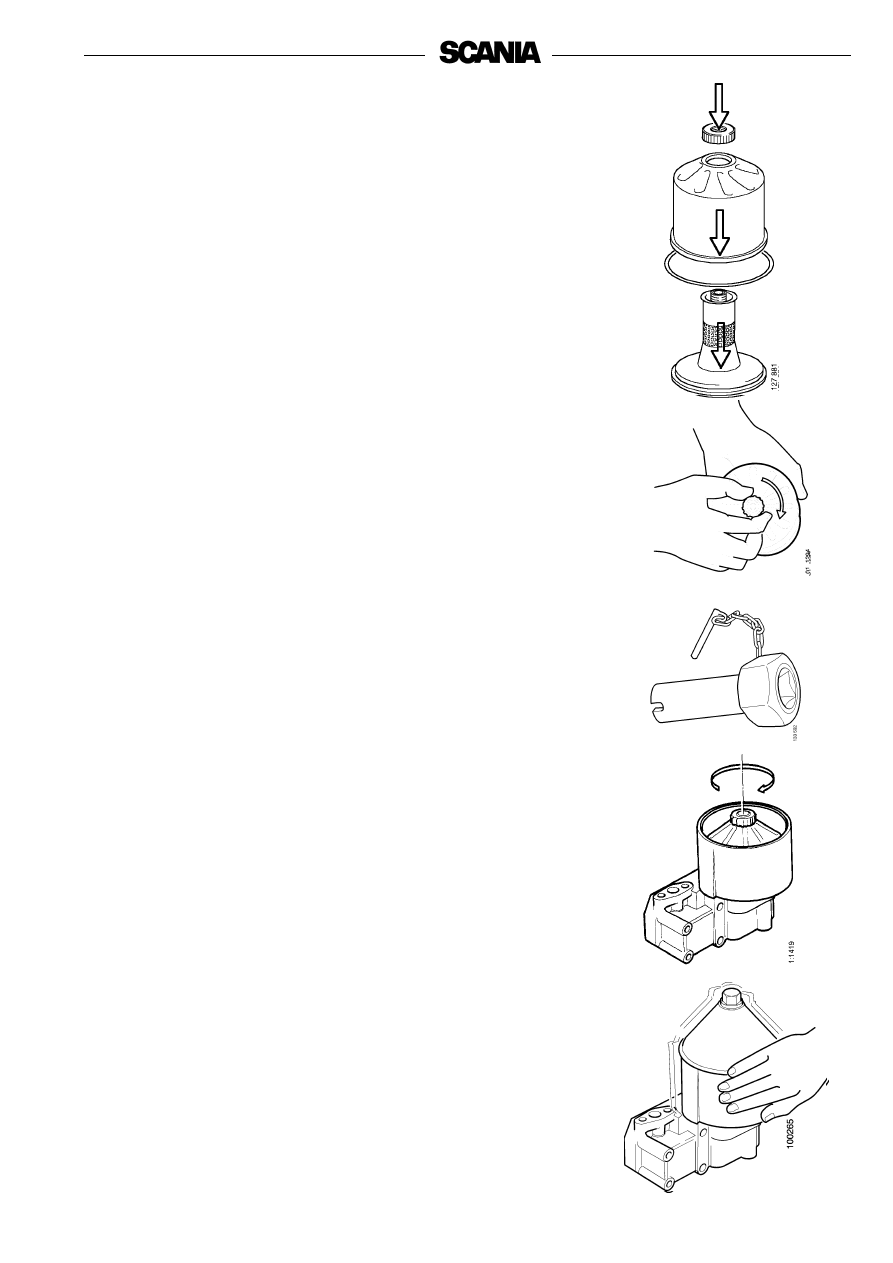

- Wash all parts in diesel oil.
- Make sure the nozzles on the rotor are not blocked or damaged.
- Check that the bearings are undamaged. If they are damaged the entire

rotor must be renewed.

- Fit a new O-ring on the rotor and fit the strainer.

- Reassemble the rotor.

- Tighten the rotor nut firmly by hand.

- Check that the shaft is not loose. If it is loose, use locking compound

561 200 and torque tighten to 34 Nm using tool 98 421.

- In order to tighten the rotor shaft, it is necessary to modify socket

wrench 98 421:

- Drill out the threads from a M20 nut so that it fits on the square drive

of the socket wrench.

- Weld the nut into place.

- Refit the rotor.
- Check that it rotates easily by rotating it manually.

- Fit a new O ring on the bowl and fit the bowl.
- Screw the bowl on and tighten the lock nut to 15 Nm.

Tighten the nut carefully so as not to damage the rotor shaft, nut or cover.

Functional inspection

The rotor rotates very fast and should continue to rotate when the engine has

stopped.

- Stop the engine when it is warm.
- Listen for a whirring sound from the rotor or feel whether the cleaner

housing is vibrating.

The rotor normally continues spinning for 30-60 seconds after the engine has

stopped.
If not: dismantle and check.

4. Every 400 hours:

Renewing the oil filter

(in connection with oil change)

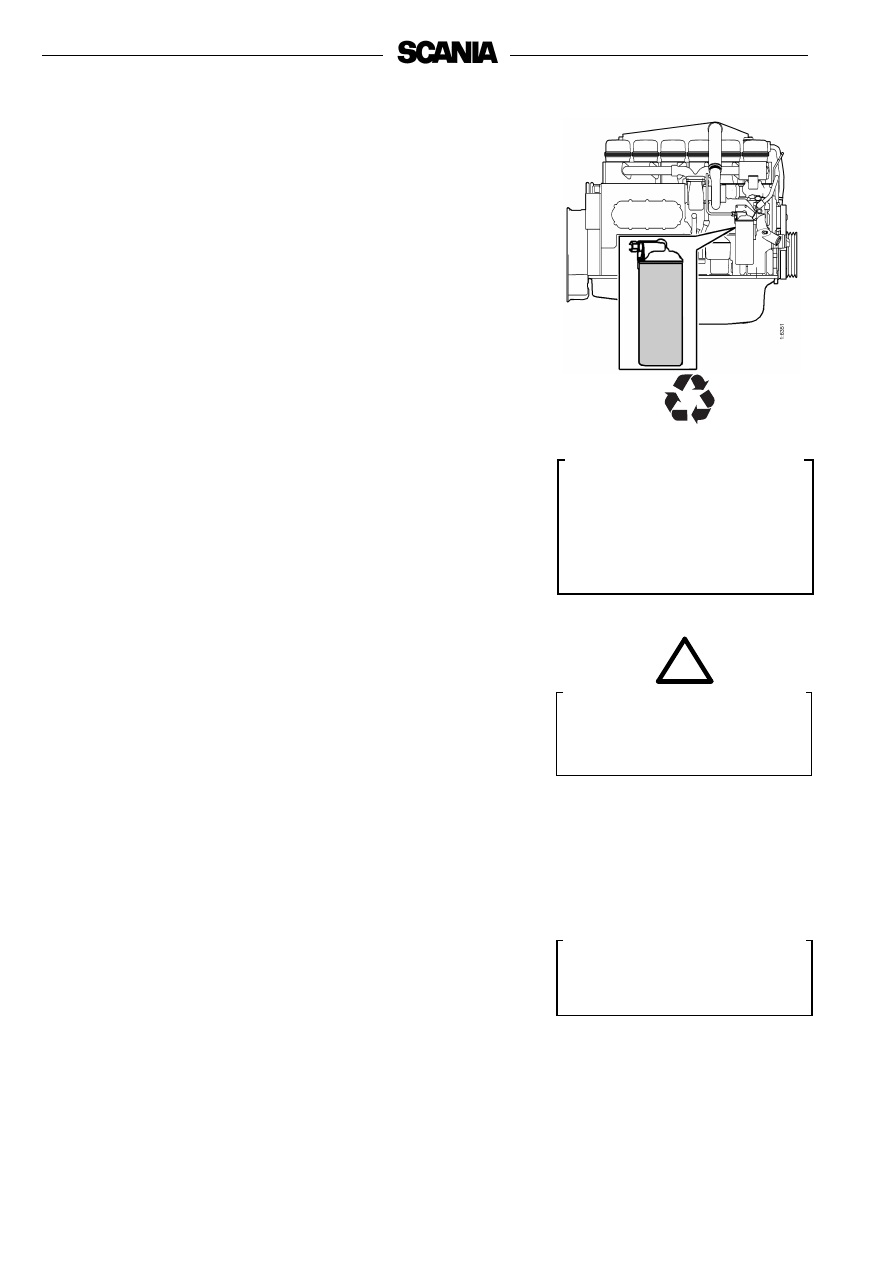

- Remove the old filter.
- Fit a new Scania genuine filter. Oil the seal on the filter before fitting.
- Tighten the filter by hand.

Never use tools for this. The filter could sustain damage, obstructing

circulation.

- Start the engine and check for leaks.

Important!

If the deposits in the centrifugal cleaner are more than

20 mm thick, the oil filter must be renewed more often. The

same is true for cleaning the centrifugal filter and

changing the oil.

Cooling system

5. Daily:

Checking coolant level

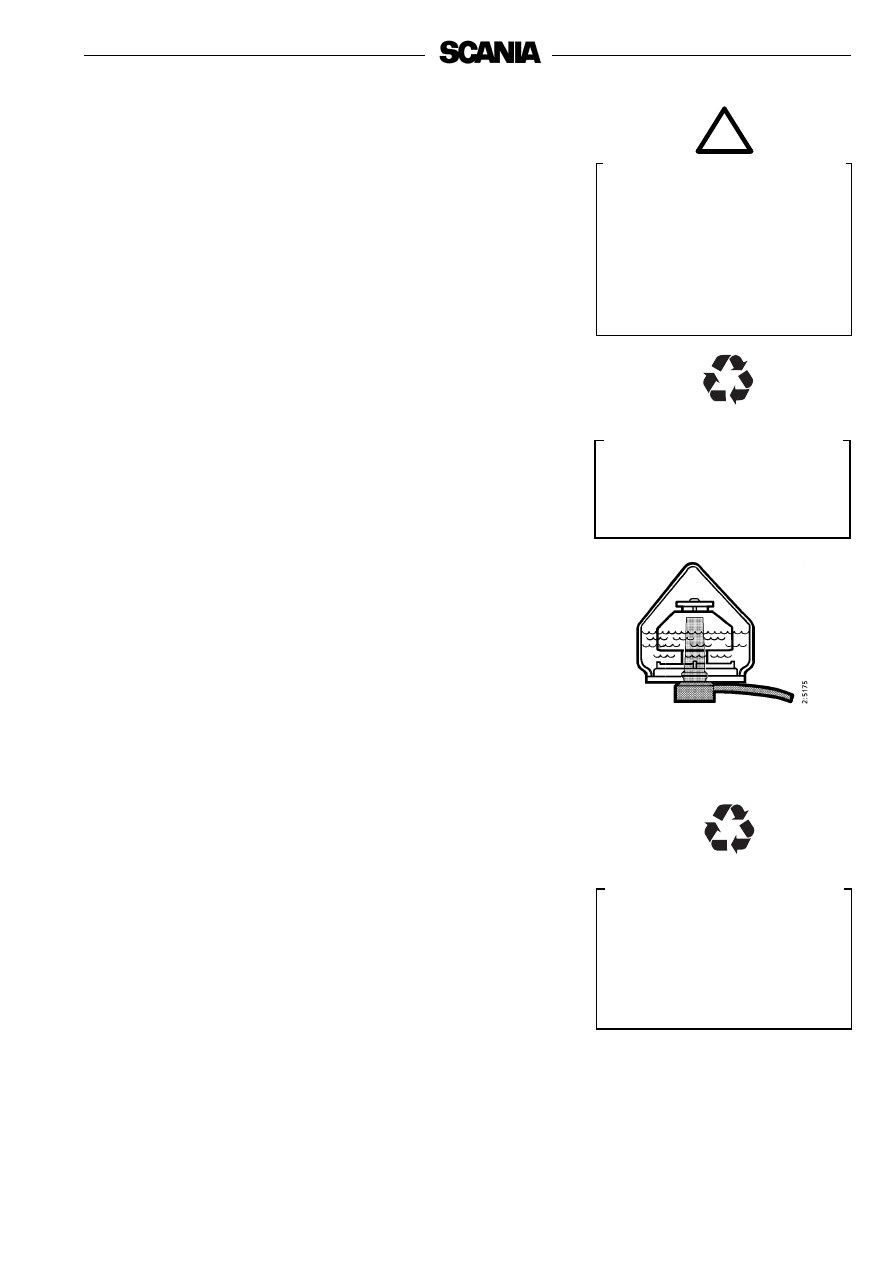

- Open the expansion tank filler cap and check the coolant level.
- Correct level:

(Scania plastic expansion tank)

- Cold engine:

The coolant should be level with the bottom of the

filler neck.

- Hot engine:

The coolant should be about 25 mm above the

lower edge of the filler hole.

- Other types of expansion tank according to the instructions of the fitter.
- Top up the coolant as necessary; see point 6.

Note:

When filling large amounts of coolant:

Never pour cold coolant into a hot engine. This could crack the

cylinder block and cylinder head.

Always top up with pre-mixed

coolant.

Open the cap carefully.

Water and steam can spray out.

Use a container to avoid spillage

when renewing the filter.

Dispose of used filters through

an authorised waste disposal

contractor.

Important

WARNING

Help protect our

environment!

6. Every 2,400 hours:

Checking coolant

Coolant should be checked as follows:

Check the appearance of the coolant.

Coolant with glycol only: Check the glycol content.

Coolant containing only Scania Corrosion Inhibitor: check the corrosion

inhibitor content

The composition of the coolant is described in more detail under

"Starting and running"

a)
Checking the appearance of the coolant

- Pour a small amount of coolant in a container, and check that the coolant

is pure and clear.

- If the coolant is contaminated or cloudy: Consider changing the coolant.
- Water for the coolant must be clean and free from contamination.
- Use drinking water with a pH of 6-9.

b)
Checking the glycol content

If there is a danger of freezing, use only glycol as an anti-corrosive in the

coolant.

- Cooling systems with glycol should contain at least 30% glycol by

volume to provide acceptable protection against corrosion.

- 30% glycol by volume provides protection against freezing to -16°C. If

additional protection against freezing is required, see the table on the

next page to help you calculate how much glycol you need.

We recommend only nitrite-free antifreeze glycols with the following

supplier designations:

BASF G48 or BASF D542

- Always add glycol if the glycol content drops below 30% by volume. A

glycol content above 60% by volume will not provide greater protection

against freezing.

- The table shows the temperature at which ice starts to form. The engine

will freeze and break at appreciably lower temperatures; see diagram.

- Ice forming in the coolant often causes malfunctioning without any risk

of damage. The engine should not be subjected to heavy loads when ice

starts to form.

Note:

The coolant should be changed when the cooling system is

cleaned: every 4,800 hours or at least every 5 years.

Important!

If a coolant filter is used in the cooling system it must not

contain an inhibitor.

Coolant composition:

If there is a danger of freezing:

minimum 30% glycol by

volume

maximum 60% glycol by

volume

If there is no danger of freezing:

8-12% by volume

Scania Corrosion Inhibitor

The coolant should be pre-

mixed when it is poured into the

cooling system.

Never top up with only water or

only glycol.

Ethylene glycol is highly

dangerous if imbibed and can

prove fatal.

Avoid skin contact with glycol.

The recommended glycols must

not be mixed with glycol

containing nitrite-based

corrosion inhibitor.

Risk of sludge build-up and

reduced cooling capacity.

Important

WARNING

A = Area to be avoided. Only for calculating glycol mix.

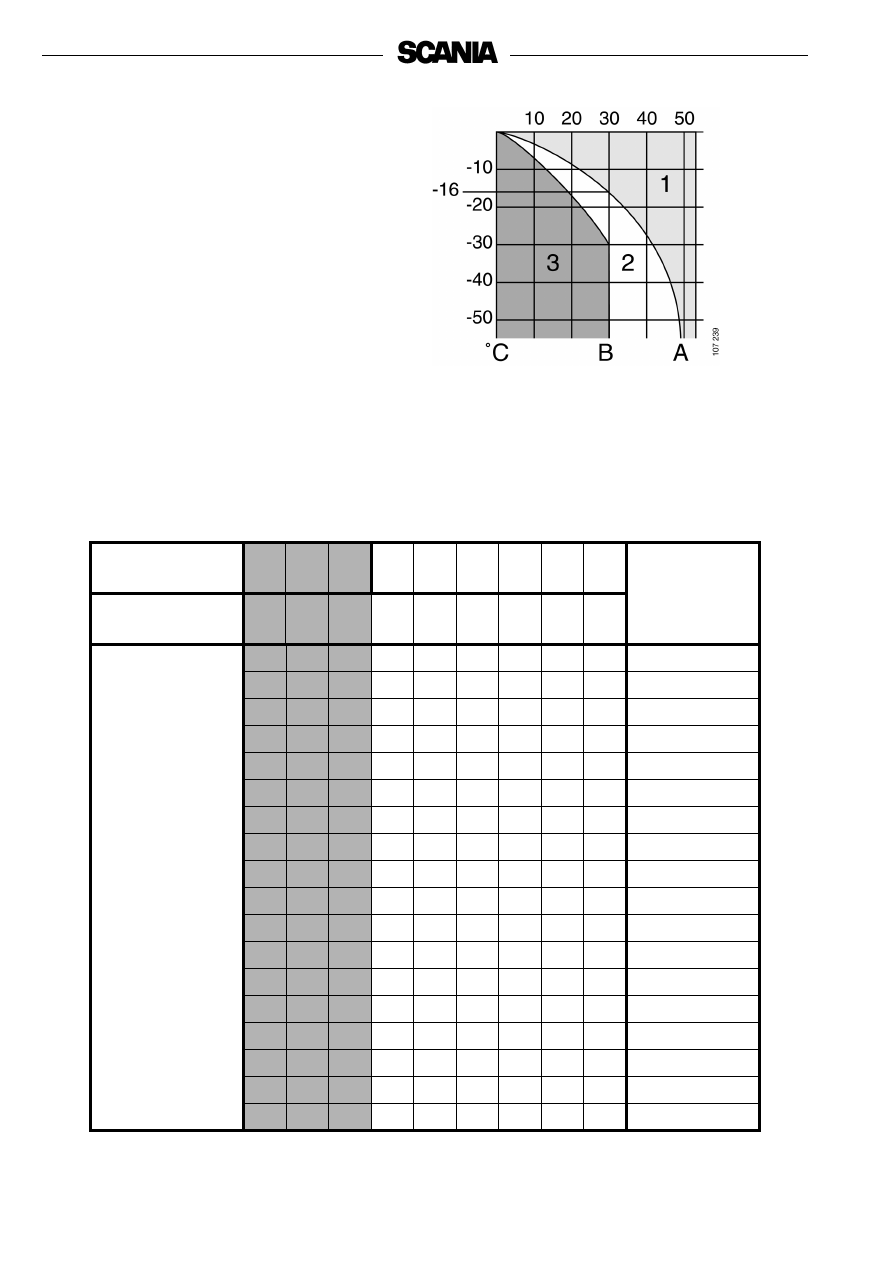

Coolant freezing point (when ice starts to form) for different glycol mixes

Glycol % by

volume

Cooling system

volume, dm

Ice slush starts to

form at °C

-6

-9

-12 -16 -22 -27 -36 -46 -55

Glycol dm

(litres)

100

110

120

130

140

150

160

102

170

108

180

114

190

100 120

200

Curve A: Ice formation starts (ice slush)
Curve B: Temperature at which there is a risk of damage by freezing

1. Safe range
2. Malfunctions may occur (ice slush)
3. Risk of damage by freezing

Characteristics of glycol at low temperatures:

- Example with 30% glycol by volume
- Ice slush starts to form at -16°C.
- There is a risk of malfunctions at -30°C
- No risk of damage by freezing with a minimum

content of 30% glycol by volume

Antifreeze glycol, % by volume

c)
Checking the corrosion inhibitor

There must always be sufficient corrosion protection (inhibitor) in the coolant

to protect the cooling system against corrosion.
If there is no danger of freezing, only Scania Corrosion Inhibitor should be

used in the coolant.
The inhibitor in Scania Corrosion Inhibitor is free of nitrites.
The correct corrosion inhibitor content is 8-12% by volume.

- Topping up with 1.0% Scania Corrosion Inhibitor by volume should be

done after every 2,400 hours of operation.

- Never top up with water alone or corrosion inhibitor alone!

Fluid losses must always be replaced with pre-mixed coolant: water

+ 10% Scania Corrosion Inhibitor by volume.

Note:

The coolant should be changed when the cooling system is

cleaned: every 4,800 hours or at least every 5 years.

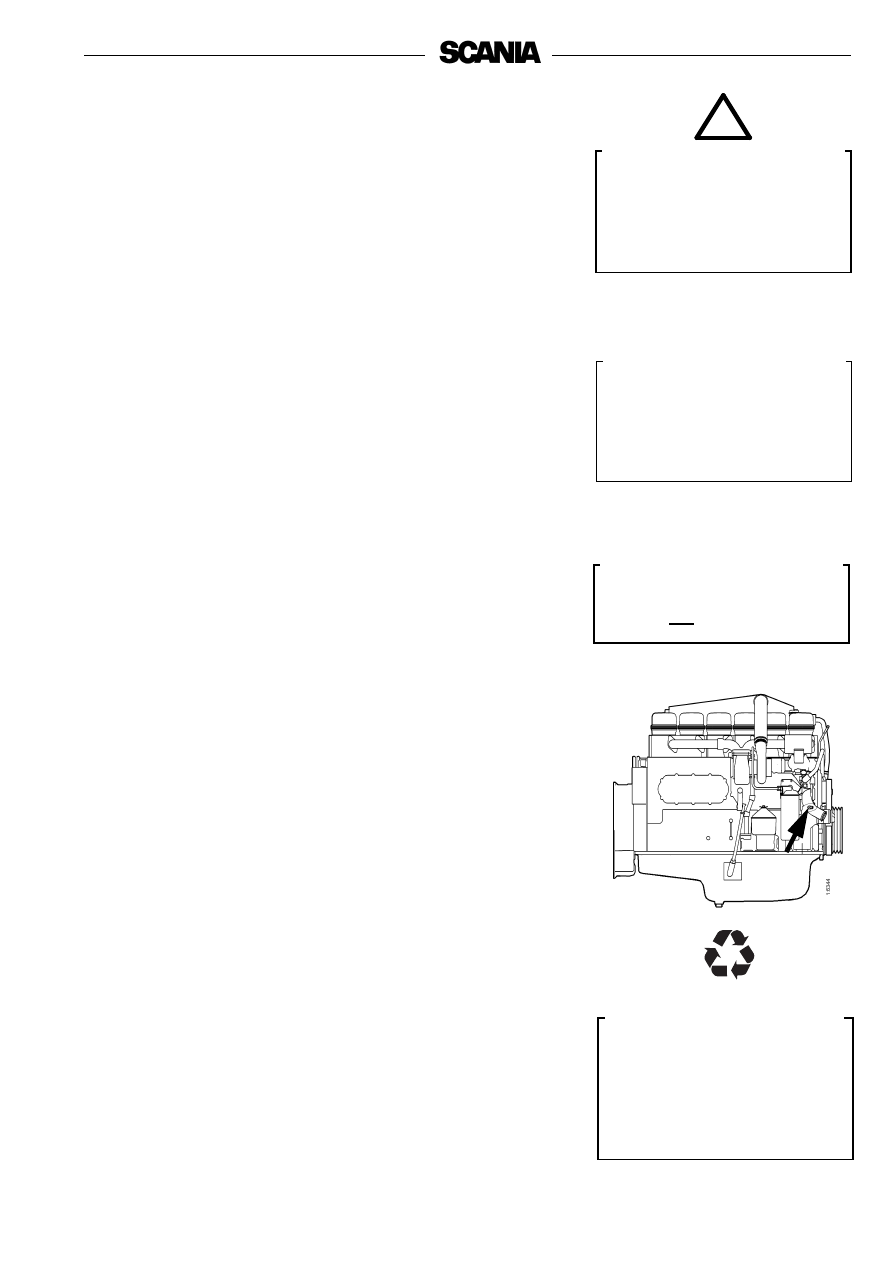

Changing coolant

Remove the filler cap from the expansion tank.

The coolant is drained at two points:

- the lowest point of the cylinder block, see illustration.
- the lowest point of the cooling system.

Close the cocks.

Top up with coolant through the expansion tank’s filler hole.
Mix coolant as described on page 35.

Use a container to avoid spills

when changing the coolant.

Dispose of used coolant through

an authorised waste disposal

contractor.

If a coolant filter has been fitted

it must not contain inhibitor.

Mixing with glycol or the use of

too much corrosion protection

can lead to build up of sludge

and reduced cooling capacity.

Corrosion inhibitor is highly

dangerous if ingested and can

prove fatal.

Avoid contact with the skin.

Important

WARNING

Help protect our

environment!

7. Every 4,800 hours:

Cleaning the cooling system

Note:

If necessary, the cooling system should be cleaned more often.

External cleaning

Radiator

- Check that the radiator is not clogged on the air side and that the cooling

fins are not damaged.

- Carefully scrape the deposit off the radiator’s cooling fins. If necessary,

a paraffin-based engine cleaner can be used.

- Bent fins can be straightened using a wire brush, for example, and

exercising care.

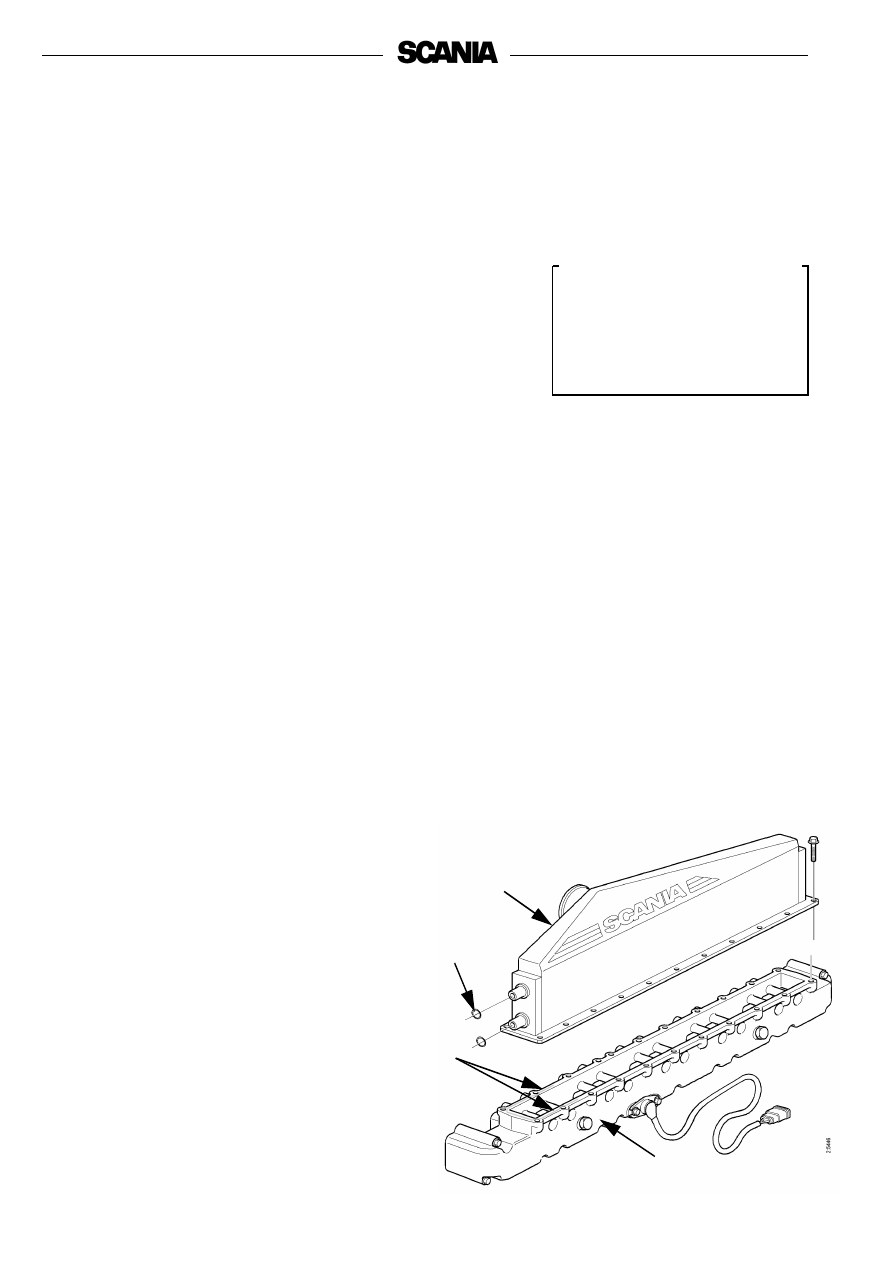

Charge air cooler, DI engine

Drain the coolant from the engine, see "Changing the coolant".

Detach the intake manifold from the turbo.

Detach the charge air cooler’s inlet and outlet connections.

Unbolt the charge air cooling package from the intake manifold. The

charge air element is integrated into the housing.

Take care not to damage the element’s water connections.

Clean the outside of the core. This is especially important if the engine is

equipped with closed crankcase ventilation. Use a paraffin-based engine

cleaner.

Clean and degrease the sealing surfaces on the element and on the intake

manifold with a spirit-based cleaning agent.

Apply a smooth bead of sealing agent (silicone 816 064), approximately

2-3 mm, onto the intake manifold sealing surface.

Assemble the charge air cooler within 15 minutes of applying the

sealant. Tighten the bolts to 26 Nm.

Refit the inlet and outlet connections with new

O-rings.

10.

Refit the delivery pipe clamps.

11.

Connect the intake manifold from the turbo.

12.

Fill up with coolant according to the

specification on page 35.

Important!

Let the sealing compound harden

for at least 24 hours before the

engine is used again.

Charge air

cooler element

O-ring

Sealant 816 064

Intake manifold

The cooling system must never

be cleaned with caustic soda.

There is a risk of damage to

aluminium parts.

Important

Internal cleaning

Removing oil and grease

- If possible, run the engine until it has reached operating temperature and

then drain the cooling system.

- Remove the thermostats.
- Fill the system with clean, hot water mixed with liquid dishwasher

detergent designed for household use.

Concentration 1% (0.1/10 l).

- Run the engine until warm for about 20-30 minutes. Do not forget the

cab heating system (if fitted).

- Drain the cooling system.
- Fill the system again using clean, hot water and run the engine for about

20-30 minutes.

- Drain the water from the system.
- Refit the thermostats.
- Top up the system with new coolant according to the specification on

page 35.

Removing deposits

- If possible, run the engine until it has reached operating temperature and

then drain the cooling system.

- Remove the thermostats.
- Fill the system with clean, hot water mixed with some of the radiator

cleaning agent available on the market which is based on sulphamic acid

and contains dispersing agents. Follow the manufacturer’s instructions

for the concentration and cleaning period.

- Run the engine for the specified time and then drain the cooling system.
- Refill the system with hot water and run the engine for about

20-30 minutes.

- Drain the water from the system.
- Refit the thermostats.
- Top up the system with coolant according to the specification on

page 35.

When handling cooling system

detergent:

read the warning text on the

containers.

Use a container to avoid spills

when changing the coolant.

Dispose of used coolant through

an authorised waste disposal

contractor.

WARNING

Help protect our

environment!

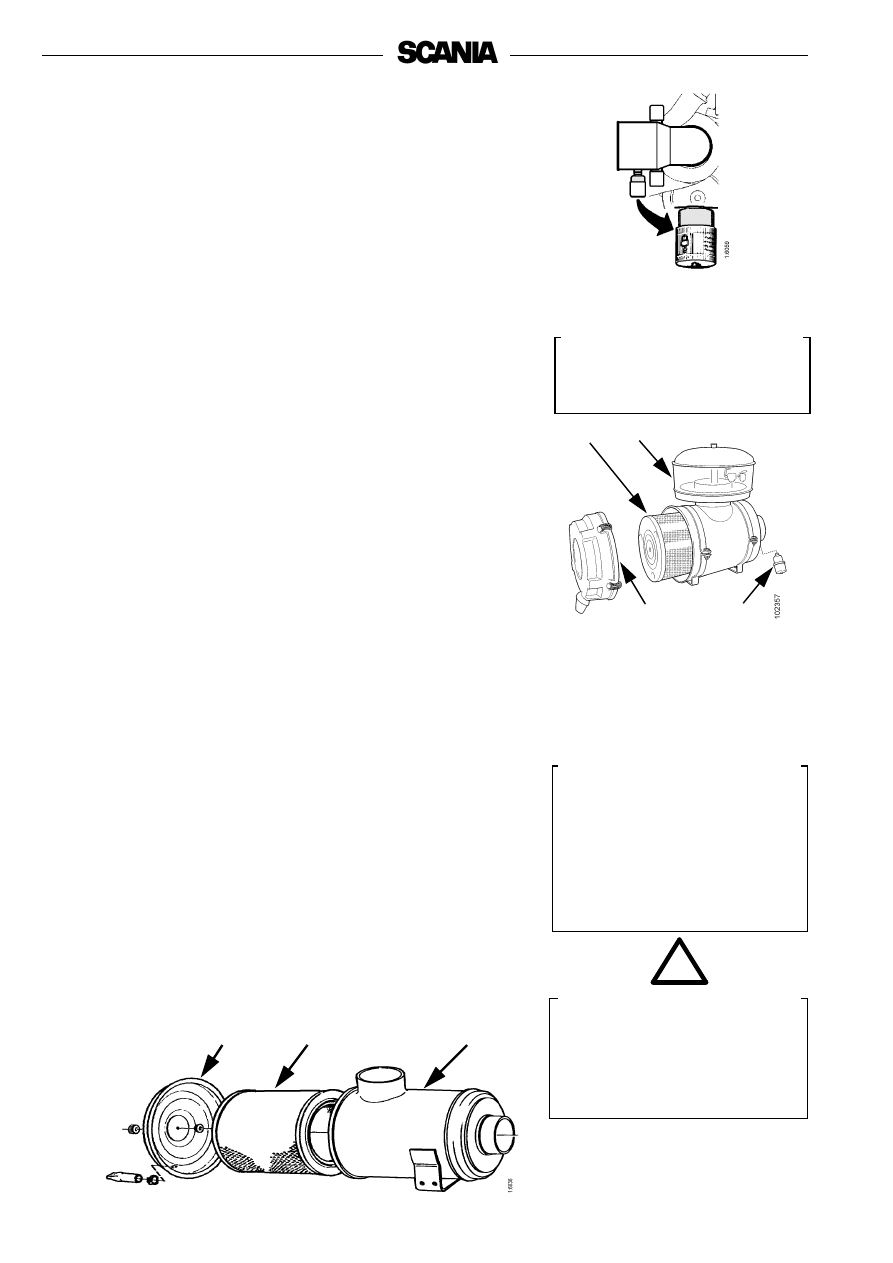

Air cleaner

8. Daily:

Test reading of vacuum indicator

If the red indicator bar is entirely visible, change or clean the air cleaner filter

element, point 10. This is particularly important if the engine is run at high

loads and high speed.

9. Every 200 hours:

Cleaning the air cleaner’s coarse

cleaner

Remove the cover from the coarse cleaner (2).

Remove the conical coarse separator. Empty out the particles of dirt and

clean it.

Fit the coarse cleaner as shown in the figure and screw the cover into

place.

10. Every 1,200 hours:
Cleaning or changing filter element

Note:

Clean or renew the filter element earlier if the vacuum indicator

shows red.

Dismantling

Remove the cover from the air cleaner.

Renew or clean the filter element.

Note:

There is always a risk that the filter element will be damaged

during cleaning. The filter element can only be cleaned a

maximum of four times. After cleaning, it has poorer dust

capacity than a new filter element.

Mark the filter when it has been cleaned.

Cleaning the filter element

- Carefully blow the filter element clean using dry compressed air from

the inside.

Note:

This filter element must not be washed with water.

Cover

Filter element

Filter house

Only use genuine Scania air

filters.

Renew the filter element if it is

damaged.

Danger of engine damage if the

filter element is damaged.

Never start the engine without

the air filter.

There is a risk of injury or

engine damage.

The coarse cleaner must always

be fitted in an upright position.

Filter element

Coarse cleaner

Cover

Vacuum indicator

Important

WARNING

Check

- Insert a torch into the element and check from the outside that there are

no holes or cracks in the filter paper.

- Renew the filter element if it has the slightest damage. Danger of engine

damage.

Assembly

Assemble the air cleaner in reverse order.

Reset the vacuum indicator by pressing the button.

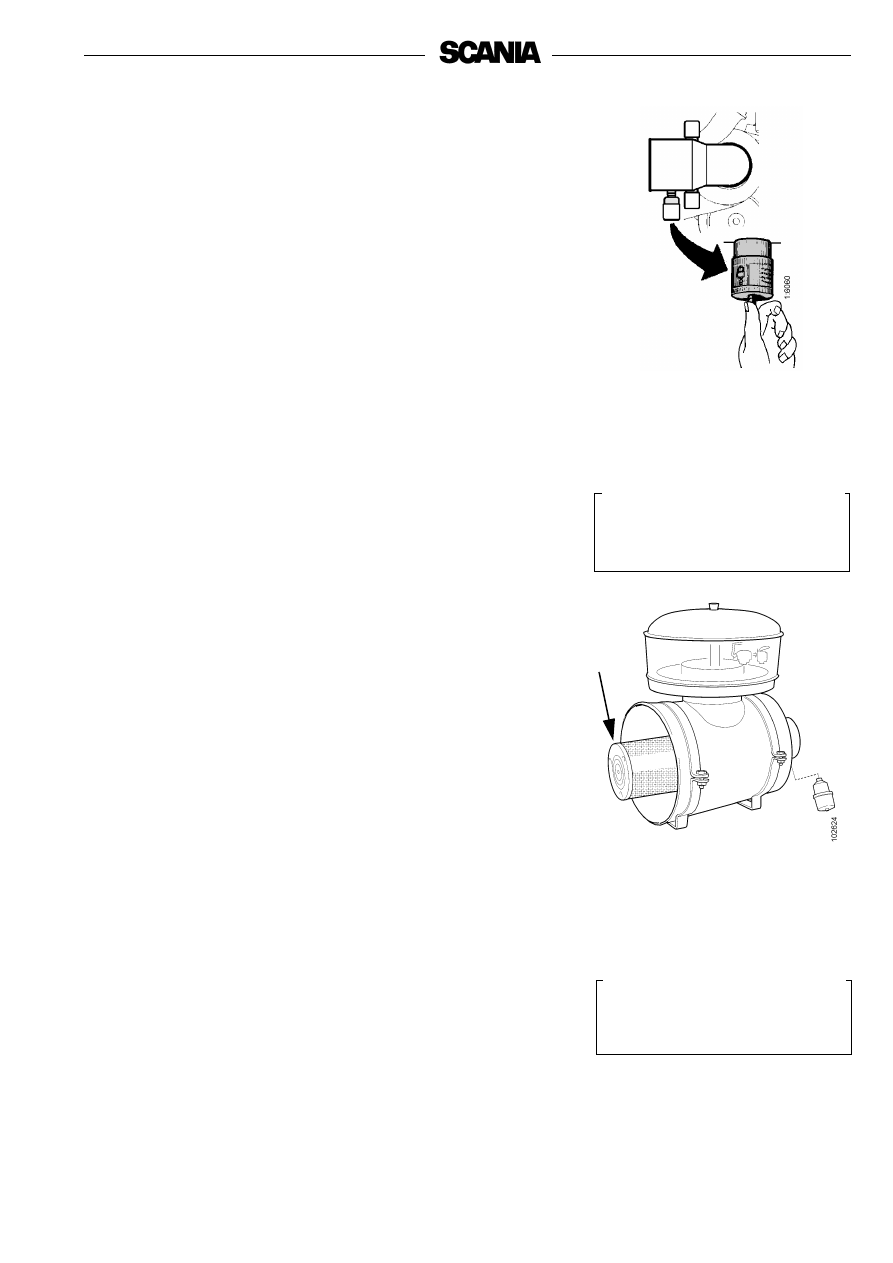

11. Every 2,400 hours:
Changing safety cartridge

Note:

Not all filters are equipped with a safety cartridge. When

changing the safety cartridge, take great care to ensure that no

dirt or other impurities can get into the engine.

Remove the cover from the air cleaner.

Remove the filter element.

Remove the safety cartridge.

Fit a new genuine Scania safety cartridge.

Renew or clean the filter element, see point 10.

Assemble the air cleaner.

1. Safety cartridge

Air cleaner with safety cartridge

Do not remove the safety

cartridge unnecessarily.

Important

Never clean the

safety cartridge.

Important

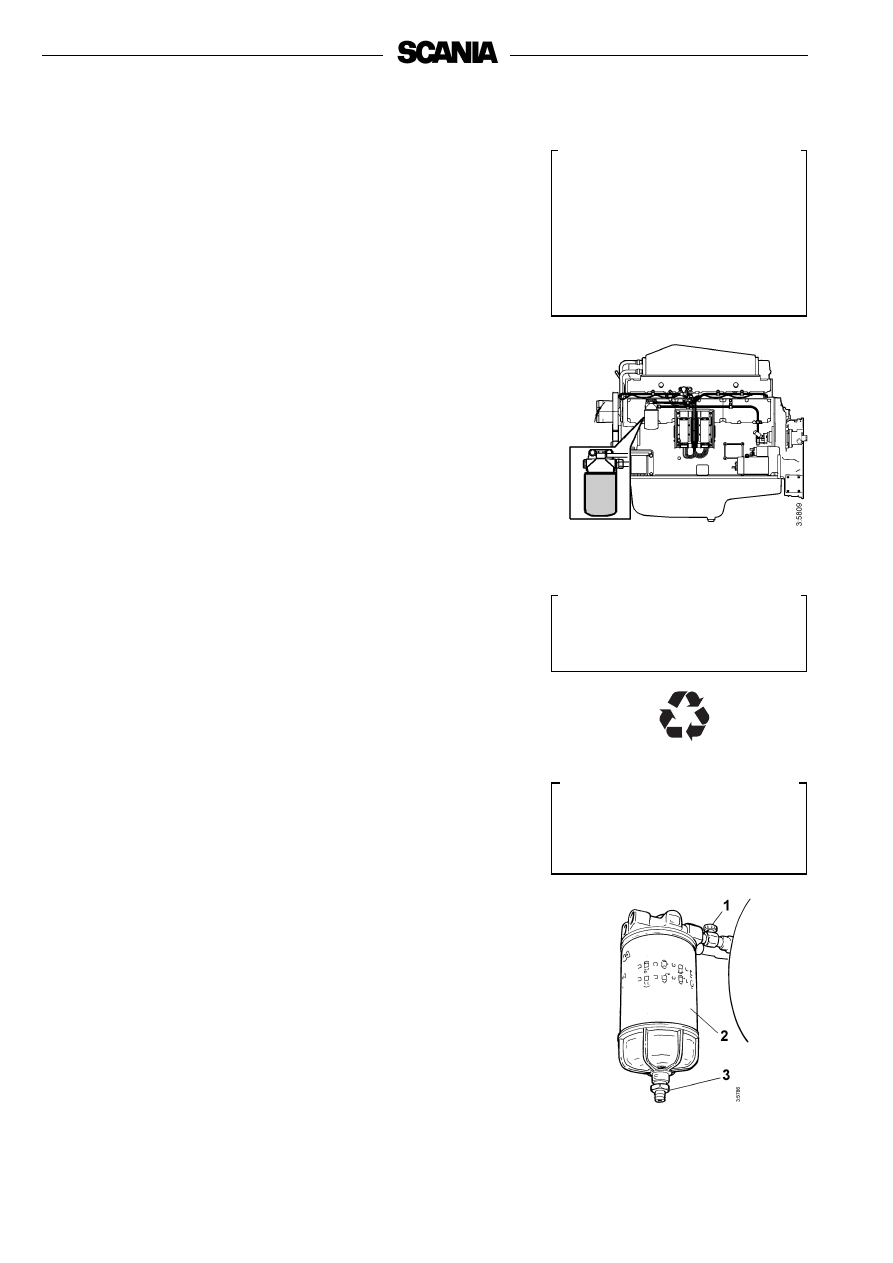

Fuel system

12. Daily:
Checking fuel level

- Top up with fuel if necessary.
- If the tank has been run dry, bleed the fuel system, see point 13.

13. Every 1,200 hours:
Renewing the fuel filter

Fuel tanks

- Drain any water from the fuel tanks.

Filter

The filter consists of a filter unit.

- Wash the outside of the filter and unscrew it. Discard the filter according

to environmental requirements.

- Fit the new filter and tighten it by hand.

Never use tools for this. The filter could sustain damage, obstructing

circulation.

- Bleed the fuel system as described below.
- Start the engine and check for leaks.

Water separating filter

- Drainage must be carried out when filling fuel.
- The filter must be changed at the same renewal interval as the main

filter.

- Close the cock (1) upstream of the filter.
- Unscrew the container and drain valve (3).
- Unscrew and change the filter (2). Lubricate the seal before tightening

the new filter by hand.

- Screw the container and drain valve into position.
- Open the cock (1).
- Bleed the fuel system after renewing both filters.

Use a container to avoid spillage

when bleeding and renewing

components.

Use only genuine Scania fuel

filters.

Shut-off cock

Filter

Drain valve

Observe the utmost cleanliness

when working on the fuel

system.

There is a risk of engine

malfunction and damage to the

injection equipment.

Important

Help protect our

environment!

Electrical system

14. Every 200 hours:
Checking the electrolyte level in

batteries

Unscrew the plugs and check the electrolyte level in all cells.

Top up with distilled water until the level is 10-15 mm above the plates.

15. Every 1,200 hours:
Checking state of charge in batteries

- Check the density with an acid tester.

In a fully-charged battery it should be:

1.280 at +20°C

1.294 at 0°C

1.308 at -20°C

- If the density is below 1.20, the battery must be charged. A discharged

battery freezes at -5°C.
Do not boost charge the battery. This will damage the battery in the

long run.

16. Every 1,200 hours:
Cleaning batteries

Clean batteries, cables and cable terminals.

Check that all cable terminals are firmly tightened.

Grease the battery terminal posts and cable terminals with Vaseline.

Wear gloves and protective

goggles when charging and

handling batteries.

The batteries contain a highly

corrosive acid.

Do not connect the terminals

incorrectly.

This can cause serious damage

to the electrical system.

If the terminals are shorted,

sparking will occur.

Avoid naked flames or sparks

near the batteries.

When the batteries are charged,

oxyhydrogen gas is formed

which is flammable and

explosive.

WARNING

Renewing the battery

Removing

Disconnect the negative cable (-) from the battery (cable connected to

earth).

Disconnect the positive cable (+) from the battery (cable connected to

starter motor).

Fitting

Connect the positive cable (+) to the battery (cable connected to starter

motor).

Connect the negative cable (-) to the battery (cable connected to earth).

17. Every 1,200 hours:

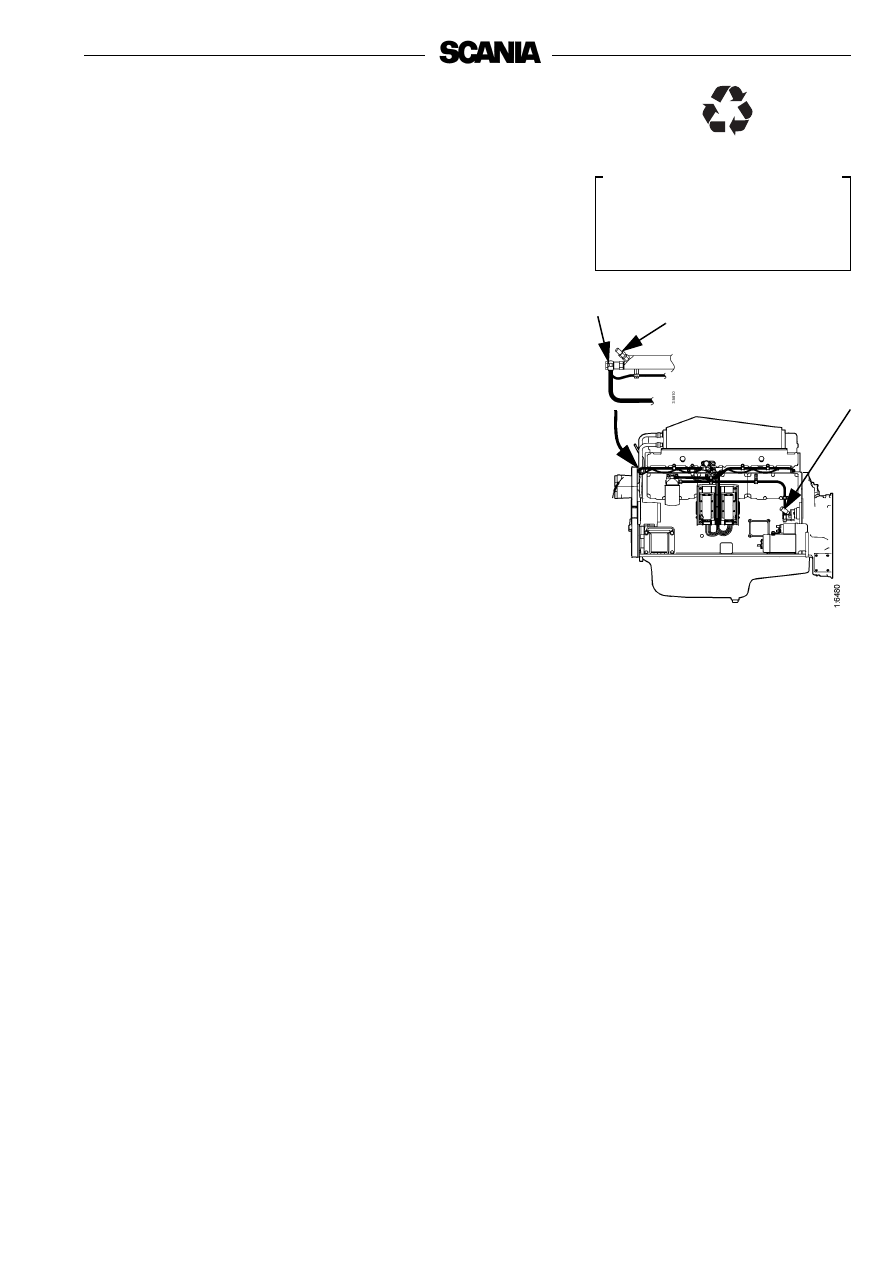

Checking coolant level monitor

(Optional equipment)

Start the engine.

Lower the coolant level in the expansion tank.

Automatic stop in the event of a fault: The engine stops, the indicator

lamp comes on and the buzzer (if fitted) sounds if there is no fault in the

level monitor. If the function is connected via the coordinator, the

emergency stop fault code will be generated and can be read off on the

diagnostics lamp.

No automatic stop in the event of a fault: The indicator lamp comes on

and the buzzer (if fitted) sounds if there is no fault in the level monitor.

Top up coolant to the correct level, see page 36.

Do not connect the terminals

incorrectly.

This can cause serious damage

to the electrical system.

If the terminals are shorted,

sparking will occur.

Dispose of used batteries

through an authorised waste

disposal contractor.

2-pin level monitor installed in the

expansion tank for radiators

supplied by Scania

Use a container to avoid spills

when draining the coolant.

Dispose of used coolant through

an authorised waste disposal

contractor.

WARNING

Help protect our

environment!

Help protect our

environment!

Scania DI12, DC12 EMS with S6/PDE. Industrial engine. Operator’s manual - part 3
