Scania DI9, DC9 with DEC2. Industrial engine. Operator’s manual - part 1





Operator's Manual

DI9, DC9 with DEC2

Industrial engine

opm96-9adec en

1 588 889

2003-10:1

Industrial & Marine Engines

IMPORTANT INFORMATION

When working on the engine, for example adjusting drive belts, changing the oil or adjusting the

clutch, it is important not to start the engine. The engine may be damaged and there is

SERIOUS RISK OF INJURY.

For this reason, always secure the starting device or disconnect a battery cable before working on

the engine. This is especially important if the engine has a remote starter or automatic starting.

This warning symbol and text is reproduced beside those maintenance points where it is

especially important to consider the risk of injury.

!

COMMISSIONING REPORT - WARRANTY

When the commissioning report has been filled in and sent to Scania, you have a 1-year warranty from the date
of commissioning.
Also fill in the particulars below as this can make things easier if you need to contact for example a service
workshop

.

Engine number

Commissioning date

User's name and address

Signature

Engine type

Variant

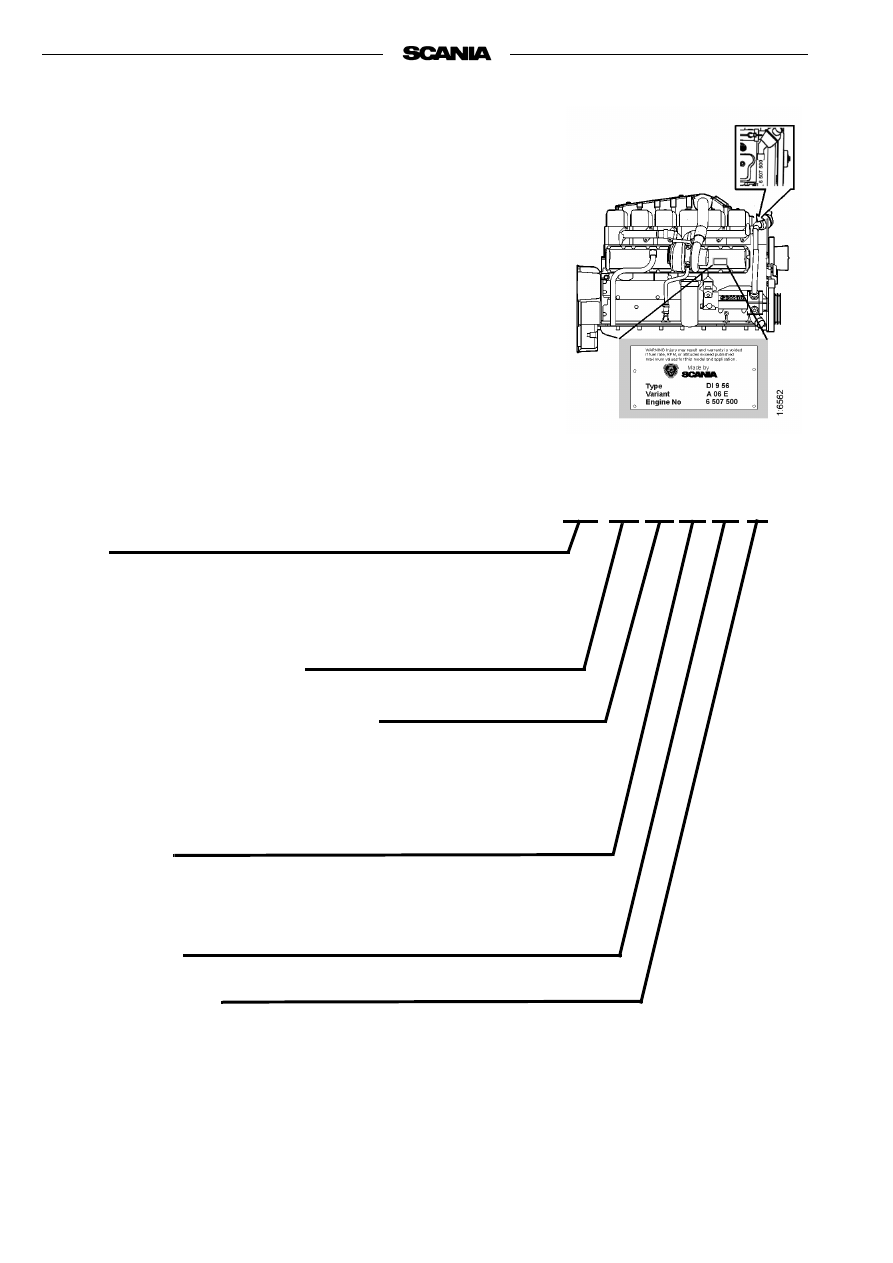

Engine type and variant are indicated on the engine type plate

2

2003-10:1

PREFACE

This Operator's Manual describes the handling and maintenance of Scania

DC9 and DI9 Industrial Engines with DEC2.
The engines are of direct-injection, liquid-cooled, four-stroke, 6-cylinder in-

line diesel type. These engines have turbochargers and charge air coolers: see

page 10.
Common applications are as power units in construction machines, generator

sets, earth-moving, railway and forestry machines as well as in irrigation

systems.
The engines can have different output and speed settings.
The normal output setting of the engine (performance code) is indicated on

the type plate, see page  10.

Note:

Only standard components are described in the Operator's

Manual. Regarding special equipment, refer to the instructions of

the relevant manufacturer.

In order to obtain the best value and service life from your engine, there are

several points you should bear in mind:

- Read the manual before starting to use the engine. Even though you may

be experienced with Scania engines you may find new information in

this Operator's Manual.

- Follow the maintenance instructions. Good working order and service

life are ensured if maintenance is carried out according to the

instructions.

- In particular, read the safety information starting on page  6.
- Get to know your engine so that you know what it can do and how it

works.

- Whenever necessary, always contact an authorised Scania workshop.

They have special tools, genuine Scania parts and staff with training and

practical experience of Scania engines.

Note:

Always use genuine Scania parts during service and repair so as

to keep your engine in the best possible working order.

The information in this manual was correct at the time of going to press.

However, we reserve the right to make alterations without prior notice.

Scania CV AB
Industrial and Marine Engines

S-151 87 Södertälje, Sweden

During the warranty period,

only genuine Scania parts may

be used during service and

repair otherwise the warranty

will be invalidated.

2003-10:1

CONTENTS

PREFACE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

ENVIRONMENTAL RESPONSIBILITY  . . . . . .4
CERTIFIED ENGINES   . . . . . . . . . . . . . . . . . . . .5
SAFETY INFORMATION . . . . . . . . . . . . . . . . . .6

Safety precautions for running the engine   . . . .7
Safety precautions for handling materials . . . . .8
Safety precautions for care and maintenance  . .8

TYPE DESIGNATIONS   . . . . . . . . . . . . . . . 10

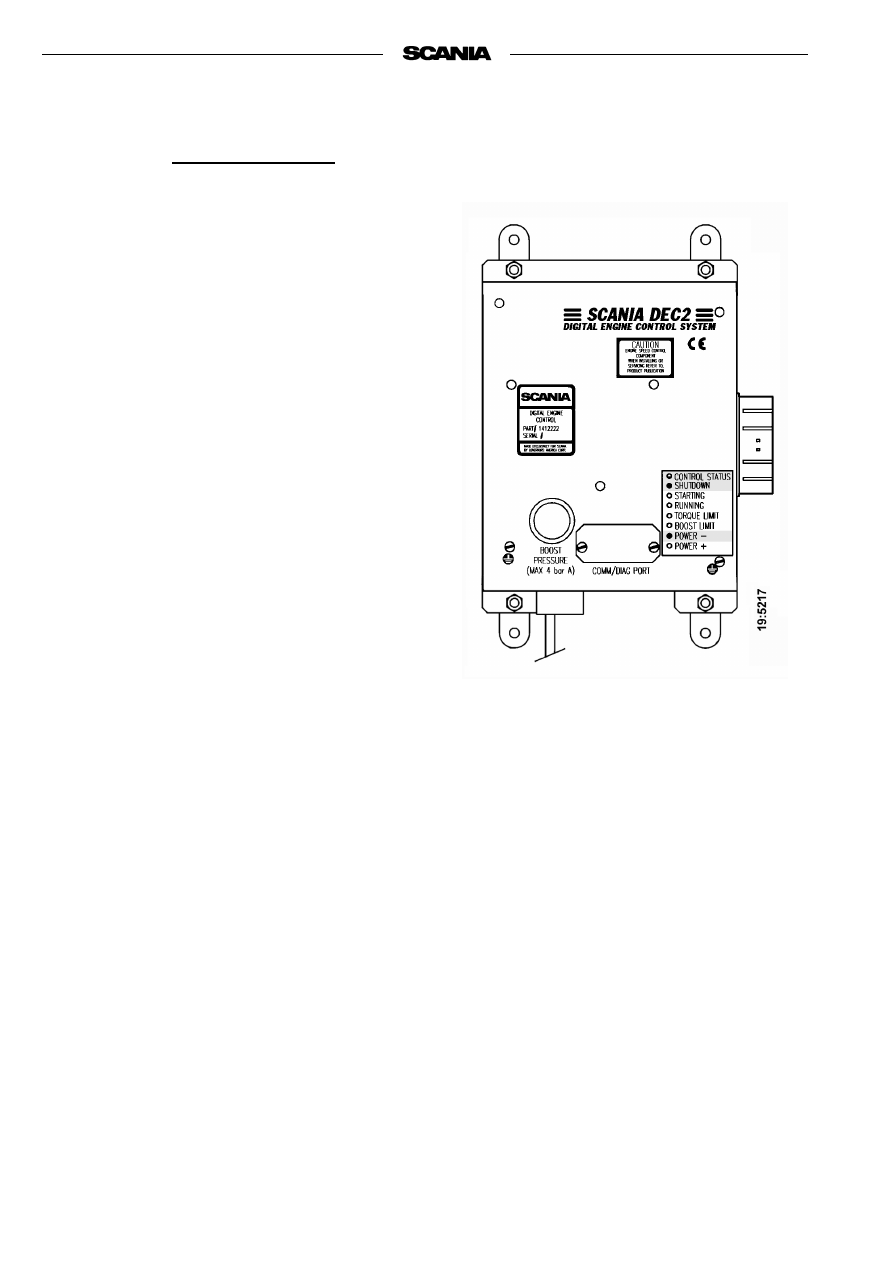

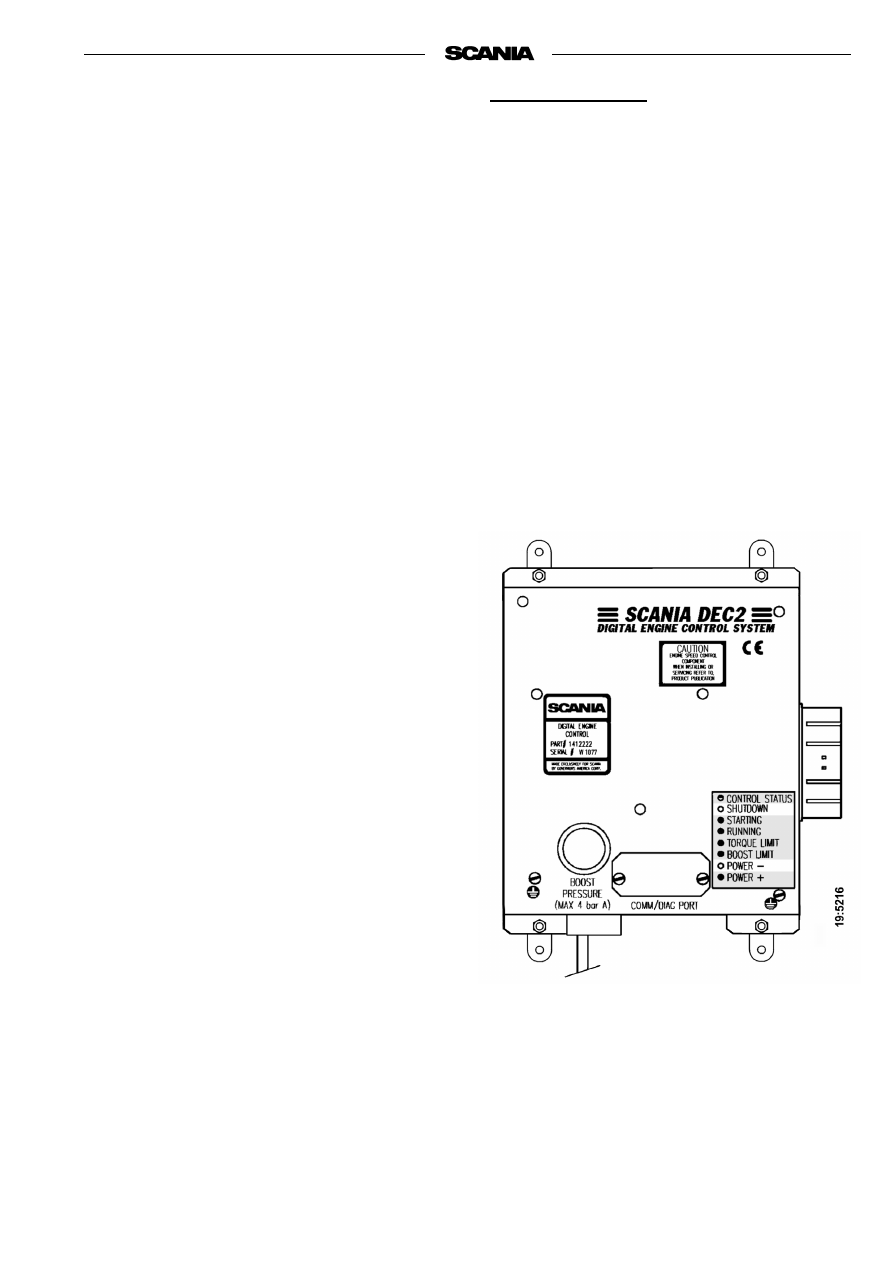

DEC2 CONTROL SYSTEM  . . . . . . . . . . . . 12

STARTING AND RUNNING  . . . . . . . . . . . 19

AT FIRST START  . . . . . . . . . . . . . . . . . . . . . . .19
CHECKS BEFORE RUNNING  . . . . . . . . . . . . .21
STARTING THE ENGINE   . . . . . . . . . . . . . . . .21

At temperatures below 0°C:  . . . . . . . . . . . . . .22

DRIVING  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Rotation speed . . . . . . . . . . . . . . . . . . . . . . . . .23
Coolant temperature  . . . . . . . . . . . . . . . . . . . .23
Oil pressure  . . . . . . . . . . . . . . . . . . . . . . . . . . .24

STOPPING THE ENGINE  . . . . . . . . . . . . . . . . .24

Clutch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

CHECKS AFTER RUNNING  . . . . . . . . . . . . . .25

MAINTENANCE  . . . . . . . . . . . . . . . . . . . . . 26

ENGINES WITH FEW OPERATING

HOURS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE SCHEDULE  . . . . . . . . . . . . .27

LUBRICATING OIL SYSTEM   . . . . . . . . . 28

OIL GRADE  . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Oil analysis  . . . . . . . . . . . . . . . . . . . . . . . . . . .28

CHECKING OIL LEVEL . . . . . . . . . . . . . . . . . .29

Checking oil level during operation  . . . . . . . .29

OIL CHANGE   . . . . . . . . . . . . . . . . . . . . . . . . . .29

Maximum angles of inclination during

operation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

CLEANING THE OIL CLEANER   . . . . . . . . . .30
CHANGING THE OIL FILTER   . . . . . . . . . . . .32

COOLING SYSTEM  . . . . . . . . . . . . . . . . . . 32

CHECKING COOLANT LEVEL   . . . . . . . . . . .32
CHECKING THE COOLANT  . . . . . . . . . . . . . .33

Checking protection against corrosion  . . . . . .35
Changing the coolant   . . . . . . . . . . . . . . . . . . .35

CLEANING THE COOLING SYSTEM  . . . . . .36

Internal cleaning  . . . . . . . . . . . . . . . . . . . . . . .37

AIR CLEANER . . . . . . . . . . . . . . . . . . . . . . . 38

READING THE VACUUM INDICATOR   . . . .38
CLEANING THE AIR CLEANER COARSE

CLEANER   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
CLEANING OR CHANGING THE FILTER

ELEMENT   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
CHANGING THE SAFETY CARTRIDGE . . . .39

FUEL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . 40

CHECKING THE FUEL LEVEL . . . . . . . . . . . .40
CHANGING THE FUEL FILTER  . . . . . . . . . . .40
CHECKING THE INJECTORS  . . . . . . . . . . . . .41

ELECTRICAL SYSTEM . . . . . . . . . . . . . . . 42

CHECKING THE ELECTROLYTE LEVEL

IN BATTERIES  . . . . . . . . . . . . . . . . . . . . . . . . .42
CHECKING THE STATE OF CHARGE IN

BATTERIES  . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
CLEANING BATTERIES  . . . . . . . . . . . . . . . . .42
CHECKING THE COOLANT MONITOR  . . . .43
CHECKING THE TEMPERATURE

MONITOR   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
CHECKING THE TEMPERATURE

SENSOR  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
CHECKING THE OIL PRESSURE

SENSOR/MONITOR  . . . . . . . . . . . . . . . . . . . . .45
CHECKING THE OIL PRESSURE MONITOR

FOR DEC 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

MISCELLANEOUS  . . . . . . . . . . . . . . . . . . . 46

CHECKING THE DRIVE BELT  . . . . . . . . . . . .46
CHECKING FOR LEAKAGE,

NECESSARY ACTION  . . . . . . . . . . . . . . . . . . .47
CHECKING/ADJUSTING VALVE

CLEARANCES   . . . . . . . . . . . . . . . . . . . . . . . . .48
CHANGING (

OR

 CLEANING) THE CLOSED

CRANKCASE VENTILATION VALVE.  . . . . .50

LONG-TERM STORAGE  . . . . . . . . . . . . . . 51

Preservative fuel  . . . . . . . . . . . . . . . . . . . . . . .51
Preservative oil  . . . . . . . . . . . . . . . . . . . . . . . .52
Preparations for storage   . . . . . . . . . . . . . . . . .52
Batteries   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Storage   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Taking out of storage   . . . . . . . . . . . . . . . . . . .53

TECHNICAL DATA   . . . . . . . . . . . . . . . . . . 54

ALPHABETICAL INDEX . . . . . . . . . . . . . . 58

4

2003-10:1

ENVIRONMENTAL RESPONSIBILITY

Scania has always been very much at the leading edge when it comes to

developing and producing engines which are as environmentally friendly as

possible.
Major progress has been made on reducing harmful exhaust emissions as

required to be able to meet the stringent environmental standards stipulated

on almost all markets.
At the same time, we have been able to maintain high quality in terms of

performance and operating economy for Scania Industrial and Marine

Engines.
To preserve these qualities throughout the entire service life of the engine, it

is important for the operator/owner to follow the instructions on running,

maintenance and the choice of fuel and oil as outlined in the manual.
Other efforts to preserve the environment we all share are possible by

ensuring that the person carrying out servicing and maintenance always

makes sure that environmentally hazardous waste after servicing and repairs

(oil, fuel, coolant, filters, batteries, etc.) is dealt with and disposed of in

accordance with applicable environmental standards.
On a number of pages, this Operator's Manual contains specially highlighted

text with instructions to help protecting our environment during certain

servicing and maintenance work.

See example

Use a container to avoid spillage

when bleeding and changing

components.

2003-10:1

CERTIFIED ENGINES

Emissions-certified engines have been approved in accordance with a special

certification standard. The certified engines supplied by Scania meet the most

stringent emissions standards which apply on European (EU) and non-

European (USA) markets.
Scania guarantees that all the engines it supplies of a certified type are

equivalent to the engine approved for certification.
The engine comes with a special certification plate which indicates the

certification rules (standard) to which the engine has been approved. See

page 10.
The following is required for the certified engine to meet emissions standards

once it has been commissioned:

- Servicing and maintenance must be carried out in accordance with the

instructions in this manual.

- Only genuine Scania parts are to be used.
- Injection equipment is to be serviced by an authorised Scania

workshop.

- The engine must not be modified with equipment not approved by

Scania.

- Seals may be broken and setting data edited only once approval has

been granted by Scania in Södertälje. Changes may be made by

authorised personnel only.

- Changes which affect the exhaust system and intake system must be

approved by Scania.

Otherwise, the instructions in the manual in respect of running, care and

maintenance of the engine shall apply. The safety precautions described over

the next four pages must also be observed.

Important!

If servicing and maintenance are not carried out as specified

above, Scania can no longer guarantee that the engine will

comply with the certified design, nor can it take responsibility

for any damage that occurs.

6

2003-10:1

SAFETY INFORMATION

General

This Operator's Manual contains safety information which is important so as

to avoid both personal injury and damage to the product/other property. See

also page 1.
The text highlighted in text boxes on the right of a number of pages is

important for engine function and in order to avoid damage to the engine. If

these instructions are not followed, your warranty may be invalidated.

See example

Similar text may also appear in the text column, and in this instance it will be

marked

Note:

 or

Important

The warning text found in text boxes on the right of a number of pages which

is marked with a warning triangle and starts with WARNING is extremely

important and warns you of serious engine faults or incorrect handling which

may lead to injury.

See example

A list of the safety precautions to be followed when running and maintaining

Scania engines can be found on the next three pages. Similar text can often be

found at the relevant maintenance points, and here different levels of

importance are attached to such text in accordance with the above

description.
All points are marked

!

so as to indicate how important it is to read through

each point in this section.

For safety reasons, smoking is not allowed:

• In the vicinity of the engine and in the engine room

• When fuelling and close to the filling station

• When working on the fuel system

• In the vicinity of inflammable or explosive material (fuel, oils,

batteries, chemicals, etc.)

Immobilise the starting device

when working on the engine.

If the engine starts out of

control, there is a

SERIOUS RISK OF

INJURY

Only use Scania genuine fuel

filter.

2003-10:1

7

Safety precautions for running the engine

Daily inspection

Always carry out a visual check of the engine
and engine room before starting the engine and
once you have stopped the engine after
running.
This will enable you to easily detect and fuel, oil
or coolant leaks, or any other abnormalities
which may require rectification.

Refuelling

There is a risk of fire and explosion when
refuelling. The engine must be stopped and
smoking is not allowed.
Do not overfill the tank due to a risk of
expansion, and close the filler cap properly.
Use only fuel recommended in the service
literature. Fuel of the wrong quality can cause
the engine to malfunction or stop by preventing
the injection pump and injectors from operating
as they should.
This can cause damage to the engine and,
possibly, injury.

Hazardous gases

Start the engine only in a well ventilated area.
The exhaust fumes contain carbon monoxide
and nitric oxides, which are toxic.
When running the engine in a closed area,
there must be an efficient device for dissipating
exhaust fumes and crankcase gases.

Starter lock

If the control panel is not fitted with a key
operated switch, there should be a lock on the
engine room to prevent unauthorised starting of
the engine.
Alternatively, a lockable on/off master switch or
battery master switch can be used.

Starting spray

Never use starting spray or similar to help you
start the engine. This can cause an explosion in
the intake manifold and possible injury.

Running

The engine must not be run in environments
where there is a risk for explosion as all of the
electrical or mechanical components can
generate sparks.
Approaching a running engine always poses a
safety risk. Parts of the body, clothes or
dropped tools can get caught in rotating parts
such as the fan and cause injury.
Therefore, all rotating parts and hot surfaces
must be shielded as much as possible to aid
personal safety.

8

2003-10:1

Safety precautions for handling

materials

Fuel and oil

All fuels and lubricants and many chemicals are
inflammable. Always follow the instructions on
the relevant packaging.
All work on the fuel system must be done with
the engine cold. Fuel leaks and spillage on hot
surfaces can cause fire.
Store soaked rags and other inflammable
materials safely so as to avoid spontaneous
combustion.

Batteries

The batteries contain and emit oxyhydrogen
gas, particularly during charging, and this gas is
inflammable and highly explosive. Therefore,
there must be no smoking, naked flames or
sparks near the batteries or the battery
compartment.
Incorrect connection of a battery cable or jump
lead can cause a spark, which in turn can
cause the battery to explode.

Chemicals

Most chemicals such as glycol, corrosion
inhibitor, inhibiting oils, degreasing agents, etc.
are hazardous to health. Always follow the
safety precautions on the relevant packaging.
Some chemicals, such as inhibiting oil, are also
inflammable.
Store chemicals and other materials which are
hazardous to health in approved containers,
marking them clearly and storing them where
they are inaccessible to unauthorised persons.
Always hand in leftover or used chemicals to an
authorised waste disposal contractor.

Safety precautions for care and

maintenance

Stop the engine

Always stop the engine before maintenance
and servicing unless stated otherwise.
Prevent unwanted starting by taking out the
ignition key where applicable and
disconnecting the power using the master
switch or battery master switch and locking
them. Also put up a warning sign somewhere
appropriate, indicating that work is in progress
on the engine.
Working with a running engine always poses a
safety risk. Parts of the body, clothes or
dropped tools can get caught in rotating parts
and cause injury.

Hot surfaces and fluids

There is always a risk of sustaining burns when
an engine is hot. Therefore, take care not to
come into contact with manifolds, the turbo, the
sump, hot coolant and oil in pipes and hoses.

Lifting the engine

The engine lifting eyes must be used when
lifting the engine. Check first that your lifting
devices are in good condition and of the correct
size to lift the weight.
Extra equipment on the engine can alter the
centre of gravity, which is why you may need
additional lifting devices to balance the engine
correctly and lift it safely.
Never work underneath a suspended
engine!

2003-10:1

9

Batteries

The batteries contain a highly corrosive
electrolyte (sulphuric acid). Take care to
protect your eyes, skin and clothes when
charging or handling batteries. Wear protective
gloves and goggles.
If the acid splashes on your skin, wash it off
with soap and copious amounts of water. If acid
splashes in your eyes, flush them immediately
with copious amounts of water and contact a
doctor.
Dispose of used batteries through an
authorised waste disposal contractor.

Electrical system

The engine must be stopped and the power
disconnected using the master switch or
battery master switch before working on the
electrical system.
External power supplies to extra equipment on
the engine must also be disconnected.

Electric welding

When carrying out welding work close to and
on the engine, remove the battery leads and
the leads to the alternator. Also remove the
multi-pin connector to the control unit.
Connect the weld clamp to the component to be
welded and close to the welding point, never to
the engine or in such a manner that the current
can pass over to a mounting.
When you have finished welding, connect the
leads to the alternator and control unit before
connecting the batteries.

Lubrication system

Hot oil can cause burns and skin irritation.
Therefore, avoid skin contact with hot oil.
Make sure that there is no pressure in the
lubricating system before starting work on it.
Never start or run the engine with the oil filler
cap removed, as this may cause oil to be
thrown out.
Dispose of used oil through an authorised
waste disposal contractor.

Cooling system

Never open the coolant filler cap if the engine is
hot. Hot coolant or steam may spray out and
cause burns.
If you have to open or remove a cooling system
component when the engine is hot, open the
cap very carefully and slowly to relieve the
system pressure before removing the cap.
Wear gloves as the coolant is still very hot.
Dispose of used coolant through an authorised
waste disposal contractor.

Fuel system

Always wear gloves when looking for leaks or
carrying out any other work on the fuel system.
Also wear protective goggles when testing
injectors.
Fuel escaping at high pressure can penetrate
tissues and cause serious injury.
Never use non-genuine parts in the fuel and
electrical systems as genuine parts are
designed and manufacture to minimise the risk
of fire and explosion.

Before starting

Fit all removed shields before starting the
engine again. Check that you have not left any
tools or other objects on the engine.
Never start the engine without the air filter
fitted. There is a risk of objects being sucked
into the impeller or of injury if you come into
contact with it.

10

TYPE DESIGNATIONS

The engine type designation indicates, in the form of a code, the type of

engine, its size and applications, etc.
The type designation and engine serial number are indicated on a type plate

affixed to the right-hand side cover behind the oil cleaner. The engine number

is also stamped in the top of the engine block in front of the first cylinder

head. Refer to the illustration.
Engines which hold certification in respect of smoke and emissions are fitted

with a plate which indicates the documents in accordance with which they are

certified. This plate is located on rocker cover number two viewed from the

front.

DI 9 56 A 06 E

Type

DC

Supercharged diesel engine with air-cooled charge air cooler.

DI

Supercharged diesel engine with liquid-cooled charge air cooler

Displacement in whole dm

3

Performance and certification code

Indicates, together with the application code, the normal gross engine

output.

The actual output setting of the engine is indicated on the engine card.

Application

A

For general industrial use

Variant 01-99

Type of regulator

E

Electronically controlled governor (DEC2).

2003-10:1

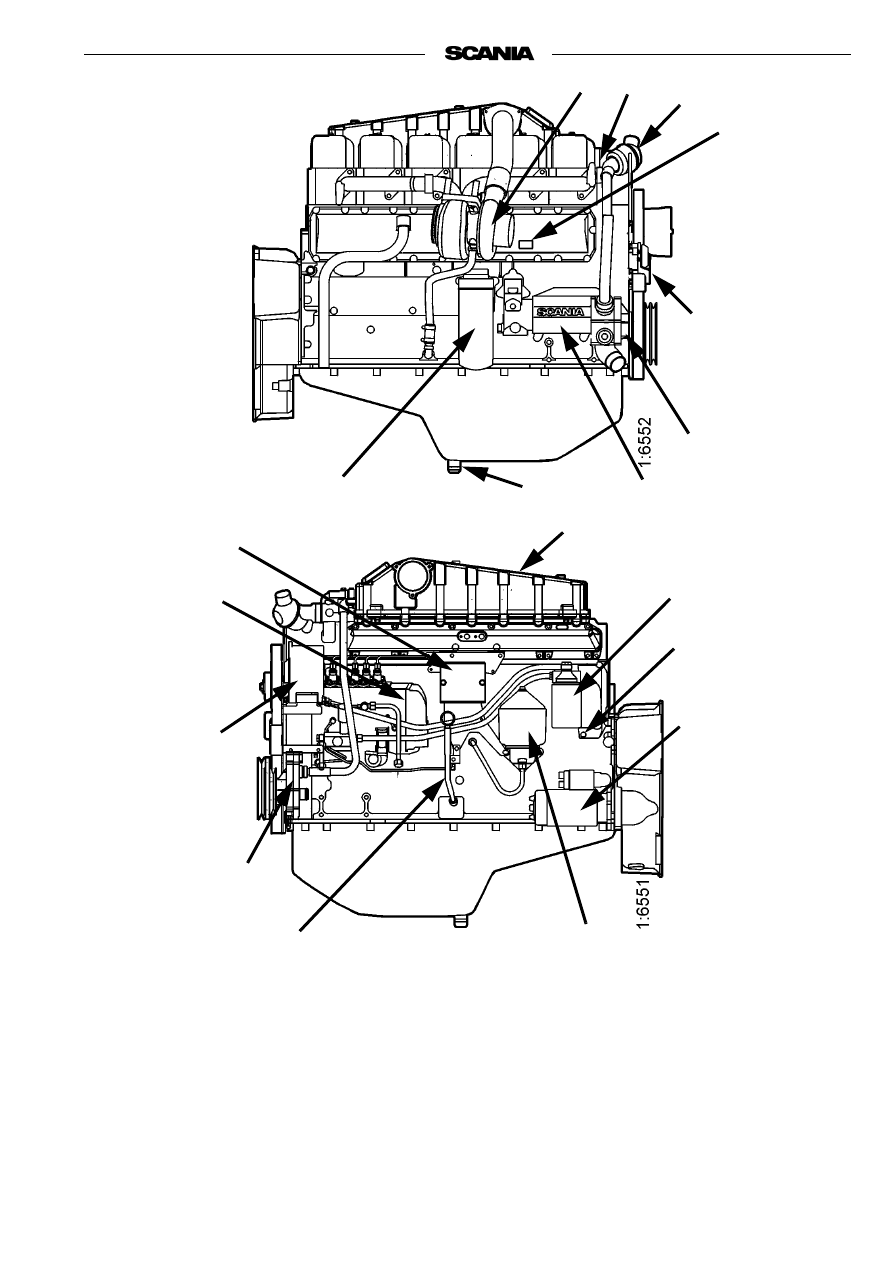

The illustrations show a normal version of a DI9 56 engine.

Your engine may have different equipment from that illustrated.

1.

Turbocharger

2.

Engine number,
stamped into the engine

block

3.

Thermostat housing with

outlet

4.

Type plate

5.

Automatic belt tensioner

6.

Coolant pump

7.

Oil cooler

8.

Draining, engine oil

9.

Oil filter

10.

Charge air cooler

11.

Fuel filter

12.

Draining, coolant

13.

Starter motor

14.

Oil cleaner

15.

Oil dipstick

16.

Extra coolant pump

17.

Alternator

18.

Injection pump with EDC

19.

Connector panel DEC2

4

18

6

3

8

9

10

13

7

17

11

2

1

16

12

14

15

5

19

12

DEC2 CONTROL SYSTEM

This engine has an injection pump with an electromagnetic actuator which

adjusts the control rack to give the correct amount of fuel.
The system which controls the pump is called DEC2 (Digital Engine Control,

generation 2).

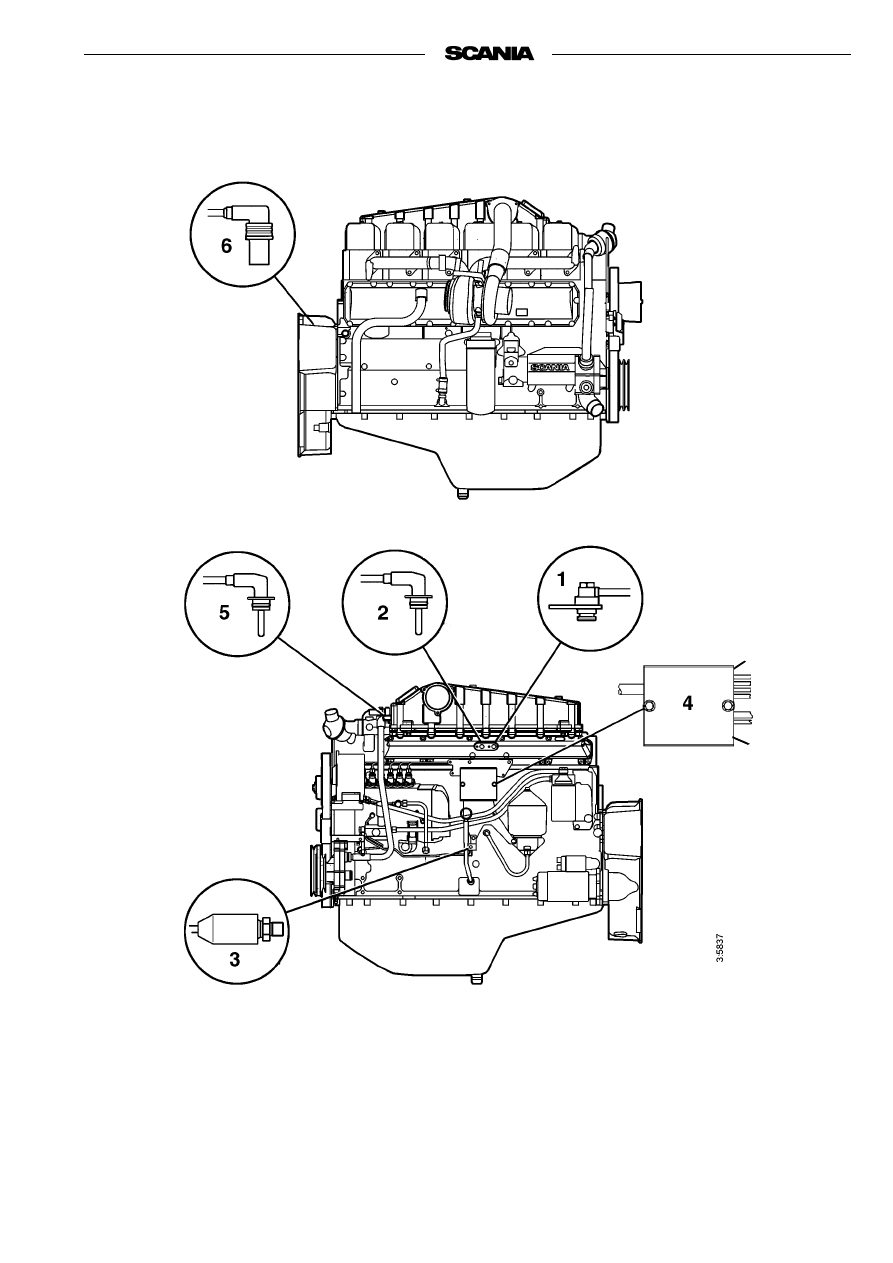

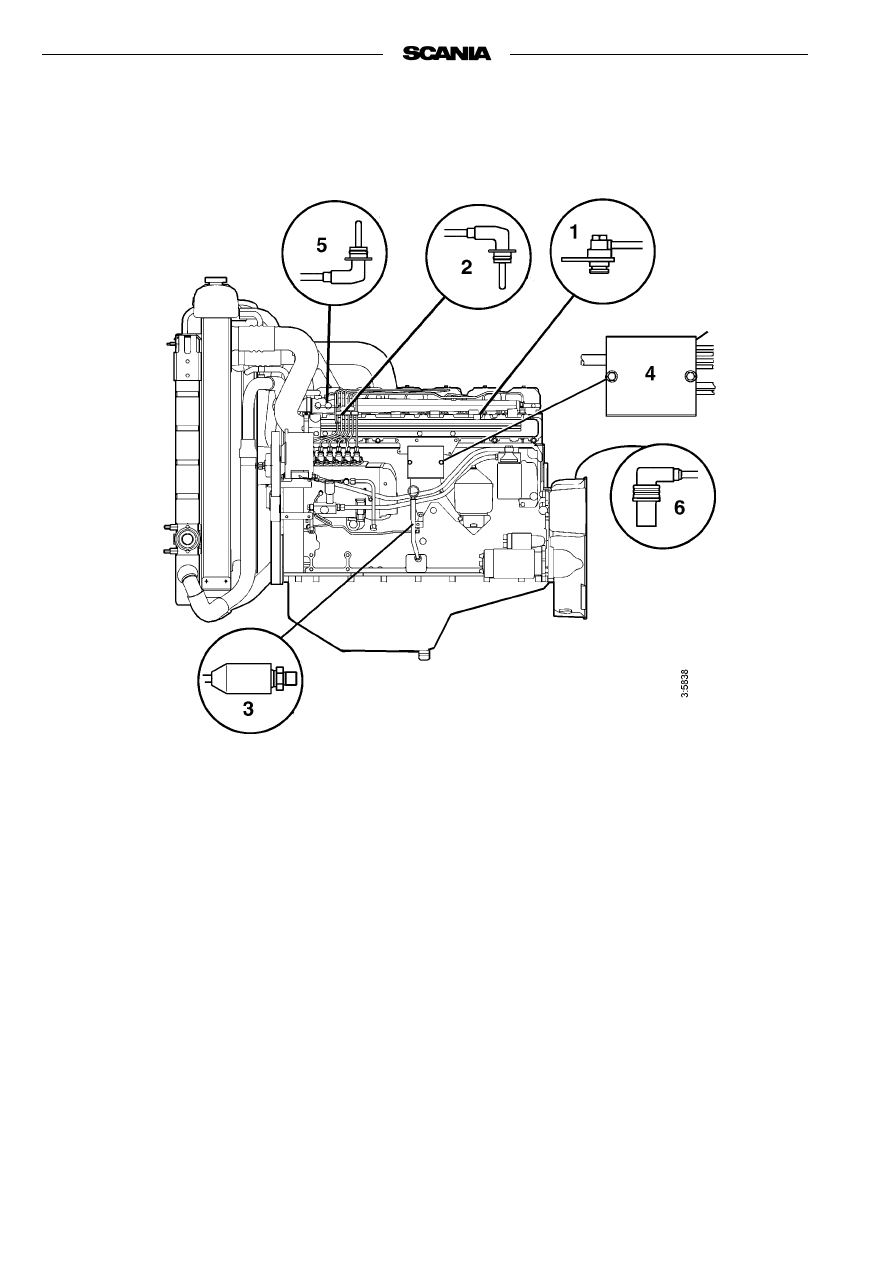

The control unit (DEC2) continuously receives signals from sensors for

engine speed, charge air temperature and pressure, coolant temperature, oil

pressure, throttle pedal position and control rod travel in the injection pump.

Using this input data and a control program, the correct amount of fuel for the

current operating conditions can be calculated.
The system's sensors may be used only for DEC2, not for other instruments

or other monitoring purposes.
The control unit contains monitoring functions to protect the engine in the

event of a fault which would otherwise damage it. Faults and the more

important monitoring functions are indicated on the control unit in the form

of light emitting diodes. See illustration on page 15 for a description.
In the event of a fault Power - or Shutdown on the control unit comes on as

well as the main indicator lamp on the main supply box and instrument panel.
If a fault has been indicated on the main indicator lamp, the operator can

determine the cause of the fault with the help of the LEDs on the control unit

and the troubleshooting schedule on page 18, and carry out the required

investigation and remedy.
Depending on the nature of the fault, the control system can take various

steps to protect the engine, reduce its power, allow it to run at a constant low

speed or, if a functional fault is detected, the engine will be switched off

automatically (Shutdown).
In order to read fault indications on the LEDs, there is a lamp test/fault code

switch in the main supply box installed near the control unit.
A PC based program is also available to make it easier for service personnel

to detect and rectify faults which may arise and to adjust certain parameters in

the driving program.
Only authorised personnel are allowed to carry out diagnostic procedures

and program changes.
The locations of the sensors and monitors which send signals to the control

unit will be evident from the figures on pages 13 and 14.
There is a description of the functions of the LEDs during normal operation

on page 15.
There are descriptions of LED indications when a fault has occurred and the

action taken in the case of Power- and Shutdown on page 16.
Troubleshooting and fault code reading are described on pages 17 and 18.

2003-10:1

Location of sensors for DEC2 on DI9

Location of sensors for DEC2 on DI9

1.

Connection of lead to charge air

pressure sensor

2.

Charge air temperature sensor

3.

Oil pressure monitor

4.

Connector panel

5.

Coolant temperature sensor

6.

Rotation speed sensors

14

Location of sensors for DEC2 on DC9

1.

Connection of lead to charge air

pressure sensor

2.

Charge air temperature sensor

3.

Oil pressure monitor

4.

Connector panel

5.

Coolant temperature sensor

6.

Rotation speed sensors

2003-10:1

LED functions during normal operation

Note:

The lamp test/fault code switch should not be

depressed. All LEDs come on briefly when

the control unit is powered up.

CONTROL STATUS

<

The LED flashes continuously when the control

unit is supplied with current, regardless of

whether the engine is running or not.

SHUTDOWN

P

The LED is out.

STARTING

<

The LED lights up as soon as the engine starts to

rotate during an attempt to start it, follows the

programmed starting sequence until it has been

completed and then goes out.

RUNNING

<

The LED comes on when the engine has started

and the "Starting"-LED goes out. It remains on

until the engine is stopped.

TORQUE LIMIT

<

The LED comes on when the control unit senses

that the engine has received the maximum

permissible quantity of injected fuel according

to its power curve. This means 100% power

output at the current rpm. If the load increases,

engine rpm will decrease.

BOOST LIMIT

<

The LED comes on when the control unit's

smoke limiter limits the maximum fuel quantity.

Operation of the smoke limiter is dependent on

the charge air pressure.

POWER

-

P

The LED remains out during normal operation

as long as no fault is detected by the control

unit. See next page for the procedure to be

adopted in the event of a fault.

POWER

+

<

If the control unit is programmed so that the

engine can be operated with more than one

power/torque curve (map), the following

applies.
The LED comes on when the engine is operated

at more than 100% power output (MAP 2). It

goes out when the engine returns to the 100%

power output curve (MAP 1) or when the power

requirement drops to below 100%.

16

Action when a fault arises

LED indications in the event of a fault

Note:

It is indicated on the main indicator lamp in

the main supply box and on the instrument

panel. The lamp test/fault code switch should

not be depressed.

CONTROL STATUS

<

The LED continues to flash even if a fault has

occurred as long as the control unit is powered

up.

POWER

-

<

If the LED comes on, the control unit has

detected a fault condition which could result in

engine damage if allowed to continue.
The control unit automatically reduces the

power to a special level if this function has

been selected.
Action
If possible reduce engine speed to idle

and conduct troubleshooting according to

instructions on page 17 and the chart on

page 18.

SHUTDOWN

<

The LED comes on and the engine is switched

off automatically in the event of a fault so

serious that the engine could be damaged if it is

still in operation.
Action: Conduct troubleshooting according to

instructions on page 17 and the chart on

page 18.
If the engine has not stopped, reduce engine

speed to idle and carry out troubleshooting.















Content      ..       1      2     ..
