Scania Leaf spring suspension. Manual - part 6

12:01-01

©

21

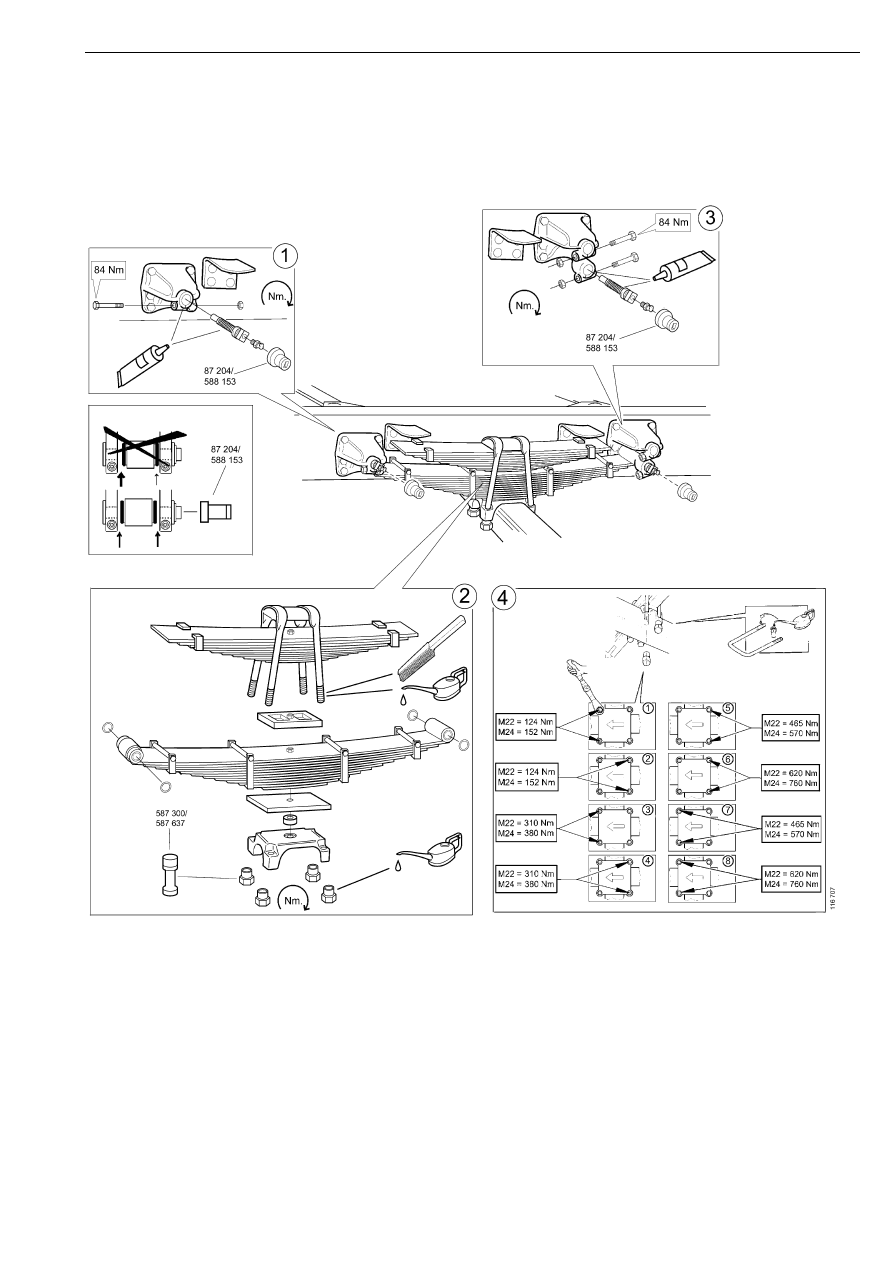

General illustration of rear spring

Fitting rear spring

22

©

12:01-01

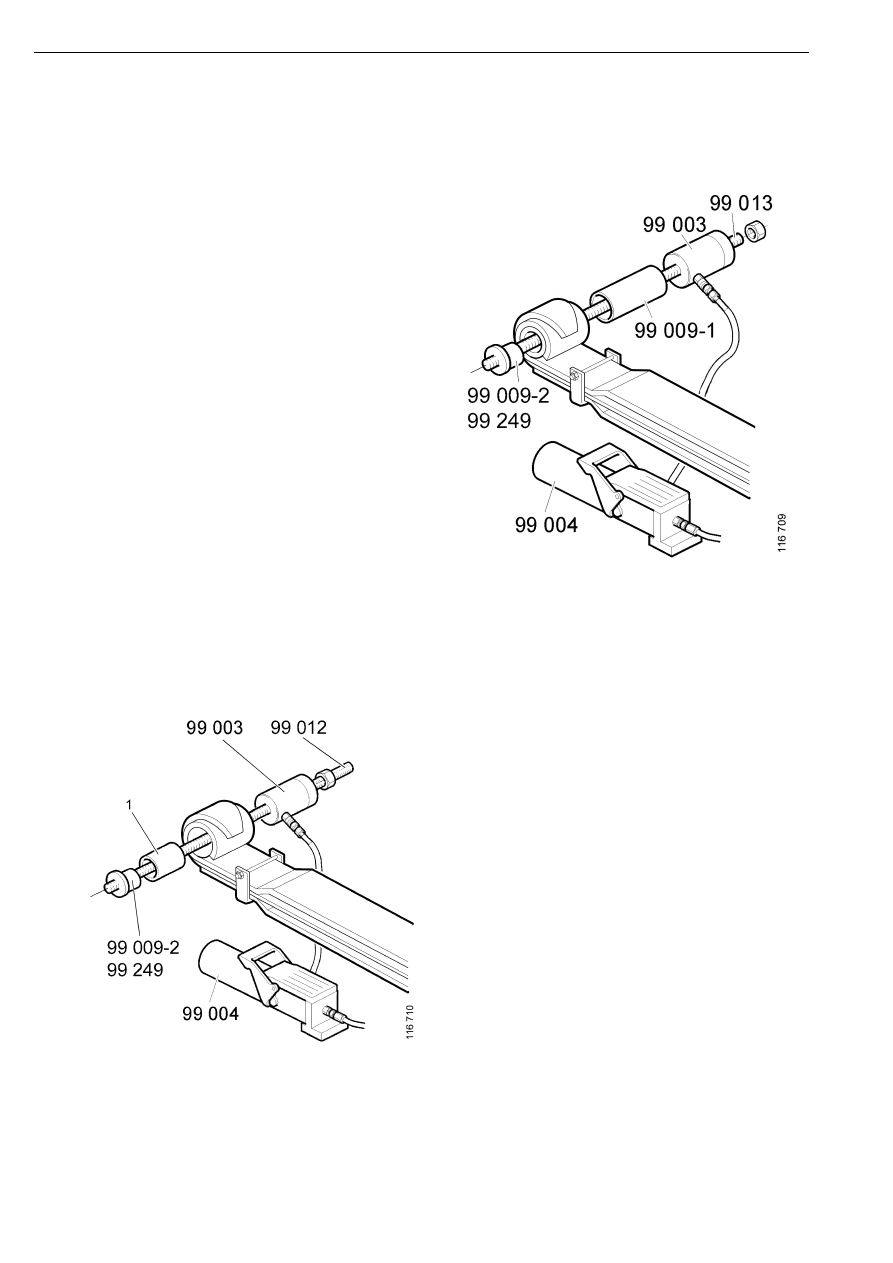

Renewing spring bushing

Removal

•

Carry out Removing rear spring/front spring
to such an extent that the spring bushing is
accessible.

IMPORTANT! The hydraulic cylinder 99 003
should be positioned with the hydraulic
connection closest to the leaf spring eye.
Otherwise, there is a risk that the sleeve 99 009
or the hydraulic cylinder become damaged.

Sleeve 99 249 is used for the 36 mm bushing.
Sleeve 99 009-2 is used for the 46 mm bushing.

Fitting

Sleeve 99 249 is used for the 36 bushing. Sleeve
99 009-2 is used for the 46 mm bushing.

1

Bushing

Renewing spring bushing

12:01-01

©

23

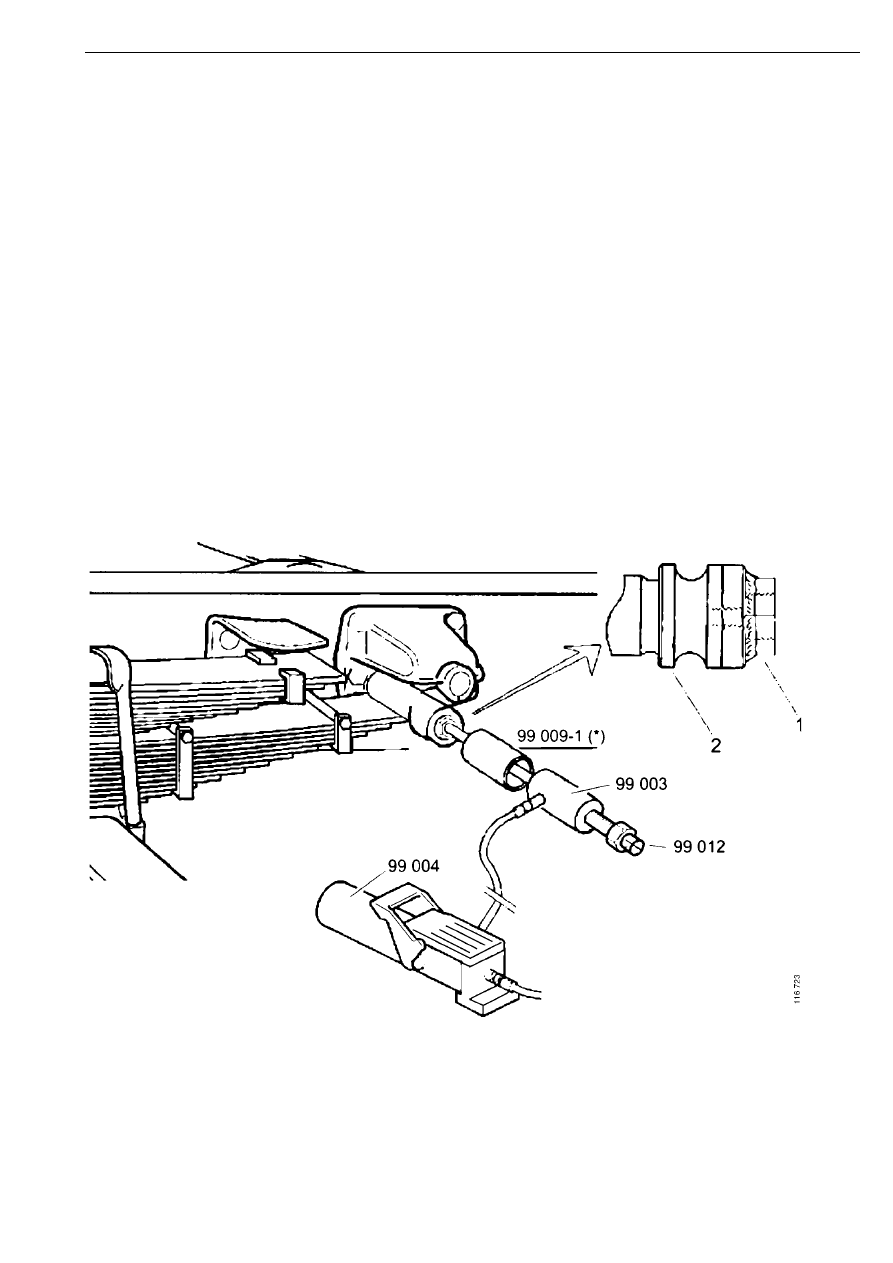

Removing spring bolt and spring
bushing as one unit

•

Carry out Removing rear spring/front spring
to such an extent that the spring bushing is
accessible.

•

Nut 1 must be welded in place around its
edge.

•

For spring bolts with a 56 mm head, use a
pipe with a suitable internal diameter. The
length of the pipe must be 150 mm.

1

M20 nut

2

Spring bolt

(*) Alternative pipe, internal diameter ~60 mm

Removing spring bolt and spring bushing as one unit

24

©

12:01-01

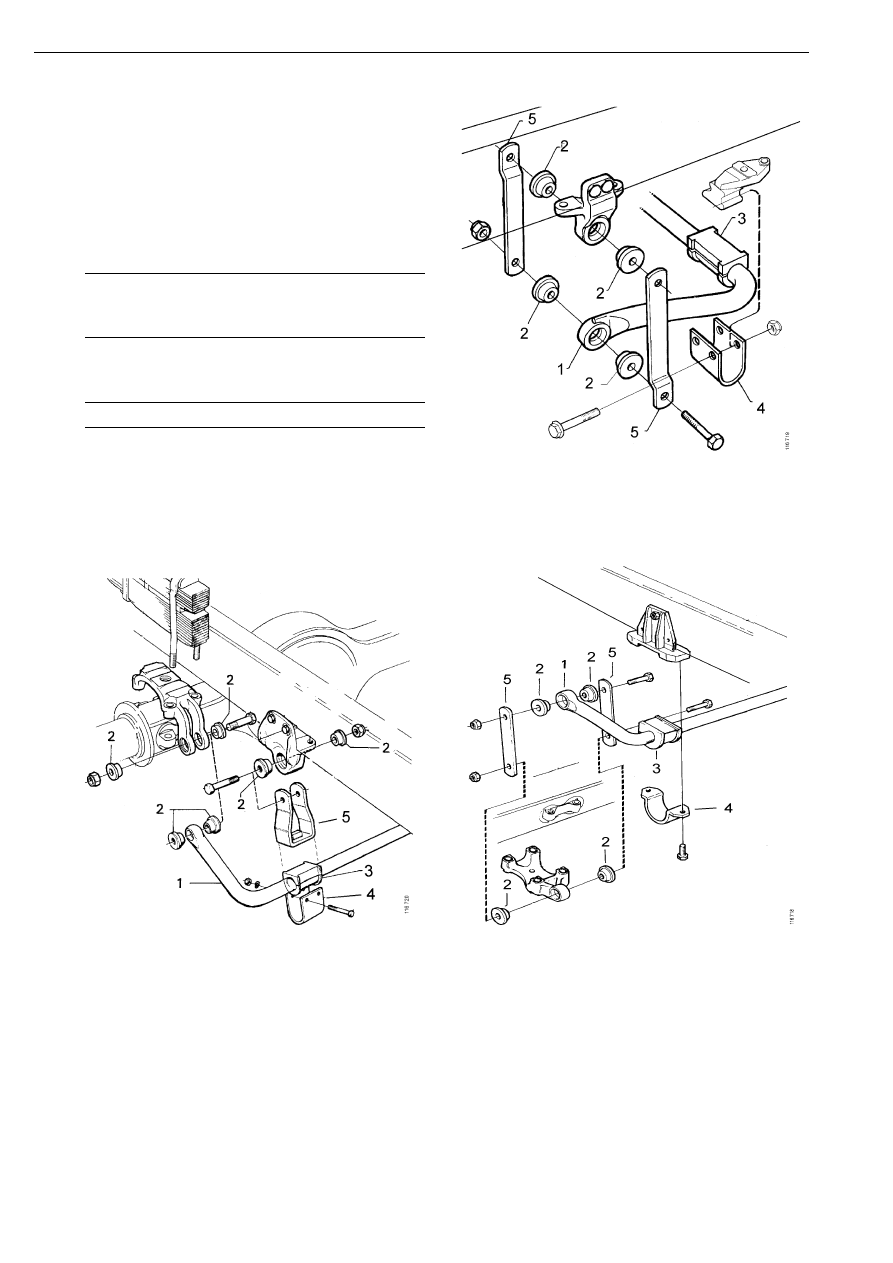

Renewing anti-roll bar bushings

IMPORTANT! Ensure that the truck is on a
level surface so that the torsion bar is relieved
of tension.

Tightening torque

M18 castle nut

290 Nm, then on
to closest split pin
hole.

M20 castle nut

420 Nm, then on
to closest split pin
hole

M20 lock nut

100 Nm

Rear axle with tag axle

Front axle

Rear axle

1

Torsion bar

2

Bushing

3

Bearing

4

Clamp

5

Link

Renewing anti-roll bar bushings
