Scania 16 litre engine. Work Description - part 35





4

ã

 Scania CV AB 2001, Sweden

01:06-02

Removal

IMPORTANT!  While carrying out the work, cover all holes for e.g. turbocharger and fluid filler to
prevent bolts and other parts from entering the engine. Contaminants entering the engine can cause
severe engine damage.

Remove

Remarks

Item no

1

Cab

See 18:01-01.

2

Oil and coolant

3

Mudguards

4

Catwalks

5

Negative cable from battery

6

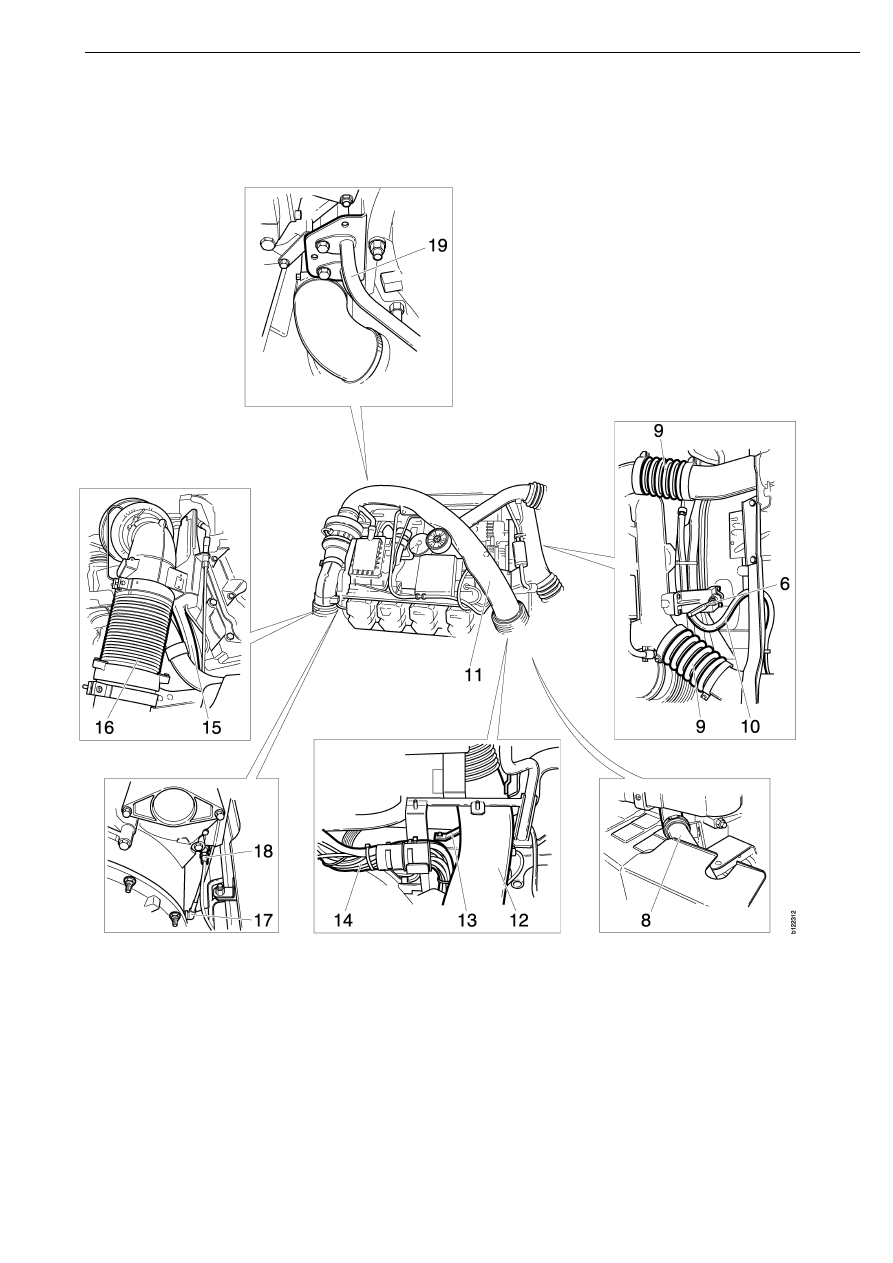

Control cable between thermostat and
electric fan

Detach the housing and place it to one
side. Applies only to vehicles with
electric fan.

6

7

Noise shields under the engine

8

Coolant lines

Upper and lower

8

9

Charge air pipes

9

10

Bleed line from engine to expansion
tank

10

11

Inlet pipe between turbocharger and air
filter

To secure 587 308.

11

12

Front air cleaner pipe and air cleaner

12

13

Bracket

13

14

Wiring

Mark to facilitate fitting.

14

15

Cable duct to engine speed sensor on
the flywheel

15

16

Exhaust brake and exhaust bellows
after the turbocharger

16

17

Cable to speed sensor

17

18

Air hose to exhaust brake

18

19

Oil pipes from gearbox oil cooler

Applies only to vehicles with fluid
cooled gearbox oil cooler.

19

20

Earth braids on the right and left-hand
sides

Removal

01:06-02

ã

5

Removal

6

ã

 Scania CV AB 2001, Sweden

01:06-02

IMPORTANT!  The lifting eyes on the engine are not dimensioned to lift the whole vehicle and
therefore must not be used for this purpose. When lifting the engine, all three lifting eyes must always
be used.

IMPORTANT! The lifting eyes are dimensioned for a maximum lifting angle of 20° when lifting the
engine.

Remove

Remarks

Item no

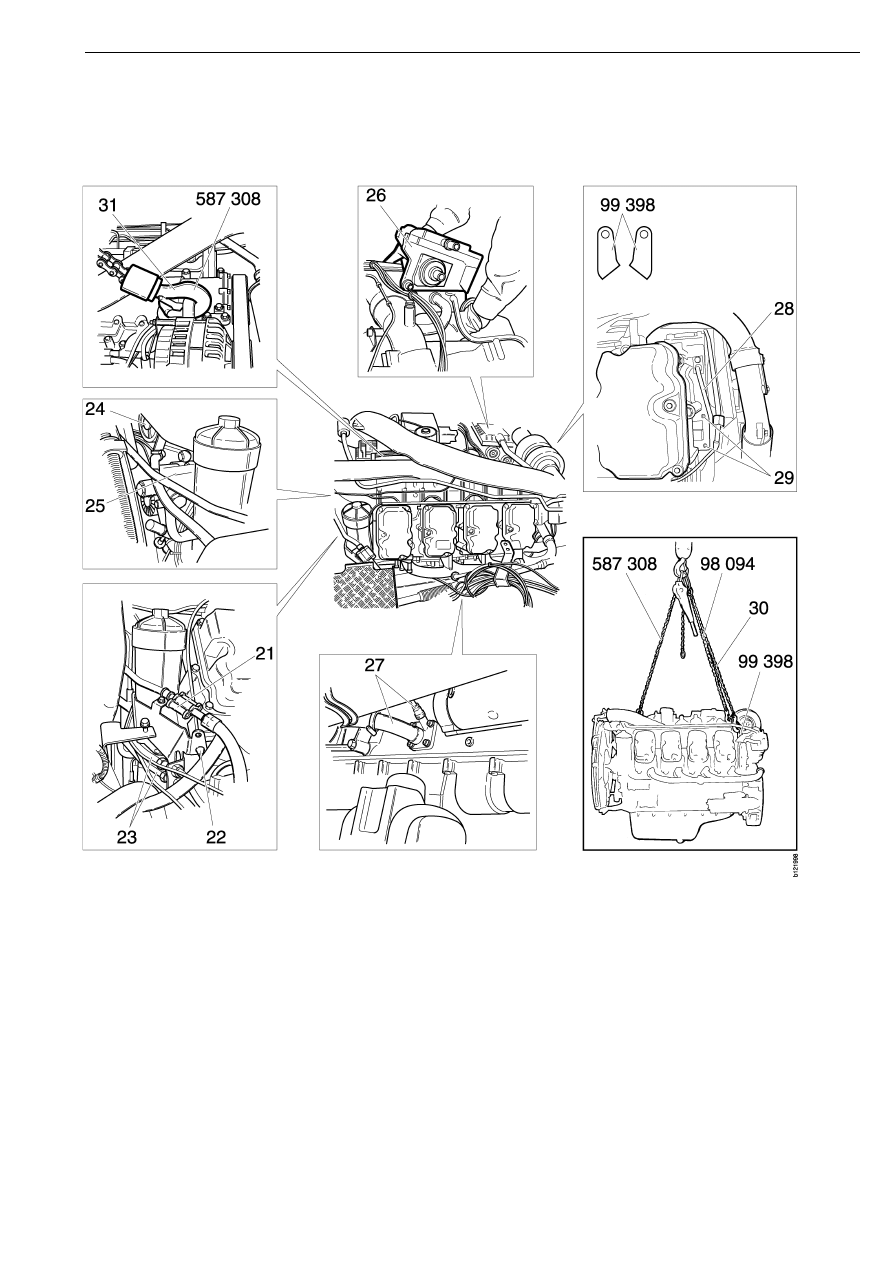

21 Compressed air line

21

22 Signal lead from compressor

22

23 Fuel lines

Mark the lines to facilitate fitting.

23

24 AC compressor

Fold away without detaching hoses.

24

25 Power steering pump

Fold away without detaching hoses.

25

26 Filter housing to crankcase ventilation

Fold away so that it is free from the
lifting chain.

26

27 Fluid filler and oil dipstick

Plug the holes to prevent contaminants
entering the engine.

27

28 Drain pipe for crankcase ventilation

28

Fit

Remarks

Item no

29 Lifting eyes 99 398

One lifting eye at the rear of each
cylinder line. Use flange bolts M12x30
and torque tighten to 92 Nm. The bolt
holes are plugged. Fold away the drain
pipe to fit the right-hand lifting eye, fold
away the fuel pressure test connection to
fit the left-hand lifting eye.

29

30 Lifting chain 99 094 to rear lifting eyes.

30

31 Lever block 587 308 to front lifting eye. The engine lifting angle can be adjusted

with the lever block.

31

Remove

Remarks

Item no

32 Gearbox

See 05:00-01.

33 The two front engine brackets

34 Engine

Removal

01:06-02

ã

7

Removal
